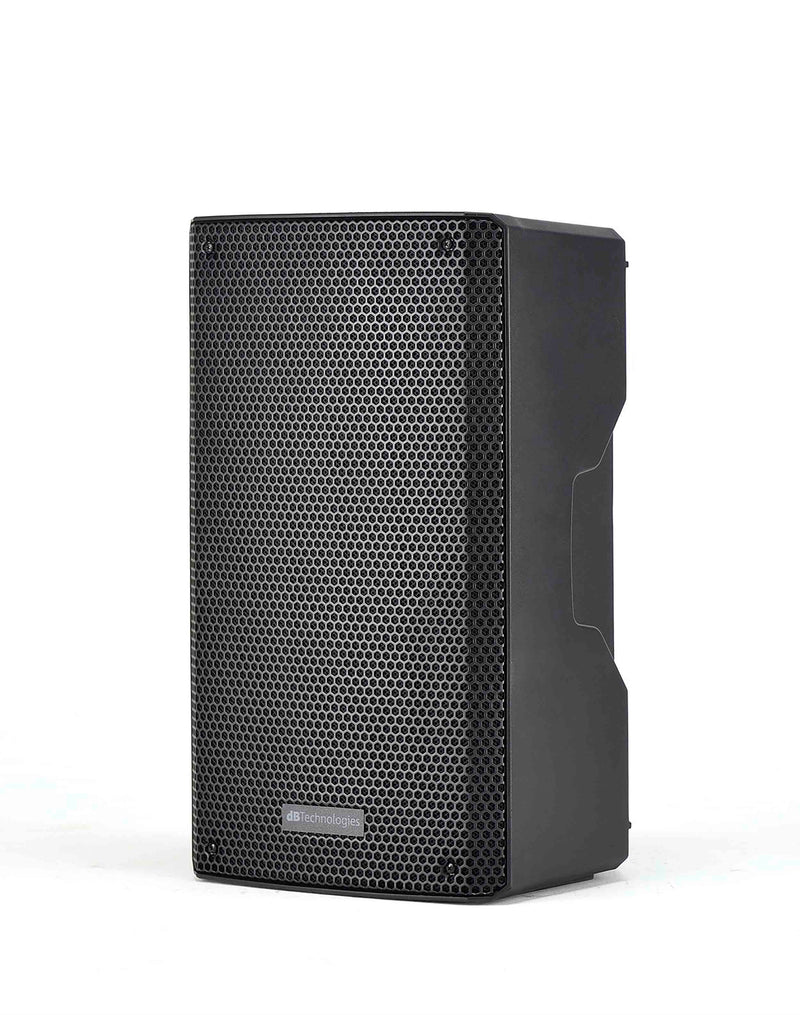

dB Technologies KL 10, 10" 2-Way Bluetooth Active Speaker - 400W

The dB Technologies KL 10 is a 2-way active speaker equipped with one 10” woofer and one 1” compression driver (1” voice coil). The system is driven by a powerful and efficient 400 W amplifier featuring dBTechnologies’ advanced DSP processing where linear phase FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position. Moreover, users are enabled to enhance lower and upper frequencies with the convenient DSP preset function. All cabinets feature 3 INPUT channels with independent level management: CH 1 is a balanced combo XLR/6.3 mm Jack line/mic INPUT with a switch to select source; Ch 2 is a balanced XLR and TRS jack IN; CH 3 allows to connect any device via Bluetooth connection. A balanced link XLR-M Output allows connection to a second loudspeaker or a mixer. A slide switch allow to select which signal is sent to the main output: LINK (the signal is taken before any level control) MIX (the signal is determined by the level control of each channel and Main). The solid and versatile cabinets come with a clean and contemporary full grille design, enhancing both portability thanks to 3 integrated 3 handles (1xside and 1 on top) and multifuncionality: each cabinet can be used horizontally as a stage monitor (on both sides) and features a pole mount cup with 2 tilt angle options (0° and 7.5°) to use KL on tripods or stacked on dBTechnologies Subs. KL comes with its soft cover equipped with a pocket specially designed for cable storage.

Product Specification:

Technical Data

Speaker Type 2-Way Active Speaker

Acoustical data

Frequency Response [-10dB] 55 - 18.000 Hz

Max SPL 125 dB

HF 1" CD, 1"v.c

LF 10", 2" v.c.

Dispersion 90°x60°

Crossover Frequency 2000 Hz (24 dB/oct.)

Amplifier

Amp Technology Class D(LF)+Class AB (HF)

Power Peak (LF+HF) 400 W

Processor

Controls 1xVolume, 1xslide switch mic/line

Indicators power on/signal/limiter LEDs

Controller DSP 20/56 bit

AD/DA Converter 24 bit/ 48 Hz

Systems Presets Playback, Flat, Bass Boost, Wedge

Limiter Peak, RMS, Thermal

Advanced DSP Functions Linear Phase FIR Filters

Input

Signal Input 1x Combo(XLR/Jack)

Mic/Line

1xXLR/TRS

Bluetooth Input 1xBluetooth receiver

SIGNAL Out 1xXLR Male (LINK/MIX)

Mechanics

Housing Polypropylene

Handles 3 (2 on side 1 on top)

Angles Up Monitor Use 40°

Pole Mount 36 mm, double positioning
