Description
The dB Technologies LVX 8 loudspeakers series is the answer to all those fixed installations and live music requirements where sound reinforcement systems must be lightweight, stylish, portable, powerful and in line with the highest professional standards. Coming from the experience gained in designing touring products as the renowned DVX series, the new LVX series offers smart solutions with a special attention to the needs of fixed and portable installations.

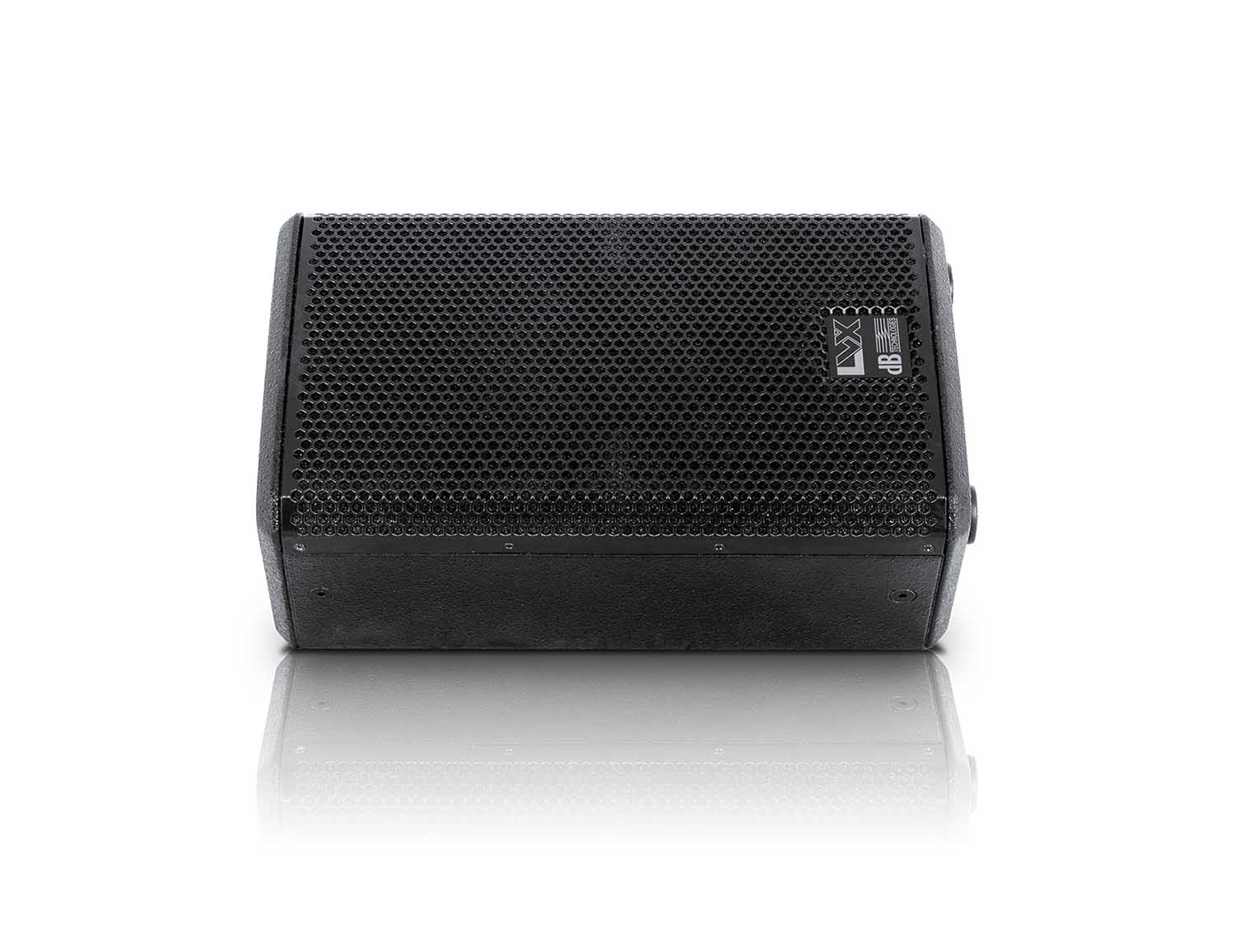

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance. Four models available: LVX 8, 10, 12 and 15. The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45°
The LVX series uses DIGIPRO series digital amplifiers with powers ranging from 400W (LVX 8 and 10) to 800W PRG (LVX 12 and 15). These highly efficient amplifiers provide high power, limited weight and are totally silent due to the low thermal dissipation and no cooling fans required. The digital preamp with DSP controls audio crossover, frequency response, dual active peak-RMS- thermal limiter, and acoustic alignment. A selector enables to select one of two different equalizations - “FLAT” or “PROCESSED” - to provide the right sound in any occasion.
Product Specification:
Technical Data
Speaker Type2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 65 - 20.000 Hz
Frequency Response [-6dB] 80 - 19.000 Hz
Max SPL 121 dB
HF 1"
Directivity 90 x 70°
Horn Rotatable CD Horn
LF 8"
Amplifier
Amp Technology Digipro G2
Amp Class Class-D
Peak Power 800W
PRG Power 400 W
Processor
Controller DSP 24bit/48kHz
System Presets Flat, Processed
Limiter Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF 2050 Hz
Slope LF-HF 24 dB/Octave
Mechanics
Housing MDF
Angles Up Monitor use 40°
Handles 1x top side, recessed
Rigging points 10 x M8
Pole Mount D36 mm
