Description

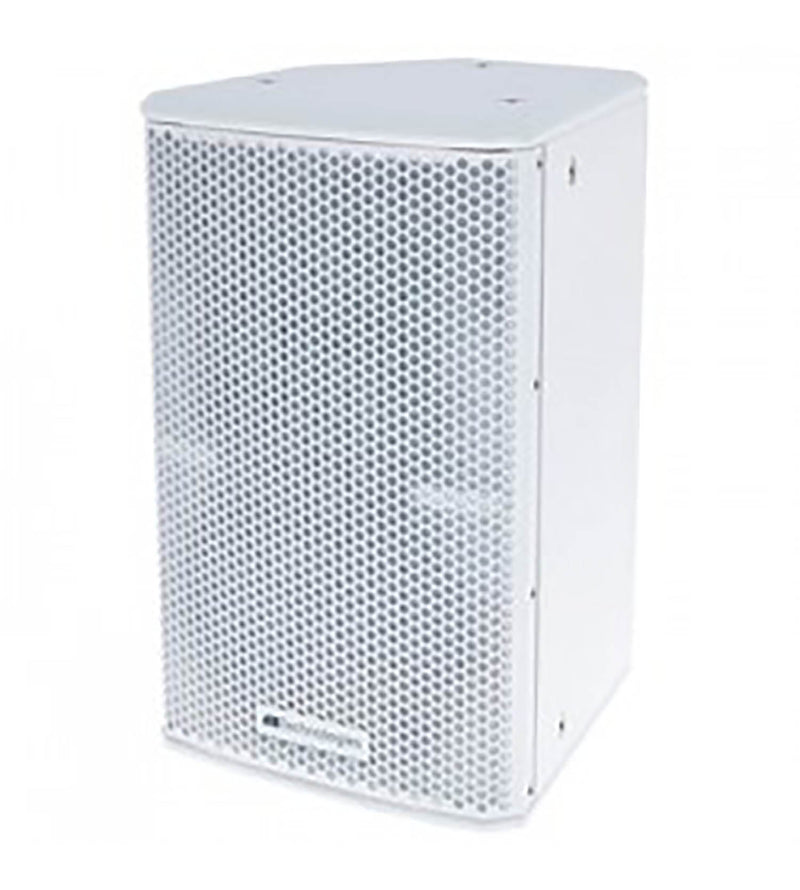

The dB Technologies LVX P12 WHITE cabinets are equipped with premium components and are designed to render speech, live or background music in medium to large venues delivering a clear, detailed audio performance. Full range LVX P12 provides a 90°x60° dispersion pattern and is equipped with a rotatable horn to guarantee the same HF coverage even in case of horizontal install. The solid plywood enclosures features a clean, install-friendly design featuring 12 M8-thread rigging points to ease installation with dedicated horizontal (WB-LP12H or vertical brackets (VB-LP1215V). The cabinet features 1 integrated handle per side and a 36 mm pole mount plate. All enclosures and accessories of LVX P series are available in black or white version.
Product Specification:
Technical Data
Speaker Type2-Way Passive Speaker
Acoustical data
Peak Power 800 W
Impedance 8 Ohms
Frequency Response [- 10 dB] 65- 21.000 Hz
Max SPL 127 dB
HF 1 “, 1.35" v.c.
Directivity 90x60°
Horn Rotatable
LF 12“, 2" v.c.
Input
Signal Input 1x Speakon (Pin 1+=+) (Pin 1-=-)
Signal Output 1x Speakon (Pin 1+=+) (Pin 1-=-)
Mechanics
Housing Plywood
Pole Mount 36 mm
Angle Up Monitor use 40°
Rigging Points 12 x M8
Handles 2 (1X side)
