Description

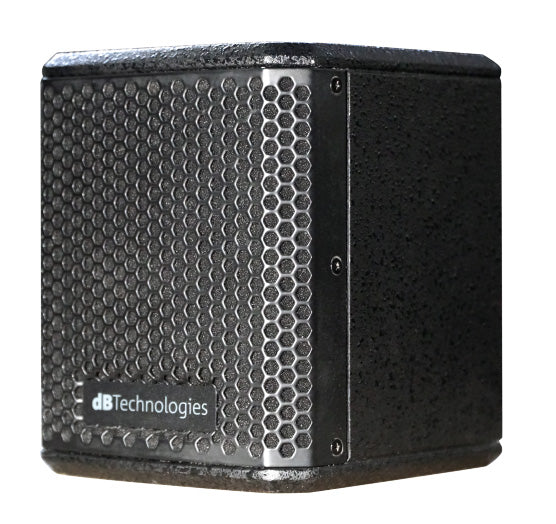

The dB Technologies LVX P5 8 OHM is a passive speaker equipped with a full-range single transducer (5” LF and 1” HF). The most efficient acoustic design, allowing an extended coverage pattern (135°x135°) and a vigorous SPL up to 115 dB, makes this mini full range system the perfect solution to render speech or background music in small venues.
The solid plywood enclosure features a clean, install-friendly design with rigging points on top and side to ease installation on ceiling or wall via the included bracket. LVX P are equipped with Phoenix connectors. 8 or 16 Ohm versions are available for use with dBTechnologies ATI amplifiers. The cabinet comes in black or white, just like all other cabinets in LVX series.
Product Specification:
Technical Data
Speaker Type Full-range wooden passive loudspeaker
Acoustical data
Impedance 8 Ohms or 16 Ohms
Frequency Response [-10 dB] 100 Hz -20 kHz
Max SPL 115 dB
Directivity 135x135°
LF 5", 1" v.c.
Peak Power Handling 120 W
Input
Connector Type 2-pole Phoenix connector type
Mechanics
Housing Plywood
Accessories Wall/ceiling mounting bracket (included)
