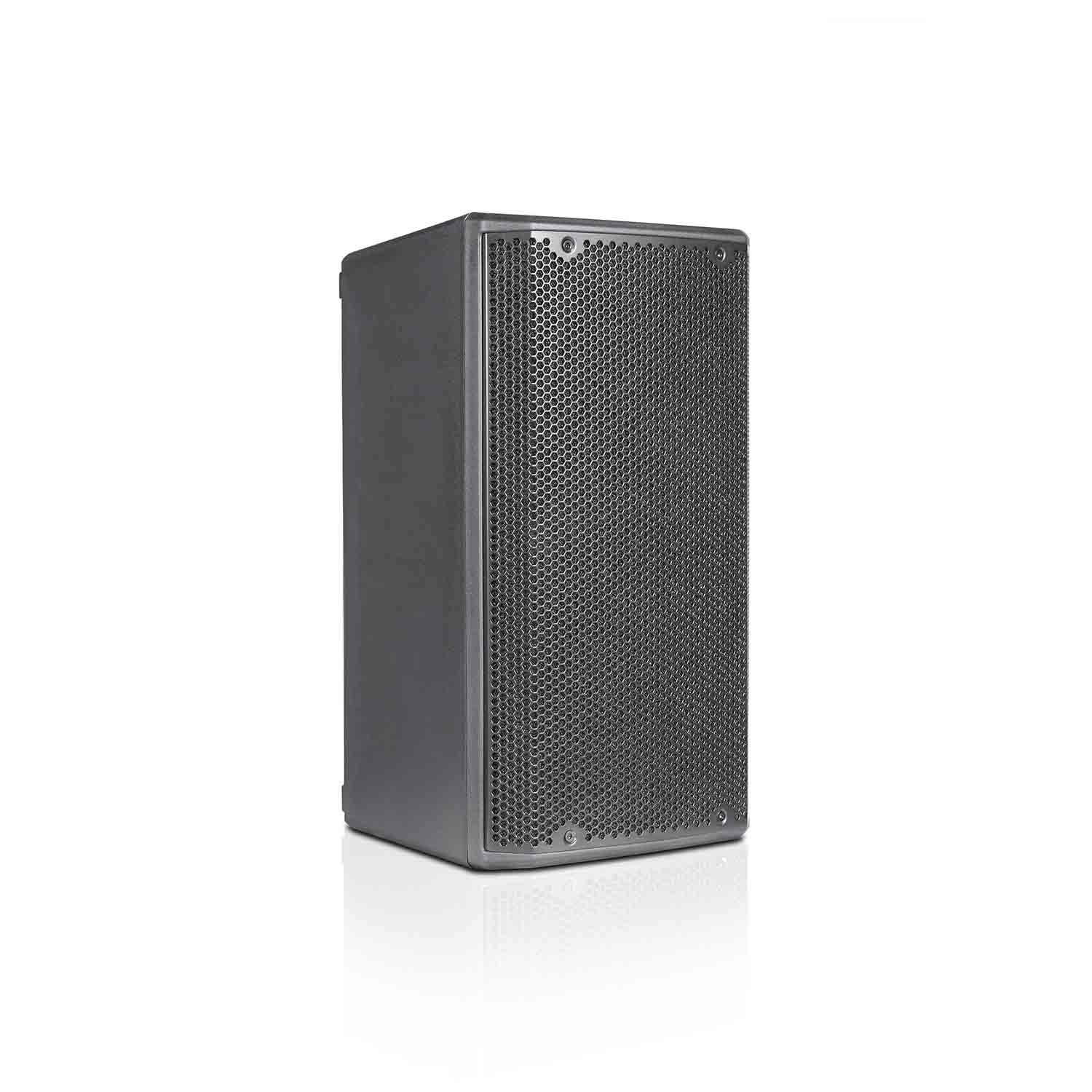

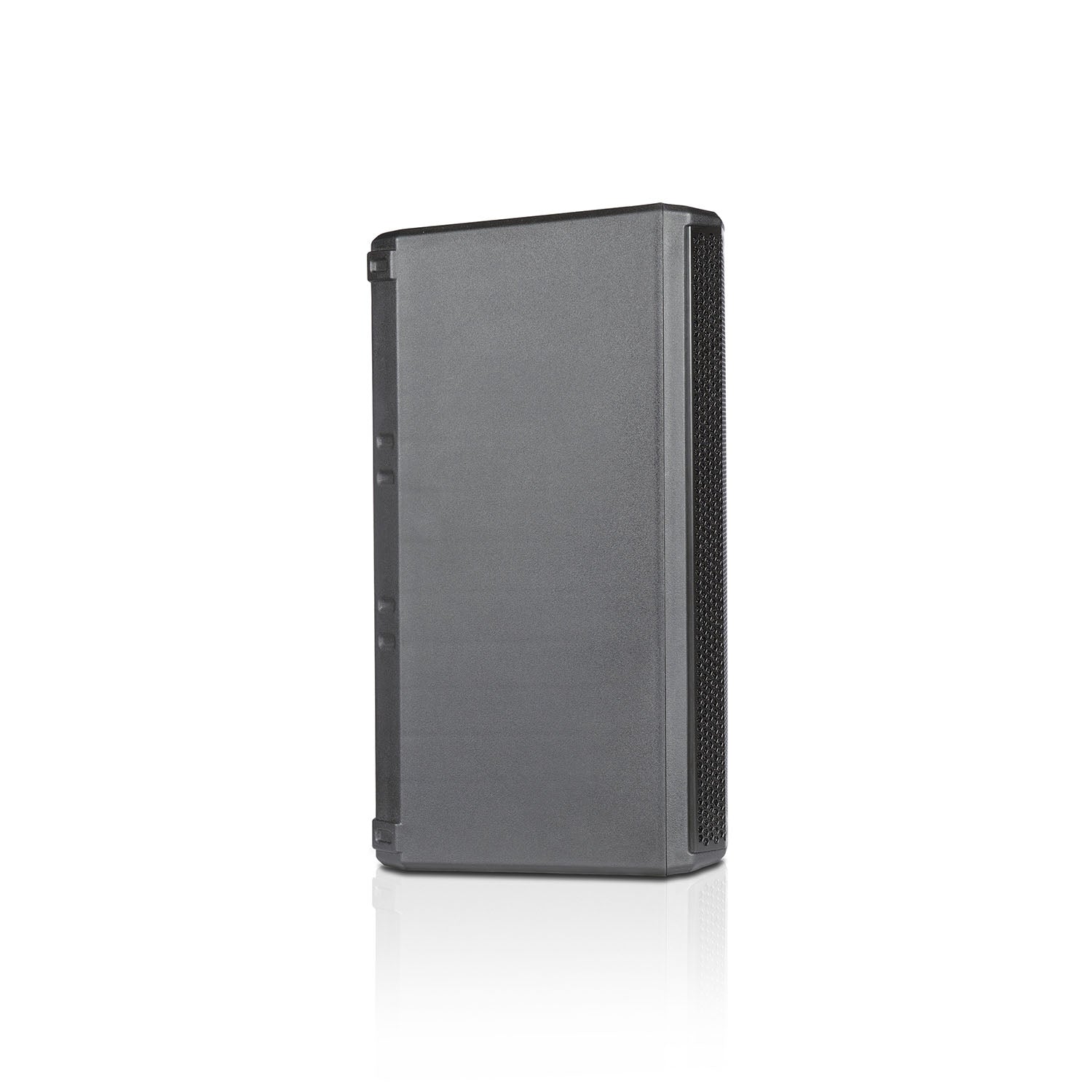

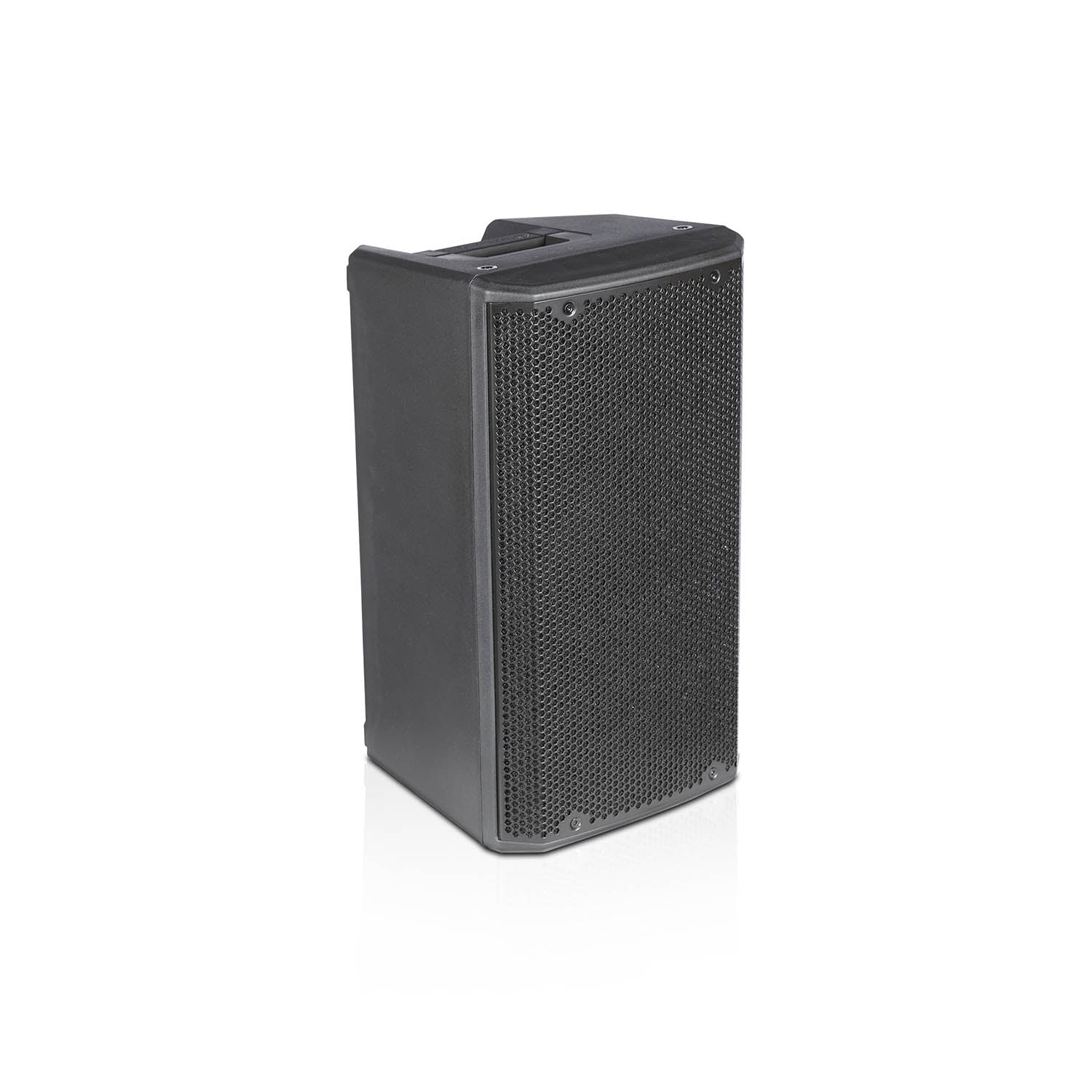

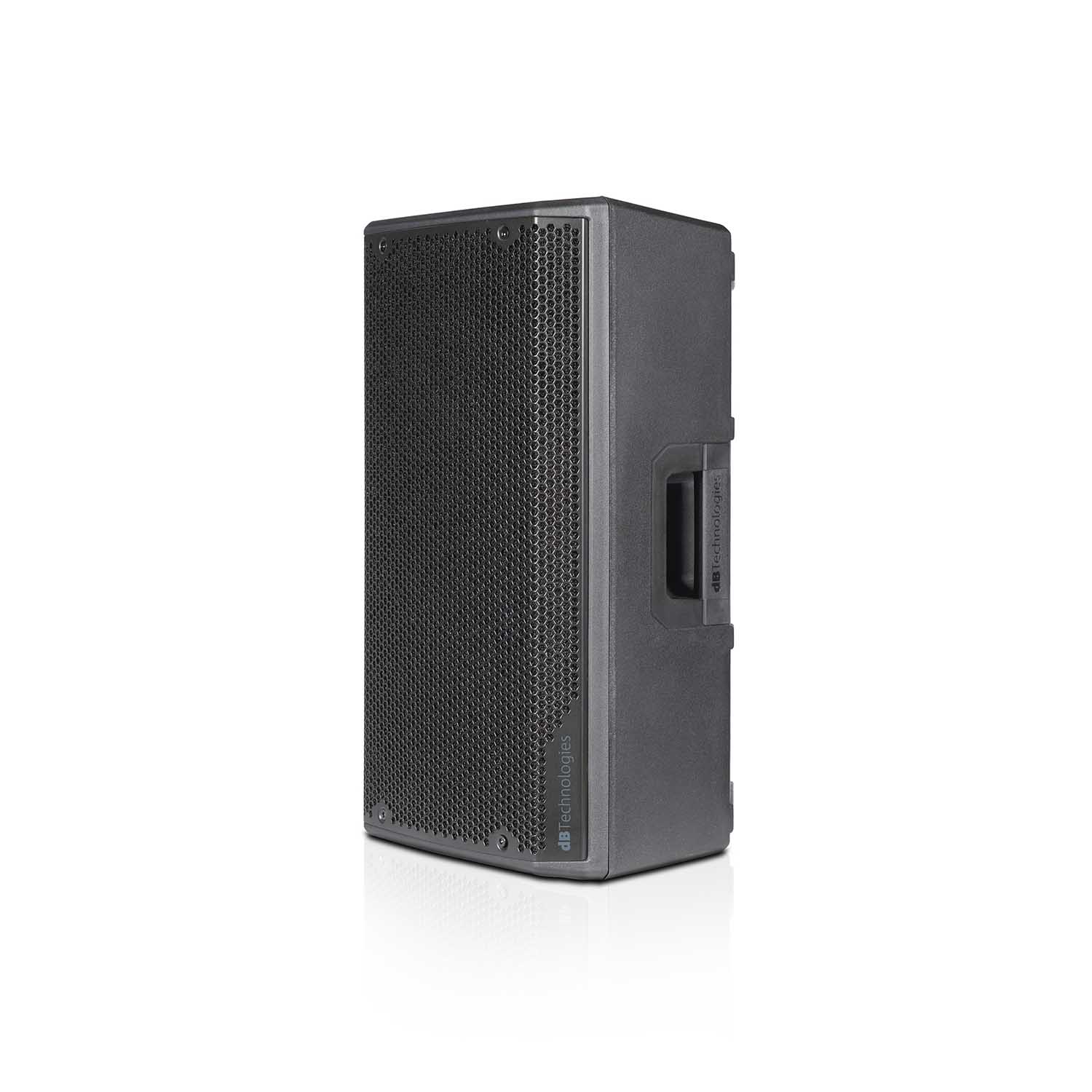

dB Technologies OPERA 10, 10" 2-Way Active Speaker - 600W

The dB Technologies OPERA 10, with the new OPERA series, dBTechnologies succeded once again in packing leading edge DSP processing, advanced design features and user friendliness in an unrivalled cabinet in its price range. Exceptional power and a unique acoustic design combine in order to deliver a vigorous yet pristine sound, successfully adaptable to both playback and live music applications. Opera’s asymmetrical horn has been completely redesigned in order to obtain both an asymetrical vertical dispersion and a double horizontal dispersion, ensuring an optimized throw pattern. The system is equipped with a powerful Class D 600 W amplifier featuring advanced DSP processing where FIR filters allow the systems to deliver a coherent audio performance, uniform and crystal-clear from every listening position.

Product Specification:

Technical Data

Speaker Type 2-Way Active Speaker

Acoustical data

Frequency Response [-10dB] 58 - 20.000 Hz

Frequency Response [- 3dB] 70 - 19.600 Hz

Max SPL 128 dB

HF 1" Exit, 1.4 v.c.

Type HF Compression driver

Horizontal Directivity 100° (85° up/120° down)

Vertical Directivity 85° (+ 25°/-60°)

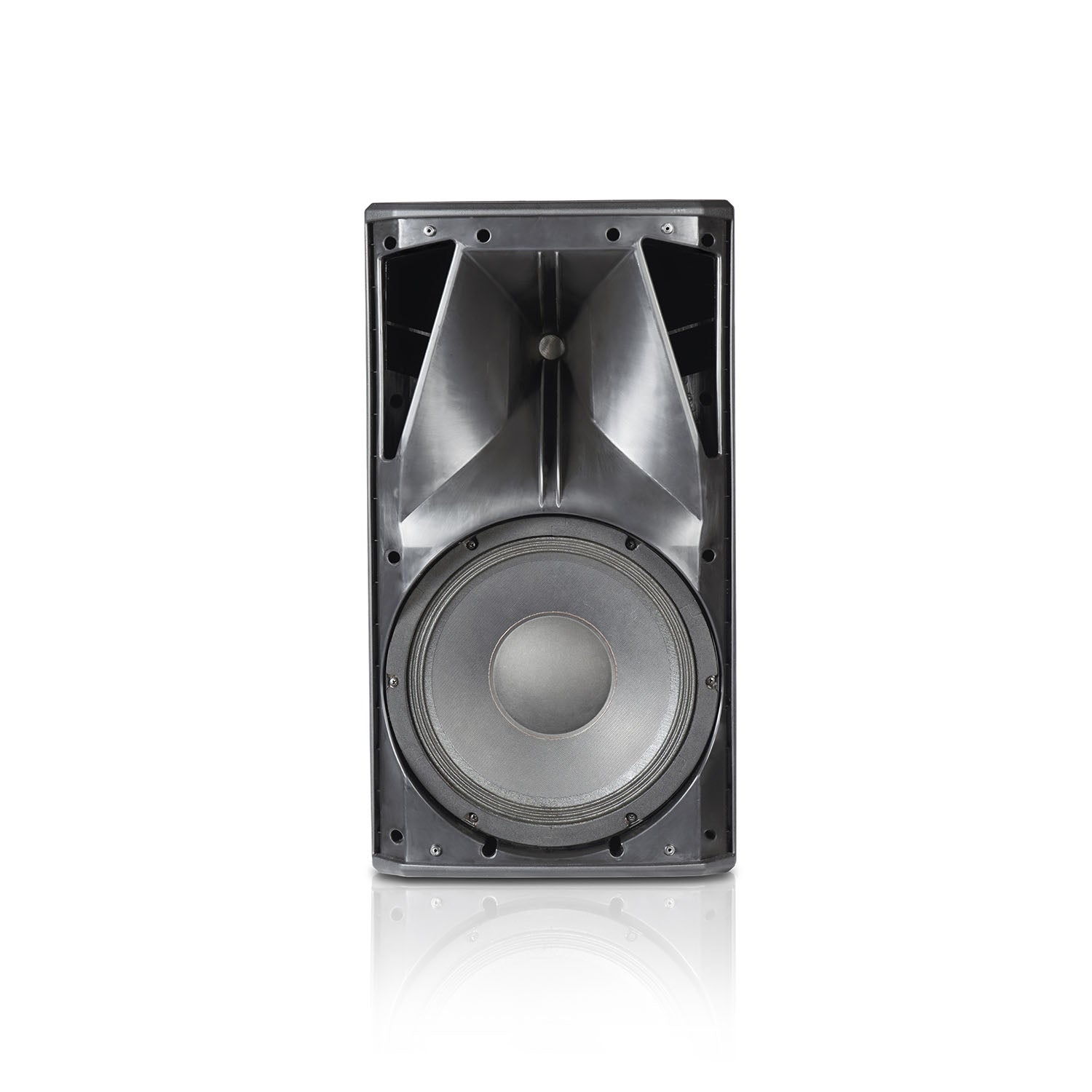

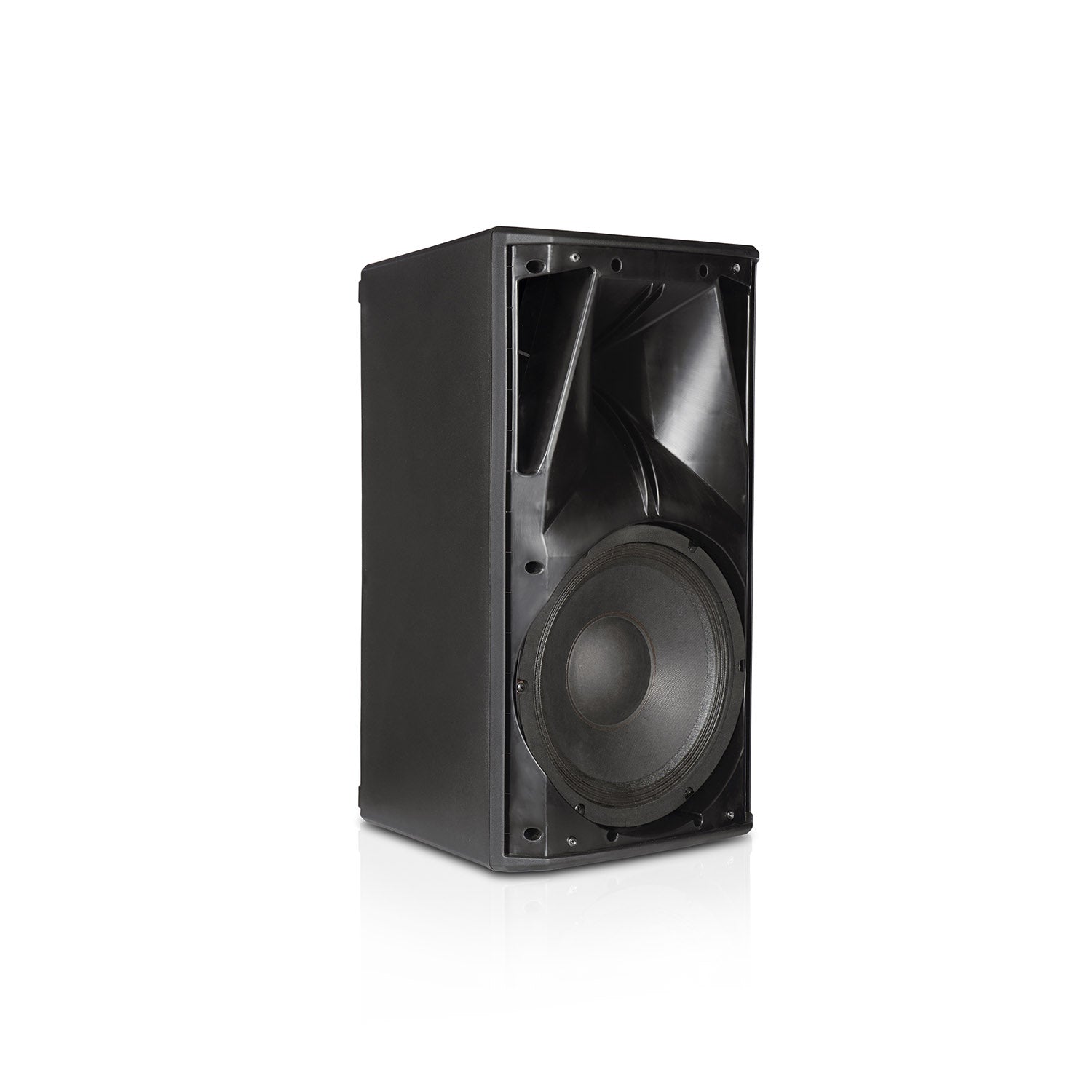

Horn Asymmetrical Horn

LF 10", 2" v.c.

Amplifier

Amp Technology Amp SMPS Power supply dual range

Amp Class Class D

RMS Power 600 W

Peak Power 1200 W

Processor

Controller DSP 56 bit

AD/DA Converter 24 bit/48 KHz

System Presets Rotary Encoder (8 Presets)

Cross Over Frequency2000 Hz

Limiter Peak, RMS, Thermal

Advanced DSP Functions Linear Phase FIR Filters

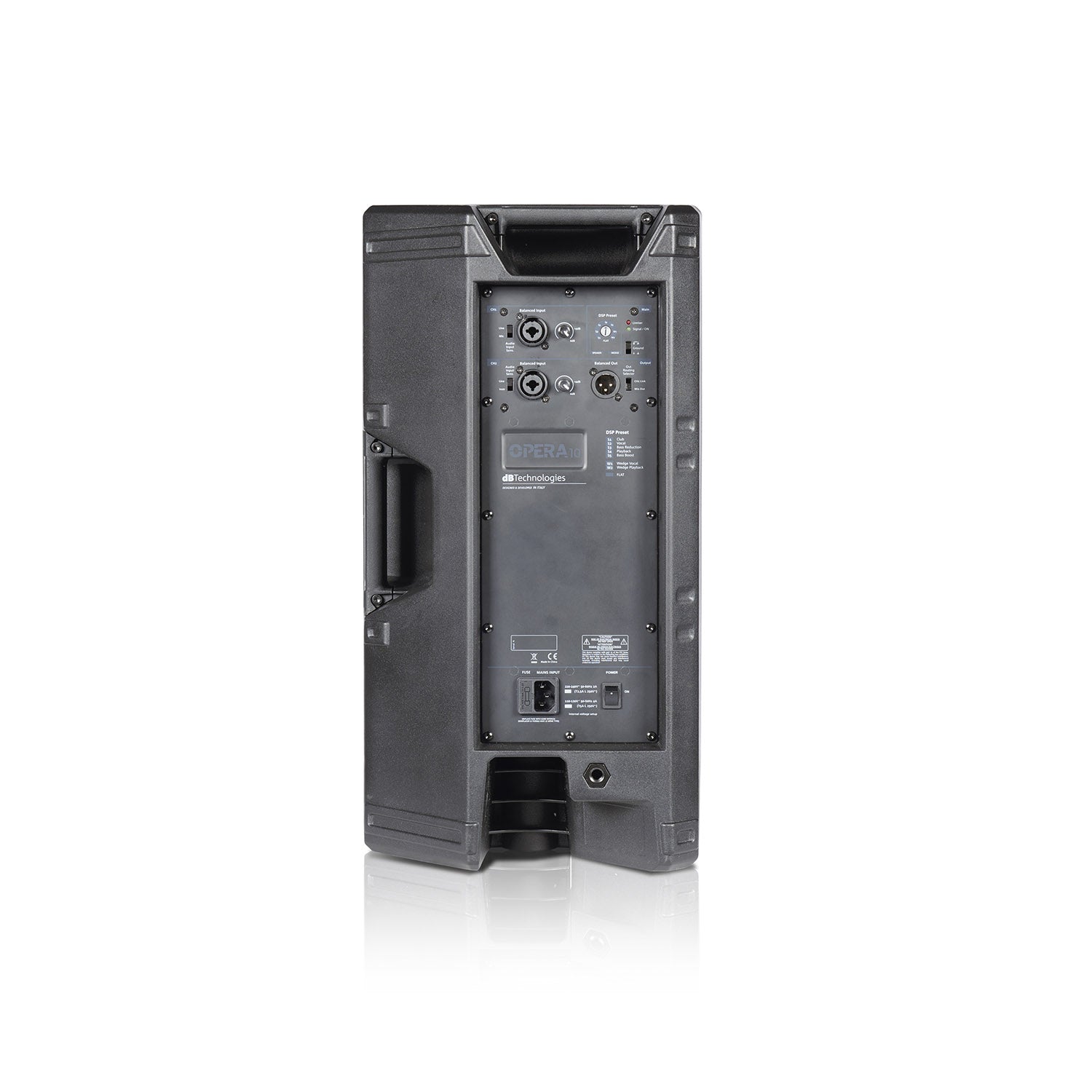

Input

Signal Input 1xCombo (XLR/Jack 6.3 mm) MIC/Line

1xCombo (XLR/Jack 6.3 mm) MIC/Inst

Signal Output1x XLR Male (CH1 Link/Mix OUT)

Selectable

Mechanics

Housing Polyproylene

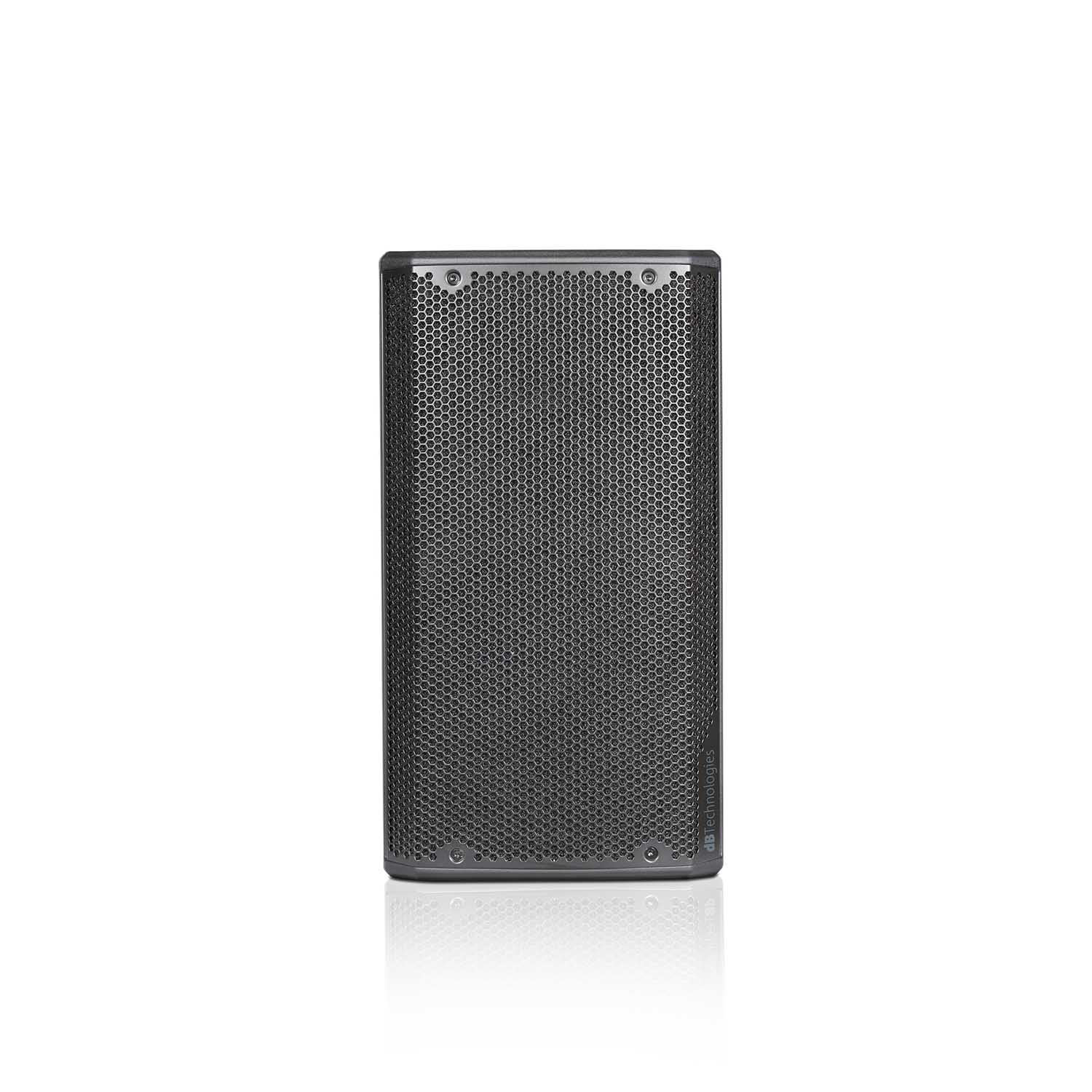

Grille Full grille

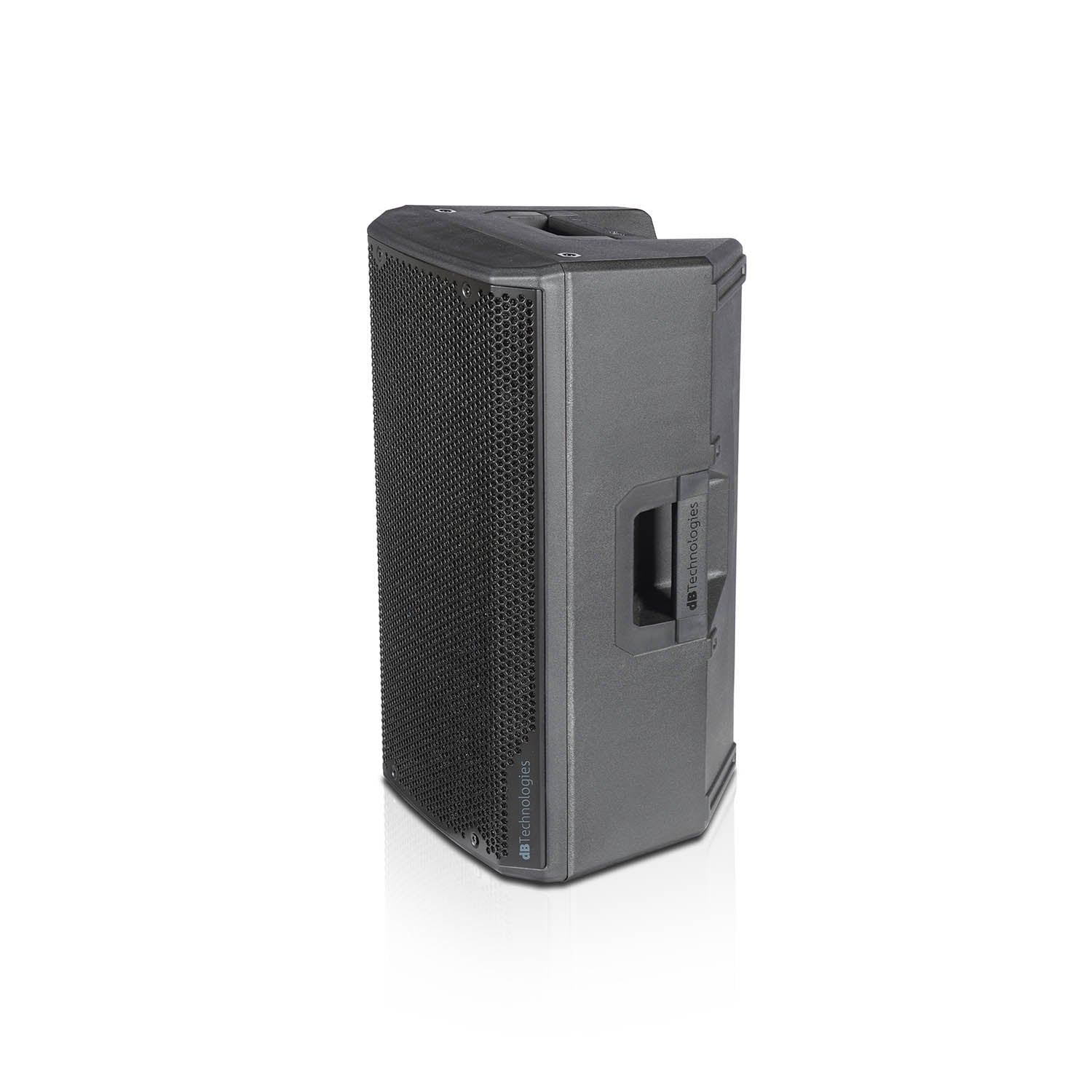

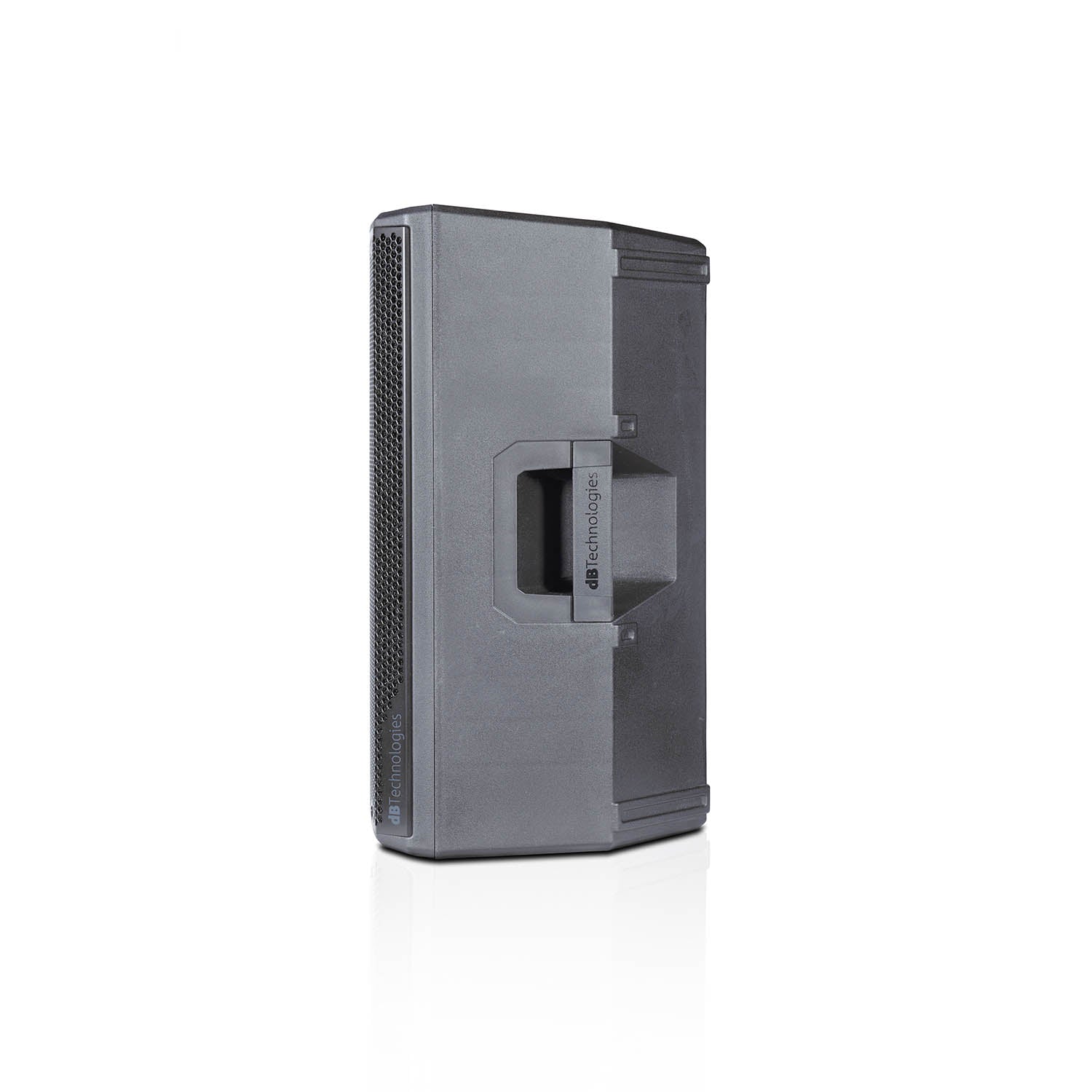

Handles 1 on left Side, 1 on Top

Rigging Points 2XM10 on Top + 1x M10 on Back

Pole Mount D36 mm

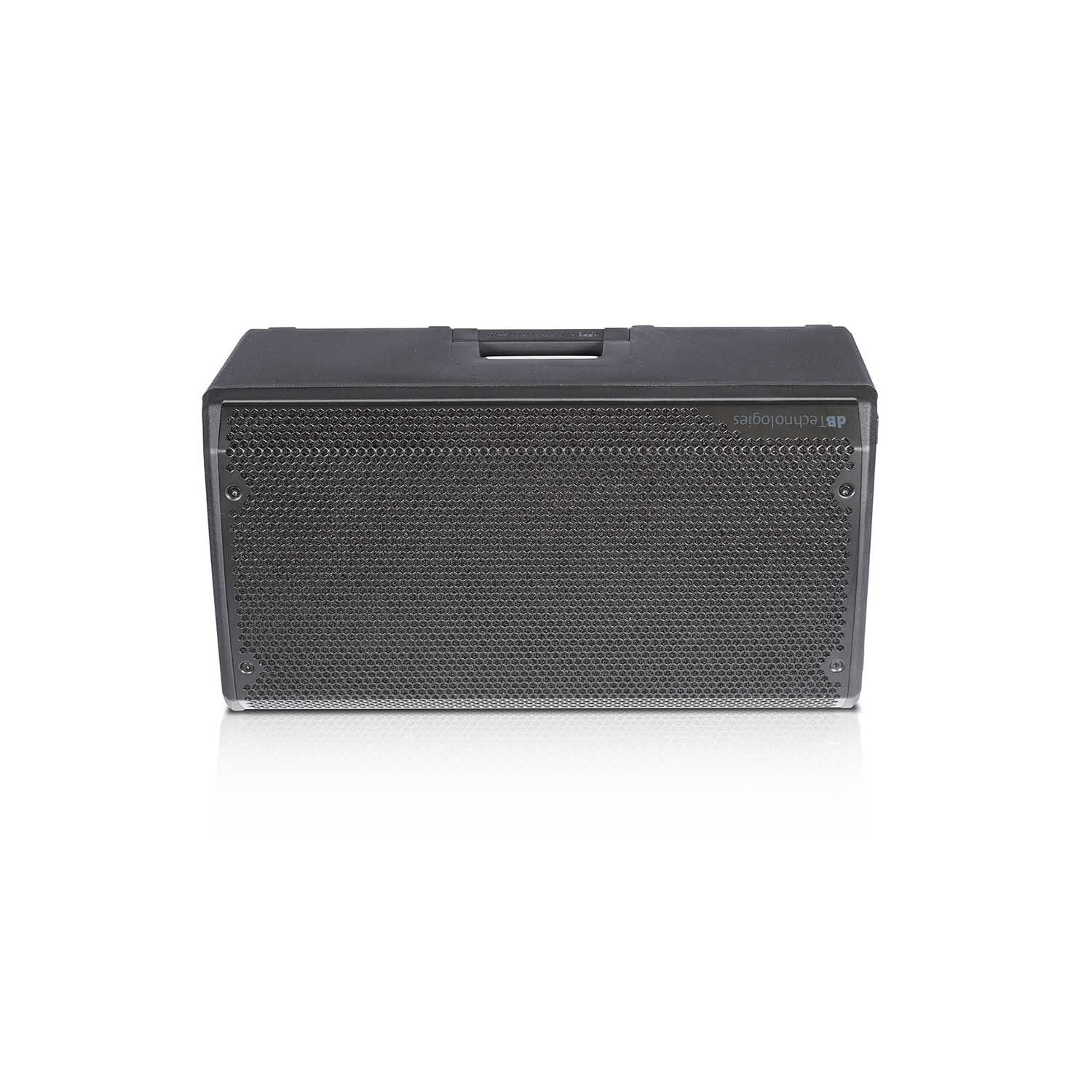

Angles up Monitor use 45°
