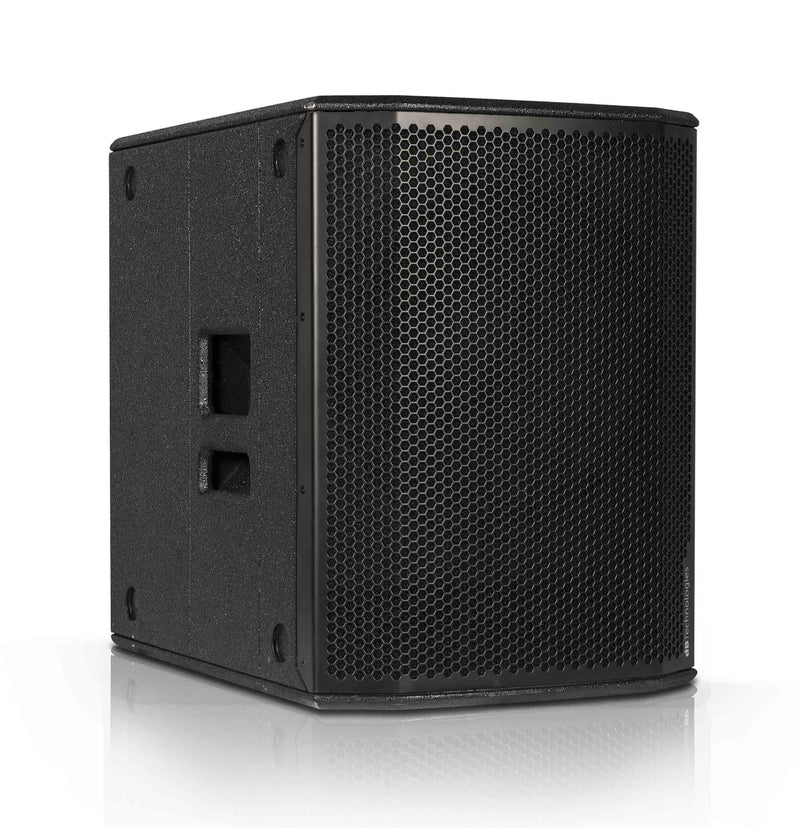

dB Technologies SUB 615, 15" Active Subwoofer - 600W

The dB Technologies SUB615 is a bass-reflex active subwoofer featuring a 600W RMS Class D SMPS Power Amplifier and is equipped with a 15” transducer. The system delivers outstanding sound pressure levels (up to 131dB) in spite of its compact housing, while providing a clean, impressively precise low-end reproduction. Sub 600s’ outstanding audio performance allow user to build most of the PA systems with 1 single sub and 2 full range speakers, avoiding any external processing or crossover thanks to a balanced Xover signal to left and right speakers. Controls on the amp panel allow user to operate with Mono or Stereo audio feed, activate polarity inversion and choose Outputs link mode (True Bypass or Xover). Whenever a further punch is needed, a low-frequencies boost EQ can be set thanks to the Sub Mode switch. The series comes with a full grille design in a lightweight (25 kg) wood cabinet strengthened with a hardwearing, scratch-resistant black covering. Side handles enhance portability. The design of the top side eases subs stacking for larger systems and features a M20 pole mount thread to stack full-range speakers.

Product Specification:

Technical Data

Speaker Type Active Subwoofer

Acoustical data

Frequency Response [-10dB] 42 - 124 Hz

Max SPL (1 m) 131 dB

Directivity omnidirectional

LF 15"

LF Voice Coi l2.5"

Amplifier

Amp Technology SMSP digital amplifier

Amp Class Class D

RMS Power 600 W

Peak Power 1200 W

Processor

Controller 28/56 bit DSP

Limiter Peak, Thermal, RMS

Controls Subwoofer level, Outputs mode, Polarity, Subwoofer mode

Input

Signal Input 2x XLR (balanced)

Signal Output 2x XLR (balanced)

Mechanics

Housing Plywood

Grille Full metal grid

Pole Mount M20
