DBX VENU360-V DriveRack Complete Loudspeaker Management System

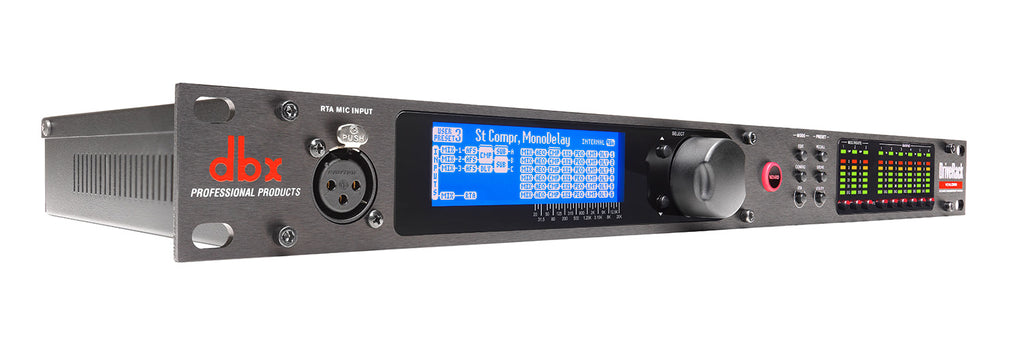

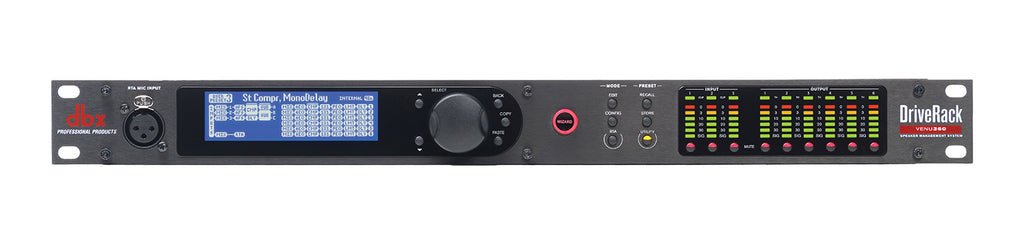

The DBX VENU360-V DriveRack is a loudspeaker-management processor designed to protect and optimize front-of-the house, stage monitor, delay-fill, and zone loudspeaker systems in clubs, outdoor music events, or houses of worship. Connect the VENU360 between your mixer and amplifiers/powered speakers, and use it for precise feedback elimination, automatic speaker level and room equalization, crossover-frequency setting, dbx compression/limiting, driver alignment delay, and more. The unit provides a 5 x 6 routing/mixing matrix (using four AES signals and one analog signal) and a 3 x 6 signal processing chain. The 24-bit A/D and D/A converters with dbx Type IV conversion protect the incoming audio signal from accidental digital clipping at the A/D stage, while the 32-bit floating point, 48 / 96 kHz internal processing produces professional audio quality with high headroom and wide dynamic range. For easy operation, the Wizard functions guide you through simple, step-by-step processes to help you quickly configure the unit. For more control, you can use the manual mode which lets you customize each parameter separately. A large, bright, LCD display and nine 6-segment signal meters provide easy-to-read visual feedback. Additionally, the free DriveRack VENU360 control application offers network control via the built-in Ethernet port, and is available for iOS, Android, Mac, and Windows-compatible devices.

Product Specification

Specification	Value
Input	(3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input

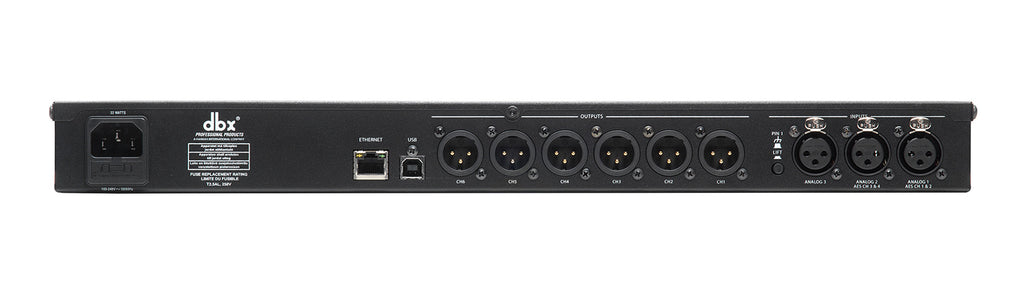

Input Connectors	(3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input
Input Type	Electronically balanced/RF filtered
Input Impedance	> 30 kΩ, balanced line to line
Max Input Level (line inputs)	> +28 dBu, balanced, ≤1% THD
CMRR	> 50 dB @ 1 kHz
RTA Mic Preamp Phantom Power	+48 VDC
Output	(6) Line Outputs
Output Connectors	Male XLR
Output Type	Electronically balanced, RF filtered
Output Impedance	120 Ω, balanced line to line
Max Output Level	+22 dBu, balanced, ≤1% THD
Alignment Delay	Up to 1000 ms per output channel
A/D Converter	24-bit with dbx Type IV Conversion System
A/D Dynamic Range	117 dB A-weighted, 114 dB unweighted, 22 kHz BW
D/A Converter	24-bit
D/A Dynamic Range	116 dB A-weighted, 113 dB unweighted, 22 kHz BW
Internal Processing Wordlength	32-bit floating point
Supported Sample Rates	48/96 kHz (32-192 kHz using sample rate conversion)
System Performance Dynamic Range	114 dB A-weighted; 110 dB unweighted
THD+Noise	0.0025% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response	20 Hz – 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk	< -97 dB, -105 dB typical 20-20 kHz, +4 dBu, all channels measured
Operating Voltage	100-240 VAC 50/60 Hz
Power Consumption	18 W
Unit Weight	5.48 lbs. (2.49 kg)
Shipping Weight	7.10 lbs. (3.22 kg)
Dimensions	1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W)
