Description
The Zone Controllers offer extended utility to the Drive Rack and ZonePRO families. The nine Zone Controllers use analog DC voltage to provide logic control ranging from zone source selection, volume and muting, to program or scene selection and fire safety muting. Wired with readily available and affordable CAT5 cable with universally accepted RJ-45 connectors at distances up to 1000 ft, the ZC Zone Controllers offer simple yet elegant solutions to the contractor.

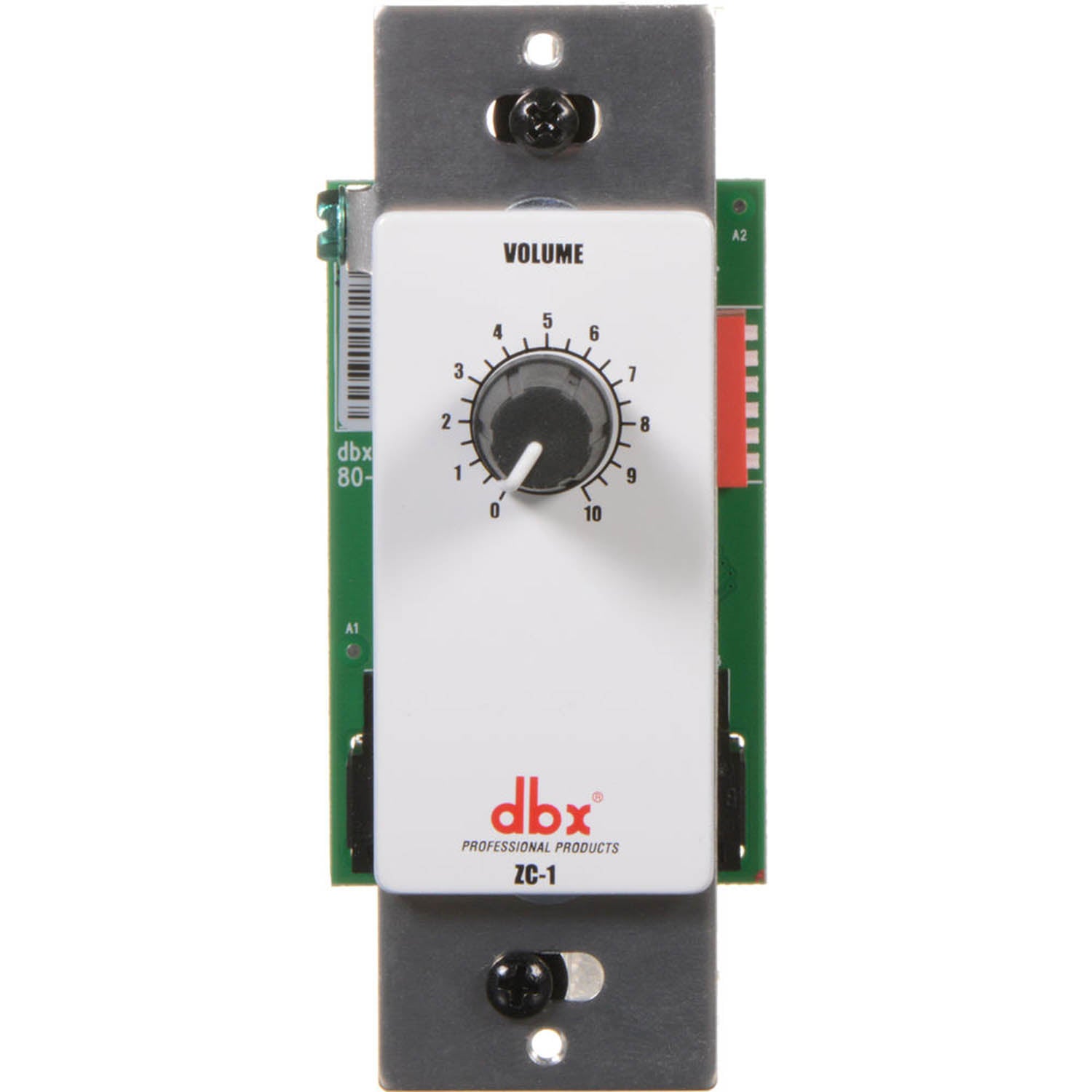

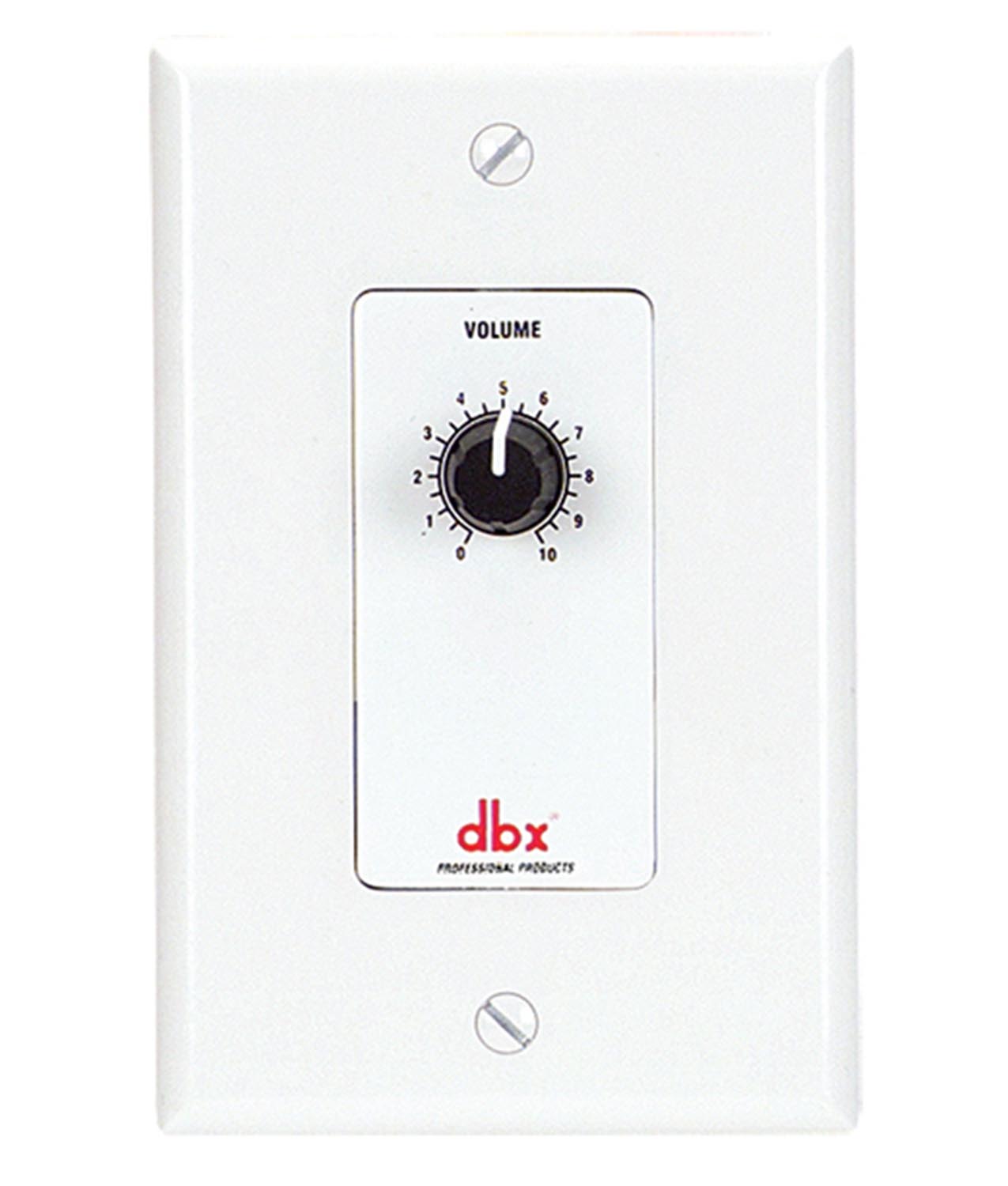

The ZC-1 from DBX is a wall-mount programmable rotary volume control for use with Drive Rack 260, 220i, and ZonePro systems. It has two RJ-45 connectors for use with CAT5 cables. Maximum cable length will vary depending on number of zone controllers connected to a system.
Product Specification:
Connectors: (2) RJ-45
Series Wiring: Maximum Cable Length varies with number of Zone Controllers.600 ft.300 ft.
Parallel Wiring using ZC-BOB: Up to Six Zone Controllers: 1000 ft.
Parallel Wiring Cable: CAT5 or CAT5E with 28.6 Ohm/M (Ohm/1000ft.) nominal DCR and rated VW-1 or higher.
Package Weight: 0.435 lb
Box Dimensions (LxWxH): 6.85 x 5.65 x 3.55"
