Description

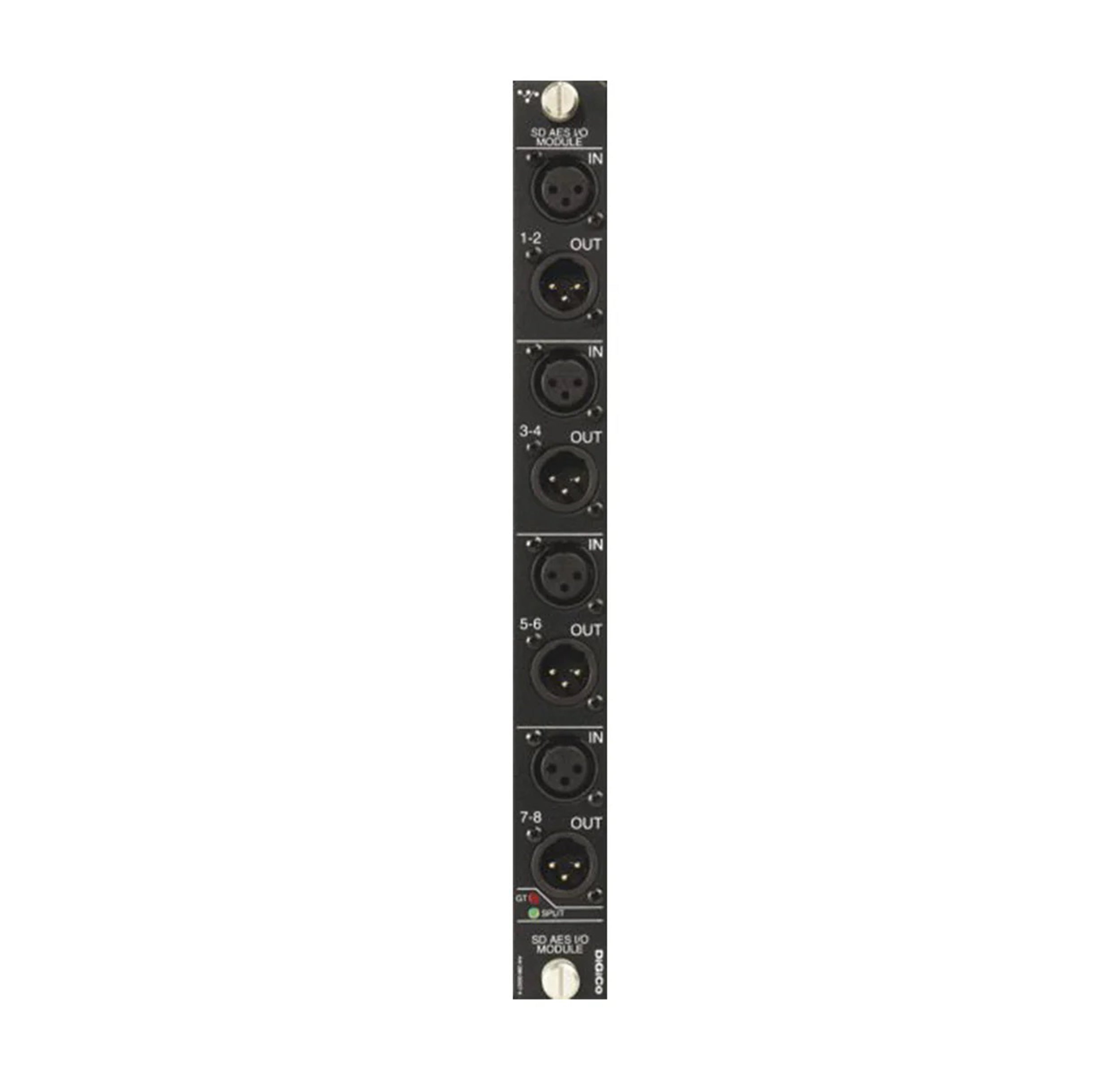

This card offers users 4 stereo AES input channels and 4 stereo AES output channels for the DiGiCo SD-Rack, Sd-MiNi Rack, SD-Nano Rack and 4REA4. Features: 4 (stereo) AES input channels and 4 (stereo) AES output channels Sample rate conversion on inputs and outputs Compatible with SD-Range.
Product Specifications:
Standards: Complies with Or Exceeds AES3 (Or IEC-60958 Type I) 2003.
Input Impedance: 110 Ohm Transformer Balanced +/- 5%. Optional: 75 Ohm Unbalanced +/- 5%
Sample Rate – Input Range: 32 Khz to 99 Khz (Sample Rate Conversion On). Sample Rate
Conversion Switchable Per AES Input
Sample Rate – Operating Rate: 44.1 Khz, 48 Khz, 96 Khz +/- 2Hz @ 48 Khz
Frequency Response: 20 Hz to 20 Khz (0dbfs)
Resolution: 24db (Sample Rate Conversion Off)
Standards: Complies with Or Exceeds AES3 (Or IEC-60958 Type I) 2003.
Output Impedance: 110 Ohm Transformer Balanced +/- 5%. Optional: 75 Ohm Unbalanced +/- 5%
Sample Rate – Operating Rate: 44.1 Khz, 48 Khz, 96 Khz +/- 2Hz @ 48 Khz
Output Jitter: 120-100K Peak 3ns Average 800ns. 50-100K Peak 5ns Average 2.2ns
Frequency Response: 20 Hz to 20 Khz (0dbfs)
Resolution: 24db (Sample Rate Conversion Off). Sample Rate Conversion Switchable Per AES Output On Appropriately Specified Output Modules Only
