Description

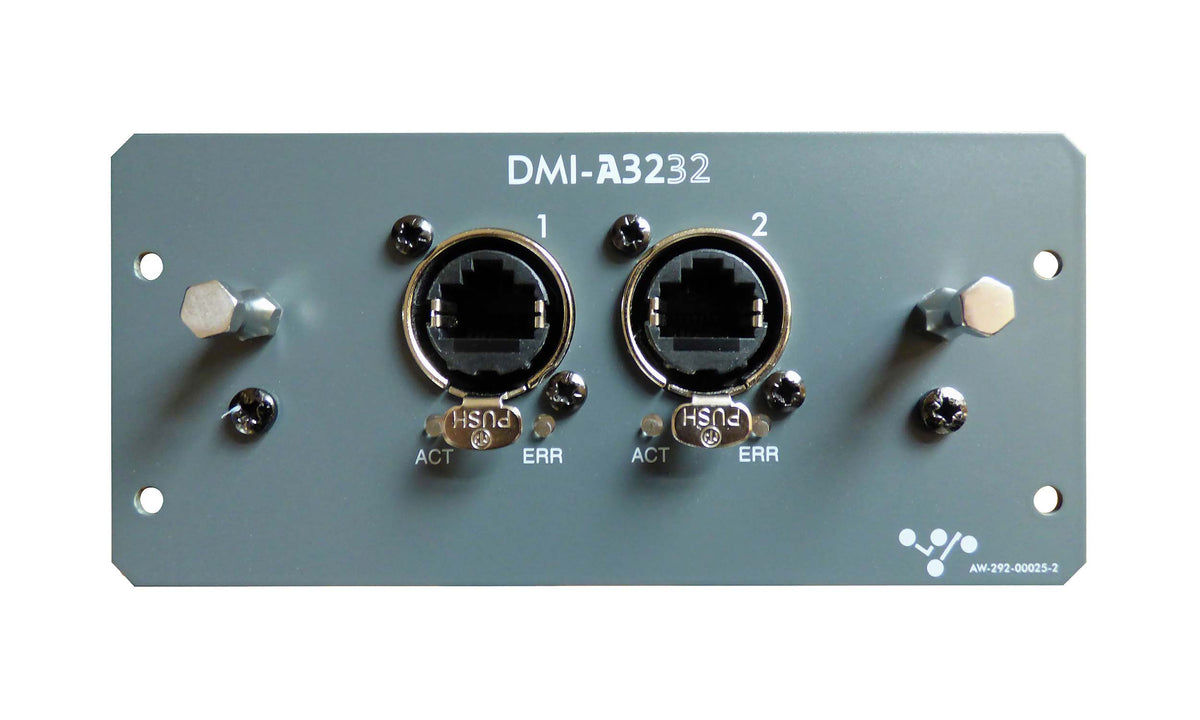

The DiGiCo MOD-DMI-A3232 provides S-Series consoles with connectivity to DiGiCo A168 STAGE stage racks. It uses the DiGiCo A3232 protocol to transport digital audio and control data between the console and connected stage boxes. The card features two EtherCON ports for connecting compatible A168 STAGE units. Each port supports up to 32 inputs and 32 outputs, providing extensive I/O capacity across the card. This makes the DMI-A3232 an efficient solution for expanding S-Series console I/O. It is designed for professional live sound systems requiring flexible remote stage connectivity.
High-Capacity I/O
The DMI-A3232 supports a total of up to 64 inputs and 64 outputs across its two EtherCON connections. Each individual port can handle up to 32 inputs and 32 outputs when operating within its supported configuration. This provides substantial channel capacity for connecting multiple A168 STAGE units to an S-Series console. The available I/O can be configured according to the requirements of the production or installation. The high channel count allows engineers to distribute microphones and outputs across connected stage boxes. This makes the card suitable for larger live sound and event production systems.
Cascade Mode
The DMI-A3232 supports cascade mode for expanding the number of connected A168 STAGE stage boxes. In cascade configuration, two A168 STAGE boxes can be connected to each EtherCON port on the card. This allows up to four A168 STAGE boxes to be connected to a single S-Series console. The configuration can provide up to 64 inputs and 32 outputs when used in the specified cascade arrangement. Cascade mode helps simplify system cabling while allowing multiple stage boxes to share each network connection. This provides a practical solution for productions requiring distributed stage I/O.
Redundant Mode
Redundant mode allows a single A168 STAGE box to be connected to both EtherCON ports on the DMI-A3232. This provides redundant cabling between the console and stage rack for improved connection reliability. If one cable path experiences a problem, the redundant connection can provide an alternative communication route. This configuration is particularly useful in professional live sound environments where connection reliability is critical. Engineers can select the appropriate operating mode according to the requirements of the production. The redundant architecture provides additional confidence for demanding touring and event applications.
Remote Input Control
The DMI-A3232 provides remote control over important input parameters on connected A168 STAGE units. Engineers can control microphone preamp gain from +5 dB to +60 dB directly from the compatible S-Series console. Phantom power can also be controlled remotely for connected microphone inputs. A 20 dB pad is available to accommodate higher-level input sources and provide additional headroom. These controls allow stage rack inputs to be configured directly from the console position. This reduces the need for engineers to physically access stage boxes during setup and live operation.
Flexible Sample Rate and System Integration
The DMI-A3232 supports both 48 kHz and 96 kHz operation for flexible integration with compatible DiGiCo systems. Its modular design allows the card to be installed into an S-Series console for direct A168 STAGE connectivity. The two EtherCON connections provide flexible options for standard, cascade, and redundant configurations. The card is designed to integrate audio transport and remote stage rack control into a single system. This makes it suitable for touring, live performance, broadcast, and professional event applications.
Product Specifications:
Product Type: DMI-A3232 A168 STAGE Interface Card
Protocol: DiGiCo A3232
EtherCON Ports: 2
Maximum Input Channels: 64
Maximum Output Channels: 64
Cascade Mode: Up to 64 Inputs / 32 Outputs
A168 STAGE Connectivity: Up to 4 Units
Operating Modes: Cascade / Redundant
Redundant Mode: One A168 STAGE Connected to Both Ports
Input Gain Control: +5 dB to +60 dB
Phantom Power Control: Supported
Input Pad: 20 dB
Sample Rates: 48 kHz / 96 kHz
Console Compatibility: DiGiCo S-Series
Stage Rack Compatibility: A168 STAGE
Primary Applications: Live Sound, Touring, Broadcast, Events and Stage I/O Expansion
Product Weight: 0.55 lbs.
Product Dimensions (L x W x H): 6.94" x 4.98" x 2.28"
