Digico Q8-LOOP2-OP Optic Loop 2 Multi-Mode HMA for Quantum 852 - Includes 5M Jumper

The Digico Q8-LOOP2-OP Optic Loop 2 Multi-Mode HMA for Quantum 852 - Includes 5M Jumper with a second optical loop, providing additional fiber connectivity for professional audio networking. It is ideal for systems that require greater flexibility and higher channel capacity.

Rugged HMA Fiber Interface

Equipped with robust HMA fiber connectors, this option is designed for demanding live production environments. The secure locking mechanism offers reliable performance while withstanding frequent setup, teardown, and transport.

High-Performance Multi-Mode Fiber

The multi-mode optical interface delivers fast, low-latency transmission of digital audio and control data between compatible DiGiCo equipment. It ensures dependable communication across short- to medium-distance fiber links.

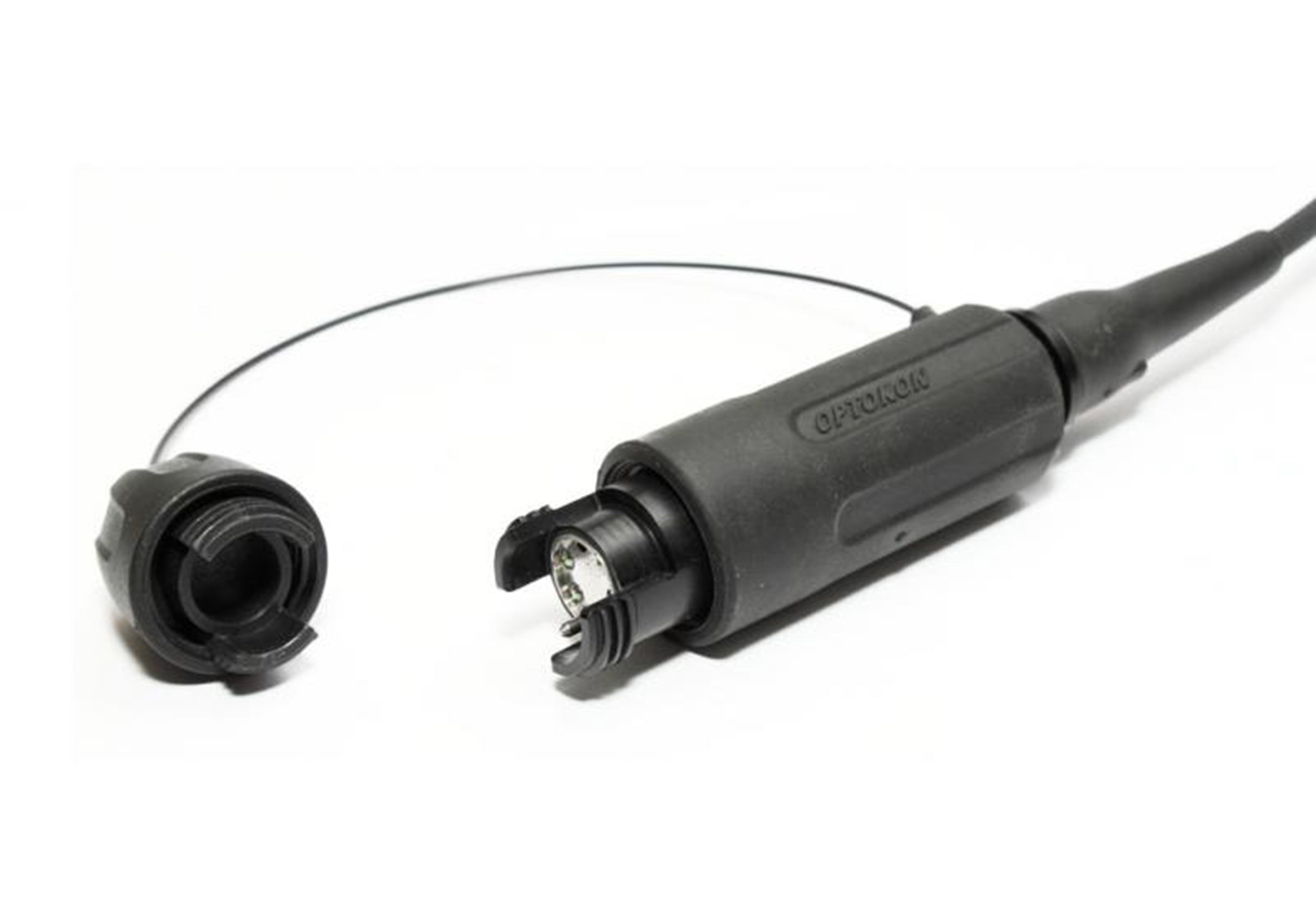

Includes 5-Meter Fiber Jumper

A 5-meter HMA multimode fiber jumper is included for quick and convenient installation. This ready-to-use cable simplifies system integration and helps reduce installation time.

Enhanced System Reliability

The additional optical loop can be used to create redundant network paths or support more complex audio infrastructures. This improves overall system reliability for mission-critical live, broadcast, and touring applications and factory-fitted for the DiGiCo Quantum 852, the Optic Loop 2 Multi-Mode HMA option integrates seamlessly with the console. It preserves the system's professional design while ensuring full compatibility with supported optical networking configurations.

What’s in the Box:

• 5M Jumper
• Connection: MADI x 8, Optics x 1, Internal Waves Card, UB-MADI, DMI Port x 2
• Connectors: BNC, ST

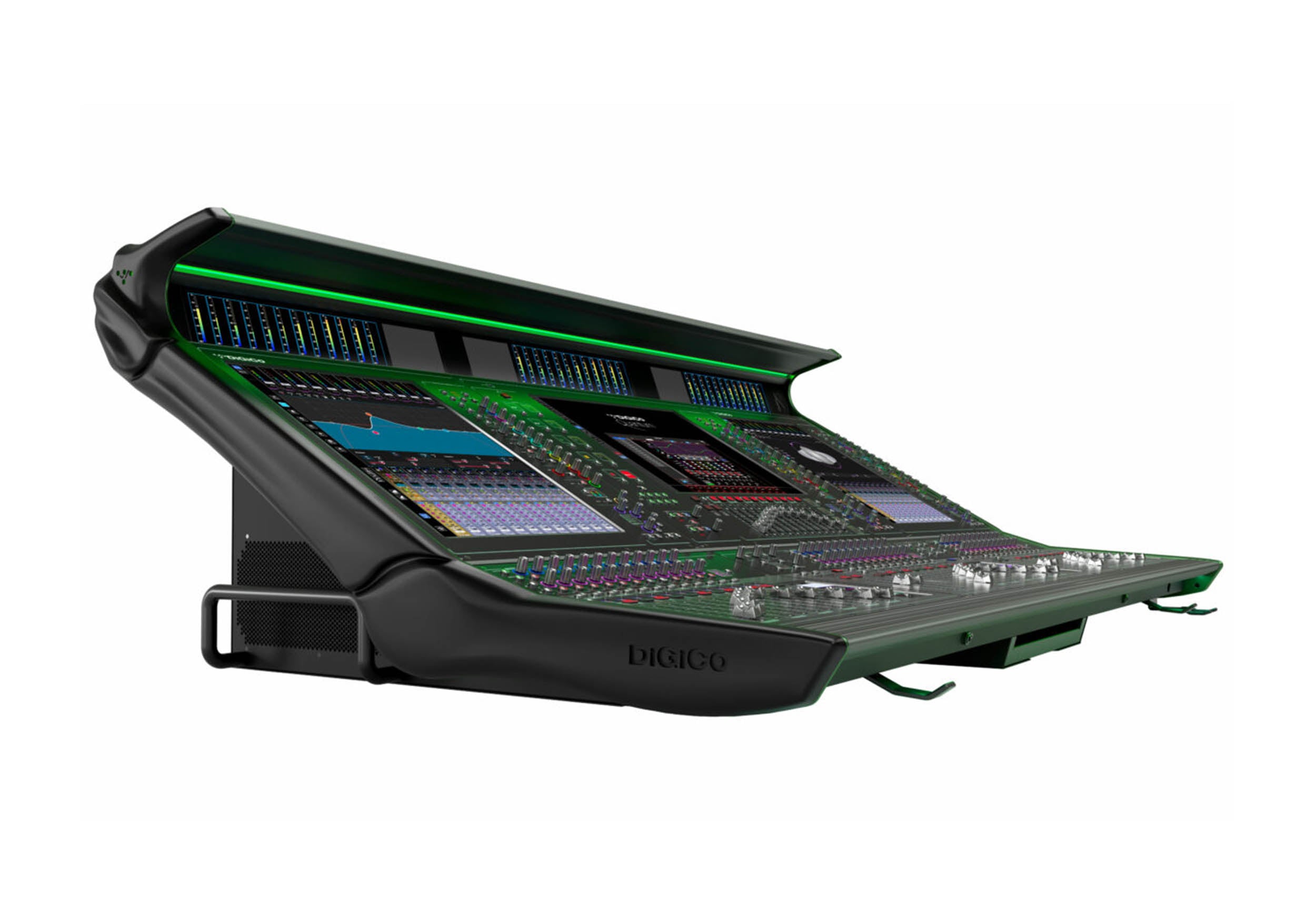

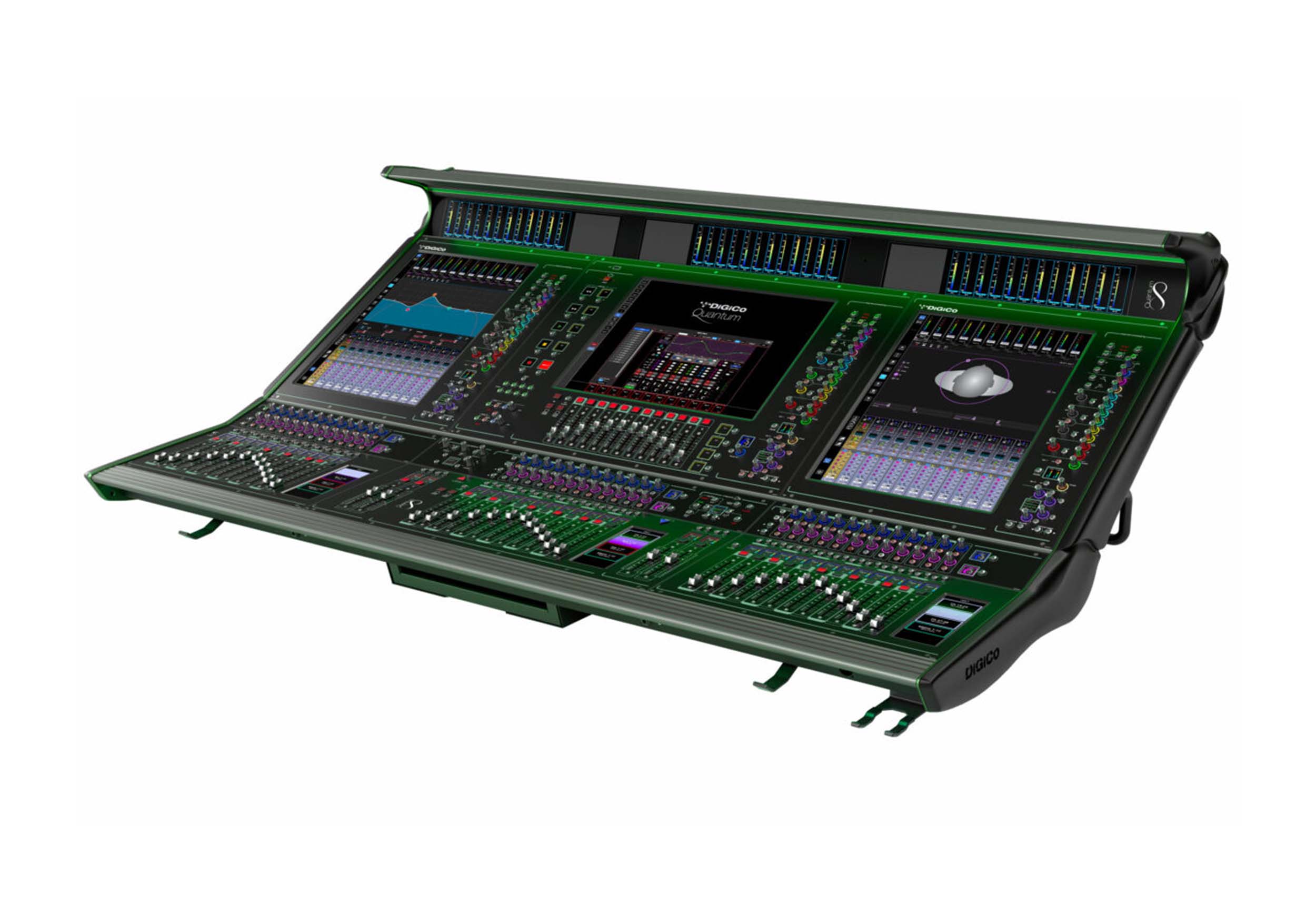

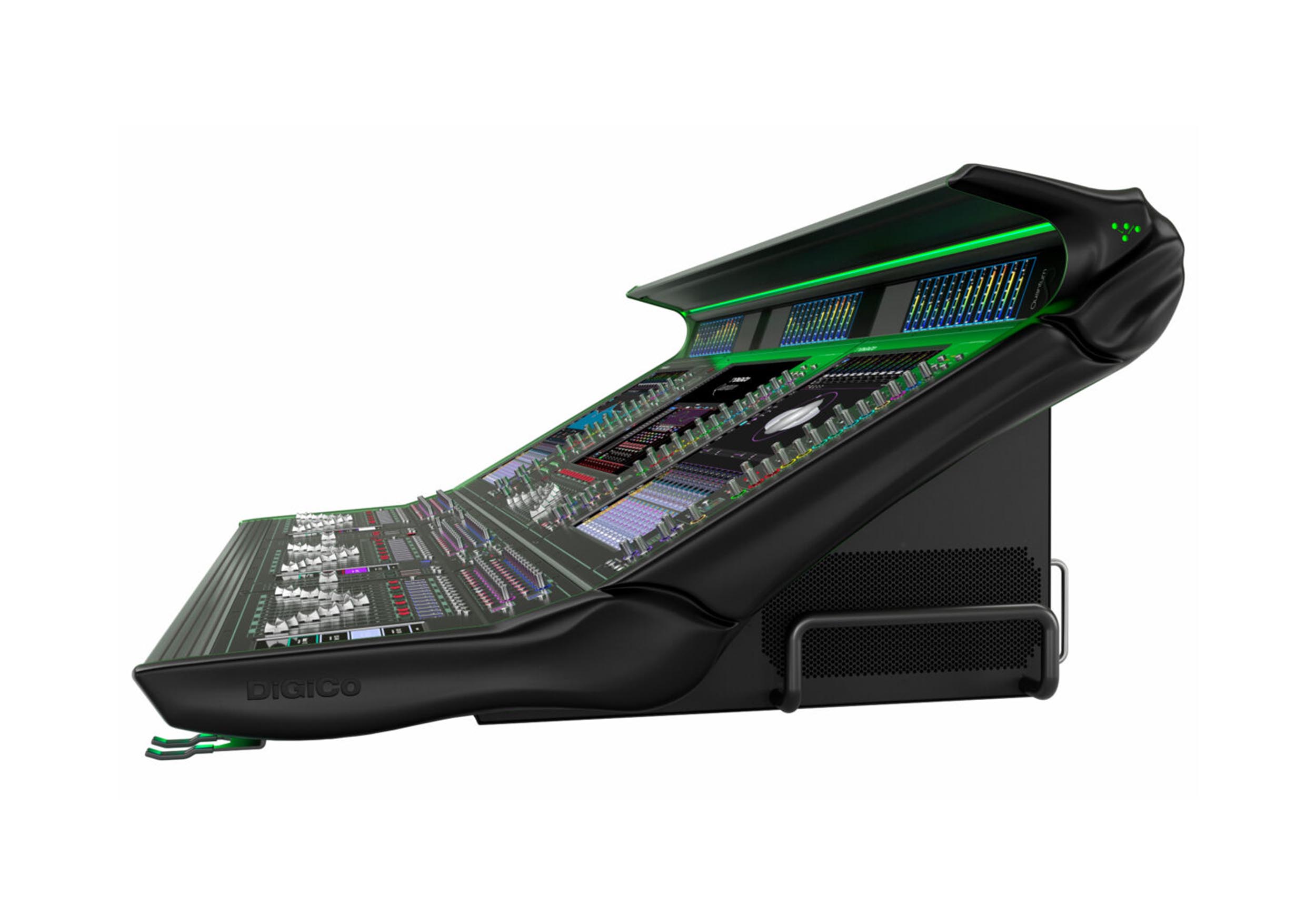

Product Specifications:

Front Panel: 40 x 100mm touch-sensitive, motorised faders; 12 x 60mm touch-sensitive.

Touchscreens: 3 x 21.3" high-resolution LCD touchscreens; 3 x 6.8" fader control touchscreens.

TFT Displays: 40 x 1.3" touch-sensitive full-colour TFT LCD displays; 29 x 1.3" full-colour TFT LCD displays.

Meterbridge Displays: 3 x 19.2" custom-mounted high-resolution TFT-LCD screens.

Meterbridge Camera: 1 x integrated meterbridge camera.

Headphone Outputs: 2 x 1/4" headphone sockets; 2 x 3.5mm headphone sockets.

Headphone Rests: 2 x integrated headphone rests.

Front USB Port: 1 x USB 2.0.

Talkback Input: 1 x XLR talkback microphone input.

Microphone Holder: Integrated microphone holder.

Lighting: Keyboard light bar and integrated console light bar.

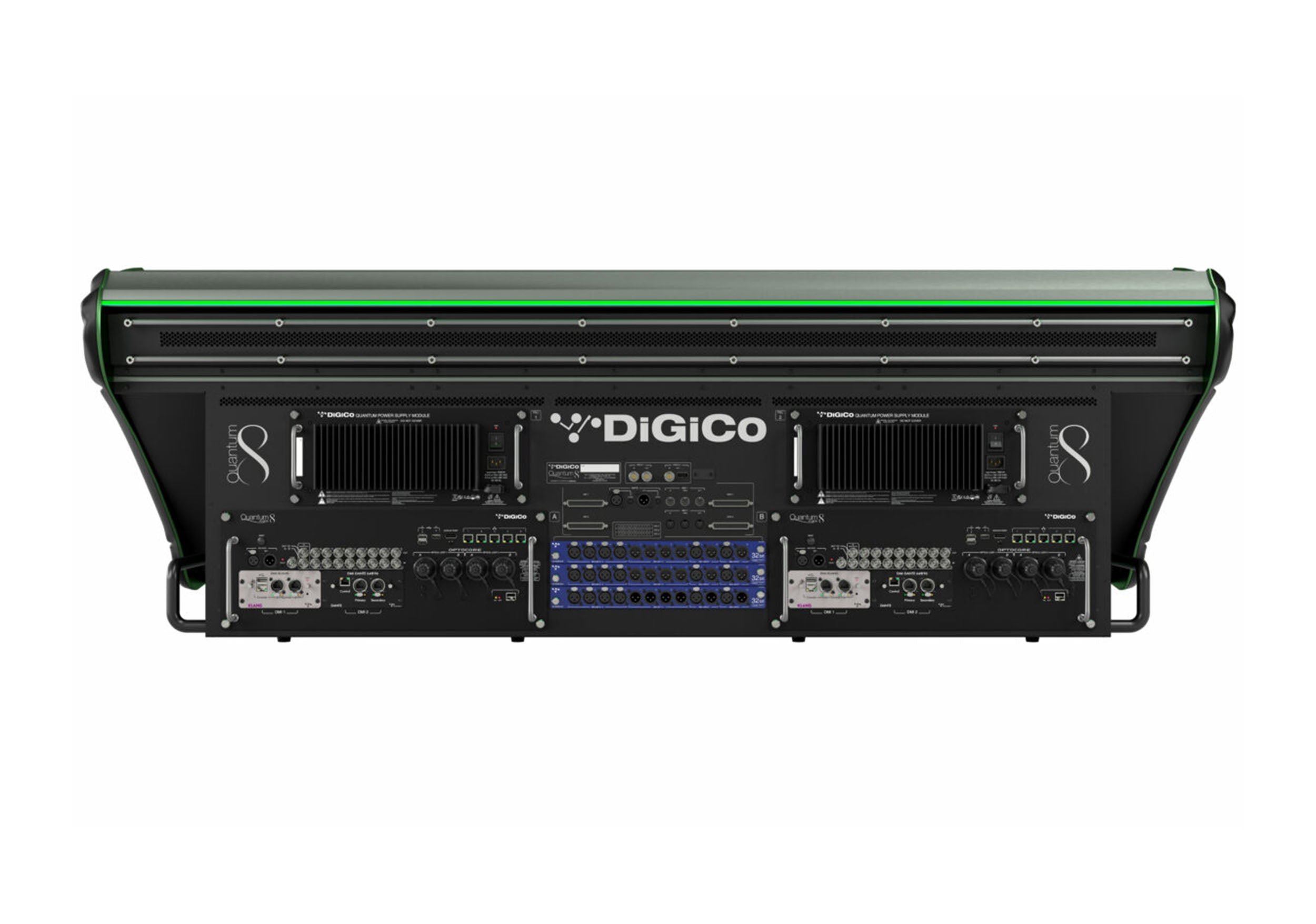

Power Supplies: 2 x redundant, hot-swappable power supply units.

Mic/Line Inputs: 12 x XLR 32-bit mic/line inputs.

Line Outputs: 12 x XLR 32-bit line outputs.

AES/EBU Inputs: 6 x XLR AES/EBU inputs (12 channels).

AES/EBU Outputs: 6 x XLR AES/EBU outputs (12 channels).

GPI: 2 x DSub37 connectors (32 inputs).

GPO: 2 x DSub37 connectors (32 outputs).

MIDI: 2 x MIDI In/Thru/Out (5-pin DIN).

Video Inputs: 2 x SDI BNC video inputs.

Video Outputs: 1 x SDI BNC; 1 x DisplayPort.

SMPTE: 1 x SMPTE I/O (XLR) with level control.

Optocore Interface: 1 x MultiMode Optocore interface per engine (expandable to 2).

Waves Port: 1 x Waves interface per engine (standard).

DMI Expansion Slots: 2 x DMI slots per engine (up to 64 I/O per slot).

Ethernet Ports: 5 x 1Gb Ethernet ports per engine (internally switched).

MADI I/O: 8 x MADI BNC I/O at 48kHz or 4 interfaces at 96kHz per engine.

Rear USB Ports: 2 x USB 2.0; 1 x USB 3.0 per engine.

Word Clock: 1 x Word Clock I/O (2 x BNC) per engine.

Display Output: 1 x DisplayPort output per engine.

AES Sync: 1 x AES/EBU XLR Sync I/O (2 x XLR) per engine.

Video Sync: 1 x Video Sync BNC input per engine.

Compatible DMI Cards: ADC, AES, AMM, Aviom, DAC, Dante, Dante64@96, Hydra2, KLANG, MADI B, MADI C, ME, Mic.
