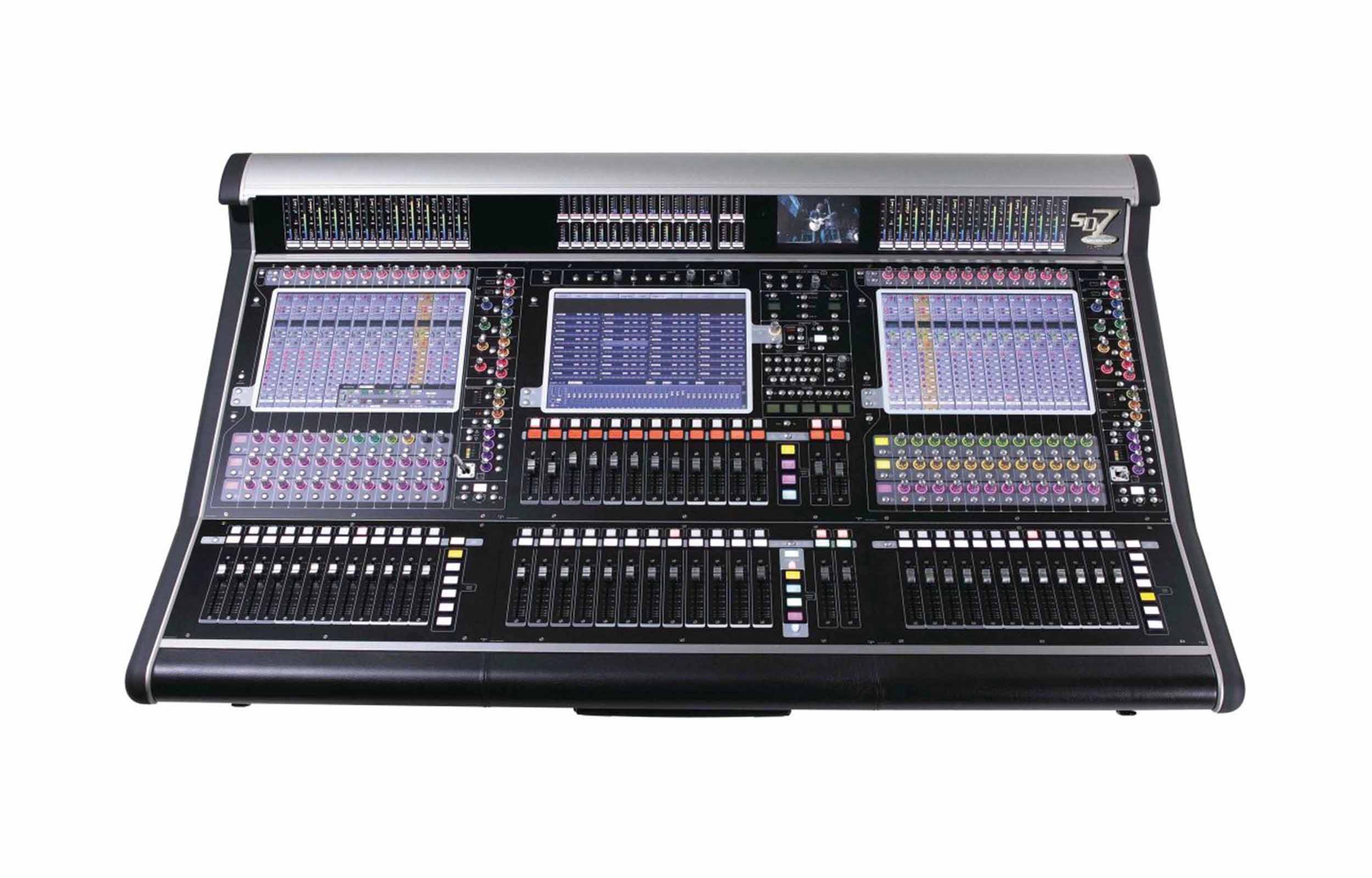

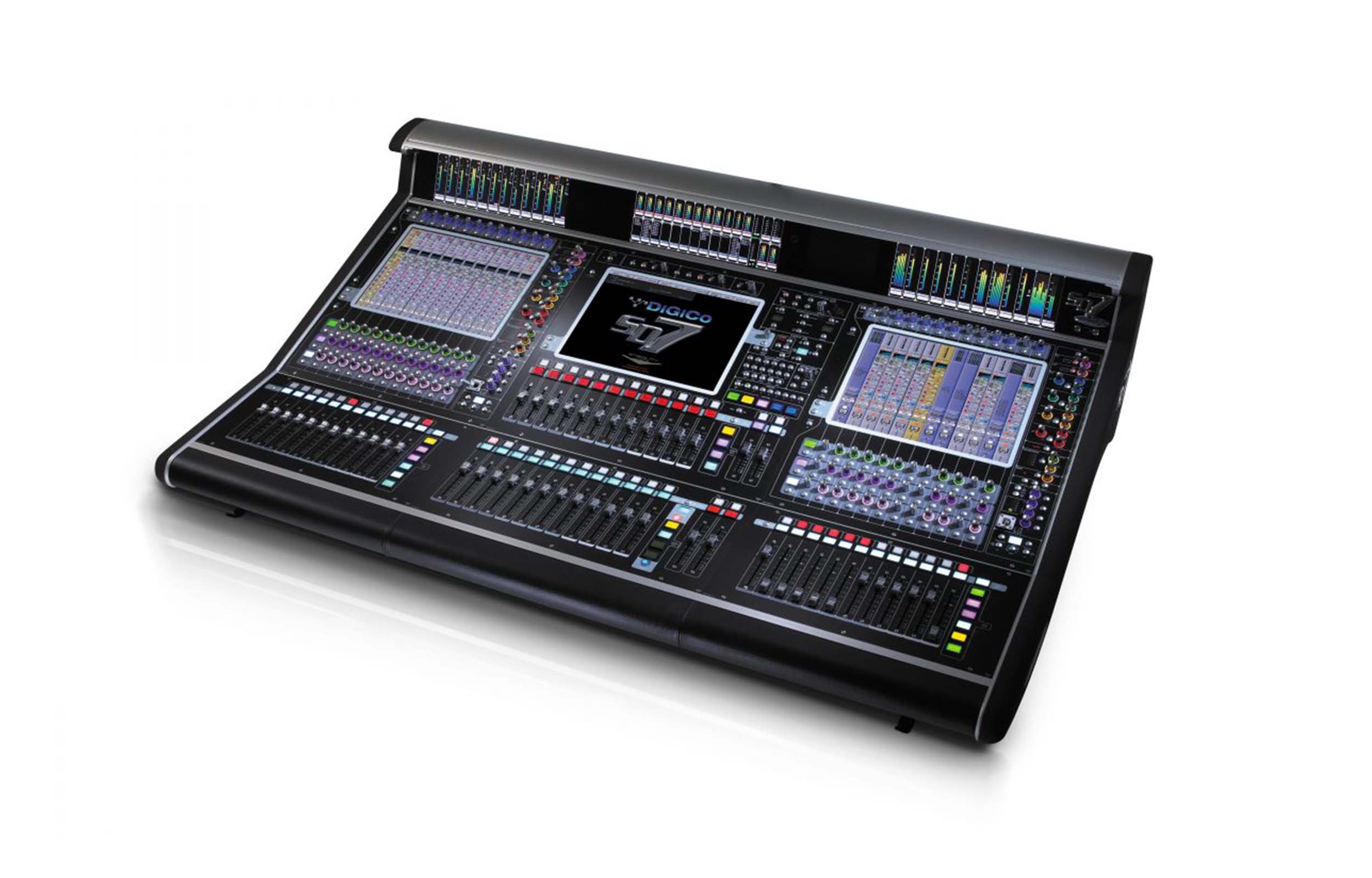

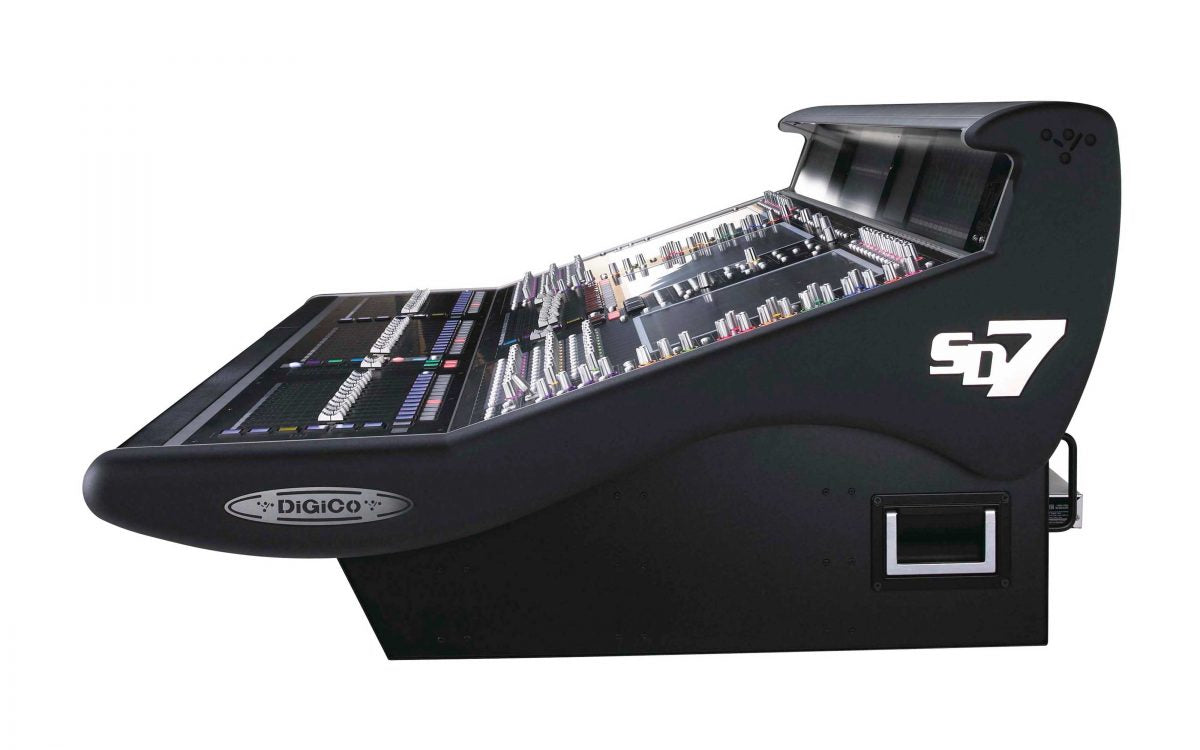

Digico SD7-LOOP2-OP Digital Mixing Console with OpticalCON Fiber Connector

The Digico SD7-LOOP2-OP Digital Mixing Console with OpticalCON Fiber Connector is a flagship digital mixing console trusted by leading live sound engineers worldwide. It delivers exceptional audio quality and reliability for concerts, broadcasts, theater productions, and major touring events. Its advanced design combines powerful processing with an intuitive workflow for demanding applications. The ergonomic control surface allows engineers to work quickly and confidently during live performances. Built for professional use, the SD7 has become an industry benchmark for digital mixing excellence. Its proven performance continues to make it a preferred choice for high-profile productions.

Powerful Processing Engine

Powered by Stealth Digital Processing and Super FPGA technology, the SD7 provides outstanding audio performance. It supports up to 256 processing paths at both 48kHz and 96kHz sample rates for maximum flexibility. Every channel includes comprehensive EQ, dynamics, filters, delay, and insert processing for precise sound control. Built-in Dynamic EQ and DiGiTuBe processing enhance tonal quality without requiring additional hardware. High processing capacity ensures stable operation even during the most complex productions. This advanced engine delivers the speed, power, and reliability professionals expect.

Intuitive Control Surface

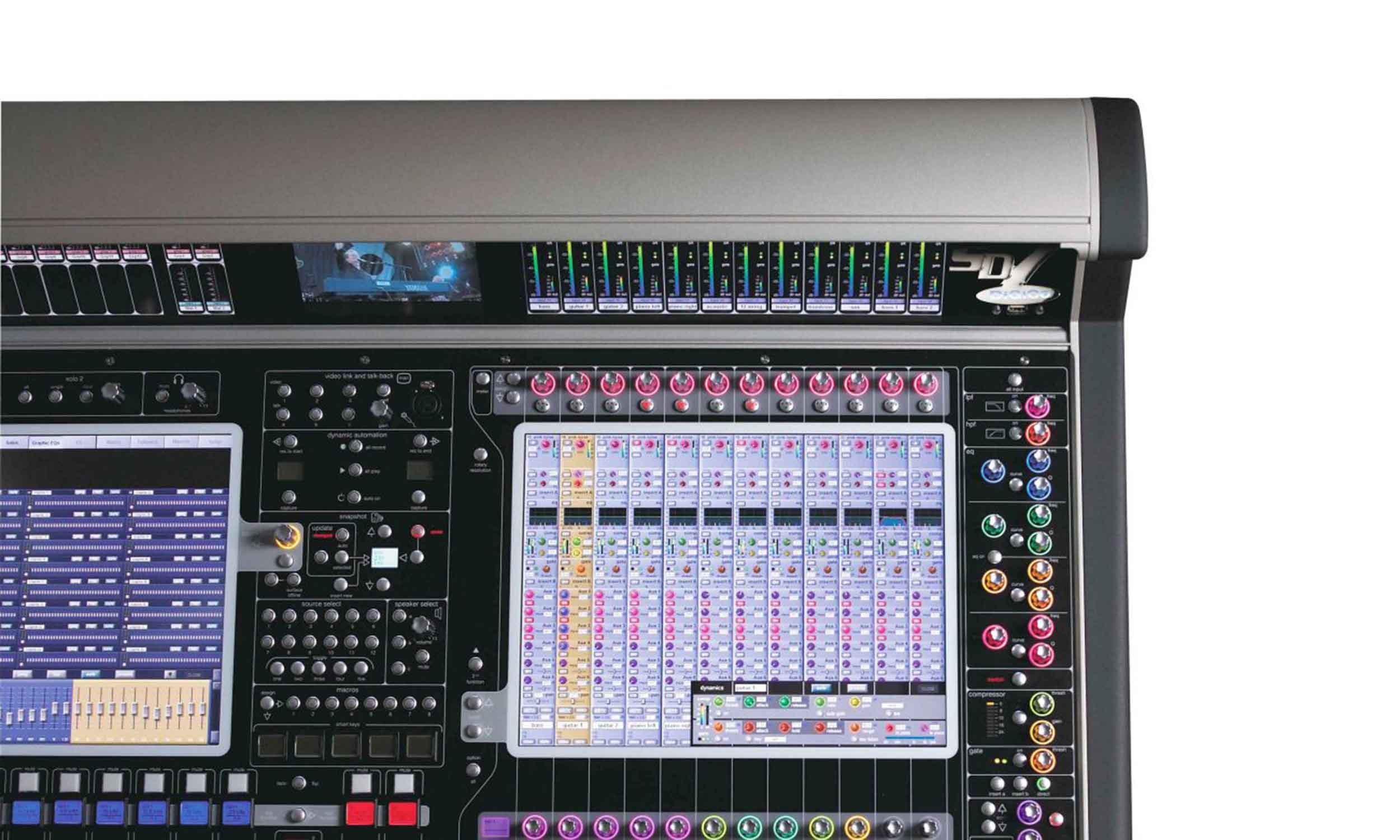

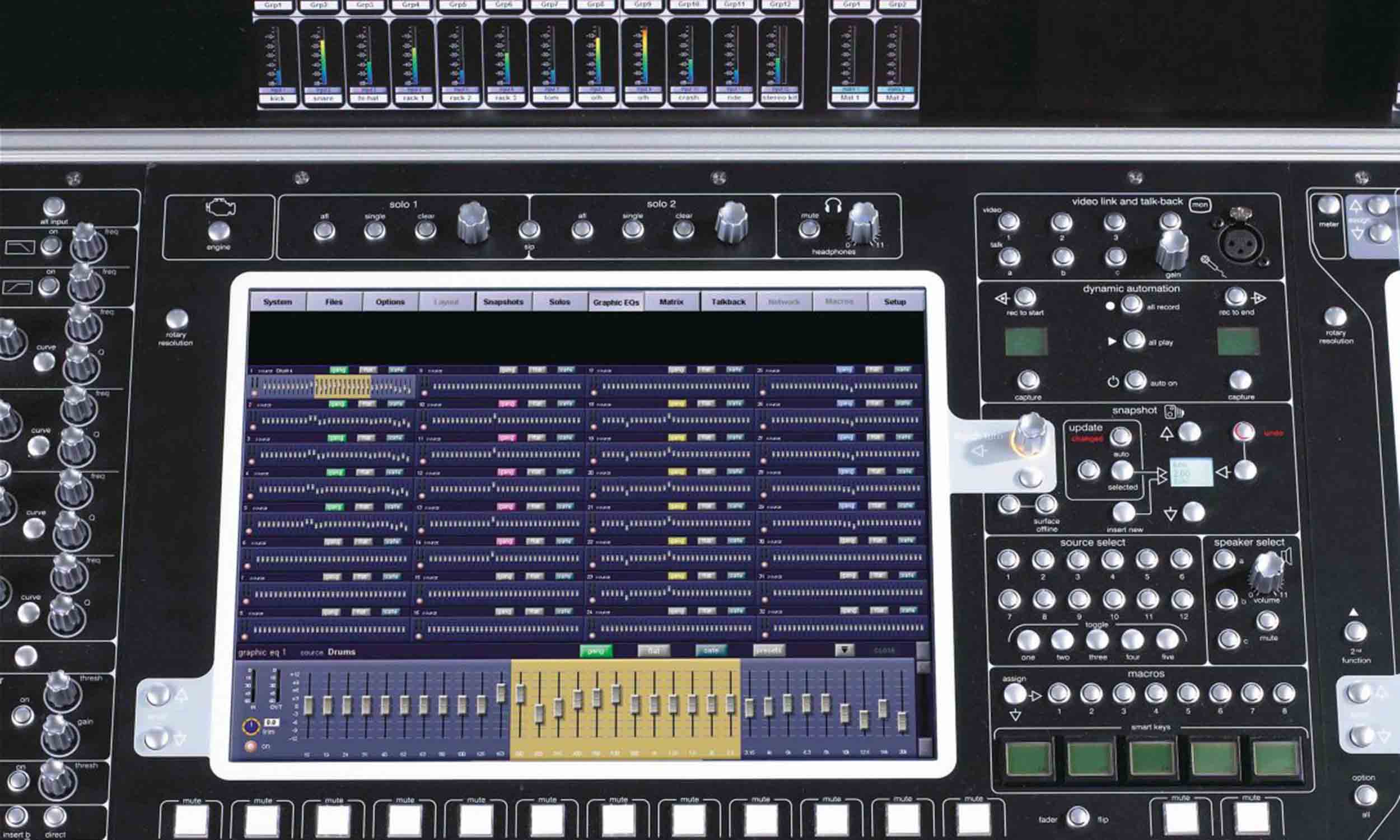

The SD7 features an iconic work surface designed for fast, efficient, and comfortable operation. Three high-resolution touchscreens provide instant access to channels, routing, and console functions. Dedicated fader banks and assignable center faders allow quick control of important channels and mixes. Color-coded rotary controls and HD metering improve visibility in every performance environment. The logical layout minimizes operator workload during busy live productions. Every element is engineered to maximize workflow and mixing accuracy.

Advanced Mixing Flexibility

Designed for complex productions, the SD7 offers extensive routing and advanced mixing capabilities. It provides up to 128 configurable buses for auxiliary sends, groups, and other routing requirements. A dedicated 32 × 32 output matrix allows flexible signal distribution without sacrificing bus resources. Dual solo buses and a dedicated master bus simplify monitoring and system management. Snapshot functionality enables complete console settings to be recalled instantly throughout a performance. These features make the SD7 ideal for touring, broadcast, theater, and large-scale live events.

Massive I/O Connectivity

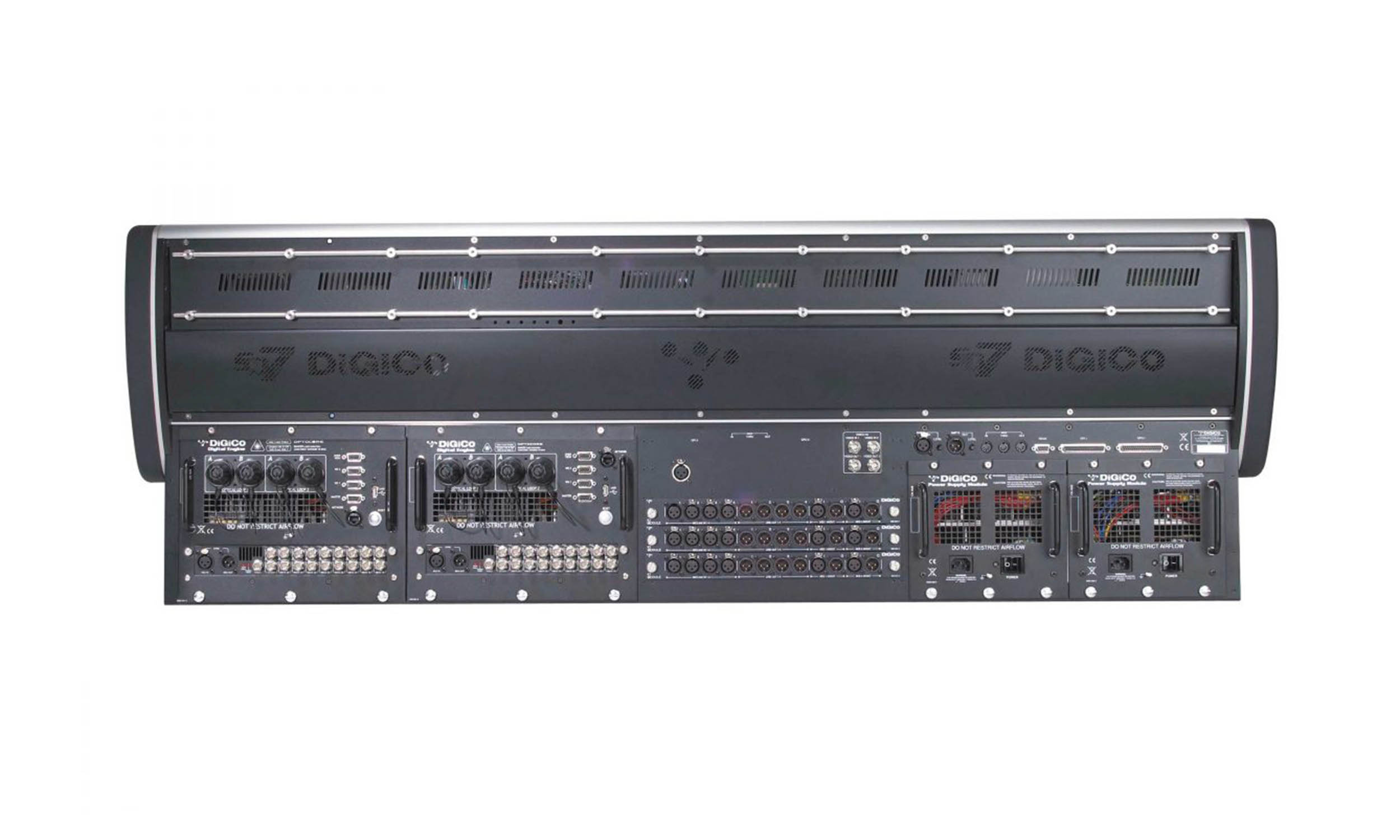

The SD7 is renowned for its exceptional input and output capacity for professional audio systems. Standard connectivity includes analog inputs, analog outputs, and AES digital I/O for versatile integration. Dual-engine configurations provide redundant MADI ports and integrated Optocore networking for enhanced reliability. A single optic loop can support up to 1,392 I/O connections for large-scale productions. Extensive networking options simplify system expansion and complex stage connectivity. This impressive I/O architecture ensures outstanding flexibility for any professional application.

Expandable Professional Platform

The SD7 is designed to expand alongside the growing demands of modern live productions. It supports the optional EX-007 Fader Expansion Unit for additional physical channel control. Two EX-007 units can increase the available fader count to an impressive 100 channels. Optional SoundGrid integration enables low-latency Waves MultiRack plug-in processing directly within the workflow. Up to 32 stereo MultiRacks can host multiple plug-ins for advanced audio enhancement. Its scalable architecture ensures the SD7 remains a powerful long-term investment for professional sound engineers.

Product Specifications:

Connector Type: OpticalCON (SD7-LOOP2-OP)

Faders: 38 × 100mm touch-sensitive motorized + 14 × 60mm touch-sensitive motorized.

Touchscreens: 3 × 15-inch high-resolution LCD touchscreens.

Meterbridge Displays: 3 × custom-mounted high-resolution TFT-LCD screens.

Processing Channels: Up to 256 (combined input channels, auxes, and solo group busses).

Mix Busses: Up to 128 plus master busses with full LR/LCR/5.1 processing.

Matrix: Up to 32 × 32 with full processing.

Control Groups: Up to 36 (VCA-style, Moving Fader, or Mute Group).

Graphic EQ: 32 × 32-band graphic equalizers, ±12dB gain.

Internal Effects: Up to 48 stereo effects (16 reverbs, 32 delay/chorus/pitch/enhancer).

Local I/O: 12 × Mic/Line I/O, 12 × AES I/O.

MADI Interface: 4 redundant BNC MADI interfaces.

Optical Connectivity: Dual Loop optics (standard/optional configuration).

Sampling Rates: 48kHz / 96kHz.

GPIO: 2 × D-Sub 37 (16 GPIO standard, expandable to 32).

Video I/O: 2 video inputs, 2 video outputs.

External Sync: Word Clock, AES, Video, MADI, and Optics.

Redundancy: Dual removable engines and dual hot-swappable power supplies.

Power Requirements: 90–260V AC, 50–60Hz, 600VA.

Sample Rate: 48kHz or 96kHz.

Processing Delay: 2ms @ 48kHz; 1.1ms @ 96kHz.

Internal Processing: Up to 40-bit floating point.

A/D & D/A Conversion: 24-bit.

Frequency Response: ±0.6dB (20Hz–20kHz).

THD: <0.05% @ 1kHz.

Channel Separation: Better than 90dB (40Hz–15kHz).

Residual Output Noise: < -90dBu (typical).

Microphone Input Noise: Better than -126dB equivalent input noise.

Maximum Input Level: +22dBu.

Maximum Output Level: +22dBu.

Sample Rate: 48kHz or 96kHz.

Processing Delay: 2ms typical @ 48kHz (253 channels, Stage Input through L-R Bus to Stage Output).

Processing Delay @ 96kHz: 1.1ms typical.

Internal Processing: Up to 40-bit floating-point.

A/D Converter Resolution: 24-bit.

D/A Converter Resolution: 24-bit.

Frequency Response: ±0.6dB (20Hz–20kHz).

Total Harmonic Distortion (THD): <0.05% @ Unity Gain, 10dB Input, 1kHz.

Channel Separation: Better than 90dB (40Hz–15kHz).

Residual Output Noise: Less than -90dBu typical.

Microphone Equivalent Input Noise: Better than -126dB.

Maximum Output Level: +22dBu.

Maximum Input Level: +22dBu.

Noise Measurement Bandwidth: 20Hz–20kHz.

EQ Type: 4-band Parametric or Dynamic EQ.

Low Band: Parametric or Low Shelf.

Lower Mid Band: Parametric or Low Shelf.

EQ Frequency Range: 20Hz–20kHz.

EQ Gain: ±18dB.

Parametric Q: 0.1–20.

Shelf Q: 0.10–0.85.

Dynamic EQ Threshold: -60dB to 0dB.

Dynamic EQ Attack: 500µs–100ms.

Dynamics 1 On/Off: Yes.

Threshold: -60dB to 0dB.

Attack: 500µs–100ms.

Release: 10ms–10s.

Ratio: 1:1–50:1.

Gain: 0 to +40dB with Auto Gain option.

Channel Link: Any Channel or Buss.

Low Crossover: 20Hz–20kHz.

Compressor Knee: Hard, Medium, or Soft.

Product Weight: 311 lbs.

Product Dimensions (L × W × H): 34.45" × 58.90" × 19.80"
