Description

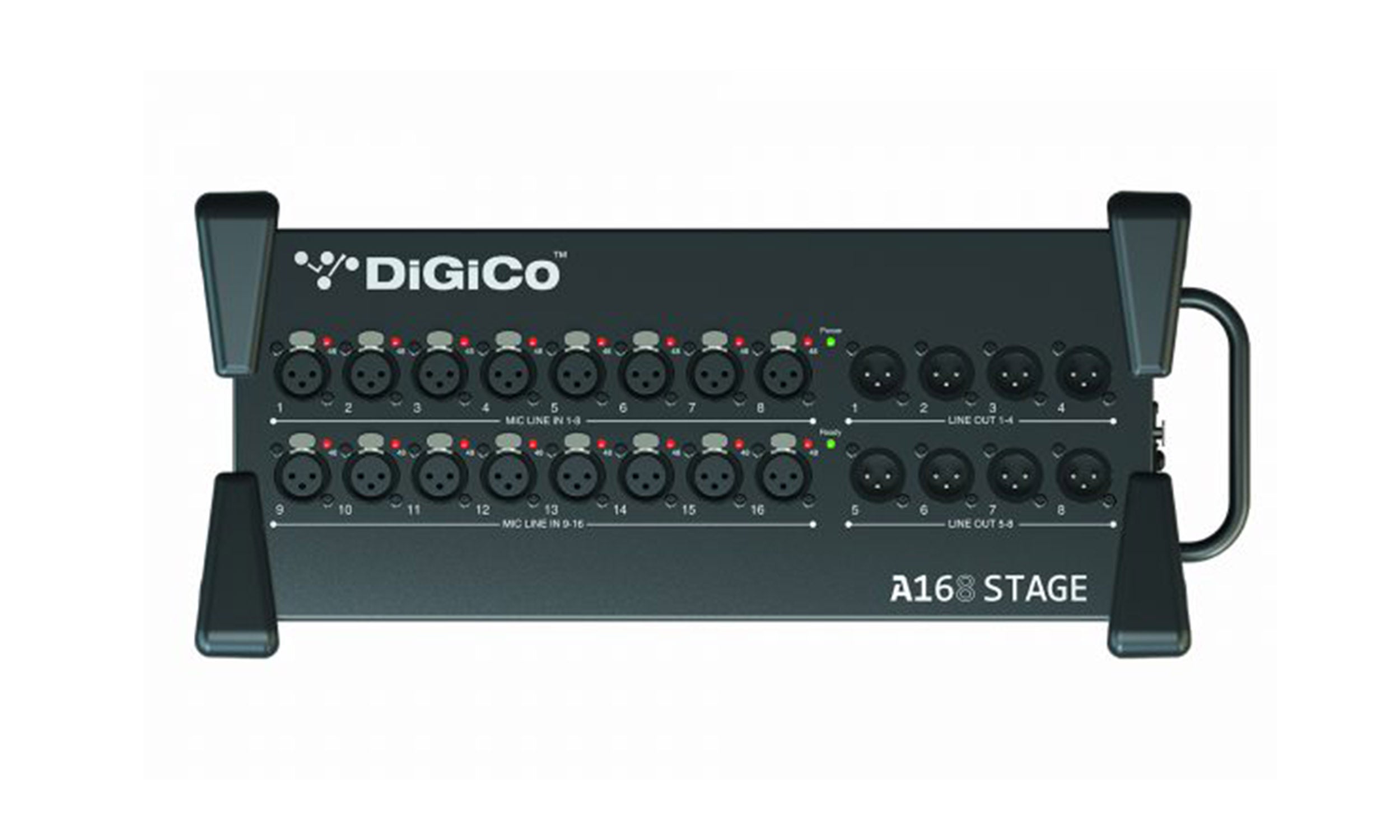

The DiGiCo X-A-168D is a portable 16-input/8-output I/O expander designed to provide additional analogue I/O anywhere on a compatible DiGiCo network. Using the A3232 network protocol over CAT5e cabling, the unit provides 16 microphone/line inputs and 8 line outputs. Up to two A168 STAGE units can be daisy-chained through A3232, while the second port can also be used to create a redundant network connection.

16-Channel Mic/Line Inputs

The X-A-168D features 16 microphone preamps on XLR connectors with phantom power status LEDs, providing clear visual indication during operation.

8-Channel Line Outputs

Eight XLR line outputs provide flexible signal distribution for monitors, amplifiers, processors, and other professional audio equipment.

A3232 Network Connectivity

Two A3232 ports provide flexible networking over CAT5e cabling. The ports support daisy-chaining of up to two A168 STAGE units or redundant network operation.

Product Specifications:

Product Type: 16-Input / 8-Output I/O Expander

Input Channels: 16 Mic/Line Inputs

Input Connectors: 16 x XLR

Phantom Power: +48V

Output Channels: 8 Line Outputs

Output Connectors: 8 x XLR

Network Protocol: DiGiCo A3232

Network Connections: 2 x A3232

Network Cable: CAT5e

Network Mode: Expansion / Redundancy

Product Weight: 7.7 lbs

Product Dimensions (L x W x H): 11.8" x 8.7" x 3.5"
