Description

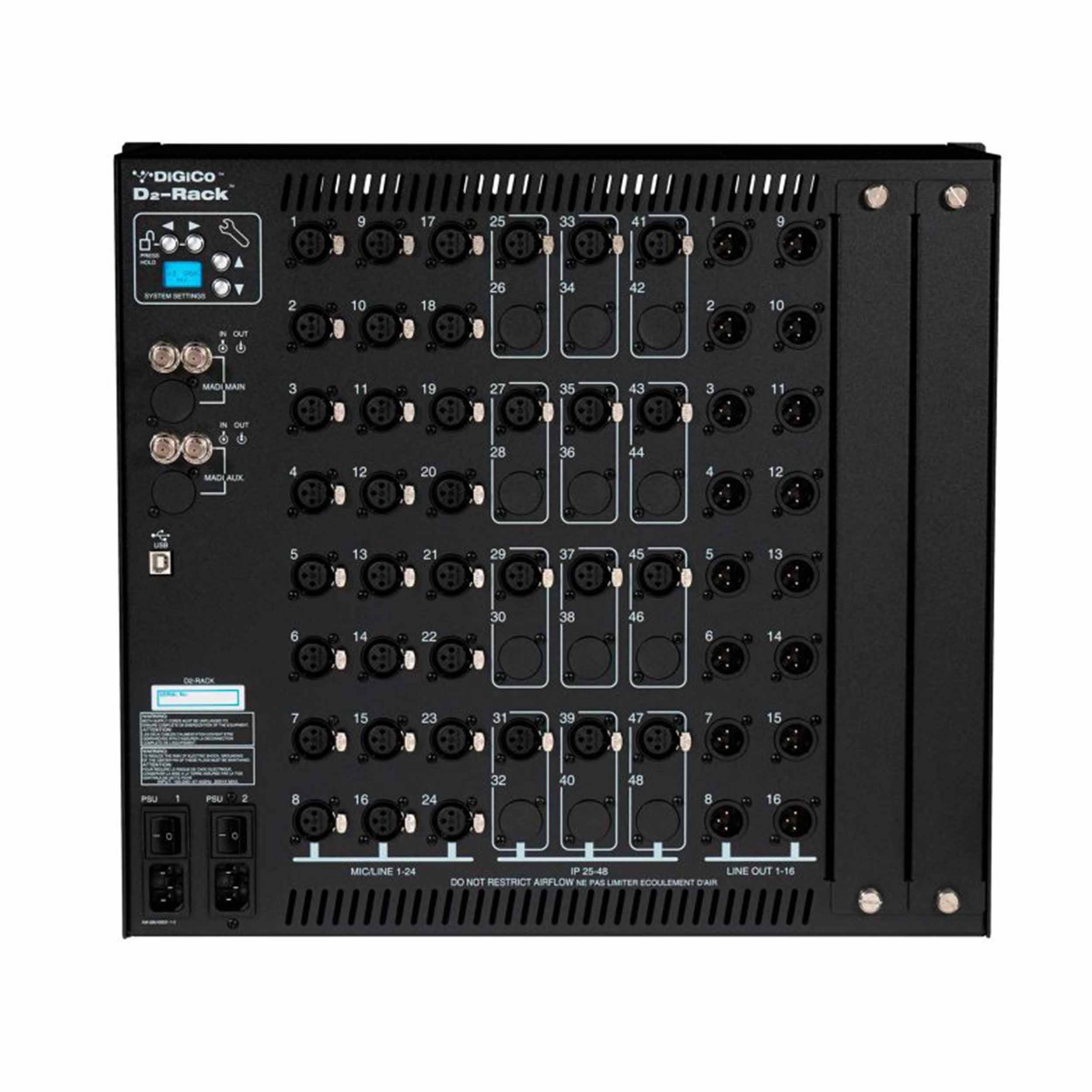

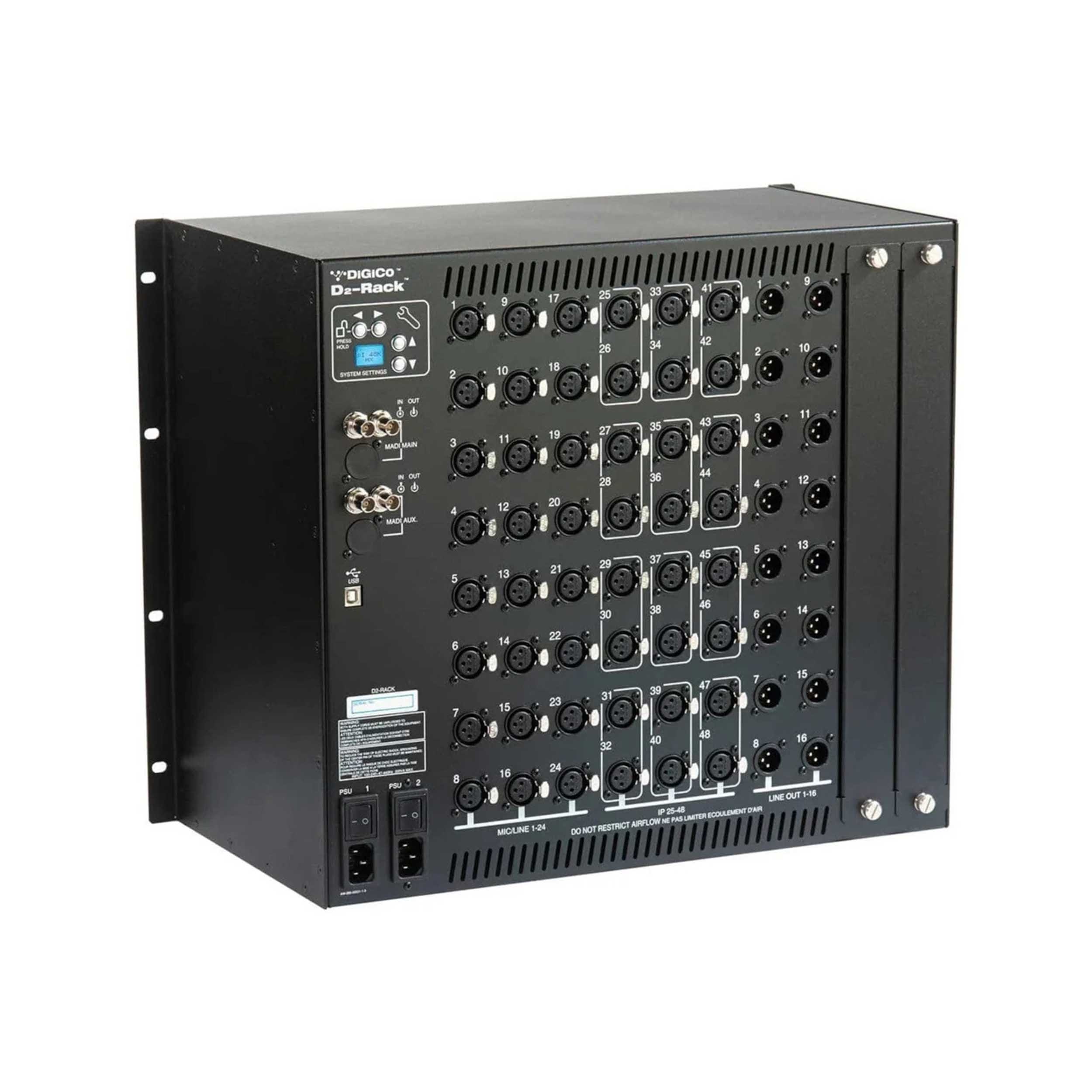

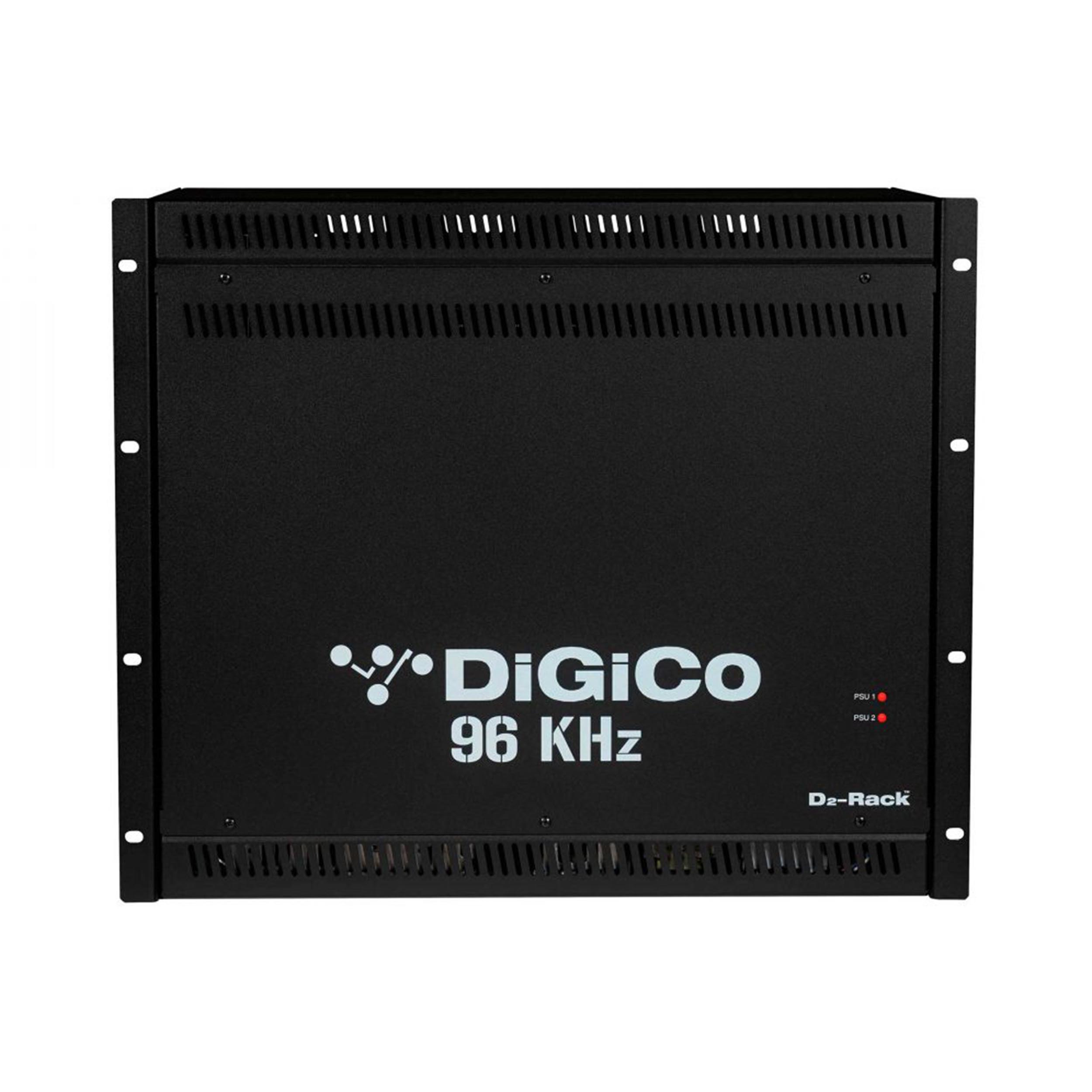

The DiGiCo X-D2-AN-M is a 9U D2-Rack designed for professional live sound systems requiring high channel capacity and reliable MADI connectivity. It provides 48 analogue microphone inputs and 16 analogue outputs as standard, with two expansion slots available for increasing the output capacity to 32 channels. The rack supports BNC MADI connections and high sample rates up to 192 kHz.
High-Channel Analog I/O
The D2-Rack provides 48 XLR microphone inputs with 48.3 V phantom power and 16 XLR line outputs. The two available output expansion slots can accommodate compatible Line Output, AES Output, or Aviom modules, allowing the rack to be configured for different production requirements.
Flexible MADI Connectivity
The X-D2-AN-M features dedicated MADI Main and Auxiliary BNC connections. The dual MADI ports can be used for rack sharing between compatible DiGiCo SD Series consoles at 48 kHz or for digital splits to recording systems. Combined MADI operation supports high-definition 96 kHz connectivity without reducing the available I/O.
High-Resolution Audio
The rack supports 44.1, 48, 88.2, 96, 176.4, and 192 kHz sample rates. Its analogue and digital circuitry provides professional audio performance with a maximum input level of +22 dBu and maximum output level of +22 dBu. System delay is approximately 2 ms at 48 kHz and 1.1 ms at 96 kHz.
Expansion and Configuration
Two output expansion slots provide flexibility for increasing the standard 16-output configuration to as many as 32 outputs. Compatible expansion options include 8-channel line output, 8-channel AES output, and 16-channel Aviom modules. The rack is also available in different input configurations, although the X-D2-AN-M version is configured with 48 analogue microphone inputs.
Reliable Professional Operation
Dual redundant power supplies provide additional protection for mission-critical live productions. The rack includes an LCD menu screen and four menu buttons, while locked controls help prevent accidental configuration changes. Gain Tracking and an internal oscillator further support reliable operation and system setup.
What’s in the Box:
- Connections MADI
- Connectors BNC x 2 for 96kHZ (splitter @ 48kHz) *Need 4 x BNC MADI cables for 96kHz
Product Specifications:
Product Type: 9U Digital Stage Rack
Rack Series: D2-Rack
Input Configuration: 48 Analogue Mic Inputs
Analogue Inputs: 48 x XLR
Output Expansion: 2 Expansion Slots
Maximum Output Capacity: 32 Outputs
MADI Main I/O: 1 x BNC
MADI Connection: BNC
USB Connection: 1 x USB 2.0 Type-B
Display: 1 x LCD Menu Screen
Menu Controls: 4 Buttons
Sample Rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz
Phantom Power: 48.3 V
Gain Range: -10 dB to +60 dB
Maximum Input Level: +22 dBu
Input Impedance: 2500 Ω, 2650 Ω with Pad
Analogue EIN: 127 dB, 150 Ω
Dynamic Range: 113 dB
CMRR: >71 dB at 1 kHz, 150 Ω
AES Input Frequency Response: ±0.1 dB, 10 Hz to 20 kHz
AES Noise: < -140 dB
Analogue Distortion: <0.01%
AES Distortion: <0.00015%
AES Cable Length: Up to 100 m
System Delay: Approximately 2 ms at 48 kHz, 1.1 ms at 96 kHz
Oscillator Level: -96 dB to 0 dB
Oscillator Frequency: 20 Hz to 22 kHz
Signal Processing: Internal Oscillator, Gain Tracking
Power Supply: Dual Redundant PSUs
Rack Size: 9U
Compatible Expansion Cards: 8-Channel Line Output, 8-Channel AES Output, 16-Channel Aviom
MADI Options: BNC or Cat5, RJ45
Standalone Operation: Yes
Product Weight: 28.66 lbs. (13 kg)
Product Dimensions (L × W × H): 19.00" × 9.76" × 15.72"
