Description
The DiGiCo X-Q225-W-OP-EX-ULT is engineered to deliver outstanding performance for the most demanding live sound productions. Its Quantum processing architecture provides exceptional audio quality with ultra-low latency operation. Engineers can manage complex channel counts, advanced routing, and extensive signal processing with confidence. The responsive interface allows fast access to essential mixing functions throughout every performance. Its powerful design supports professional workflows across a wide range of production environments. This console is built to meet the expectations of modern audio professionals.
Ultimate (ULT) Software Package
The Ultimate (ULT) software package unlocks the highest level of functionality available for the X-Q225 platform. It provides expanded processing capabilities, advanced workflow enhancements, and premium feature access for complex productions. Engineers can take advantage of powerful routing options, increased operational flexibility, and enhanced system control. The software is optimized to support demanding touring, broadcast, theater, and large-scale live events. Its advanced feature set helps streamline professional workflows while maximizing console performance. The Ultimate package delivers the tools required for world-class audio production.
OpticalCON Optocore Connectivity
The OpticalCON Optocore connector provides a rugged fiber networking solution for professional live sound systems. It enables high-speed transmission of multiple audio channels across long cable distances while maintaining excellent signal integrity. The durable OpticalCON design protects fiber connections in demanding touring environments. It integrates seamlessly with compatible Optocore-enabled consoles, stage racks, and network infrastructure. Redundant fiber networking improves reliability for mission-critical productions and complex system designs. This connectivity is ideal for large touring, broadcast, and theatrical applications.
Under The Hood

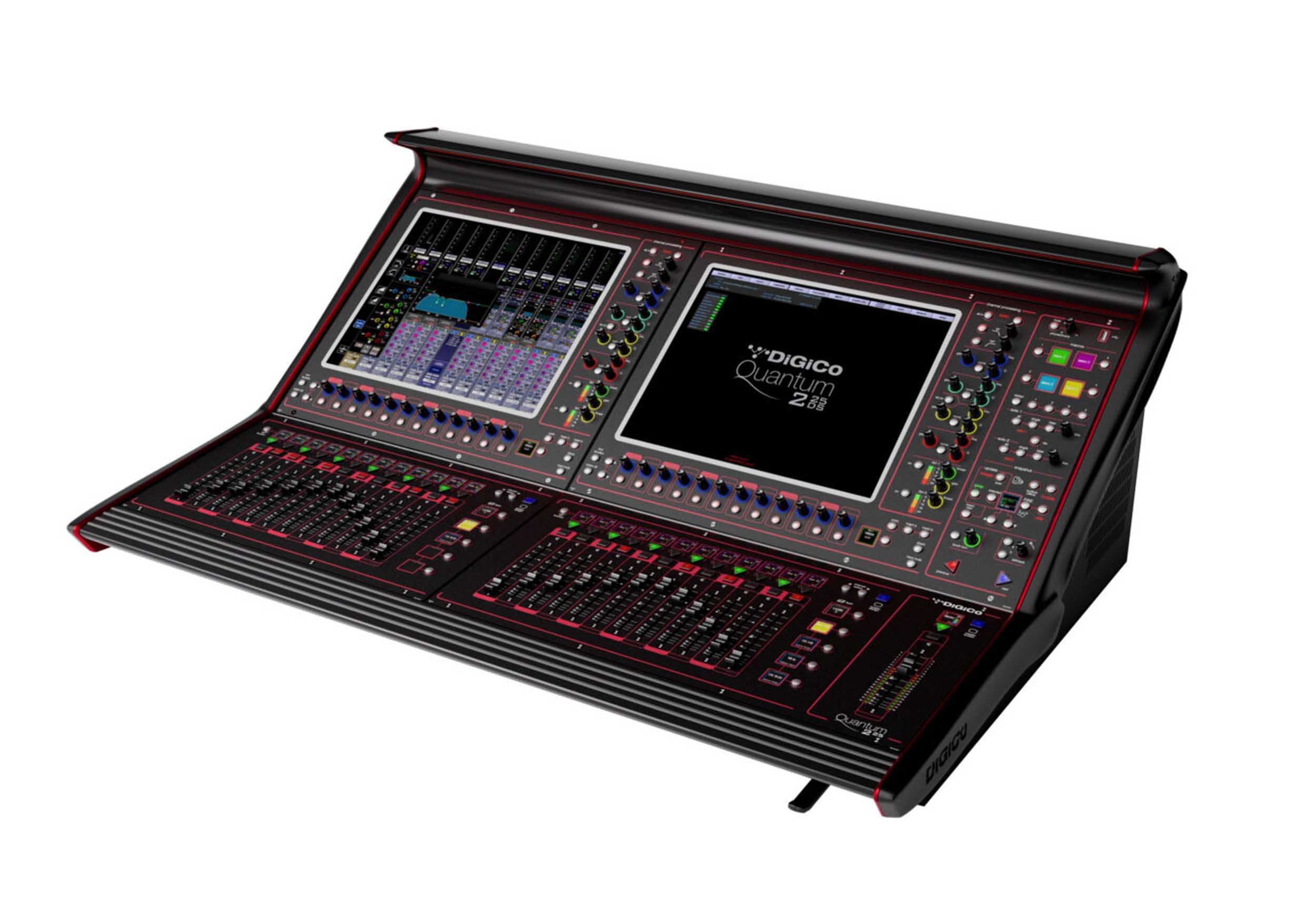

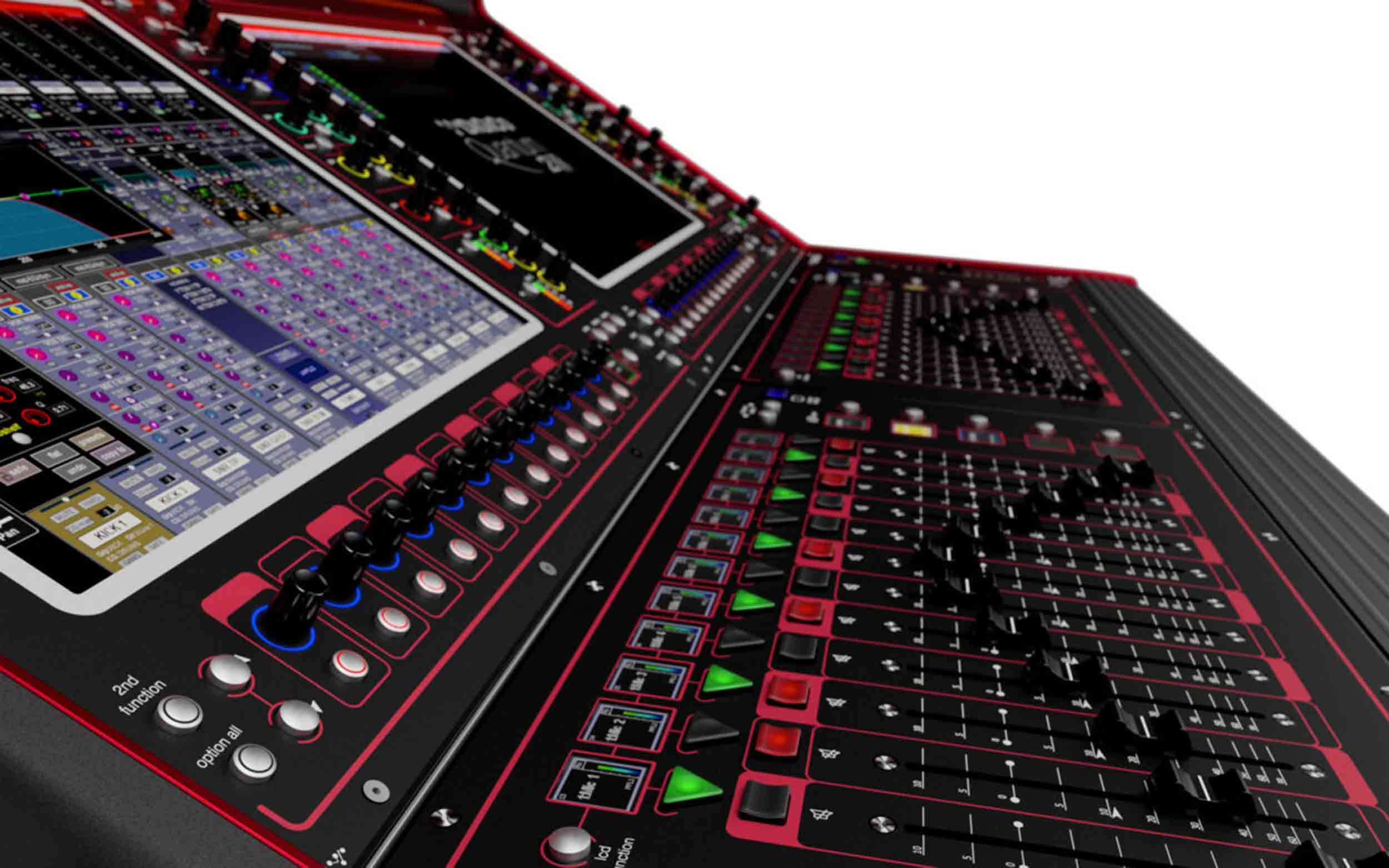

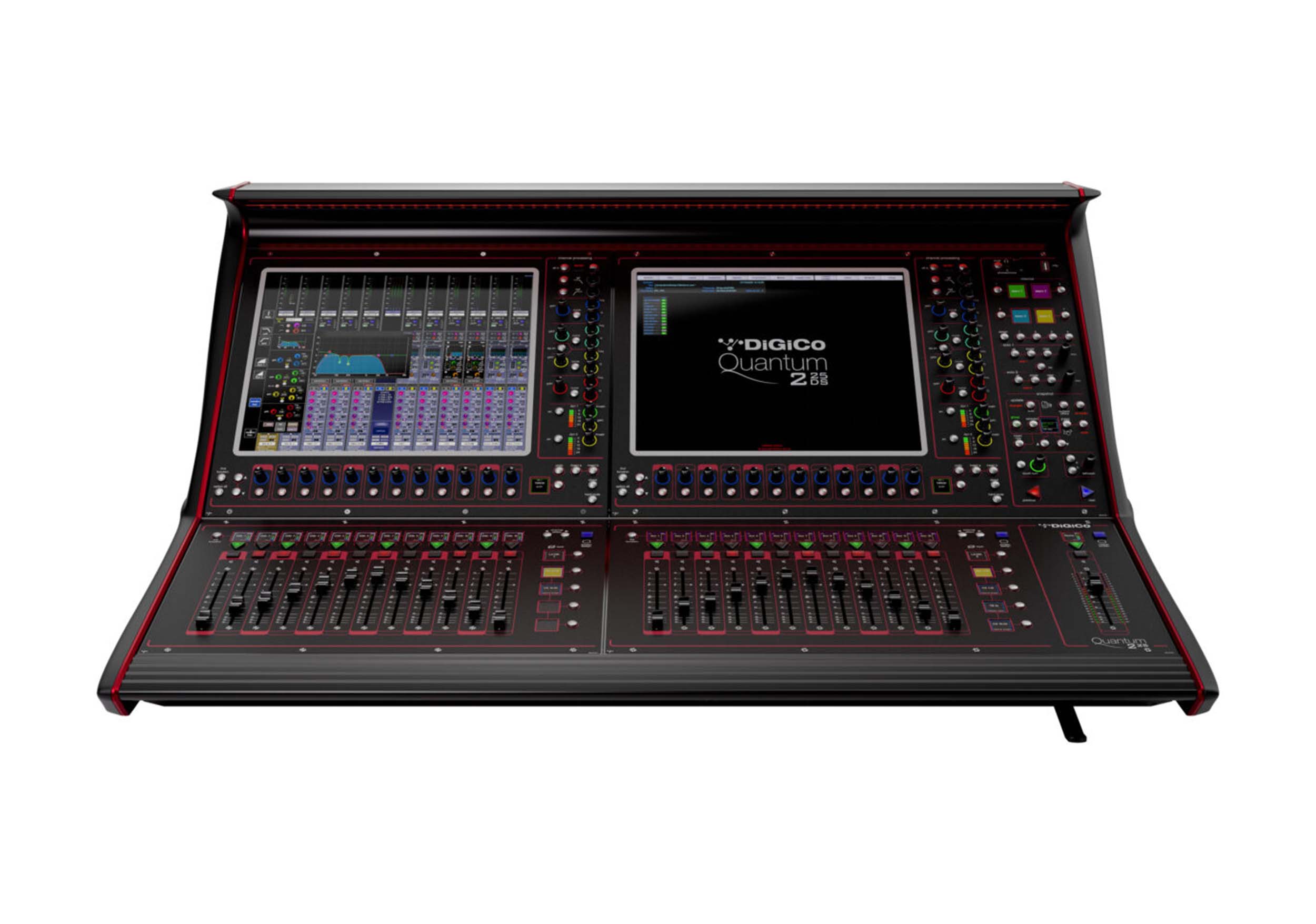

Quantum 225DS brings two 17-inch, 1000 nit, high brightness multitouch screens with both a meter bridge and soft quick select buttons for quick and intuitive operation. 41 individual TFT LCDs displaying channel information and metering, bank information, macros and more guide you immediately to the controls you need. Plus, 25 100mm touch sensitive faders in two banks of 12 plus a dedicated user-assignable master fader with high resolution metering.
With a maximum of 72 input channels with 36 busses and a 12 x 12 matrix, all with full channel processing, Quantum 225 brings Quantum to a wider user base. Also included as standard are Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.

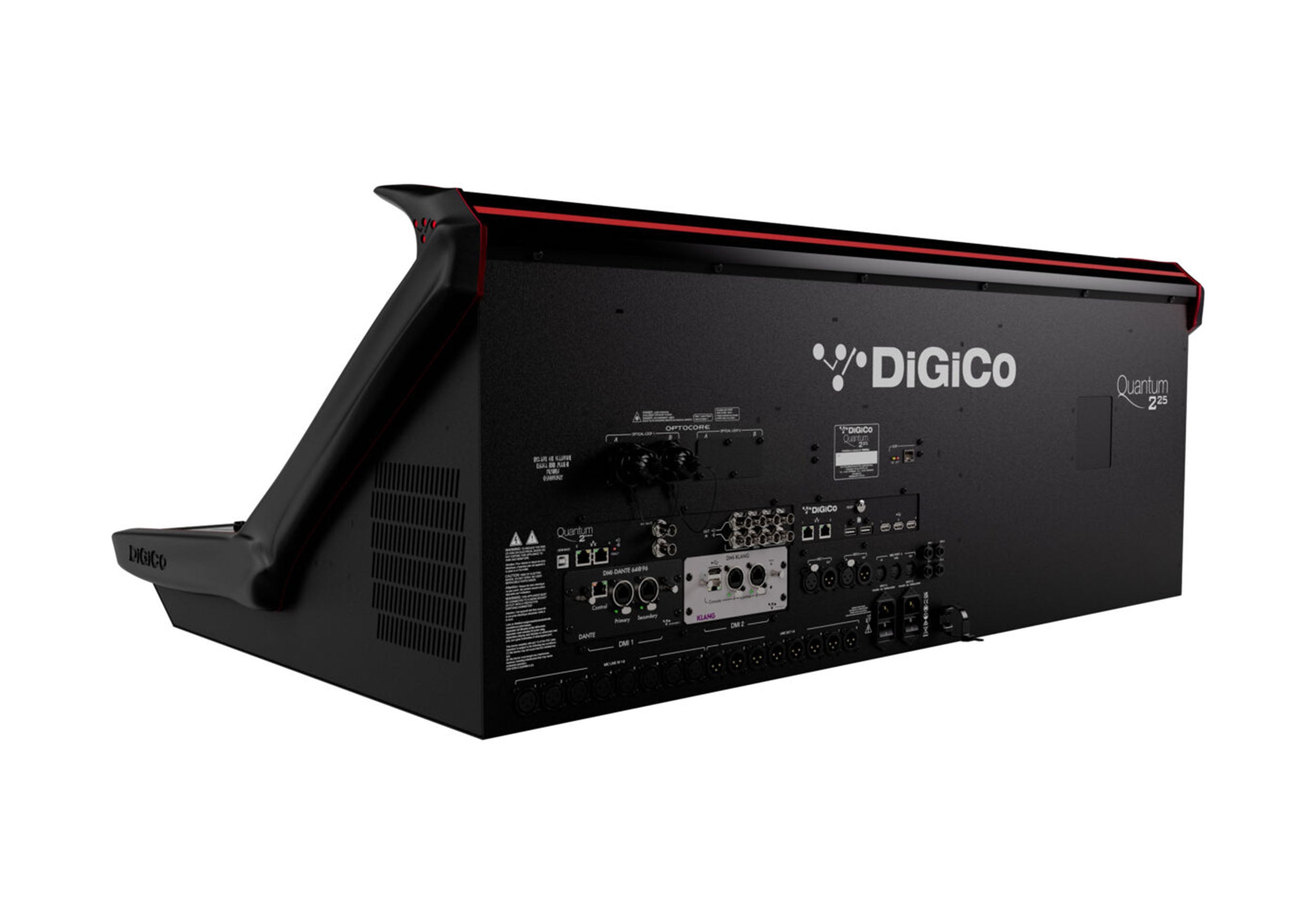

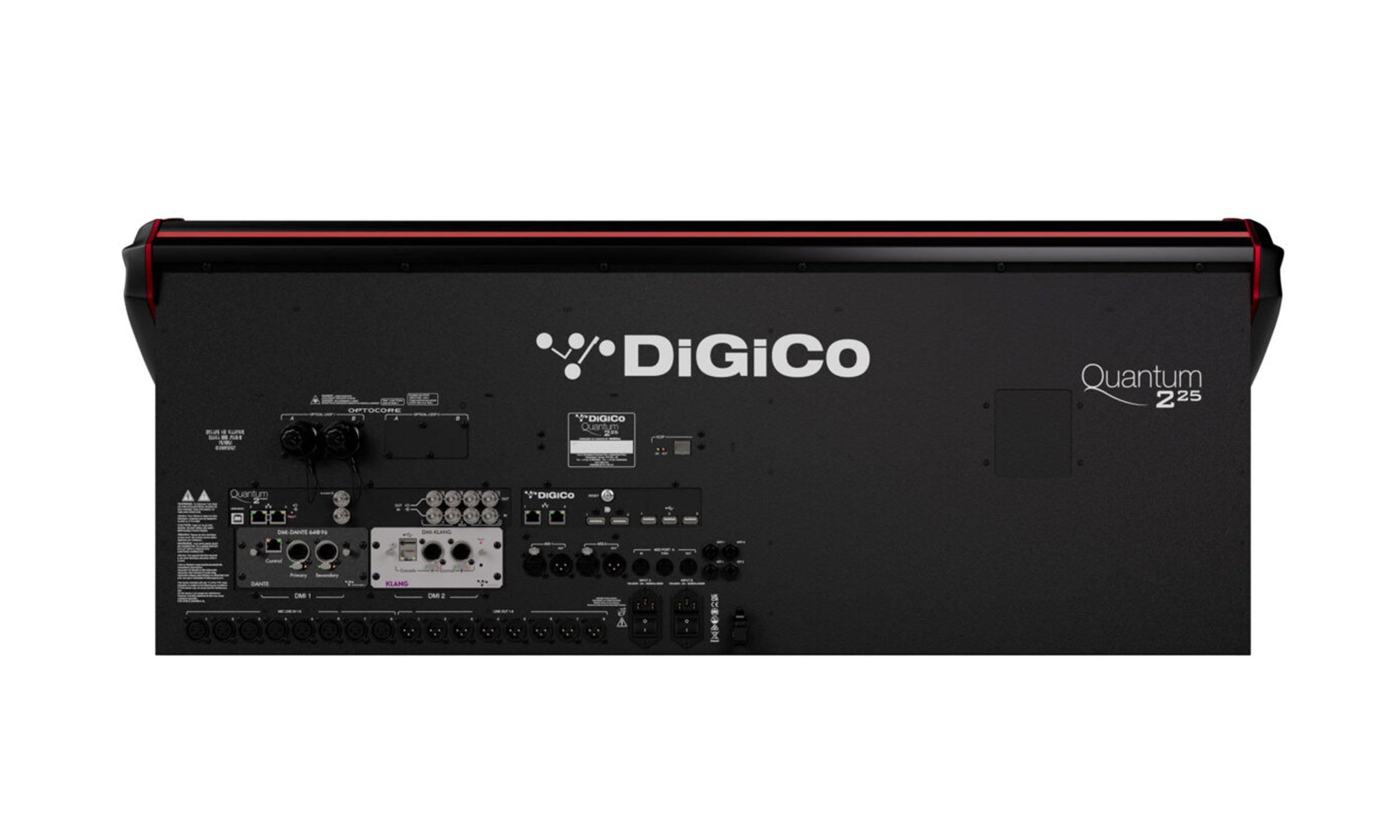

I/O
Despite being a smaller format console, there hasn’t been any sacrifice when it comes to connectivity.
Local I/O: Quantum 225DS offers local I/O includes 8 analogue inputs, 8 analogue outputs and 2 AES I/O (4 channels)
MADI: Quantum 225DS offers 2 redundant MADI in/out at 48kHz, which can also be configured as 4 MADI I/O. At 96kHz this acts as 2 MADI I/O with full channel counts.
Optocore: The Quantum 225DS offers the option to add a single or dual loops of Optocore. On each loop, which is 504 channels of audio; there can be up to 14 DiGiCo racks, or a combination of racks and tie-lines around the loop. With dual Optocore loops, that’s 1,008 Optocore channels of audio and 28 racks running.
UBMADI: In addition, the engine has a 48-channel UBMADI, so you can connect any laptop via USB and get 48 channels of recording and playback.
DMI: We have also incorporated two dedicated DMI slots to accommodate the growing family of DiGiCo DMI card options. Allowing the console connectivity to be configured for the demand of the tour or event, you could plug in a Dante module, or the latest automatic mic mixing module. Each dedicated DMI slot provides you with an additional 64 x 64 I/O.
Waves: There is also an option to add Waves connectivity if you want to utilise SoundGrid processing, giving you a 64 x 64 additional I/O.
What’s in the Box:
- One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
- Ultimate Stadius' 32-Bit Mic Pre Amp & 32-Bit Output Package
- HMA Optics cable 150M on spool (492 ft.) x 2
- Connections: MADI x 4, Optics x 1
- Internal Waves Card
- UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
Connector: OpticalCON Optocore Connector.
Software Package: Ultimate (ULT)
Faders: 25 × 100 mm touch-sensitive, motorized.
Touchscreens: 2 × 17-inch high-brightness, high-resolution LCD multitouch displays.
Input Channels: 72.
Busses: Up to 36 Aux/Group busses (Mono, Stereo, LCR) plus Master.
Matrix: 12 × 12 with full processing.
Control Groups: Up to 12 (VCA, Moving Fader, Mute Group).
Graphic EQ: 16 × 32-band, ±12 dB gain.
Internal Effects: Up to 12 stereo floating-point effects.
Spice Rack: 6 Mono / 3 Stereo rack slots.
Mustard Processing: 24 processing strips.
Nodal Processing: 32 nodal processors.
Local Analog I/O: 8 Mic/Line Inputs, 8 Line Outputs.
AES I/O: 2 AES I/O (4 channels).
MADI Interface: 4 interfaces @ 48 kHz, 2 interfaces @ 96 kHz (BNC).
Optocore Interface: Optional, dual-loop capable.
DMI Slots: 2 × DiGiCo Multichannel Interface slots.
Waves Support: Optional SoundGrid connectivity.
Sampling Rates: 48 kHz / 96 kHz.
GPI/GPO: 2.
External Sync: Word Clock, MADI, Optocore.
Processing Delay: 2 ms @ 48 kHz, 1 ms @ 96 kHz.
Internal Processing: Up to 40-bit floating point.
A/D & D/A Conversion: 24-bit.
Frequency Response: ±0.25 dB (20 Hz–20 kHz).
THD+N (Mic In to AES Out): <0.003%.
THD+N (AES In to Line Out): <0.003%.
Channel Separation: >100 dB @ 10 kHz.
Residual Output Noise: <-94 dBu (A-weighted).
Equivalent Input Noise (EIN): <-127 dBu (A-weighted).
Maximum Input Level: +22 dBu.
Maximum Output Level: +22 dBu.
Input Delay: Up to 1.3 seconds.
Input EQ: 4-band Parametric/Dynamic EQ.
Output EQ: 8-band Parametric/Dynamic EQ.
HPF/LPF: 20 Hz–20 kHz, 24 dB/Octave.
Dynamics: Compressor, Multiband Compressor, Gate, Ducker, De-Esser.
Input Fader: 100 mm motorized, ∞ to +10 dB.
Output Fader: 100 mm motorized, ∞ to +10 dB.
Power Requirements: 100–240 VAC, 50–60 Hz, 255 VA.
Product Weight: 95 lbs. (304 lbs. with flight case).
Product Dimensions (L × W × H): 44.25" × 31.54" × 17.17".
