Description

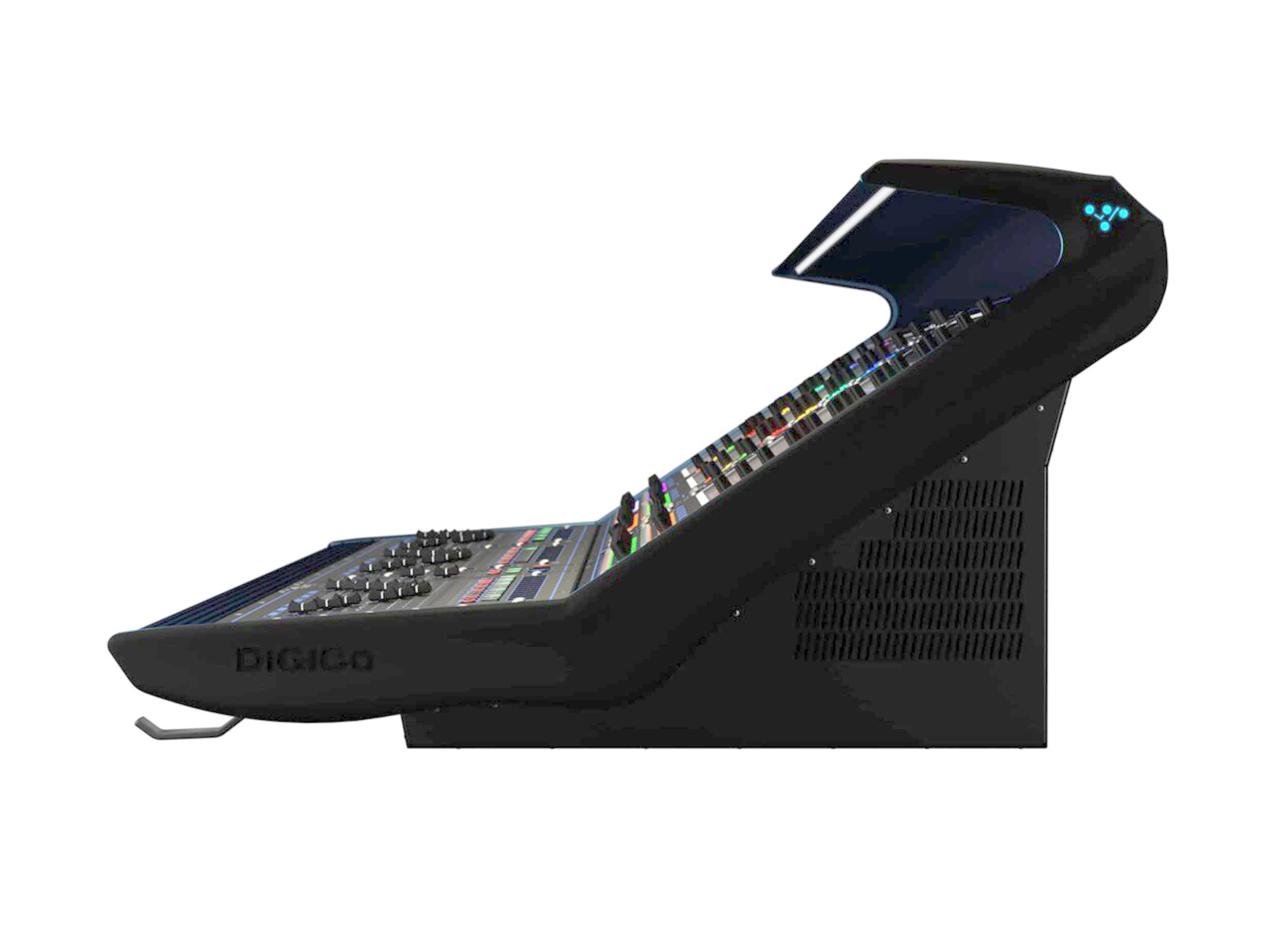

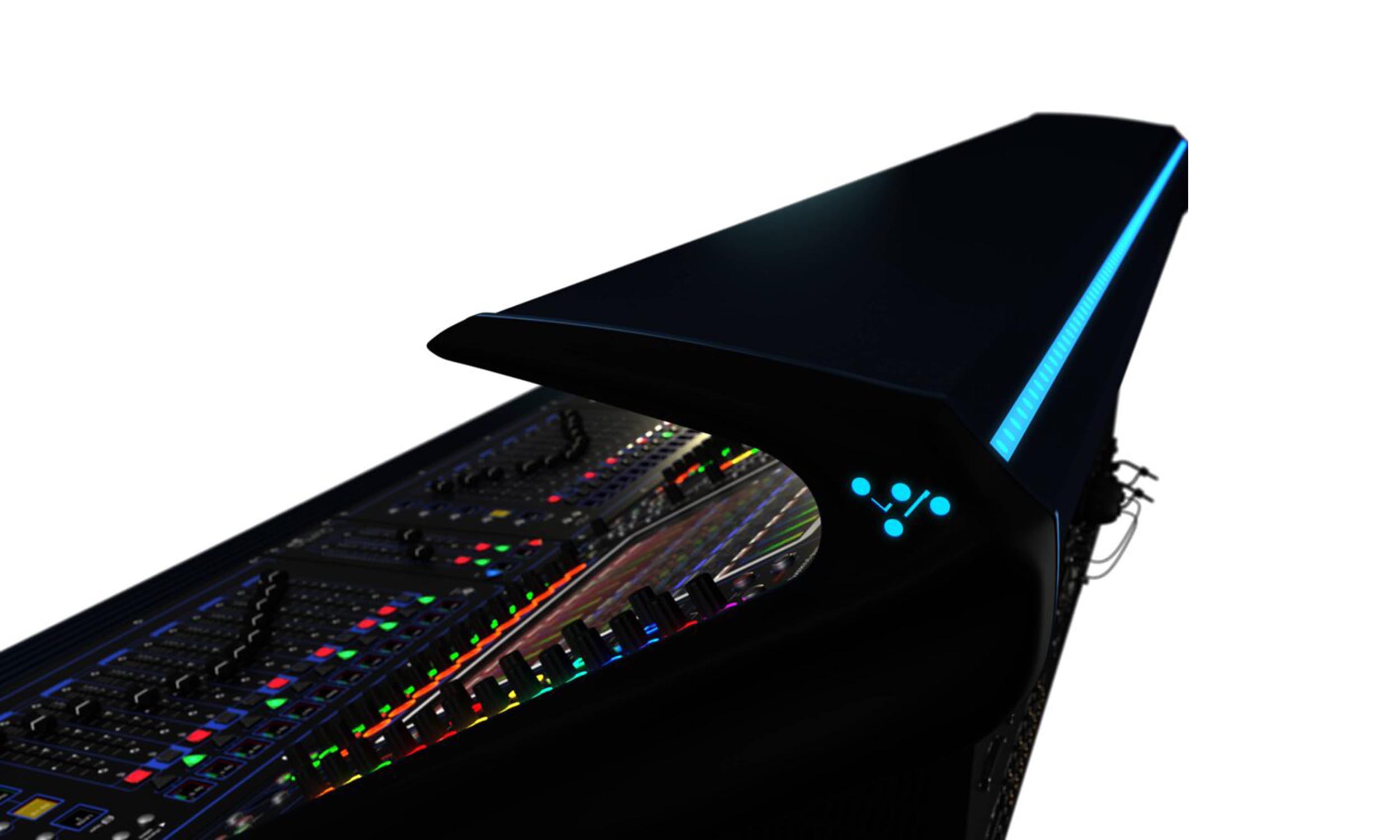

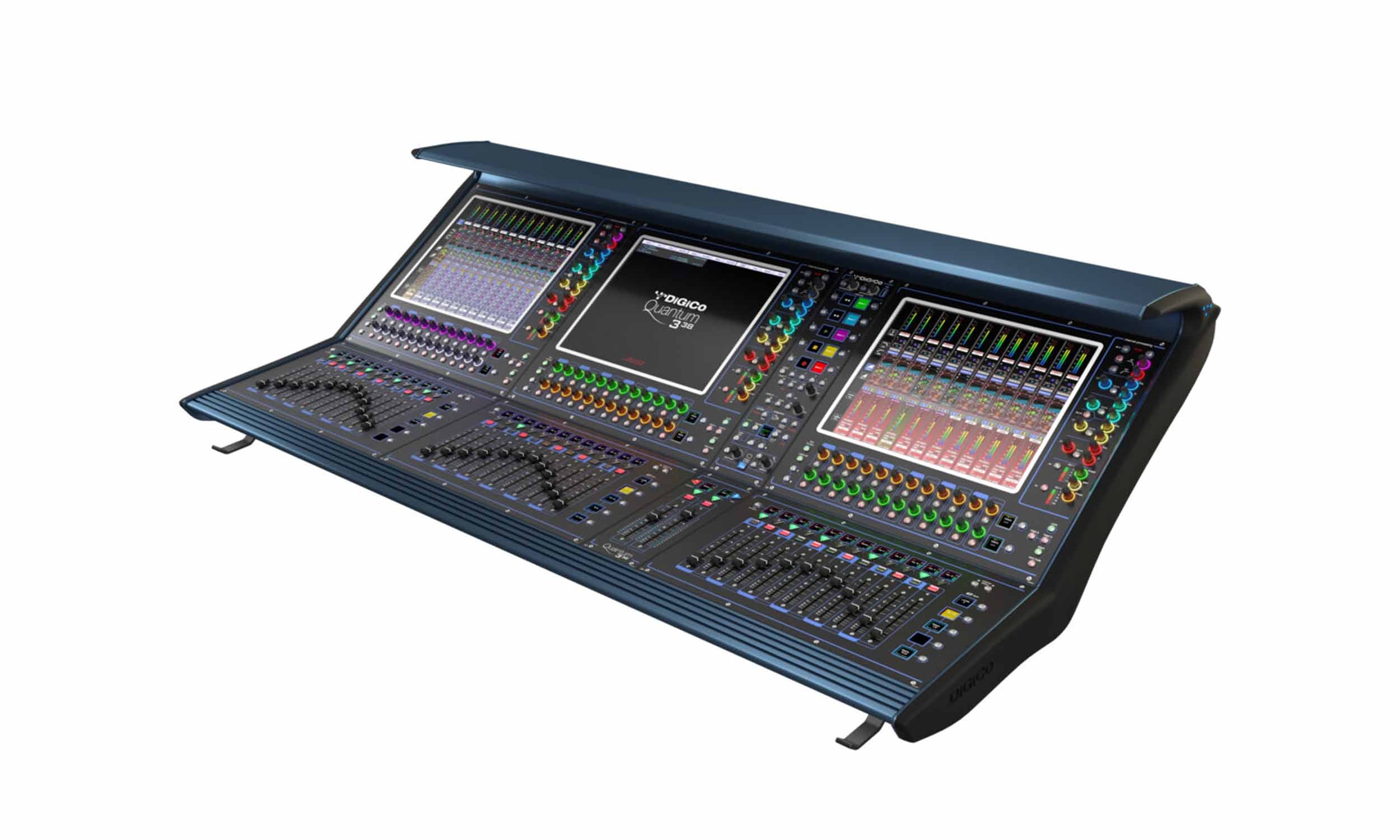

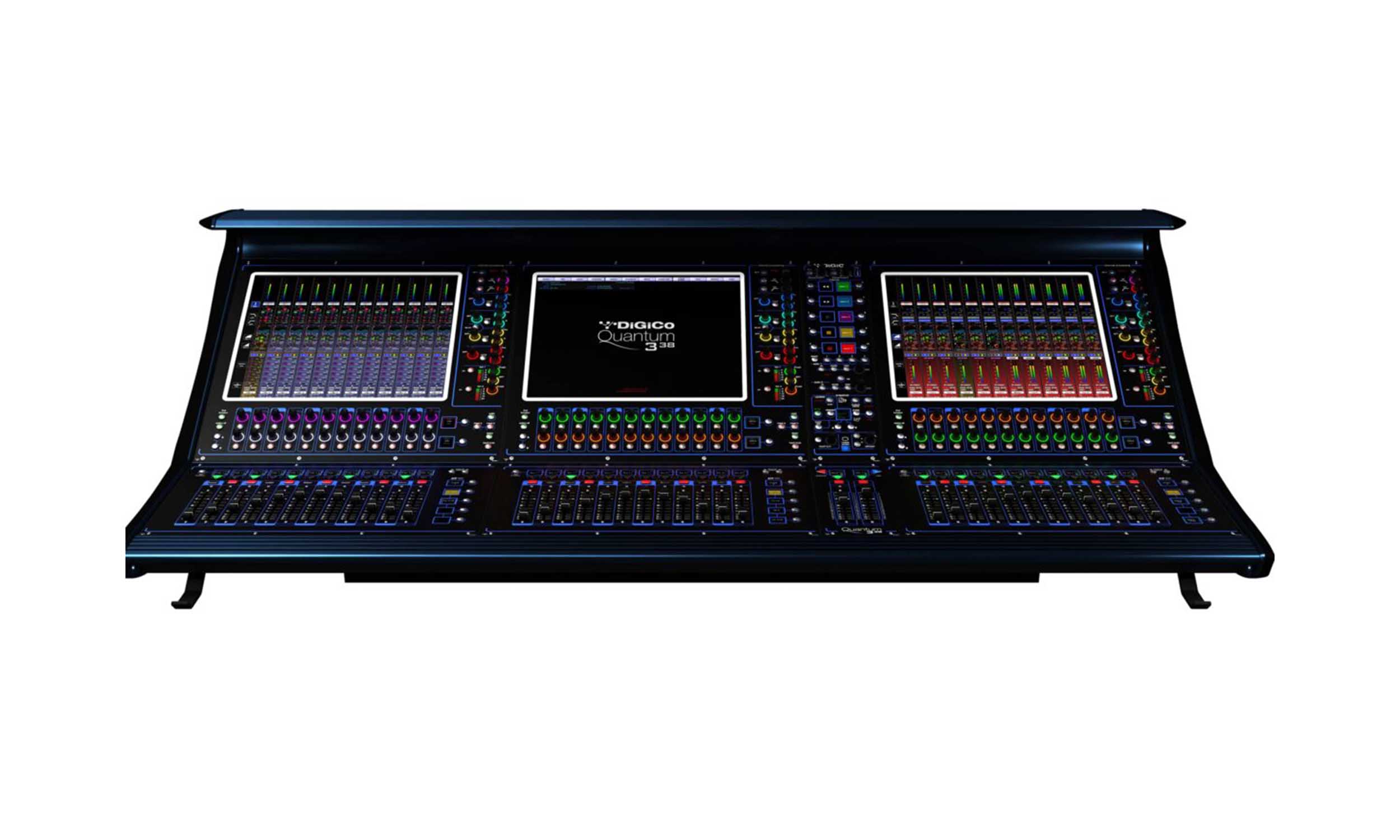

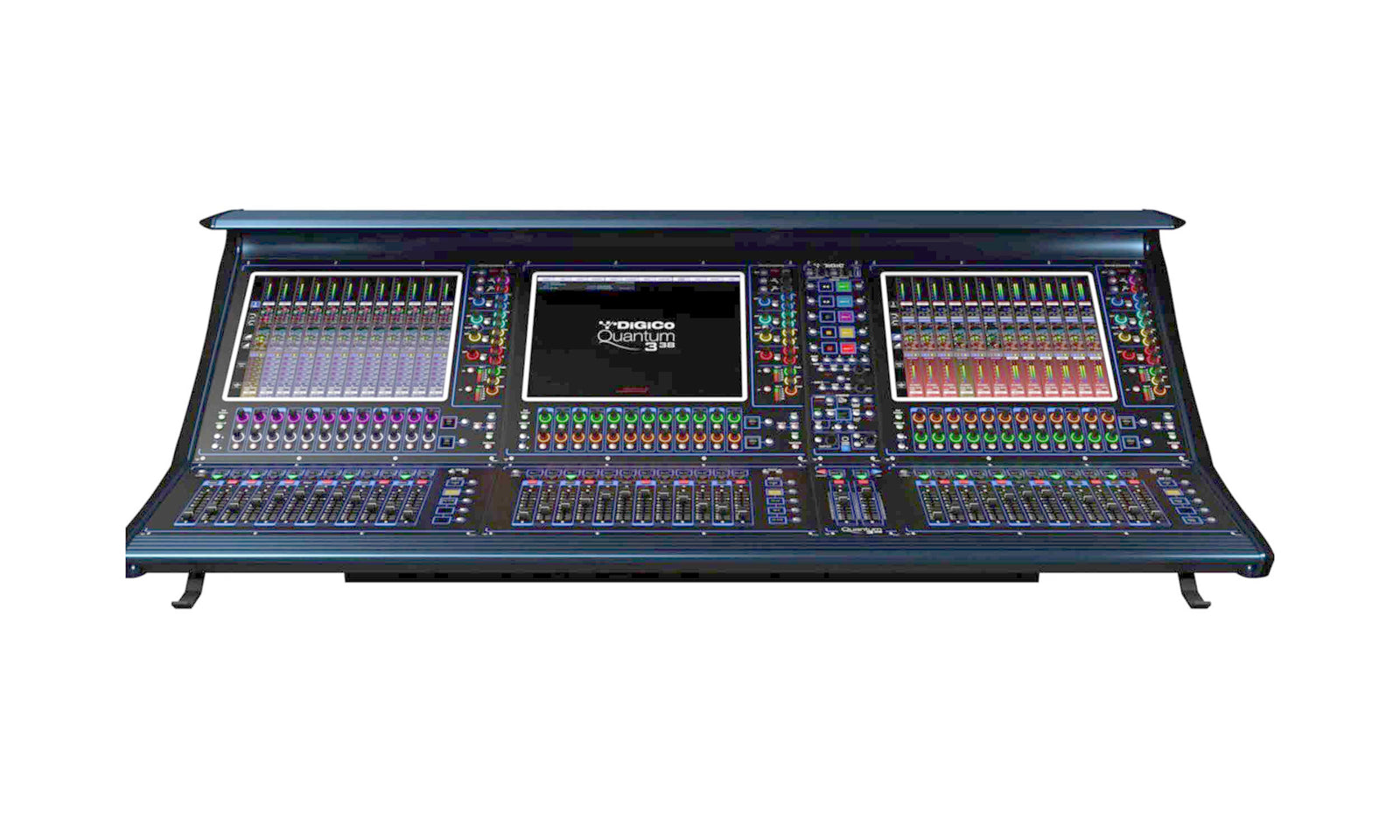

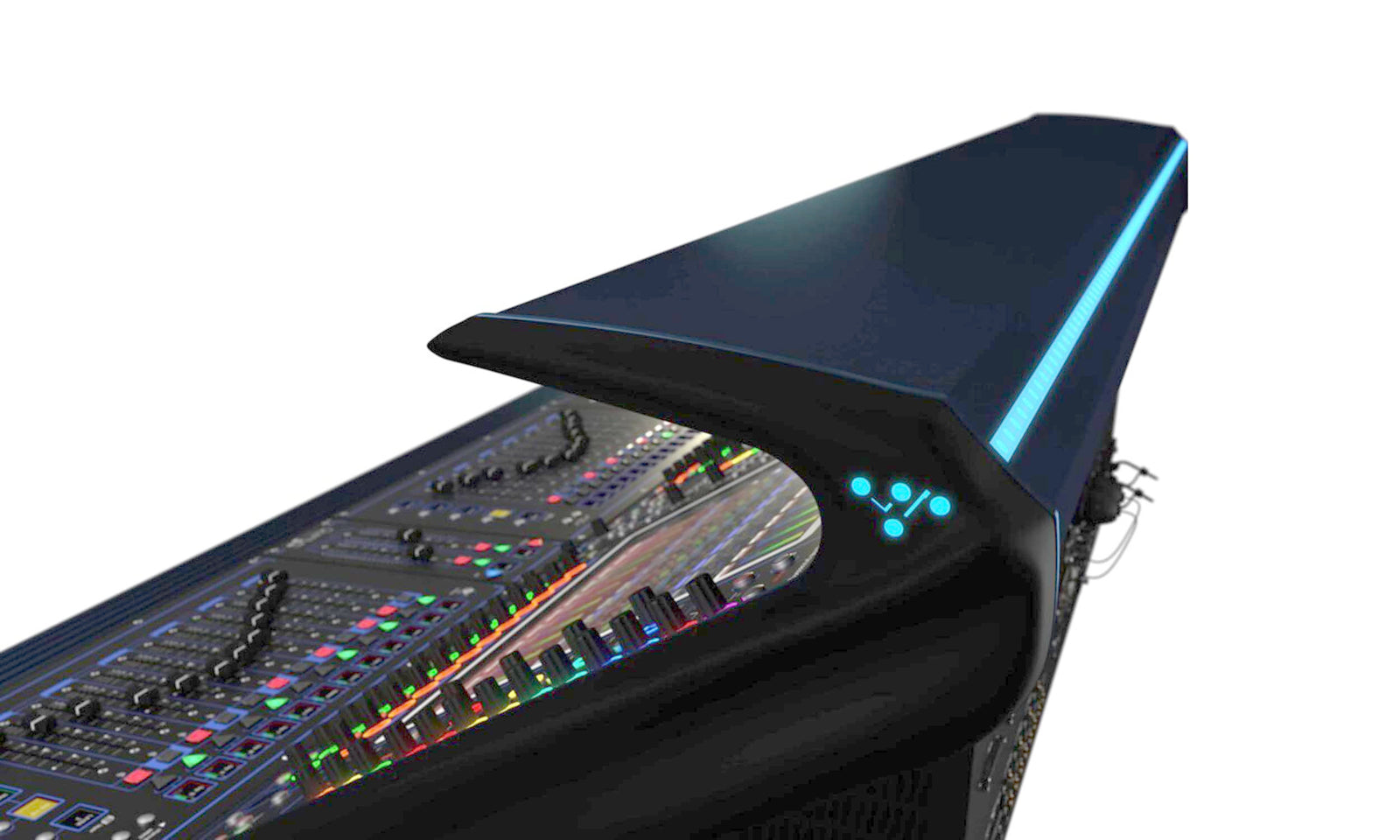

The DiGiCo Quantum 338 is engineered to deliver exceptional processing power in a compact, tour-ready digital mixing console. Built on seventh-generation FPGA technology, it provides faster operation, lower latency, and greater reliability for demanding live productions. Its advanced architecture combines the familiar DiGiCo workflow with significant performance enhancements, allowing engineers to mix confidently in any environment. Designed for touring, broadcast, theatre, and houses of worship, the Quantum 338 offers outstanding flexibility while maintaining intuitive operation. Every function is optimized to deliver professional results with maximum efficiency.
Brilliant Multitouch User Interface

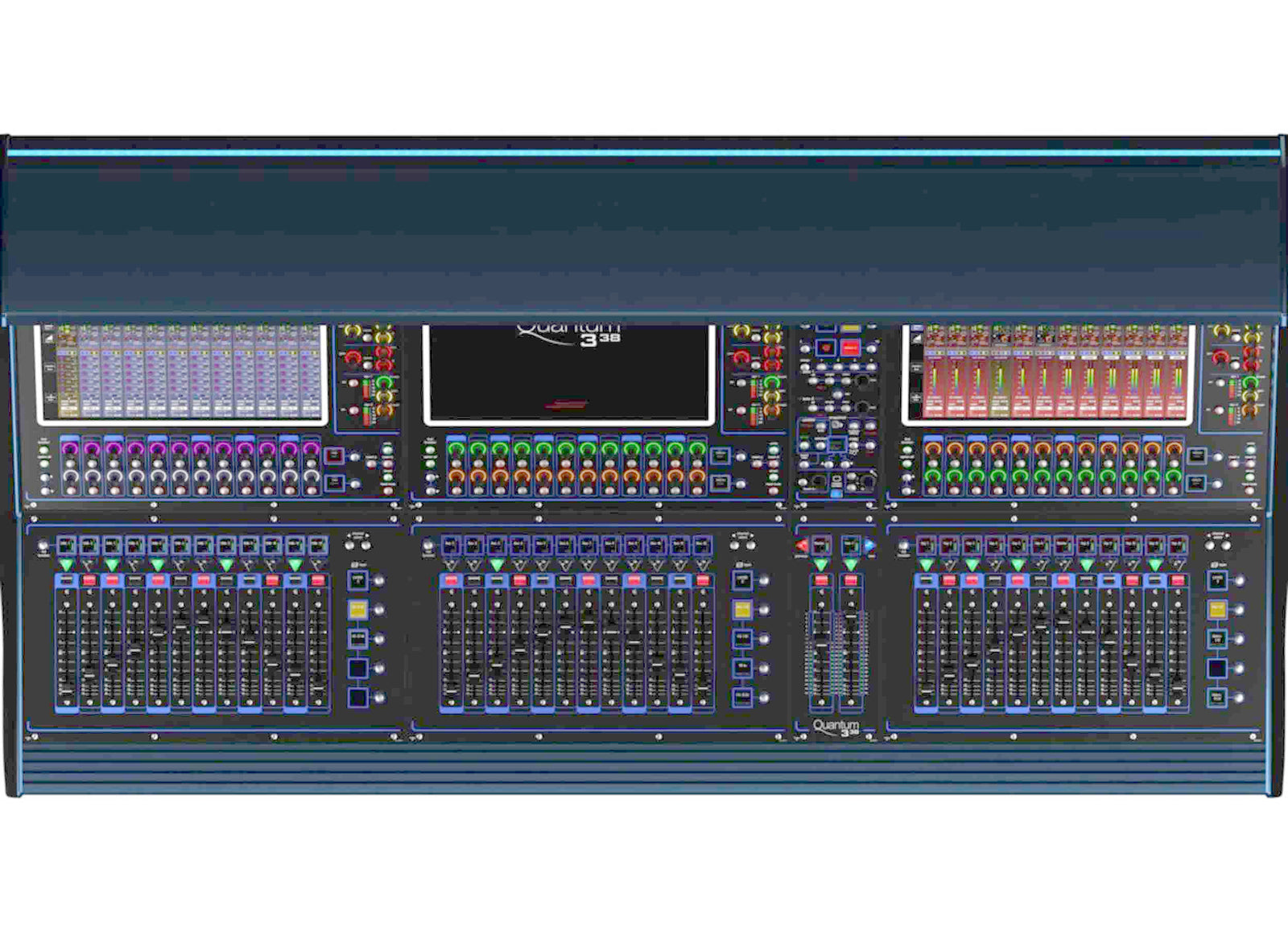

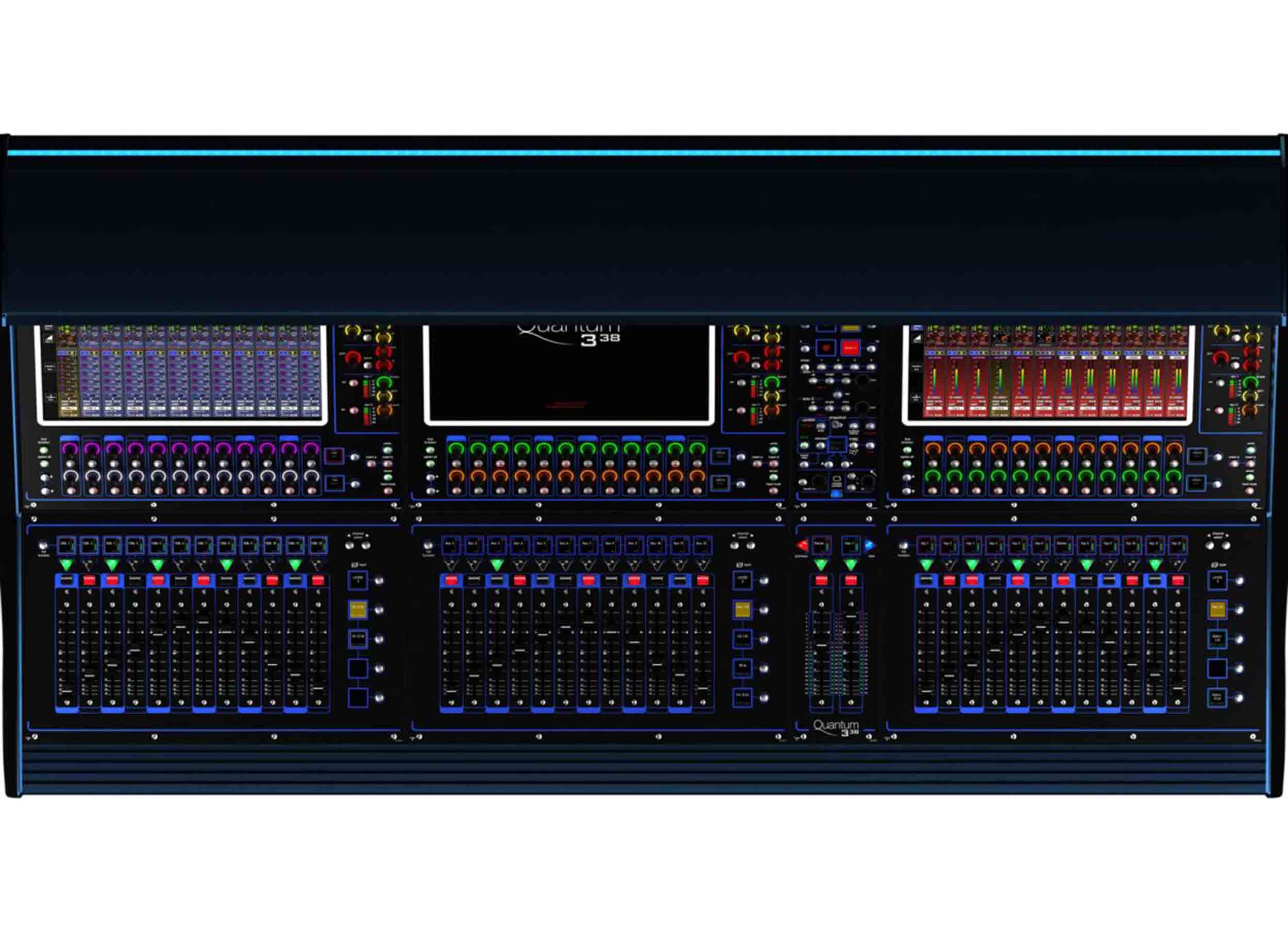

The Quantum 338 features three ultra-bright 17-inch 1000-nit multitouch displays that provide exceptional visibility in any lighting condition. Each screen integrates channel metering, soft quick-select controls, and workflow customization for rapid operation during live performances. Seventy dedicated TFT channel displays deliver detailed information directly above every fader, reducing navigation time and improving workflow accuracy. A modern dark mode interface minimizes eye fatigue while enhancing visibility during extended sessions. This intelligent control surface keeps essential functions within immediate reach for faster and more precise mixing.
Precision Fader Control
Designed for maximum hands-on control, the Quantum 338 includes 38 motorized 100mm touch-sensitive faders arranged in three ergonomic banks. Two additional user-assignable faders provide instant access to critical channels, masters, or custom functions during demanding productions. High-resolution channel metering above every fader ensures accurate signal monitoring without requiring additional screen navigation. The responsive layout enables engineers to manage complex mixes efficiently while maintaining complete confidence in every adjustment. Its premium control surface is built for smooth, accurate, and reliable operation.
Ultimate Stadius Audio Quality
The Quantum 338 delivers outstanding sonic performance through integrated 32-bit Ultimate Stadius analog-to-digital and digital-to-analog converters. Eight local microphone/line inputs and eight local line outputs provide pristine audio capture and playback with exceptional dynamic range and low noise. The advanced conversion technology preserves every detail from input to output, ensuring superior clarity for live sound, theatre, and broadcast applications. High-quality internal processing maintains signal integrity across every channel and bus. The result is a transparent, natural, and highly accurate audio experience.
Extensive Professional Connectivity

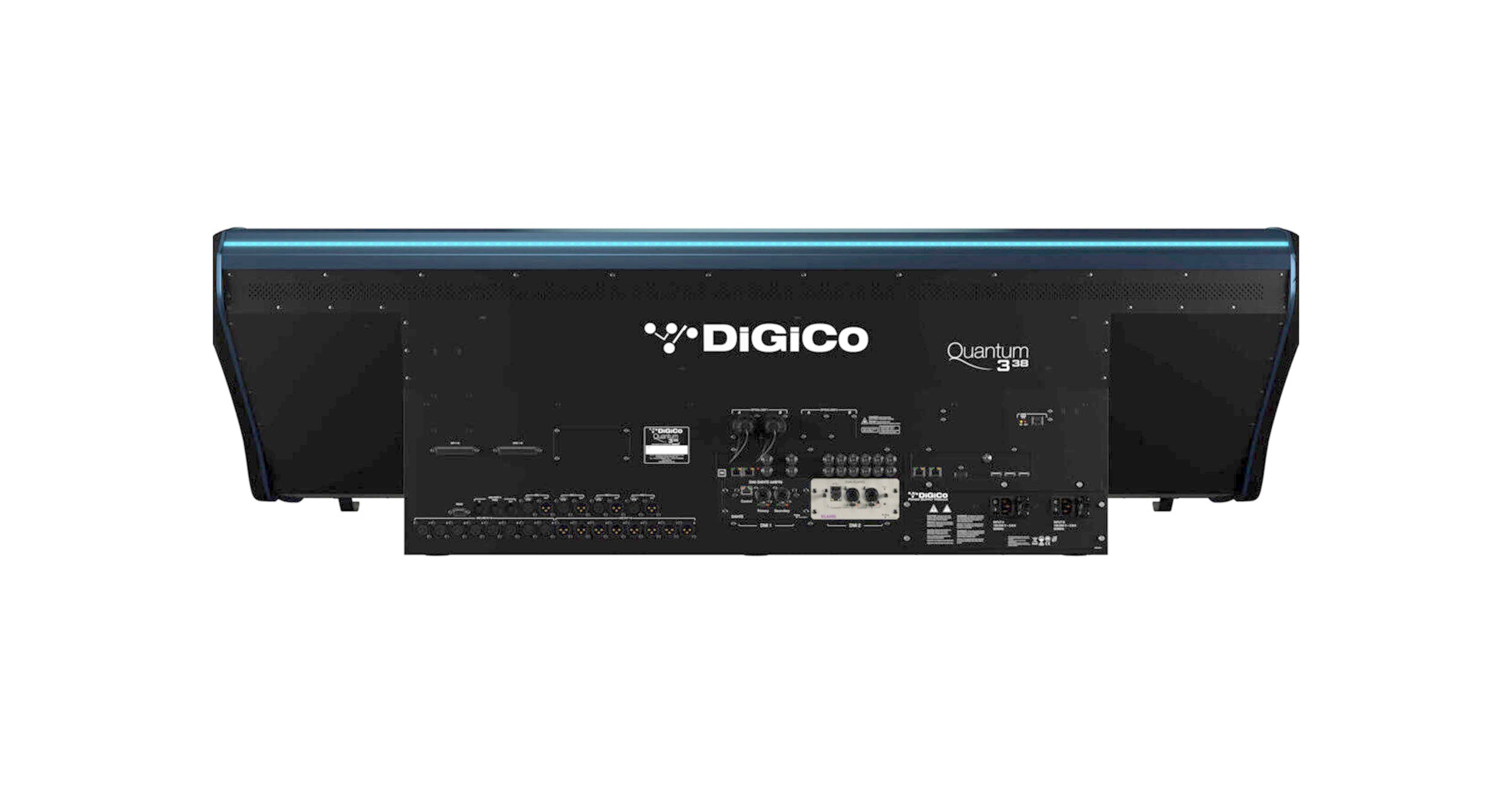

Built to integrate seamlessly into modern production systems, the Quantum 338 offers an impressive range of connectivity options. Multiple MADI connections, dual DMI expansion slots, dual Optocore loop support, AES/EBU digital I/O, and an integrated UB MADI USB recording interface provide exceptional flexibility. The console easily adapts to large-scale touring systems, broadcast facilities, and permanent installations. Optional Waves SoundGrid integration further expands processing capabilities for engineers requiring advanced plugin workflows. This comprehensive connectivity ensures compatibility with virtually any professional audio environment.
Powerful Integrated Processing
The Quantum 338 comes equipped with DiGiCo's complete suite of advanced FPGA-based processing tools. Every channel benefit from Mustard Processing strips that deliver premium EQ, dynamics, and compression without external hardware. Spice Rack adds powerful native FPGA effects that emulate high-end studio processors while maintaining ultra-low latency. Nodal Processing enables precise system-wide signal management, and True Solo provides accurate monitoring throughout the entire signal path. Together, these integrated technologies deliver exceptional mixing flexibility, enhanced creativity, and uncompromising professional performance.
What’s in the Box:
- One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
- Ultimate Stadius' 32-Bit Mic Pre-Amp & 32-Bit Output Package
- HMA Optics cable 150M on spool (492 ft.) x 2
- Connections: MADI x 6, Optics x 1, Internal Waves Card, UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
- Qualifies for DiGiCo Trade Up Program (Limited Time Offer)
Product Specifications:
Connector: OpticalCON fiber only.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19"
