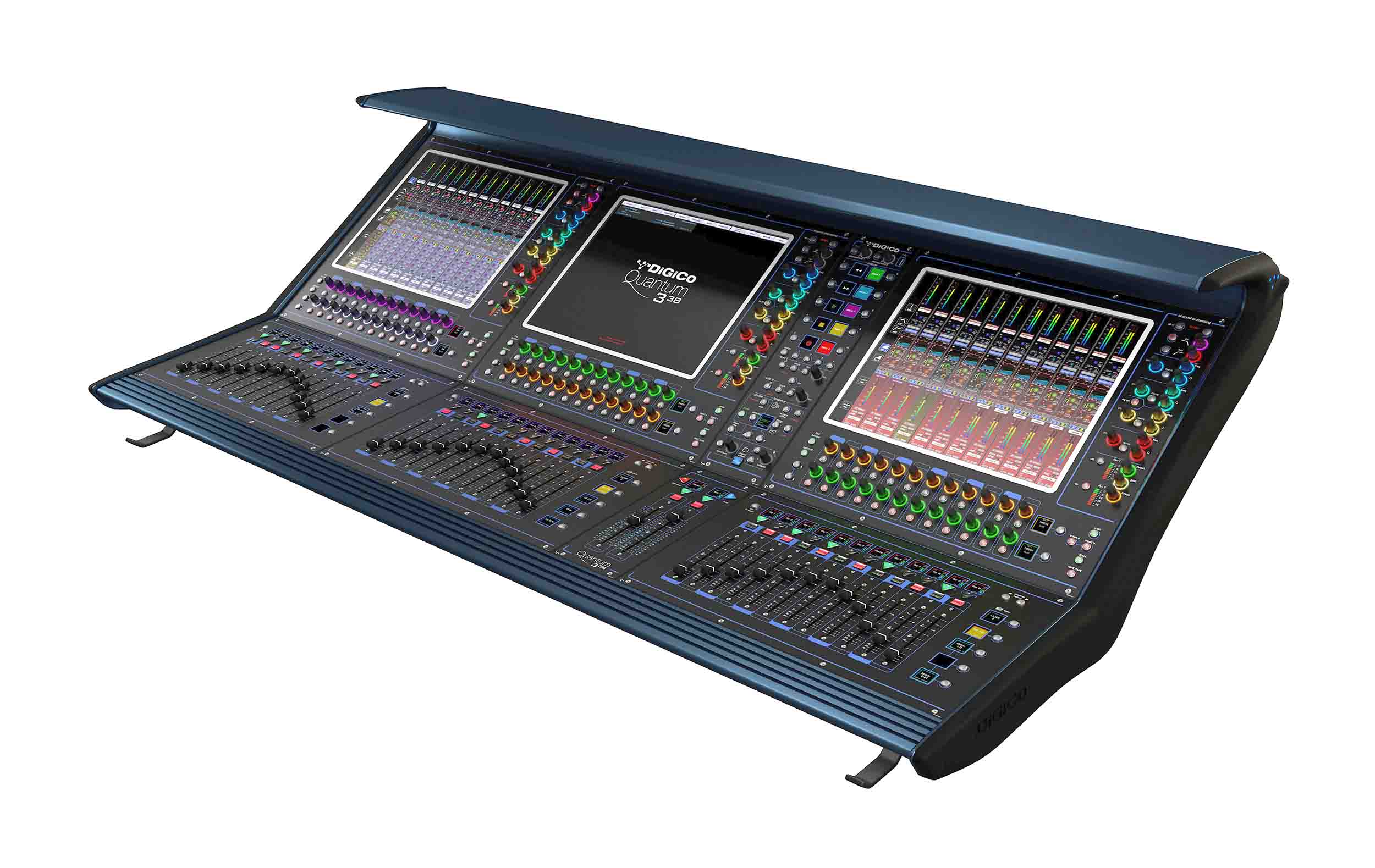

The DiGiCo Quantum 338 Digital Mixing Console with WAVES FO Q338 Plugin - X-Q338-WS Representing a dramatic leap forward in power and connectivity within a remarkably compact format, Quantum 338 follows the Quantum 7 in defining the future of audio mixing.
Quantum 338: Leap Ahead
Boasting a wealth of new design features and enhancements to create ultimate flexibility of use plus the speed of operation that only Quantum can deliver, Quantum 338 is based on seventh generation FPGAs with an entirely new system architecture. The console merges tried and tested workflows with immense processing muscle and bold innovation including a striking new dark mode.
Under the Hood – Ultimate Stadius

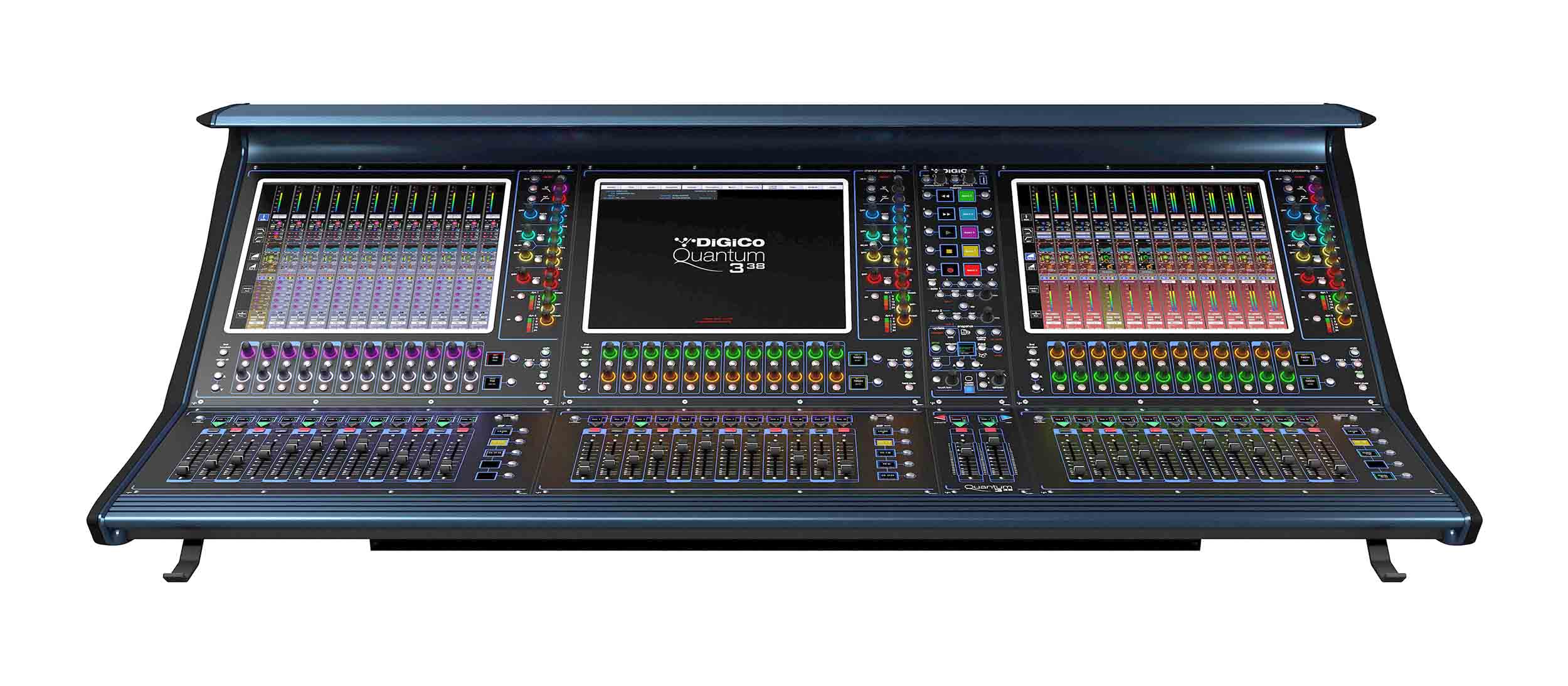

Quantum 338 puts a trio of 17-inch, 1000 nit, high brightness multitouch screens at your disposal, with both the meter bridge and soft quick select buttons displayed on each screen for quick, intuitive operation. In addition, 70 individual TFT channel displays join the floating Quantum chassis with 38 100mm touch sensitive faders laid out in three blocks of 12 fader banks plus two dedicated user-assignable faders, each with high resolution metering.
Superior local audio connectivity and performance comes courtesy of new “Ultimate Stadius” 32-bit ADC and DAC conversion, which is built into the Quantum 338 as standard alongside six single or three redundant MADI connections, dual DMI slots and a built-in UB MADI USB recording interface.
Also included as standard are Mustard Processing channel strips, Spice Rack plugin style native FPGA processing options, Nodal Processing and True Solo.
I/O

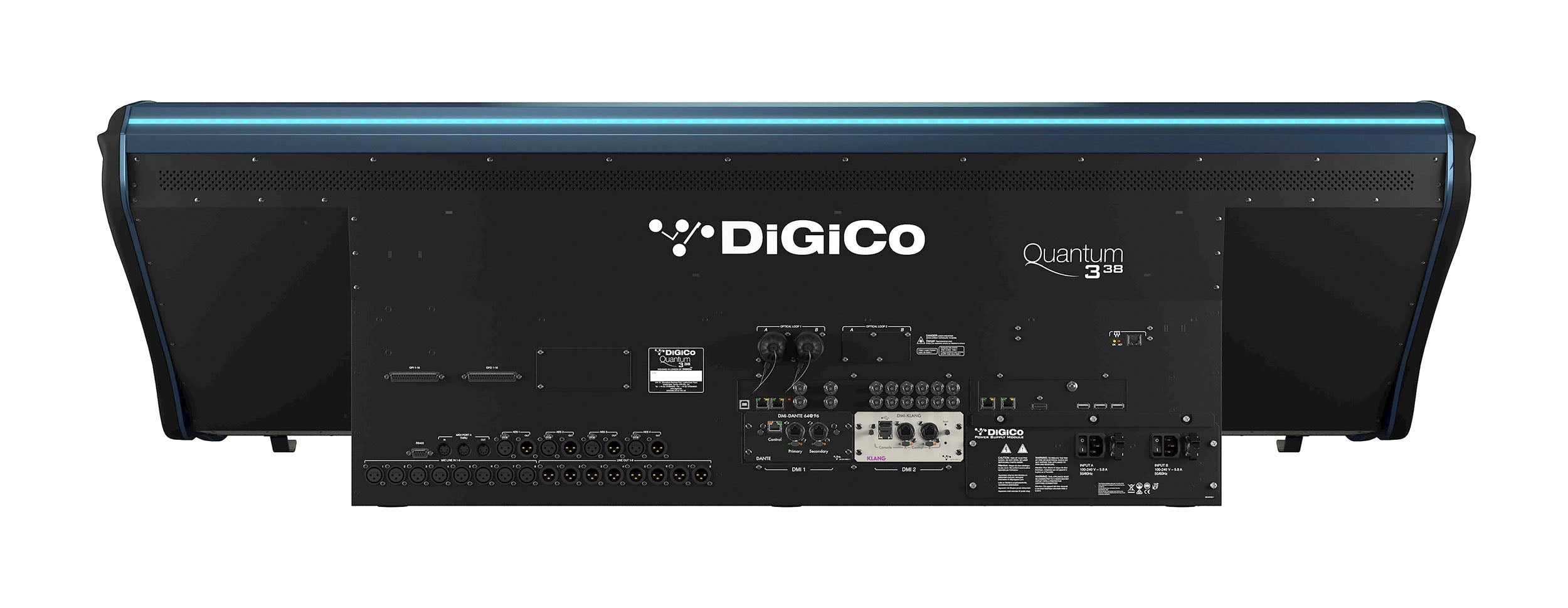

With a maximum of 128 input channels with 64 busses and a 24 x 24 matrix, all with full channel processing, Quantum 338 takes built-in console I/O to new levels of performance. The console’s 8 local mic/line inputs and eight local line outputs all feature 32-bit “Ultimate Stadius” converters, while users have access to 4 stereo AES/EBU in/out, triple redundant MADI in/out (which can also be configured as 6 MADI I/O at 48kHz), dual DMI card slots, support for dual second generation opt core loops, a built-in UB MADI USB interface and more.
Product Specification:
Faders: 38 x 100mm touch-sensitive, motorized
Screens: 3 x 17” LCD high – brightness, high – resolution touch screens
Input Channels: 128
Busses: Up to 64 Aux / Group busses with full processing Mono / Stereo / LCR / LCRS / 5.1
Matrix: Up to 24 Input / 24 Outputs with full processing
Control Groups: Up to 24, selectable for VCA-style, Moving fader, Mute Group
Graphic Eq: 24 x 32-band, Gain +/- 12dB
Spice Rack: 8 mono / 4 stereo Rack Slots
Mustard Proc: 36 Processing Strips
Nodal Proc: 64 Nodal Processors
Local I/O: 8 x 32bit mic/line I/O, 8 x AES I/O
MADI interface: 6 x interfaces @ 48kHz, 3 interfaces @ 96kHz, BNC connectivity
Optocore Interface: Optional (dual loop available)
Sampling rates: 48kHz / 96kHz
GPI/GPO: 16
DMI: 2 x DiGiCo Multichannel Interface
Waves: Optional
Ext Sync: Word clock, AES, MADI, Optocore
Quantum 338 Dimensions: 1595mm (w) x 805mm (d) x 482mm (h)
Quantum 338 Weight: 70Kg / 154lbs (198Kg / 437 lbs. with flight case)
Quantum 338 Flight case: 1717mm (w) x 642mm (d) x 1144mm (h)
Power Requirements: 100V-240V, 50-60Hz, 295VA
Dynamics 2: On/Off Gate / Ducker:
Threshold; -60 – 0dB
Attack; 50us – 100ms
Hold; 2ms – 2s
Release; 5ms – 5s
Range; 0 – 90dB
Key; Any Source
Key Listen
Freq/Width; 20 – 20kHzCompressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel / Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
Dynamics 1: Single or Multiband (3-band) Compressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel / Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
Threshold: 20us – 20ms
Release: 1ms – 100ms
Ratio: 1:1 – 50:1
Ess-Band: Listen On/Off
Ess-Band Filter Freq/Width: 20Hz – 20kHz
Dynamics 2: On/Off Gate / Ducker:
Threshold; -60 – 0dB
Attack; 50us – 100ms
Hold; 2ms – 2s
Release; 5ms – 5s
Range; 0 – 90dB
Key; Any Source
Key Listen
Freq/Width; 20 – 20kHzCompressor:
On/Off
Threshold; -60 – 0dB
Attack; 500us – 100ms
Release; 10ms – 10s
Ratio; 1:1 – 50:1
Gain; 0 to +40dB with Autogain Option
Link; Any Channel/Buss
Hi Crossover; 20Hz – 20kHz
Lo Crossover; 20Hz – 20kHz
S/C Source: Any source
S/C Listen: On/Off
S/C Filter Freq/Width: 20Hz – 20kHz
Insert B: (Post EQ/Dyn) On/Off
EQ/Dyn Order: EQ/Dyn or Dyn/EQ
Mute: Channel Mute / Hard Mute
Solo: Solo Buss 1 / Solo Buss 2 / Both, Auto Solo
Channel Safe: Trim, EQ, Dyn, Fade/Mute, Inserts, Outputs, Full Safe
Output Routing: Outputs, Insert A, Insert B, FX
Fader: 100mm Motorized Fader ∞ to +10dB
Preamplifier Tubes:
Variable Drive
Odd / Even / Overdrive / Distortion / Crunch / Hi Distortion Presets
Variable Output Gain
Preamplifier Amp:
Variable Drive
Odd/Even 1st stage harmonics
Bias & Saturate control
Off/Odd/Even 2nd stage harm
Variable HF Boost
Variable Output Gain
Dynamics 1: Classic VCA Compressor / Vintage VCA Compressor / Optical Compressor / FET Limiter
Dynamics 2: Gate / Ducker
