Description

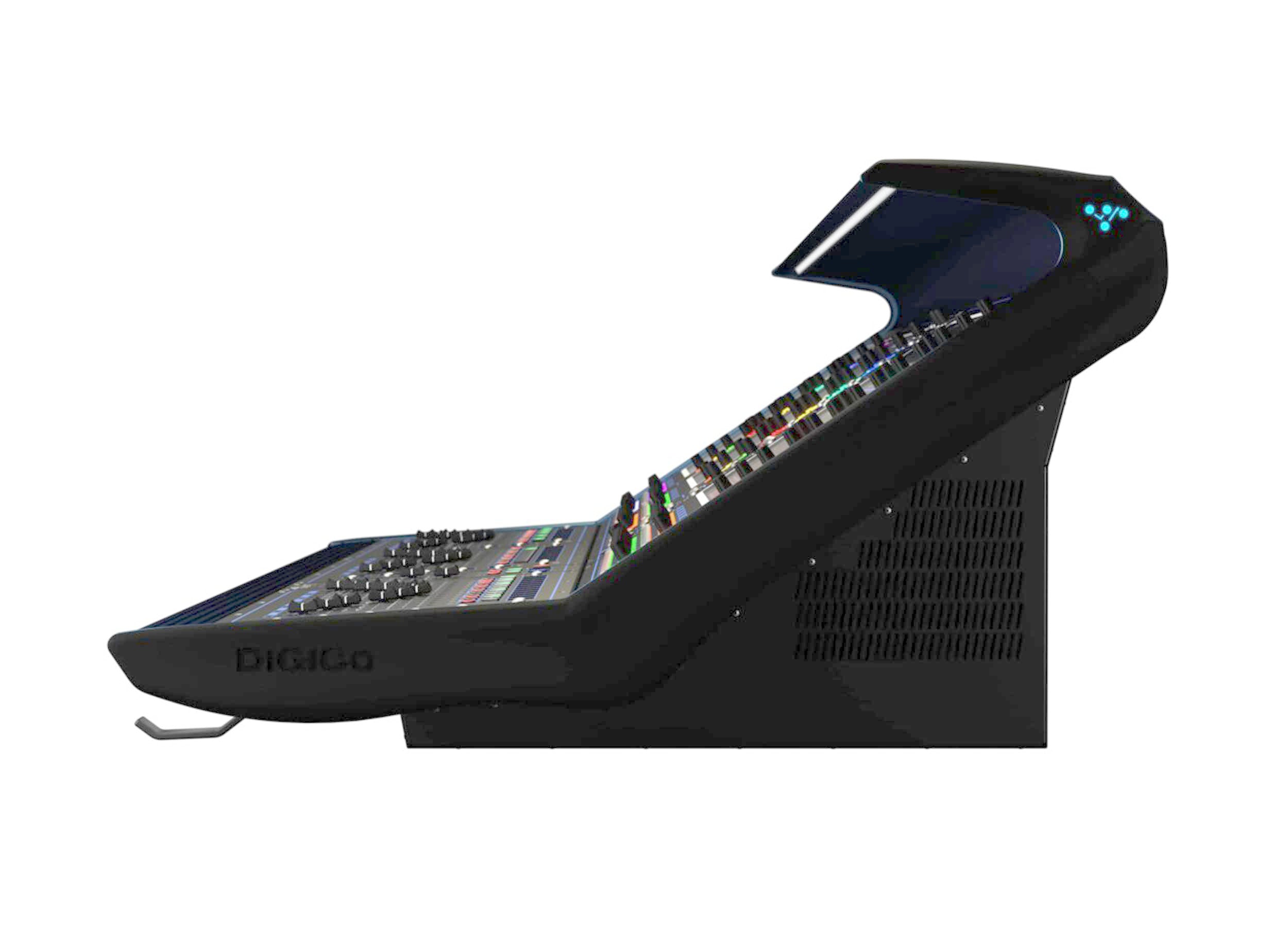

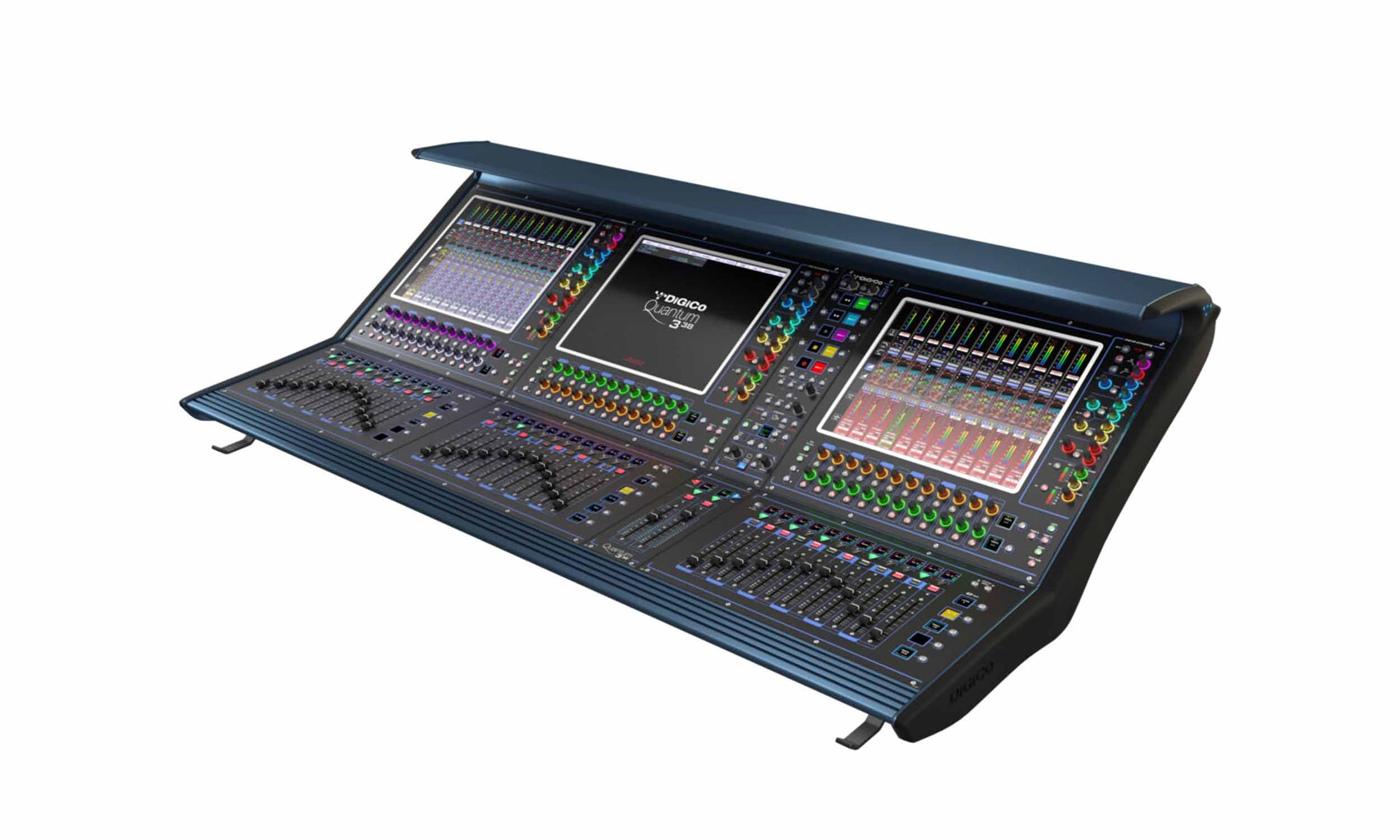

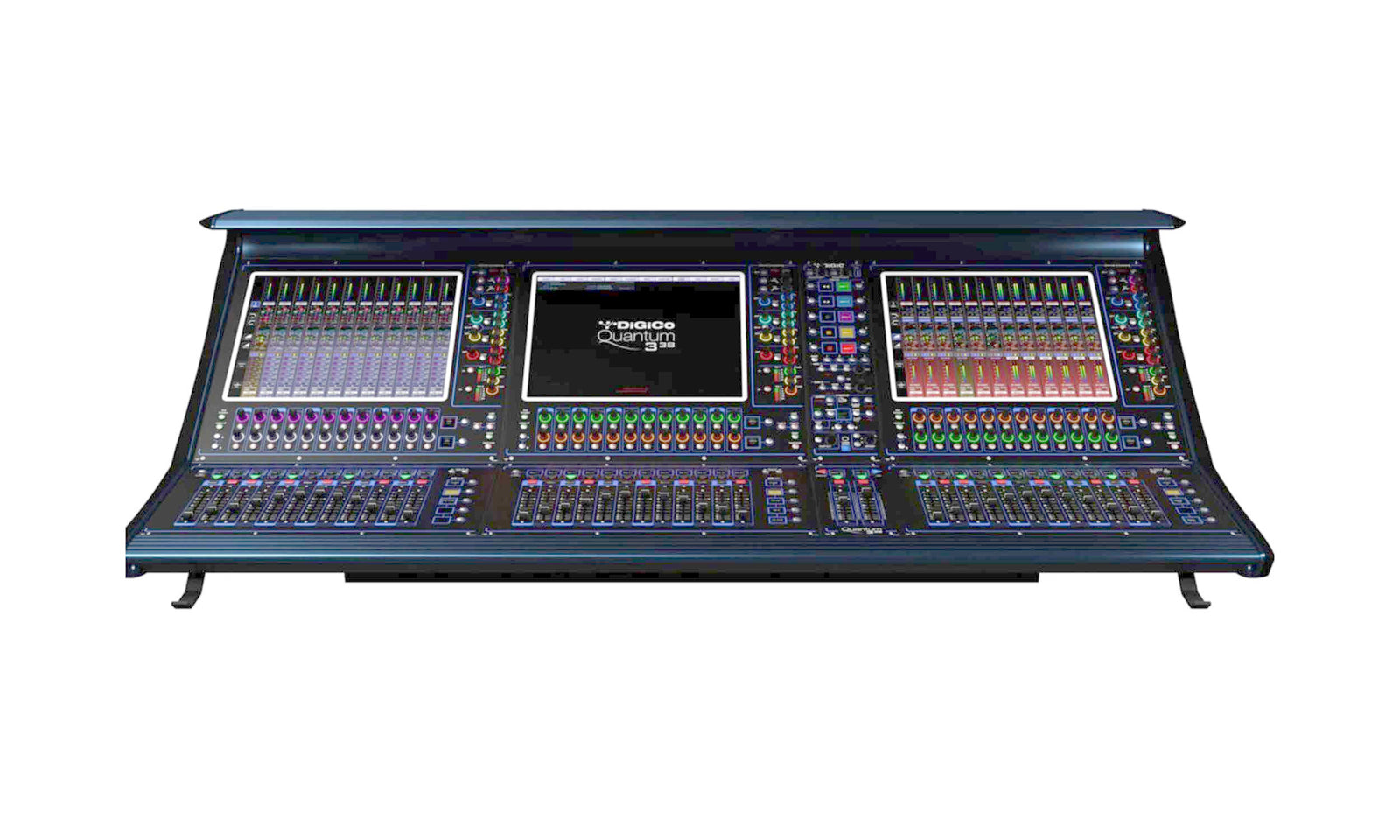

The DiGiCo X-Q338-W-WS-PREM combines the advanced Quantum 338 engine with integrated Waves SoundGrid connectivity in a MADI-only configuration. Built on seventh-generation FPGA technology, it delivers exceptional processing power, ultra-low latency, and dependable performance for live sound, broadcast, theatre, and installation applications. With support for up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, it easily handles complex productions while maintaining DiGiCo's intuitive workflow. Its compact footprint makes it ideal for engineers who require flagship performance in space-conscious environments.
MADI-Only Connectivity

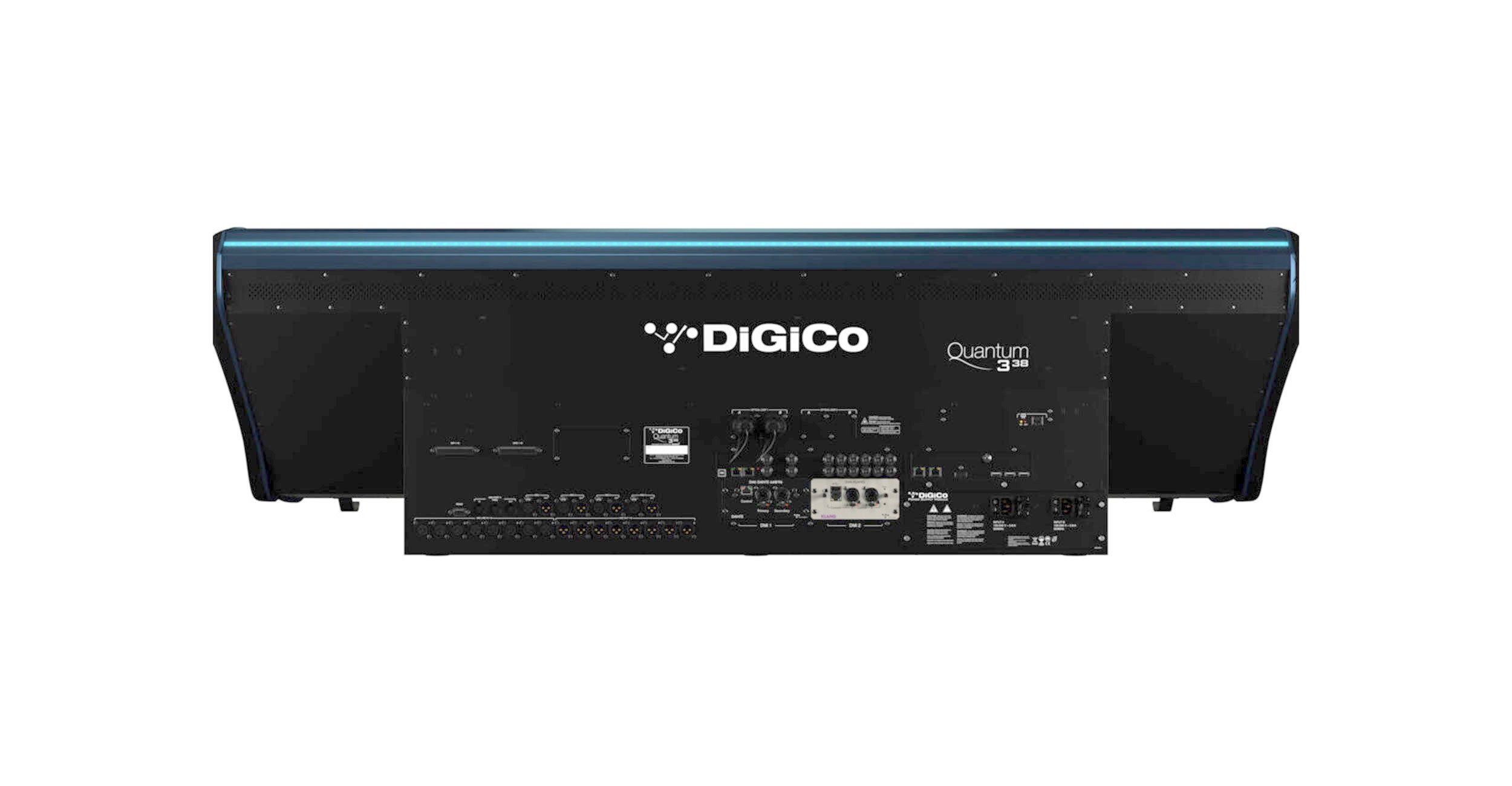

The MADI-only configuration is designed for users who rely exclusively on MADI networking without Optocore connectors. It provides up to six MADI interfaces at 48 kHz or three at 96 kHz, dual DMI expansion slots, AES/EBU digital I/O, and a built-in UB MADI USB recording interface for flexible routing and recording. This configuration is ideal for facilities and touring systems built around MADI infrastructure while still supporting integrated Waves SoundGrid functionality.
Integrated Waves SoundGrid
Built-in Waves SoundGrid connectivity enables seamless integration with Waves plugins for professional live processing. When paired with a compatible Waves SoundGrid server, engineers can access studio-quality EQs, compressors, reverbs, and other effects with ultra-low latency. Plugin control is available directly from the console, allowing fast adjustments without interrupting the mixing workflow. This integration provides powerful creative flexibility for demanding live productions.
Professional Control Surface

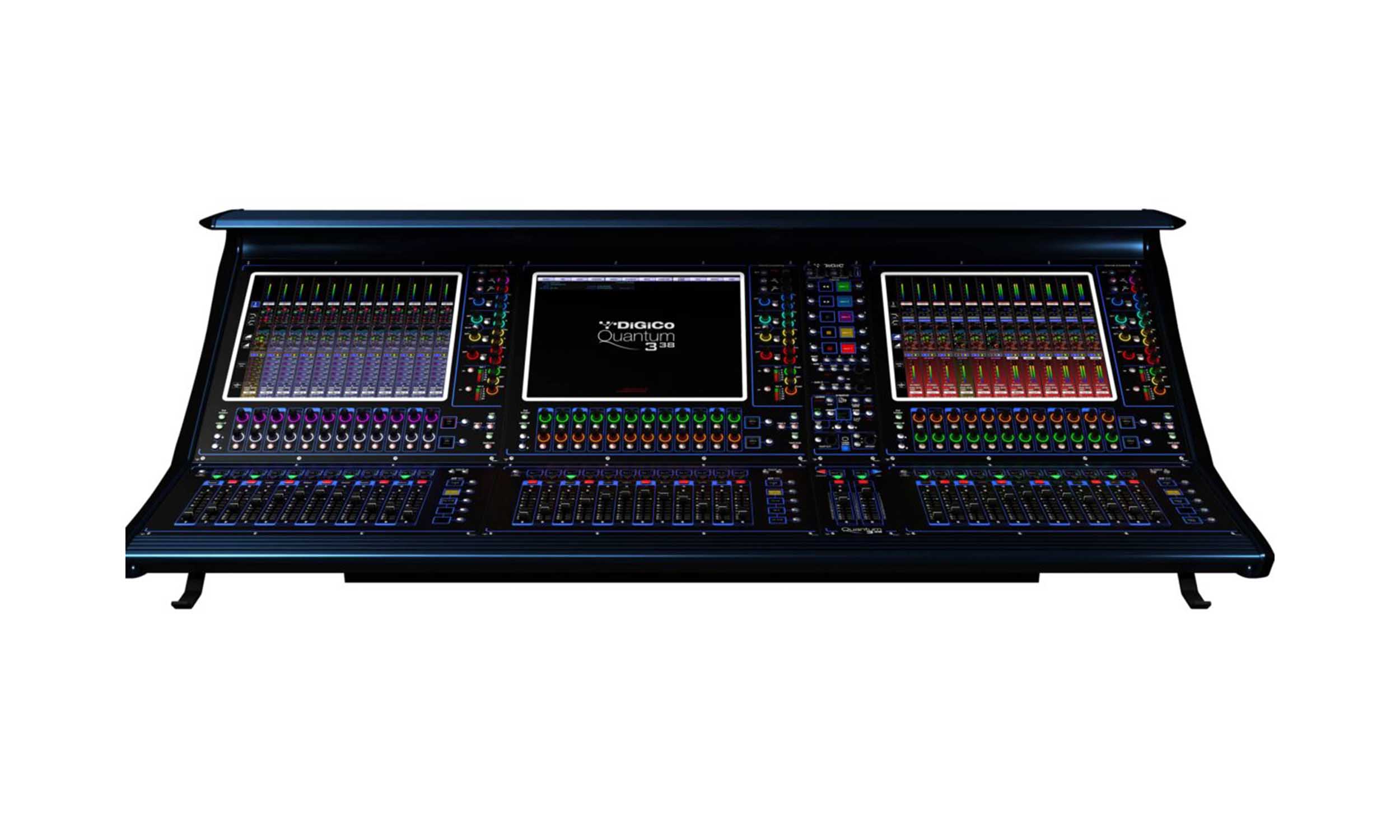

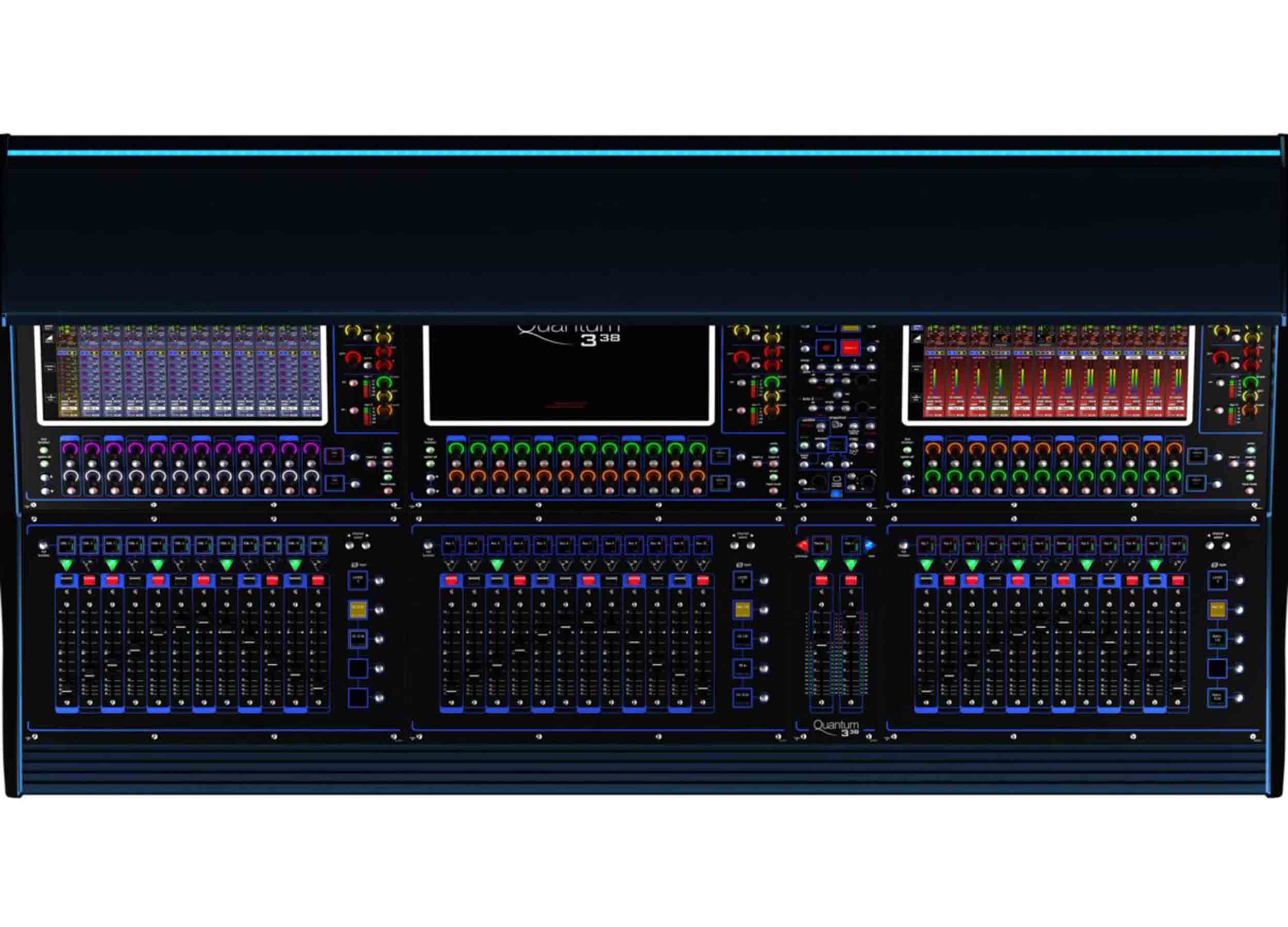

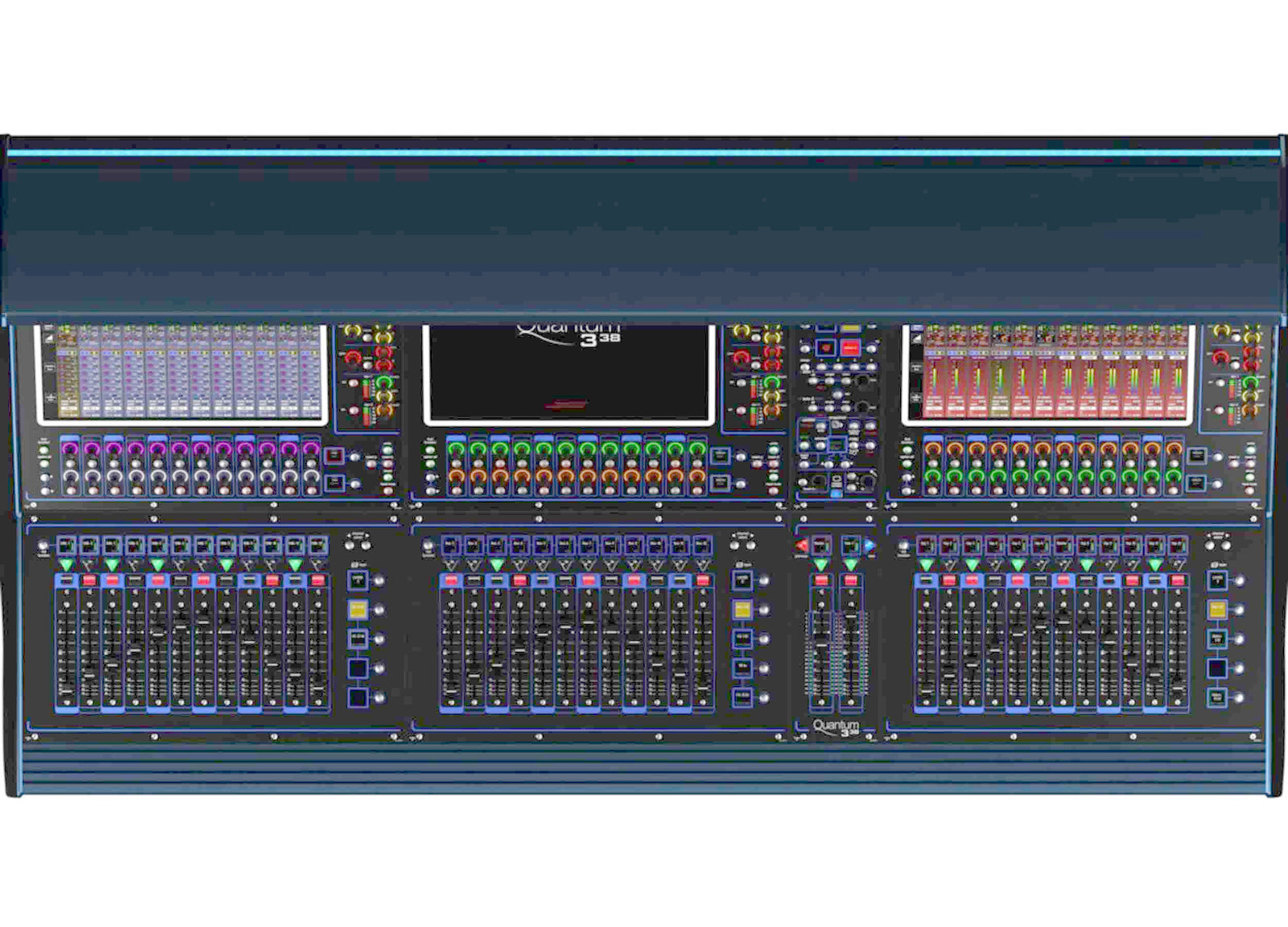

The Quantum 338 features three 17-inch, 1000-nit high-brightness multitouch displays that provide excellent visibility under any lighting conditions. Seventy dedicated TFT channel displays work alongside 38 motorized 100mm touch-sensitive faders to provide immediate access to channel information and control. The ergonomic layout, customizable interface, and dark mode improve efficiency while reducing operator fatigue during extended productions.
Exceptional Audio Performance
Ultimate Stadius 32-bit analog-to-digital and digital-to-analog conversion delivers pristine audio quality with exceptional clarity, dynamic range, and minimal distortion. Eight local microphone/line inputs and eight local line outputs ensure premium signal integrity throughout the console. Combined with DiGiCo's advanced FPGA processing, the system delivers transparent, professional-grade sound for concerts, theatres, broadcast facilities, and houses of worship.
Complete FPGA Processing Suite
The Quantum 338 includes DiGiCo's complete FPGA-based processing package. Mustard Processing delivers premium EQ and dynamics on every channel, Spice Rack provides high-quality FPGA effects with ultra-low latency, Nodal Processing enables advanced system-wide routing, and True Solo offers accurate monitoring throughout the signal path. Together with Waves SoundGrid integration, these technologies provide a comprehensive professional mixing platform capable of handling the most demanding live productions.
What’s in the Box:
- Q5 & SD5 3 Piece Flight Case with Pullout Keyboard on Casters
- Connection: MADI x 8, Optics x 1
- Internal Waves Card, UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Integrated Networking: Waves SoundGrid
Connector: OpticalCON fiber only.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19.0"
