Description

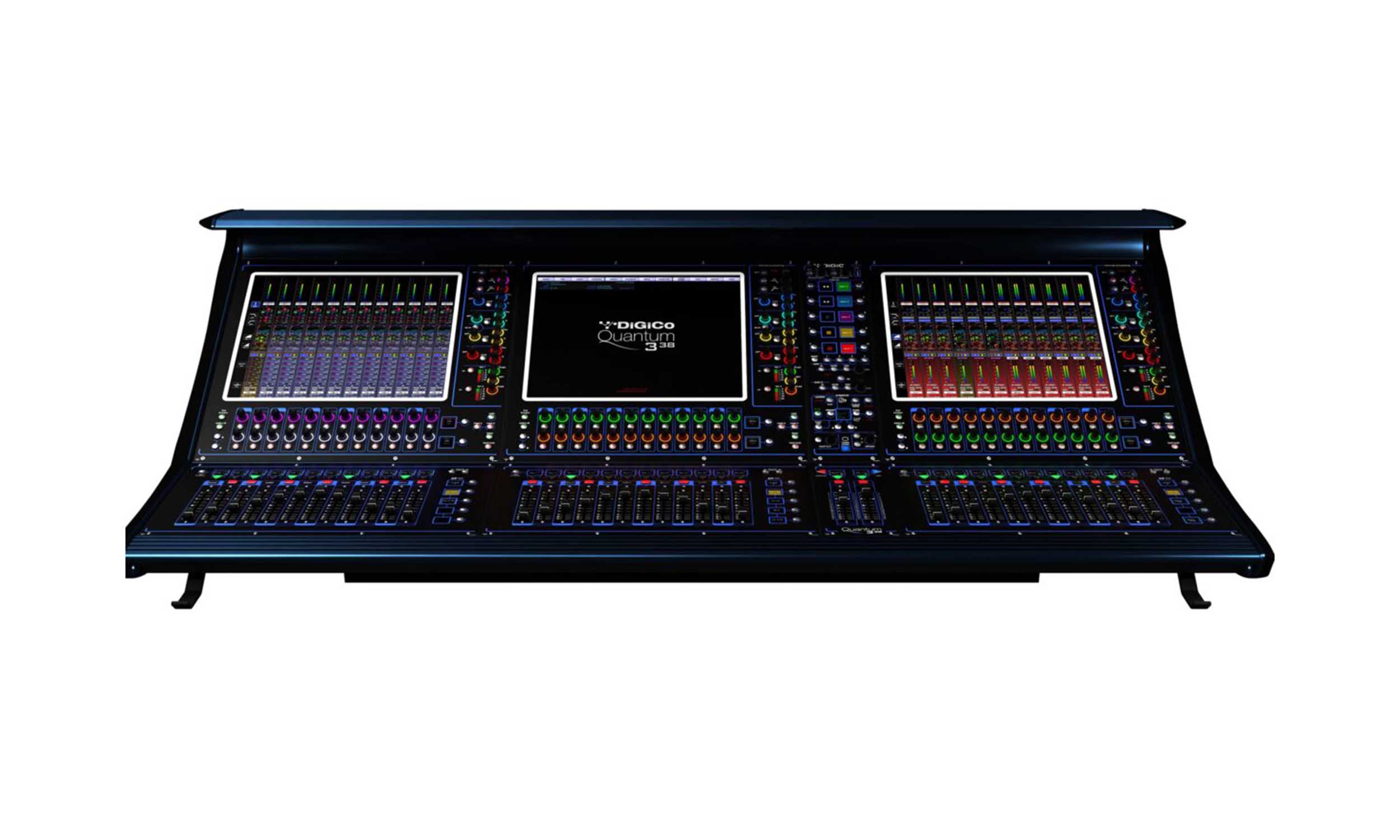

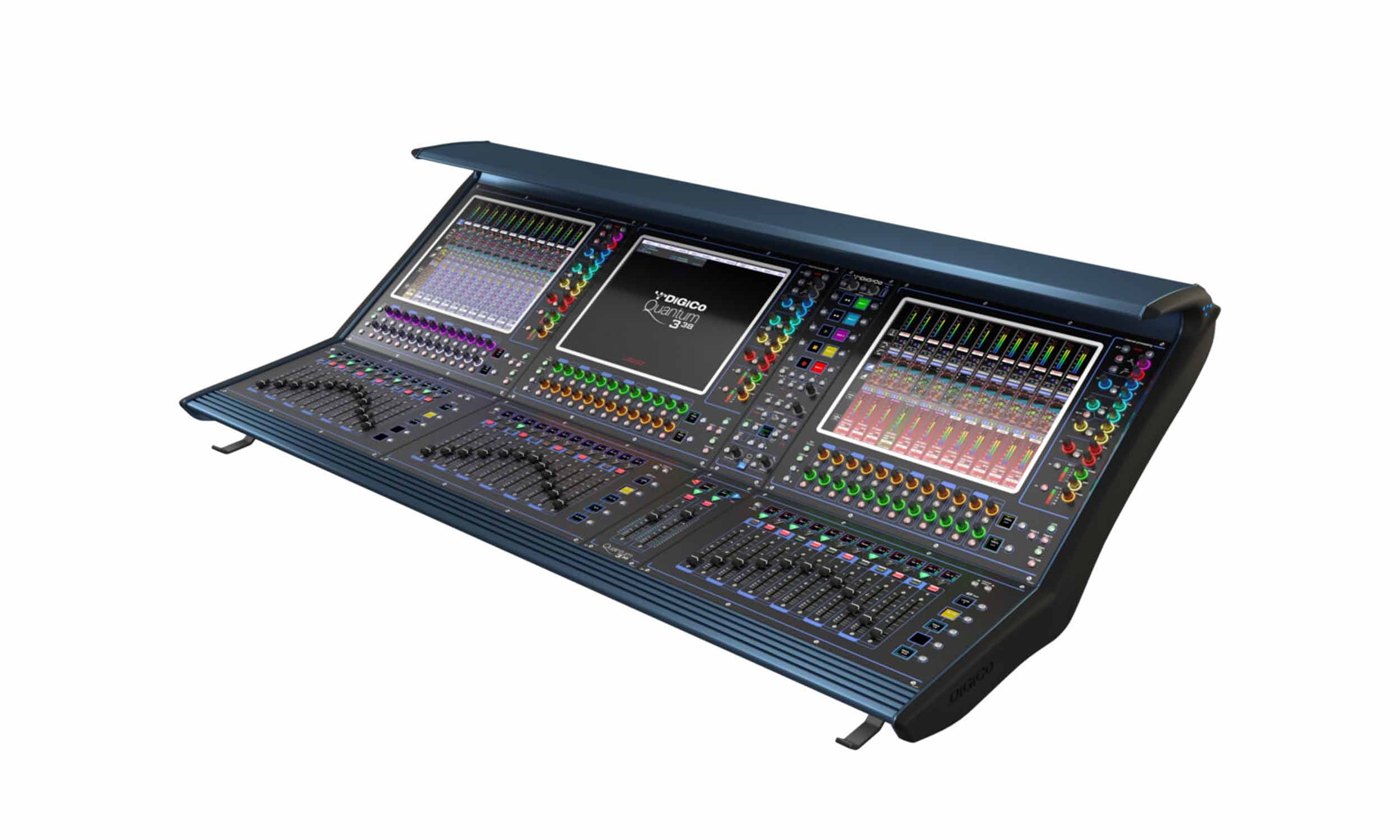

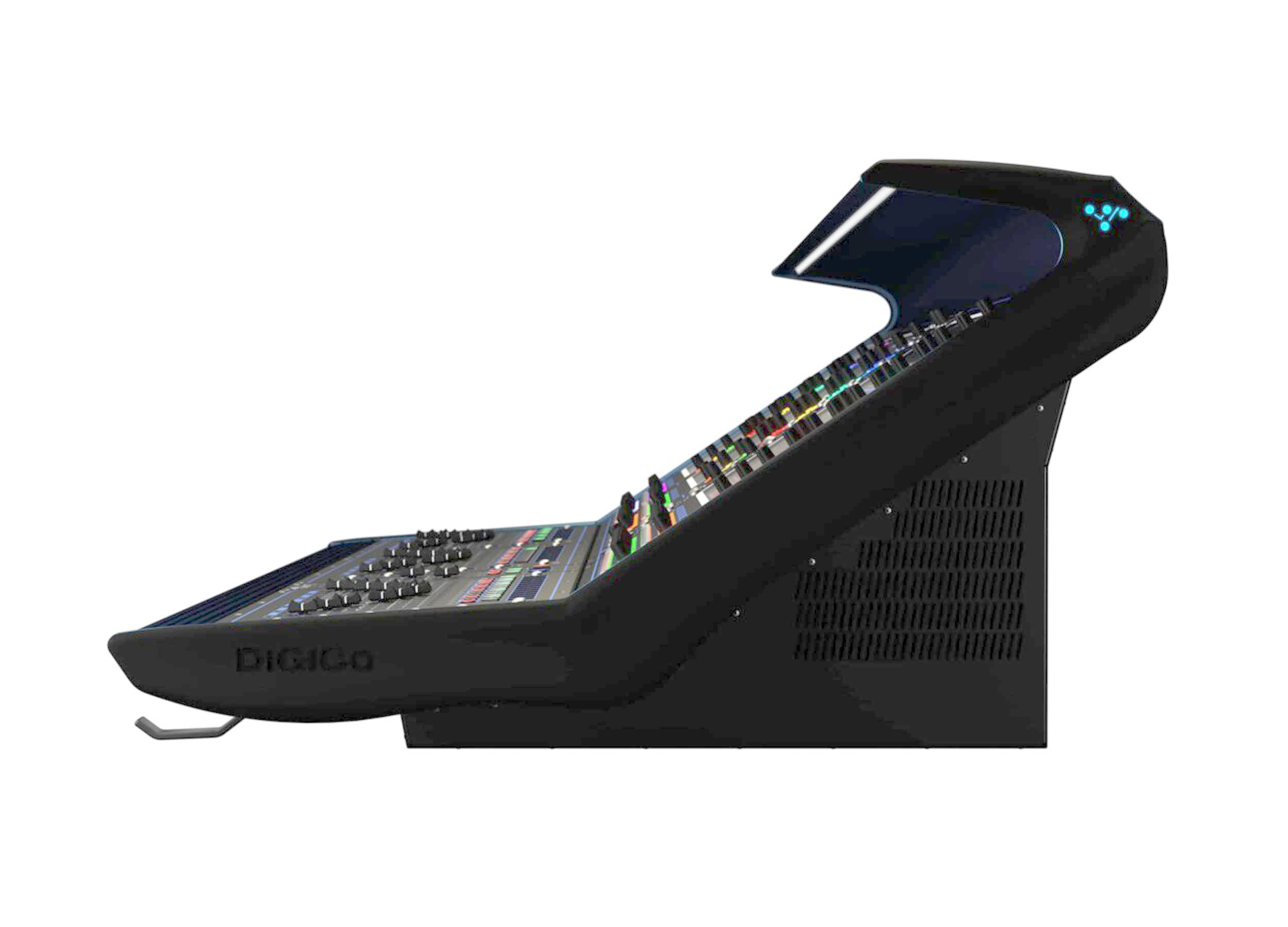

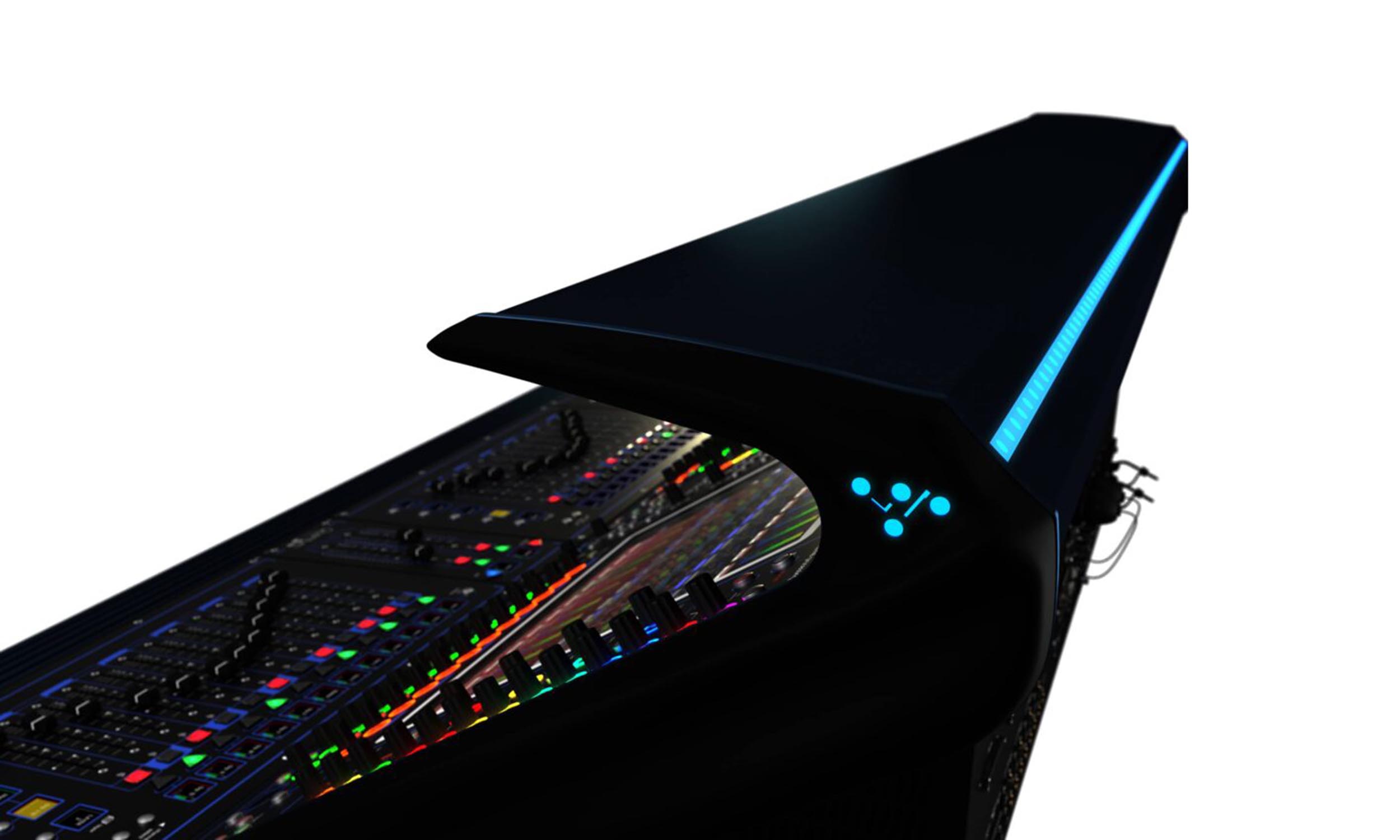

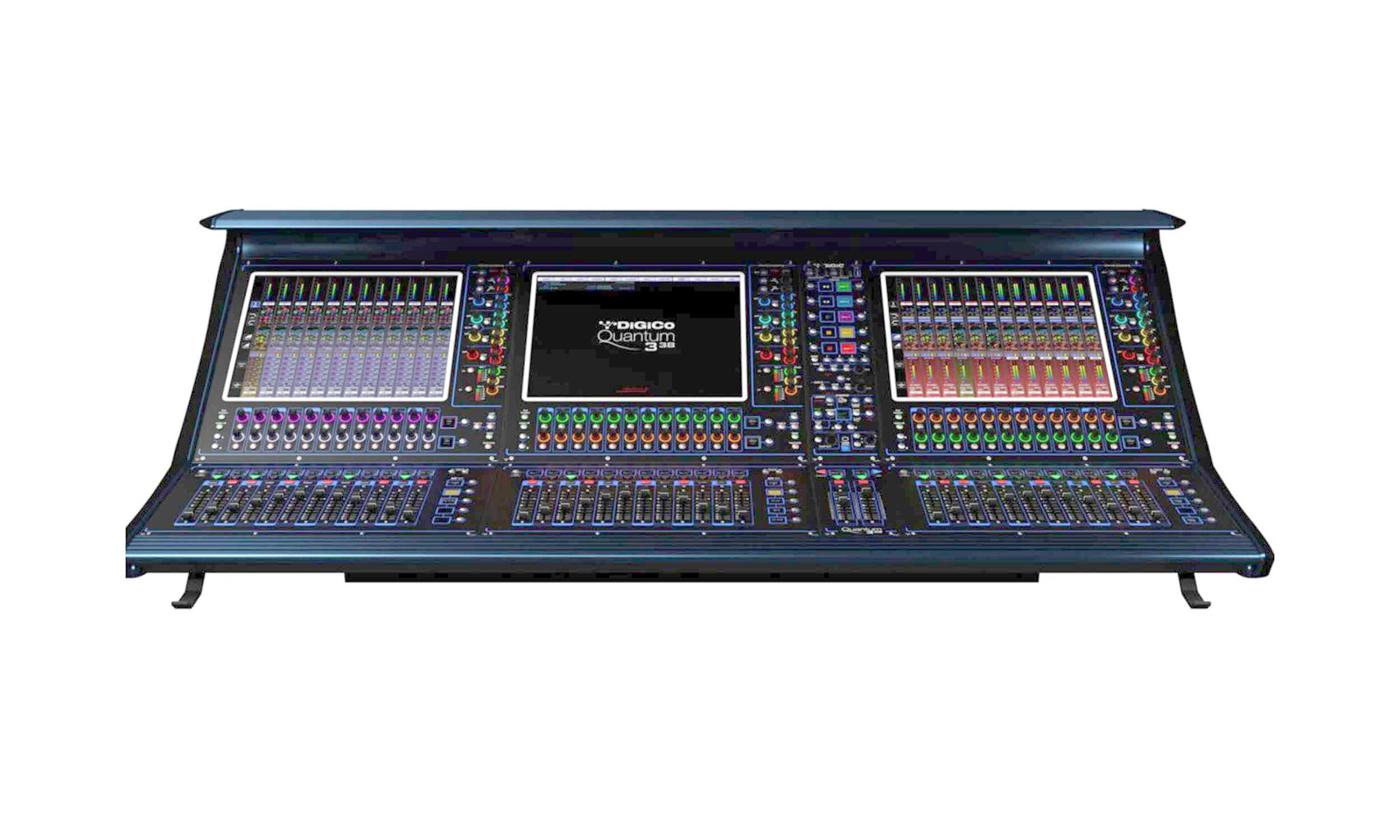

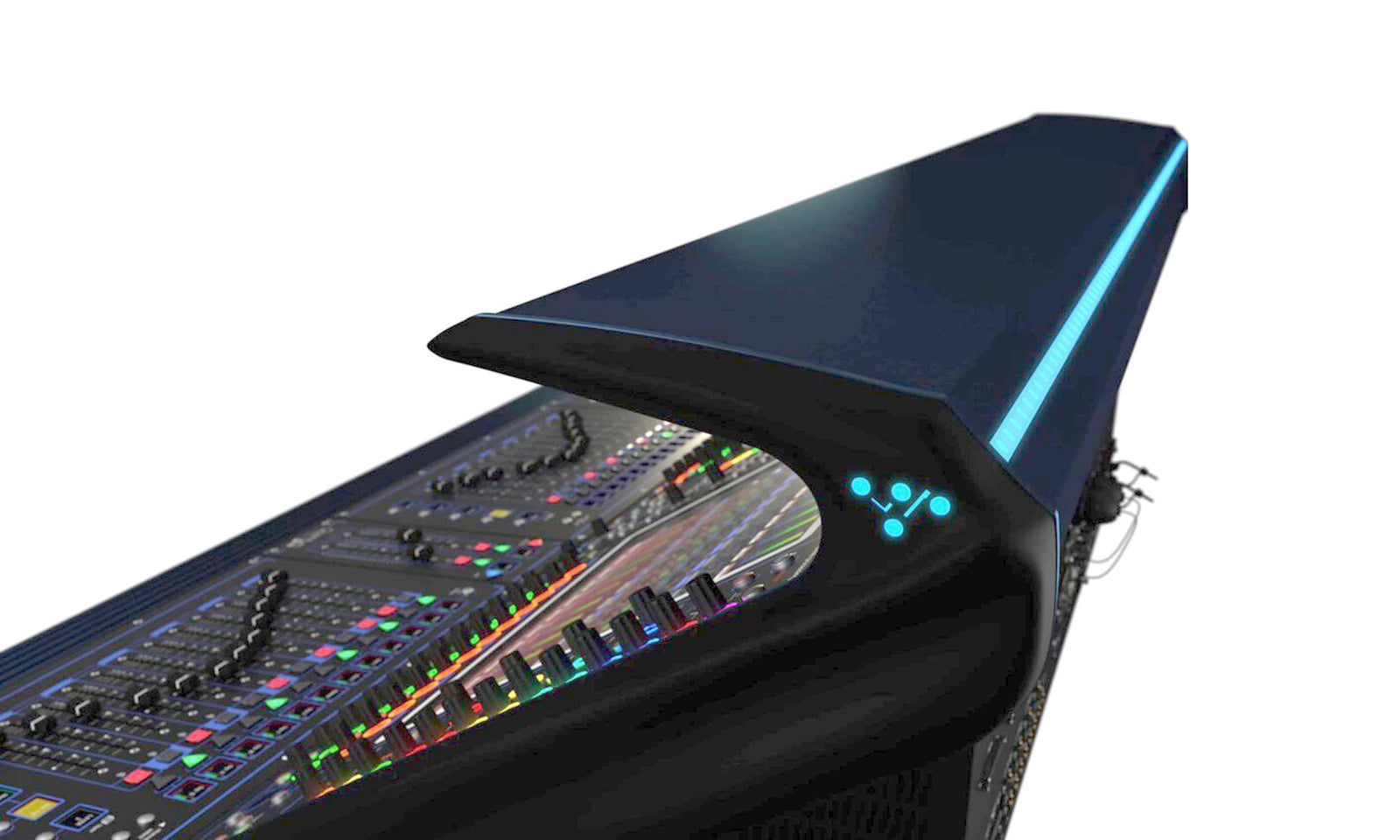

The DiGiCo X-Q338-W-WS-PREM-OP combines the powerful Quantum 338 processing engine with integrated Waves SoundGrid connectivity for exceptional live sound performance. Powered by seventh-generation FPGA technology, it delivers ultra-low latency, outstanding reliability, and remarkable processing capacity for touring, broadcast, theatre, and installed audio systems. Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console is designed to handle demanding productions with ease. Its compact footprint makes it ideal where space is limited but performance cannot be compromised.
OpticalCON Fiber Connectivity

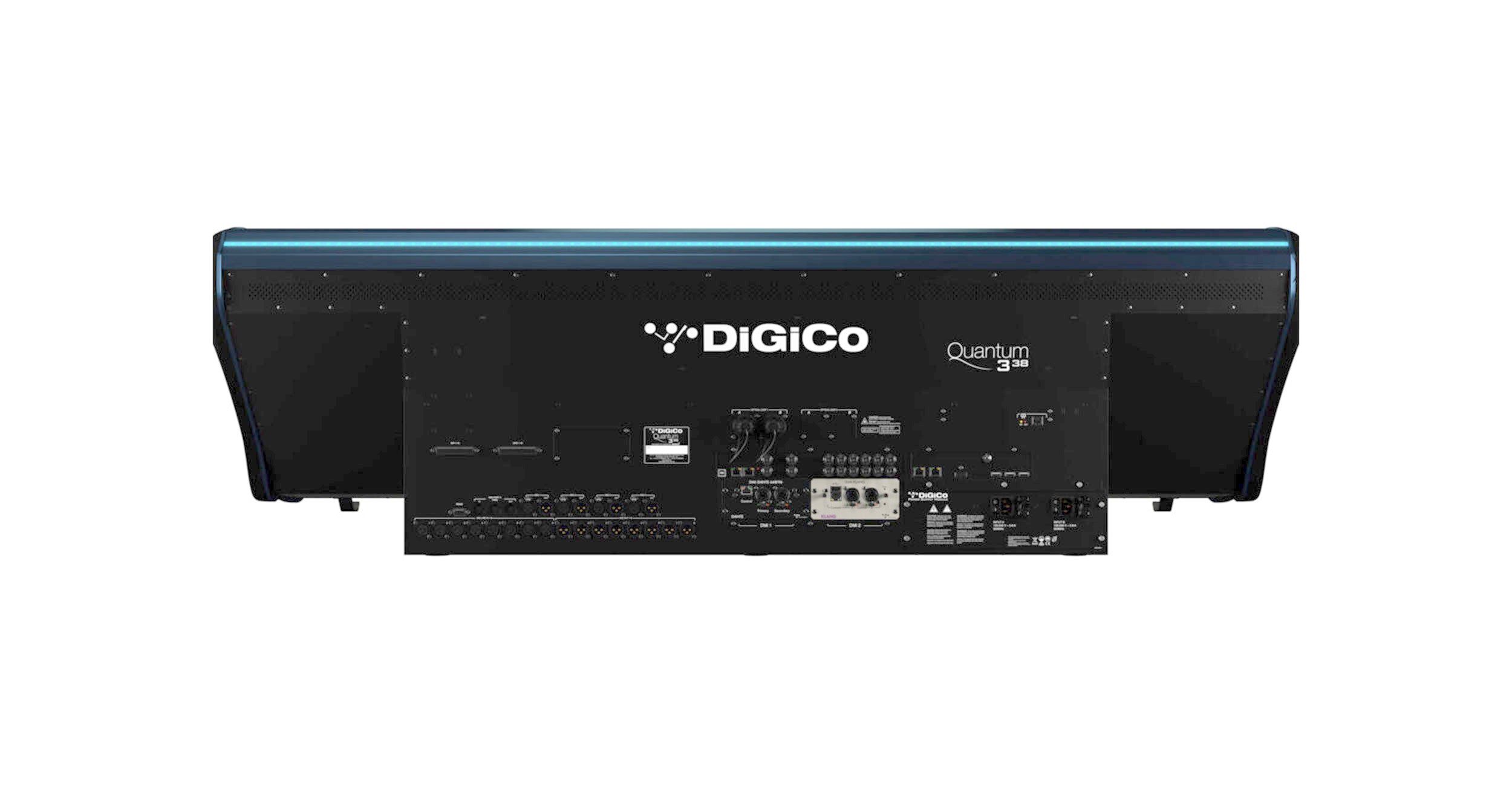

This model is equipped with OpticalCON connectors, providing durable, locking fiber-optic connections for Optocore networking. OpticalCON connectors are specifically designed for professional touring and live production, offering superior cable protection, secure locking, and dependable performance in demanding environments. Combined with dual DMI slots, multiple MADI interfaces, AES/EBU I/O, and built-in UB MADI USB recording, the console integrates seamlessly into sophisticated audio systems.
Integrated Waves SoundGrid Workflow
Built-in Waves SoundGrid support allows engineers to access industry-leading Waves plugins for live processing with extremely low latency. When paired with a compatible SoundGrid server, the console can run professional EQs, compressors, reverbs, and other effects while providing direct control from the Quantum interface. This integration expands creative possibilities without sacrificing speed or reliability, making it ideal for modern live productions and broadcast environments.
Brilliant Multitouch Control Surface

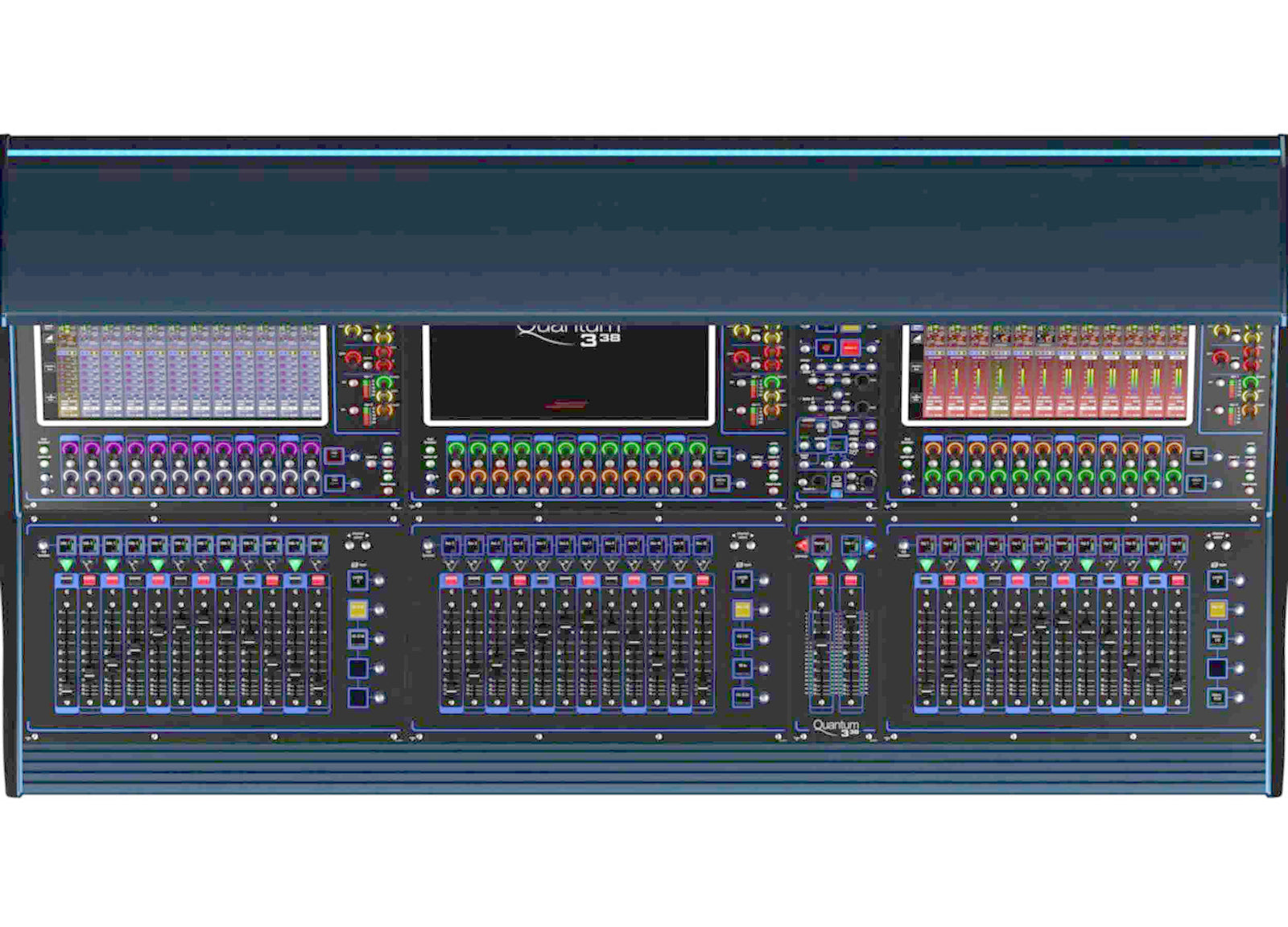

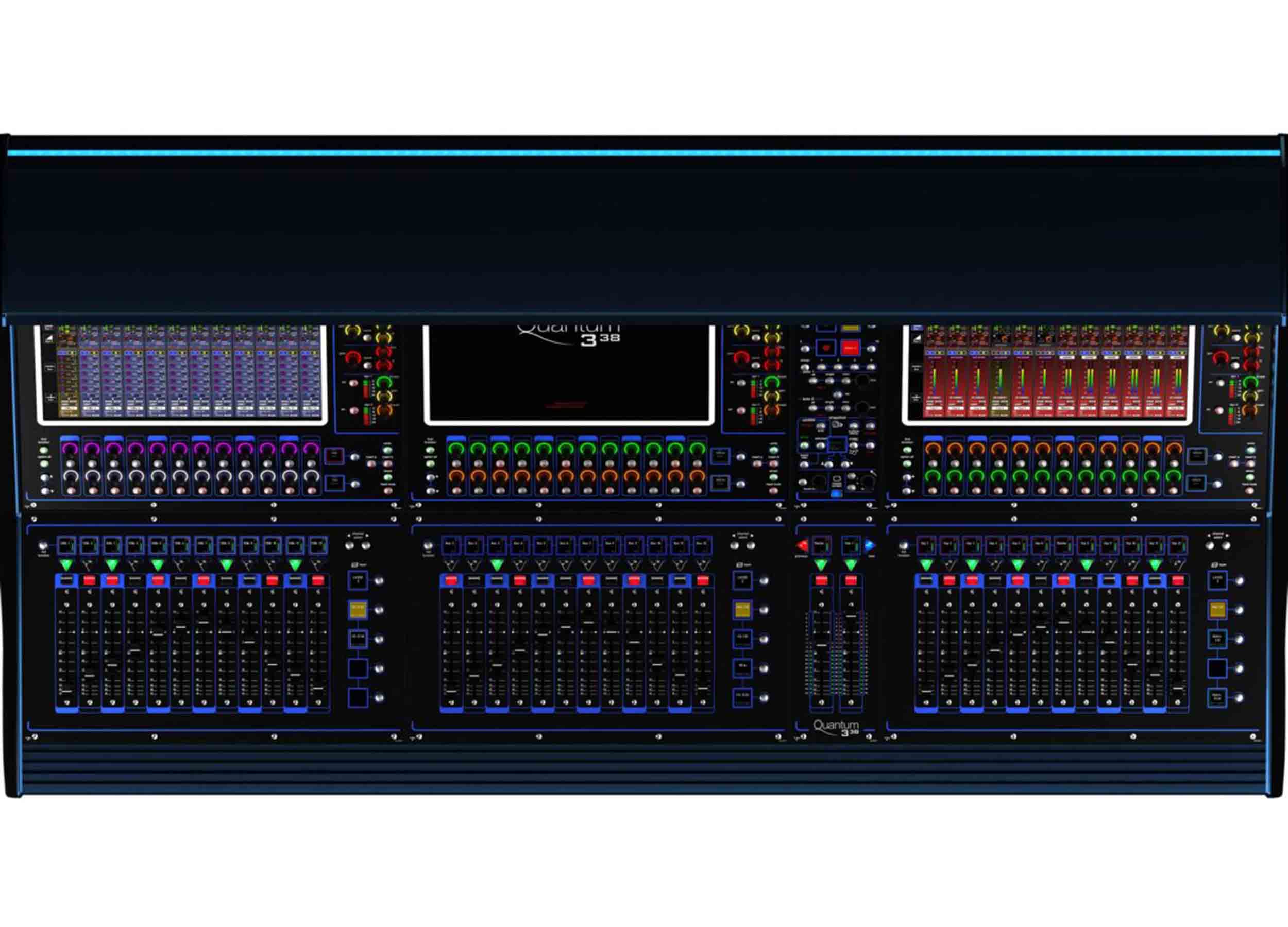

The Quantum 338 features three 17-inch, 1000-nit high-brightness multitouch displays that remain clearly visible under any lighting conditions. Seventy individual TFT channel displays provide instant visual feedback above the 38 motorized, touch-sensitive faders, allowing engineers to work quickly and accurately. The intuitive layout, customizable controls, and modern dark-mode interface streamline operation and reduce workload during complex productions.
Exceptional Audio Quality
Ultimate Stadius 32-bit analog-to-digital and digital-to-analog conversion delivers outstanding sonic accuracy with exceptional dynamic range and minimal distortion. Eight local microphone/line inputs and eight local line outputs preserve every detail of the audio signal, while advanced FPGA processing maintains pristine sound quality throughout the console. This combination provides transparent, professional-grade performance for concerts, broadcast, theatre, and corporate events.
Complete Professional Processing Suite
The X-Q338-W-WS-PREM-OP includes DiGiCo's powerful FPGA-based processing tools as standard. Mustard Processing provides premium EQ and dynamics on every channel, Spice Rack offers advanced native FPGA effects with ultra-low latency, Nodal Processing simplifies complex routing, and True Solo delivers accurate monitoring throughout the signal path. Together with Waves SoundGrid integration and OpticalCON connectivity, this console provides a complete, flexible solution for the most demanding professional audio productions.
What’s in the Box:
- MADI x 6, Optics x 1
- Internal Waves Card
- UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
Connector: OpticalCON Fiber.
Integrated Networking: Waves SoundGrid.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19.0"
