Description

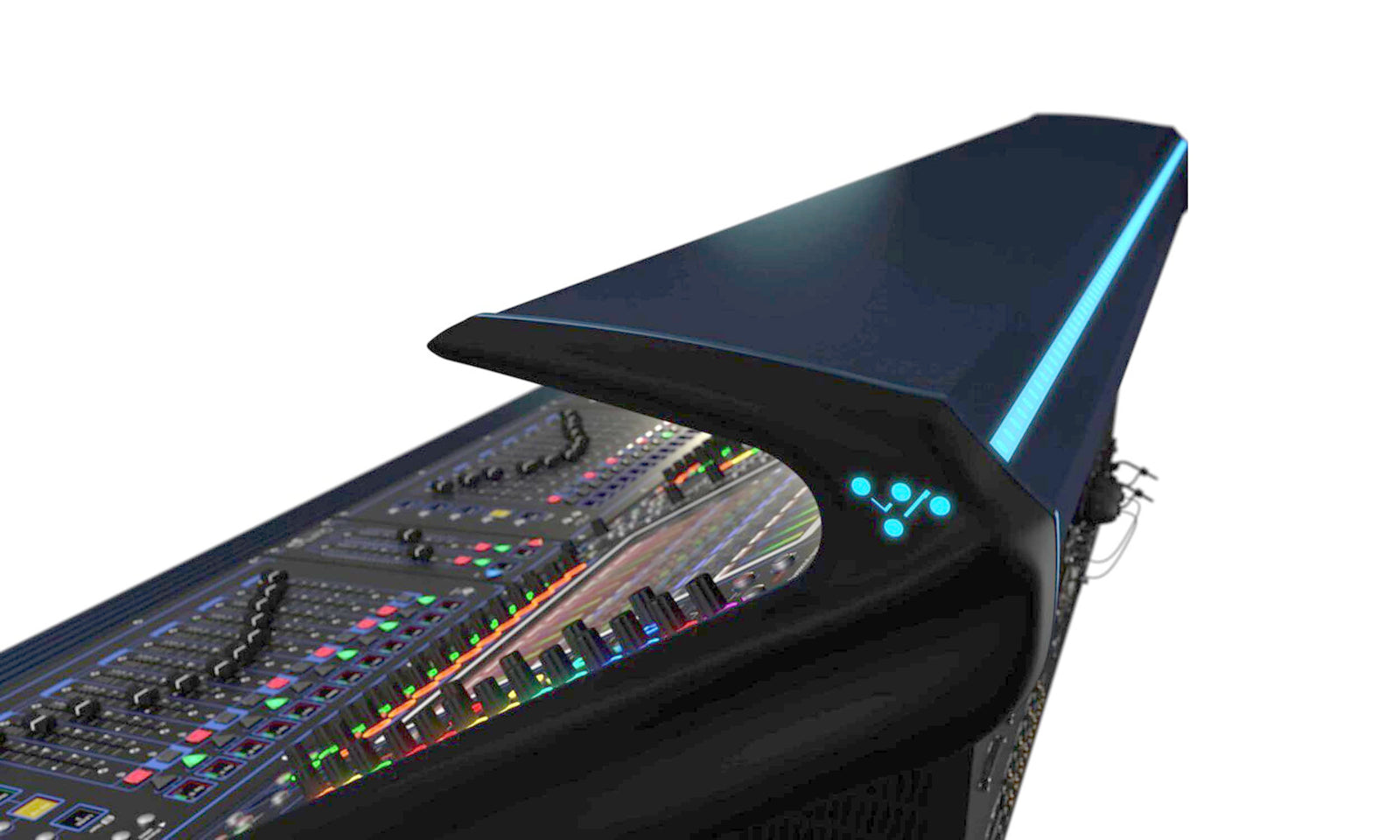

The DiGiCo X-Q338-W-WS-PREM-ST delivers flagship Quantum performance in a compact, professional mixing console. Built on seventh-generation FPGA technology, it provides exceptional processing power, ultra-low latency, and rock-solid reliability for touring, broadcast, theatre, and installed sound applications. Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 matrix, the console easily handles complex productions while maintaining the familiar DiGiCo workflow. Its advanced architecture ensures smooth operation and outstanding flexibility for today's demanding audio environments.
Standard Connector & Flexible Connectivity

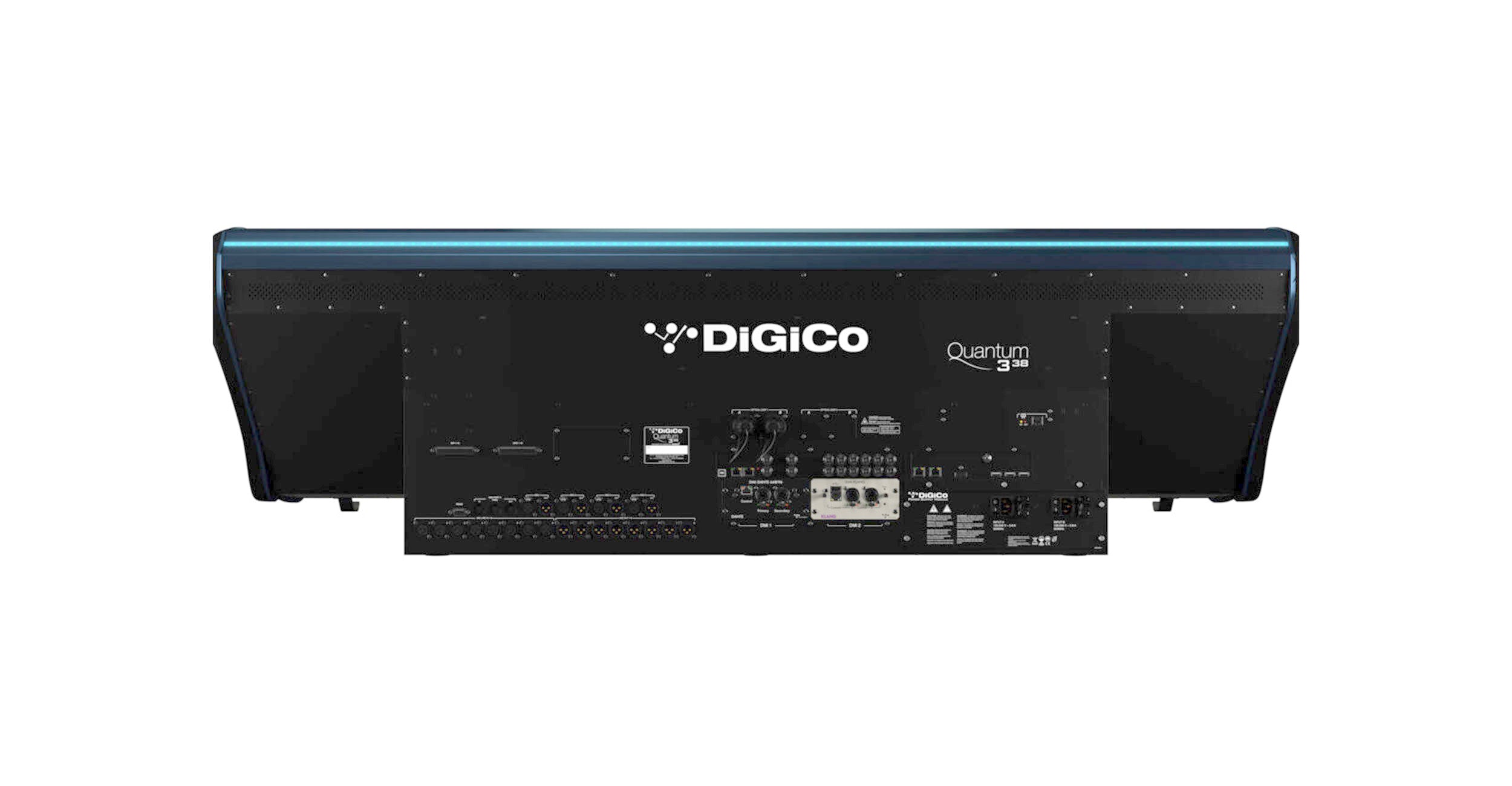

The Standard Connector configuration offers reliable Optocore connectivity while supporting a wide range of professional audio systems. The console includes multiple MADI interfaces, dual DMI expansion slots, AES/EBU digital I/O, built-in UB MADI USB recording, and support for optional Optocore networking. Combined with integrated Waves SoundGrid capability, it provides exceptional flexibility for modern live sound infrastructures and scalable system expansion.
Integrated Waves SoundGrid
This model includes integrated Waves SoundGrid connectivity, allowing engineers to incorporate Waves plugins into live productions with extremely low latency. When connected to a compatible Waves SoundGrid server, users gain access to professional EQs, compressors, reverbs, and other studio-grade processing directly from the console. This integration expands creative possibilities while maintaining the speed and reliability required for live events and broadcast productions.
Professional Control Surface

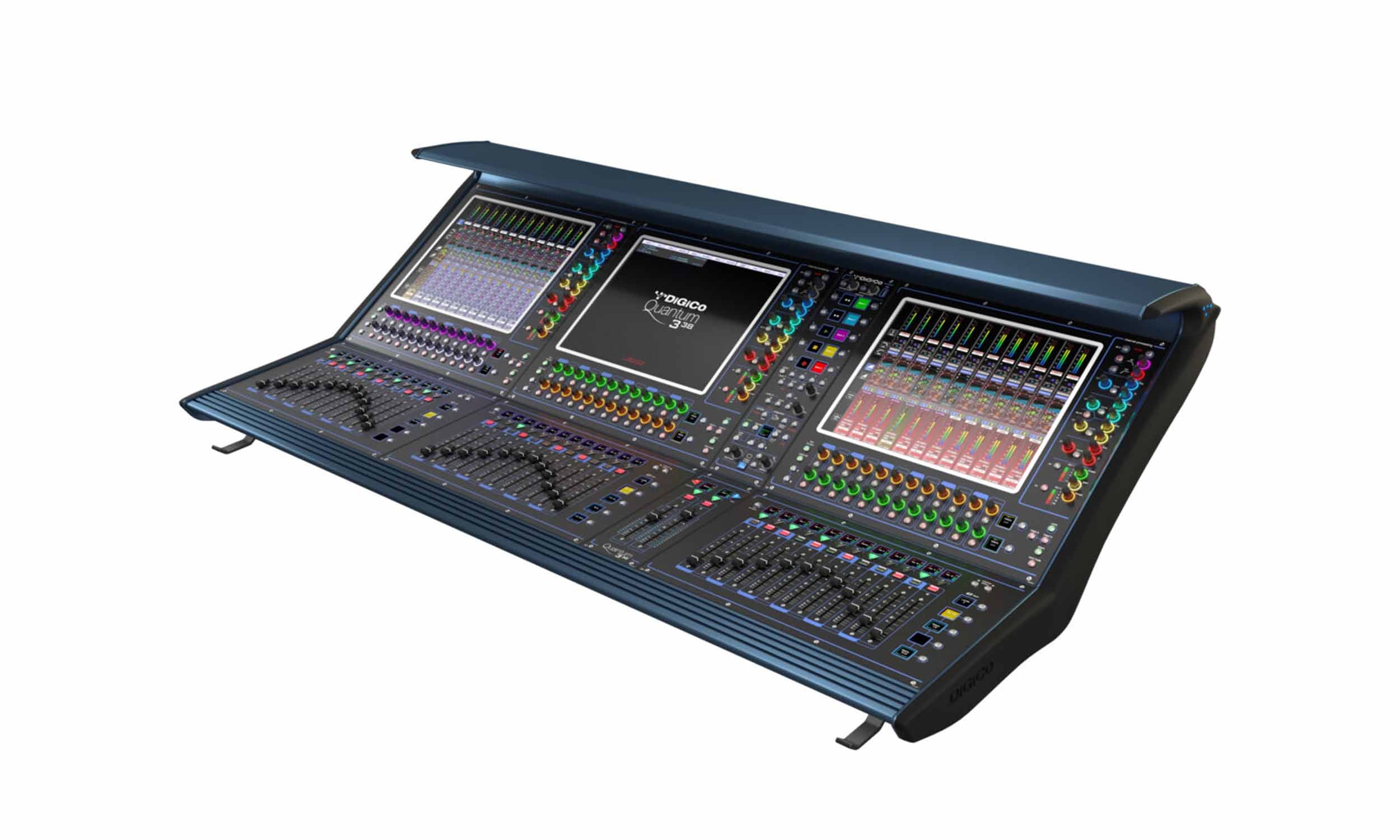

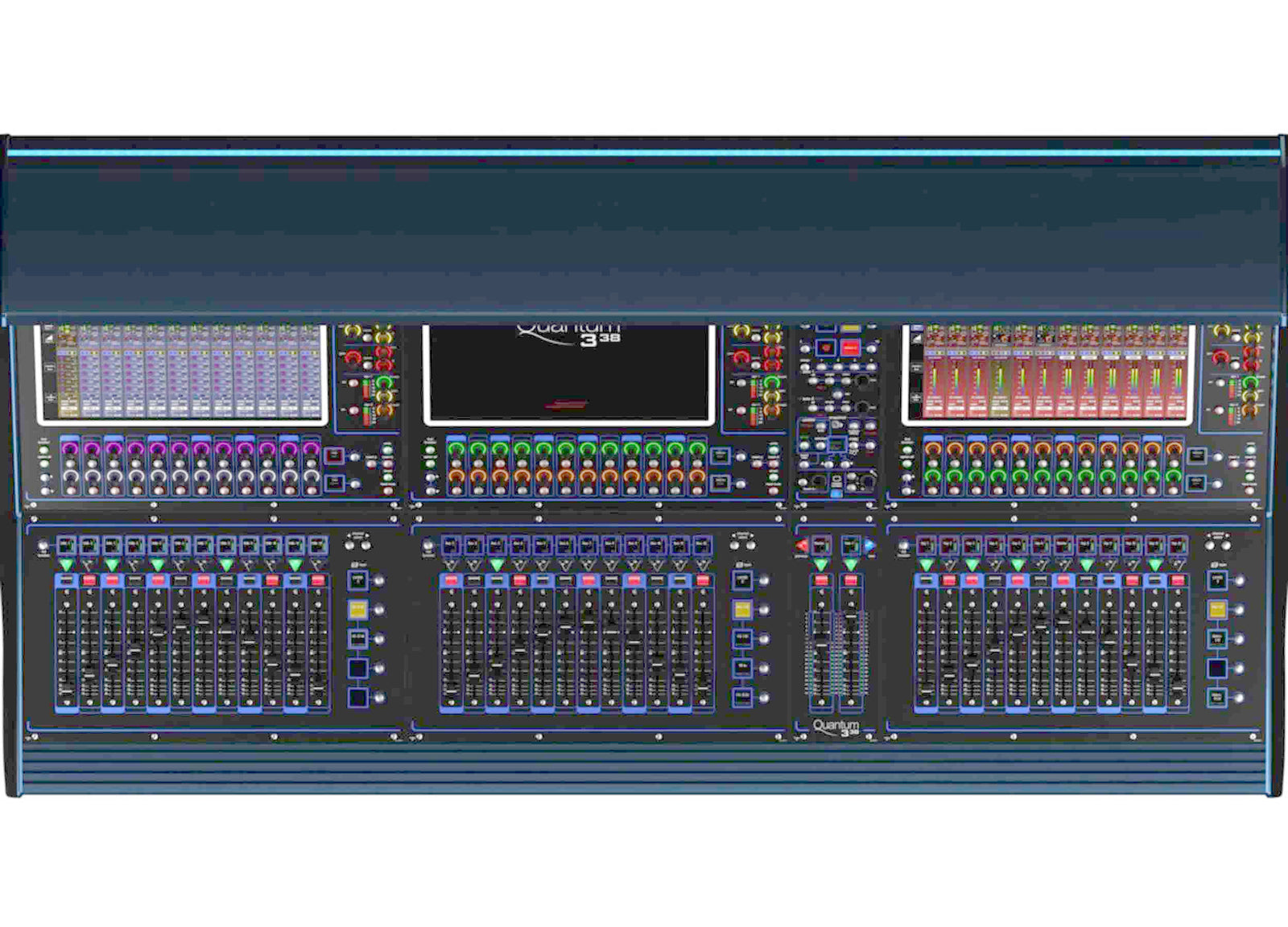

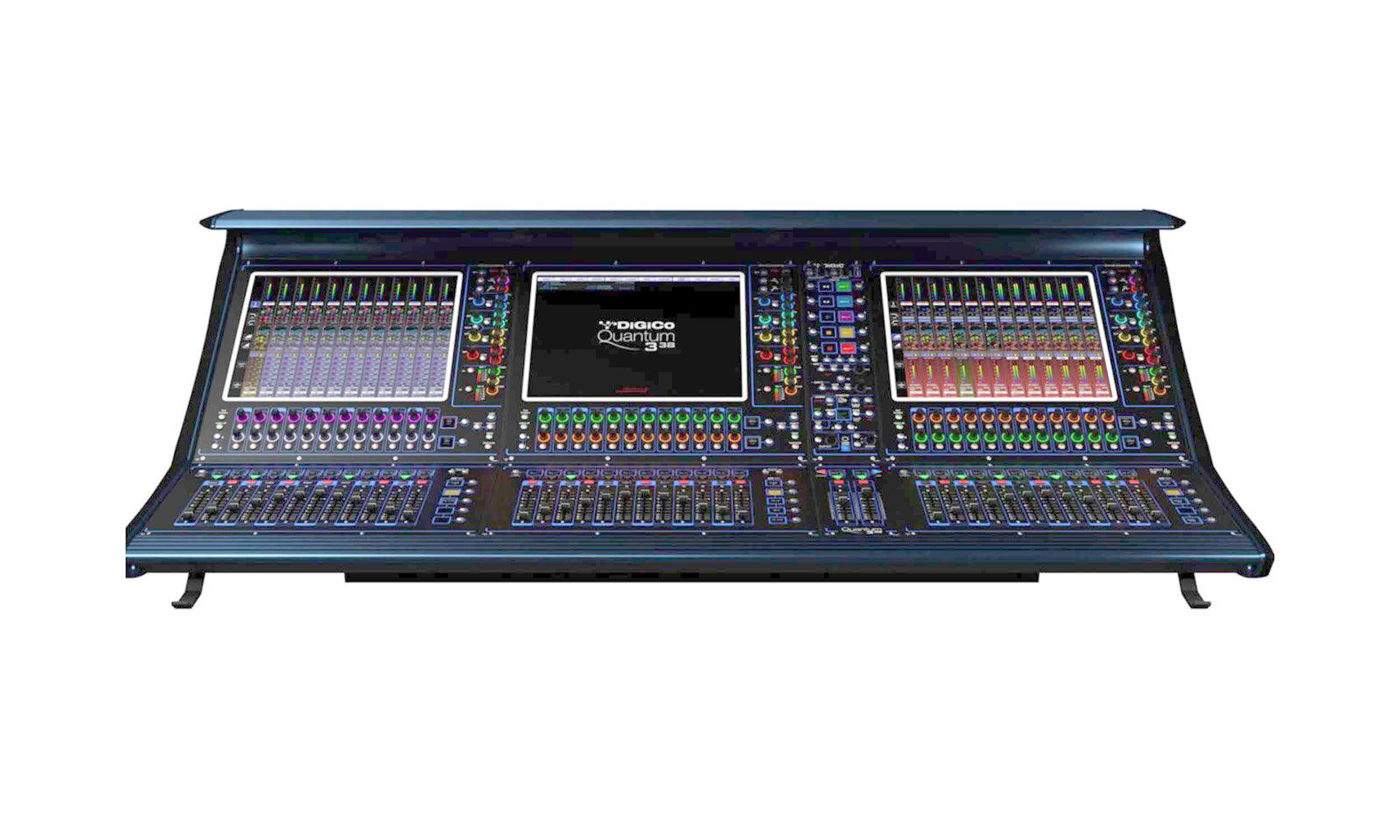

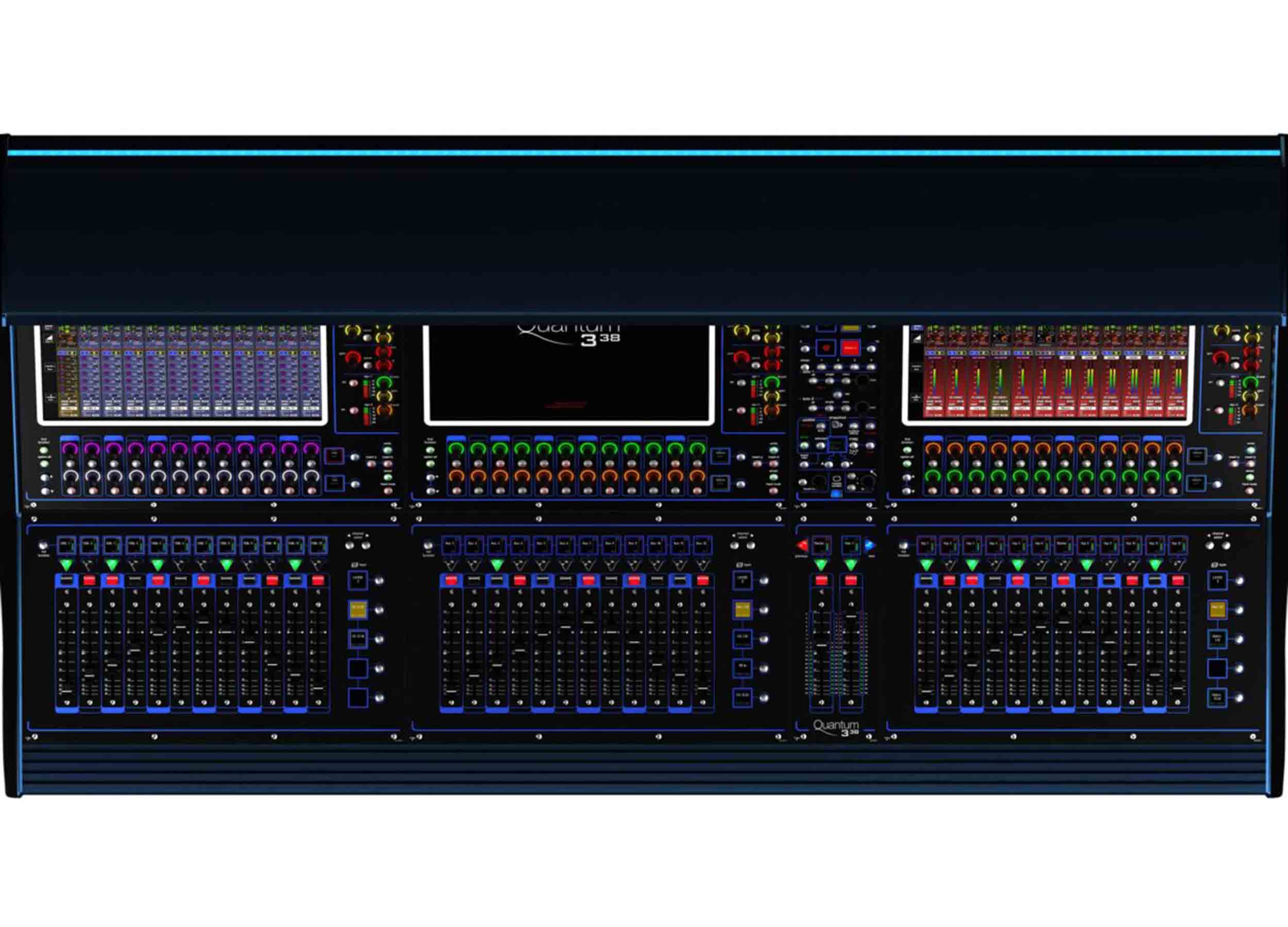

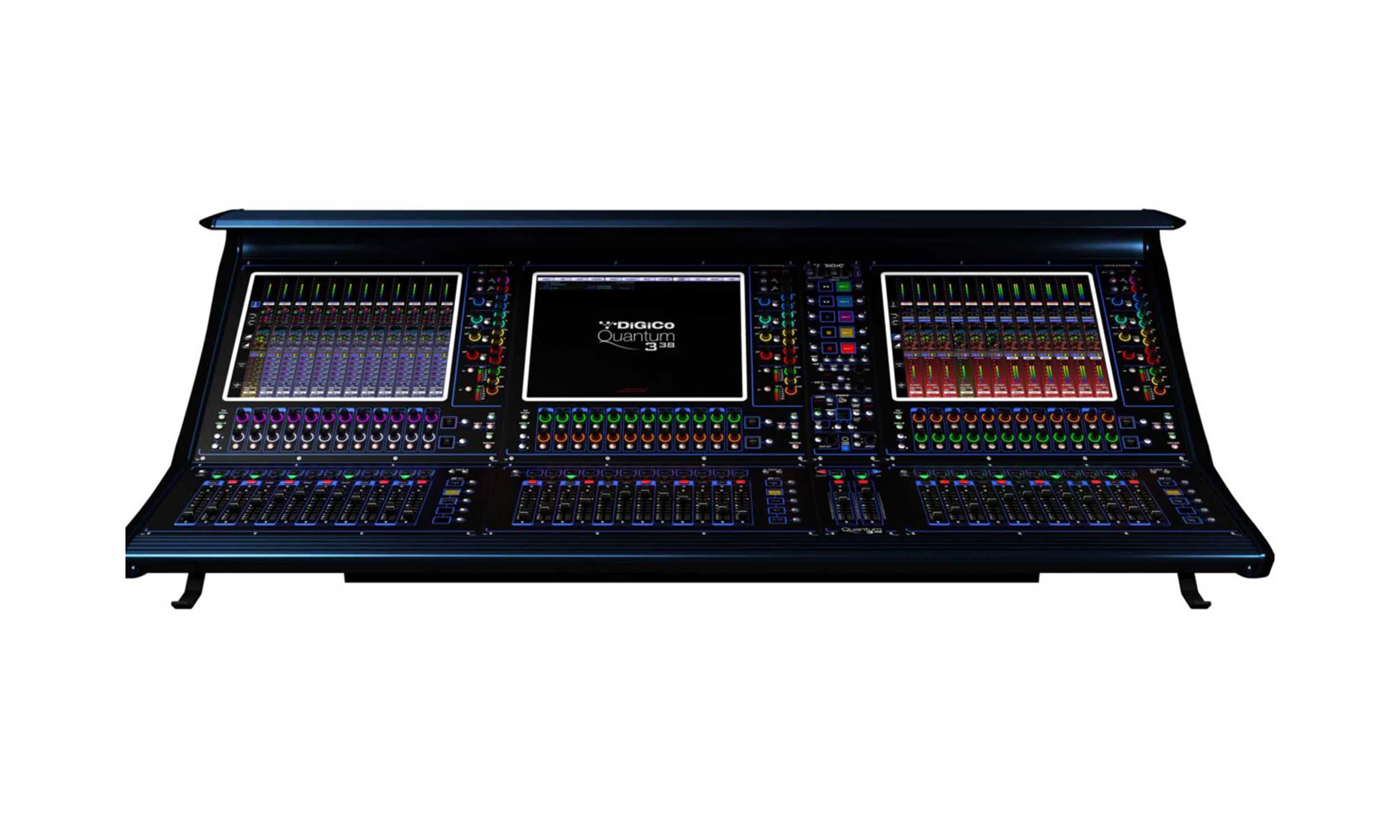

The Quantum 338 features three 17-inch, 1000-nit high-brightness multitouch displays that provide excellent visibility in any lighting environment. Seventy dedicated TFT channel displays sit above 38 motorized 100mm touch-sensitive faders, delivering instant channel information and precise control. The ergonomic layout, customizable workflow, and modern dark-mode interface enable engineers to work efficiently throughout demanding productions with confidence and accuracy.
Exceptional Audio Performance
Ultimate Stadius 32-bit analog-to-digital and digital-to-analog converters provide pristine audio quality with exceptional dynamic range and remarkably low distortion. Eight local microphone/line inputs and eight local line outputs preserve every detail of the source signal, while advanced FPGA processing maintains outstanding clarity across the entire signal path. This premium audio performance makes the console ideal for concerts, broadcast, theatre, and corporate events.
Complete FPGA Processing Suite
The Quantum 338 includes DiGiCo's advanced processing technologies as standard. Mustard Processing delivers premium EQ and dynamics on every channel, Spice Rack provides powerful FPGA-based effects with ultra-low latency, Nodal Processing simplifies complex routing, and True Solo enables accurate monitoring throughout the signal path. Together with Waves SoundGrid integration, these features create a comprehensive mixing platform capable of meeting the demands of the most challenging professional productions.
What’s in the Box:
- MADI x 6, Optics x 1
- Internal Waves Card
- UB-MADI
- DMI Port x 2
- Connectors: BNC, ST
Product Specifications:
Connector: Standard ST Optocore fiber connectors.
Integrated Networking: Waves SoundGrid.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19.0"
