Description

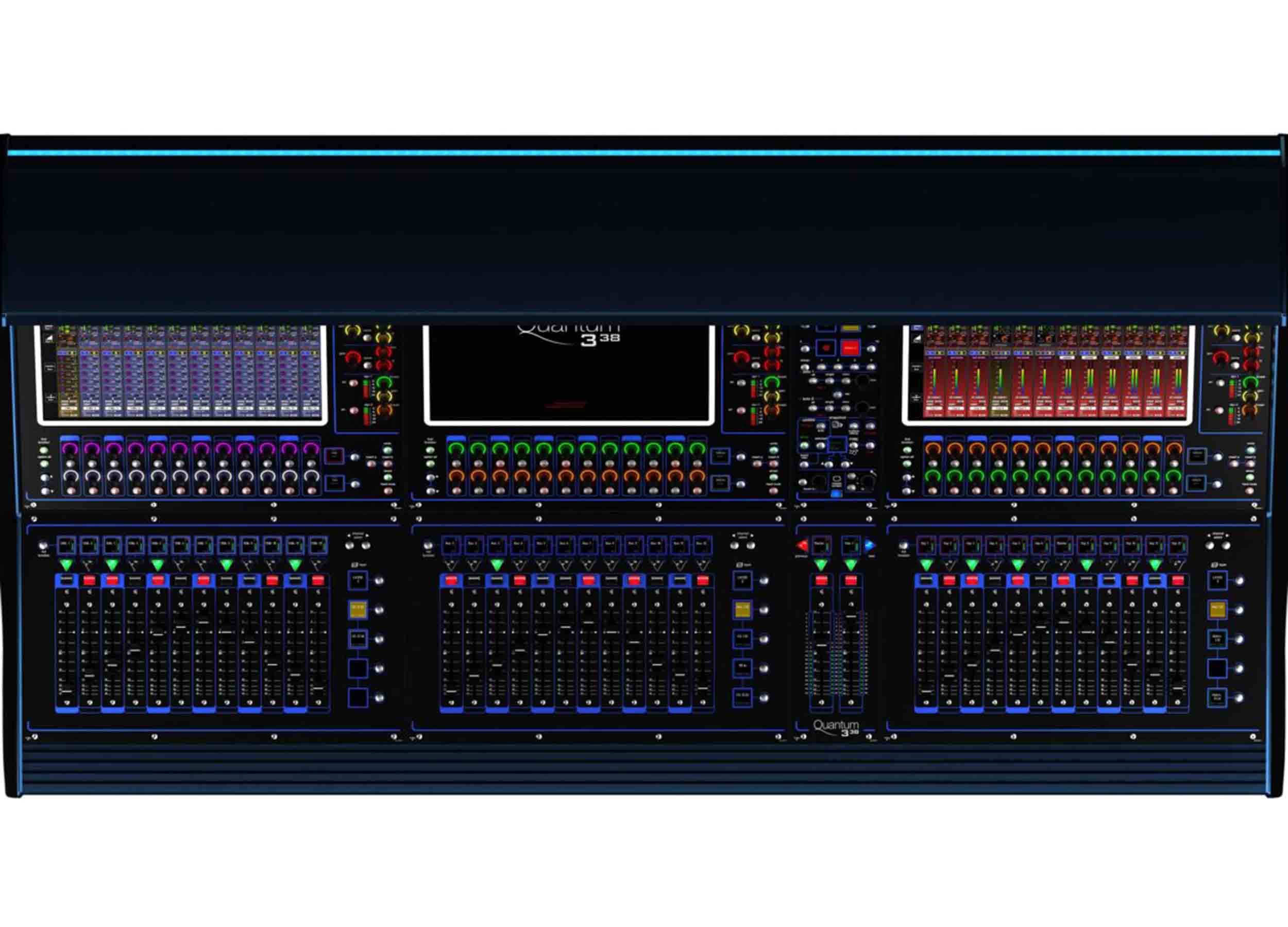

The DiGiCo X-Q338-WS-PREM delivers the renowned Quantum 338 mixing experience with integrated Waves SoundGrid and comprehensive MADI connectivity. Built on DiGiCo's seventh-generation FPGA architecture, it provides exceptional processing power, ultra-low latency, and outstanding reliability for live sound, broadcast, theatre, and installed audio applications. Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 processing matrix, the console is engineered to handle the most demanding productions with confidence.
Flexible MADI Connectivity

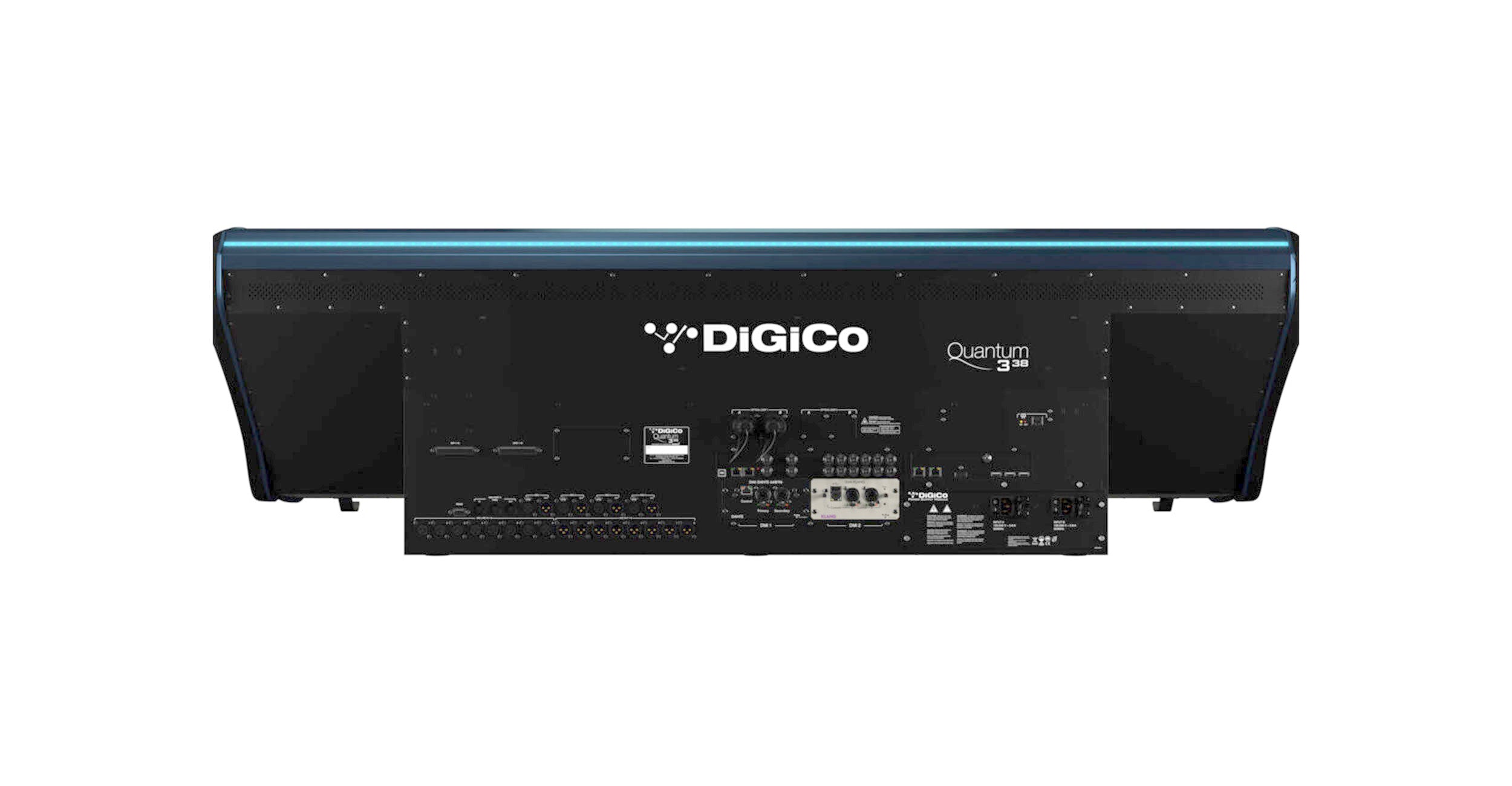

Designed around robust MADI connectivity, this console provides up to six MADI interfaces at 48 kHz or three interfaces at 96 kHz, along with dual DMI expansion slots, AES/EBU digital I/O, and a built-in UB MADI USB recording interface. This flexible configuration integrates easily with professional stage racks, recording systems, and broadcast infrastructures while offering reliable, high-channel-count digital audio transport.
Integrated Waves SoundGrid
Built-in Waves SoundGrid connectivity enables seamless integration with Waves plugins for professional live audio processing. When connected to a compatible Waves SoundGrid server, engineers can utilize premium EQs, compressors, reverbs, and other studio-grade plugins with extremely low latency. Plugin control is available directly from the console, creating an efficient workflow that enhances both creativity and operational speed during live productions.
Advanced Control Surface

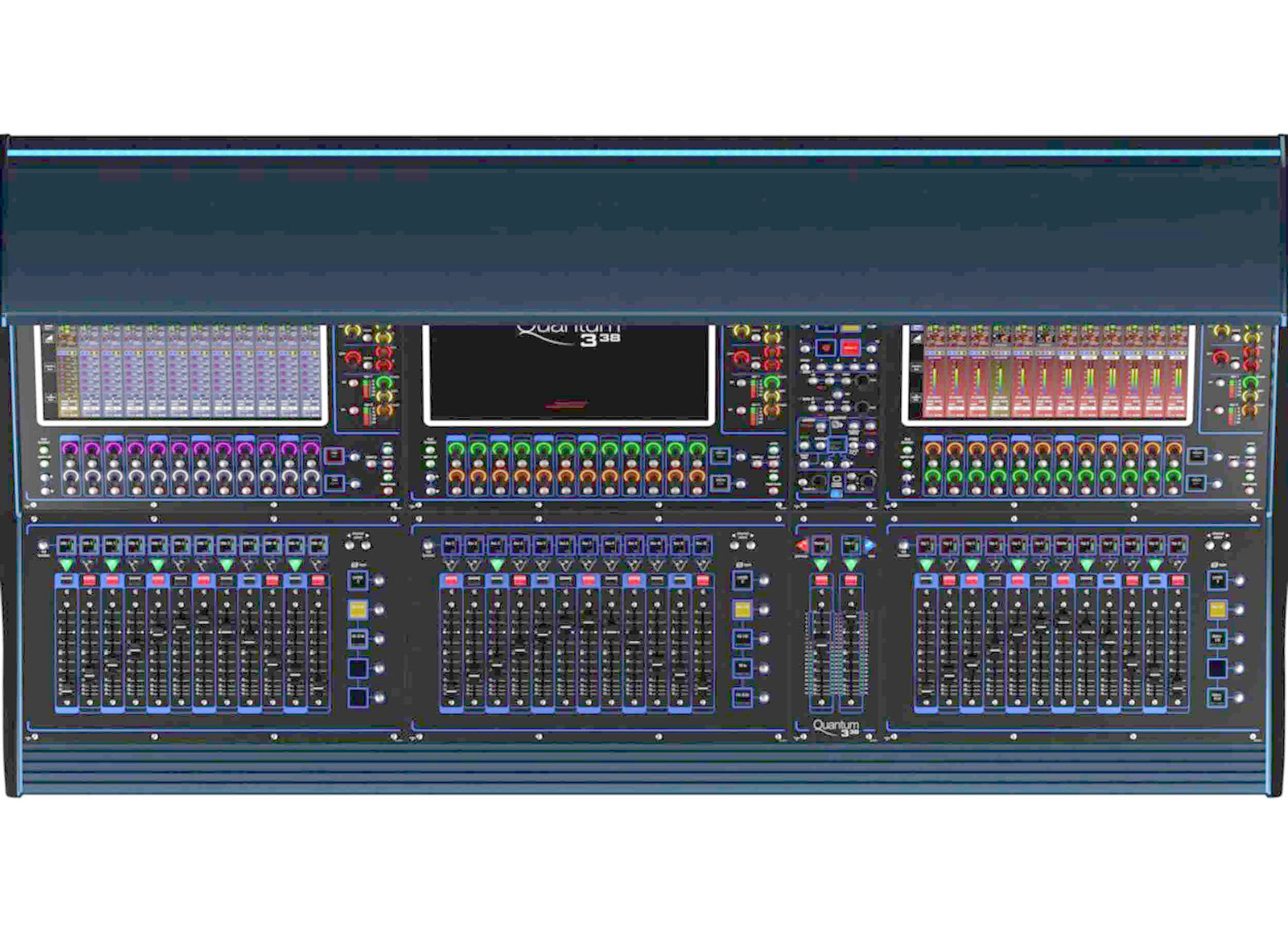

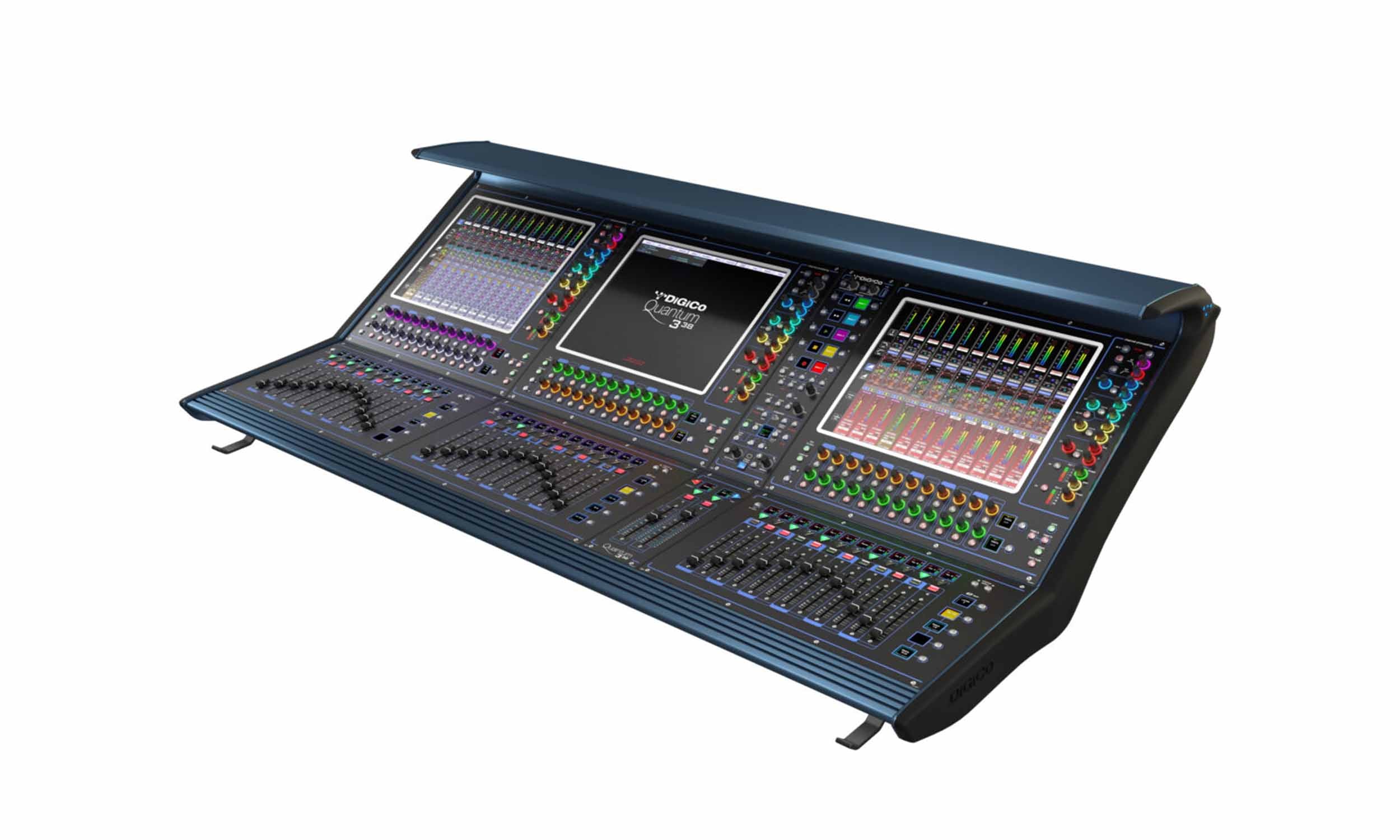

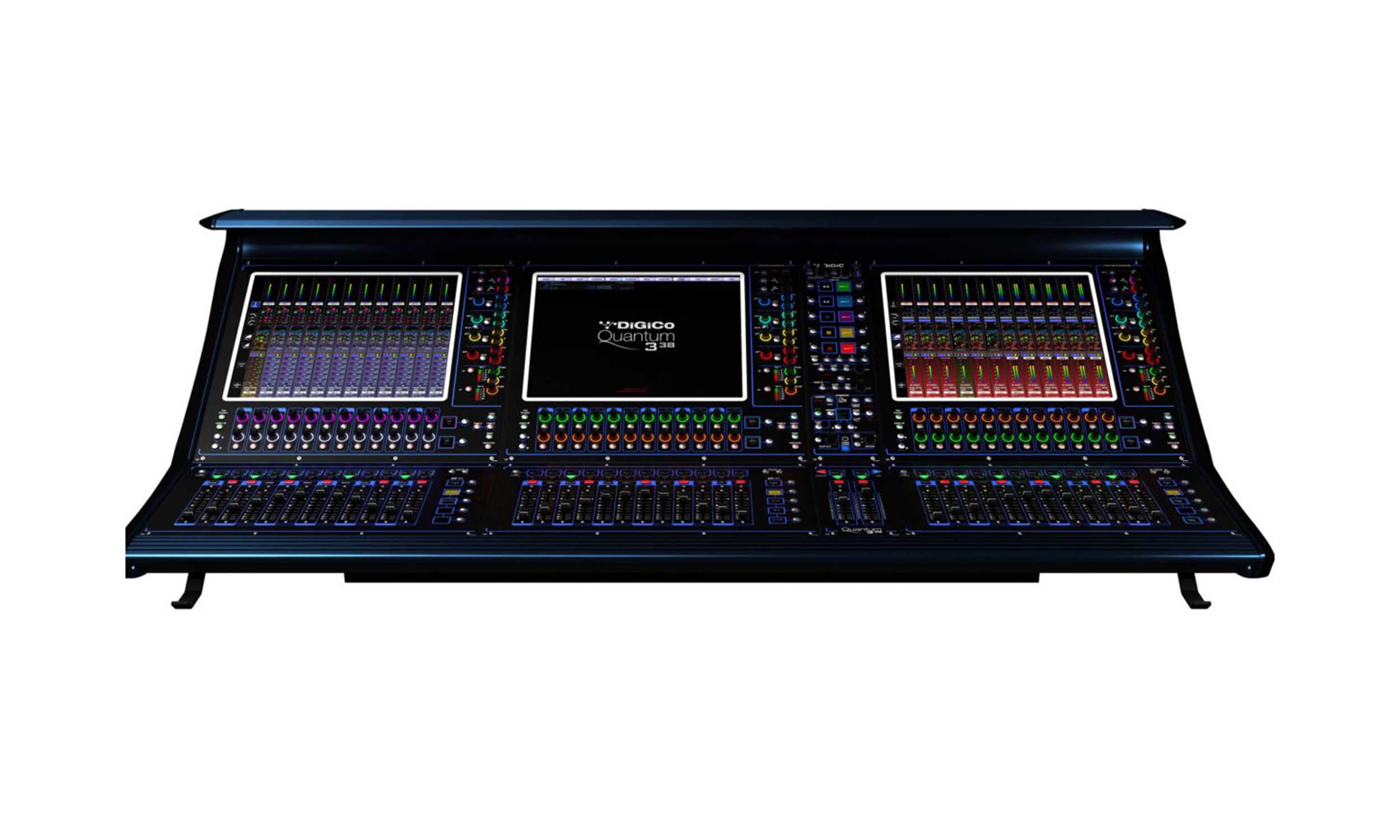

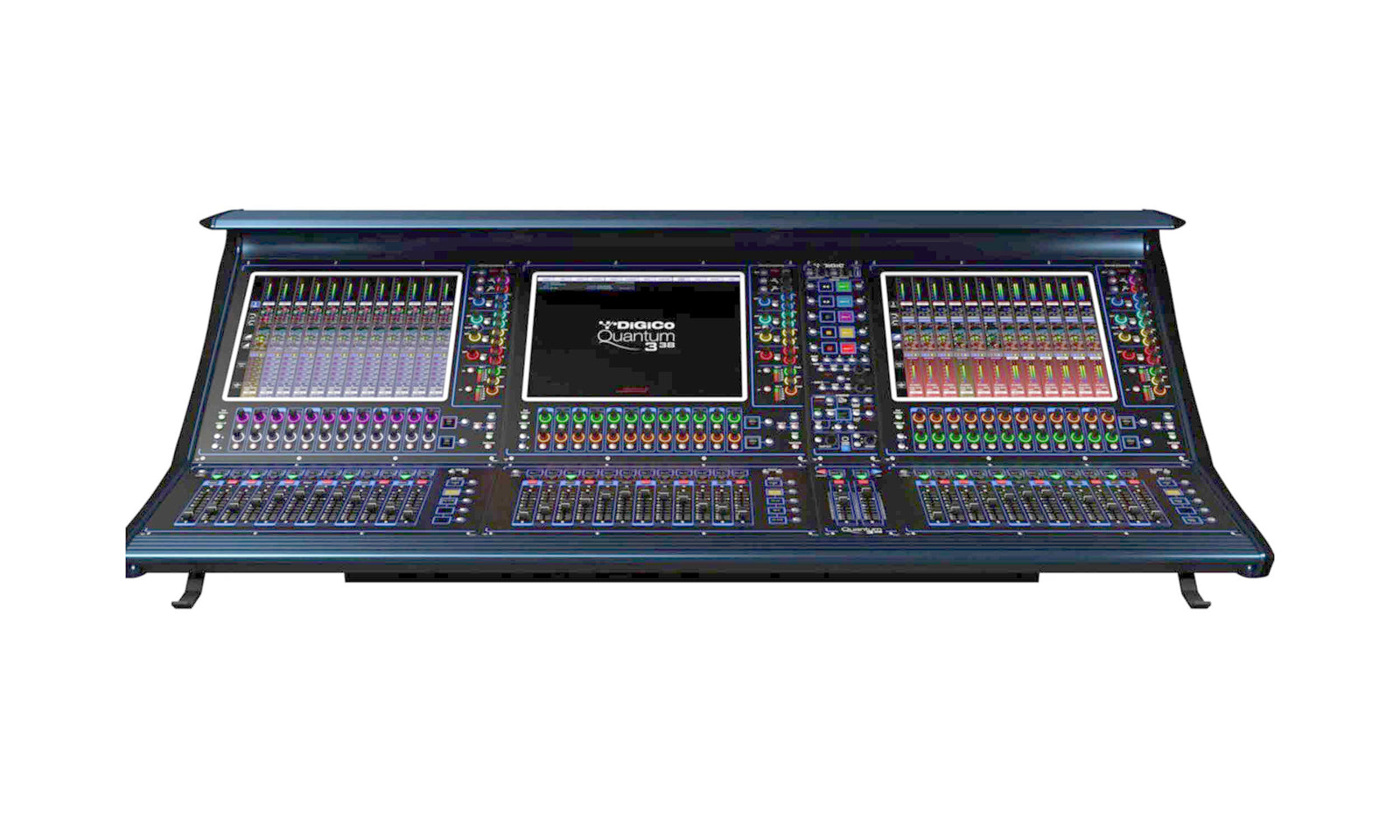

The Quantum 338 features three 17-inch, 1000-nit multitouch displays that provide outstanding visibility in any lighting environment. Seventy dedicated TFT channel displays work alongside 38 motorized 100mm touch-sensitive faders, giving engineers instant access to channel information and precise control. The intuitive interface, customizable workflow, and modern dark-mode display allow for faster navigation and improved efficiency throughout every production.
Premium Audio Performance
Ultimate Stadius 32-bit analog-to-digital and digital-to-analog converters deliver exceptional audio fidelity with remarkable dynamic range and ultra-low distortion. Eight local microphone/line inputs and eight local line outputs preserve every detail of the source signal, while DiGiCo's FPGA processing maintains pristine audio quality across the entire signal path. This high-performance architecture is ideal for concert touring, broadcast, theatre, and corporate events.
Complete FPGA Processing Suite
The X-Q338-WS-PREM includes DiGiCo's advanced FPGA-based processing tools as standard. Mustard Processing provides premium channel EQ and dynamics, Spice Rack delivers powerful native FPGA effects with virtually no additional latency, Nodal Processing enables sophisticated system-wide routing, and True Solo offers accurate monitoring throughout the signal path. Combined with Waves SoundGrid integration, these technologies create a comprehensive professional mixing platform for the most demanding live audio productions.
What’s in the Box:
- MADI x 6
- UB-MADI
- DMI Port x 2
- Connectors: BNC
Product Specifications:
Integrated Networking: Waves SoundGrid
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19.0"
