Description

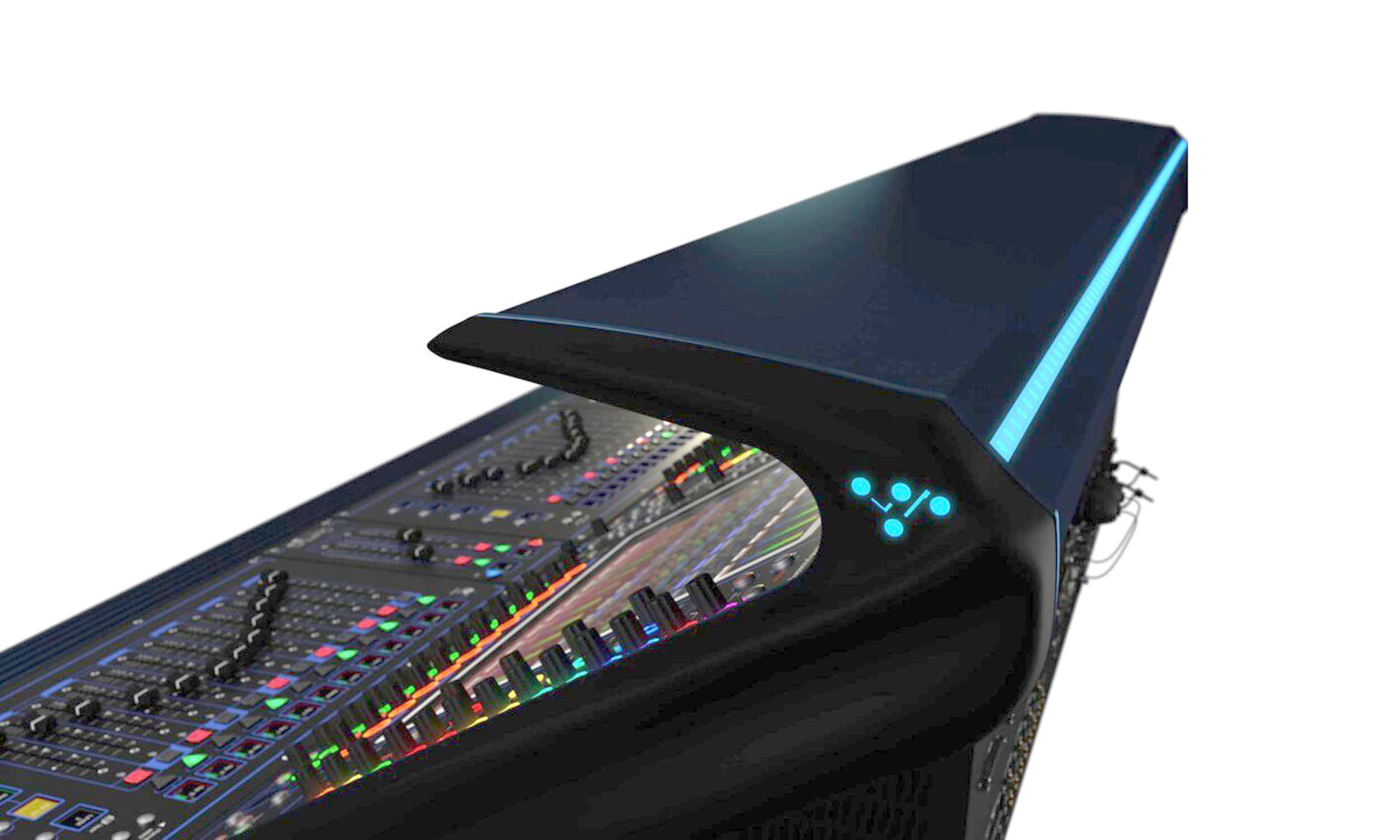

The DiGiCo X-Q338-WS-PREM-OP delivers the power of the Quantum 338 platform with integrated Waves SoundGrid and OpticalCON connectivity for demanding professional productions. Built on seventh-generation FPGA technology, it provides exceptional processing speed, ultra-low latency, and outstanding reliability. With support for up to 128 input channels, 64 fully processed buses, and a 24×24 processing matrix, the console is engineered to handle complex live sound, broadcast, theatre, and corporate events with ease. Its compact footprint makes it ideal for applications where performance and efficiency are equally important.
Integrated Waves SoundGrid
Built-in Waves SoundGrid support enables seamless integration with Waves plugins for studio-quality processing in live environments. Connected to a compatible Waves SoundGrid server, the console can run premium EQs, compressors, reverbs, and other effects with extremely low latency. Engineers can control plugin parameters directly from the Quantum interface, creating a streamlined workflow while expanding creative possibilities. This integration delivers the flexibility and processing power required for today's professional live productions.
Advanced Multitouch Control

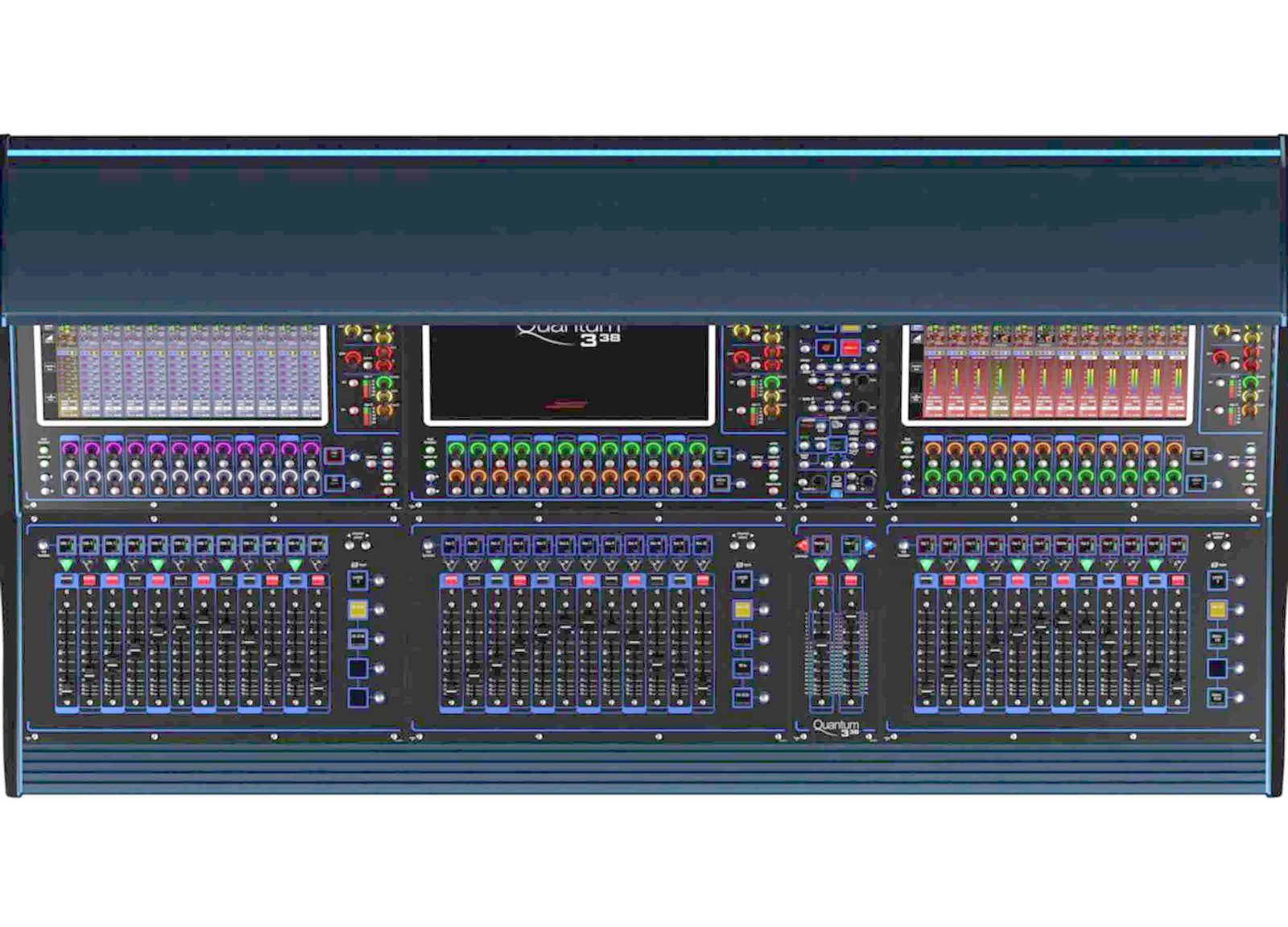

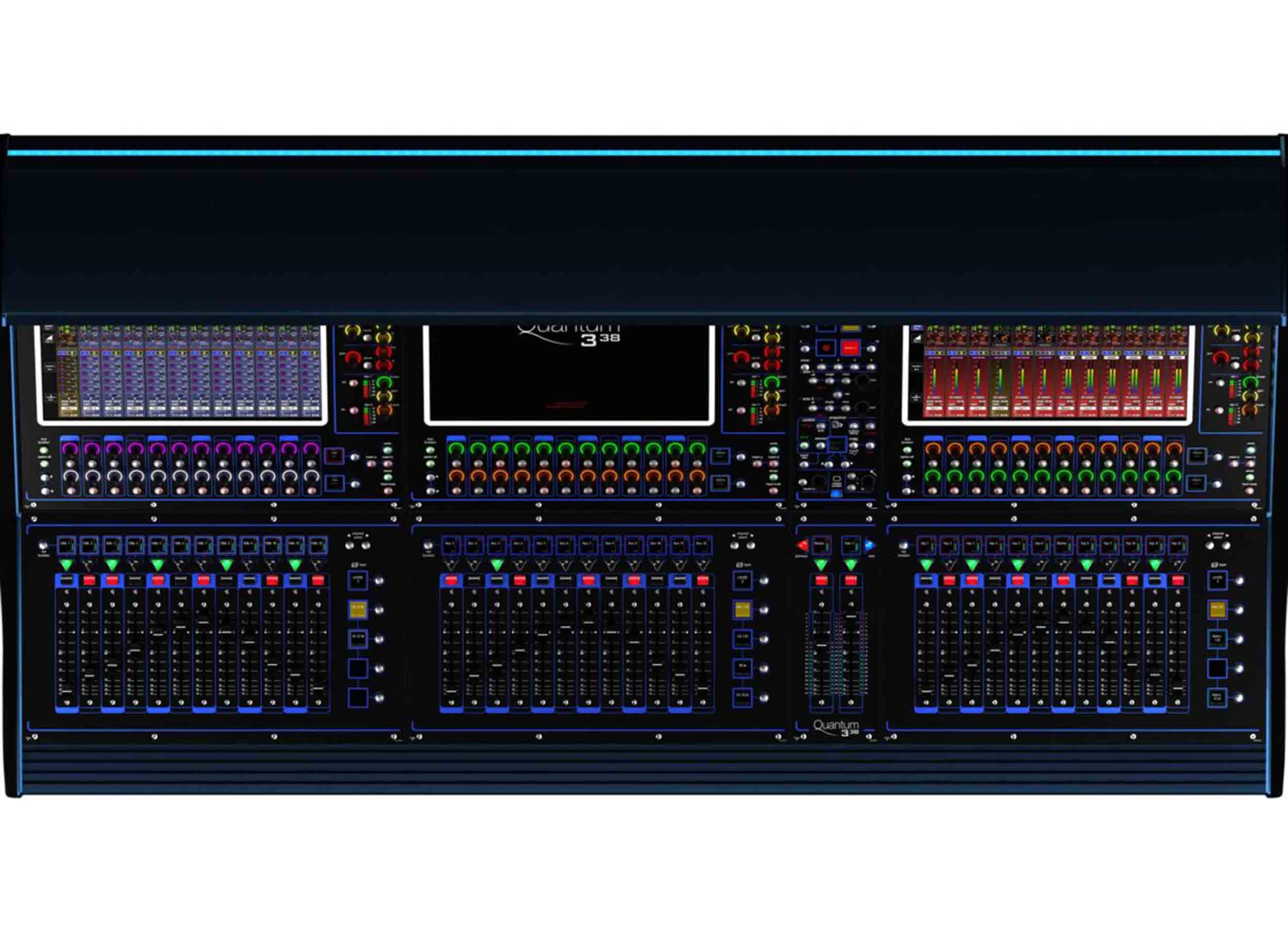

Three 17-inch, 1000-nit high-brightness multitouch displays provide excellent visibility in any lighting condition. Seventy dedicated TFT channel displays work alongside 38 motorized 100mm touch-sensitive faders, giving engineers immediate access to channel information and precise control. The intuitive layout, customizable workflow, and modern dark-mode interface improve efficiency while reducing operator fatigue during long mixing sessions.
OpticalCON Fiber Connectivity

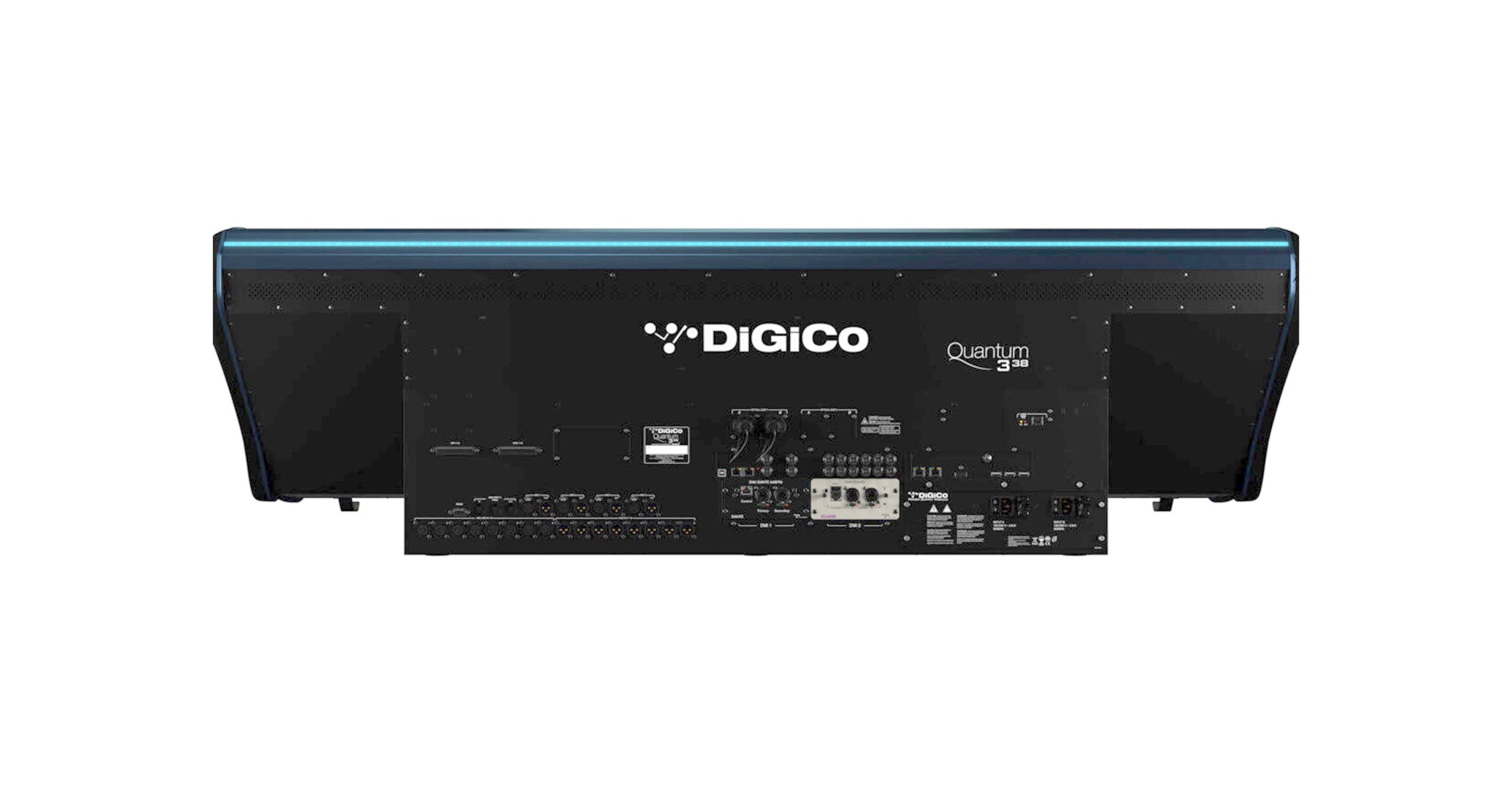

This model features OpticalCON connectors, providing durable, locking fiber-optic connections for dependable Optocore networking in touring and installed systems. Designed for professional environments, OpticalCON offers enhanced cable protection, secure locking, and reliable signal transmission. Combined with dual DMI expansion slots, multiple MADI interfaces, AES/EBU digital I/O, and the built-in UB MADI USB recording interface, the console integrates easily into sophisticated production networks.
Premium Audio Quality
Ultimate Stadius 32-bit analog-to-digital and digital-to-analog conversion delivers exceptional clarity, wide dynamic range, and ultra-low distortion. Eight local microphone/line inputs and eight local line outputs preserve every detail of the audio signal, while advanced FPGA processing maintains pristine sound quality throughout the console. This high-performance audio architecture is ideal for concerts, broadcast facilities, theatres, and houses of worship where uncompromising sound quality is essential.
Complete FPGA Processing Suite
The X-Q338-WS-PREM-OP includes DiGiCo's comprehensive FPGA-based processing package. Mustard Processing provides premium channel EQ and dynamics, Spice Rack offers powerful native FPGA effects with ultra-low latency, Nodal Processing enables flexible system-wide routing, and True Solo ensures accurate monitoring throughout the signal path. Together with Waves SoundGrid integration and OpticalCON connectivity, these technologies create a highly capable mixing platform for the most demanding professional audio applications.
What’s in the Box:
- MADI x 6
- Internal Waves Card
- UB-MADI
- DMI Port x 2
- Connectors: BNC
Product Specifications:
Integrated Networking: Waves SoundGrid
Connector: OpticalCON Connector.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19.0"
