Description

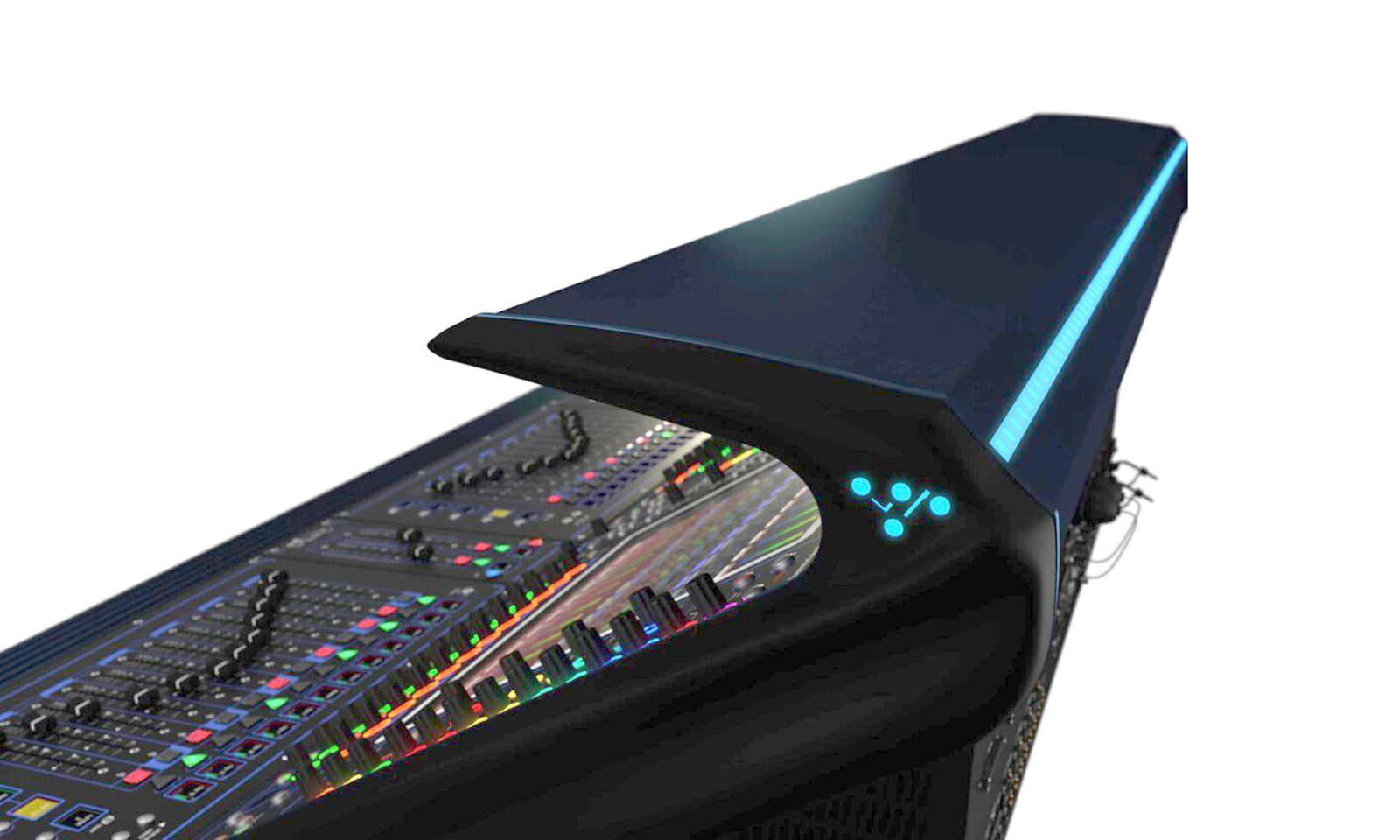

The DiGiCo X-Q338-WS-PREM-ST combines the powerful Quantum 338 processing platform with integrated Waves SoundGrid technology, delivering exceptional performance for live sound, broadcast, theatre, and installed audio applications. Powered by seventh-generation FPGA architecture, it provides ultra-low latency, rapid processing, and outstanding reliability. Supporting up to 128 input channels, 64 fully processed buses, and a 24×24 processing matrix, the console easily handles demanding productions while maintaining DiGiCo's familiar and efficient workflow.
Standard Connector & Flexible Connectivity

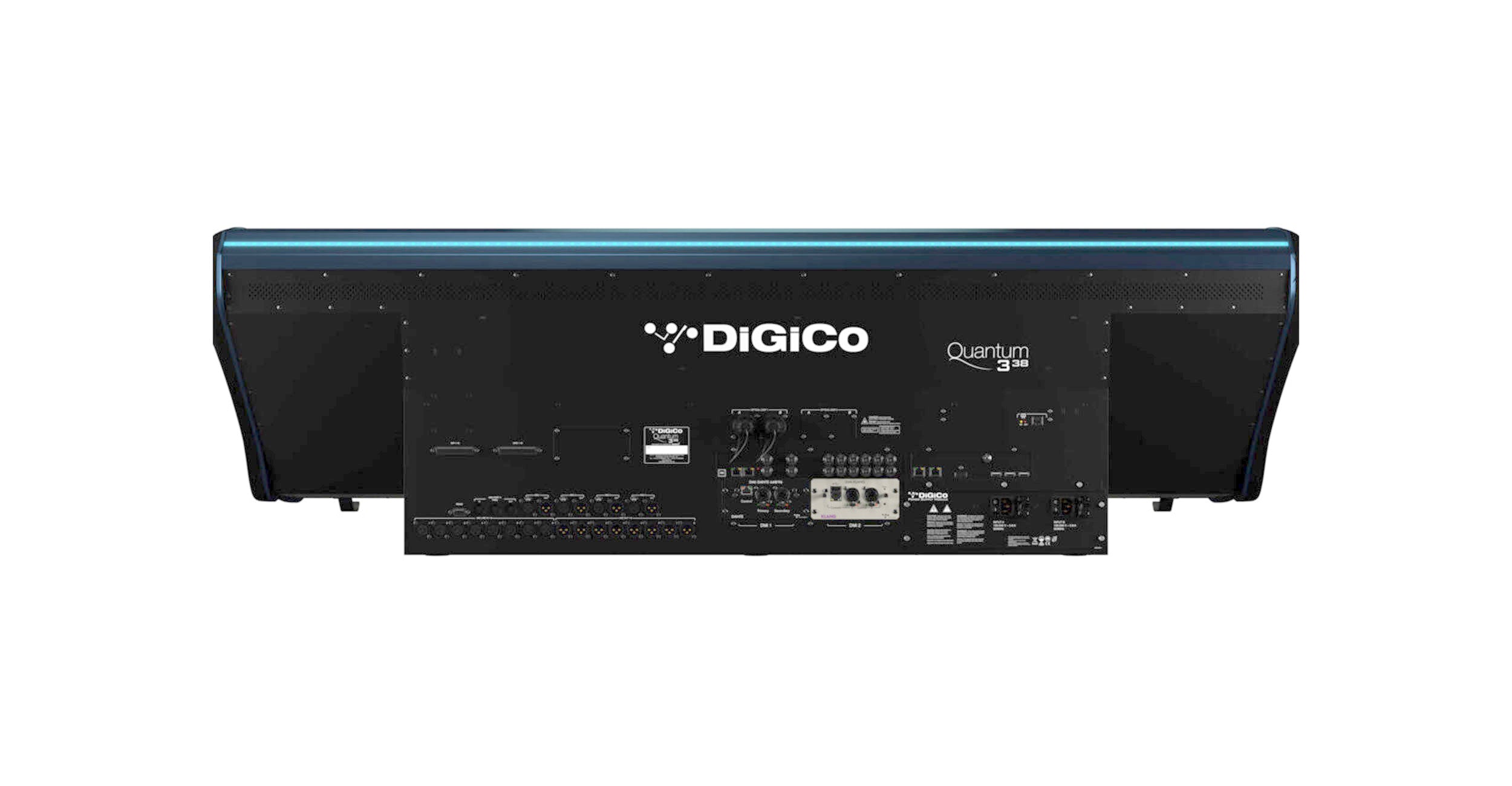

This Standard Connector configuration provides dependable Optocore compatibility for professional system integration. The console includes multiple MADI interfaces, dual DMI expansion slots, AES/EBU digital I/O, and a built-in UB MADI USB recording interface for flexible routing and recording. Combined with Waves SoundGrid connectivity, it integrates easily into touring, broadcast, theatre, and fixed-installation audio systems.
Integrated Waves SoundGrid
Built-in Waves SoundGrid connectivity allows engineers to use industry-leading Waves plugins with extremely low latency for professional live mixing. When paired with a compatible Waves SoundGrid server, the console supports premium EQs, compressors, reverbs, and other processing directly within the mixing environment. Plugin control is fully integrated into the console, providing a seamless workflow while expanding creative possibilities for FOH, monitor, broadcast, and theatre applications.
Advanced Multitouch Control Surface

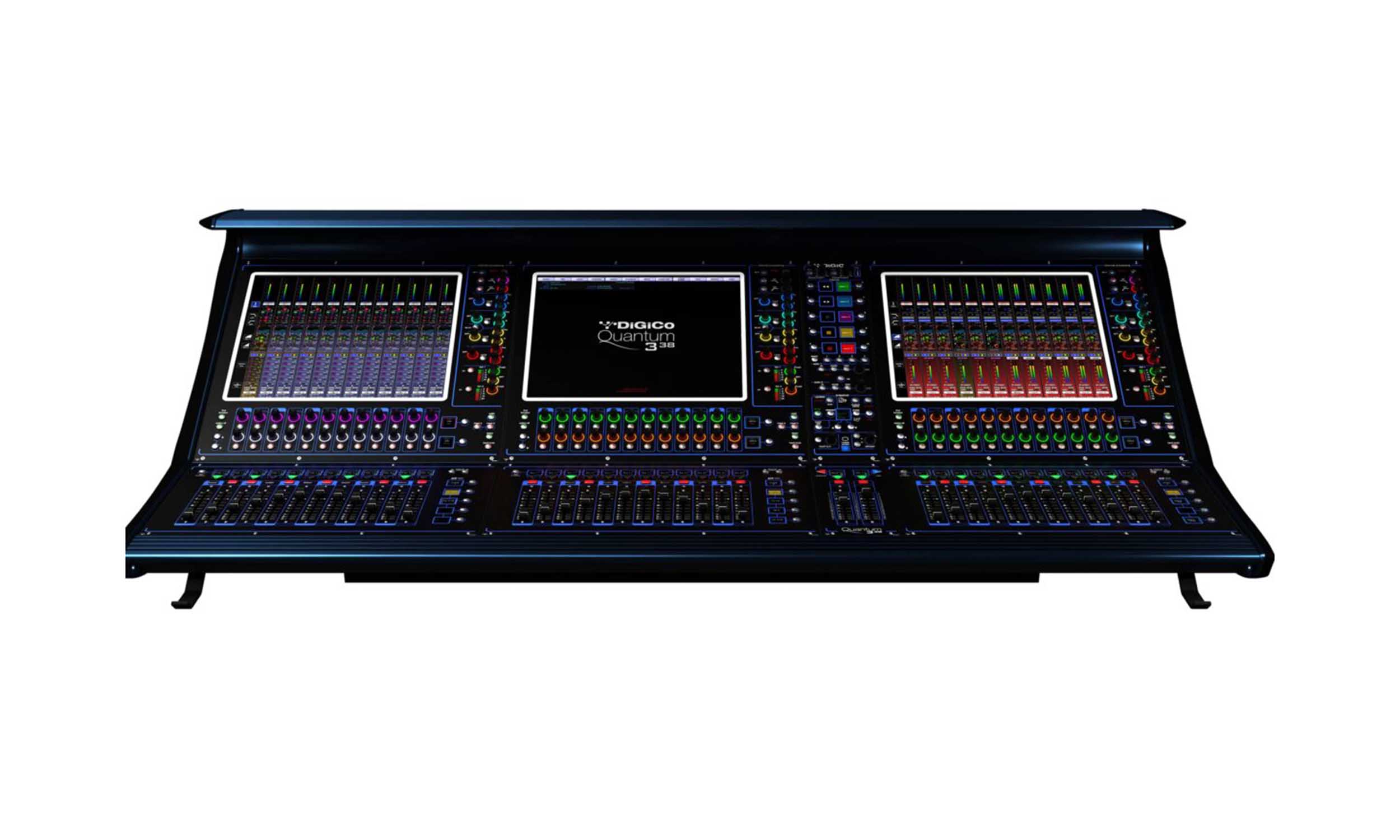

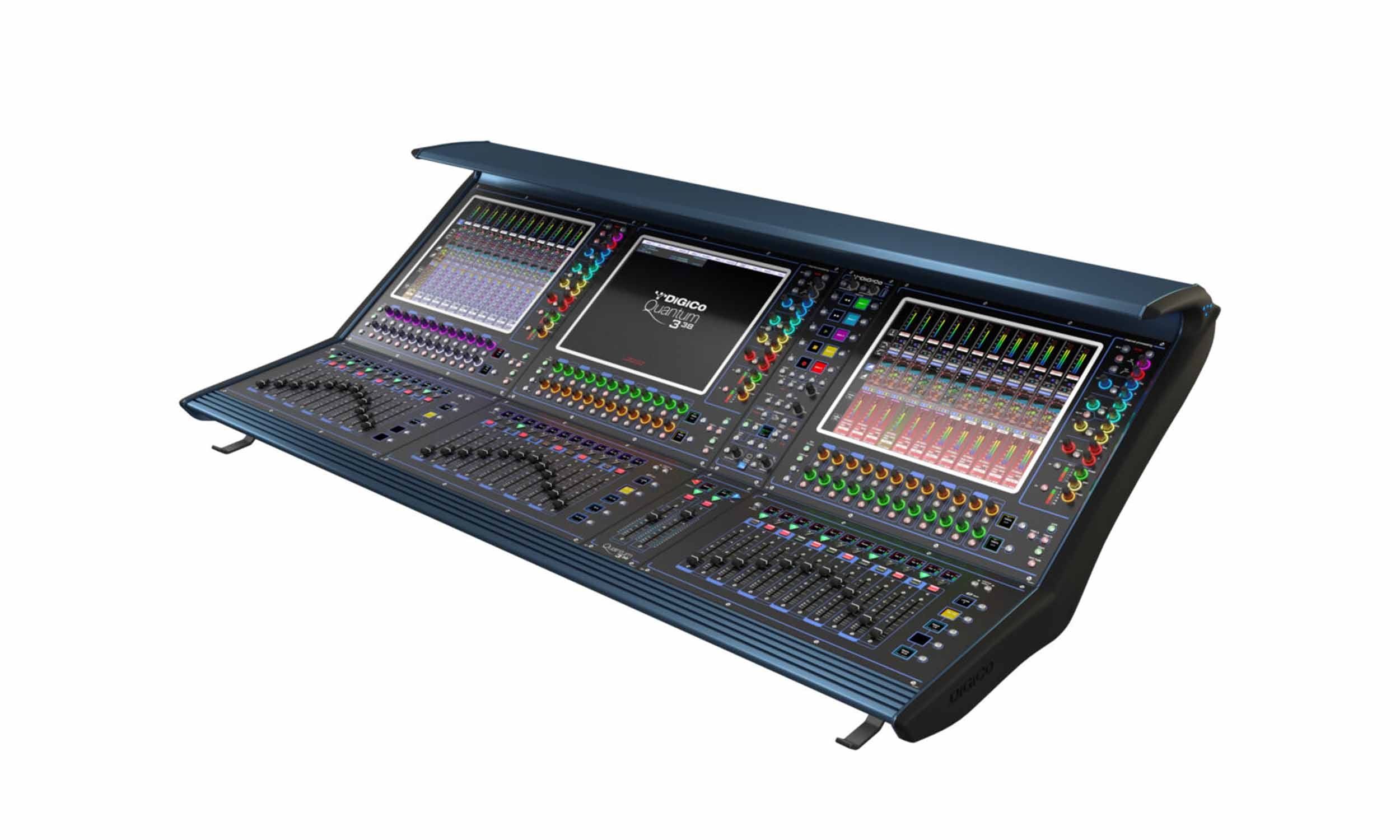

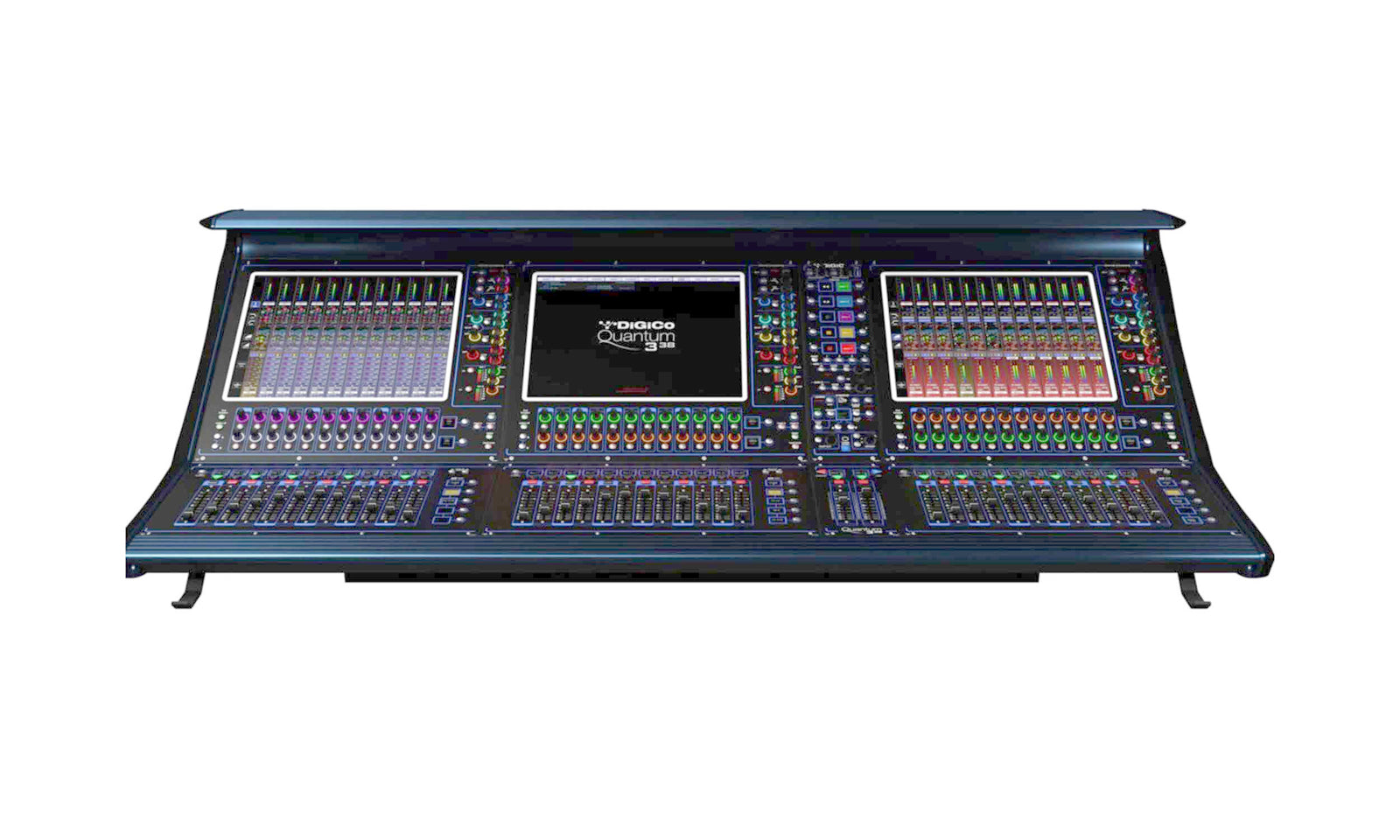

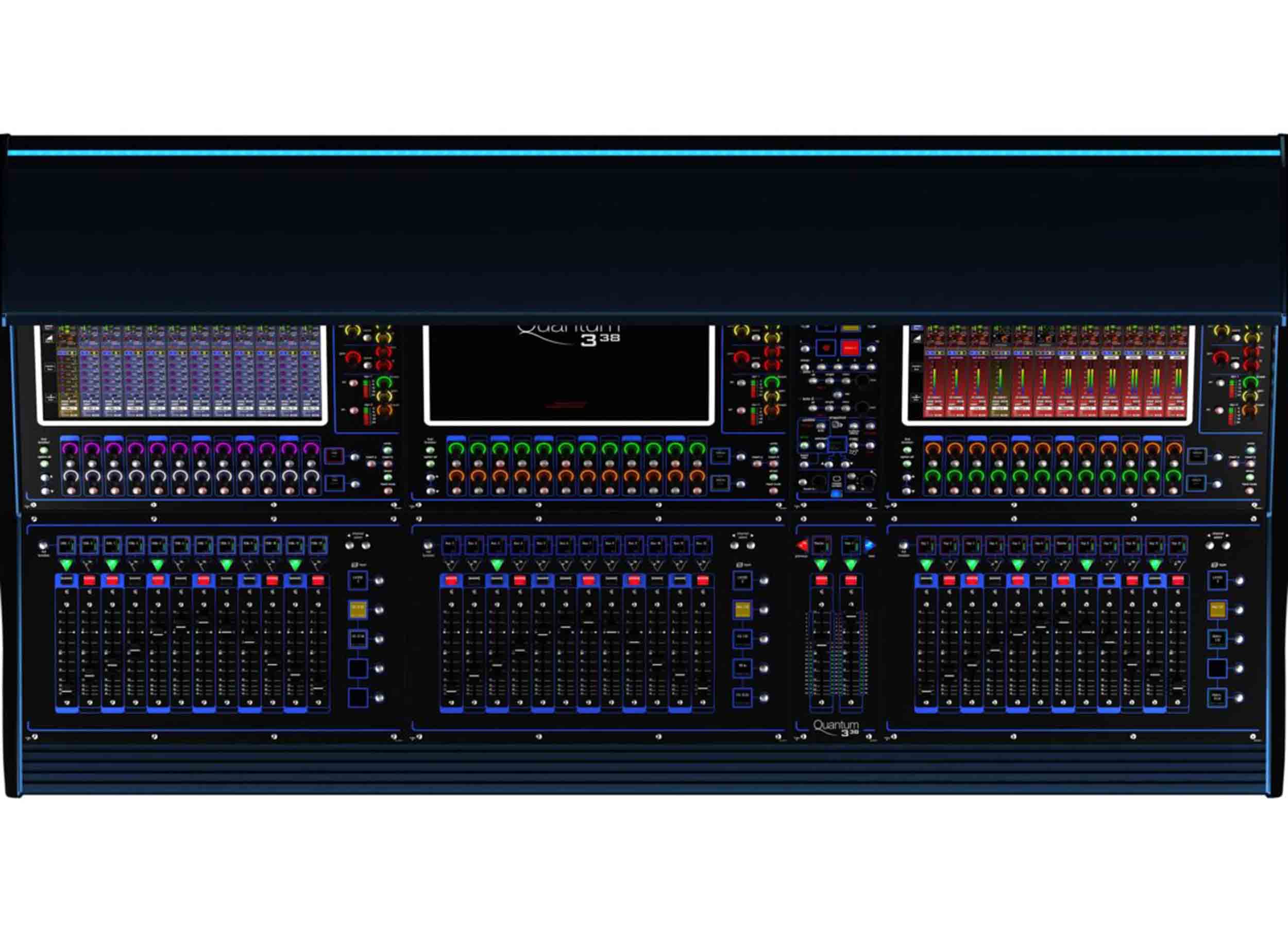

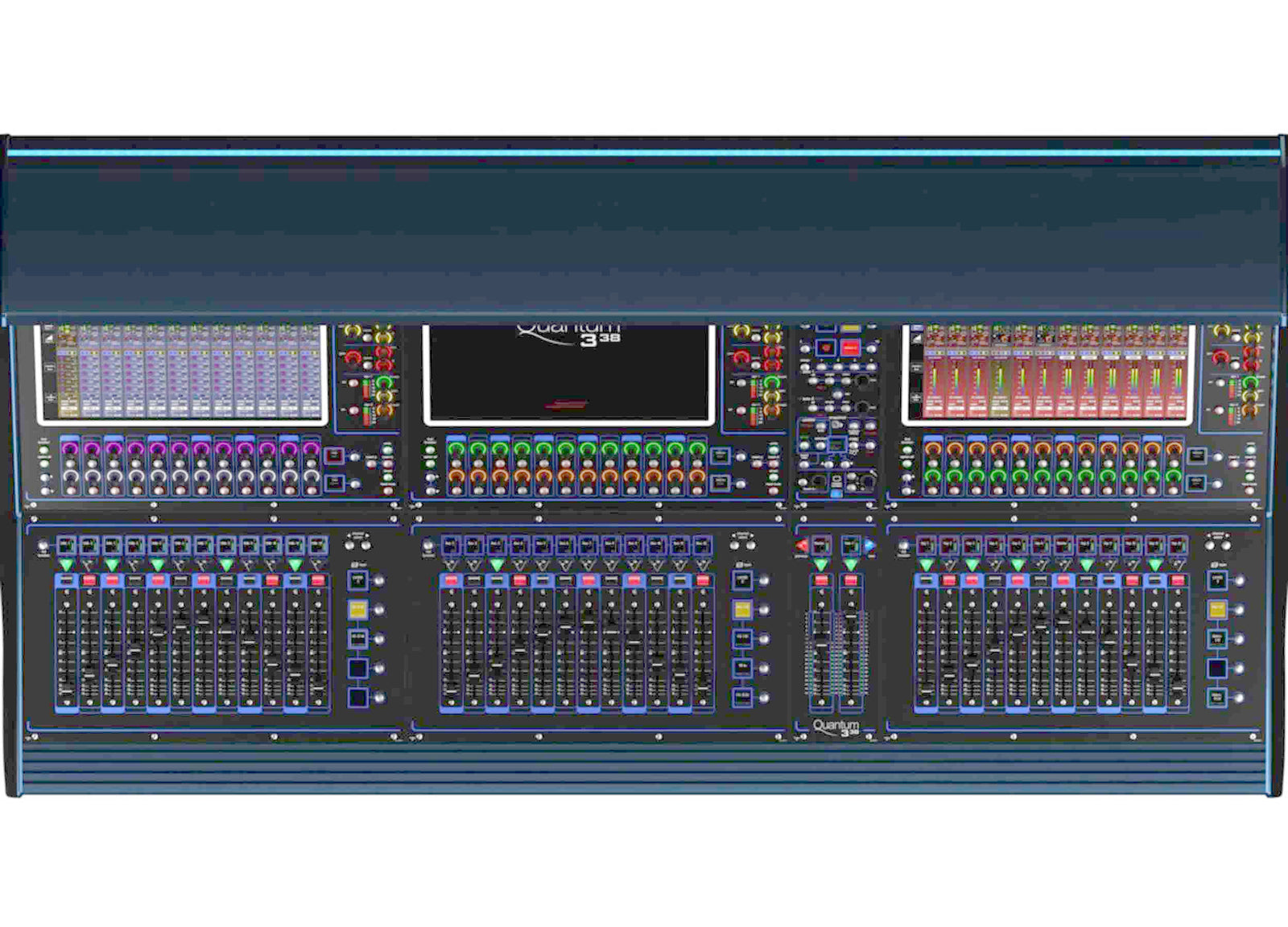

The Quantum 338 features three 17-inch, 1000-nit high-brightness multitouch displays that deliver excellent visibility under any lighting conditions. Seventy dedicated TFT channel displays work alongside 38 motorized 100mm touch-sensitive faders, providing immediate access to channel information and precise control. The intuitive layout, customizable workflow, and modern dark-mode interface help engineers work efficiently throughout demanding productions.
Exceptional Audio Performance
Equipped with Ultimate Stadius 32-bit analog-to-digital and digital-to-analog converters, the console delivers pristine audio quality with outstanding clarity, dynamic range, and ultra-low distortion. Eight local microphone/line inputs and eight local line outputs ensure premium signal integrity, while advanced FPGA processing maintains transparent sound throughout the entire signal path. This architecture is designed to meet the highest professional audio standards.
Complete FPGA Processing Suite
The X-Q338-WS-PREM-ST includes DiGiCo's advanced FPGA-based processing tools as standard. Mustard Processing delivers premium channel EQ and dynamics, Spice Rack provides high-quality FPGA effects with ultra-low latency, Nodal Processing enables advanced system-wide routing, and True Solo offers accurate monitoring throughout the signal path. Together with Waves SoundGrid integration, these technologies provide a powerful and flexible mixing platform for today's most demanding professional productions.
What’s in the Box:
- MADI x 6, Optics x 1
- UB-MADI
- DMI Port x 2
- Connectors: BNC, ST
Product Specifications:
Integrated Networking: Waves SoundGrid
Connector: Standard ST Connector.
Faders: 38 × 100mm touch-sensitive, motorized.
Touchscreens: 3 × 17" high-brightness, high-resolution LCD touchscreens.
Input Channels: 128.
Aux/Group Busses: Up to 64 with Mono, Stereo, LCR, LCRS, and 5.1 processing.
Matrix: Up to 24 inputs × 24 outputs with full processing.
Control Groups: Up to 24 (VCA, Moving Fader, or Mute Group).
Graphic EQ: 24 × 32-band graphic EQs with ±12dB gain.
Internal Effects: Up to 24 stereo floating-point effects (reverb, delay, chorus, pitch, enhancer).
Spice Rack: 8 mono / 4 stereo rack slots.
Audio Resolution: 32-bit A/D and D/A converters.
Internal DSP: Up to 40-bit floating-point processing.
Supported Sample Rates: 48kHz and 96kHz.
Maximum Processing Delay: Approximately 1ms at 96kHz.
Residual Output Noise: <100dBu (20Hz–20kHz).
Microphone Input Noise: Better than -128dB EIN.
Input Gain Range: -20dB to +60dB.
Digital Trim: -40dB to +40dB (input), -20dB to +60dB (output).
Input Delay: Up to 1.3 seconds.
Output Delay: Up to 1.3 seconds.
Phase Reverse: Available on all input and output channels.
High-Pass Filter: 20Hz–20kHz, 24dB/octave.
Input EQ: 4-band parametric or dynamic EQ.
Output EQ: 8-band EQ with dynamic EQ capability.
EQ Gain Range: ±18dB.
EQ Q Range: 0.1–20 (Parametric).
Dynamic EQ: Over/Under modes with adjustable threshold, attack, release, and ratio.
Compressor Types: Standard, Multiband, Vintage VCA, Classic VCA, Optical, and FET Limiter.
Gate/Ducker: Adjustable threshold, attack, hold, release, and range.
De-Esser: Integrated with adjustable frequency and bandwidth.
Insert Points: Two inserts per channel (Pre and Post EQ/Dynamics).
DiGiTuBe Processing: Adjustable Drive and Bias controls.
Mustard Processing: Tube and Amp preamp emulations with multiple harmonic modes.
Mustard EQ: 4-band parametric EQ with shelving and bell options.
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade selectable.
Output Routing: Buss, Inserts, FX, and Direct Outputs.
Fader Level Range: Infinity to +10dB.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Mute Modes: Channel Mute and Hard Mute.
Channel Safe Modes: Input, EQ, Dynamics, Aux, Pan, Fader, Inserts, Buss, Directs, and Full Safe.
Channel Naming: User-defined with preset support.
Channel Configuration: Mono, Stereo, and Multi-channel.
Input Routing: Main and Alternate inputs.
Graphic Equalizers: 24 independent 32-band graphic EQs.
Effects Rack: Up to 24 stereo floating-point effects processors.
Spice Rack Capacity: 8 mono or 4 stereo rack slots.
Mustard Processing Capacity: 36 processing strips.
Nodal Processing Capacity: 64 nodal processors.
Networking: Optional Optocore dual-loop networking.
Digital Audio Networking: Optional Waves SoundGrid support.
Synchronization: Word Clock, AES, MADI, and Optocore.
MADI Connectivity: 6 interfaces at 48kHz or 3 interfaces at 96kHz.
Expansion Slots: 2 DiGiCo DMI expansion slots.
GPIO: 16 GPI/GPO connections.
Local Analog I/O: 8 Mic/Line inputs and 8 AES digital I/O.
Product Weight: 437 lbs.
Product Dimensions (L × W × H): 62.8" × 31.7" × 19.0"
