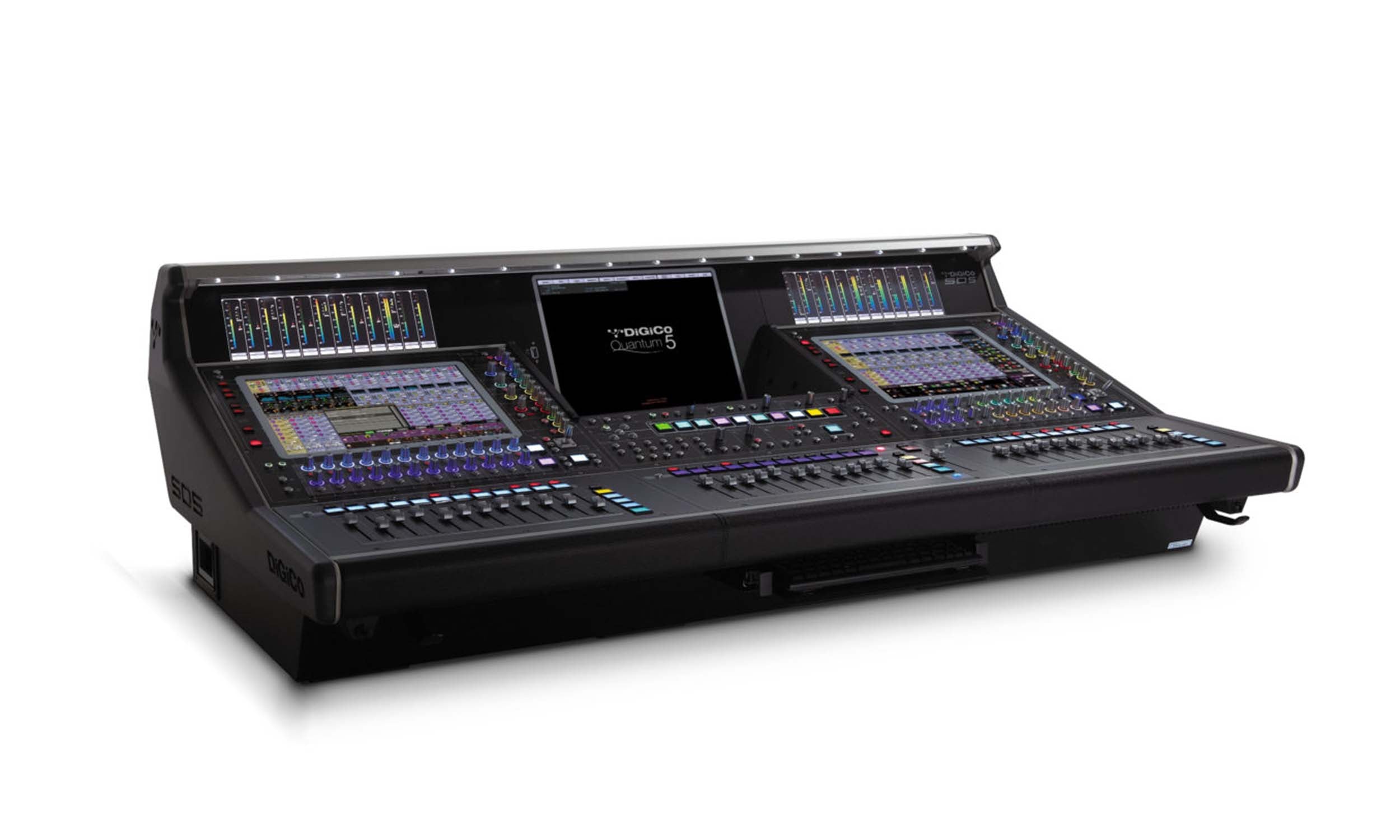

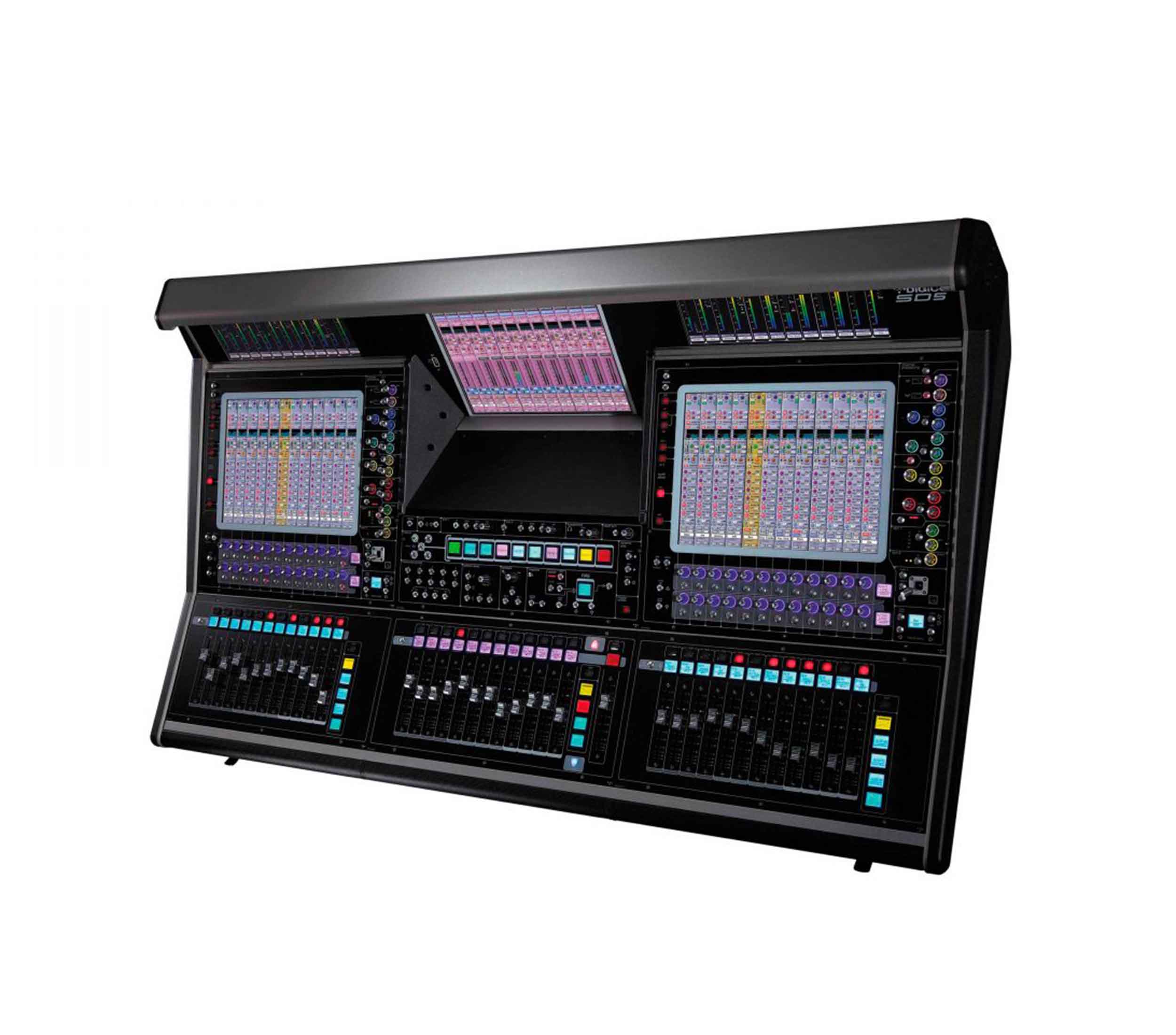

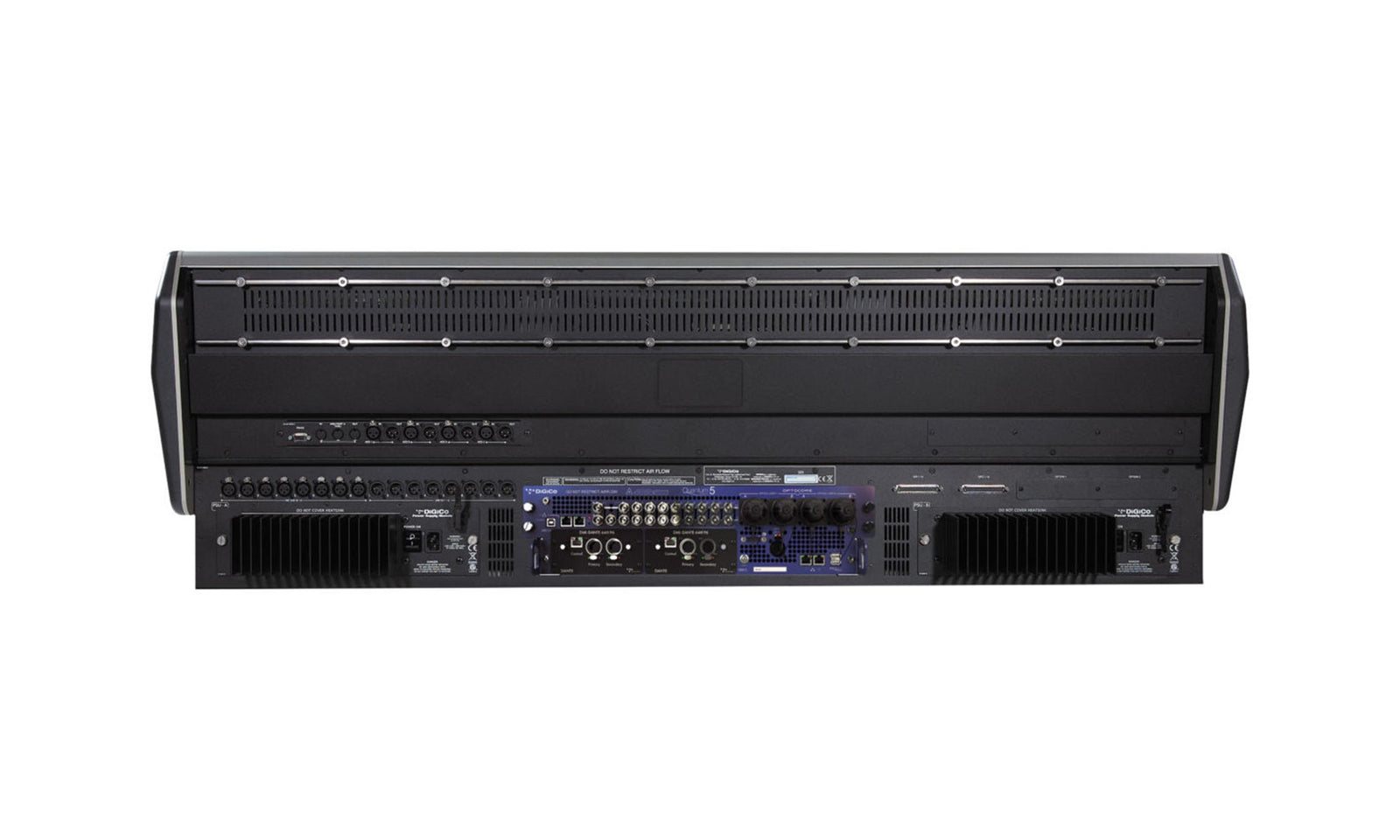

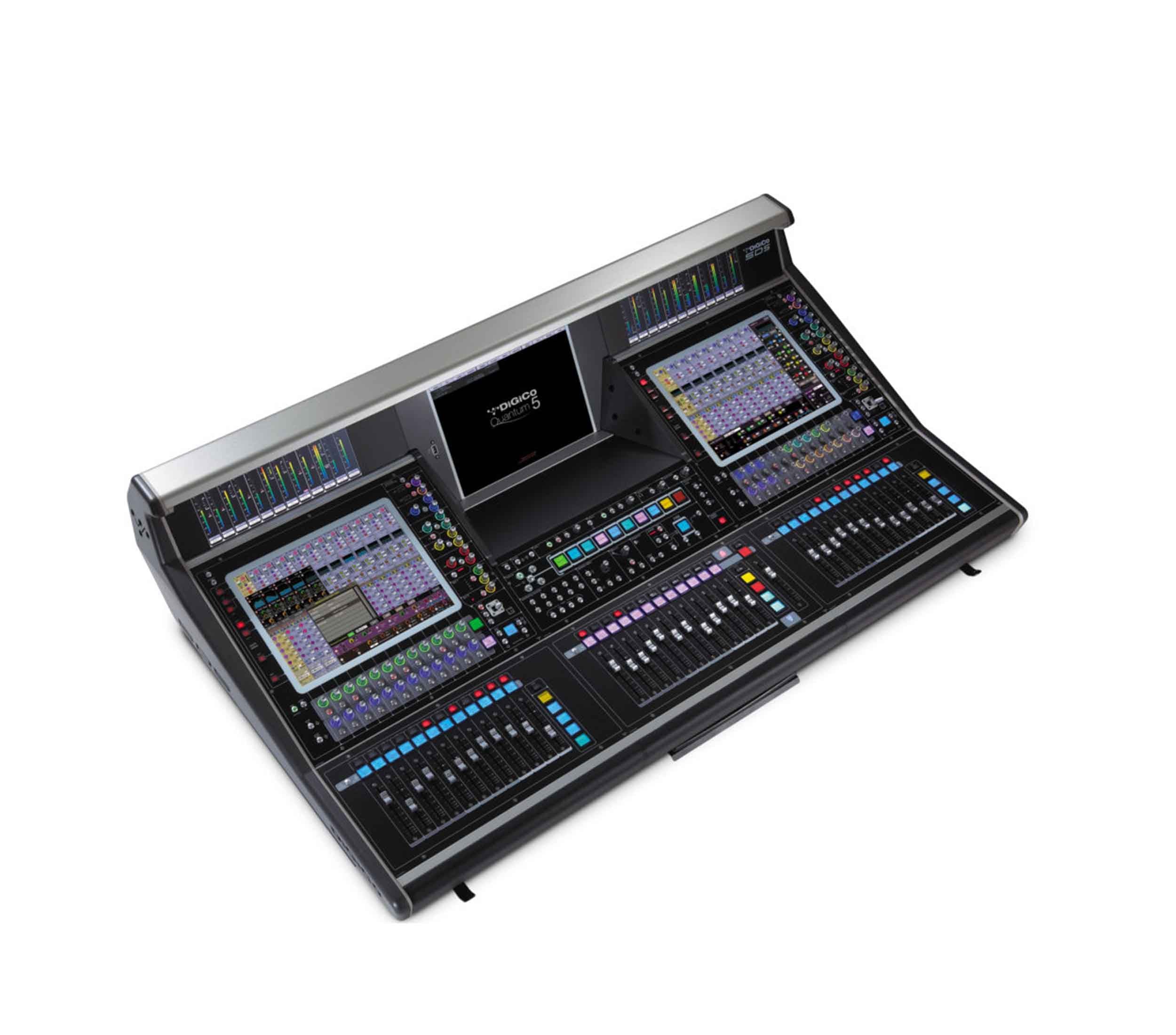

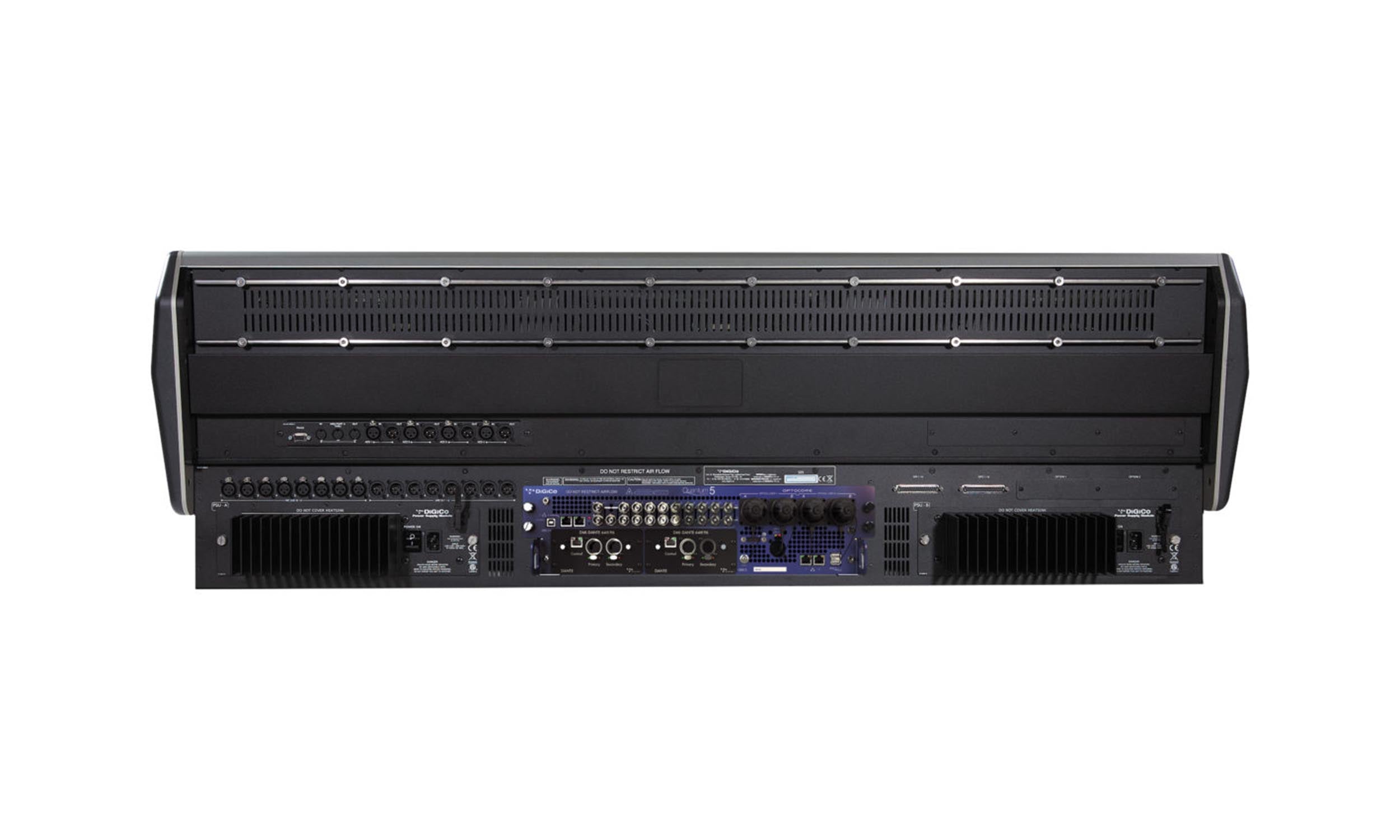

DiGiCo X-Q5-UP-OP Quantum 5 Upgrade Kit with OpticalCON Optocore

The DiGiCo X-Q5-UP-OP Quantum 5 Upgrade Kit with OpticalCON Optocore transforms a compatible SD-series console into a powerful Quantum 5 system with enhanced processing and workflow. It introduces the latest Quantum engine technology for greater flexibility, faster operation, and improved overall performance. Engineers benefit from expanded channel capacity, advanced FPGA processing, and lower latency across demanding live productions. The upgrade preserves the familiar console layout while significantly extending its capabilities. This makes it an ideal solution for rental companies, touring professionals, broadcast facilities, and permanent installations seeking a cost-effective modernization.

Upgrade Your SD Console to Quantum 5 Performance

Equipped with OpticalCON Optocore, this upgrade kit delivers secure, high-bandwidth fiber connectivity for professional audio networks. OpticalCON connectors provide rugged, locking protection that is well suited to touring and live event environments. The Optocore interface enables reliable transmission of large channel counts over long distances with minimal latency. It also supports seamless integration with compatible DiGiCo consoles, stage racks, and Optocore network devices. The result is a dependable digital infrastructure designed for demanding production workflows.

Advanced Mixing Capabilities

With Quantum 5 technology, users gain access to expanded mixing features that support today's sophisticated audio productions. The upgraded system accommodates demanding monitor, front-of-house, broadcast, and theatrical applications with ease. Engineers can create complex routing structures, flexible bus configurations, and detailed processing chains while maintaining intuitive control. The platform is designed to adapt quickly to changing production requirements. This flexibility helps deliver exceptional audio quality across a wide range of professional environments.

Seamless System Integration

The X-Q5-UP-OP upgrade is designed for straightforward integration with existing DiGiCo workflows and compatible hardware. Existing show files, stage racks, and network infrastructure can continue to operate efficiently after the upgrade. The OpticalCON Optocore interface ensures compatibility with professional fiber-based audio systems used throughout the industry. This minimizes installation time while protecting previous equipment investments. The result is a smooth transition to Quantum technology with minimal operational disruption.

Built for Professional Live Production

Designed for the rigors of professional touring and fixed installations, the Quantum 5 Upgrade Kit provides the reliability required for mission-critical audio applications. Its robust hardware and advanced networking capabilities support continuous operation in demanding production environments. Engineers benefit from improved system performance, expanded functionality, and long-term scalability without replacing the entire console. This upgrade offers an efficient path to modern Quantum technology while preserving the proven reliability of existing DiGiCo systems. It is an ideal investment for professionals seeking higher performance and future-ready capabilities.

What’s in the Box:

• One SD ST Rack (56 Mic In x 40 Out x 16 AES-O)
• Ultimate Stadius' 32-Bit Mic Pre-Amp & 32-Bit Output Package
• Quantum 5 Engine Upgrade Kit
• Includes: Q5 & SD5 3 Piece Flight Case with Pullout Keyboard on Casters
• Connectors: BNC, ST
• Qualifies for DiGiCo Trade Up Program (Limited Time Offer

Product Specifications:

Product Type: Quantum 5 Engine Upgrade Kit

Compatibility: DiGiCo SD5 Digital Mixing Console

Upgrade Purpose: Converts SD5 to Quantum 5 processing platform

Optocore Connection: OpticalCON MultiMode Fiber

Optocore Loop: HMA Single Optic Loop

Connector Type: Neutrik OpticalCON

Faders: 37 x 100mm touch-sensitive, motorised

Screens: 3 x 15" LCD high-resolution touch screens

Meterbridge: 2 x Custom Mounted LCD high-resolution TFT-LCD screens

Internal PSU: 2 x Internal Power Supplies

Processing Channels: Up to 330 (combination of Input Channels, Aux, and Solo Group Busses)

Busses: Up to 128 Aux/Group busses with full processing (Mono, Stereo, LCR, 5.1)

Matrix: Up to 36 Inputs / 36 Outputs with full processing

Control Groups: Up to 36, selectable for VCA-style, Moving Fader, or Mute Group

Graphic EQ: 32 x 32-band, Gain ±12dB

Internal FX: Up to 36 stereo effects, including 16 floating-point reverbs

Local I/O: 8 x Mic/Line I/O, 8 x AES I/O

MADI Interfaces: 8 x MADI @ 48kHz, 4 redundant @ 96kHz (BNC connectivity)

Optocore: Standard (Dual Loop – Optional)

Sampling Rates: 48kHz / 96kHz

GPIO: 2 x DSub37

DMI: 2 x DiGiCo Multichannel Interface Slots

Waves: Fitted as Standard

External Sync: Word Clock, AES, Video, MADI, Optocore

Power Requirements: 90V–260V AC, 50–60Hz, 790VA

Sample Rate: 48kHz or 96kHz

Processing Delay: 2ms typical @ 48kHz (253 Channels), 1.1ms @ 96kHz

Internal Processing: Up to 40-bit Floating Point

A/D & D/A Conversion: 24-bit Converter Bit Depth

Frequency Response: ±0.6dB (20Hz–20kHz)

THD: <0.05% @ Unity Gain, +10dB Input @ 1kHz

Channel Separation: Better than 90dB (40Hz–15kHz)

Residual Output Noise: < -90dBu Typical (20Hz–20kHz)

Microphone Input Noise: Better than -126dB Equivalent Input Noise (EIN)

Maximum Output Level: +22dBu

Maximum Input Level: +22dBu

Channel Name: User-defined with Presets

Channel Selection: Mono, Stereo, or Multi

Input Routing: Main and Alternate Input

Analogue Gain: -20dB to +60dB

Phase: Normal / Reverse

Digital Trim: -40dB to +40dB (Input), -20dB to +60dB (Output)

Delay: Greater than 1 second with Coarse and Fine Control

DiGiTuBe: Drive 0.01–50.0, Bias 0–6

Low Pass Filter: 20Hz–20kHz, 24dB/Octave

High Pass Filter: 20Hz–20kHz, 24dB/Octave

Insert A: Pre EQ/Dynamics On/Off

Input EQ: 4-Band Parametric or Dynamic EQ with Shelf Options

Output EQ: 8-Band EQ with Dynamic EQ Support

EQ Gain: ±18dB

EQ Frequency Range: 20Hz–20kHz

EQ Q Range: 0.1–20 (Parametric), 0.10–0.85

Dynamic EQ: Over/Under Mode with Adjustable Threshold, Attack, Release, and Ratio

Dynamics 1: Single-Band or 3-Band Multiband Compressor with Auto Gain

Dynamics 2: Gate, Ducker, and Compressor with Sidechain Support

De-Esser: Adjustable Threshold, Release, Ratio, and Frequency Width

Insert B: Post EQ/Dynamics On/Off

EQ/Dynamics Order: EQ→Dynamics or Dynamics→EQ

Mute: Channel Mute / Hard Mute

Solo: Solo Bus 1, Solo Bus 2, Both, Auto Solo

Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Busses, Directs, or Full Safe

Output Routing: Busses, Outputs, Inserts, and FX

Direct Output: On/Off, Pre-Mute, Pre-Fade, Post-Fade, Level ±18dB

Fader: 100mm Motorised Fader, ∞ to +10dB

Product Weight: 257 lbs.

Product Dimensions (L x W x H): 57.68" x 32.99" x 18.03"
