Description

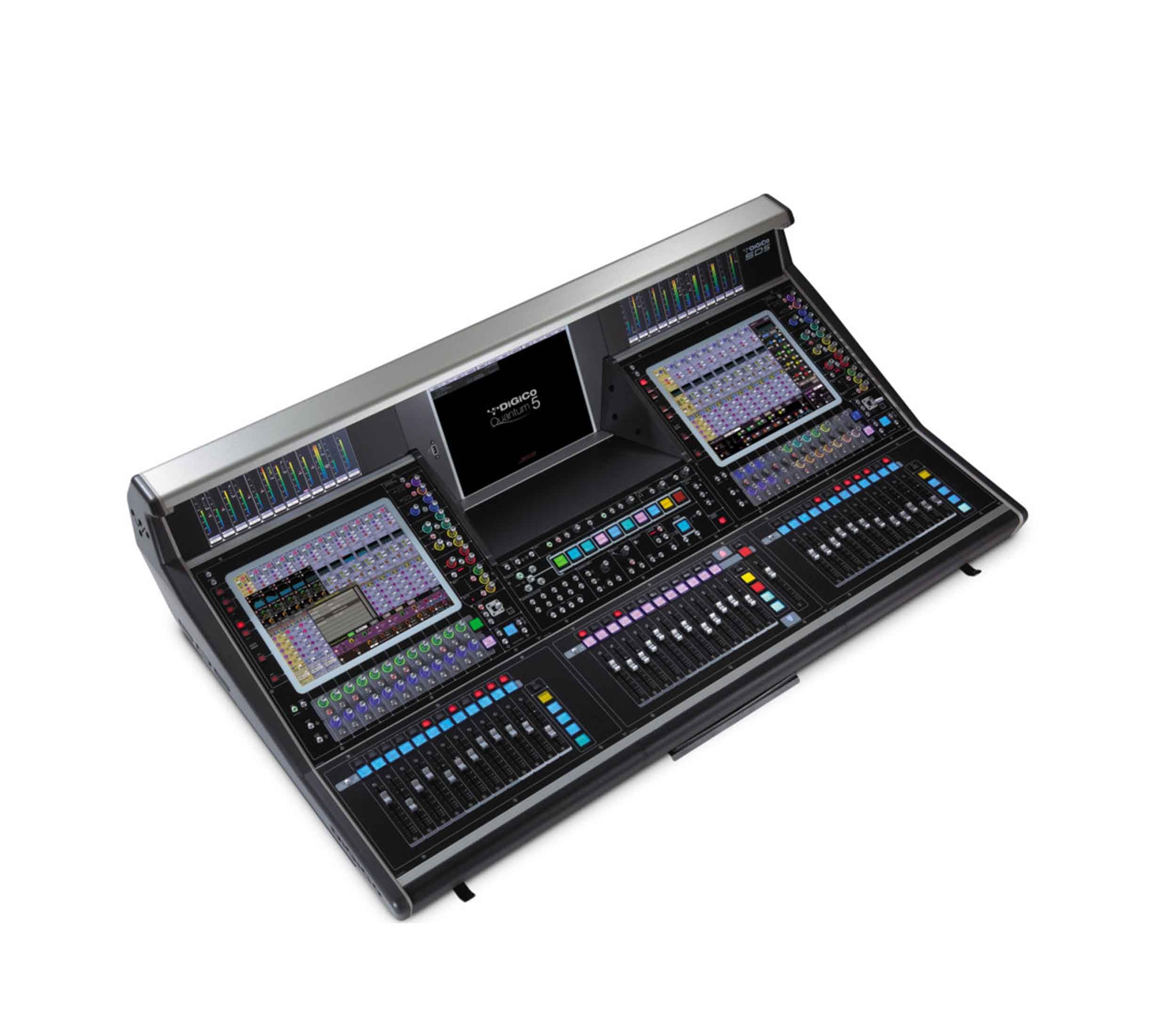

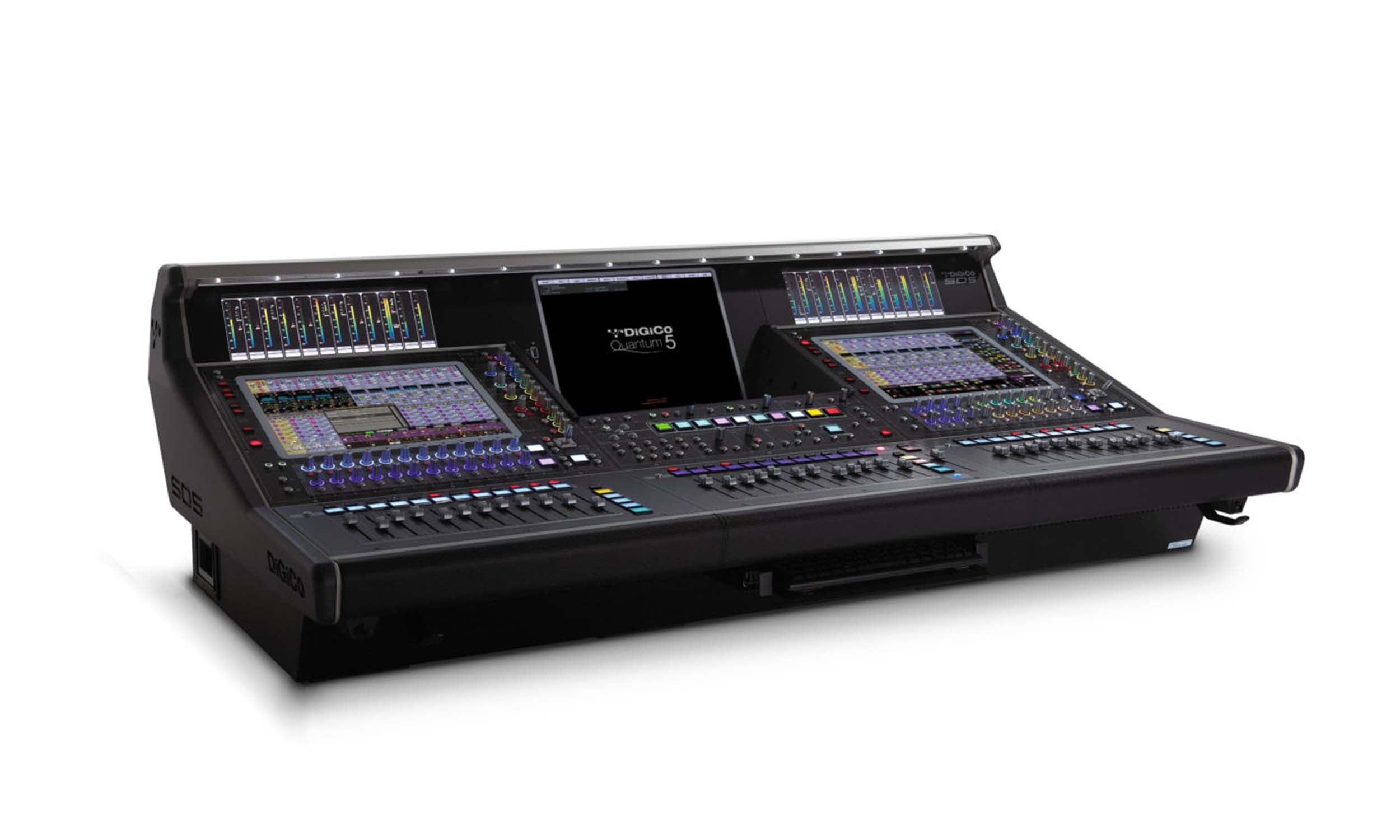

The DiGiCo Quantum 5 combines the trusted SD5 control surface with the advanced Quantum processing engine, delivering exceptional performance for demanding live productions. Powered by three high-performance FPGAs, it offers significantly increased processing capability while maintaining the familiar workflow trusted by professional engineers. Designed for touring, broadcast, theater, and large-scale events, it delivers outstanding reliability and flexibility.
Powerful Audio Processing
With more than 450 processing paths operating at 96kHz, the Quantum 5 provides up to 256 input channels, 128 buses, and a fully featured 36×36 matrix. Advanced channel processing includes dynamic EQ, multiple dynamics sections, channel delay, dual inserts, and comprehensive filtering. This extensive processing power allows engineers to manage even the most complex productions with confidence and precision.
Mustard & Spice Rack Technology
The Quantum 5 features DiGiCo's renowned Mustard Processing, bringing classic analog-inspired preamps, EQs, compressors, and dynamics directly into every channel. Complementing this is the FPGA-powered Spice Rack, offering up to 12 insertable processing slots including the powerful Chilli 6 multiband compressor. Together, these tools provide studio-quality sound shaping without external hardware.
Flexible Connectivity

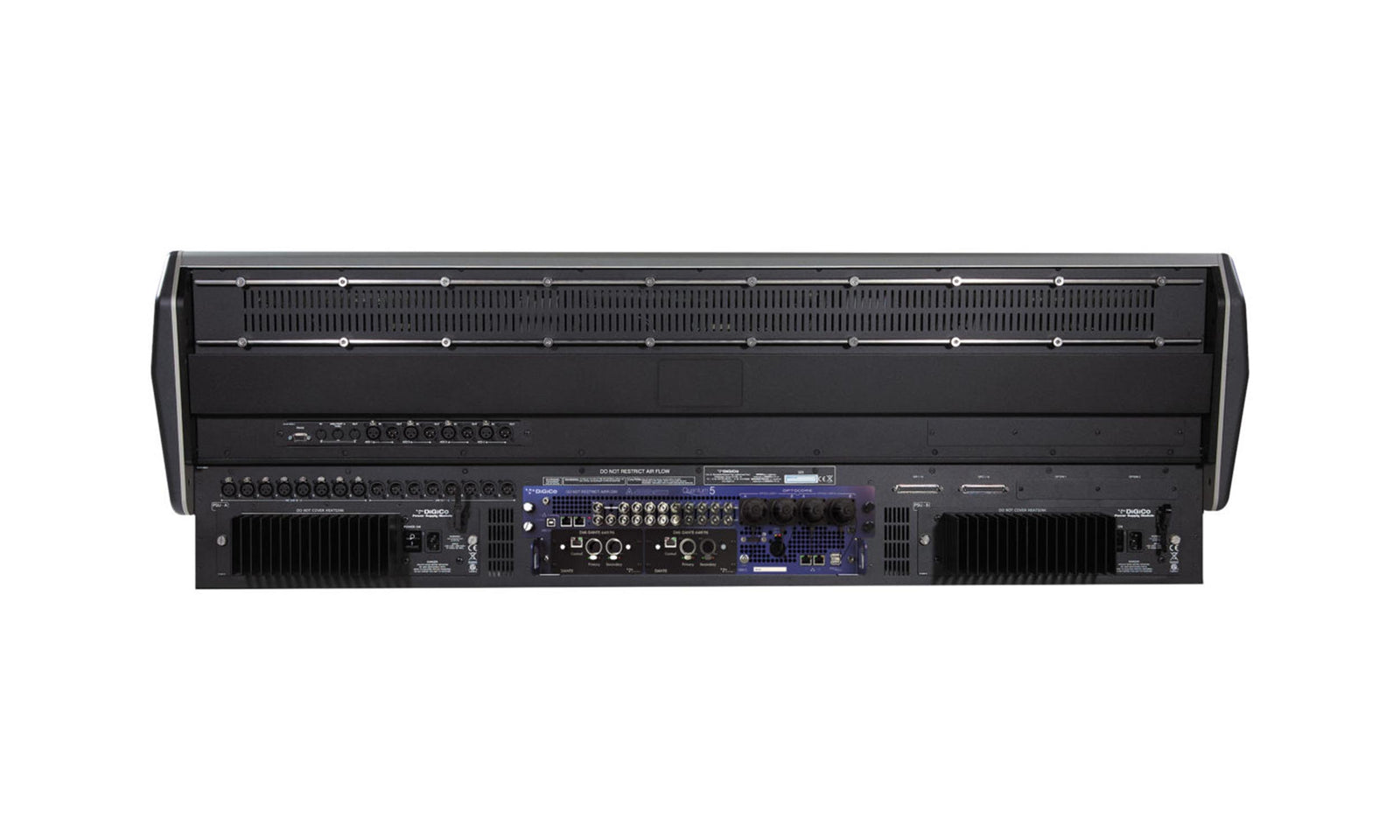

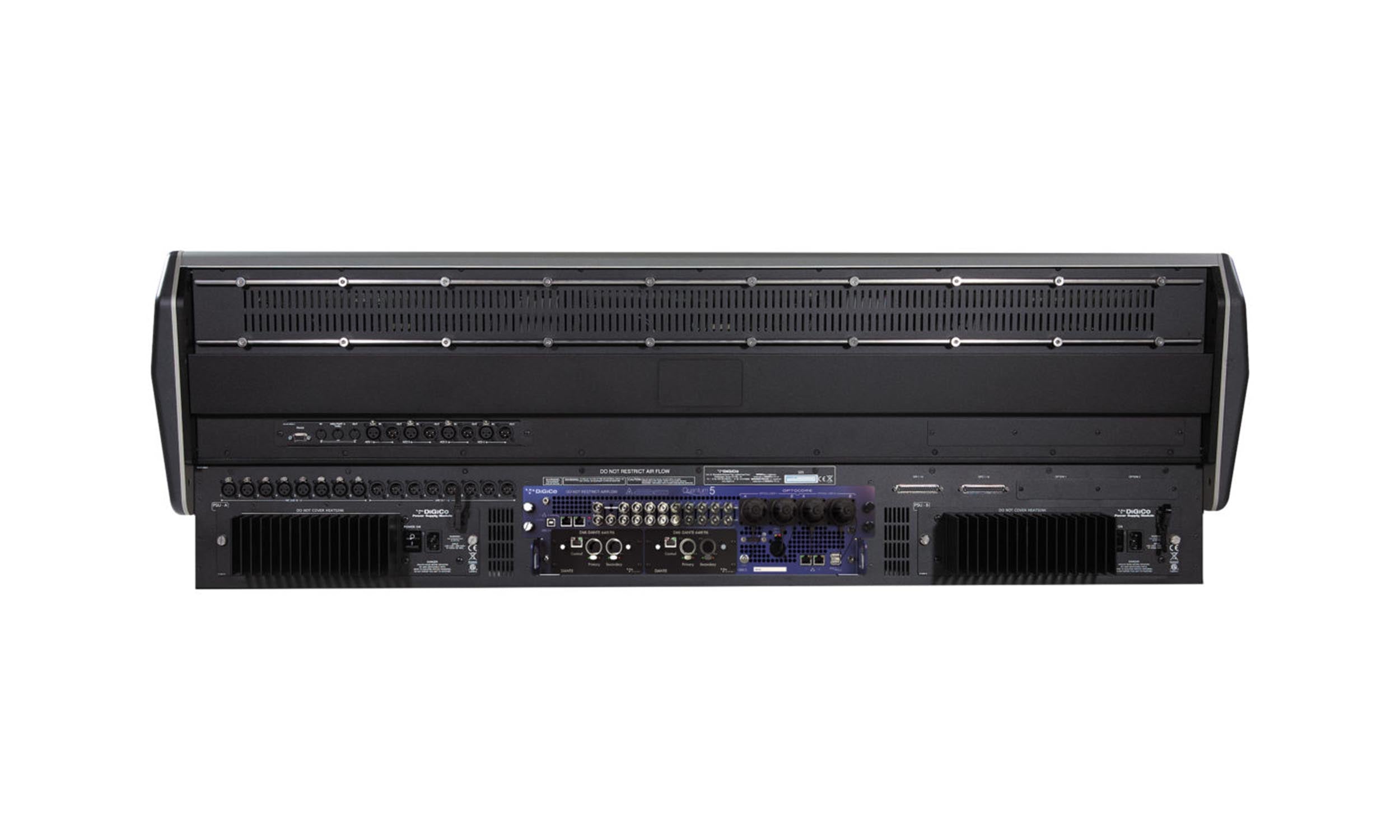

Built for modern production environments, the Quantum 5 offers extensive connectivity options. It includes local analog and AES I/O, multiple redundant MADI ports, dual DMI expansion slots, integrated Waves SoundGrid connectivity, USB MADI recording, and Optocore fiber networking. This flexible architecture allows the console to integrate seamlessly into virtually any live or broadcast workflow.
Advanced Mixing Control
The console incorporates innovative technologies including Nodal Processing for highly detailed monitor mixing and True Solo for accurate artist monitoring. Engineers also benefit from configurable buses, flexible matrix routing, and support for multiple monitor configurations. These features provide exceptional creative control for both front-of-house and monitor engineers.
Built for Professional Production

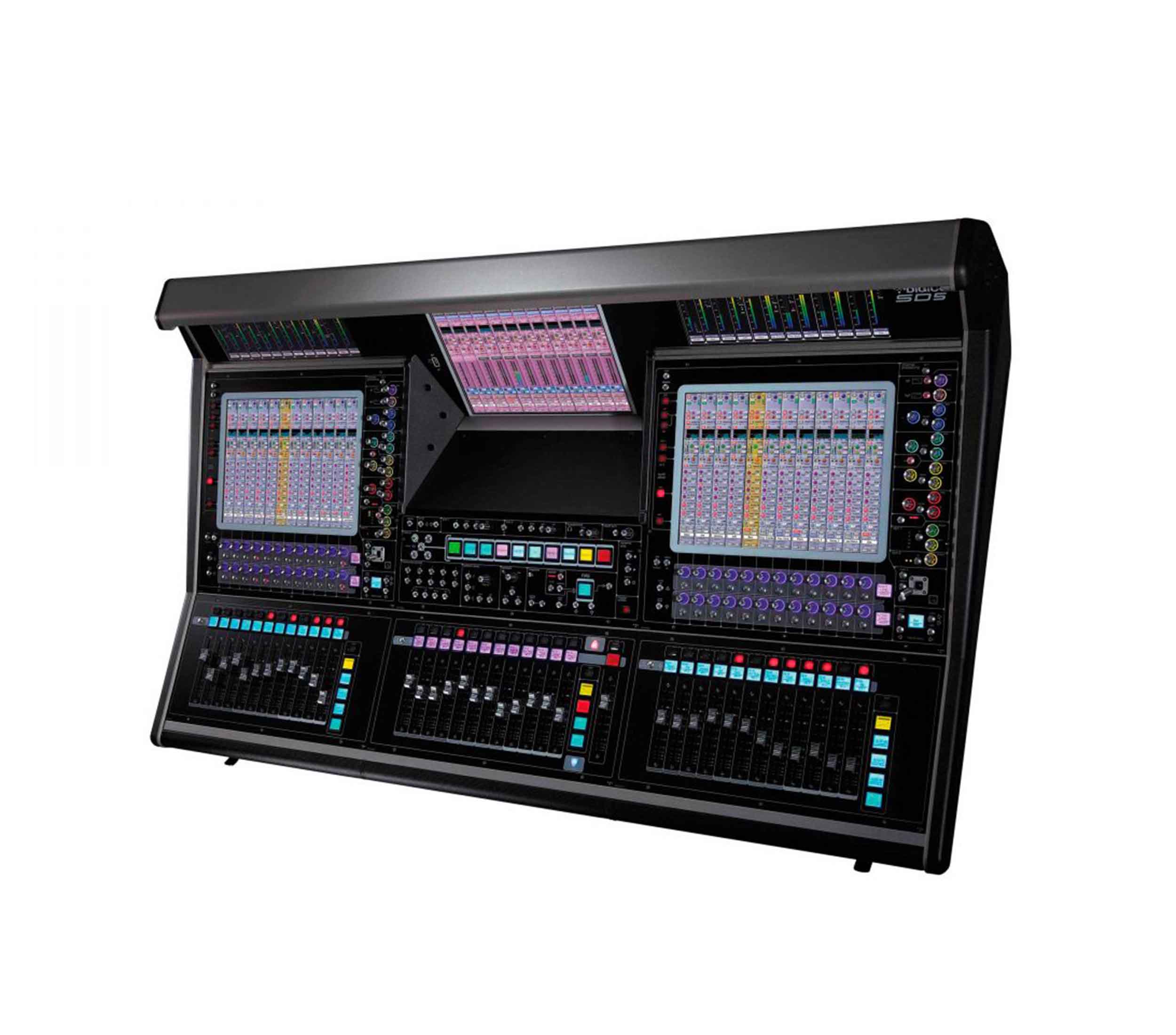

Featuring 37 precision motorized faders and three bright 15-inch full-color touchscreens, the Quantum 5 offers a fast and intuitive operating experience. Its familiar SD5 surface combined with next-generation Quantum technology makes it an ideal solution for professional touring, festivals, houses of worship, theaters, broadcast facilities, and large-scale live events where reliability and performance are essential.
What’s in the Box:
- One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
- Ultimate Stadius' 32-Bit Mic Pre-Amp & 32-Bit Output Package
- HMA Optics cable 150M on spool (492 ft.) x 2
- Includes: Q5 & SD5 3 Piece Flight Case with Pullout Keyboard on Casters
- Connection: MADI x 8, Optics x 1, Internal Waves Card, UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
- Qualifies for DiGiCo Trade Up Program (Limited Time Offer)
Product Specifications:
Connector: OpticalCON fiber only.
Faders: 37 x 100mm touch-sensitive, motorised
Screens: 3 x 15" LCD high-resolution touch screens
Meterbridge: 2 x Custom Mounted LCD high-resolution TFT-LCD screens
Internal PSU: 2 x Internal Power Supplies
Processing Channels: Up to 330 (combination of Input Channels, Aux, and Solo Group Busses)
Busses: Up to 128 Aux/Group busses with full processing (Mono, Stereo, LCR, 5.1)
Matrix: Up to 36 Inputs / 36 Outputs with full processing
Control Groups: Up to 36, selectable for VCA-style, Moving Fader, or Mute Group
Graphic EQ: 32 x 32-band, Gain ±12dB
Internal FX: Up to 36 stereo effects, including 16 floating-point reverbs
Local I/O: 8 x Mic/Line I/O, 8 x AES I/O
MADI Interfaces: 8 x MADI @ 48kHz, 4 redundant @ 96kHz (BNC connectivity)
Optocore: Standard (Dual Loop – Optional)
Sampling Rates: 48kHz / 96kHz
GPIO: 2 x DSub37
DMI: 2 x DiGiCo Multichannel Interface Slots
Waves: Fitted as Standard
External Sync: Word Clock, AES, Video, MADI, Optocore
Power Requirements: 90V–260V AC, 50–60Hz, 790VA
Sample Rate: 48kHz or 96kHz
Processing Delay: 2ms typical @ 48kHz (253 Channels), 1.1ms @ 96kHz
Internal Processing: Up to 40-bit Floating Point
A/D & D/A Conversion: 24-bit Converter Bit Depth
Frequency Response: ±0.6dB (20Hz–20kHz)
THD: <0.05% @ Unity Gain, +10dB Input @ 1kHz
Channel Separation: Better than 90dB (40Hz–15kHz)
Residual Output Noise: < -90dBu Typical (20Hz–20kHz)
Microphone Input Noise: Better than -126dB Equivalent Input Noise (EIN)
Maximum Output Level: +22dBu
Maximum Input Level: +22dBu
Channel Name: User-defined with Presets
Channel Selection: Mono, Stereo, or Multi
Input Routing: Main and Alternate Input
Analogue Gain: -20dB to +60dB
Phase: Normal / Reverse
Digital Trim: -40dB to +40dB (Input), -20dB to +60dB (Output)
Delay: Greater than 1 second with Coarse and Fine Control
DiGiTuBe: Drive 0.01–50.0, Bias 0–6
Low Pass Filter: 20Hz–20kHz, 24dB/Octave
High Pass Filter: 20Hz–20kHz, 24dB/Octave
Insert A: Pre EQ/Dynamics On/Off
Input EQ: 4-Band Parametric or Dynamic EQ with Shelf Options
Output EQ: 8-Band EQ with Dynamic EQ Support
EQ Gain: ±18dB
EQ Frequency Range: 20Hz–20kHz
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf)
Dynamic EQ: Over/Under Mode with Adjustable Threshold, Attack, Release, and Ratio
Dynamics 1: Single-Band or 3-Band Multiband Compressor with Auto Gain
Dynamics 2: Gate, Ducker, and Compressor with Sidechain Support
De-Esser: Adjustable Threshold, Release, Ratio, and Frequency Width
Insert B: Post EQ/Dynamics On/Off
EQ/Dynamics Order: EQ→Dynamics or Dynamics→EQ
Mute: Channel Mute / Hard Mute
Solo: Solo Bus 1, Solo Bus 2, Both, Auto Solo
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Busses, Directs, or Full Safe
Output Routing: Busses, Outputs, Inserts, and FX
Direct Output: On/Off, Pre-Mute, Pre-Fade, Post-Fade, Level ±18dB
Fader: 100mm Motorised Fader, ∞ to +10dB
Product Weight: 257 lbs.
Product Dimensions (L x W x H): 57.68" x 32.99" x 18.03"
