Description

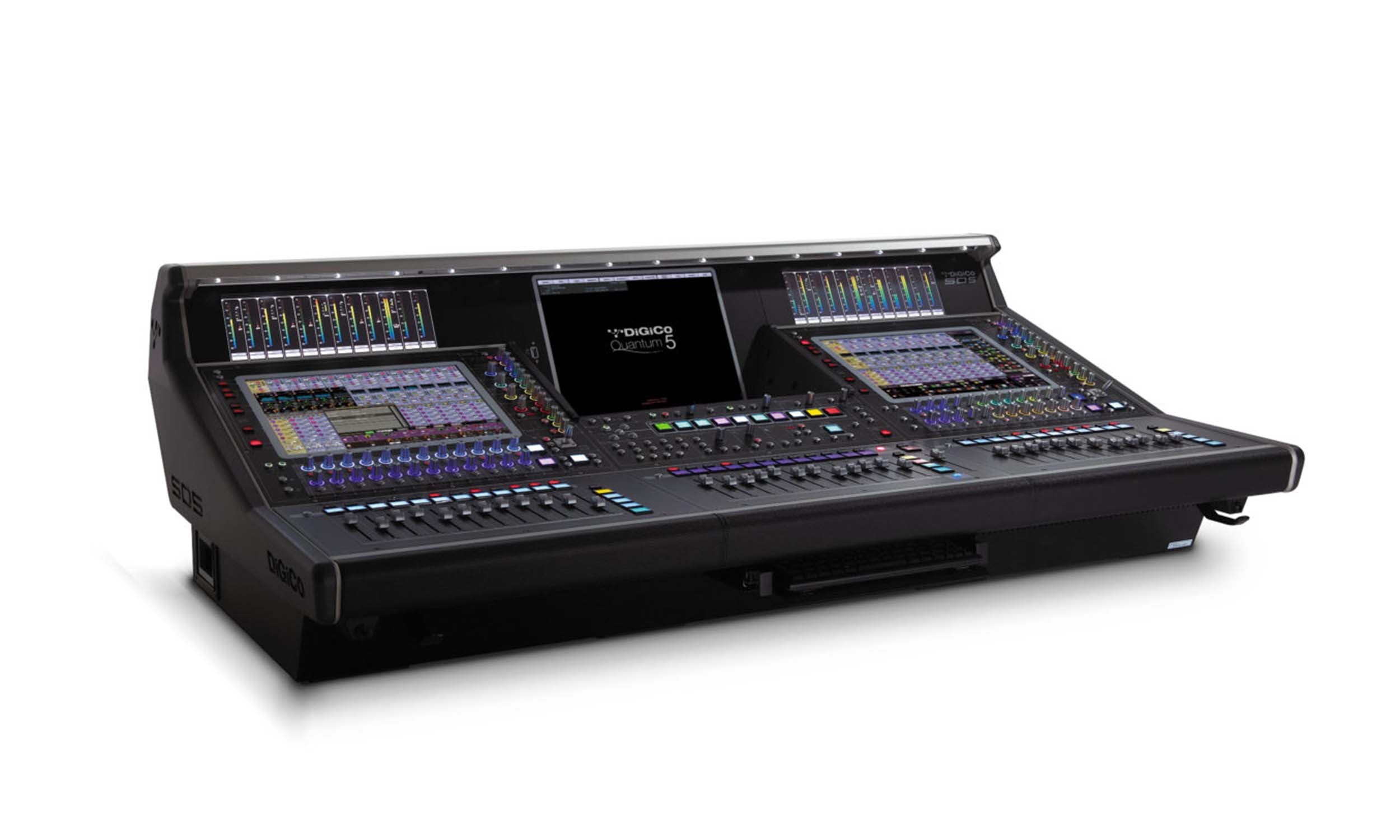

The DiGiCo X-Q5-W-WS-OP combines the renowned Quantum 5 platform with the Ultimate software package, delivering maximum processing power for live sound professionals. Advanced FPGA technology enables exceptional speed, low latency, and outstanding sonic performance. Premium channel processing tools enhance every mix without compromising efficiency. The console easily handles demanding touring, broadcast, and installation applications. It provides the performance required for today's most complex productions.
Integrated Waves SoundGrid
Built-in Waves SoundGrid connectivity allows seamless integration with Waves servers and plugins for real-time audio processing. Engineers can utilize industry-standard effects, dynamics, and mastering tools with extremely low latency. The integrated interface simplifies setup while expanding creative possibilities. External plugin processing becomes an effortless part of the workflow. This makes the console ideal for professional live productions.
OpticalCON Optocore Networking
The OpticalCON Optocore interface provides rugged, secure fiber connectivity designed for demanding touring environments. It supports high-channel-count audio transport while maintaining exceptional reliability over long cable distances. The locking OpticalCON connectors offer superior durability compared to standard fiber connectors. The console integrates seamlessly with DiGiCo stage racks and Optocore networks. This ensures dependable performance in mission-critical applications.
Fast and Efficient Workflow

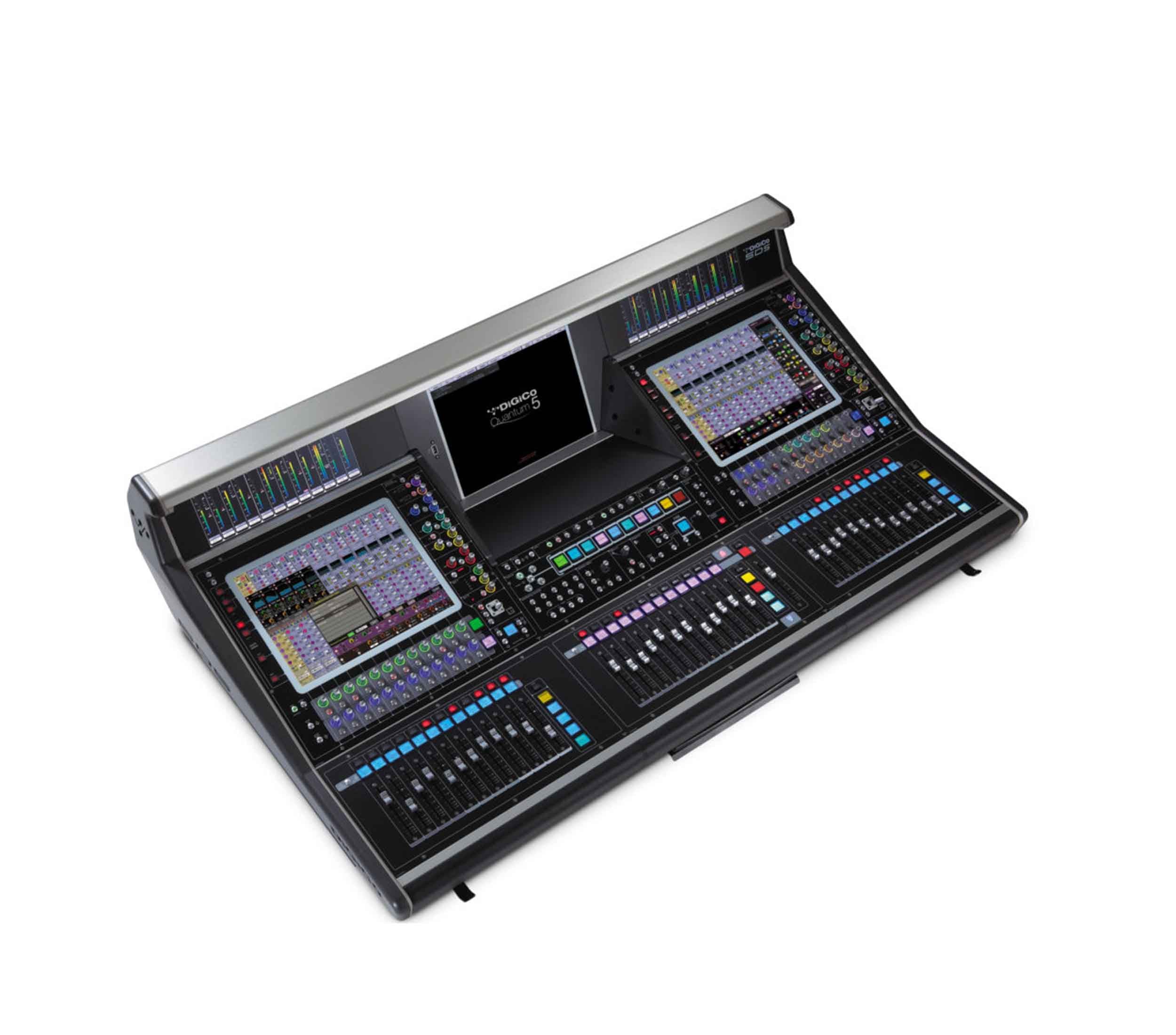

Three vibrant 15-inch multitouch displays provide intuitive access to routing, processing, snapshots, and system control. Thirty-seven touch-sensitive motorized faders deliver smooth operation and rapid layer changes. Custom macros and flexible layouts help engineers respond instantly during live performances. Every important function remains easily accessible throughout the show. The ergonomic design improves workflow and operator efficiency.
Professional Connectivity

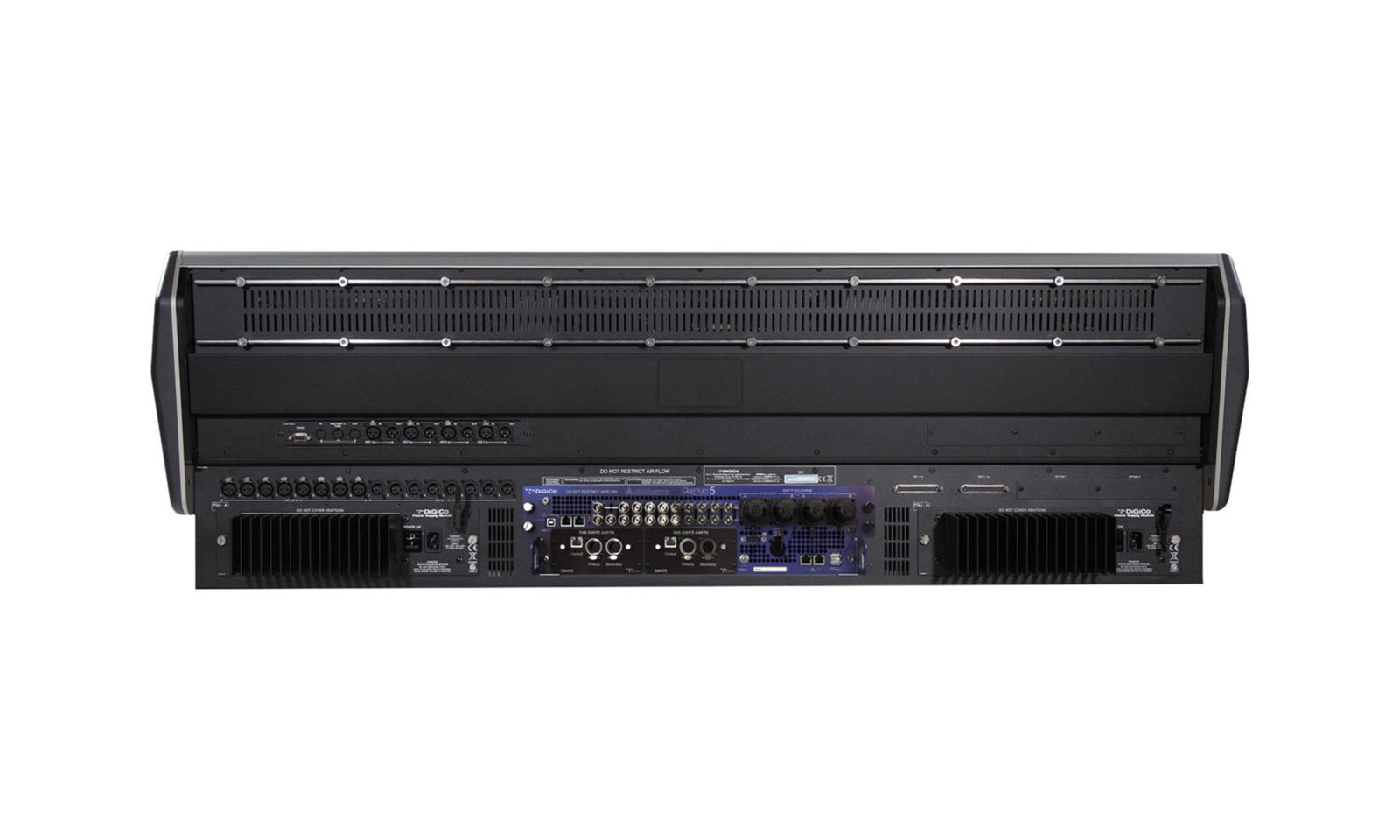

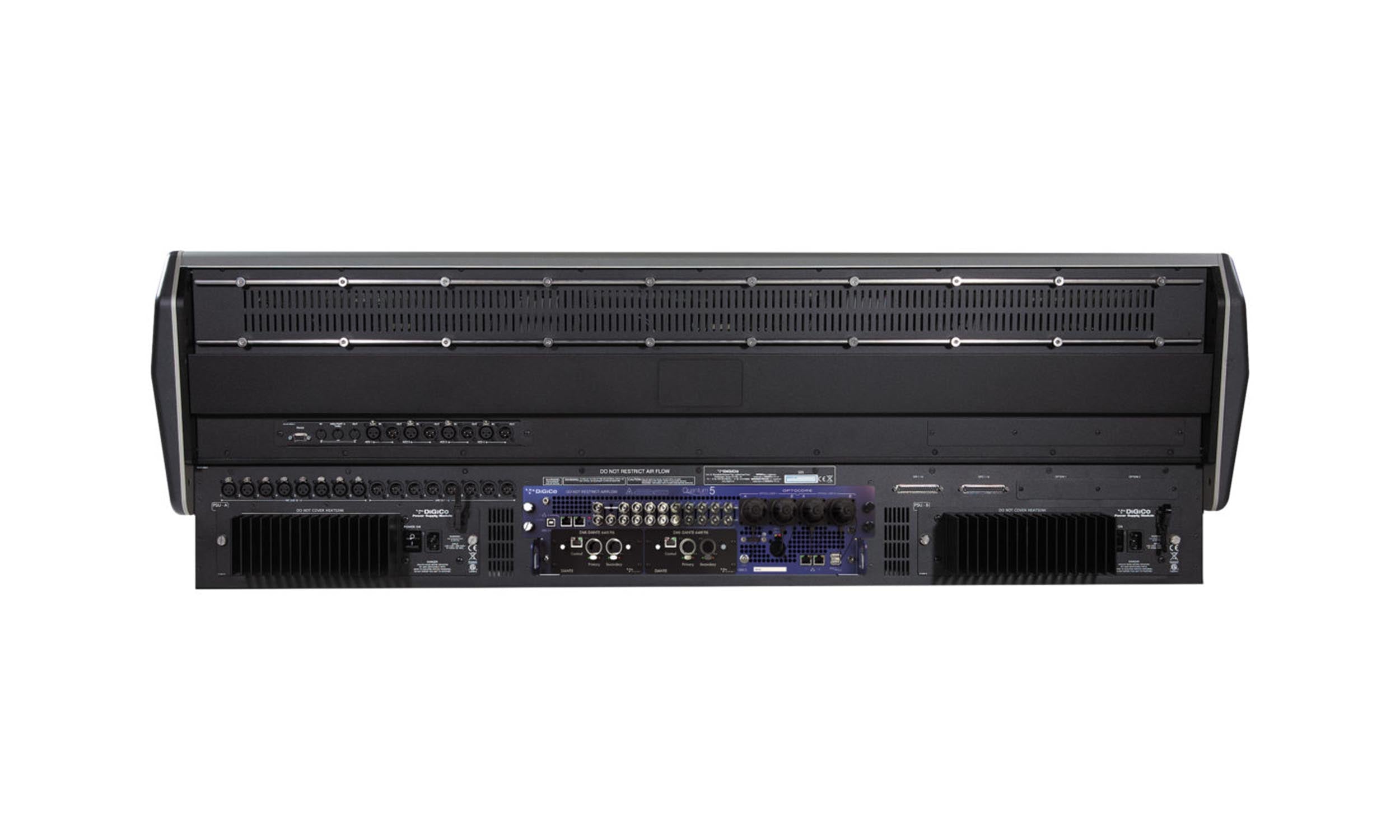

The console offers extensive connectivity through dual DMI expansion slots, integrated Waves SoundGrid, multiple MADI interfaces, local analog and AES I/O, and OpticalCON Optocore networking. It easily supports Dante, Hydra2, KLANG, Aviom, and other compatible DMI options. This flexible architecture adapts to virtually any production environment. System expansion remains simple as requirements evolve. It is engineered for modern professional audio networks.
Designed for Demanding Productions
Engineered for continuous professional operation, the Quantum 5 features redundant power supplies, premium build quality, and proven reliability. Its advanced processing capabilities make it ideal for touring, theaters, houses of worship, broadcast facilities, and major live events. Stable operation ensures confidence during critical performances. Powerful hardware and Ultimate software work together seamlessly. The result is consistent, world-class audio performance every day.
What’s in the Box:
- Q5 & SD5 3 Piece Flight Case with Pullout Keyboard on Casters
- Connection: MADI x 8, Optics x 1
- Internal Waves Card, UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
Integrated Networking: Waves SoundGrid
Connector: OpticalCON fiber only.
Faders: 37 x 100mm touch-sensitive, motorised
Screens: 3 x 15" LCD high-resolution touch screens
Meterbridge: 2 x Custom Mounted LCD high-resolution TFT-LCD screens
Internal PSU: 2 x Internal Power Supplies
Processing Channels: Up to 330 (combination of Input Channels, Aux, and Solo Group Busses)
Busses: Up to 128 Aux/Group busses with full processing (Mono, Stereo, LCR, 5.1)
Matrix: Up to 36 Inputs / 36 Outputs with full processing
Control Groups: Up to 36, selectable for VCA-style, Moving Fader, or Mute Group
Graphic EQ: 32 x 32-band, Gain ±12dB
Internal FX: Up to 36 stereo effects, including 16 floating-point reverbs
Local I/O: 8 x Mic/Line I/O, 8 x AES I/O
MADI Interfaces: 8 x MADI @ 48kHz, 4 redundant @ 96kHz (BNC connectivity)
Optocore: Standard (Dual Loop – Optional)
Sampling Rates: 48kHz / 96kHz
GPIO: 2 x DSub37
DMI: 2 x DiGiCo Multichannel Interface Slots
Waves: Fitted as Standard
External Sync: Word Clock, AES, Video, MADI, Optocore
Power Requirements: 90V–260V AC, 50–60Hz, 790VA
Sample Rate: 48kHz or 96kHz
Processing Delay: 2ms typical @ 48kHz (253 Channels), 1.1ms @ 96kHz
Internal Processing: Up to 40-bit Floating Point
A/D & D/A Conversion: 24-bit Converter Bit Depth
Frequency Response: ±0.6dB (20Hz–20kHz)
THD: <0.05% @ Unity Gain, +10dB Input @ 1kHz
Channel Separation: Better than 90dB (40Hz–15kHz)
Residual Output Noise: < -90dBu Typical (20Hz–20kHz)
Microphone Input Noise: Better than -126dB Equivalent Input Noise (EIN)
Maximum Output Level: +22dBu
Maximum Input Level: +22dBu
Channel Name: User-defined with Presets
Channel Selection: Mono, Stereo, or Multi
Input Routing: Main and Alternate Input
Analogue Gain: -20dB to +60dB
Phase: Normal / Reverse
Digital Trim: -40dB to +40dB (Input), -20dB to +60dB (Output)
Delay: Greater than 1 second with Coarse and Fine Control
DiGiTuBe: Drive 0.01–50.0, Bias 0–6
Low Pass Filter: 20Hz–20kHz, 24dB/Octave
High Pass Filter: 20Hz–20kHz, 24dB/Octave
Insert A: Pre EQ/Dynamics On/Off
Input EQ: 4-Band Parametric or Dynamic EQ with Shelf Options
Output EQ: 8-Band EQ with Dynamic EQ Support
EQ Gain: ±18dB
EQ Frequency Range: 20Hz–20kHz
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf)
Dynamic EQ: Over/Under Mode with Adjustable Threshold, Attack, Release, and Ratio
Dynamics 1: Single-Band or 3-Band Multiband Compressor with Auto Gain
Dynamics 2: Gate, Ducker, and Compressor with Sidechain Support
De-Esser: Adjustable Threshold, Release, Ratio, and Frequency Width
Insert B: Post EQ/Dynamics On/Off
EQ/Dynamics Order: EQ→Dynamics or Dynamics→EQ
Mute: Channel Mute / Hard Mute
Solo: Solo Bus 1, Solo Bus 2, Both, Auto Solo
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Busses, Directs, or Full Safe
Output Routing: Busses, Outputs, Inserts, and FX
Direct Output: On/Off, Pre-Mute, Pre-Fade, Post-Fade, Level ±18dB
Fader: 100mm Motorised Fader, ∞ to +10dB
Product Weight: 257 lbs.
Product Dimensions (L x W x H): 57.68" x 32.99" x 18.03"
