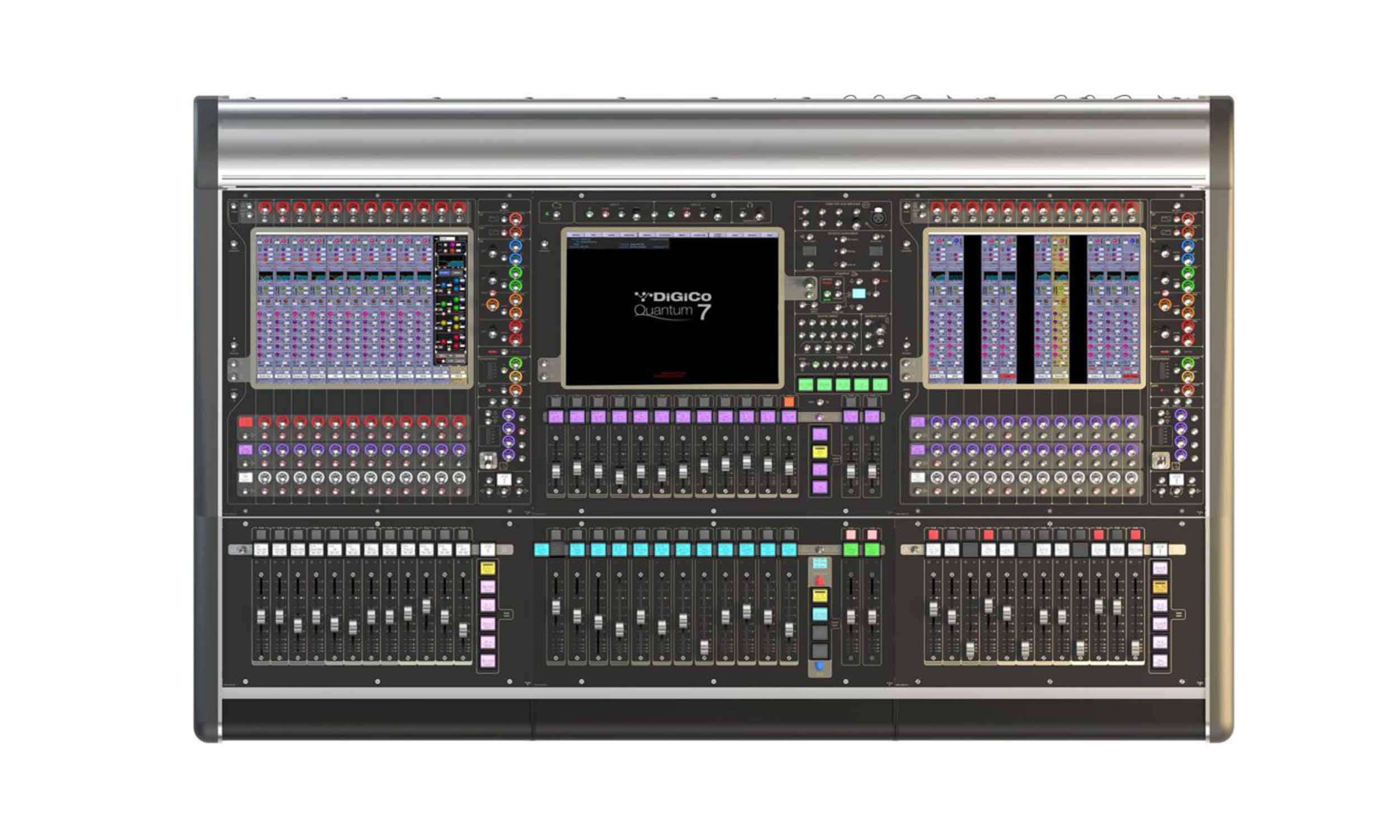

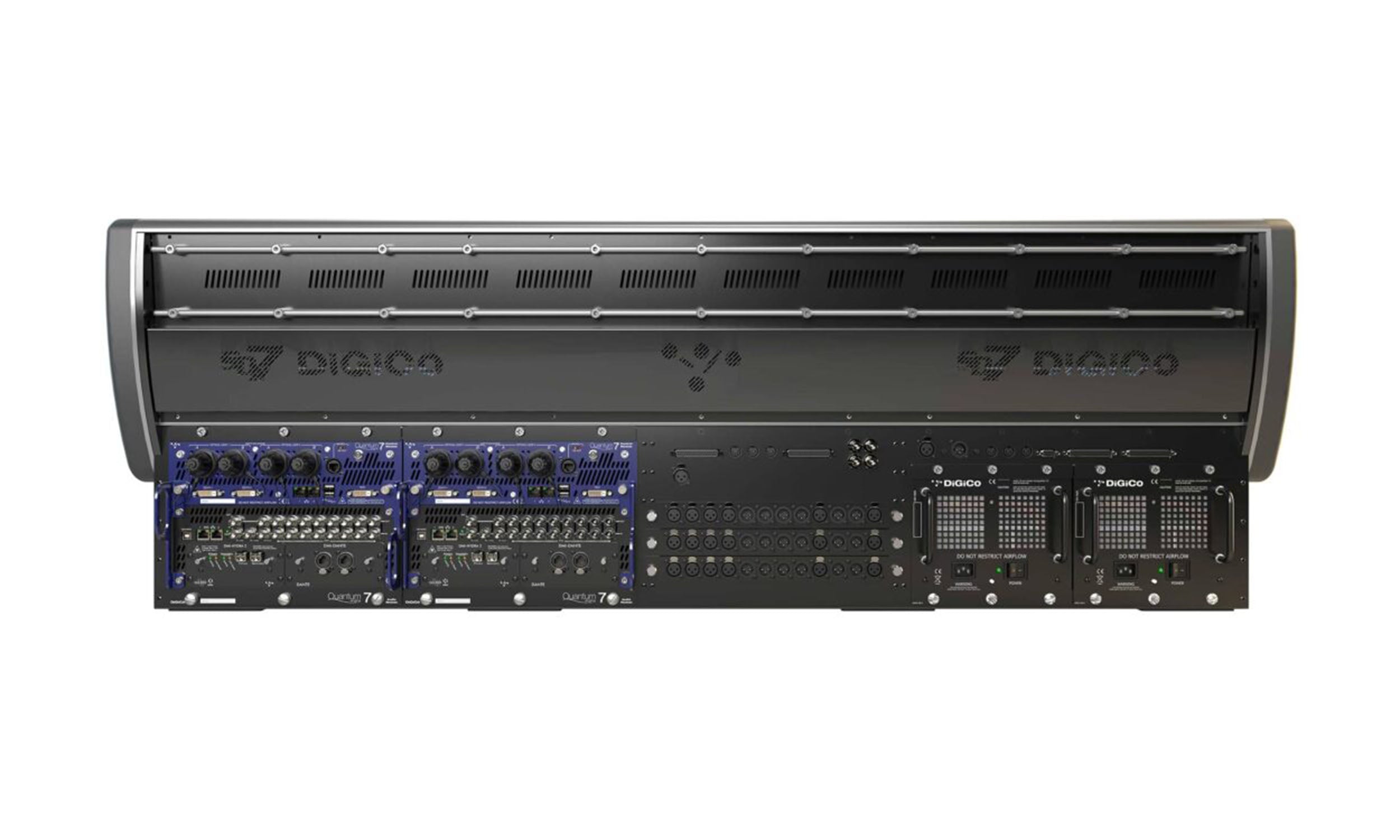

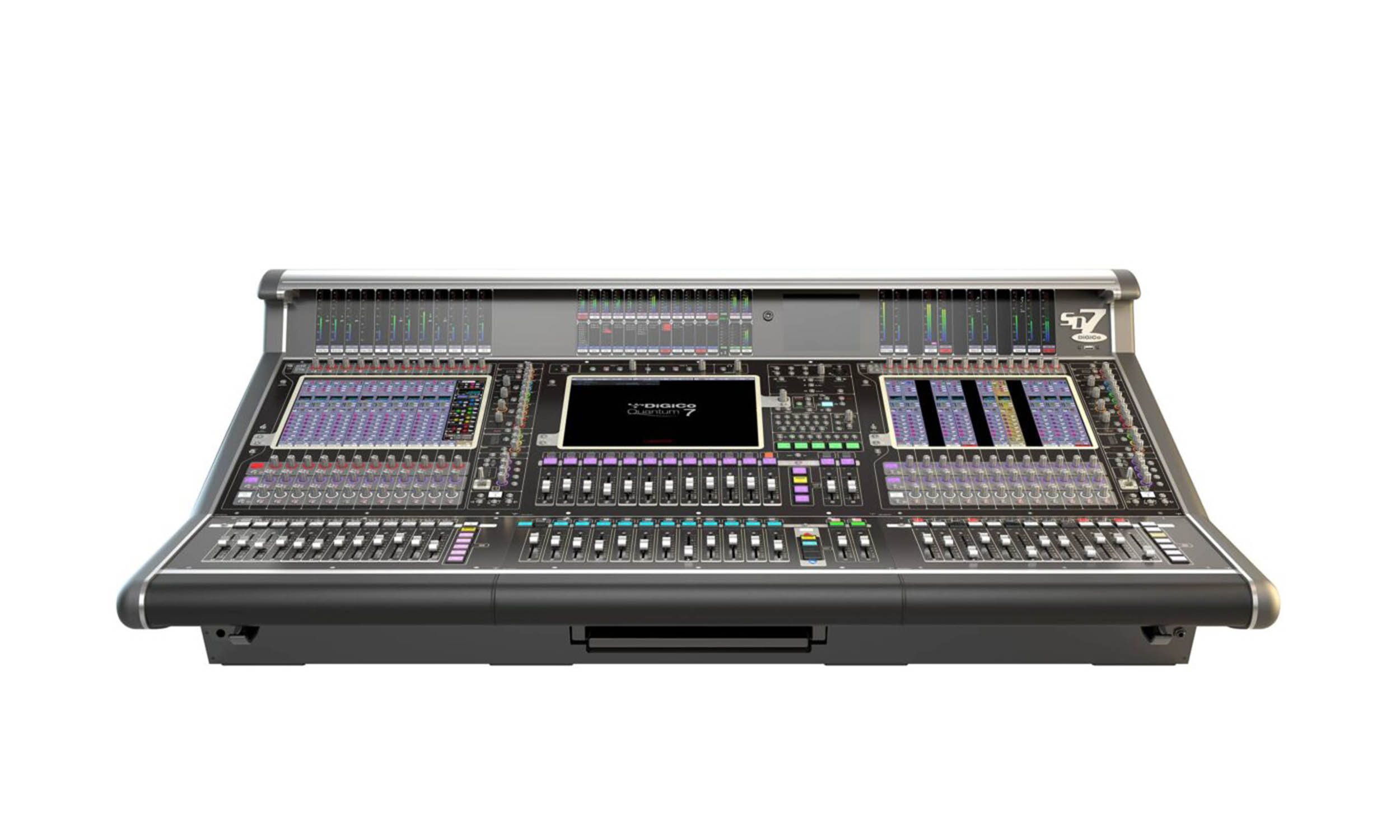

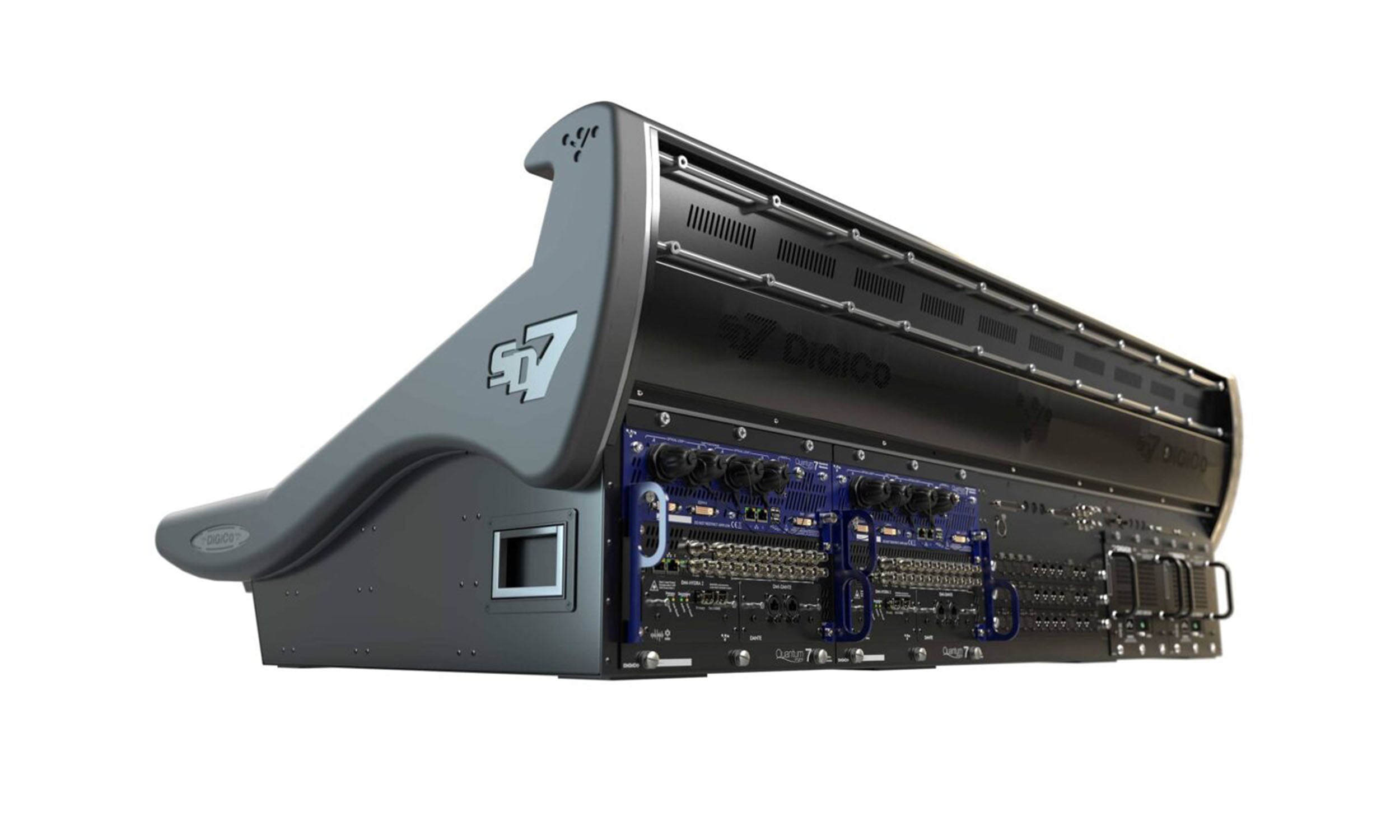

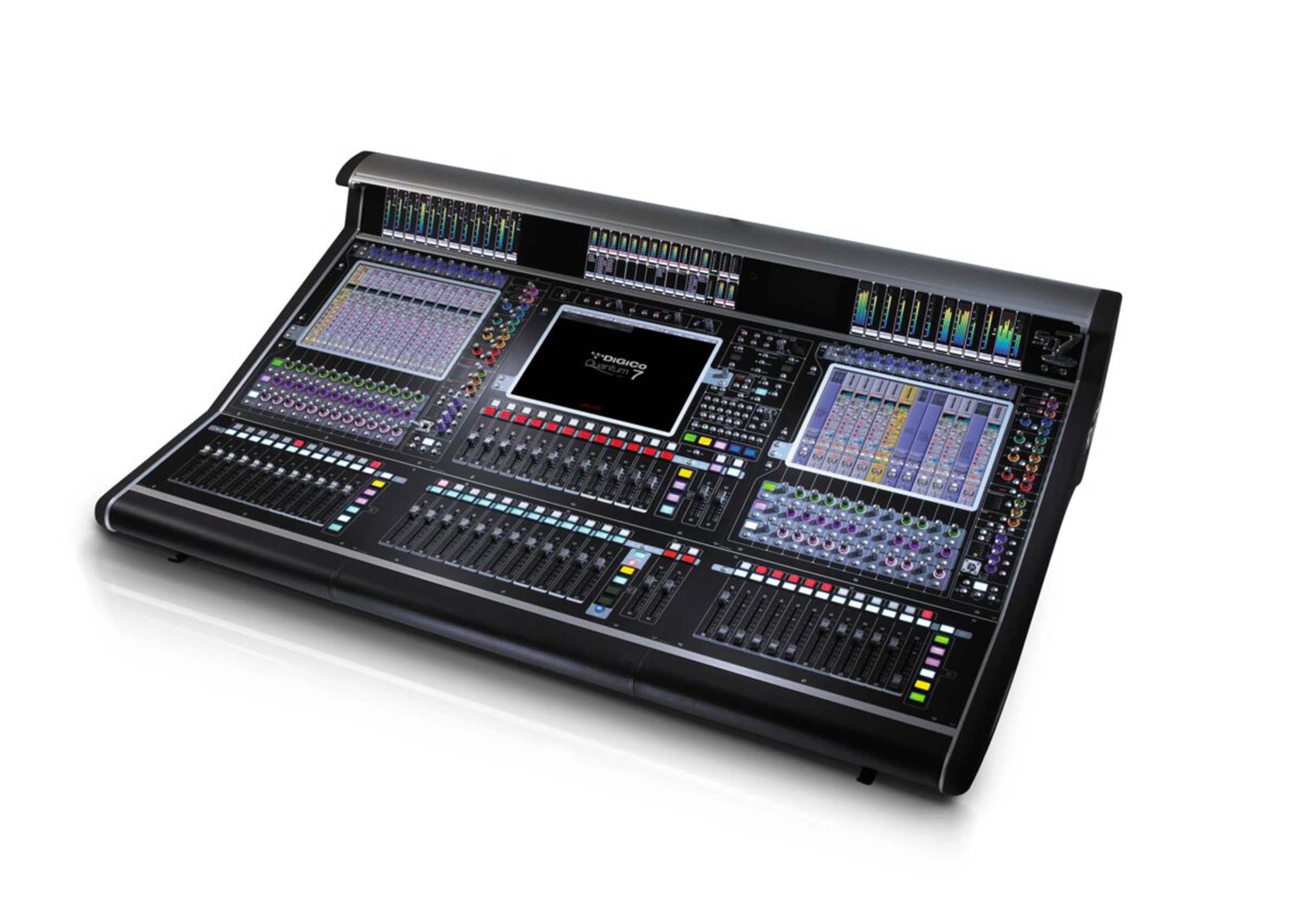

Digico X-Q7-W-WS Quantum 7 Digital Mixing Console - MADI Only

The DiGiCo X-Q7-W-WS Quantum 7 is configured exclusively for MADI audio networking, making it an ideal choice for professionals using MADI-based infrastructures. This version eliminates Optocore networking while maintaining the console's full mixing capabilities. It provides a straightforward solution for applications where MADI is the preferred protocol. The streamlined configuration simplifies system integration and reduces unnecessary hardware. It is well suited for touring, broadcast, and fixed installations. Users benefit from dependable, high-performance digital audio connectivity.

Powerful Quantum Processing

Powered by DiGiCo's Quantum processing engine, the console delivers exceptional speed, precision, and audio quality. It supports extensive channel counts and advanced processing for demanding productions. Every input, bus, and output benefits from high-resolution digital signal processing. The engine is designed to handle complex live mixes without compromising performance. Fast response times ensure smooth operation during high-pressure events. This powerful architecture is built for today's most ambitious productions.

Comprehensive MADI Connectivity

The MADI-only configuration offers extensive connectivity for compatible stage racks, recording systems, and broadcast equipment. Multiple MADI interfaces provide flexible routing for large-scale audio networks. The protocol supports reliable multichannel audio transmission with minimal latency. This allows engineers to connect external devices efficiently while maintaining signal integrity. It integrates easily into existing MADI workflows without additional networking hardware. The result is a stable and dependable digital audio environment.

Optimized Workflow

Quantum 7 combines intuitive touchscreen operation with touch-sensitive motorized faders for fast and accurate control. Engineers can quickly access channels, processing, and routing functions during live productions. The user interface is designed to minimize operational complexity while maximizing efficiency. Customizable layouts allow the console to adapt to different production requirements. Advanced workflow features help reduce setup time and improve mixing speed. Every control is optimized for professional live sound operation.

Professional Audio Performance

Designed for high-end live sound, Quantum 7 delivers exceptional sonic clarity across every channel. Premium microphone processing, dynamic control, and built-in effects provide outstanding audio quality. The console maintains consistent performance even in complex, high-channel-count productions. Low-latency processing ensures precise monitoring and accurate signal reproduction. Engineers can confidently mix concerts, theatrical performances, and broadcast events. Its professional-grade audio engine meets the highest industry standards.

Built for Demanding Productions

The Quantum 7 is engineered to perform reliably in the most challenging production environments. Its durable construction withstands the rigors of touring and continuous operation. The console is equally suited for permanent installations, rental companies, and broadcast facilities. Expandable architecture allows the system to grow with future production needs. Combined with dependable MADI networking, it provides a flexible long-term solution. The result is a flagship mixing console built for professional performance and reliability.

What’s in the box:

• Dual redundant engines
• Q7 & SD7 3 Piece Flight Case with Pullout Keyboard on Casters
• Connection: MADI x 8, Internal Waves Card, UB-MADI, DMI Port x 2
• Connectors: BNC

Product Specifications:

Model: DiGiCo Quantum 7 Digital Mixing Console

Configuration: MADI-only audio networking.

MADI Connectivity: Up to 8 × MADI BNC ports (48 kHz) or 4 redundant MADI ports (96 kHz)

Faders: 38 × 100mm touch-sensitive motorized + 14 × 60mm touch-sensitive motorized

Touchscreens: 3 × 15-inch high-resolution LCD touchscreens

Meterbridge Displays: 3 × Custom-mounted high-resolution TFT-LCD displays

Redundancy: Dual removable processing engines, dual hot-swappable power supplies

Processing Channels: Up to 432 (Input Channels, Aux, and Solo Group Busses)

Busses: Up to 128 Mono, Stereo, LCR, or 5.1 Aux/Group busses

Matrix: Up to 48 Inputs × 48 Outputs with full processing

Control Groups: Up to 36 selectable VCA, Moving Fader, or Mute Groups

Graphic EQ: 48 × 32-band Graphic EQ (±12dB)

Internal Effects: Up to 48 stereo effects (16 reverbs, 32 delays/chorus/pitch/enhancer)

Local I/O: 12 Mic/Line, 12 AES, 8 MADI @ 48kHz, 4 Redundant @ 96kHz, BNC

Sampling Rates: 48kHz / 96kHz

GPIO: 2 × DSub37 (16 standard, expandable to 32)

Video I/O: 2 Inputs, 2 Outputs

DMI Slots: 2 × DiGiCo Multichannel Interface

Waves Integration: Factory fitted

External Sync: Word Clock, AES, Video, MADI, Optocore

Power Requirements: 90–260 VAC, 50–60 Hz, 600 VA

Sample Rate: 48kHz or 96kHz

Processing Delay: 2ms @ 48kHz, 1.1ms @ 96kHz

Internal Processing: Up to 40-bit Floating Point

A/D & D/A Conversion: 24-bit

Frequency Response: ±0.6dB (20Hz–20kHz)

THD: <0.05% @ Unity Gain, 10dB Input @ 1kHz

Channel Separation: Better than 90dB (40Hz–15kHz)

Noise: Better than -126dB Equivalent Input Noise (20Hz–20kHz)

Maximum Input Level: +22dBu

Maximum Output Level: +22dBu

Channel Modes: Mono, Stereo, Multi

Input Routing: Main and Alternate Input

Analogue Gain: -20dB to +60dB

Digital Trim: -40dB to +40dB

Phase: Normal / Reverse

Delay: Greater than 1 second (coarse and fine adjustment)

DiGiTuBe: Drive 0.01–50.0, Bias 0–6

Filters: 20Hz–20kHz LPF/HPF, 24dB/Octave

Equalisation: 4-band Parametric or Dynamic EQ

Dynamics: Single-band or Multiband Compressor

Digital Trim: -20dB to +60dB

Phase: Normal / Reverse

Delay: Greater than 1 second (coarse and fine adjustment)

Equalisation: 8-band EQ

Dynamics: Single-band or Multiband Compressor
