Description
The DiGiCo Quantum 852 is the flagship of the Quantum series, engineered to deliver exceptional processing power, advanced workflow, and superior audio quality for the most demanding live productions. Built from the ground up with next-generation FPGA technology, it combines the familiar DiGiCo operating experience with innovative new features, ensuring engineers can confidently handle the largest and most complex audio environments. Its redesigned worksurface and ultra-bright 1000-nit LCD touchscreens provide excellent visibility and effortless control, even in direct daylight.
Unmatched Processing Performance
Powered by a dual-engine architecture and five high-performance FPGAs, the Quantum 852 sets a new benchmark in digital mixing performance. It supports up to 384 input channels, 192 Aux/Sub-Group buses, a 64 x 64 processing matrix, and dedicated LR, LCR, and 5.1 master buses. The console also includes 64 FX Rack slots, 48 Graphic EQs, 36 Control Groups, and dual Solo buses, giving engineers the flexibility and processing capacity required for large-scale concerts, festivals, broadcasts, and theatrical productions.
Advanced Quantum Processing Technologies
The Quantum 852 comes equipped with DiGiCo’s powerful suite of integrated processing tools that enhance workflow and sound quality. Standard features include Mustard Processing channel strips for studio-grade dynamics and EQ, Spice Rack FPGA-powered effects, Nodal Processing for advanced signal management, and True Solo monitoring. Enhanced processing algorithms further improve sonic performance, delivering outstanding clarity, precision, and consistency across every mix.

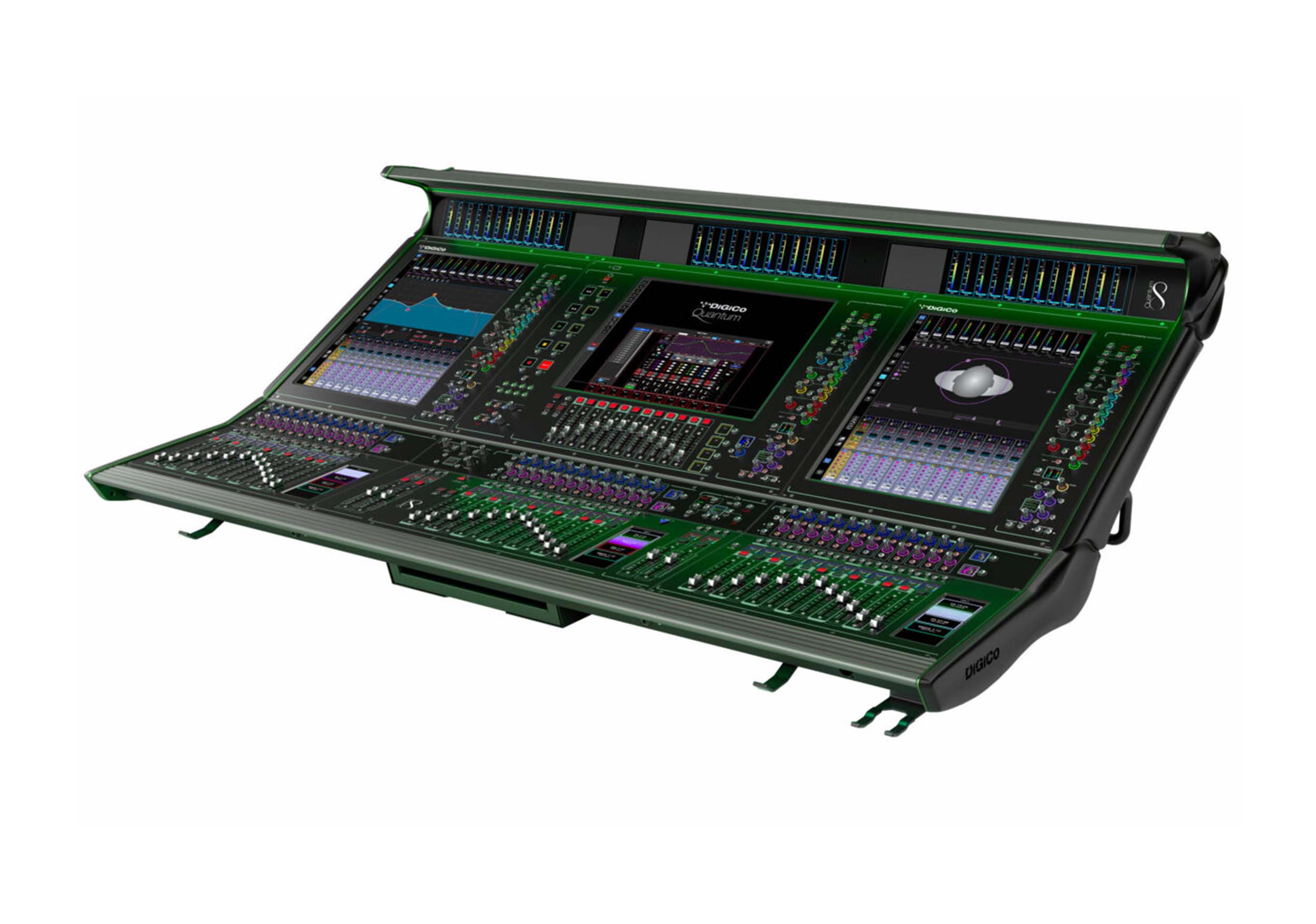

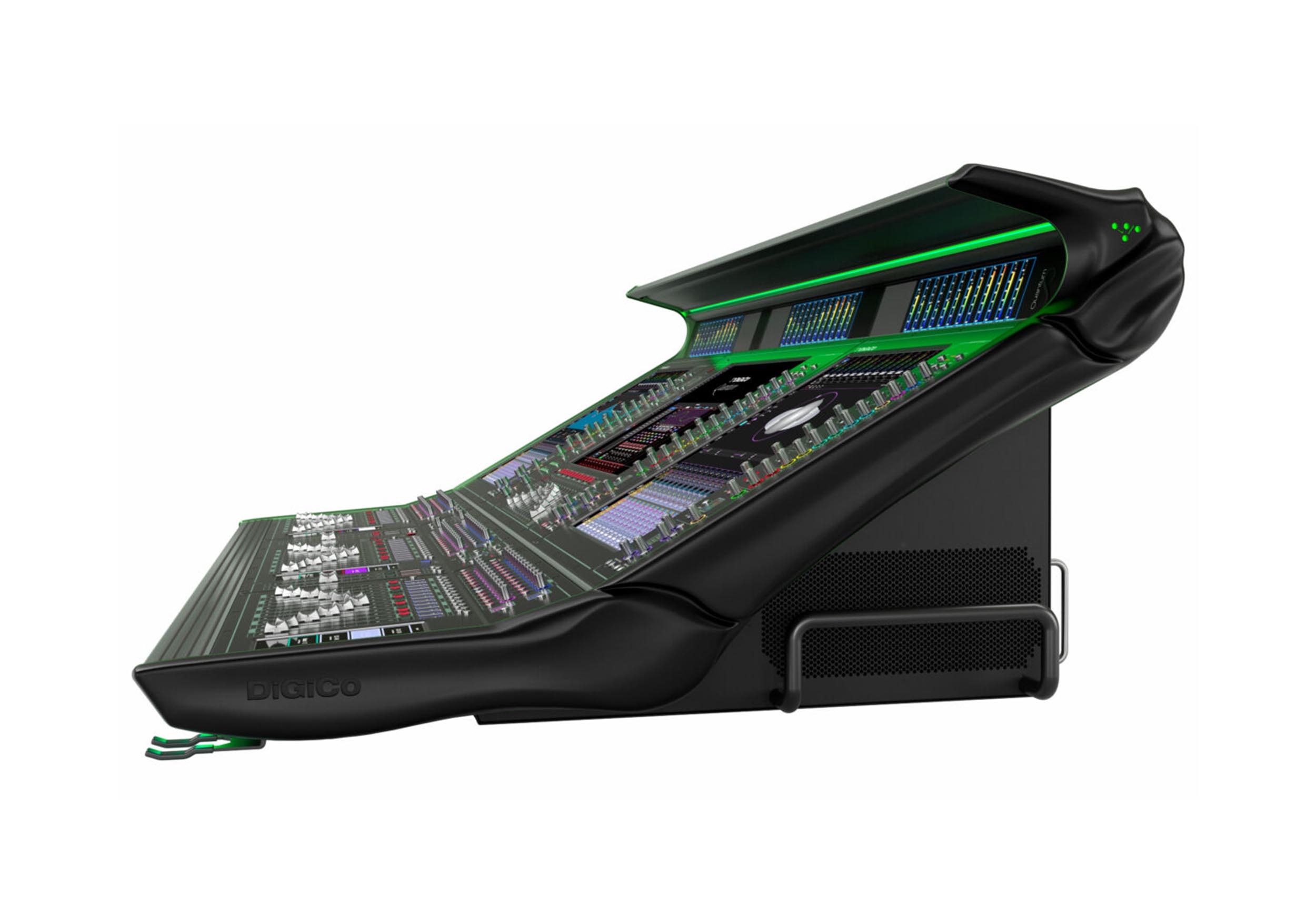

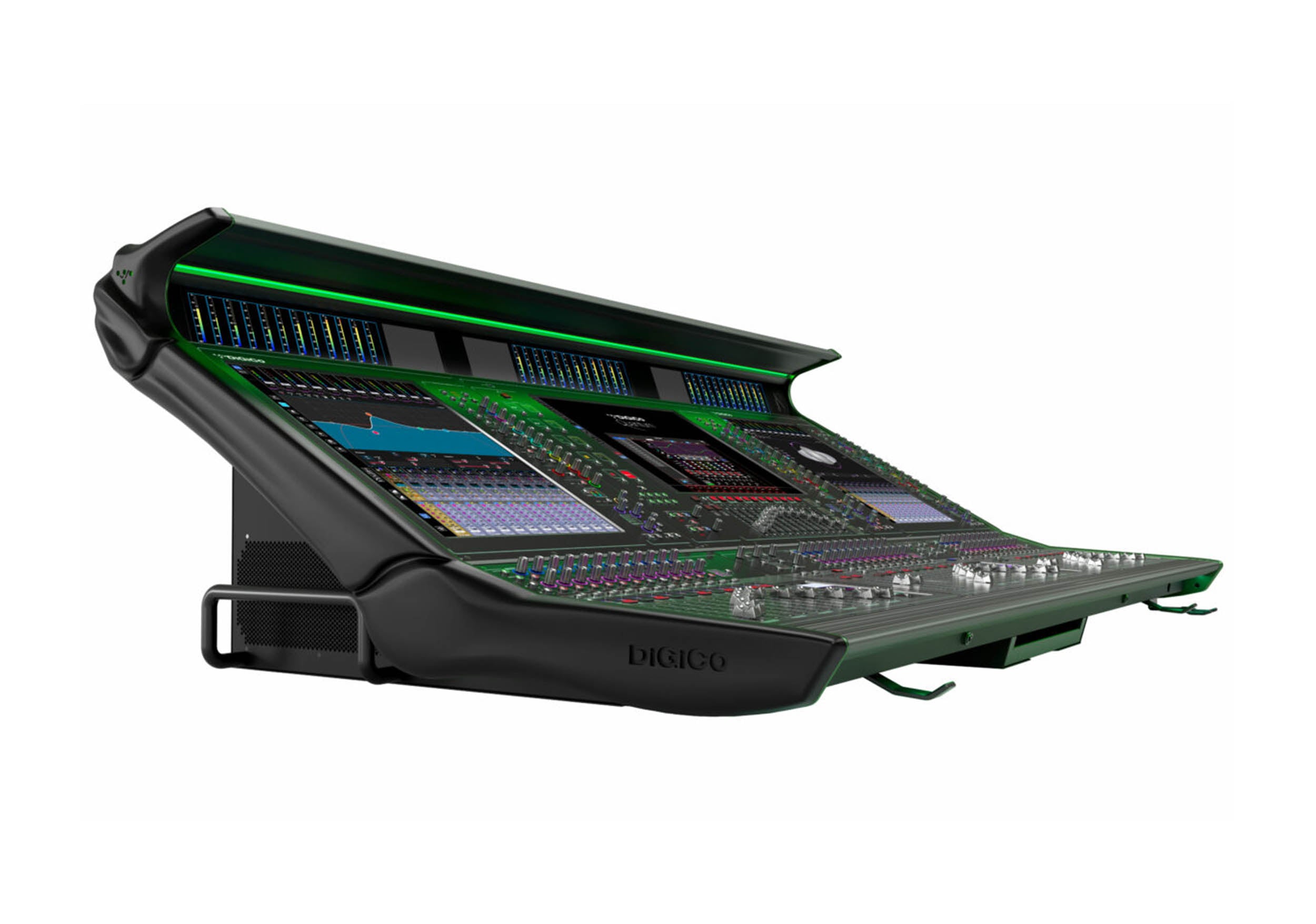

High-Resolution Worksurface Design
Designed for speed and efficiency, the Quantum 852 features 52 precision physical faders and three 21.3-inch high-resolution touchscreen displays that provide instant access to channels, routing, and processing functions. The ergonomic worksurface offers intuitive navigation while maintaining the familiar DiGiCo workflow that engineers trust. The bright 1000-nit LCD displays ensure excellent readability in both indoor venues and full outdoor daylight conditions.

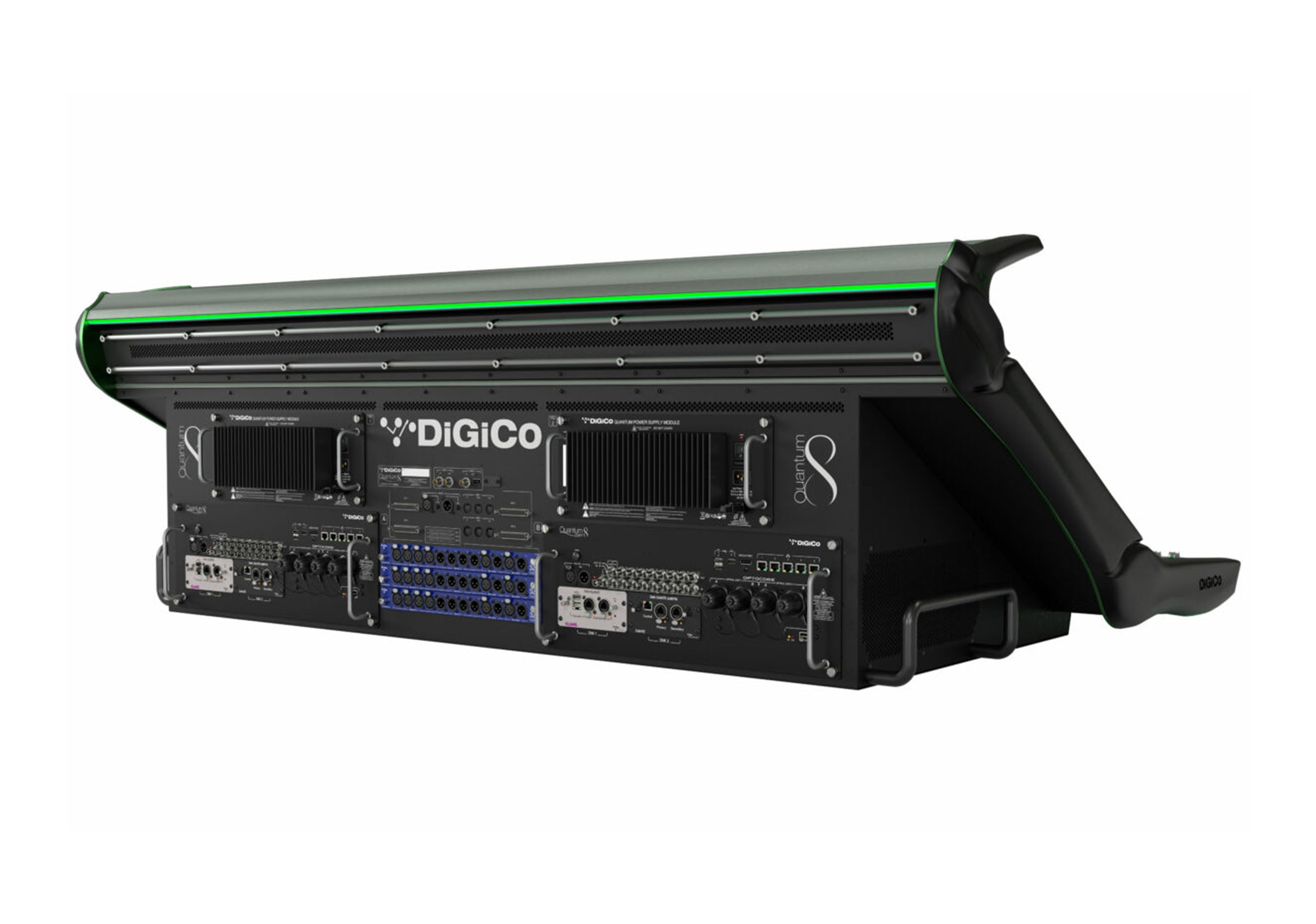

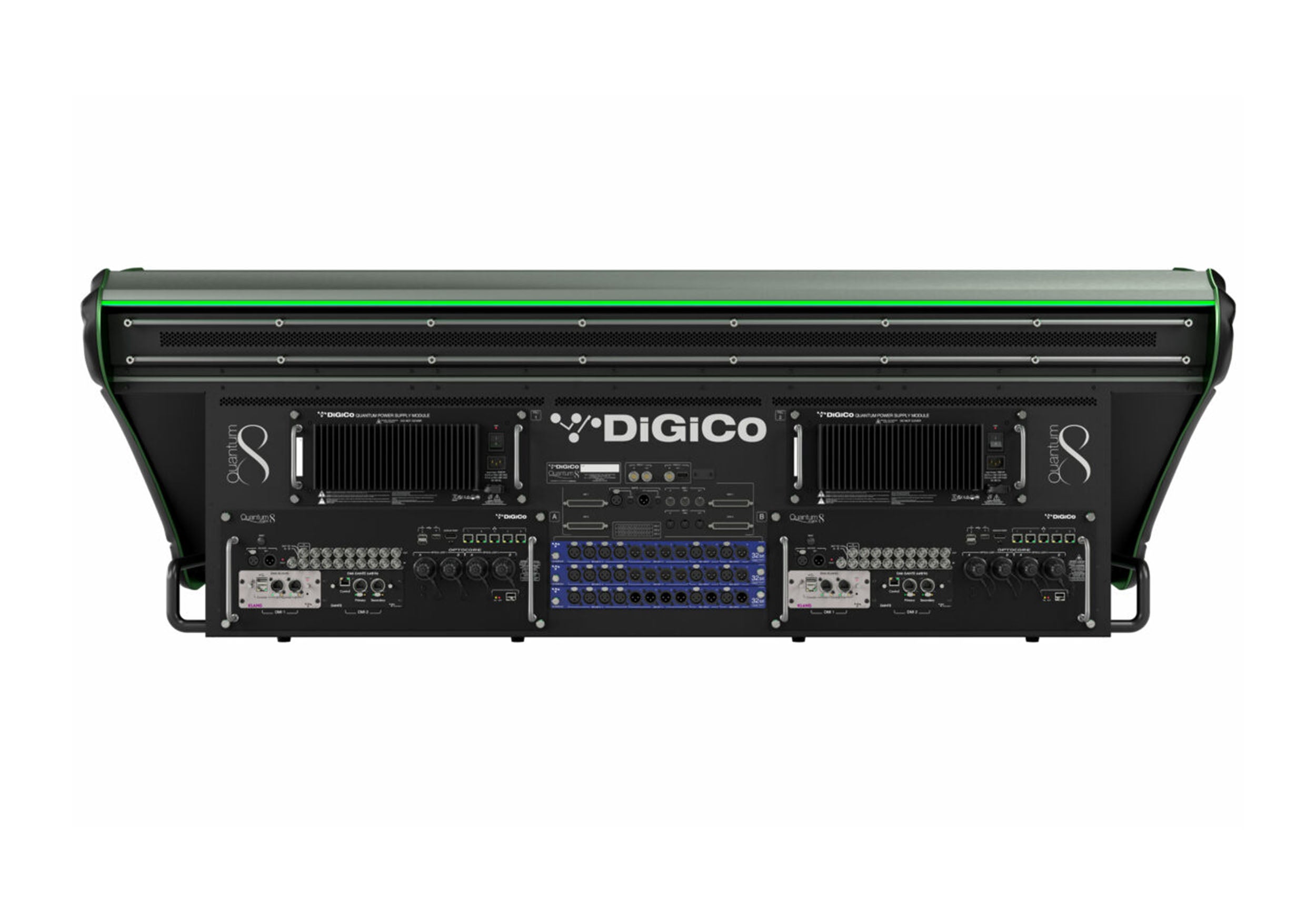

Comprehensive Connectivity and Flexible I/O
The Quantum 852 offers extensive connectivity options to support virtually any production environment. Local I/O includes 12 Stadius 32-bit analogue inputs, 12 Stadius 32-bit analogue outputs, and 12 Bit Perfect AES I/O for premium audio performance. The console also provides eight MADI interfaces at 48 kHz, configurable as four redundant MADI connections at 96 kHz, ensuring reliable high-capacity digital audio transport for demanding live applications.
Scalable Networking for Modern Productions
Built for today's networked audio environments, the Quantum 852 includes a standard "Optocore" fibre loop capable of carrying 504 audio channels and supporting up to 14 DiGiCo racks, with an optional dual-loop upgrade expanding capacity to 1,008 channels and 28 racks. Additionally, four dedicated DMI expansion slots (two per engine) allow users to integrate Dante, automatic microphone mixing, and other DiGiCo DMI modules. Each slot provides an additional 64 x 64 channels of I/O, enabling the console to adapt seamlessly to touring, broadcast, theatre, and large-scale live event requirements.
What’s in the Box:
- One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O).
- Ultimate Stadius' 32-Bit Mic Pre Amp & 32-Bit Output Package.
- HMA Optics cable 150M on spool (492 ft.) x 2.
- Dual redundant engines & 5M HMA optic link.
- Q852 3 Piece Flight Case with Pullout Keyboard on Casters.
- Connection: MADI x 8, Optics x 1, Internal Waves Card, UB-MADI, DMI Port x 2.
- Connectors: BNC, HMA.
Product Specifications:
Optocore: Standard dual-loop Optocore
External Sync: Word Clock, AES, Video, MADI, Optocore.
Faders: 40 x 100mm touch-sensitive, motorised + 12 x 60mm touch-sensitive, motorised.
Screens: 3 x 21.3" high-brightness, high-resolution LCD touch screens + 3 x 6.8" high-brightness, high-resolution LCD touch screens.
TFT Screens: 40 x 1.3" touch-sensitive full-colour LCD displays + 29 x 1.3" full-colour LCD displays.
Meterbridge: 3 x custom-mounted 19.2" high-brightness, high-resolution LCD screens.
Redundancy: Dual removable internal engines.
Power Supply: Dual internal hot-swappable PSUs.
Input Channels: 384.
Busses: Up to 192 Aux/Group busses with full processing (Mono, Stereo, LCR, 5.1).
Matrix: 64 inputs / 64 outputs with full processing.
Control Groups: 36 selectable groups (VCA-style, Moving Fader, Mute Group).
Graphic EQ: 48 x 32-band graphic EQs with ±12 dB gain.
Internal Effects: 64 stereo effects including up to 32 floating-point reverbs, delays, chorus, pitch, and enhancer.
Spice Rack: 32 mono or 16 stereo rack slots.
Mustard Processing: 128 processing strips.
Nodal Processing: 384 nodal processors.
Local I/O: 12 x Mic/Line I/O, 12 x AES I/O.
MADI Interfaces: 8 x MADI interfaces @ 48 kHz, 4 redundant interfaces @ 96 kHz with BNC connectivity.
Sampling Rates: 48 kHz / 96 kHz.
GPIO: 2 x DSub37.
Video I/O: 2 video inputs, 2 video outputs.
DMI Slots: 2 x DiGiCo Multichannel Interface slots.
Waves Integration: Fitted as standard.
Sample Rate: 48 kHz or 96 kHz.
Internal Processing: Up to 40-bit floating-point.
A/D & D/A Conversion: 32-bit converter bit depth.
Frequency Response, THD: TBC.
Channel Separation: TBC.
Residual Output Noise: TBC.
Microphone Input: TBC.
Maximum Output and Input Level: TBC.
Channel Name: User-defined / Presets.
Channel Selection: Mono / Stereo / Multi.
Input Routing: Main & Alternate input.
Analogue Gain: -20 dB to +60 dB.
Phase: Normal / Reverse.
Digital Trim: -40 dB to +40 dB.
Delay: Up to 1.3 seconds.
DiGiTuBe Drive: 0.01 – 50.0.
DiGiTuBe Bias: 0 – 6.
Low-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
High-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
Insert A: Pre EQ/Dynamics, On/Off.
Equalisation: 4-band Parametric or Dynamic EQ (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, High/Hi Shelf).
EQ Frequency Range: 20 Hz – 20 kHz.
EQ Gain: ±18 dB.
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf).
Dynamic EQ: On/Off with Over/Under modes.
Dynamic EQ Threshold: -60 dB to 0 dB.
Dynamic EQ Attack: 500 µs – 100 ms.
Dynamic EQ Release: 10 ms – 10 s.
Dynamic EQ Ratio: 1:1 – 50:1.
Dynamics 1: Single-band or 3-band Multiband Compressor.
Compressor Threshold: -60 dB to 0 dB.
Compressor Attack: 500 µs – 100 ms.
Compressor Release: 10 ms – 10 s.
Compressor Ratio: 1:1 – 50:1.
Compressor Gain: 0 to +40 dB with Auto Gain.
Compressor Link: Any Channel/Buss.
High Crossover: 20 Hz – 20 kHz.
Low Crossover: 20 Hz – 20 kHz.
Compressor Knee: Hard, Medium, Soft.
De-Esser: Integrated.
De-Esser Threshold: 20 µs – 20 ms.
De-Esser Release: 1 ms – 100 ms.
De-Esser Ratio: 1:1 – 50:1.
Ess Band: Listen On/Off.
Ess Band Filter: Frequency/Width 20 Hz – 20 kHz.
Dynamics 2: Gate / Ducker.
Gate Threshold: -60 dB to 0 dB.
Gate Attack: 50 µs – 100 ms.
Gate Hold: 2 ms – 2 s.
Gate Release: 5 ms – 5 s.
Gate Range: 0 – 90 dB.
Gate Key Source: Any source.
Gate Key Listen: Supported.
Gate Filter Frequency: 20 Hz – 20 kHz.
Second Compressor: Included with side-chain support.
Side Chain Filter: 20 Hz – 20 kHz.
Insert B: Post EQ/Dynamics, On/Off.
EQ/Dynamics Order: EQ→Dyn or Dyn→EQ.
Mute: Channel Mute / Hard Mute.
Solo: Solo Buss 1, Solo Buss 2, Both, Auto Solo.
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Buss, Directs, Full Safe.
Output Routing: Buss, Insert A, Insert B, FX.
Direct Output: On/Off, Pre-Mute, Pre-Fade, Post-Fade, ±18 dB Level.
Channel Fader: 100 mm motorised, ∞ to +10 dB.
Output Name: User-defined / Presets.
Phase: Normal / Reverse.
Digital Trim: -20 dB to +60 dB.
Delay: Up to 1.3 seconds.
DiGiTuBe Drive: 0.01 – 50.0.
DiGiTuBe Bias: 0 – 6.
Low-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
High-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
Insert A: Pre EQ/Dynamics, On/Off.
Equalisation: 8-band EQ (4 Parametric + 4 Parametric/Dynamic).
EQ Gain: ±18 dB.
EQ Frequency Range: 20 Hz – 20 kHz.
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf).
Dynamic EQ: On/Off with Over/Under.
Dynamics 1: Single-band or 3-band Multiband Compressor.
Gate / Ducker: Included.
Compressor: Side-chain capable.
Insert B: Post EQ/Dynamics, On/Off.
EQ/Dynamics Order: EQ→Dyn or Dyn→EQ.
Mute: Channel Mute / Hard Mute.
Solo: Solo Buss 1, Solo Buss 2, Both, Auto Solo.
Channel Safe: Trim, EQ, Dynamics, Fader/Mute, Inserts, Outputs, Full Safe.
Output Routing: Outputs, Insert A, Insert B, FX.
Output Fader: 100 mm motorised, ∞ to +10 dB.
Mustard Processing
Preamplifier Tubes: Variable Drive.
Tube Presets: Odd, Even, Overdrive, Distortion, Crunch, High Distortion.
Tube Output Gain: Variable.
Preamplifier Amp: Variable Drive.
1st Stage Harmonics: Odd / Even.
Bias & Saturation Control: Adjustable.
2nd Stage Harmonics: Off / Odd / Even.
High-Frequency Boost: Variable.
Output Gain: Variable.
Mustard EQ: 4-band Parametric EQ with Low Shelf/Bell, Lower-Mid Bell/All-Pass, Upper-Mid Bell/All-Pass, High Shelf/Bell.
Filters: 4th-order HPF & LPF.
Dynamics 1 Modes: Classic VCA Compressor, Vintage VCA Compressor, Optical Compressor, FET Limiter.
Dynamics 2 Modes: Gate / Ducker.
Product Weight: 264.5 lbs.
Product Dimensions (L × W × H): 69.6" × 42.3" × 23.9"
