Description

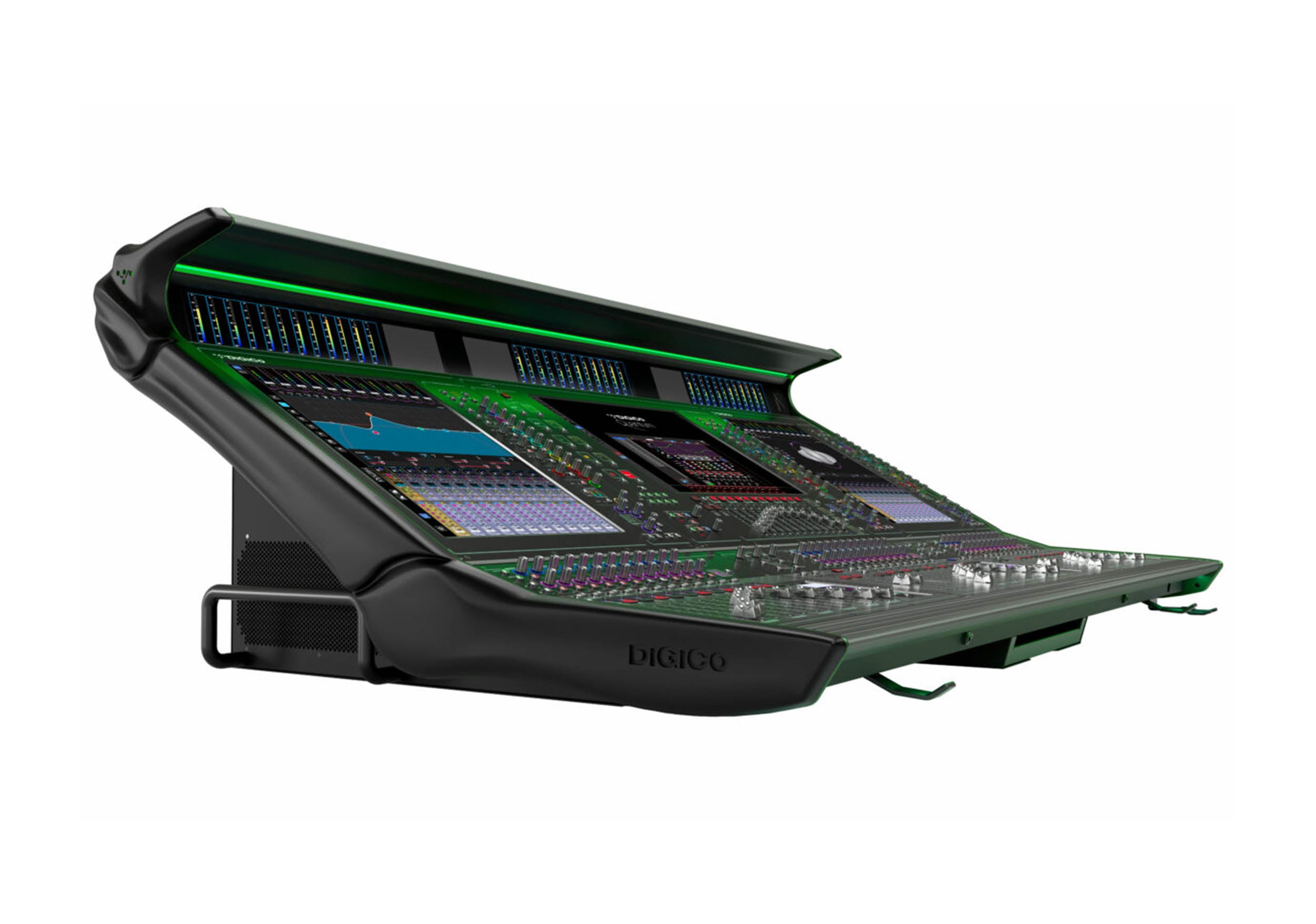

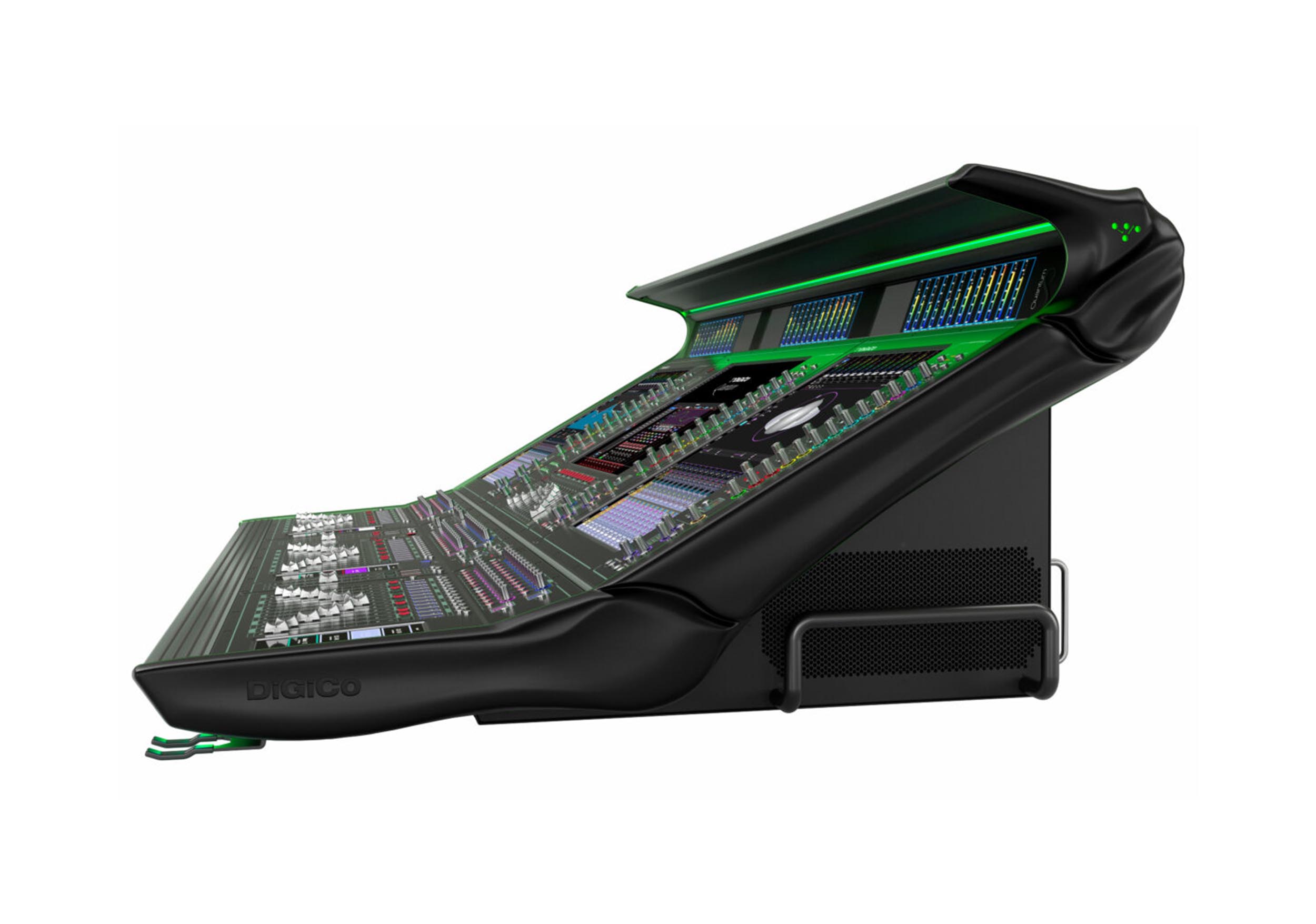

The DiGiCo X-Q852-W-WS Base Quantum 852 Digital Mixing Console is engineered for world-class live sound, broadcast, theatre, and production environments. Built on DiGiCo's advanced Quantum platform, it delivers exceptional audio quality with ultra-low latency and outstanding processing power. Its innovative architecture provides engineers with the confidence to manage even the most demanding productions. The console combines proven workflows with next-generation technology for maximum efficiency. Designed for the future, it offers professional performance without compromise.
Unmatched Processing Power
The Quantum 852 features a powerful dual-engine system supported by advanced FPGA processing technology. It provides up to 384 input channels, 192 fully processed Aux/Sub-Group busses, and a 64×64 processing matrix for complex productions. Extensive onboard resources allow engineers to mix large events without performance limitations. High-capacity DSP ensures smooth operation even during demanding live shows. Every aspect is optimized for speed, flexibility, and reliability.
Intelligent Control Surface

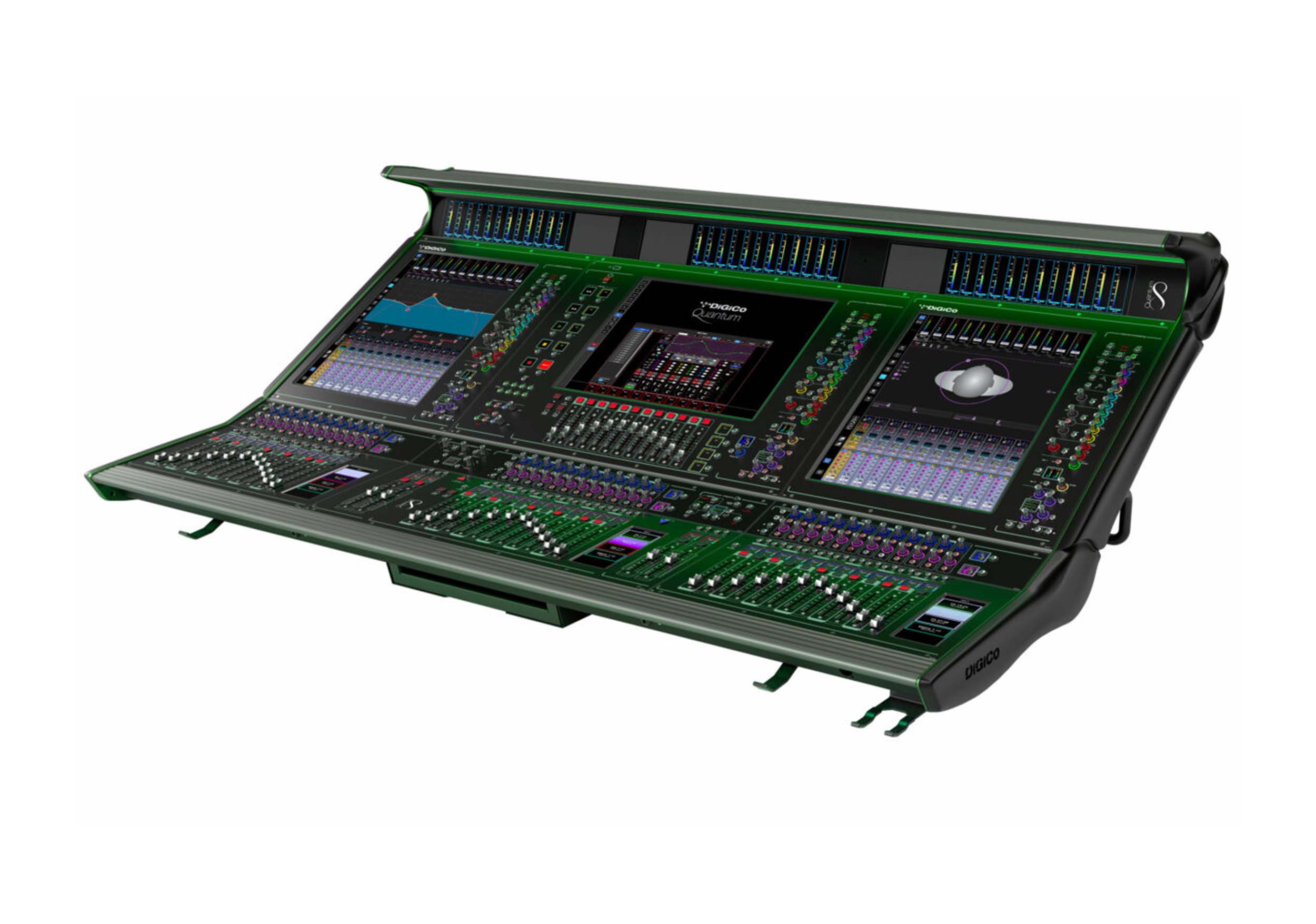

The Base Quantum 852 offers an ergonomic work surface with 52 touch-sensitive motorized faders, three 21.3-inch high-resolution touchscreens, and dedicated channel displays. The intuitive interface enables fast navigation, efficient workflow, and precise control over every channel. High-brightness displays remain clearly visible in outdoor daylight or dark theatre environments. Engineers can customize layouts to match their preferred mixing style. This intelligent design improves productivity throughout every performance.
Professional Audio Processing
Every channel benefits from DiGiCo's premium processing technologies, including Mustard Processing, Spice Rack FPGA effects, Dynamic EQ, Nodal Processing, and True Solo. These advanced tools provide exceptional tonal shaping, dynamic control, and creative flexibility directly within the console. Built-in effects reduce the need for external processors while maintaining superior sound quality. The result is a clean, powerful, and highly detailed mix for any application.
Comprehensive Connectivity

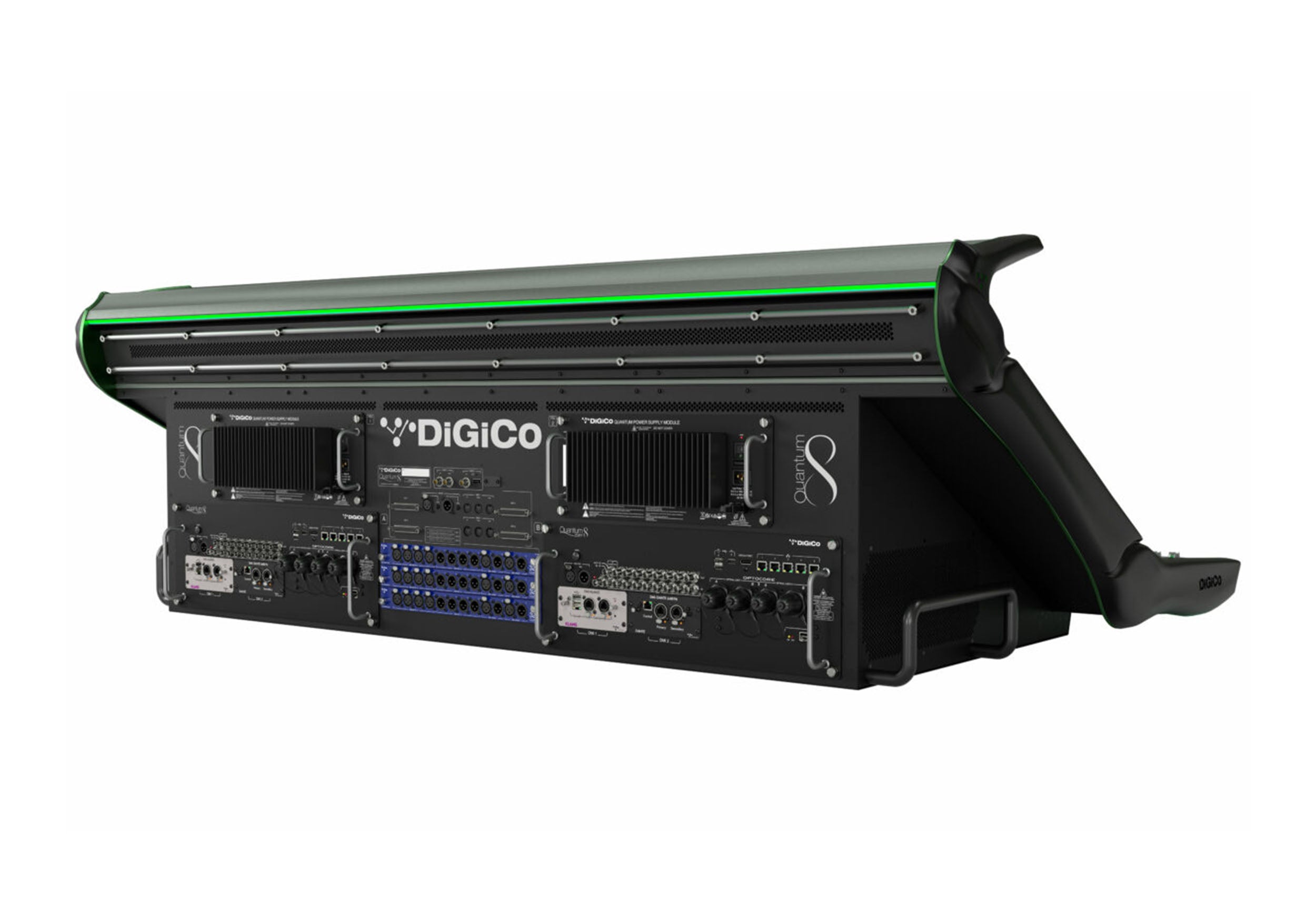

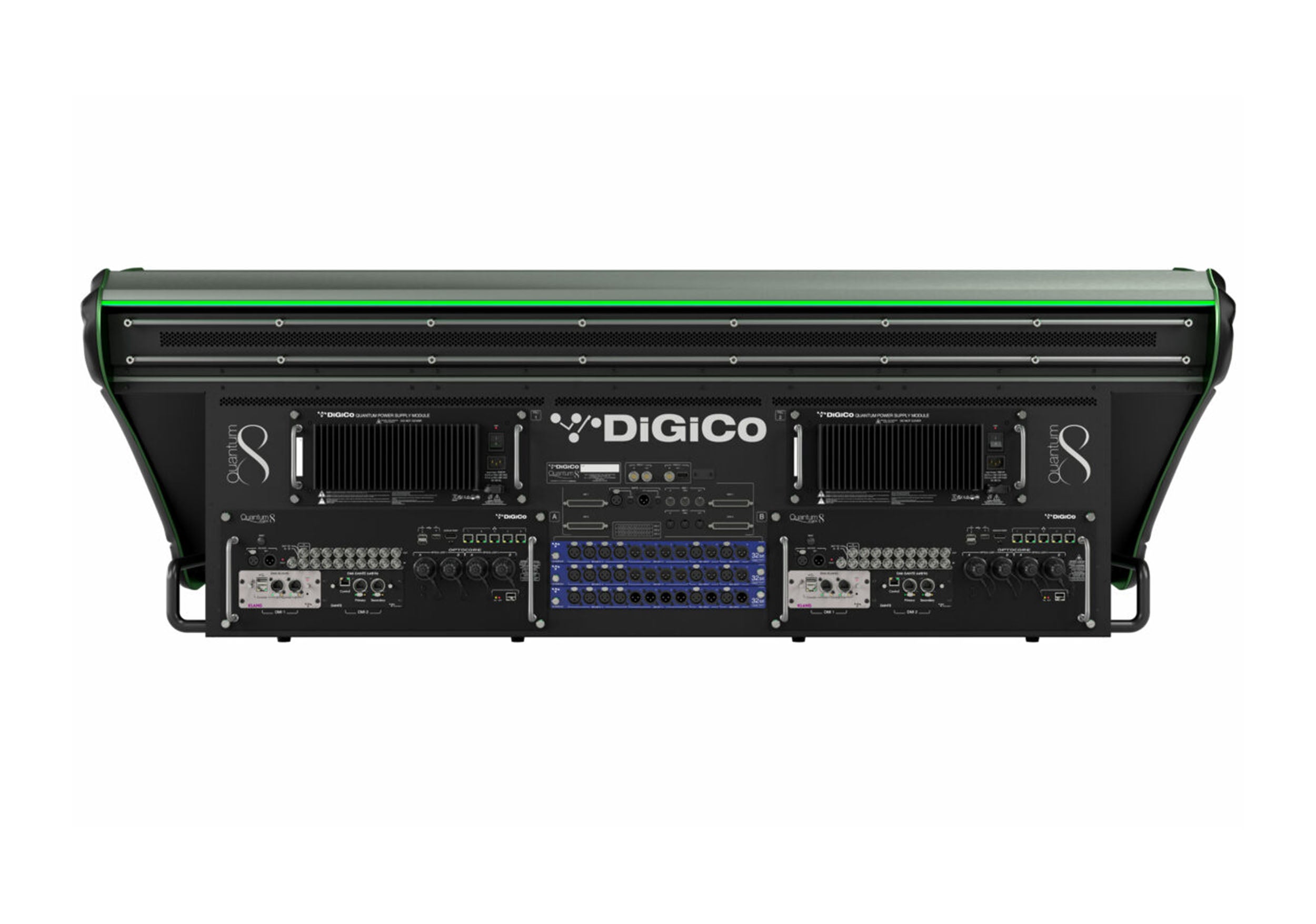

The Base configuration includes extensive local analog and AES I/O, multiple MADI interfaces, standard Optocore networking, Waves integration, and dedicated DMI expansion slots. This flexible connectivity allows seamless integration with stage racks, broadcast systems, recording platforms, and digital audio networks. Expandable architecture ensures compatibility with future technologies and evolving production requirements. The console easily adapts to touring, fixed installations, and broadcast workflows.
Built for Long-Term Reliability
Constructed for mission-critical applications, the Quantum 852 features redundant processing engines and hot-swappable power supplies for maximum operational security. Its rugged hardware is designed to withstand continuous touring and demanding production schedules. Expandable software and hardware capabilities help protect long-term investment while supporting future upgrades. Combining reliability, scalability, and industry-leading performance, the Base Quantum 852 remains one of the most capable large-format digital mixing consoles available.
What’s in the Box:
- Quantum852 Control Surface - MADI Only
- Dual redundant engines
- Q852 3 Piece Flight Case with Pullout Keyboard on Casters
- Connection: MADI x 8, Internal Waves Card, UB-MADI, DMI Port x 2
- Connectors: BNC
Product Specifications:
Control Surface: MADI Only
Faders: 40 x 100mm touch-sensitive, motorised + 12 x 60mm touch-sensitive, motorised.
Screens: 3 x 21.3" high-brightness, high-resolution LCD touch screens + 3 x 6.8" high-brightness, high-resolution LCD touch screens.
Version: Standard DiGiCo's Quantum platform.
TFT Screens: 40 x 1.3" touch-sensitive full-colour LCD displays + 29 x 1.3" full-colour LCD displays.
Meterbridge: 3 x custom-mounted 19.2" high-brightness, high-resolution LCD screens.
Redundancy: Dual removable internal engines.
Power Supply: Dual internal hot-swappable PSUs.
Input Channels: 384.
Busses: Up to 192 Aux/Group busses with full processing (Mono, Stereo, LCR, 5.1).
Matrix: 64 inputs / 64 outputs with full processing.
Control Groups: 36 selectable groups (VCA-style, Moving Fader, Mute Group).
Graphic EQ: 48 x 32-band graphic EQs with ±12 dB gain.
Internal Effects: 64 stereo effects including up to 32 floating-point reverbs, delays, chorus, pitch, and enhancer.
Spice Rack: 32 mono or 16 stereo rack slots.
Mustard Processing: 128 processing strips.
Nodal Processing: 384 nodal processors.
Local I/O: 12 x Mic/Line I/O, 12 x AES I/O.
Sampling Rates: 48 kHz / 96 kHz.
GPIO: 2 x DSub37.
Video I/O: 2 video inputs, 2 video outputs.
DMI Slots: 2 x DiGiCo Multichannel Interface slots.
Waves Integration: Fitted as standard.
External Sync: Word Clock, AES, Video, MADI
Sample Rate: 48 kHz or 96 kHz.
Internal Processing: Up to 40-bit floating-point.
A/D & D/A Conversion: 32-bit converter bit depth.
Frequency Response, THD: TBC.
Channel Separation: TBC.
Residual Output Noise: TBC.
Microphone Input: TBC.
Maximum Output and Input Level: TBC.
Channel Name: User-defined / Presets.
Channel Selection: Mono / Stereo / Multi.
Input Routing: Main & Alternate input.
Analogue Gain: -20 dB to +60 dB.
Phase: Normal / Reverse.
Digital Trim: -40 dB to +40 dB.
Delay: Up to 1.3 seconds.
DiGiTuBe Drive: 0.01 – 50.0.
DiGiTuBe Bias: 0 – 6.
Low-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
High-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
Insert A: Pre EQ/Dynamics, On/Off.
Equalisation: 4-band Parametric or Dynamic EQ (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, High/Hi Shelf).
EQ Frequency Range: 20 Hz – 20 kHz.
EQ Gain: ±18 dB.
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf).
Dynamic EQ: On/Off with Over/Under modes.
Dynamic EQ Threshold: -60 dB to 0 dB.
Dynamic EQ Attack: 500 µs – 100 ms.
Dynamic EQ Release: 10 ms – 10 s.
Dynamic EQ Ratio: 1:1 – 50:1.
Compressor Threshold: -60 dB to 0 dB.
Compressor Attack: 500 µs – 100 ms.
Compressor Release: 10 ms – 10 s.
Compressor Ratio: 1:1 – 50:1.
Compressor Gain: 0 to +40 dB with Auto Gain.
Compressor Link: Any Channel/Buss.
High Crossover: 20 Hz – 20 kHz.
Low Crossover: 20 Hz – 20 kHz.
Compressor Knee: Hard, Medium, Soft.
De-Esser: Integrated.
De-Esser Threshold: 20 µs – 20 ms.
De-Esser Release: 1 ms – 100 ms.
De-Esser Ratio: 1:1 – 50:1.
Ess Band: Listen On/Off.
Ess Band Filter: Frequency/Width 20 Hz – 20 kHz.
Dynamics 2: Gate / Ducker.
Gate Threshold: -60 dB to 0 dB.
Gate Attack: 50 µs – 100 ms.
Gate Hold: 2 ms – 2 s.
Gate Release: 5 ms – 5 s.
Gate Range: 0 – 90 dB.
Gate Key Source: Any source.
Gate Key Listen: Supported.
Gate Filter Frequency: 20 Hz – 20 kHz.
Second Compressor: Included with side-chain support.
Side Chain Filter: 20 Hz – 20 kHz.
Insert B: Post EQ/Dynamics, On/Off.
EQ/Dynamics Order: EQ→Dyn or Dyn→EQ.
Mute: Channel Mute / Hard Mute.
Solo: Solo Buss 1, Solo Buss 2, Both, Auto Solo.
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Buss, Directs, Full Safe.
Output Routing: Buss, Insert A, Insert B, FX.
Direct Output: On/Off, Pre-Mute, Pre-Fade, Post-Fade, ±18 dB Level.
Channel Fader: 100 mm motorised, ∞ to +10 dB.
Output Name: User-defined / Presets.
Phase: Normal / Reverse.
Digital Trim: -20 dB to +60 dB.
Delay: Up to 1.3 seconds.
DiGiTuBe Drive: 0.01 – 50.0.
DiGiTuBe Bias: 0 – 6.
Low-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
High-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
Insert A: Pre EQ/Dynamics, On/Off.
Equalisation: 8-band EQ (4 Parametric + 4 Parametric/Dynamic).
EQ Gain: ±18 dB.
EQ Frequency Range: 20 Hz – 20 kHz.
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf).
Dynamic EQ: On/Off with Over/Under.
Dynamics 1: Single-band or 3-band Multiband Compressor.
Gate / Ducker: Included.
Compressor: Side-chain capable.
Insert B: Post EQ/Dynamics, On/Off.
EQ/Dynamics Order: EQ→Dyn or Dyn→EQ.
Mute: Channel Mute / Hard Mute.
Solo: Solo Buss 1, Solo Buss 2, Both, Auto Solo.
Channel Safe: Trim, EQ, Dynamics, Fader/Mute, Inserts, Outputs, Full Safe.
Output Routing: Outputs, Insert A, Insert B, FX.
Output Fader: 100 mm motorised, ∞ to +10 dB.
Mustard Processing
Preamplifier Tubes: Variable Drive.
Tube Presets: Odd, Even, Overdrive, Distortion, Crunch, High Distortion.
Tube Output Gain: Variable.
Preamplifier Amp: Variable Drive.
1st Stage Harmonics: Odd / Even.
Bias & Saturation Control: Adjustable.
2nd Stage Harmonics: Off / Odd / Even.
High-Frequency Boost: Variable.
Output Gain: Variable.
Mustard EQ: 4-band Parametric EQ with Low Shelf/Bell, Lower-Mid Bell/All-Pass, Upper-Mid Bell/All-Pass, High Shelf/Bell.
Filters: 4th-order HPF & LPF.
Dynamics 1 Modes: Classic VCA Compressor, Vintage VCA Compressor, Optical Compressor, FET Limiter.
Dynamics 2 Modes: Gate / Ducker.
Product Weight: 264.5 lbs.
Product Dimensions (L × W × H): 69.6" × 42.3" × 23.9"
