Description

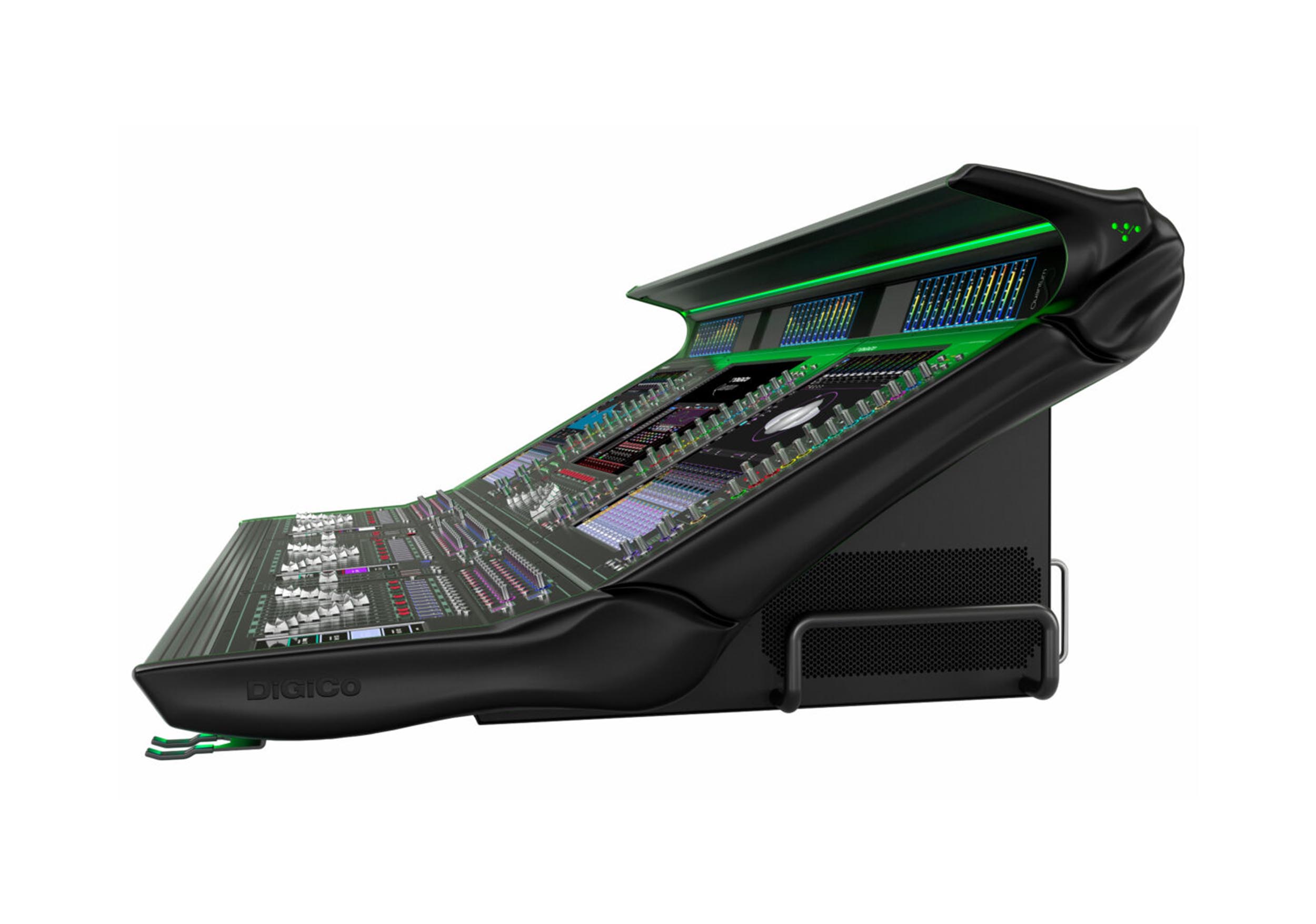

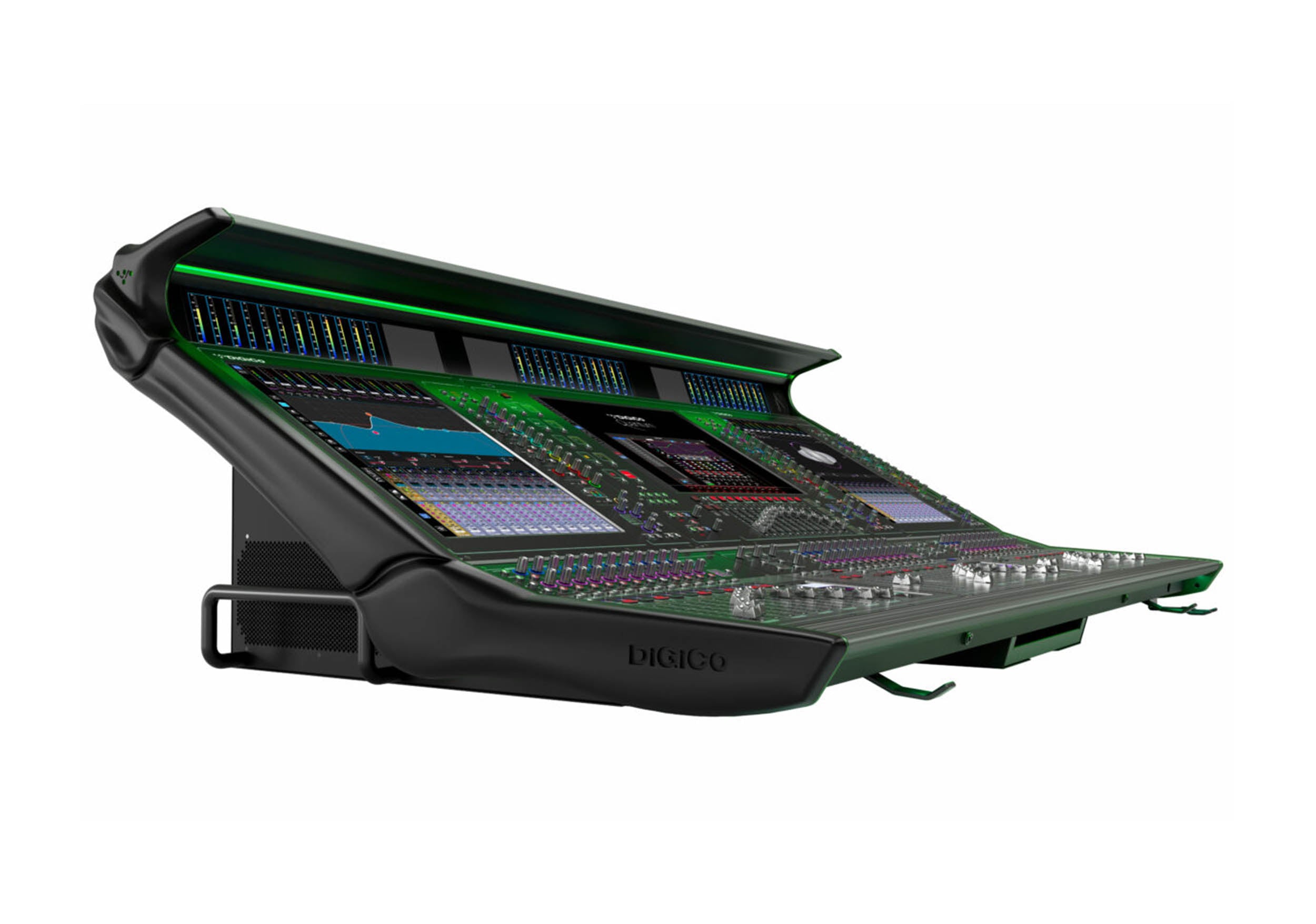

The DiGiCo X-Q852-W-WS-ST Quantum 852 Mixing Console is designed for large-scale live sound, broadcast, theatre, and house of worship applications. Its advanced Quantum processing platform delivers exceptional audio performance with ultra-low latency and remarkable clarity. The console combines powerful DSP capabilities with an intuitive workflow, allowing engineers to manage complex productions efficiently. Built for reliability and speed, it supports demanding live environments with confidence. Its premium construction ensures long-lasting performance on the road or in permanent installations.
Powerful Processing Architecture
At the heart of the Quantum 852 is a high-performance dual-engine architecture driven by advanced FPGA technology. It provides extensive channel capacity, comprehensive bus processing, and a large processing matrix for handling sophisticated audio systems. Engineers can mix complex productions without sacrificing speed or sound quality. The console delivers consistent performance even during resource-intensive shows. This powerful architecture makes it suitable for concerts, festivals, television, and theatrical productions.
Intuitive Mixing Experience

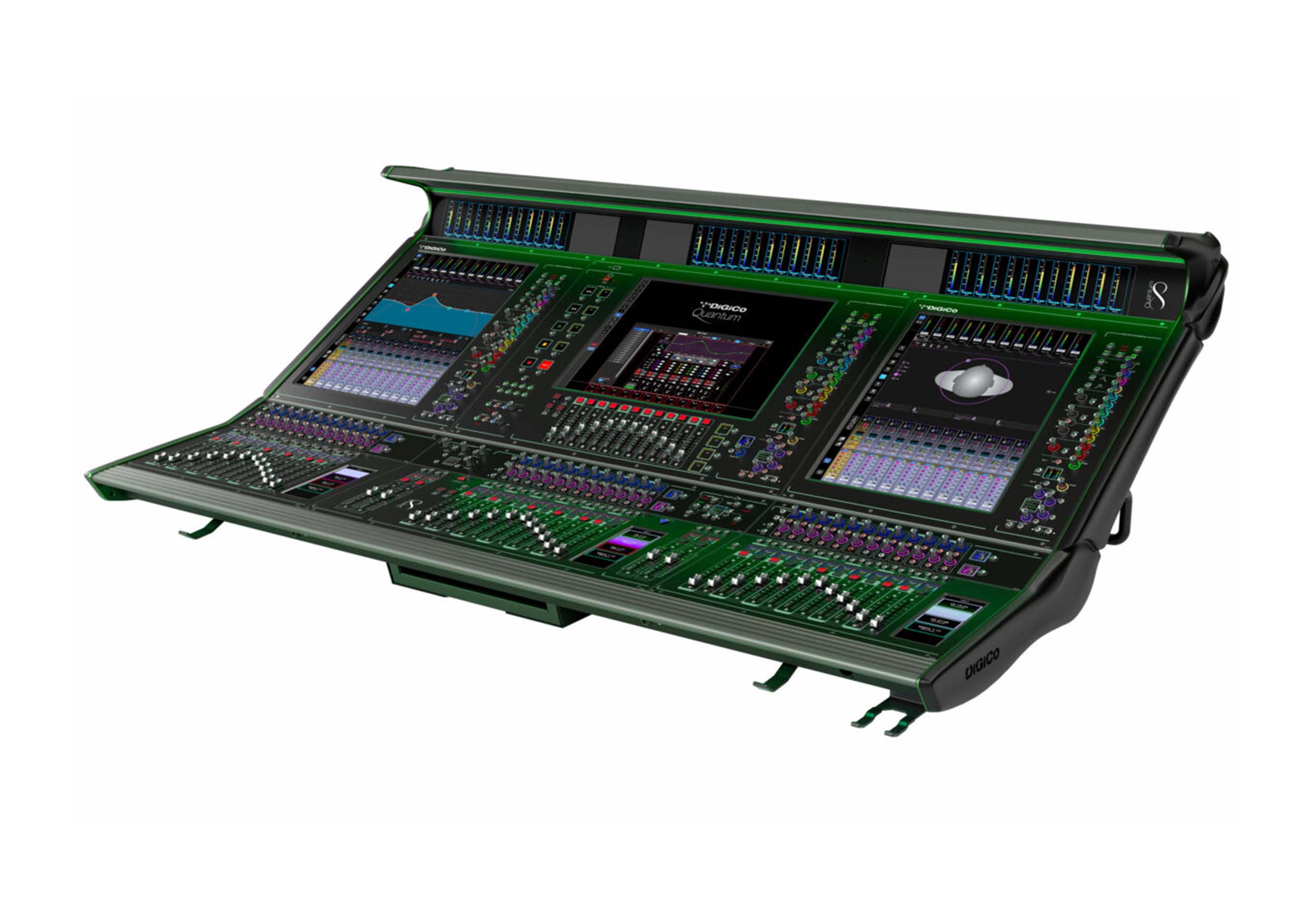

The Quantum 852 features a thoughtfully designed work surface that enhances speed and operator efficiency. Multiple high-brightness touchscreen displays, customizable channel views, and precision motorized faders provide quick access to essential controls. Engineers can easily navigate large sessions while maintaining complete visibility of every parameter. The ergonomic layout minimizes workflow interruptions and simplifies operation during live performances. Every element is designed to improve productivity and mixing accuracy.
Professional Audio Tools
Built-in processing includes premium dynamics, equalization, and effects that eliminate the need for external hardware in many applications. Engineers benefit from advanced processing technologies for detailed tonal shaping, dynamic control, and creative sound design. Every channel offers extensive processing flexibility while maintaining exceptional audio quality. The console is optimized for both front-of-house and monitor mixing. These integrated tools help deliver polished, professional results in every production.
Flexible Connectivity and Expansion

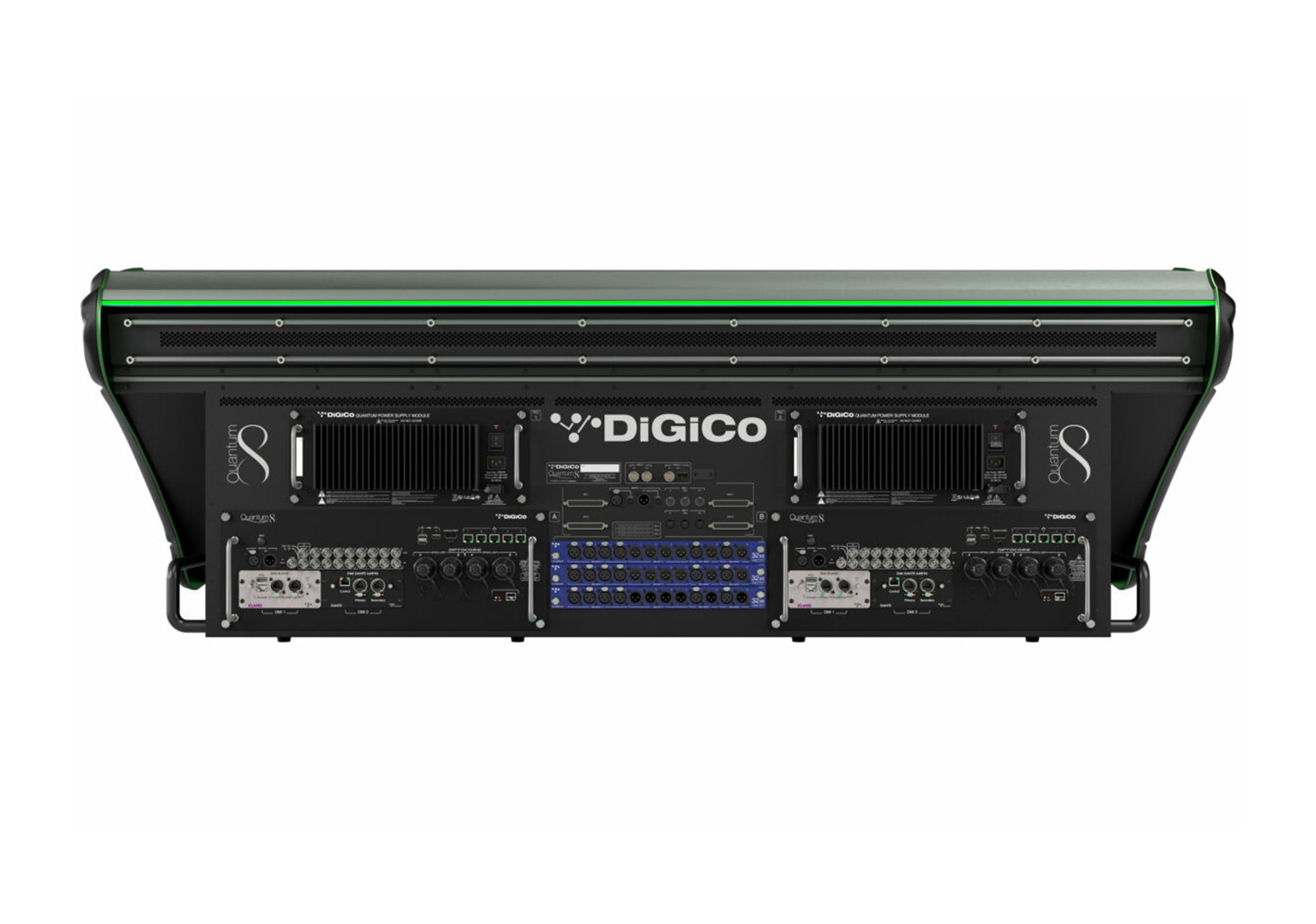

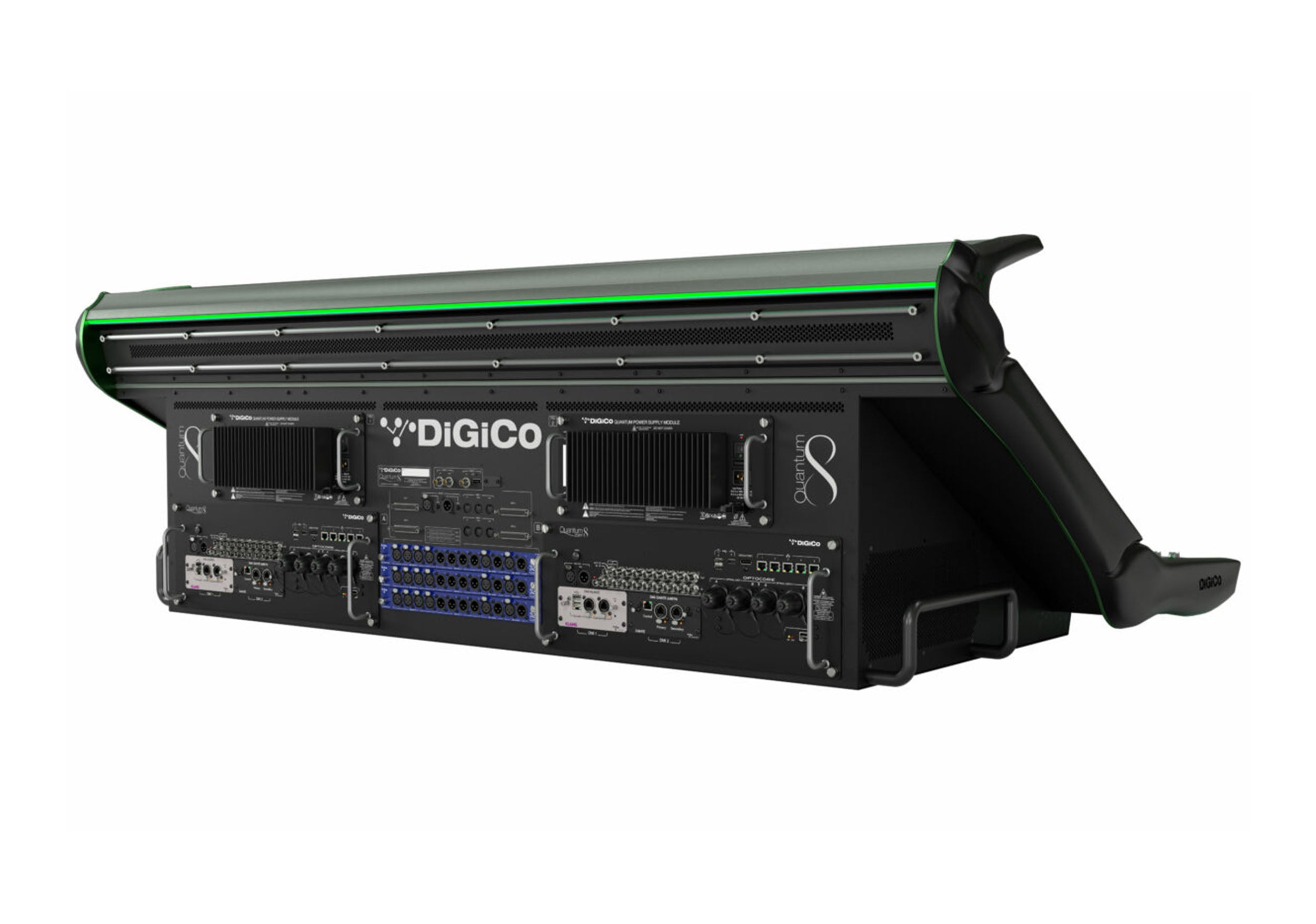

The Standard configuration offers comprehensive connectivity options for integrating with modern audio systems. Multiple digital interfaces, networking capabilities, and expansion slots allow the console to adapt to a wide variety of production requirements. It easily connects to stage racks, recording systems, and broadcast infrastructure. Expandable architecture ensures compatibility with future technologies and workflow upgrades. This flexibility makes the Quantum 852 a dependable solution for evolving production environments.
Built for Reliability and Future Growth
Designed for mission-critical applications, the Quantum 852 incorporates redundant processing engines and hot-swappable power supplies to maximize operational security. Its robust hardware construction withstands the demands of continuous touring and permanent installations alike. The platform is engineered to support future software enhancements and expanded functionality as production requirements evolve. Combining reliability, scalability, and industry-leading performance, the Quantum 852 remains a long-term investment for professional audio engineers seeking uncompromising mixing capabilities.
What’s in the Box:
- Dual redundant engines
- Q852 3 Piece Flight Case with Pullout Keyboard on Casters
- Connection: MADI x 8, Optics x 1, Internal Waves Card, UB-MADI, DMI Port x 2
- Connectors: BNC, ST
Product Specifications:
Processing Version: Standard.
Faders: 40 x 100mm touch-sensitive, motorised + 12 x 60mm touch-sensitive, motorised.
Screens: 3 x 21.3" high-brightness, high-resolution LCD touch screens + 3 x 6.8" high-brightness, high-resolution LCD touch screens.
Version: Standard DiGiCo's Quantum platform.
TFT Screens: 40 x 1.3" touch-sensitive full-colour LCD displays + 29 x 1.3" full-colour LCD displays.
Meterbridge: 3 x custom-mounted 19.2" high-brightness, high-resolution LCD screens.
Redundancy: Dual removable internal engines.
Power Supply: Dual internal hot-swappable PSUs.
Input Channels: 384.
Busses: Up to 192 Aux/Group busses with full processing (Mono, Stereo, LCR, 5.1).
Matrix: 64 inputs / 64 outputs with full processing.
Control Groups: 36 selectable groups (VCA-style, Moving Fader, Mute Group).
Graphic EQ: 48 x 32-band graphic EQs with ±12 dB gain.
Internal Effects: 64 stereo effects including up to 32 floating-point reverbs, delays, chorus, pitch, and enhancer.
Spice Rack: 32 mono or 16 stereo rack slots.
Mustard Processing: 128 processing strips.
Nodal Processing: 384 nodal processors.
Local I/O: 12 x Mic/Line I/O, 12 x AES I/O.
Sampling Rates: 48 kHz / 96 kHz.
GPIO: 2 x DSub37.
Video I/O: 2 video inputs, 2 video outputs.
DMI Slots: 2 x DiGiCo Multichannel Interface slots.
Waves Integration: Fitted as standard.
External Sync: Word Clock, AES, Video, MADI
Sample Rate: 48 kHz or 96 kHz.
Internal Processing: Up to 40-bit floating-point.
A/D & D/A Conversion: 32-bit converter bit depth.
Frequency Response, THD: TBC.
Channel Separation: TBC.
Residual Output Noise: TBC.
Microphone Input: TBC.
Maximum Output and Input Level: TBC.
Channel Name: User-defined / Presets.
Channel Selection: Mono / Stereo / Multi.
Input Routing: Main & Alternate input.
Analogue Gain: -20 dB to +60 dB.
Phase: Normal / Reverse.
Digital Trim: -40 dB to +40 dB.
Delay: Up to 1.3 seconds.
DiGiTuBe Drive: 0.01 – 50.0.
DiGiTuBe Bias: 0 – 6.
Low-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
High-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
Insert A: Pre EQ/Dynamics, On/Off.
Equalisation: 4-band Parametric or Dynamic EQ (Low/Lowshelf, Lower-Mid/Lowshelf, Upper-Mid/Hi Shelf, High/Hi Shelf).
EQ Frequency Range: 20 Hz – 20 kHz.
EQ Gain: ±18 dB.
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf).
Dynamic EQ: On/Off with Over/Under modes.
Dynamic EQ Threshold: -60 dB to 0 dB.
Dynamic EQ Attack: 500 µs – 100 ms.
Dynamic EQ Release: 10 ms – 10 s.
Dynamic EQ Ratio: 1:1 – 50:1.
Compressor Threshold: -60 dB to 0 dB.
Compressor Attack: 500 µs – 100 ms.
Compressor Release: 10 ms – 10 s.
Compressor Ratio: 1:1 – 50:1.
Compressor Gain: 0 to +40 dB with Auto Gain.
Compressor Link: Any Channel/Buss.
High Crossover: 20 Hz – 20 kHz.
Low Crossover: 20 Hz – 20 kHz.
Compressor Knee: Hard, Medium, Soft.
De-Esser: Integrated.
De-Esser Threshold: 20 µs – 20 ms.
De-Esser Release: 1 ms – 100 ms.
De-Esser Ratio: 1:1 – 50:1.
Ess Band: Listen On/Off.
Ess Band Filter: Frequency/Width 20 Hz – 20 kHz.
Dynamics 2: Gate / Ducker.
Gate Threshold: -60 dB to 0 dB.
Gate Attack: 50 µs – 100 ms.
Gate Hold: 2 ms – 2 s.
Gate Release: 5 ms – 5 s.
Gate Range: 0 – 90 dB.
Gate Key Source: Any source.
Gate Key Listen: Supported.
Gate Filter Frequency: 20 Hz – 20 kHz.
Second Compressor: Included with side-chain support.
Side Chain Filter: 20 Hz – 20 kHz.
Insert B: Post EQ/Dynamics, On/Off.
EQ/Dynamics Order: EQ→Dyn or Dyn→EQ.
Mute: Channel Mute / Hard Mute.
Solo: Solo Buss 1, Solo Buss 2, Both, Auto Solo.
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Buss, Directs, Full Safe.
Output Routing: Buss, Insert A, Insert B, FX.
Direct Output: On/Off, Pre-Mute, Pre-Fade, Post-Fade, ±18 dB Level.
Channel Fader: 100 mm motorised, ∞ to +10 dB.
Output Name: User-defined / Presets.
Phase: Normal / Reverse.
Digital Trim: -20 dB to +60 dB.
Delay: Up to 1.3 seconds.
DiGiTuBe Drive: 0.01 – 50.0.
DiGiTuBe Bias: 0 – 6.
Low-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
High-Pass Filter: 20 Hz – 20 kHz, 24 dB/Oct.
Insert A: Pre EQ/Dynamics, On/Off.
Equalisation: 8-band EQ (4 Parametric + 4 Parametric/Dynamic).
EQ Gain: ±18 dB.
EQ Frequency Range: 20 Hz – 20 kHz.
EQ Q Range: 0.1–20 (Parametric), 0.10–0.85 (Shelf).
Dynamic EQ: On/Off with Over/Under.
Dynamics 1: Single-band or 3-band Multiband Compressor.
Gate / Ducker: Included.
Compressor: Side-chain capable.
Insert B: Post EQ/Dynamics, On/Off.
EQ/Dynamics Order: EQ→Dyn or Dyn→EQ.
Mute: Channel Mute / Hard Mute.
Solo: Solo Buss 1, Solo Buss 2, Both, Auto Solo.
Channel Safe: Trim, EQ, Dynamics, Fader/Mute, Inserts, Outputs, Full Safe.
Output Routing: Outputs, Insert A, Insert B, FX.
Output Fader: 100 mm motorised, to +10 dB.
Mustard Processing
Preamplifier Tubes: Variable Drive.
Tube Presets: Odd, Even, Overdrive, Distortion, Crunch, High Distortion.
Tube Output Gain: Variable.
Preamplifier Amp: Variable Drive.
1st Stage Harmonics: Odd / Even.
Bias & Saturation Control: Adjustable.
2nd Stage Harmonics: Off / Odd / Even.
High-Frequency Boost: Variable.
Output Gain: Variable.
Mustard EQ: 4-band Parametric EQ with Low Shelf/Bell, Lower-Mid Bell/All-Pass, Upper-Mid Bell/All-Pass, High Shelf/Bell.
Filters: 4th-order HPF & LPF.
Dynamics 1 Modes: Classic VCA Compressor, Vintage VCA Compressor, Optical Compressor, FET Limiter.
Dynamics 2 Modes: Gate / Ducker.
Product Weight: 264.5 lbs.
Product Dimensions (L × W × H): 69.6" × 42.3" × 23.9"
