Description

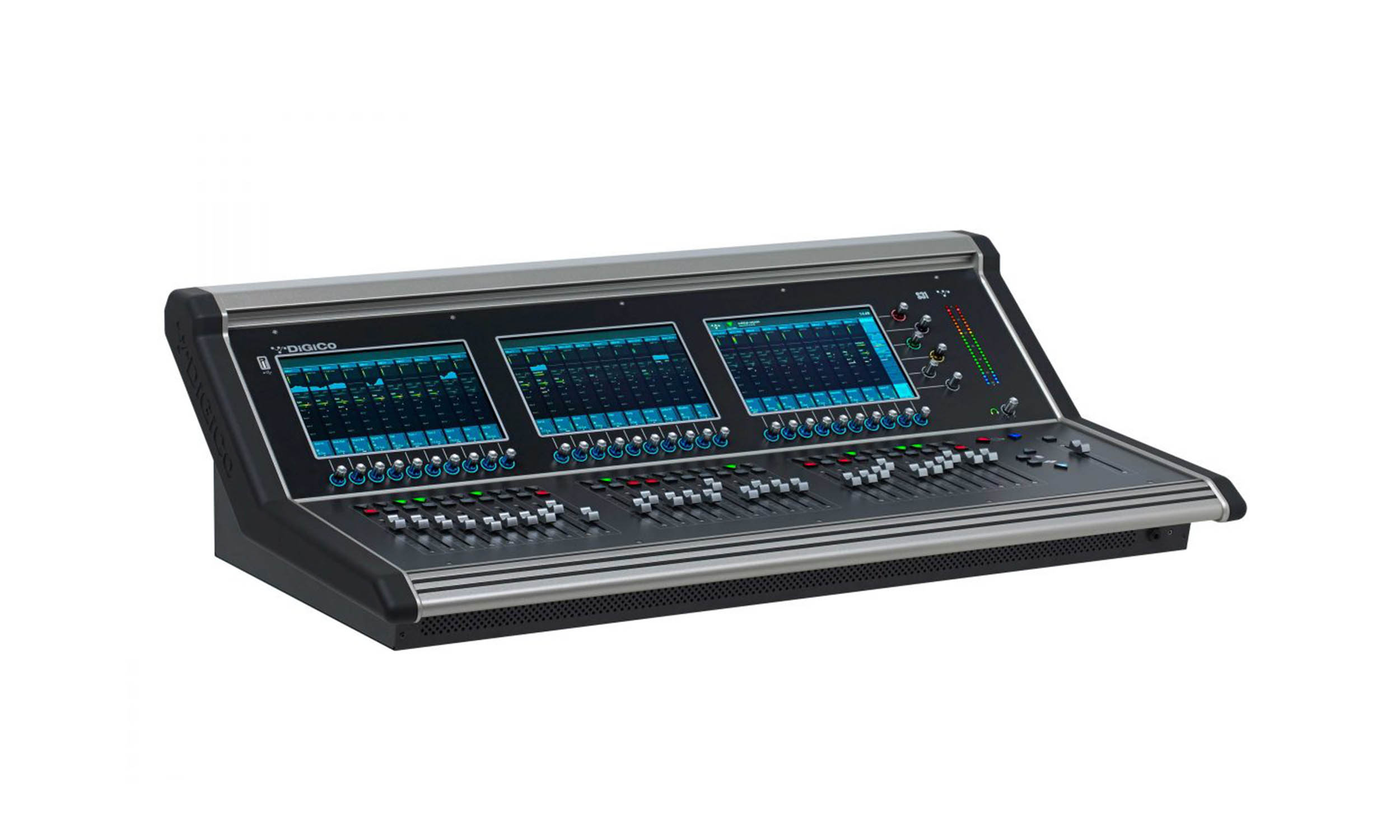

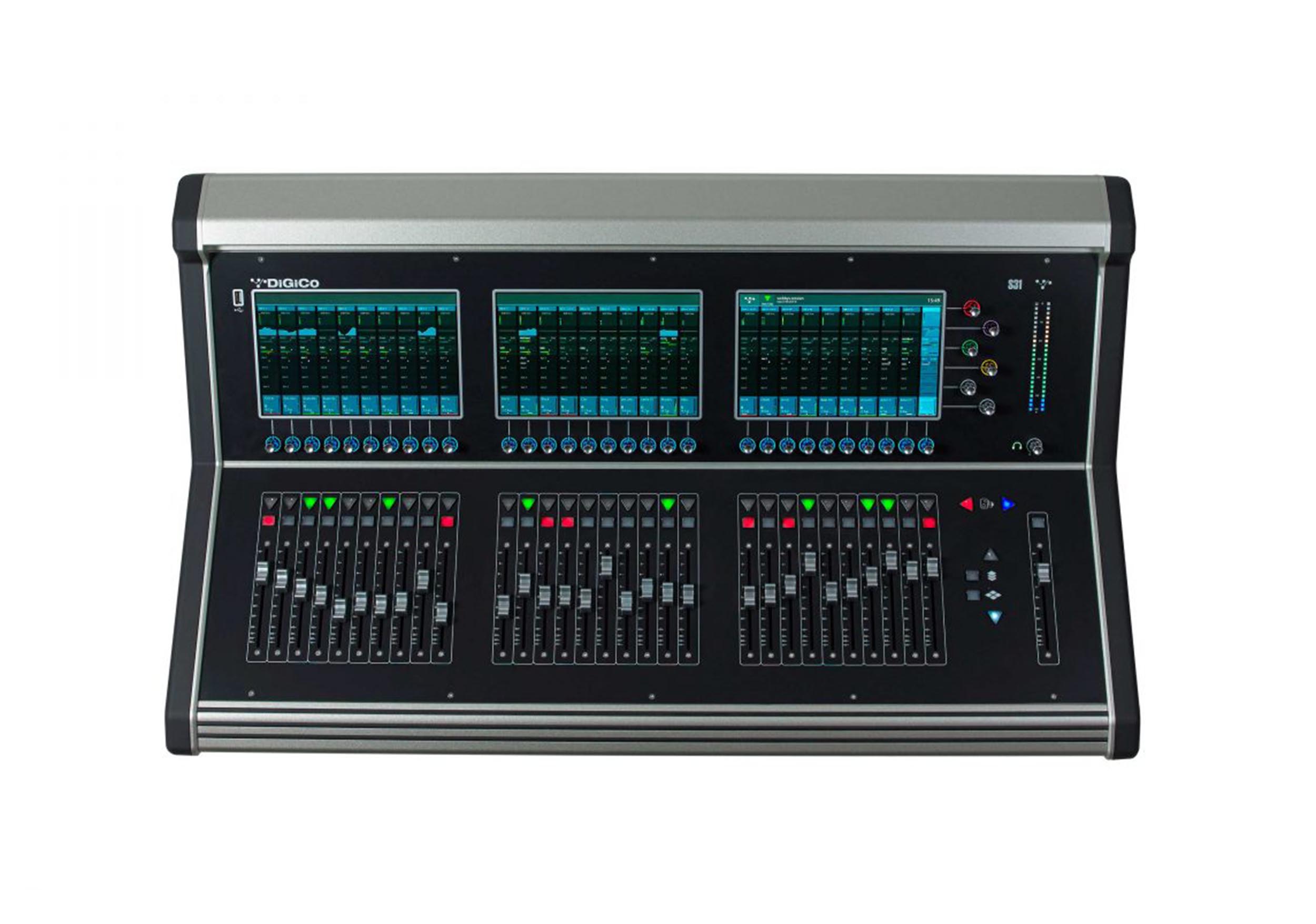

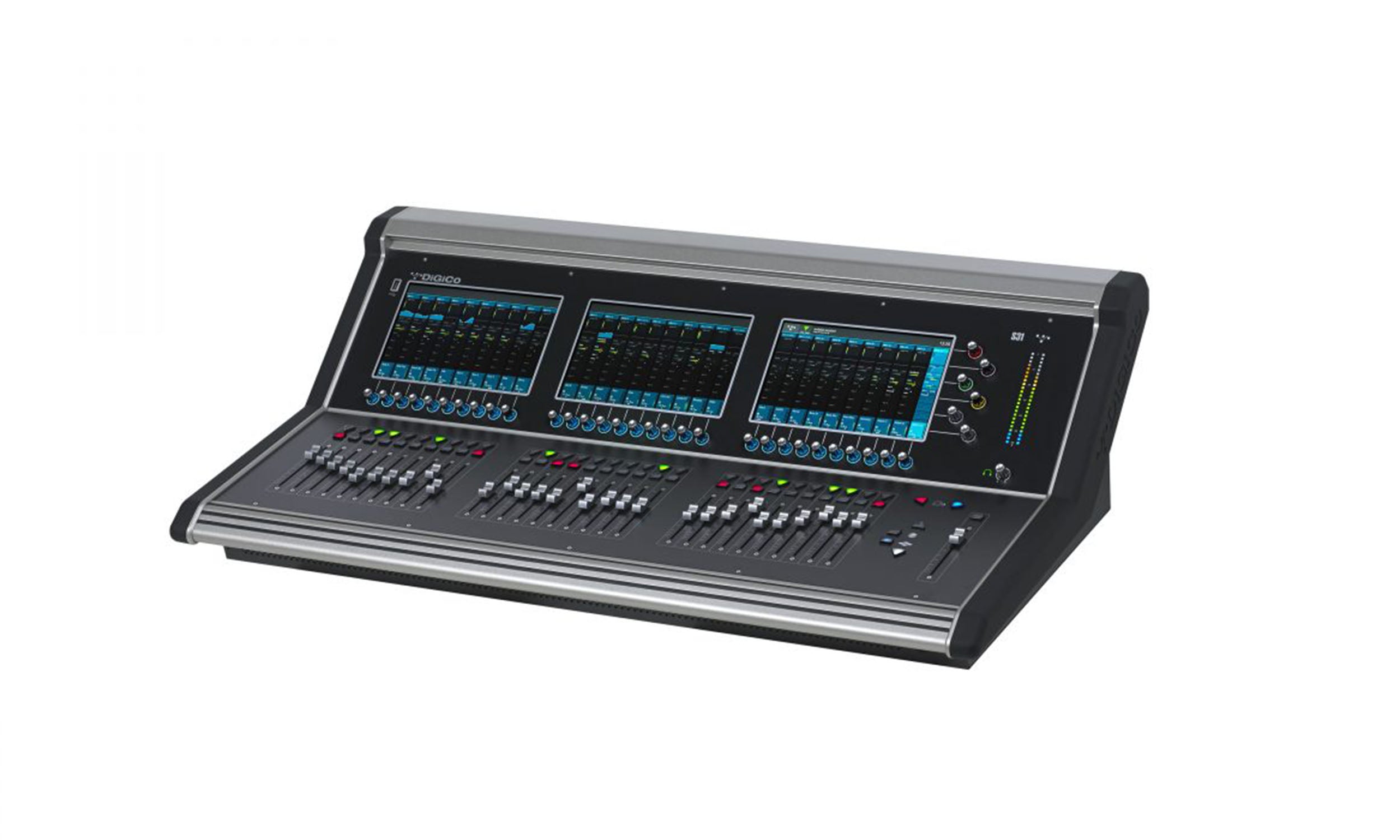

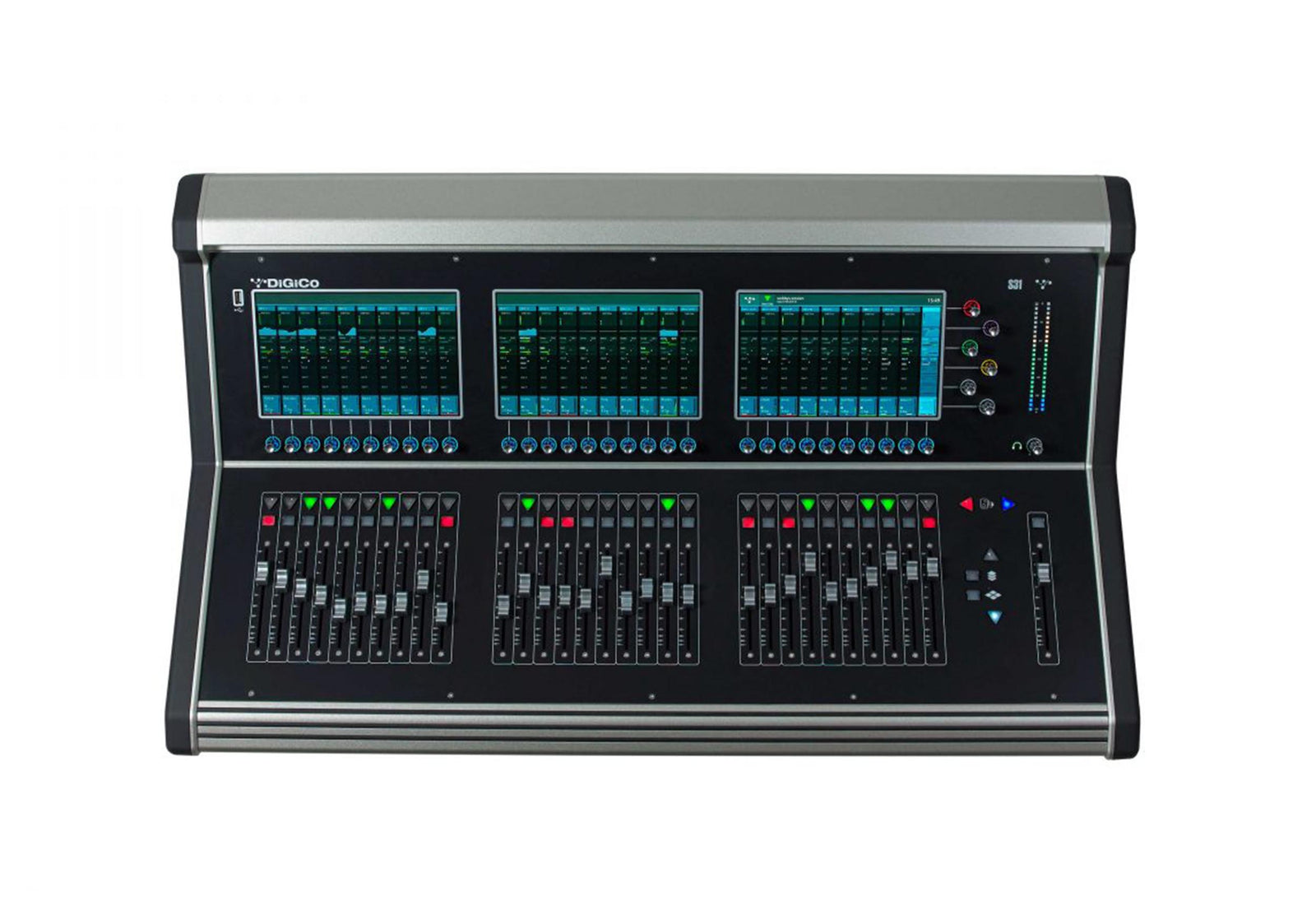

The DiGiCo X-S31-168D-RP combines the powerful S31 Digital Console with a DMI-DANTE2 interface card and three A168D Dante stage racks to create a complete Live Stage48 system. Designed for professional live sound, the package delivers exceptional audio quality, flexible routing, and simplified deployment. Every component is engineered to work seamlessly together for reliable operation. The compact system is easy to transport and quick to install. It provides a complete professional mixing solution for demanding productions.
Dante Stage Rack Integration
The package includes three DiGiCo A168D Dante stage racks, providing remote microphone and line I/O over a low-latency Dante network. Each rack delivers high-quality remote connectivity while reducing analog cabling on stage. The included DMI-DANTE2 interface enables seamless communication between the console and stage boxes. This architecture provides flexible signal distribution for live events and installed systems. The result is a clean, scalable, and highly efficient audio network. Professional engineers benefit from dependable Dante performance.
Advanced Mixing Performance
At the center of the system is the S31 digital console featuring 48 Flexi-Channels, 46 buses, premium 96kHz processing, Dynamic EQ, Multiband Compression, DiGiTuBe processing, and professional onboard effects. Three responsive multi-touch displays and 31 touch-sensitive motorized faders provide fast and intuitive operation. The powerful FPGA-based architecture delivers exceptional audio quality with extremely low latency. Engineers can confidently handle demanding productions of every size. The system combines flagship performance with a compact footprint.
Flexible Connectivity

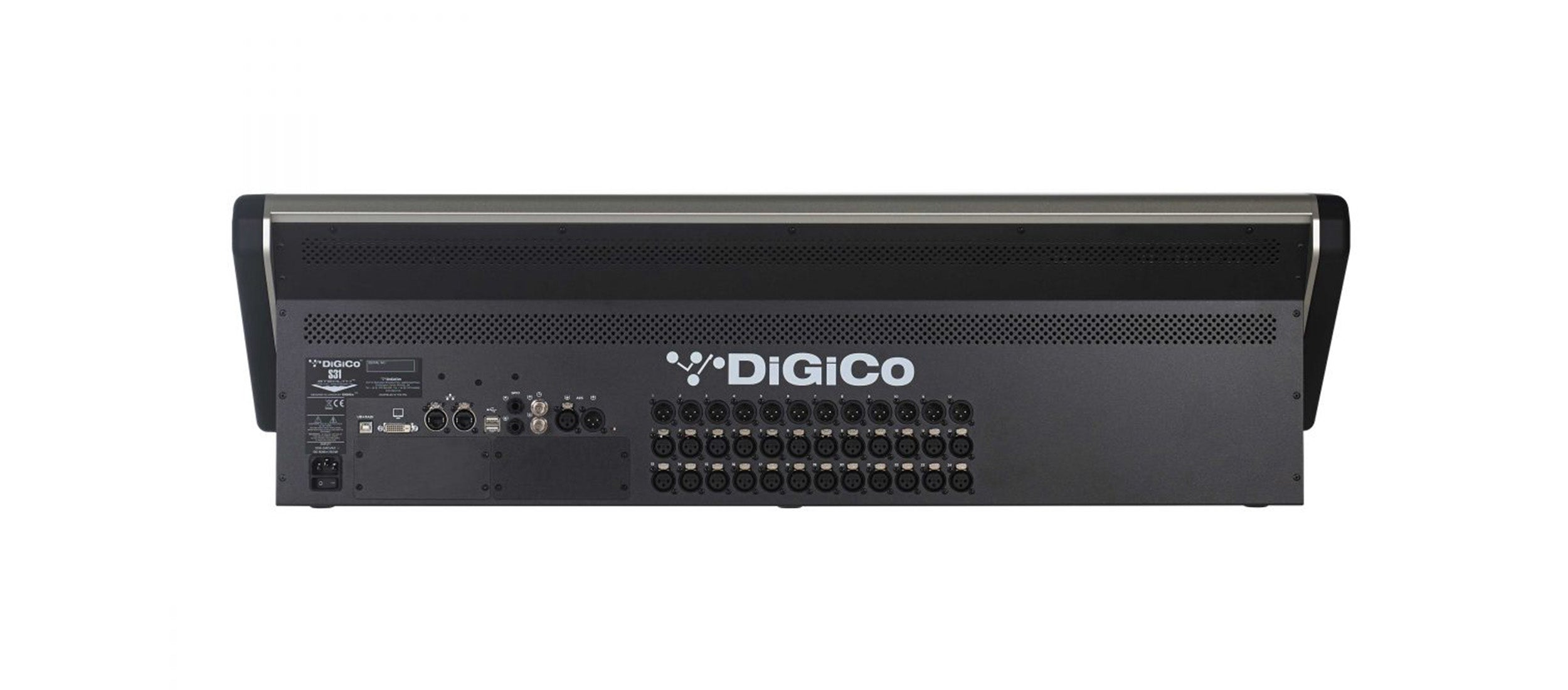

The X-S31-168D-RP provides extensive connectivity with local microphone inputs, line outputs, USB multitrack recording, dual Ethernet ports, and expandable DMI card slots. Native Dante networking allows simple integration with existing digital audio infrastructures while supporting efficient routing between consoles, stage racks, and recording systems. Additional DMI cards can expand compatibility with MADI, Waves SoundGrid, Optocore, Hydra2, and other professional formats. This flexibility ensures long-term system scalability. It adapts easily to evolving production requirements.
Designed for Professional Workflows
Built using DiGiCo's proven FPGA technology and ARM QuadCore processing, the S31 delivers stable performance for continuous professional use. Snapshot automation, customizable channel layouts, drag-and-drop workflow, and intuitive touchscreen control allow engineers to work efficiently in fast-paced production environments. The compact console and remote stage racks reduce setup time while maintaining maximum flexibility. Every feature is designed to streamline live mixing operations. The system performs reliably under demanding conditions.
Built for Live Productions
The DiGiCo X-S31-168D-RP is ideal for touring companies, theaters, broadcast facilities, houses of worship, rental providers, and corporate AV productions. Combining the S31 Digital Console, DMI-DANTE2 interface, and three A168D Dante stage racks creates a complete professional audio solution capable of handling complex live events with ease. Its premium audio quality, scalable Dante networking, and intuitive operation make it an outstanding choice for modern production environments.
What’s in the Box:
- X-S31-WS, DMI-DANTE2, DMI-BLANK,
- A168D Rack x 3 (part# X-A-168D) 16 x 8 I/O J45 CAT6 60M (200 ft.) x 1, 10m (32.5 ft.) x 2 cable and Dust Cover
- Connections: 24 Mic/Line In, 12 Line Out, 2 Ch AES In/Out
- DMI Slot x 2, USB-B 48 Track Recording Interface
- Connectors: Dependent on cards loaded in DMI Slots, USB-Type B
- Special Package Pricing - Please call for available rack substitutions
Product Specifications:
Product Type: Digital mixing console with Dante Stage Rack package.
Included Stage Racks: 3 × DiGiCo A168D Dante Stage Boxes.
Remote Microphone Inputs: 48 (16 per A168D).
Remote Line Outputs: 24 (8 per A168D).
Audio Networking: Dante.
Dante Interface: DMI-DANTE64@96.
Dante Channel Capacity: 64 × 64 channels.
Supported Sample Rates: 48kHz and 96kHz.
Console Processing: 48 Flex Input Channels (Mono/Stereo).
DSP Channels: Equivalent to 96 DSP channels.
Processing Busses: 46.
Flexi Busses: 16 Mono/Stereo.
Stereo Master Bus: 1.
Solo Busses: 2 Stereo.
Matrix: 10 × 8.
Control Groups: 10.
Graphic EQ: 16 assignable 32-band graphic EQs.
Internal FX: 8 stereo effects engines.
Dynamic EQ: 21 assignable processors.
Multiband Compressors: 21 assignable.
DiGiTube Processing: 21 assignable processors.

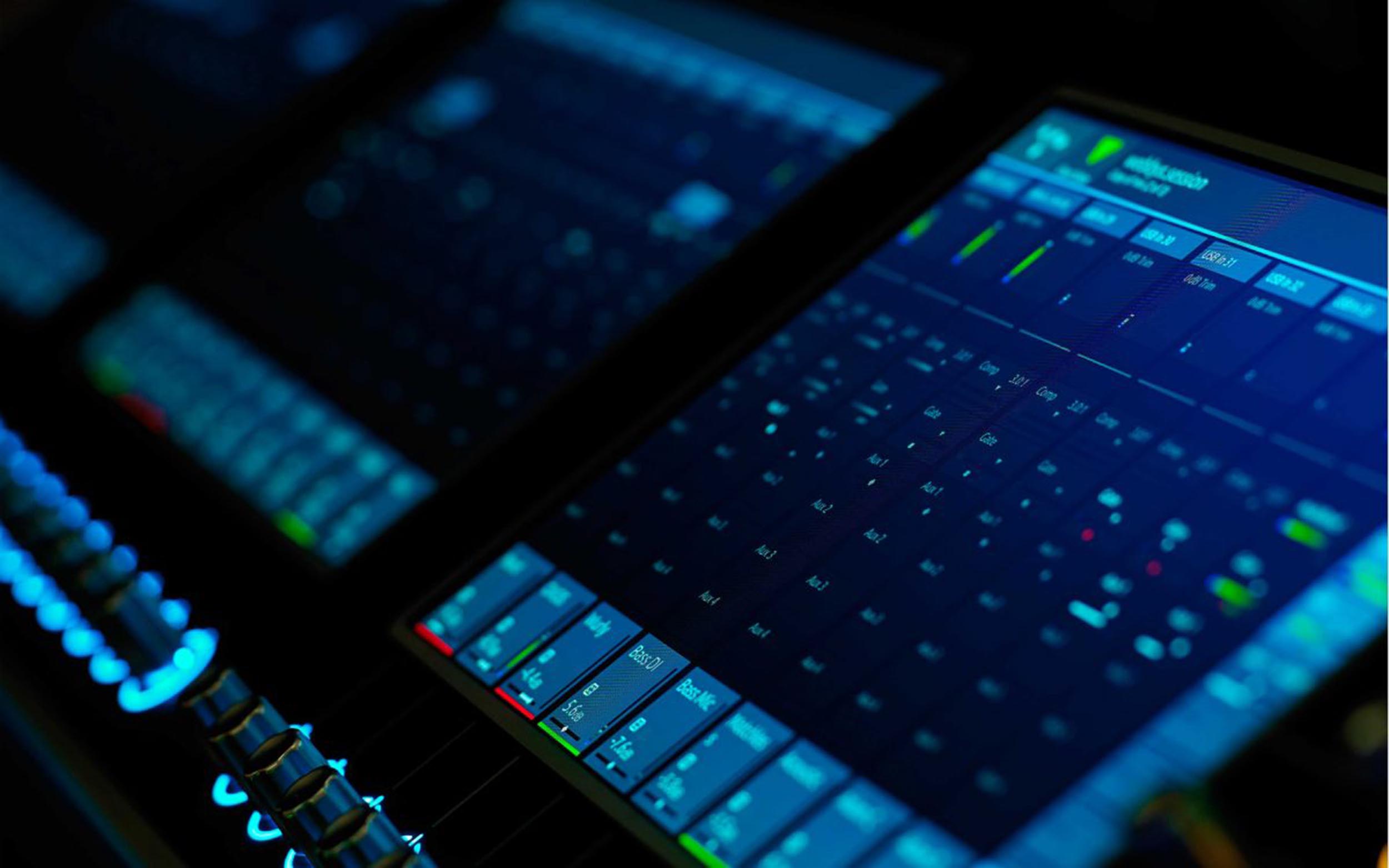

Touchscreens: 3 × 10-inch multi-touch displays.
Motorized Faders: 31 × 100mm touch-sensitive faders.
Local Inputs: 24 Mic/Line.
Local Outputs: 12 Analog Line Outputs.
AES I/O: 2-channel AES/EBU input and output.
Recording Interface: Integrated UB MADI USB audio interface (up to 48-track recording/playback).
DMI Expansion Slots: 2.
Networking Ports: 2 Ethernet ports.
Word Clock: Input/Output.
GPIO: 1 GPI and 1 GPO.
External Display: DVI output.
Power Supply: Universal internal power supply.
Application: Live sound, touring, broadcast, theater, houses of worship, and installed audio.
Product Weight: 108 lbs.
Product Dimensions (L × W × H): 34.4" × 31.0" × 10.7"
