Description

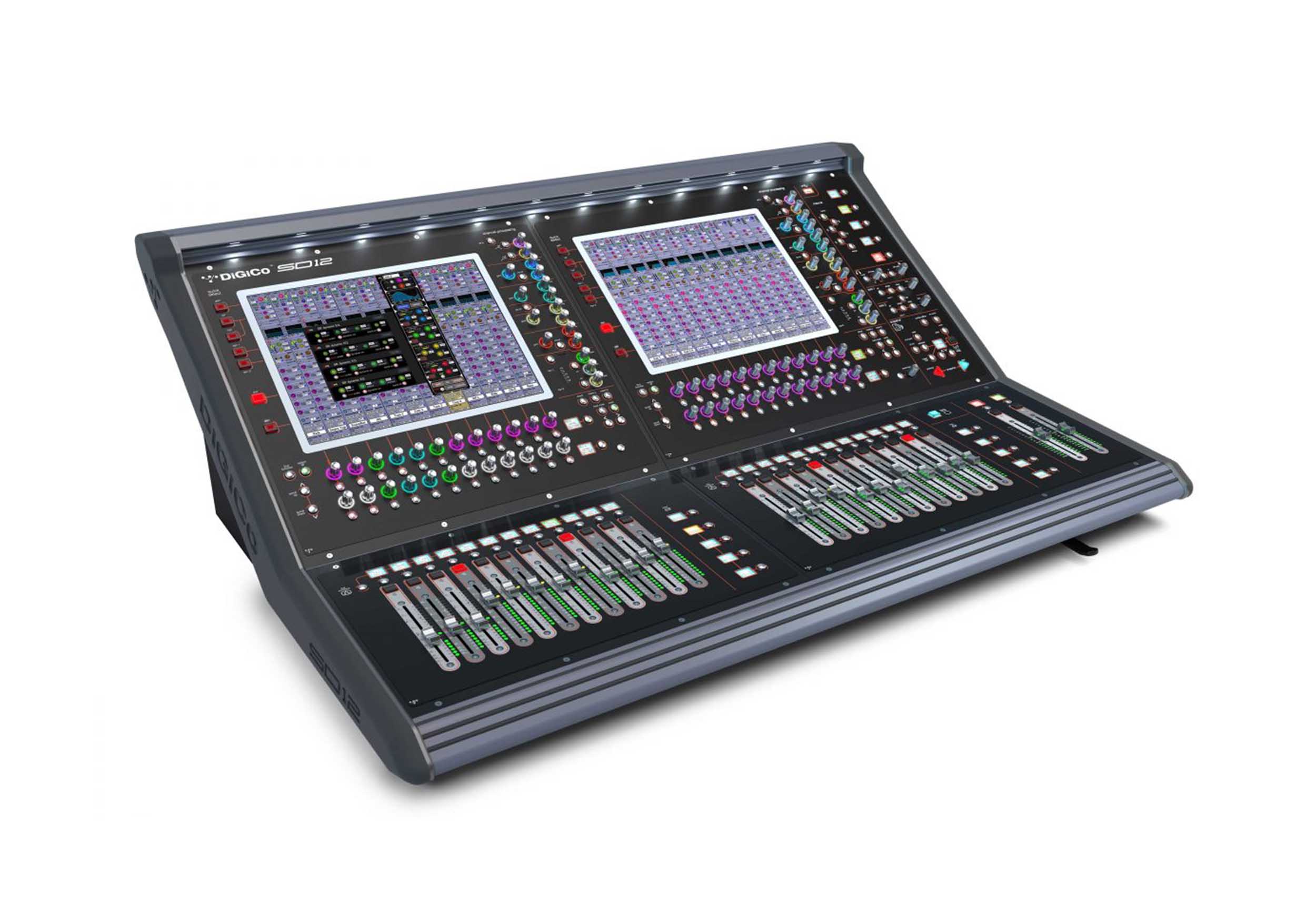

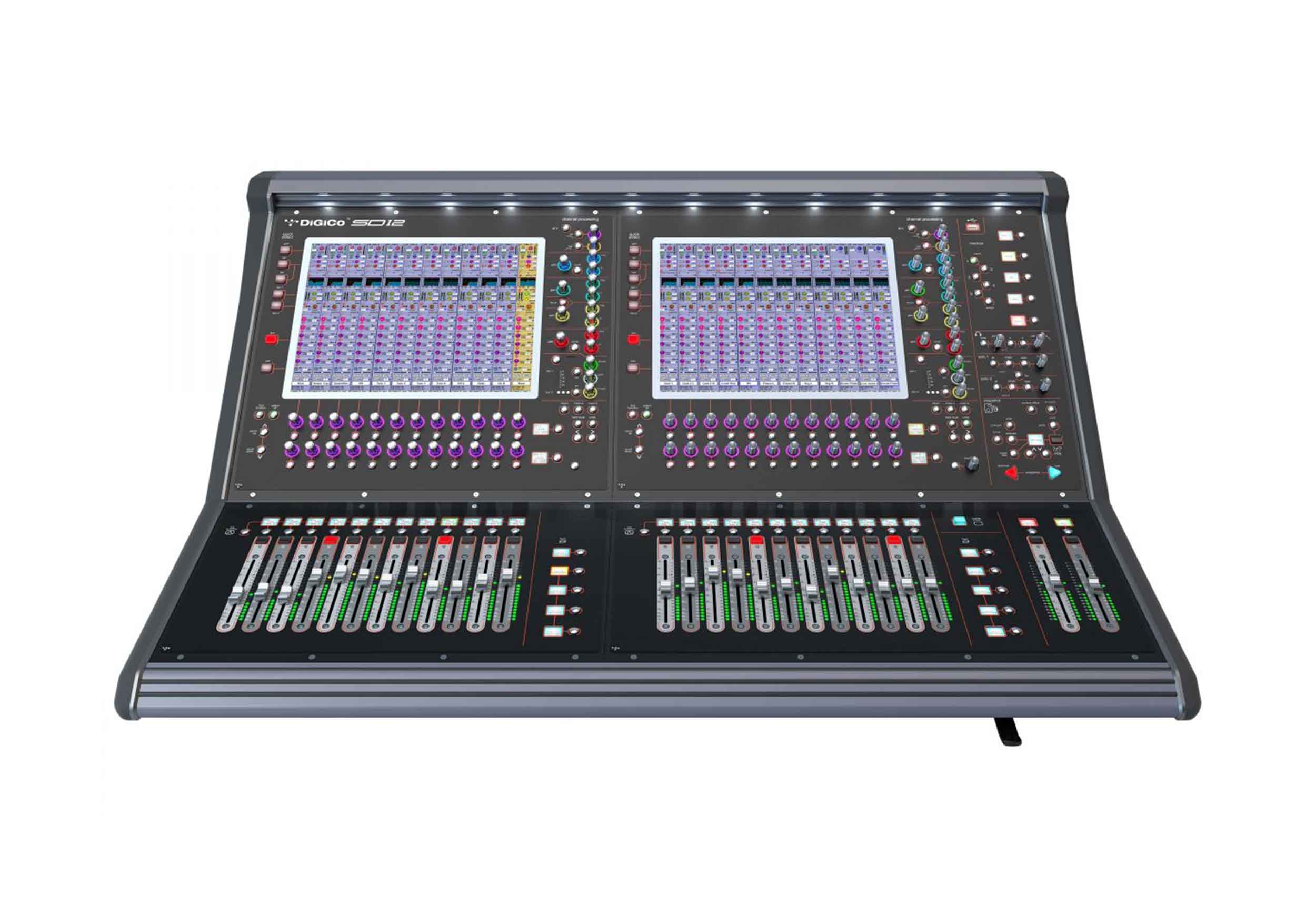

The DiGiCo X-SD12-96-MQ-RP delivers exceptional digital mixing performance with the advanced MQ Rack Package and MADI connectivity. Built on the SD12 96 platform, it provides 96 input channels and extensive processing power for complex professional productions. The Super FPGA technology and Core 2 software architecture ensure outstanding audio quality, fast operation, and reliable system performance. Engineers can manage large-scale shows with flexible routing, powerful processing, and efficient workflow control.
MQ Rack Package Integration

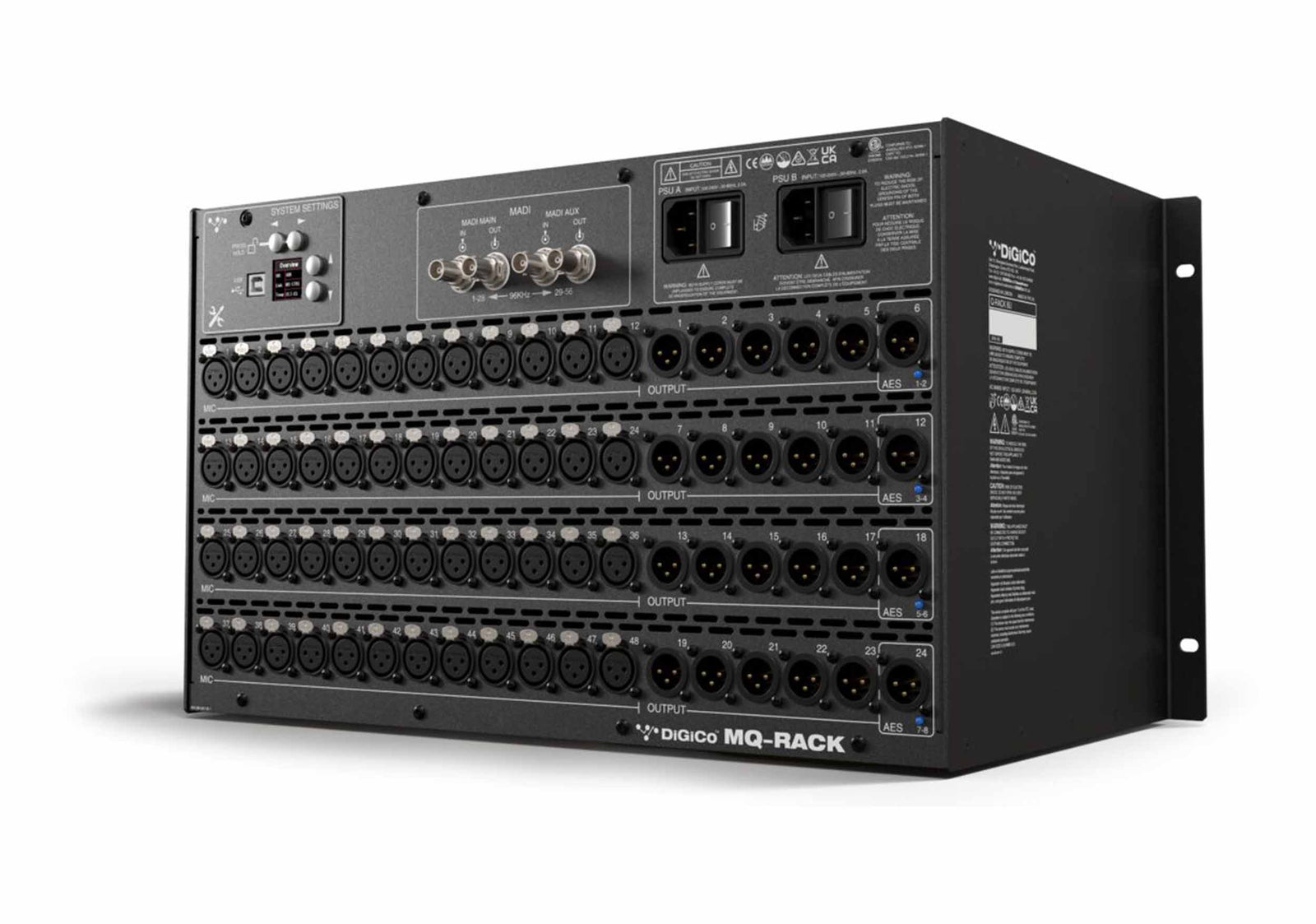

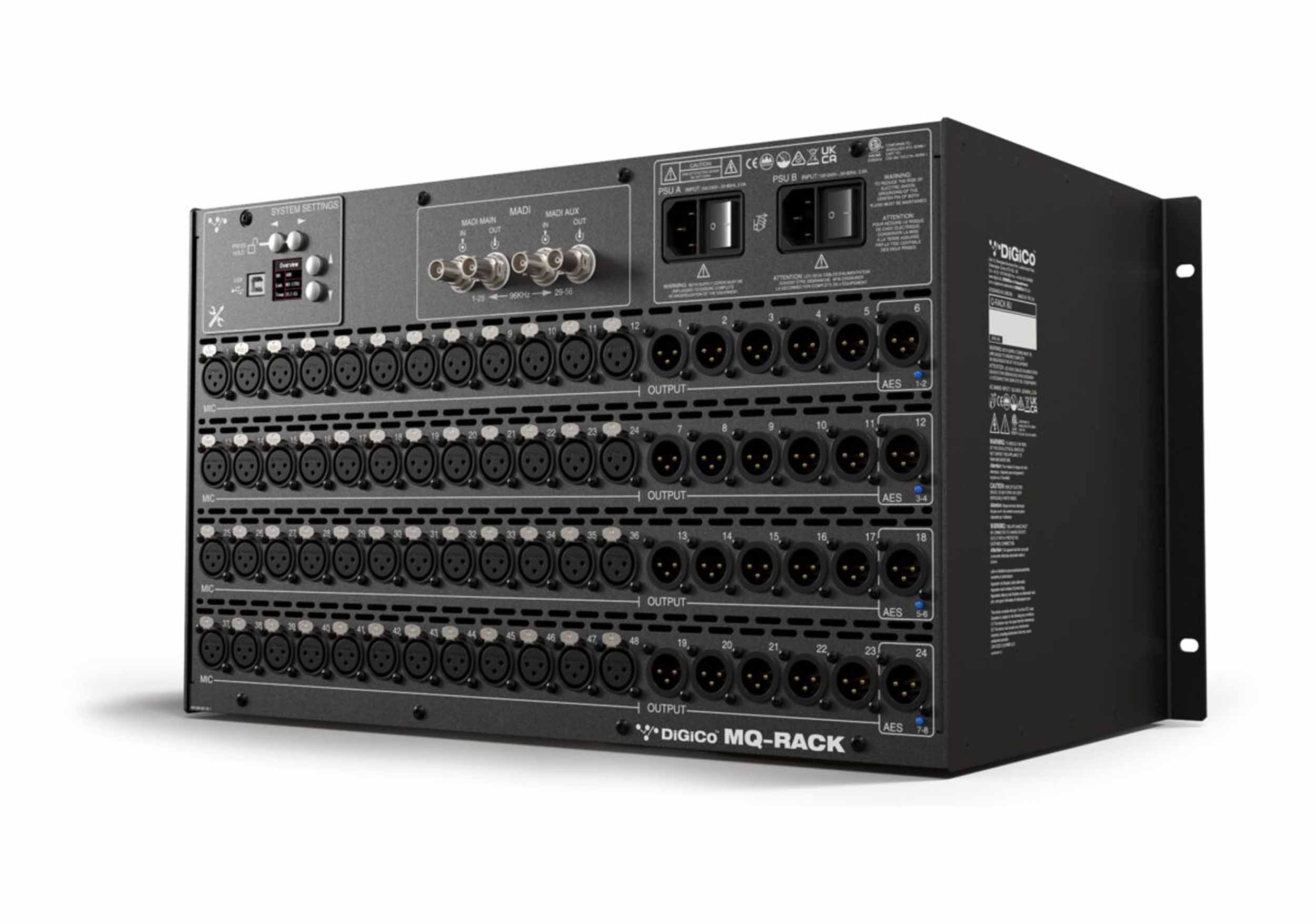

The MQ Rack Package provides a complete rack solution designed for flexible input and output expansion using MADI connectivity. The MQ-Rack offers professional audio distribution with high-quality analog inputs and outputs for demanding production environments. It integrates seamlessly with DiGiCo SD-Series consoles through MADI-based connections for reliable system operation. The rack configuration allows engineers to build efficient and scalable audio systems for different applications. Its professional design supports touring, broadcast, and installed sound requirements.
MADI Interface Connectivity
The integrated MADI interface provides reliable digital audio transmission between the console and MQ Rack Package. MADI technology enables high-channel-count audio transport with low latency and excellent signal stability. The connection method is widely used in touring, broadcast, and professional live sound systems. Engineers can easily integrate compatible DiGiCo racks, recording systems, and other digital audio equipment.
SD12 96: A True Sonic Powerhouse
Compact in size but big on features, the SD12 96 raises the bar as a multi-application digital console at an exceptionally affordable price point. Not only is the SD12 96 a true sonic powerhouse, it is the first in the SD-Range to feature an integrated recording interface which makes virtual sound checking a snap.
Designed to provide optimum performance in live touring, corporate, install, house of worship, theatre and broadcast environments, the SD12 96 incorporates the latest generation Super FPGA technology and Core 2 software to deliver unrivalled power and connectivity in a compact frame.
Designed for even easier operation, the SD12 96’s new DVI display output provides an overview of the console, while brighter LED meters and a DiGiCo Lightbar ensure optimum visibility.
Under The Hood

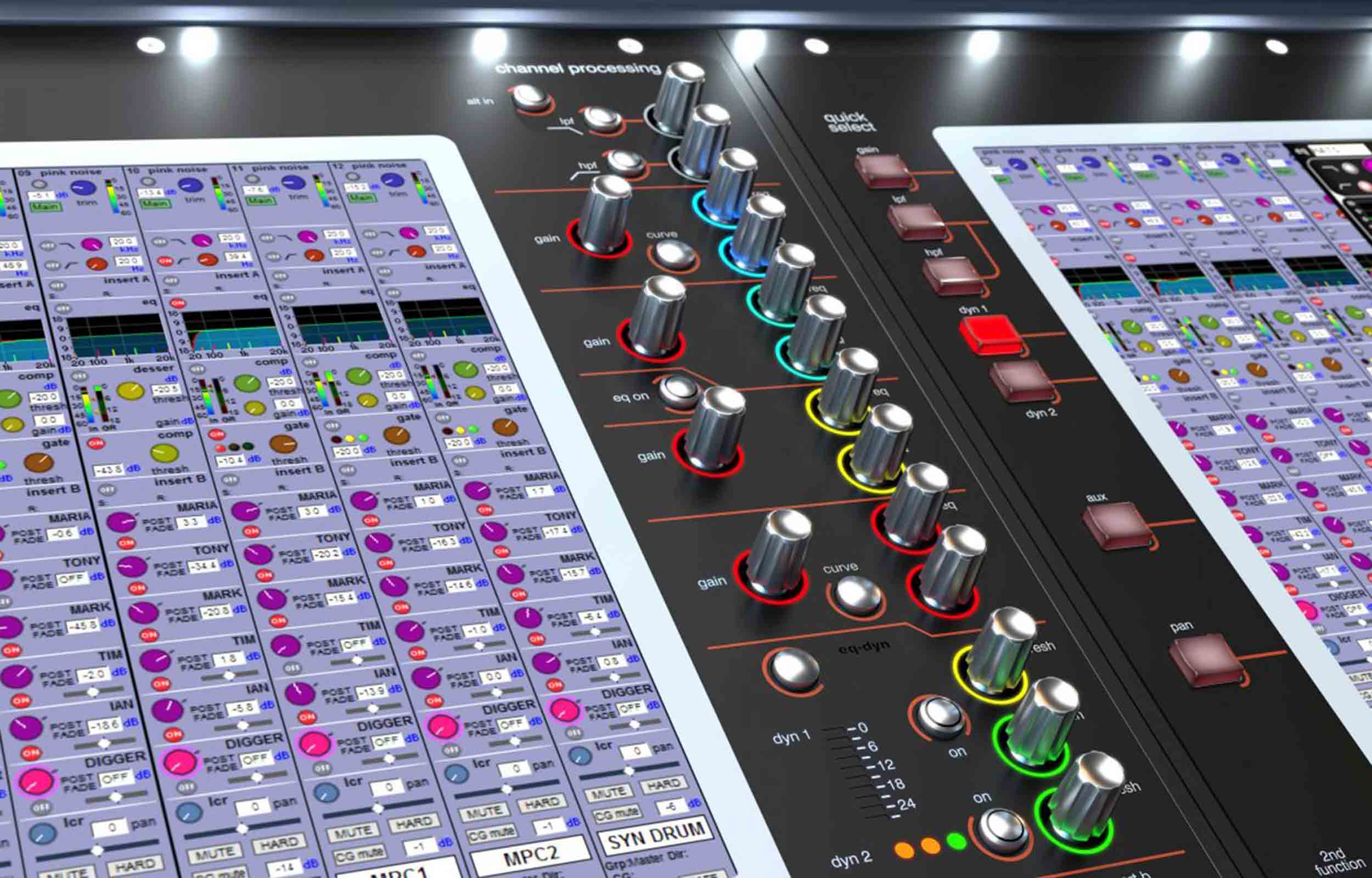

The SD12 96 boasts 96 channels at 48kHz/96kHz, delivering a wealth of functionality. Standard channel processing across both inputs and outputs includes Channel Delay, Single and Multi-Channel presets, Dual insert points Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).
On board are 155 Dynamic EQ processors which can be assigned to any of the input or output channels; 155 Multiband Compressors and 155 DiGiTuBes. All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 16 graphic EQs, 12 digital effects, and up to 12 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.
I/O

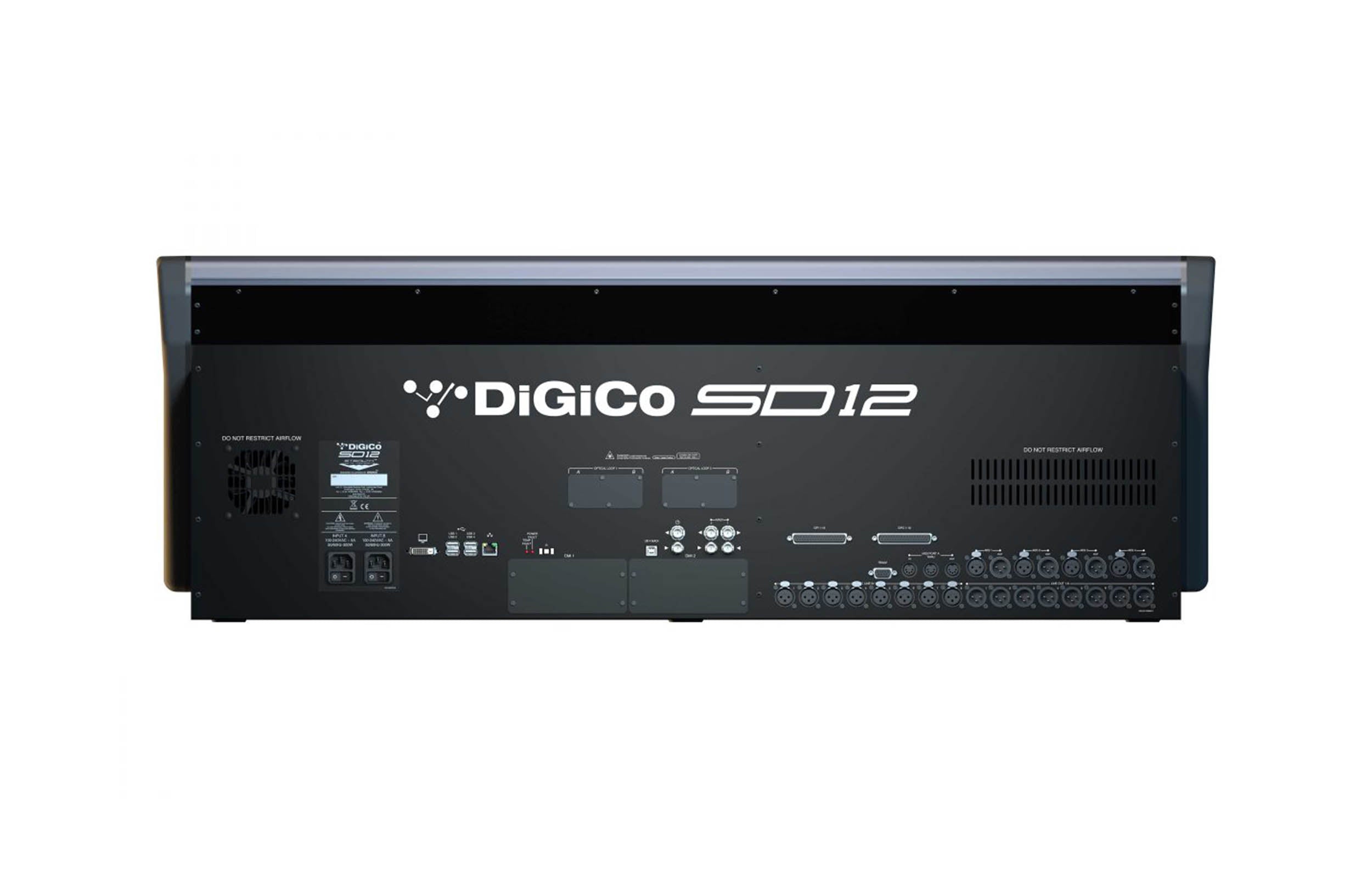

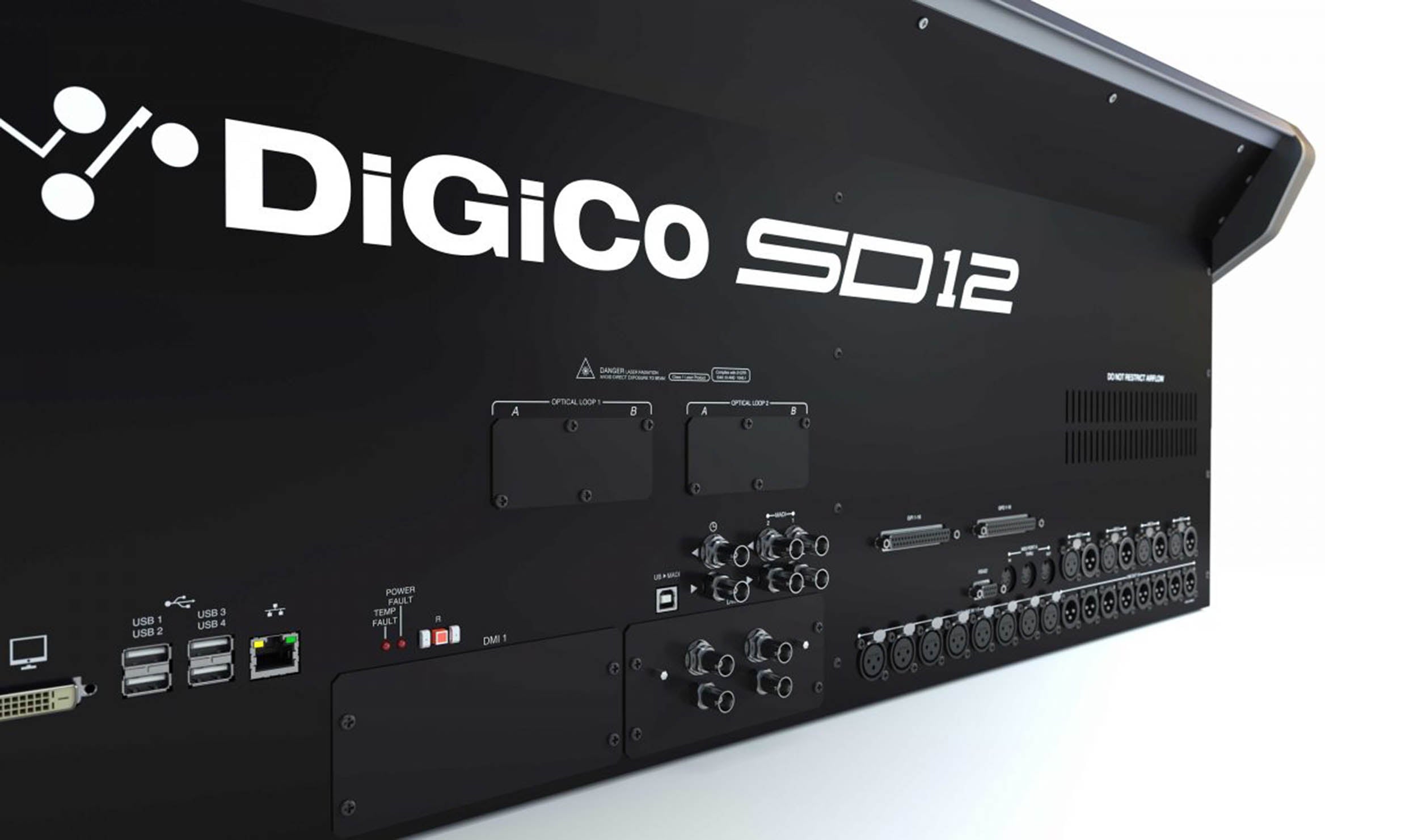

The SD12 96’s extensive local I/O section offers eight mic line inputs, eight-line outs, eight mono AES/EBU and dual MADI in/out. The SD12 96 comes complete with dual DMI (DiGiCo Multichannel Interface) option card slots, perfect for expandability with industry formats such as Analogue expansion, MADI, Dante, Waves SoundGrid, or Calrec’s Hydra 2 Network.
Users can also choose a factory-fit Optocore option which allows for connectivity to all DiGiCo racks and consoles in a redundant loop, and a DiGiCo SoundGrid DMI module giving instant access to 32 fully integrated low-latency Waves stereo multi-Rack.
What’s in the Box:
- X-S12-WS & X-MQ-RACK BNC MADI Rack 48/16
- DiGiCo MQ MADI Rack 448 Premium Analog In x 24 Premium Analog Out (*4 output sockets switchable to AES)
- Dust Cover and 100M MADI cables x 4
- Connections: MADI x 2, UB-MADI, DMI Port x 2
- Connectors: BNC
Product Specifications:
Package Type: MQ Rack Package designed as an advanced modular I/O expansion solution.

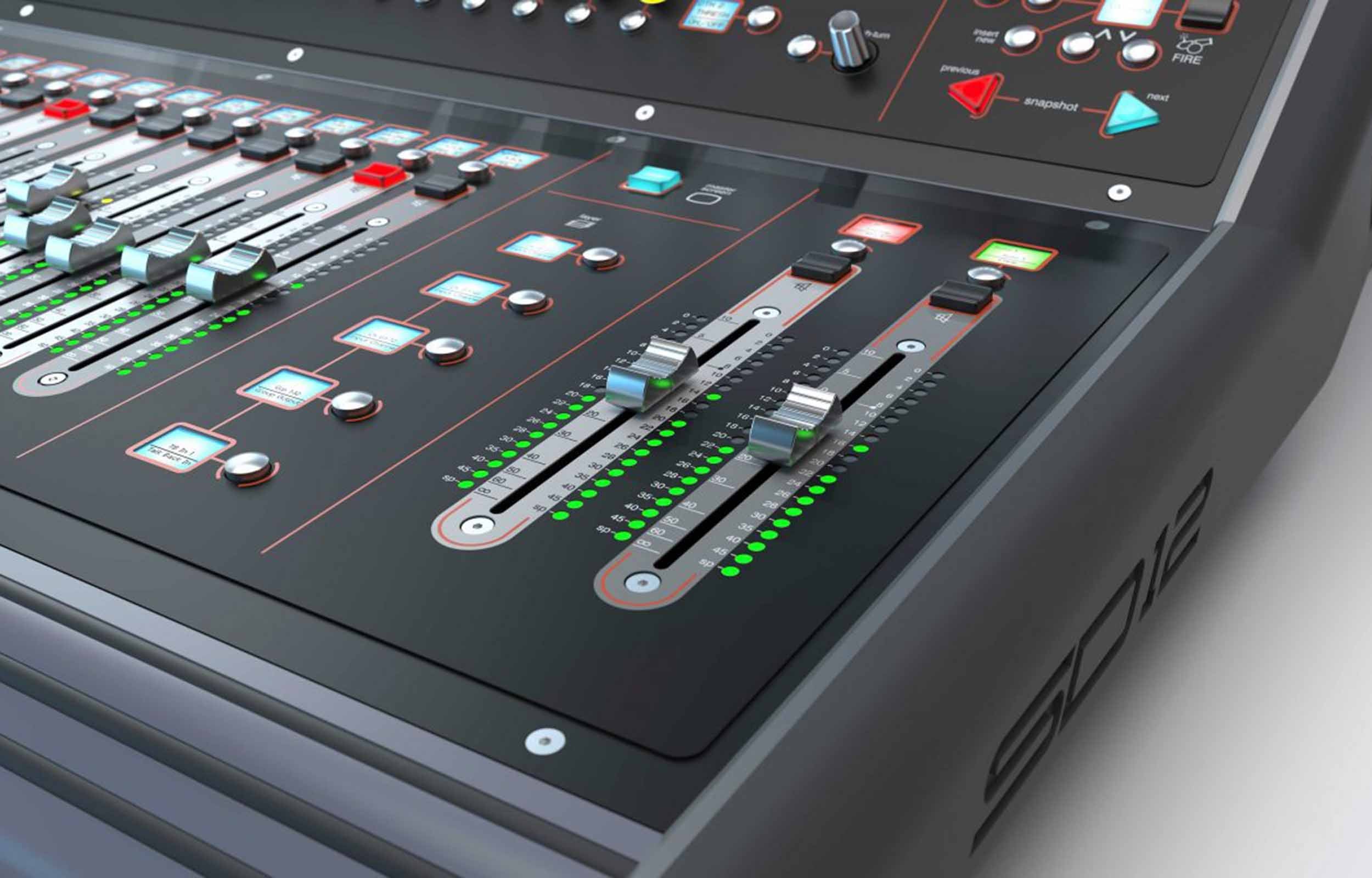

Faders: 26 x 100 mm touch-sensitive, motorized faders.
Screens: 2 x 15" high-resolution LCD touchscreens.
Input Channels: 96.
Busses: 48 Aux/Group busses plus master busses with Mono, Stereo, and LCR processing.
Matrix: 12 input x 8 output matrix with full processing.
Control Groups: 12 selectable groups supporting VCA-style, moving fader, and mute group modes.
Graphic EQ: 16 x 32-band graphic equalizers with ±12 dB gain.
Internal Effects: 12 stereo effects including reverb, delay, chorus, pitch, and enhancer.
Local I/O: 8 x Mic/Line inputs and 8 x AES I/O.
MADI Interface: 2 x BNC MADI interfaces.
Optic Interface: Optional.
Sampling Rates: 48 kHz / 96 kHz.
GPIO: 2 x D-Sub 37 connectors.
DMI Slots: 2 x DiGiCo Multichannel Interface slots.
External Sync: Word Clock, MADI, and Optics.
Power Requirements: 90–260 VAC, 50–60 Hz, 150 VA (140 W).
Sample Rate: 48 kHz or 96 kHz.
Processing Delay: Typical 1 ms (SD-Rack input to stage output at 96 kHz).
Internal Processing: Up to 40-bit floating-point with 24-bit A/D and D/A converters.
Frequency Response: ±0.6 dB (20 Hz–20 kHz).
THD: <0.05% @ unity gain, 10 dB input @ 1 kHz.
Channel Separation: Better than 90 dB (40 Hz–15 kHz).
Microphone Input Noise: Better than -126 dB equivalent input noise.
Maximum Output Level: +22 dBu.
Channel Modes: Mono, Stereo, and Multi.
Input Routing: Main and Alternate input.
Analog Gain: -20 dB to +60 dB.
Digital Trim: -40 dB to +40 dB.
Phase: Normal or Reverse.
Delay: Greater than 1 second with coarse and fine adjustment.
DiGiTuBe: Drive 0.01–50.0, Bias 0–6.
Filters: HPF and LPF, 20 Hz–20 kHz, 24 dB/octave.
Equalization: 4-band Parametric/Dynamic EQ with ±18 dB gain.
Dynamic EQ: Adjustable Threshold, Attack, Release, Ratio, and Over/Under modes.
Dynamics 1: Single-band or 3-band multiband compressor with Auto Gain.
Dynamics 2: Gate, Ducker, and Compressor with full side-chain controls.
Insert Points: Insert A (Pre EQ/Dynamics) and Insert B (Post EQ/Dynamics).
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade with ±18 dB level adjustment.
Output Routing: Outputs, Insert A, Insert B, FX, and Direct outputs.
Mute Modes: Channel Mute and Hard Mute.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Buss, Directs, Outputs, and Full Safe.
Fader: 100 mm motorized, -∞ to +10 dB.
Product Weight: 96 lbs. (42 kg) console only
Flight CaseWeight: 287 lbs. (130 kg) with optional flight case.
Product Dimensions (L x W x H): 44.25" x 31.30" x 15.31"
Flight Case Dimensions (L x W x H): 50.00" x 22.44" x 45.28"
