Description
The DiGiCo X-SD12-96-OP-EX-ULT delivers flagship SD-Series performance in a compact and highly capable digital mixing console. The Ultimate SD Package provides advanced functionality for engineers handling demanding live productions. Powered by the latest generation Super FPGA technology and Core 2 software, the console offers exceptional processing power and outstanding audio quality. With 96 input channels and 48 Aux/Group busses, it easily manages complex shows and large channel counts. Ultra-low latency processing ensures precise performance in every application. The SD12 96 is built to meet the expectations of today's professional audio engineers.
Ultimate SD Package
The Ultimate SD Package expands the capabilities of the SD12 96 with premium processing, advanced software functionality, and enhanced system performance. It is designed for engineers who require the highest level of operational flexibility and professional workflow. The package maximizes the console's processing resources while providing access to advanced features for complex productions. Its optimized software environment supports fast operation, reliable performance, and seamless integration into professional audio systems. Combined with the SD12 96 platform, the Ultimate package delivers exceptional mixing power for high-profile events. It is an ideal solution for touring companies, broadcasters, theaters, and large-scale live productions.
OpticalCON Optocore Connectivity
The OpticalCON Optocore connector provides a rugged fiber networking solution for professional audio systems. It enables high-speed transmission of multiple audio channels while maintaining excellent signal integrity over long cable distances. The durable OpticalCON connector protects fiber connections during repeated deployment in touring environments. It integrates seamlessly with DiGiCo stage racks, consoles, and Optocore network infrastructure. Redundant fiber networking enhances system reliability during mission-critical productions. This connectivity is ideal for concerts, broadcast facilities, theaters, and large-scale live events.
SD12 96: A True Sonic Powerhouse

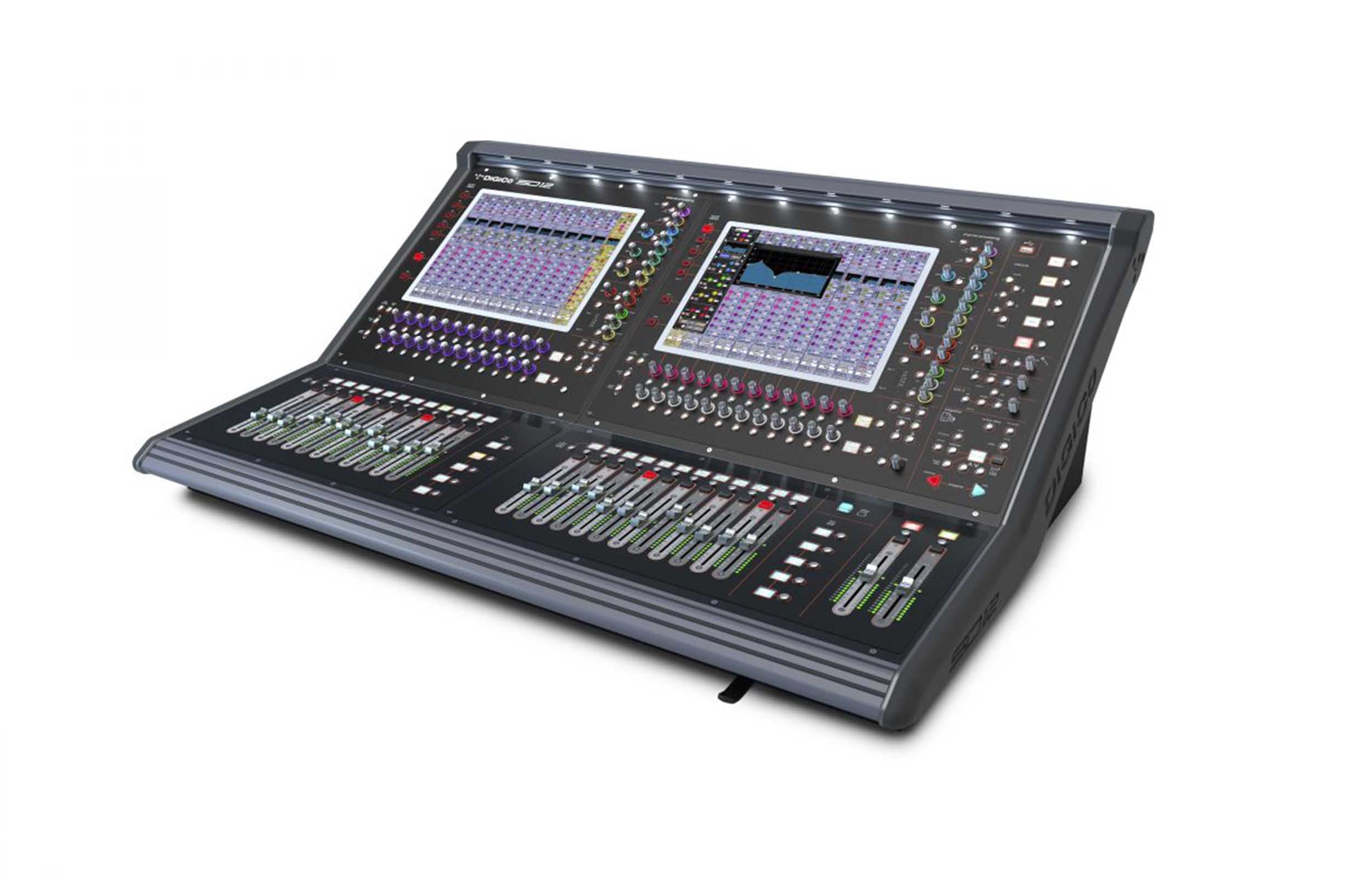

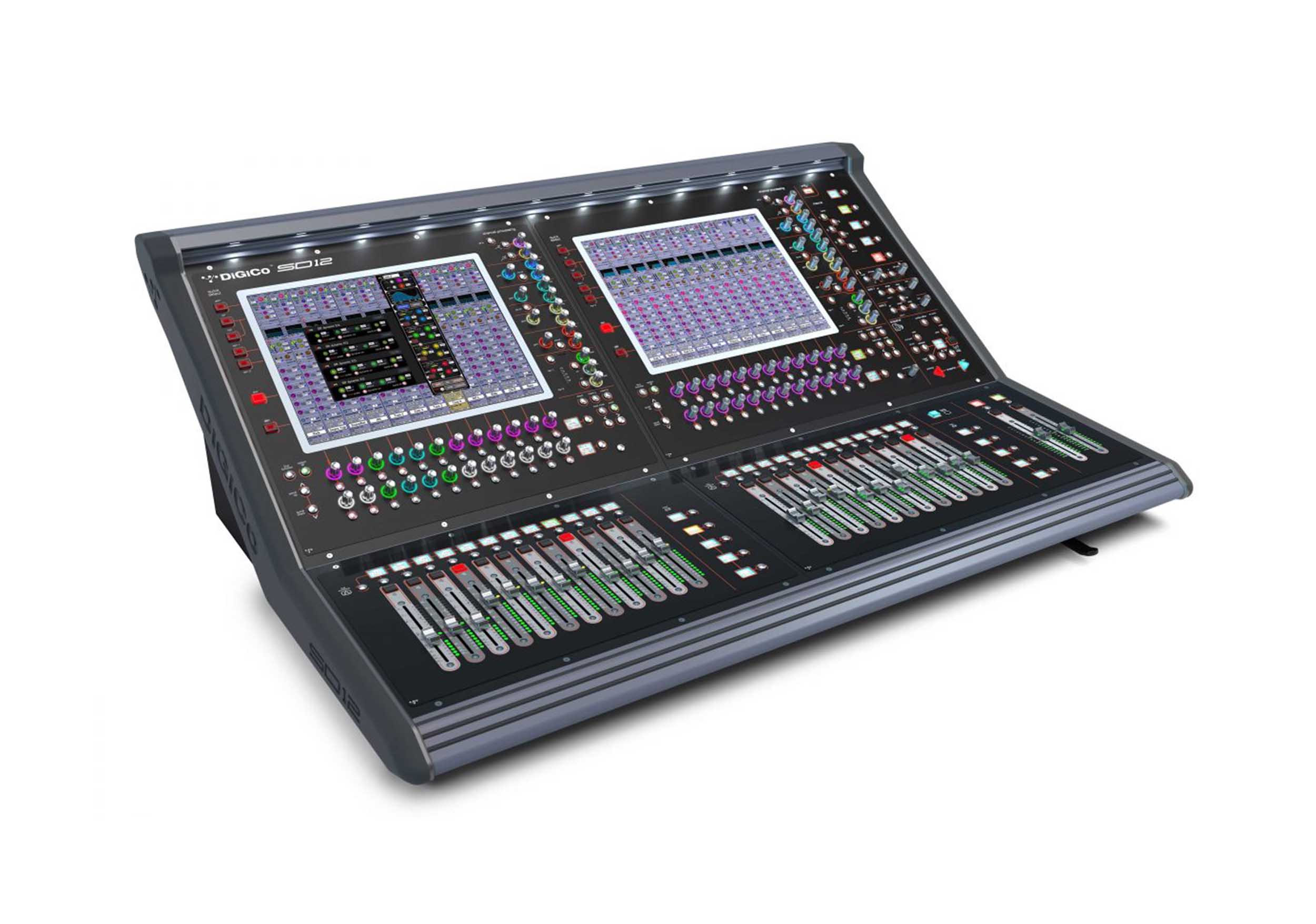

Compact in size but big on features, the SD12 96 raises the bar as a multi-application digital console at an exceptionally affordable price point. Not only is the SD12 96 a true sonic powerhouse, it is the first in the SD-Range to feature an integrated recording interface which makes virtual sound checking a snap.
Designed to provide optimum performance in live touring, corporate, install, house of worship, theatre and broadcast environments, the SD12 96 incorporates the latest generation Super FPGA technology and Core 2 software to deliver unrivalled power and connectivity in a compact frame.

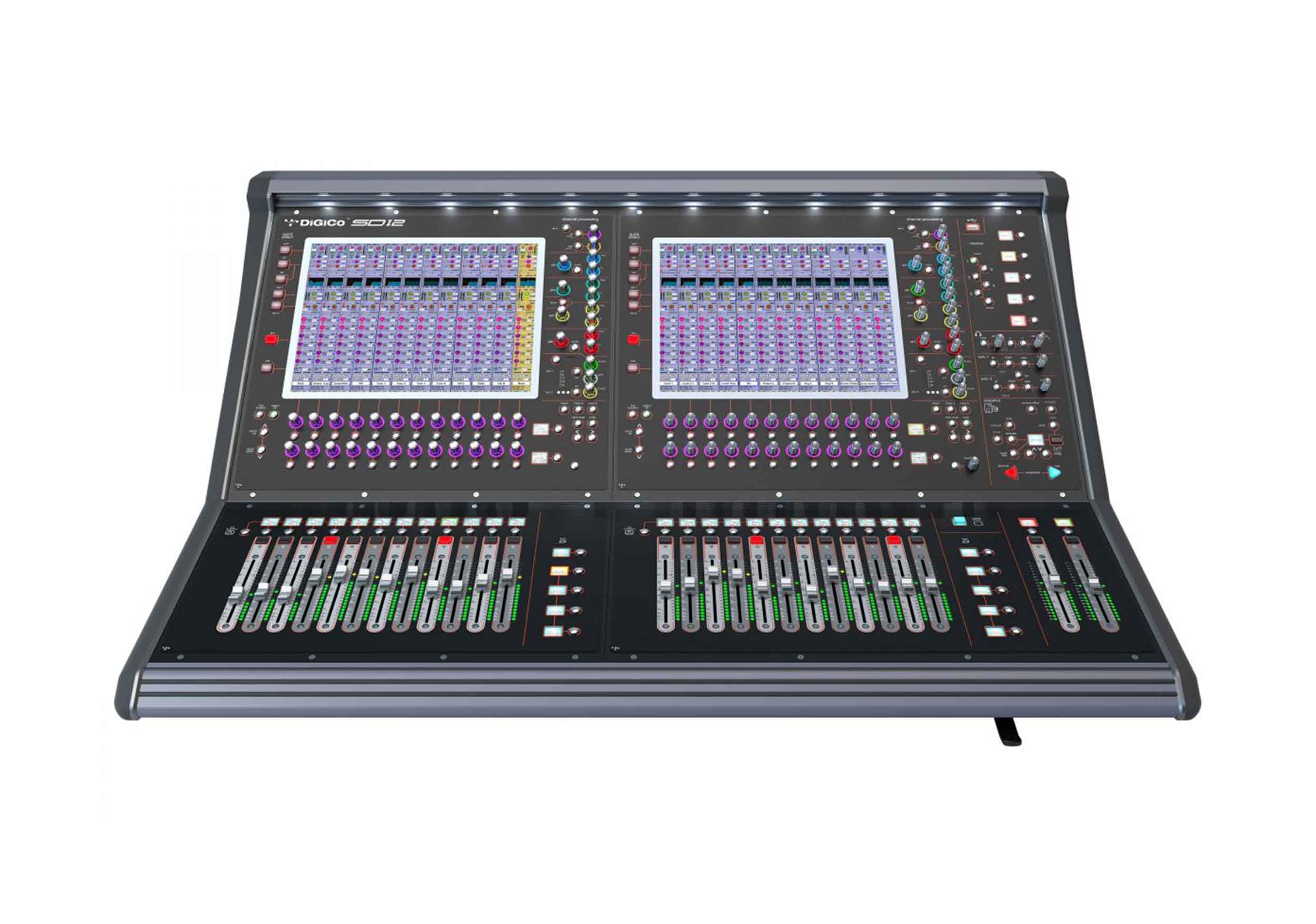

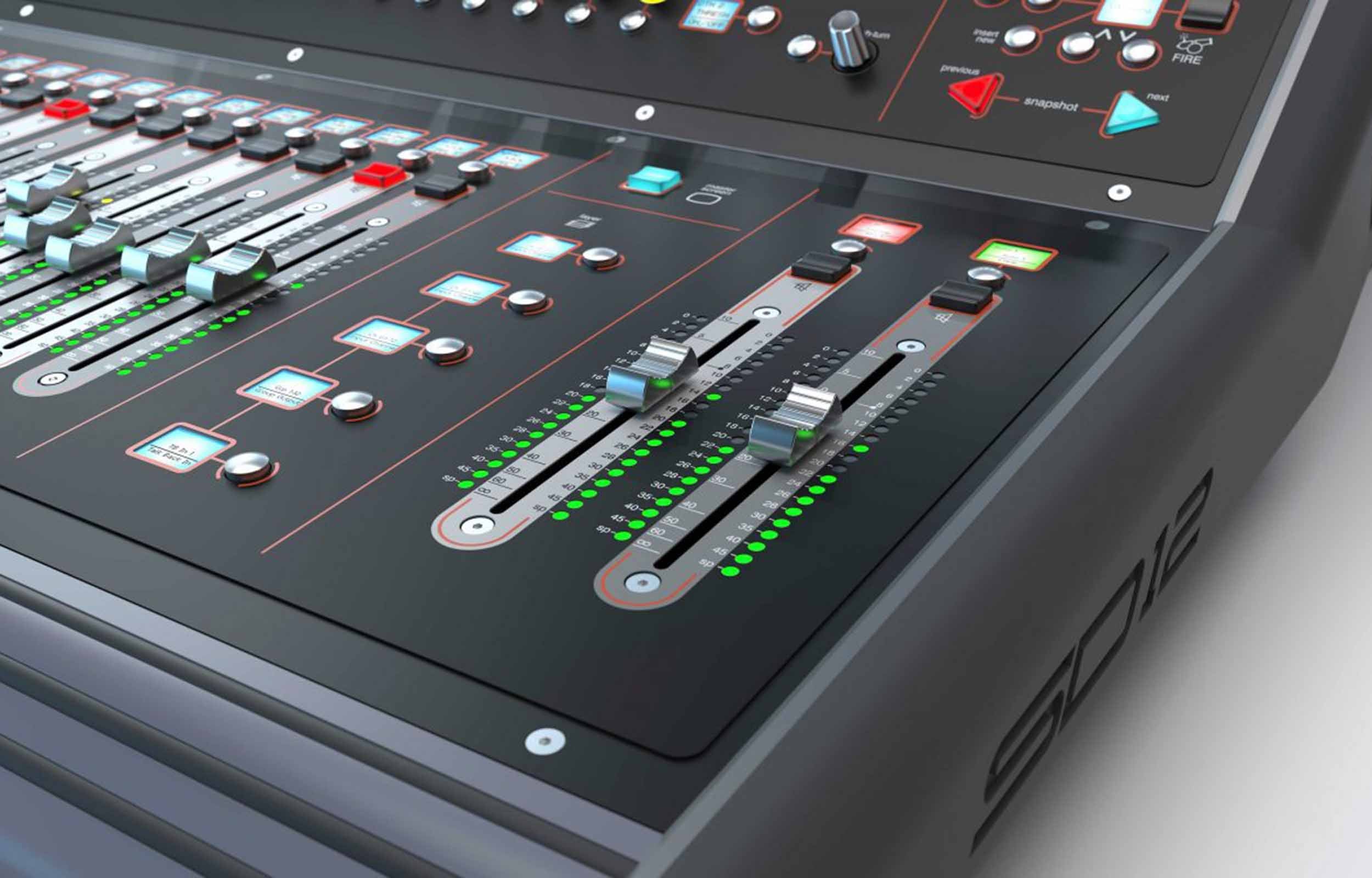

Designed for even easier operation, the SD12 96’s new DVI display output provides an overview of the console, while brighter LED meters and a DiGiCo Lightbar ensure optimum visibility. Dual 15-inch touchscreens, two assignable master faders and advanced surface connectivity is provided in the form of optional DMI cards.
Under The Hood

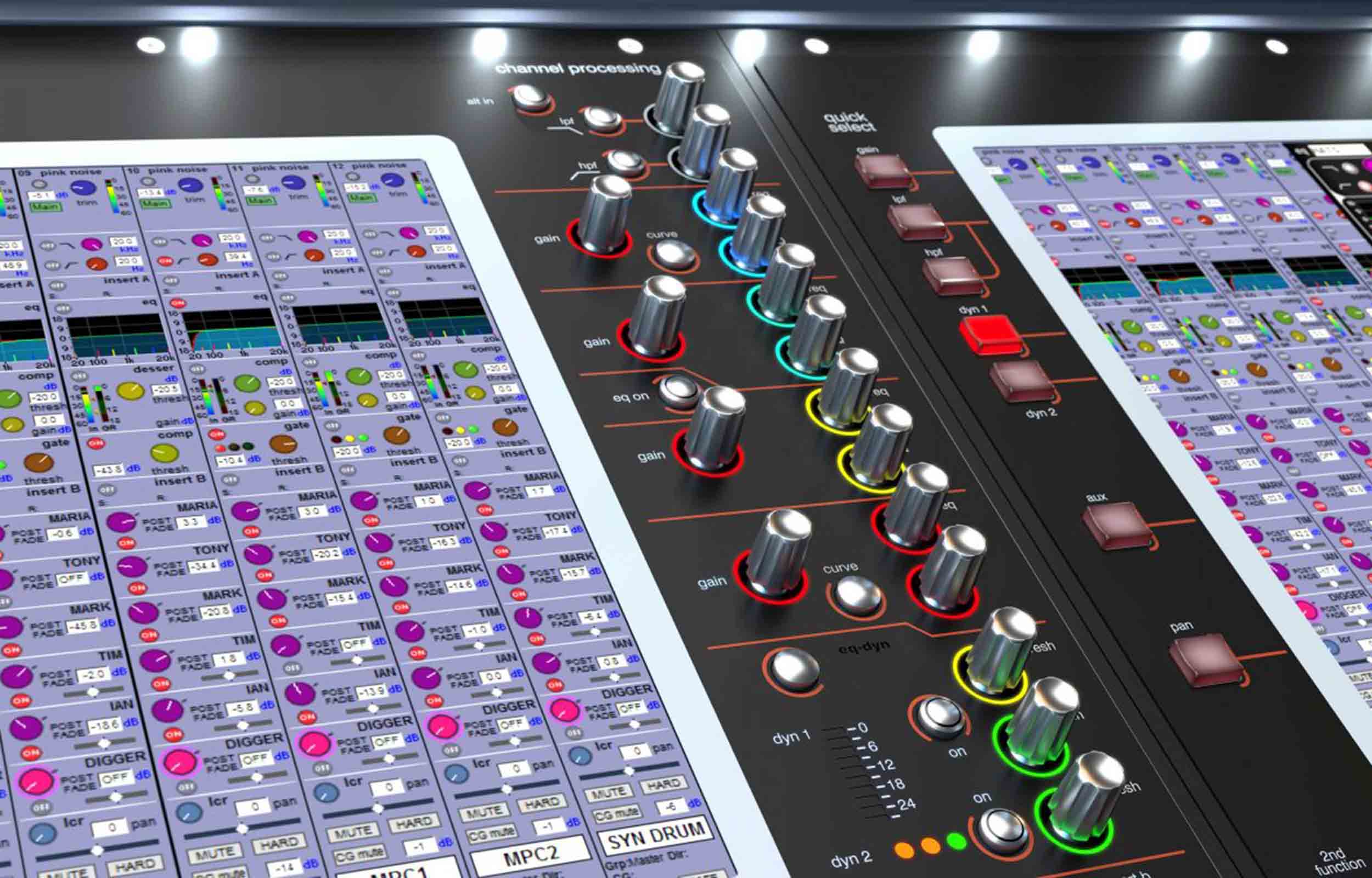

The SD12 96 boasts 96 channels at 48kHz/96kHz, delivering a wealth of functionality. Standard channel processing across both inputs and outputs includes Channel Delay, Single and Multi-Channel presets, Dual insert points Hi- and Lo-pass filters @ 24dB/octave, four-band parametric EQ with band curve selection, DiGiCo’s DYN 1 (Compressor, De-esser or Multiband Compressor) and DYN 2 (Gate, Compressor or Ducker).
On board are 155 Dynamic EQ processors which can be assigned to any of the input or output channels; 155 Multiband Compressors and 155 DiGiTuBes. All channels deliver the same pure signal path and feature set, so no matter how you set up your console, you never lose any resources. Within the master section are 16 graphic EQs, 12 digital effects, and up to 12 control groups (VCAs). Using snapshots, engineers can switch between complete configurations at a touch.
I/O

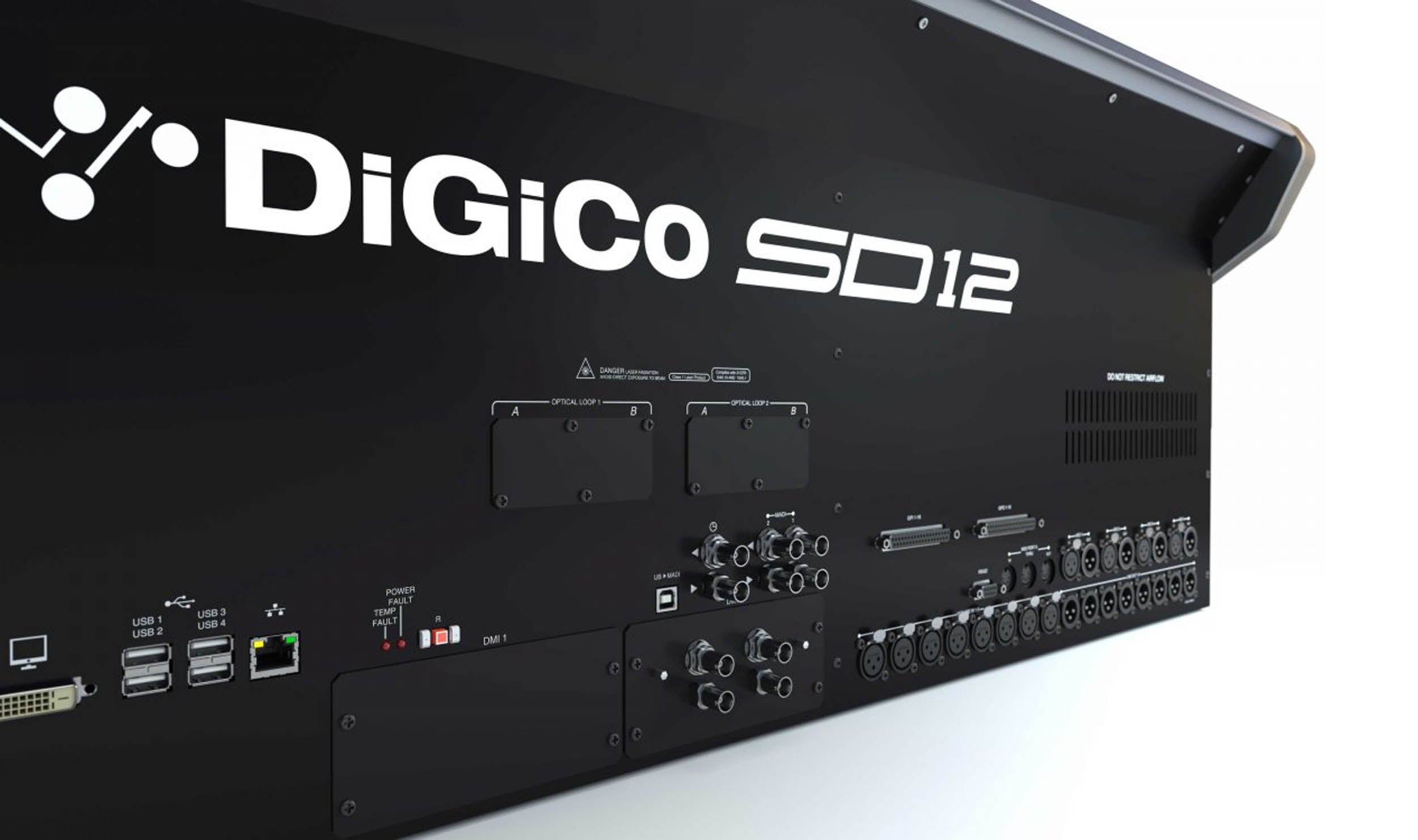

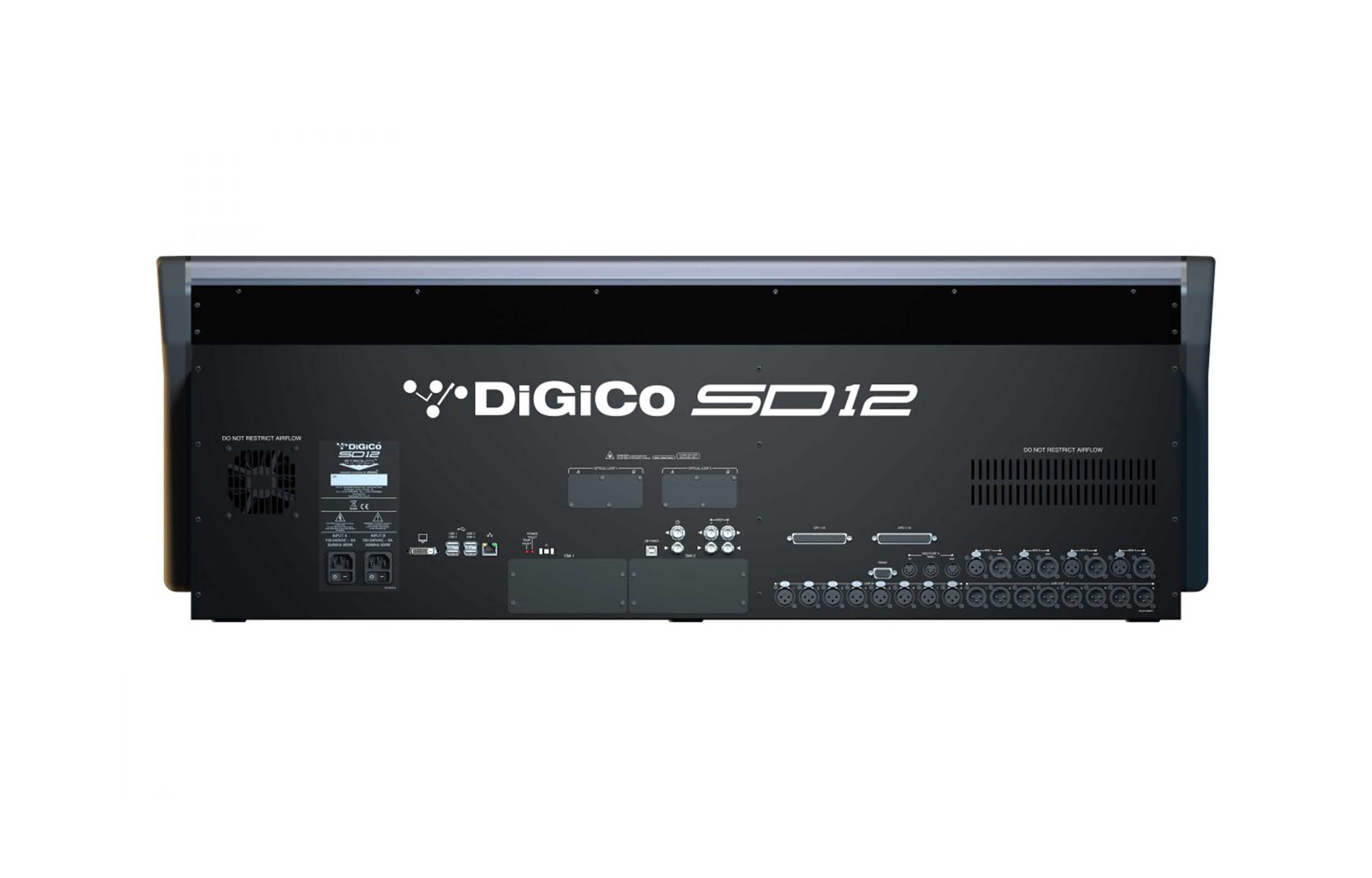

The SD12 96’s extensive local I/O section offers eight mic line inputs, eight-line outs, eight mono AES/EBU and dual MADI in/out. The SD12 96 comes complete with dual DMI (DiGiCo Multichannel Interface) option card slots, perfect for expandability with industry formats such as Analogue expansion, MADI, Dante, Waves SoundGrid, or Calrec’s Hydra 2 Network.
Users can also choose a factory-fit Optocore option which allows for connectivity to all DiGiCo racks and consoles in a redundant loop, and a DiGiCo SoundGrid DMI module giving instant access to 32 fully integrated low-latency Waves stereo Multi-Rack.
What’s in the Box:
- One SD HMA Rack (56 Mic In x 40 Out x 16 AES-O)
- Ultimate Stadius' 32-Bit Mic Pre-Amp & 32-Bit Output Package
- HMA Optics cable 150M on spool (492 ft.) x 2
- Connections: MADI x 2, Optics x 1
- UB-MADI, DMI Port x 2
- Connectors: BNC, HMA
Product Specifications:
Connector: OpticalCON Optocore Connector.
Faders: 26 x 100 mm touch-sensitive, motorized faders.
Screens: 2 x 15" high-resolution LCD touchscreens.
Input Channels: 96.
Ultimate SD Package: Factory-configured Ultimate package includes the SD12-96 console with expanded software features and premium connectivity options for demanding live sound applications.
Busses: 48 Aux/Group busses plus master busses with Mono, Stereo, and LCR processing.
Matrix: 12 input x 8 output matrix with full processing.
Control Groups: 12 selectable groups supporting VCA-style, moving fader, and mute group modes.
Graphic EQ: 16 x 32-band graphic equalizers with ±12 dB gain.
Internal Effects: 12 stereo effects including reverb, delay, chorus, pitch, and enhancer.
Local I/O: 8 x Mic/Line inputs and 8 x AES I/O.
MADI Interface: 2 x BNC MADI interfaces.
Optic Interface: Optional.
Sampling Rates: 48 kHz / 96 kHz.
GPIO: 2 x D-Sub 37 connectors.
DMI Slots: 2 x DiGiCo Multichannel Interface slots.
External Sync: Word Clock, MADI, and Optics.
Power Requirements: 90–260 VAC, 50–60 Hz, 150 VA (140 W).
Sample Rate: 48 kHz or 96 kHz.
Processing Delay: Typical 1 ms (SD-Rack input to stage output at 96 kHz).
Internal Processing: Up to 40-bit floating-point with 24-bit A/D and D/A converters.
Frequency Response: ±0.6 dB (20 Hz–20 kHz).
THD: <0.05% @ unity gain, 10 dB input @ 1 kHz.
Channel Separation: Better than 90 dB (40 Hz–15 kHz).
Microphone Input Noise: Better than -126 dB equivalent input noise.
Maximum Output Level: +22 dBu.
Channel Modes: Mono, Stereo, and Multi.
Input Routing: Main and Alternate input.
Analog Gain: -20 dB to +60 dB.
Digital Trim: -40 dB to +40 dB.
Phase: Normal or Reverse.
Delay: Greater than 1 second with coarse and fine adjustment.
DiGiTuBe: Drive 0.01–50.0, Bias 0–6.
Filters: HPF and LPF, 20 Hz–20 kHz, 24 dB/octave.
Equalization: 4-band Parametric/Dynamic EQ with ±18 dB gain.
Dynamic EQ: Adjustable Threshold, Attack, Release, Ratio, and Over/Under modes.
Dynamics 1: Single-band or 3-band multiband compressor with Auto Gain.
Dynamics 2: Gate, Ducker, and Compressor with full side-chain controls.
Insert Points: Insert A (Pre EQ/Dynamics) and Insert B (Post EQ/Dynamics).
Direct Outputs: Pre-Mute, Pre-Fade, or Post-Fade with ±18 dB level adjustment.
Output Routing: Outputs, Insert A, Insert B, FX, and Direct outputs.
Mute Modes: Channel Mute and Hard Mute.
Solo Modes: Solo Buss 1, Solo Buss 2, Both, and Auto Solo.
Channel Safe: Input, EQ, Dynamics, Aux, Pan, Fader/Mute, Inserts, Buss, Directs, Outputs, and Full Safe.
Fader: 100 mm motorized, -∞ to +10 dB.
Product Weight: 96 lbs. (42 kg) console only
Flight CaseWeight: 287 lbs. (130 kg) with optional flight case.
Product Dimensions (L x W x H): 44.25" x 31.30" x 15.31"
Flight Case Dimensions (L x W x H): 50.00" x 22.44" x 45.28"
