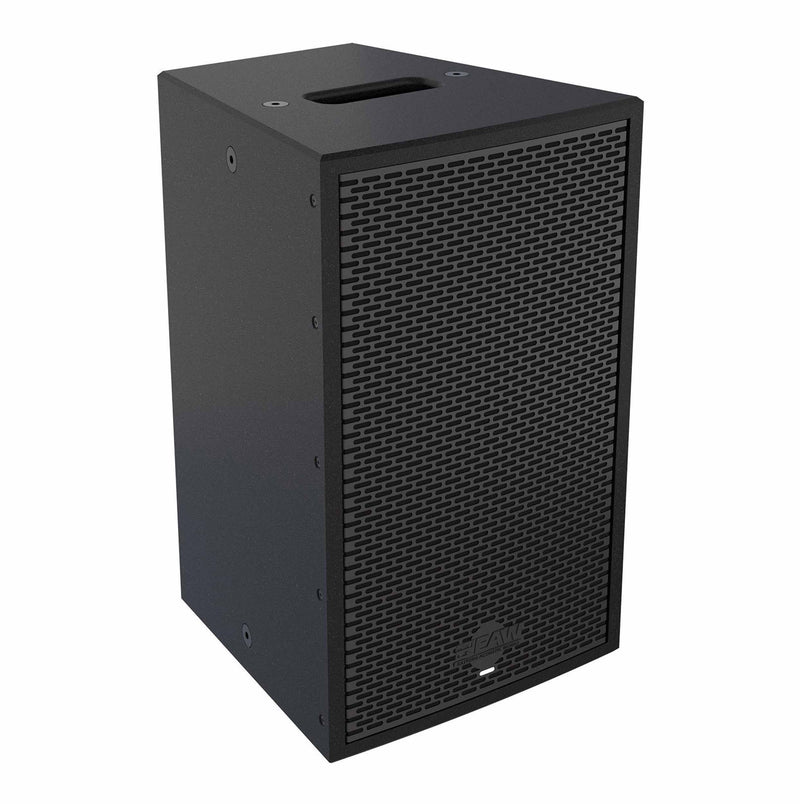

EAW RSX89, 2-Way Self-Powered Loudspeaker - 2 x 500W

The EAW RSX89, 2-Way Self-Powered Loudspeaker - 2 x 500W is designed to streamline setup and deliver maximum results in minimum time, RADIUS couples unique and intelligent features with EAW’s signature acoustical design to deliver solutions for rental firms and system integrators. The RSX89 features onboard bi-amplified electronics (500W RMS/ 1000W peak) featuring signature EAW DSP including Focusing and DynO for pristine impulse response.
The MK inspired constant directivity horn 90°x60° coverage and is rotatable for flexibility. EAWmosaic app provides total system optimization from anywhere in the venue, plus intuitive room design and prediction in a single, comprehensive application. With the proven sonic performance of EAW’s acoustic design and DSP mastery plus full Dante integration across the line, RADIUS delivers an intelligent and flexible system to fit any budget.

Product Specifications:

Operating Range: 70 Hz to 20 kHz

Nominal Beam width: Horizontal 90°; Vertical 60°

Input Type: Electronically balanced

Max Input Level: 21dBu

Impedance: 20 kOhms (balanced)

Input Selection: Analog, Dante

Amplifiers & Processing (LF/HF) Type: Modified Class D (LF/HF)

Maximum Output: 500W (LF/HF)

Driver Protection: Integral DSP limiting (LF/HF)

AC Mains (nominal) Connector: Neutrik PowerCON

Input: 100 V to 240 V

Frequency: 50 Hz to 60 Hz

Power Consumption: Idle - 50 W

Peak Draw: 400 W

Controls/Communication Connections: 2x Neutrik etherCON, RJ-45

Protocols: Ethernet/Dante

Software: EAWmosaic (available on the App Store)

User Controls: Push-button Rotary Encoder

Dimensions: 19.5, 12.4, 12.8

Weight: 33
