EBS Stanley Clarke Signature Acoustic Preamp Pedal with 2 Channels

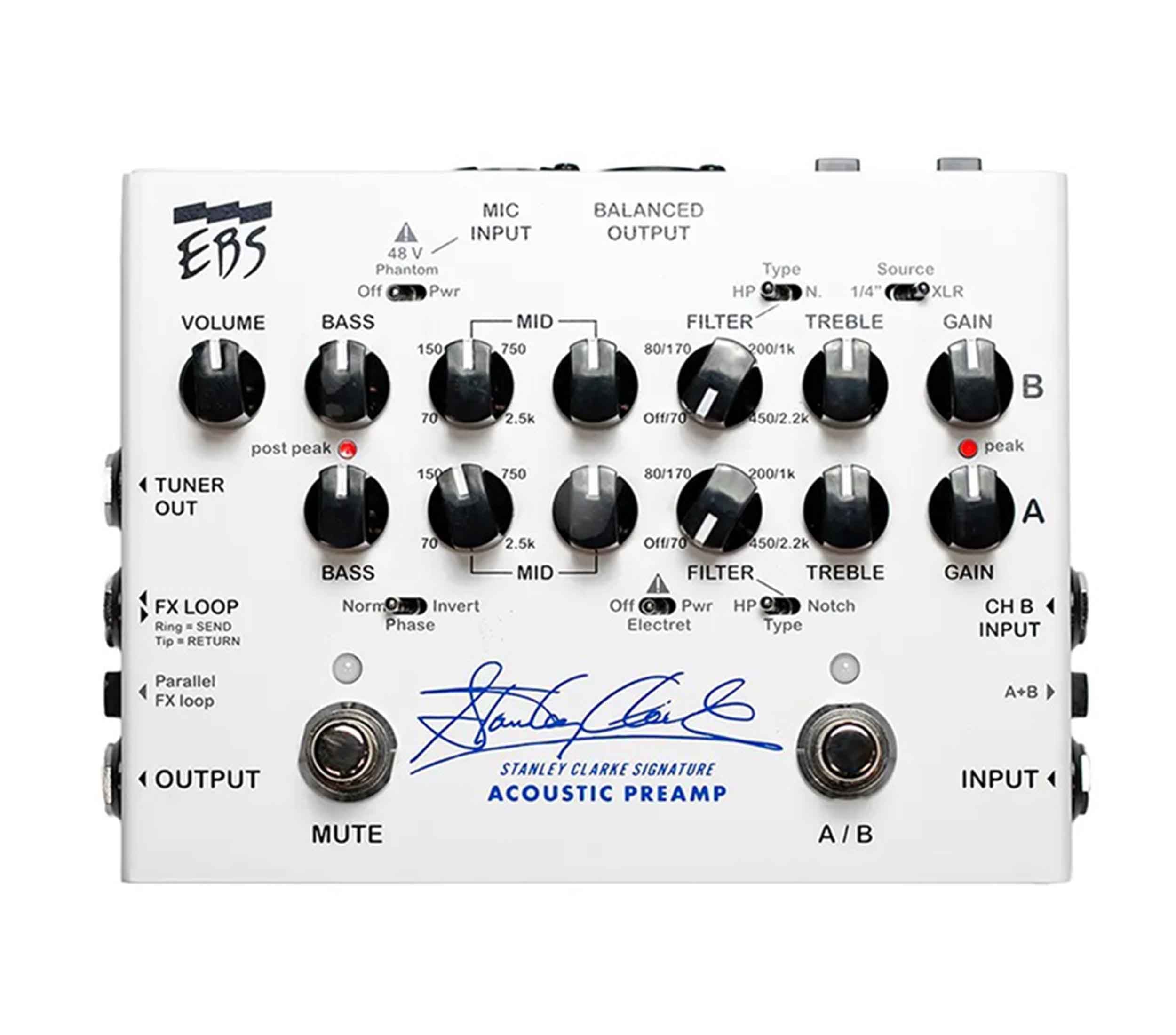

The EBS Stanley Clarke Signature Acoustic Preamp is a versatile two-channel analog preamp developed in collaboration with legendary bassist Stanley Clarke and crafted with upright bass in mind. Designed to help players manage the unique challenges of amplifying acoustic bass, it combines studio-grade signal quality with high-impedance 10 MΩ inputs, dedicated high-pass/notch filters, and flexible A/B or A+B channel operation. Channel A supports electret pickups, while Channel B features an XLR microphone input with +48V phantom power for blending an external microphone with a pickup.

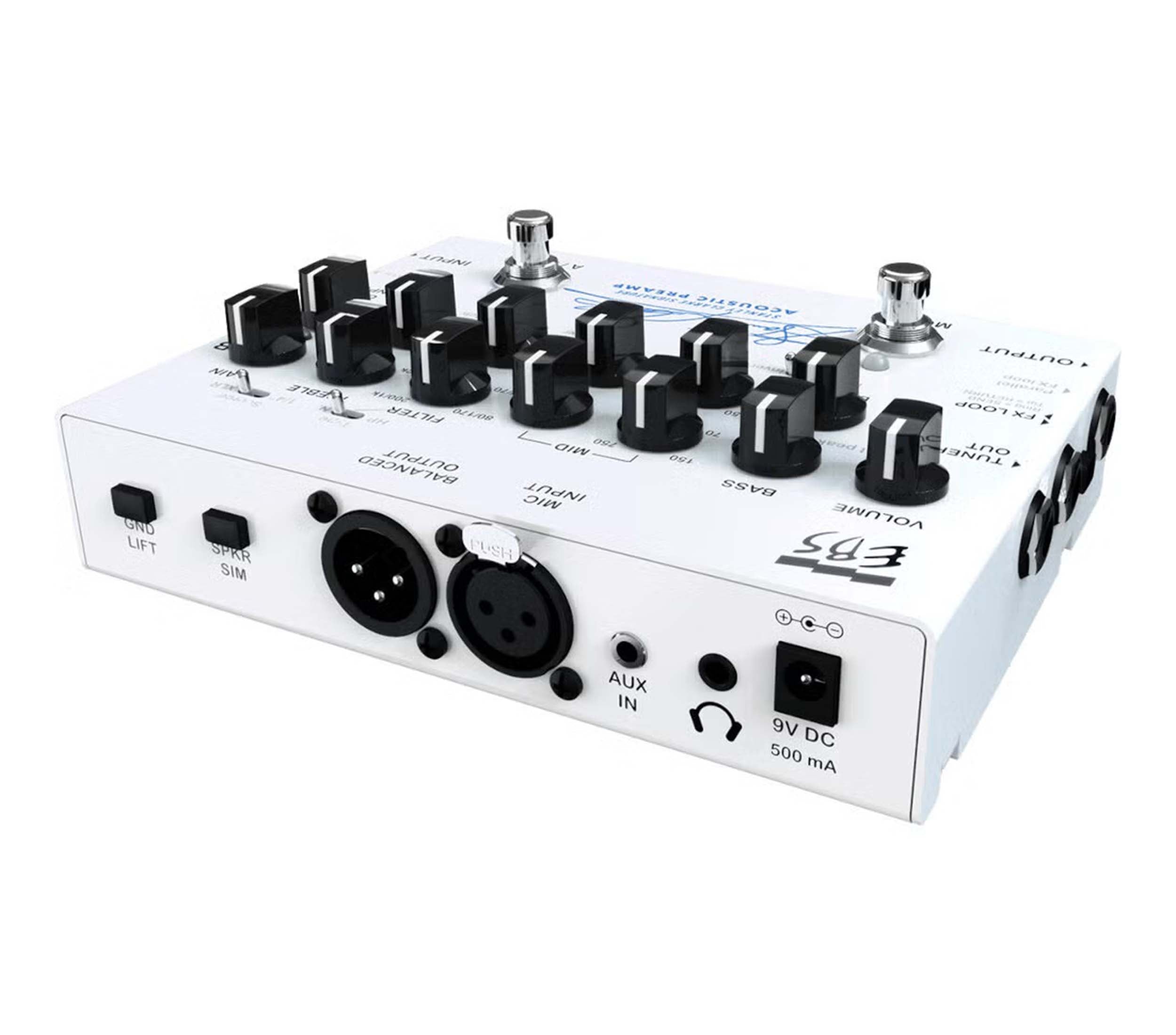

The preamp provides extensive routing flexibility for professional performance and recording setups. Its effects loop can operate in serial or parallel mode, while the balanced output includes a speaker simulator and ground lift for convenient connection to front-of-house systems or recording equipment. An auxiliary input and professional-grade headphone output provide additional monitoring and playback options, while the two channels can also be used for seamless switching between different instruments.

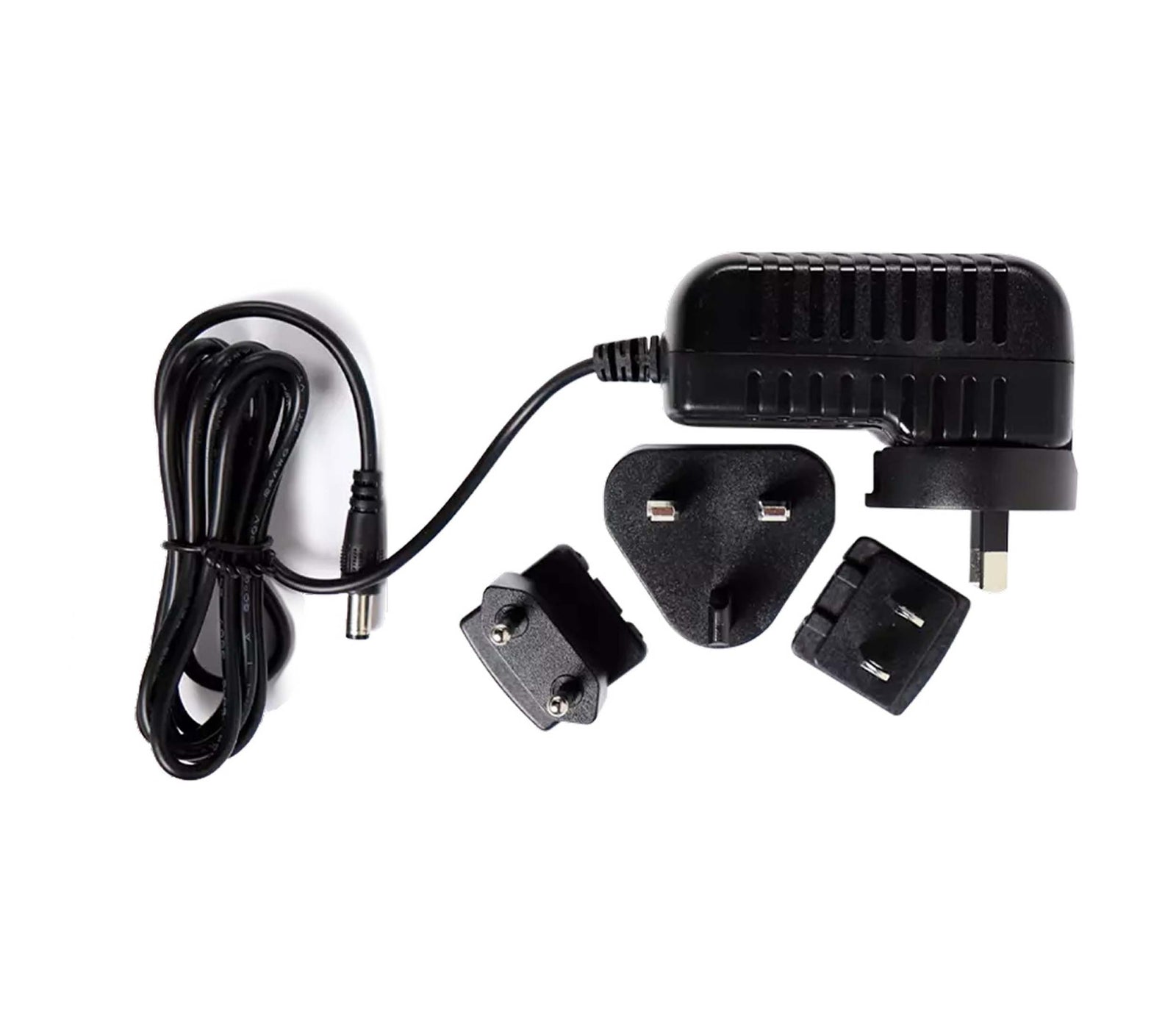

Although optimized for upright bass, the Stanley Clarke Signature Preamp also works exceptionally well with electric bass, offering powerful filtering and tonal control for different instruments and playing styles. Its internal ±15V operating rails, generated from a standard 9V DC supply, provide ample headroom for preserving the dynamics and nuances of your instrument. A dedicated 9V DC power supply is included, making this compact preamp a flexible centerpiece for professional bass rigs.

Product Specifications:

Input Impedance: 10 MΩ, 22 pF

Gain Range: -∞ to +30 dB

Gain Peak LED: +10 dBV

Frequency Response: 20 Hz–20 kHz

Bass Filter: Shelving, ±15 dB @ 40 Hz

Mid Filter: Bandpass, ±13 dB

Mid Frequency Range: 70–2,500 Hz

Mid Q: 0.8

Treble Filter: Shelving, ±15 dB @ 10 kHz

HP Filter: 12 dB/Octave High Pass

HP Frequency Range: 20–450 Hz

Notch Filter: Bandpass Notch

Notch Frequency Range: 70–2,200 Hz

Notch Q: 7

Notch Attenuation: 7 dB

Electret Power: 5V, 2 mA

Effects Loop Level: -10 dBV Nominal

Effects Loop Gain: Unity (1:1)

Effects Loop Output Impedance: 2 kΩ

Effects Loop Input Impedance: 100 kΩ

Effects Loop Modes: Serial or Parallel

Phones Output: 32–200 Ω Recommended

Aux Input Impedance: 20 kΩ

Aux Input Level: -10 dBV Nominal

Output Impedance: 1 kΩ

Output Signal Level: 0 dBV Nominal

Balanced Output Level: -20 dBV Nominal

Balanced Output: XLR

Balanced Output Options: Ground Lift, Speaker Simulation

Balanced Input Level: -30 dBV Nominal

Balanced Input: XLR

Phantom Power: 48V

Power Requirements: 500 mA @ 9V Idle / 800 mA @ 9V Maximum

Weight: 1.5 lb.

Dimensions (L × W × H): 6.6 × 4.9 × 2.1 in
