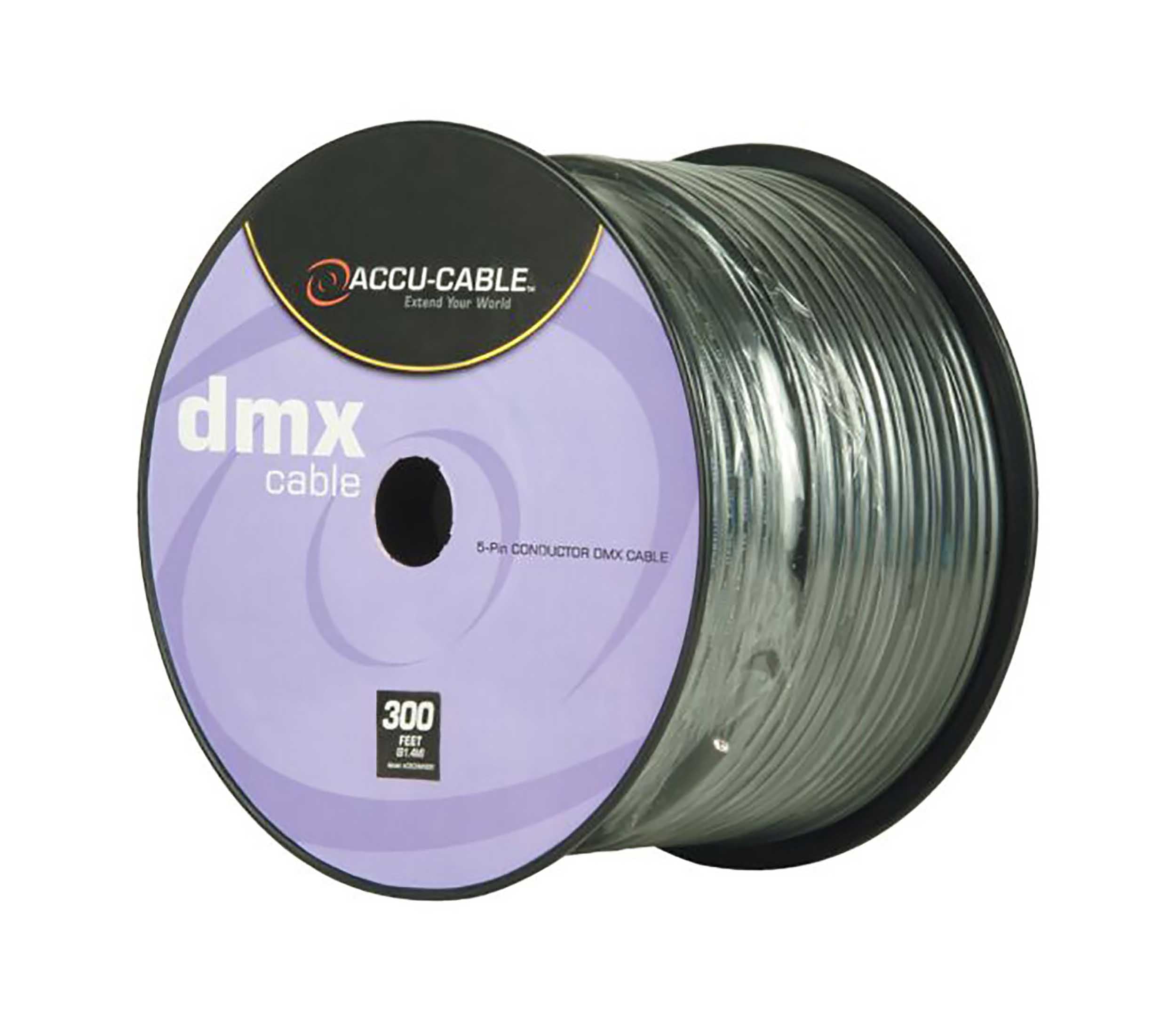

Elation AC5CDMX300 5pin XLR Cable Spools

Save 19%
UPC: 819730011183
Sale price$249.99 Regular price$307.95
Sold out

2 Day Shipping is Free or heavily discounted on most items! Make sure you select 2nd Day Shipping. We want to ship your order the fastest way possible.

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we can help.

We price match competitor advertised prices.

Our online prices are always honored instore guaranteed.


The Elation AC5CDMX300 22 AWG stranded (0.15 x 19 ) tinned copper conductors, polyethylene insulation, twisted pair, polyethylene inner jacket, Duofoil (100% coverage) and cotton plus a tinned copper braid shield (85% coverage), PVC jacket.

Product Specification:

5pin XLR Cable Spools: AC5CDMX300 (300 Foot Spool 5 Pin DMX Cable)

Number of Pairs: 2

Total Number of Conductors: 4

AWG: 22

Stranding: 0.15 x 19

Conductor Diameter: .0354"

Conduct or Material: TC-Tinned Copper


Insulation Material PE Polyethylene

Lay Length: 1.1"

Direction: Left Hand Lay

Twists: 10.9 per foot

Inner Jacket Material: PE- Polyethylene

Inner Jacket Diameter: .055"

Pair Color Code: Green/Black/Red/White

Outer Shield Trade Name: Duofoil

Outer Shield Type: Tape/Braid

Layer Number:1, Material Trade Name: Dufoil, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100

Layer Number: 2, Material Trade Name: Dufoil, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85

Outer Jacket Material: PVC-Polyvinyl Chloride

Overall Nominal Diameter: .295"

Operating Temperature Range: (-30 degrees C To + 75 degrees C)

Bulk Cable Weight: 50 lbs/1000

Minimum Bend Radius (Install): 3.5"

Maximum Recommended Pull Tension: 22 lbs.

Nominal Characteristic Impedence: 110 Ohms

Nominal Capacitance Conductor to Conductor @ 1KHz: 12.5 pF/f t

Nominal Cap Cond. To Other Cond. & Shield @ 1KH z: 23 pF/ft

Nominal Velocity of Propagation: 76%

Nominal Delay: 1.6 Nanoseconds per foot

Nominal Conductor DC Resistance @ 20 degrees C: 24 Ohms/1000 ft

Individual Pair Nominal Shield DC Resistance @ 20 degrees C: 15 Ohms/1000 ft

Nominal Attenuation (dB/100 ft): 0.6 (@ 1 MH) dB/100 ft.

Maximum Recommended Current: 2.1 Amps per conductor @ 25 degrees C
