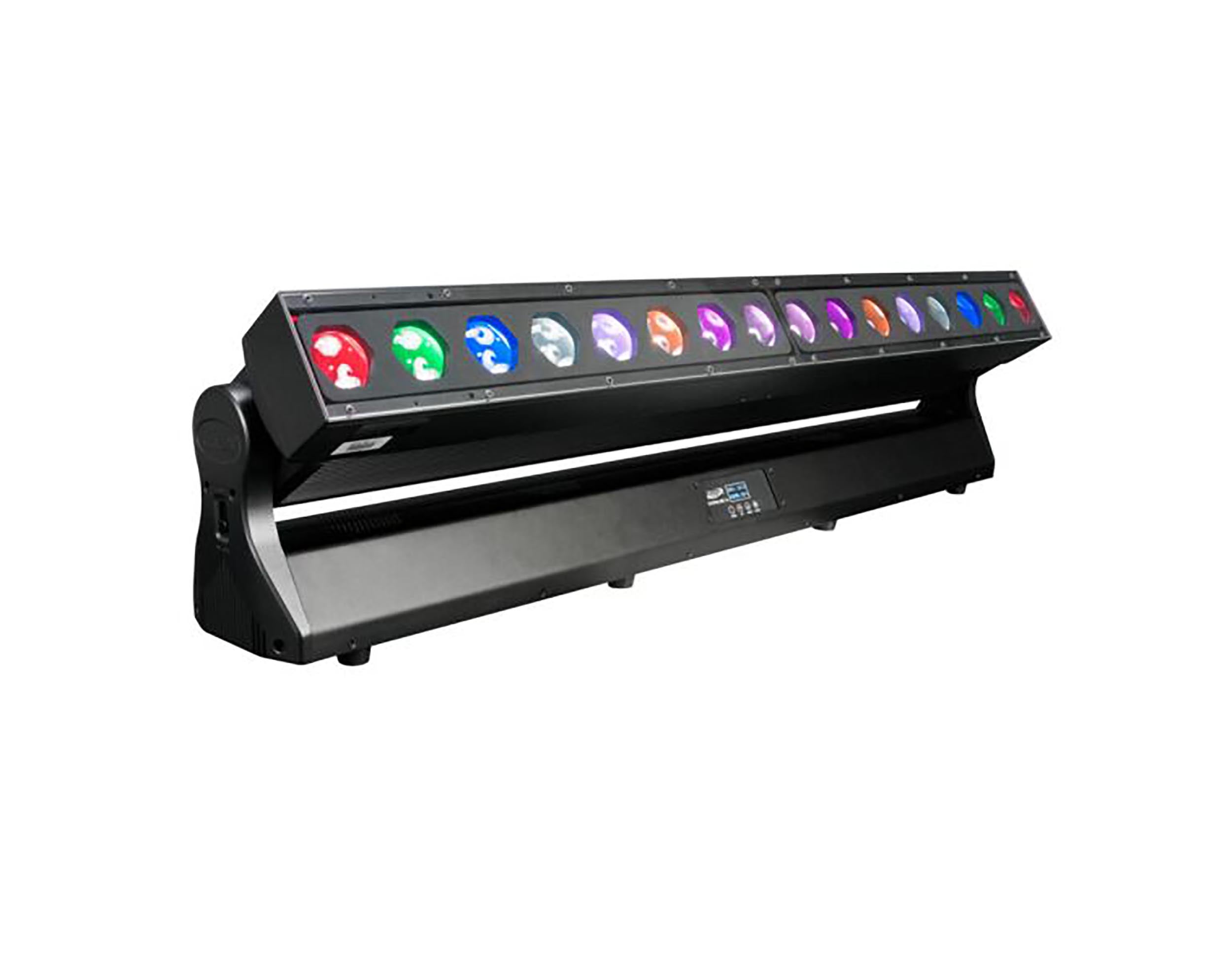

The Elation Chorus Line 16, is a 16 pixel bar wash luminaire featuring 40W 4-in-1 RGBW LEDs, motorized 4° to 40° zoom and 220° tilt movement, full pixel control, 2,700K - 7,000K adjustable linear color temperature, 64 color presets and 14 unique color macros, electronic strobe and 16-bit variable dimming curve modes, adjustable LED refresh rate frequency and gamma brightness for flicker free operation for TV and FILM, DMX, RDM, Kling-NET, and Art-NET protocol support, DMX, RJ45 ethernet, and Locking Power Cable in/out connections, 4 button LCD control panel display, dual quick-lock omega bracket rigging, and a multi-voltage universal auto switching power supply (100-240v).
Product Specifications:
Source:
(16) 40W 4-in-1 RGBW LEDs
50,000 Hour Average LED Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
Photometric Data:
5,700+ Total Lumens
20,478 LUX 1903 FC @16.4 ft (5m) (Full ON (4° Min Zoom)
570 LUX 53 FC @16.4 ft (5m) (Full ON (37° Max Zoom)
Zoom Range: 4° - 40°
Beam Angle: 4.6° - 37.8°
Field Angle: 7.8° - 54.4°
Effects:
Motorized Zoom and 220° Tilt Movement
RGBW Color Mixing and Full Pixel Control
2,700K - 7,000K Linear Color Temperature Range
64 Color Presets and 14 Unique Color Macros
Electronic Strobe, 16-bit Variable Dimming Curve Modes
Color: RGBW
Control / Connections:
3 DMX Channel Modes (78 total channels)
DMX, RDM, Kling-Net, and Art-Net Protocol Support
Adjustable LED Refresh Rate (900-25,000 Hz)
Adjustable LED Gamma Brightness (2.0, 2.2, 2.4, 2.8)
4 Button Touch Control Panel
180° Reversible LCD Menu Display
8 / 16-Bit Resolution Zoom and Tilt Movement
5pin DMX In/Out
RJ45 Ethernet In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight:
Length: 42.05" 1068mm)
Width: 7.44" (189mm)
Vertical Height: 11.46" (291mm)
Weight: 47.0 lbs. (21.3 kg)
Electrical / Thermal:
AC 100-240V - 50/60Hz
739W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
BTU/hrs. (+/- 10%) 2519.99
Approvals / Ratings:
CE | cETLus | IP30
Firmware Updates:
Current Version: V1.10
