Description

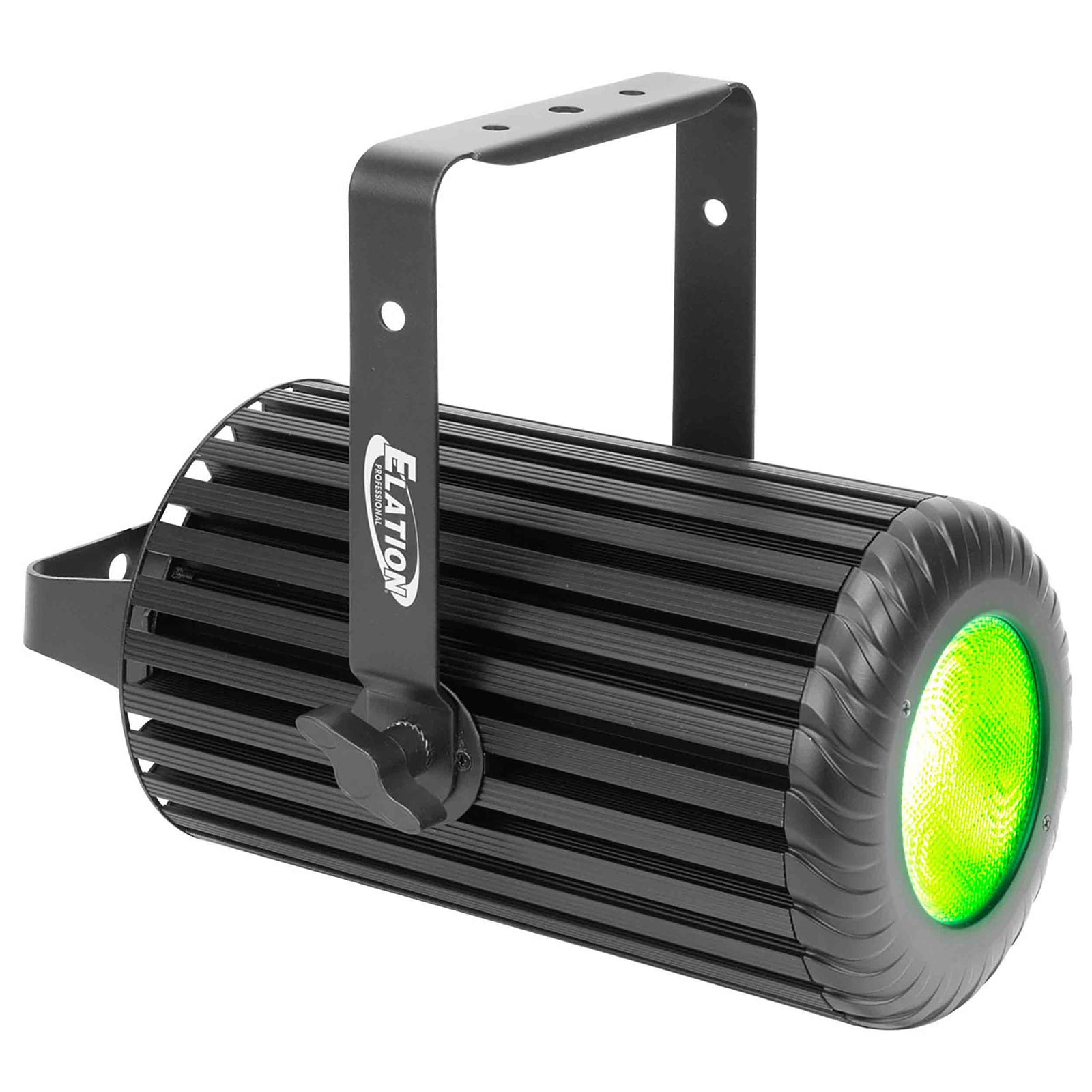

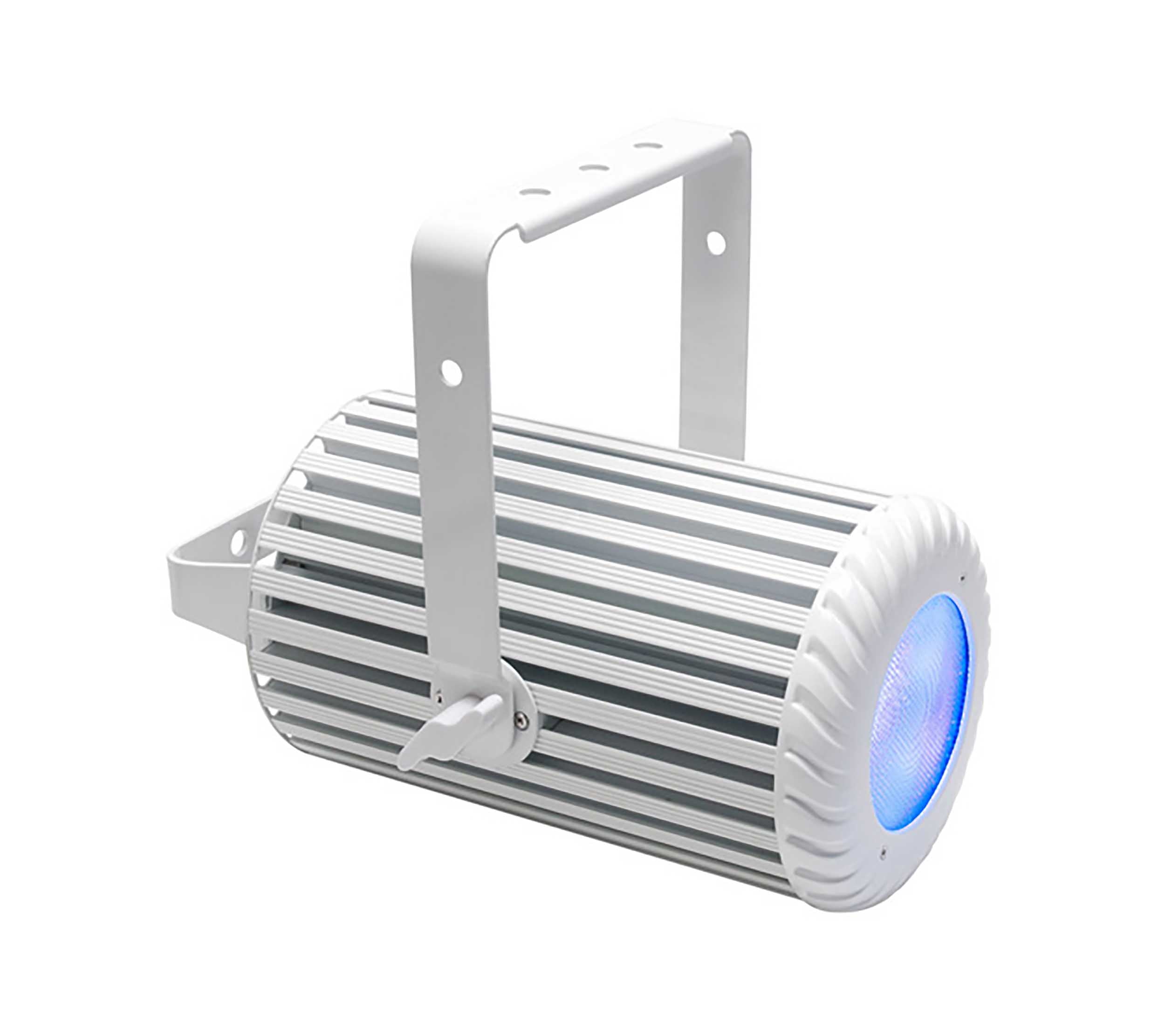

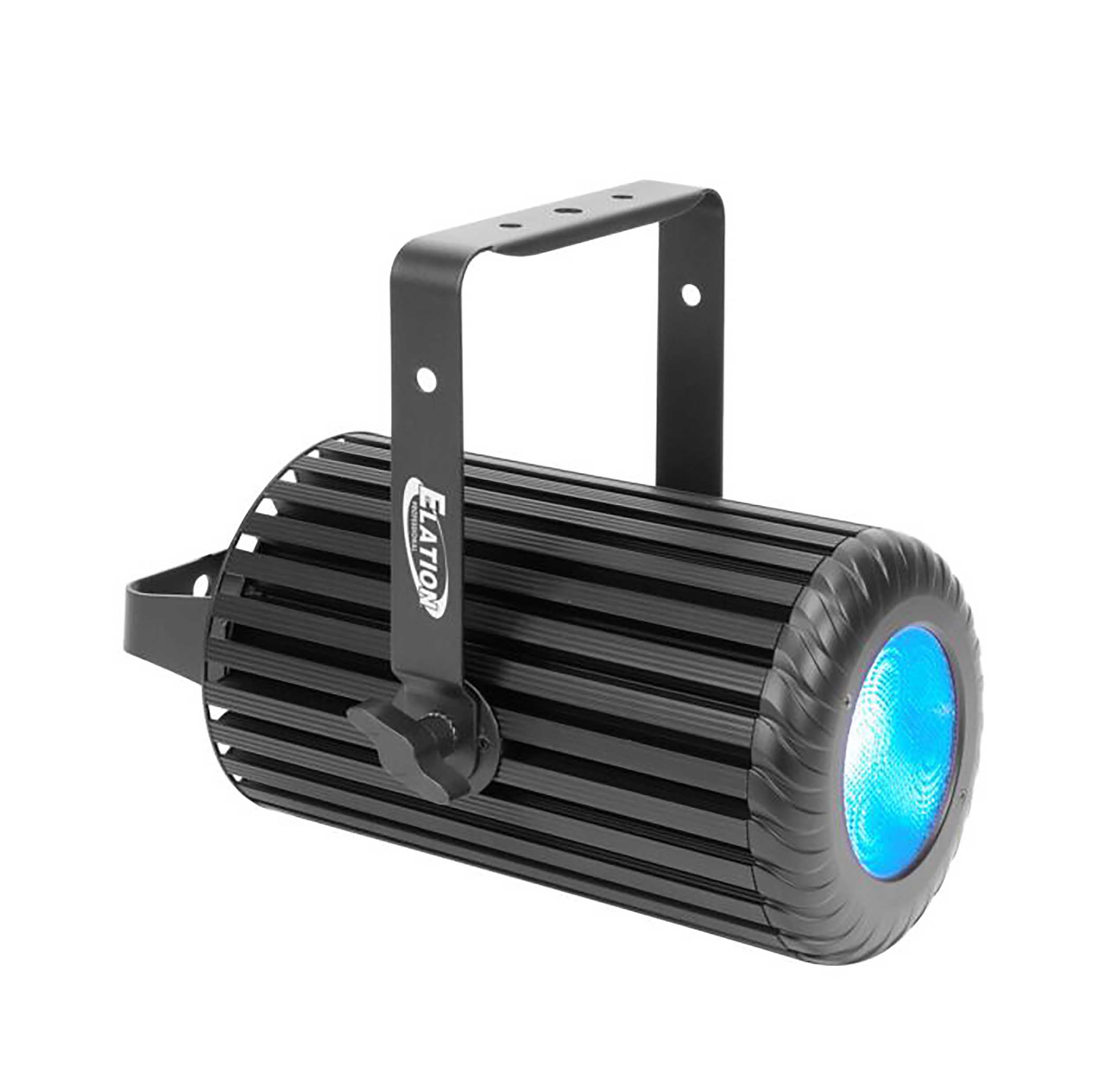

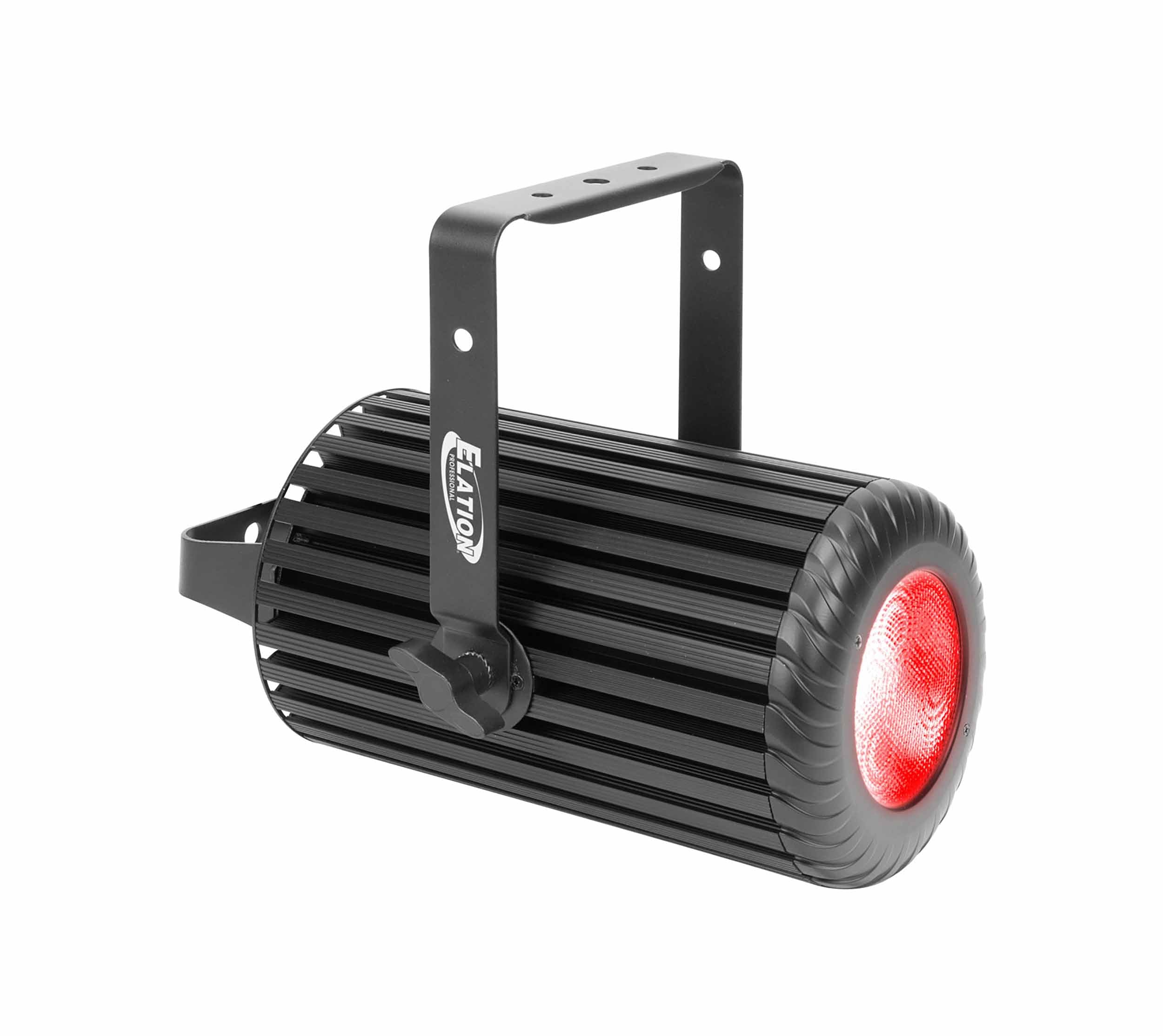

The Elation Colour Pendant, Wash Luminaire features (36) 3W RGBW LEDs producing a 41° beam angle, fully blended color transformations, convection cooled, silent operation, and adjustable frequency settings for flicker free operation for TV and Film. It includes selectable dimming curves, strobe and color macro effects, RDM (Remote Device Management), 5pin DMX in/out and Locking Power Cable input connections, an internal E-FLY™ extended range wireless DMX transceiver, an LCD menu display with 4 button control panel, removable pendant and yoke mounting brackets, a multi-voltage universal auto switching power supply (100-250v), and exterior shroud kits available.
Product Specifications:
Source:
(36) 3W RGBW LEDs
100,000 Hour Average Life
May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
3,650 LUX 339 FC @3.3’ (1m) (41°Full ON)
1,020 LUX 95 FC @6.6’ (2m) (41°Full ON)
458 LUX 43 FC @9.8’ (3m) (41°Full ON)
255 LUX 24 FC @13.1’ (4m) (41°Full ON)
164 LUX 15 FC @16.4’ (5m) (41°Full ON)
Effects:
Strobe and Color Macros
Dimming: 0% - 100%
Selectable Dimming Curves

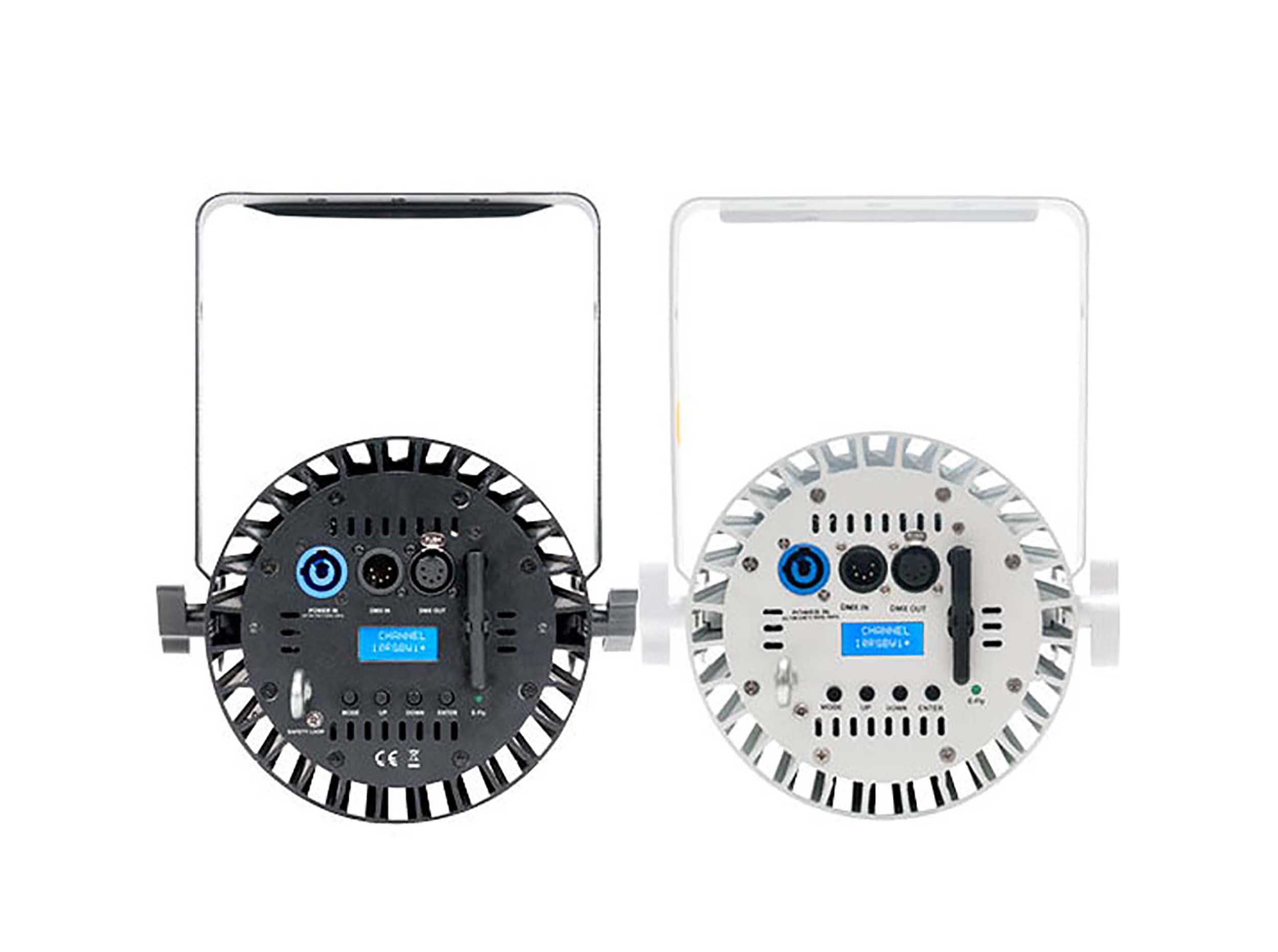

Control / Connections:
11 DMX Channel Modes (1 / 3 / 4x2 / 5x2 / 6x2 / 7 / 8 / 10)
Frequencies (1200Hz, 2400Hz, 4800Hz, 9600Hz)
E-Fly Internal Extended Range Wireless DMX Transceiver
4 Button Control Panel and LCD Menu Display
5pin DMX In/Out
RDM (Remote Device Management)
Locking Power Cable In
With Wired Digital Communication Network
Size / Weight:
Length: 14.7” (374 mm)
Width: 9.9” (252.5 mm)
Horizontal Height: 12.0” (308.8 mm)
Weight: 14.0 lbs. (6.4 kg)
Electrical / Thermal:
AC 100-240V - 50/60Hz
110W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
Approvals / Ratings: CE | cETLus | IP20
Included Accessories: (1) Locking Power Cable

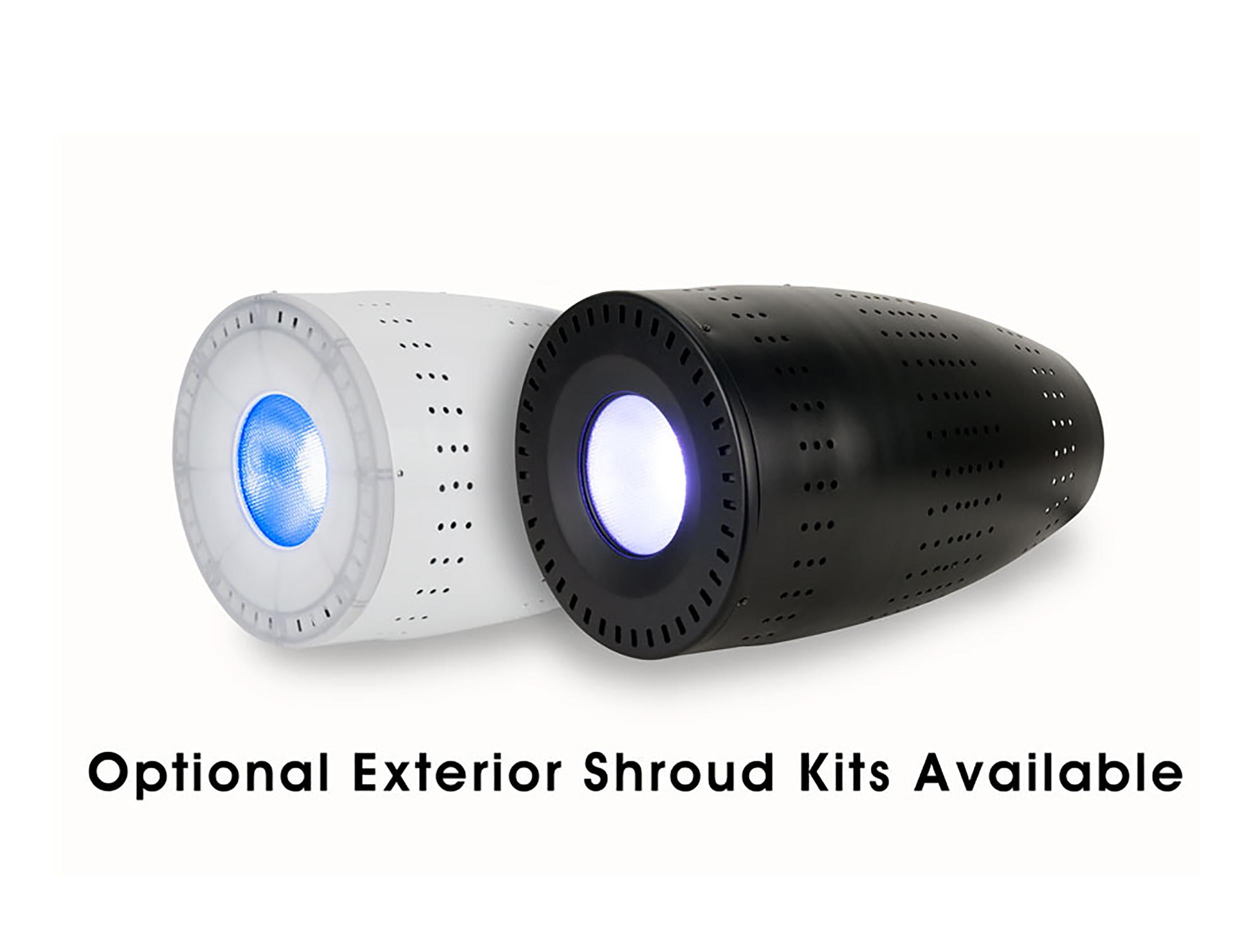

Optional Accessories:
COL110/ESK - Exterior Shroud Kit - Black
COL123/ESK - Exterior Shroud Kit - White
