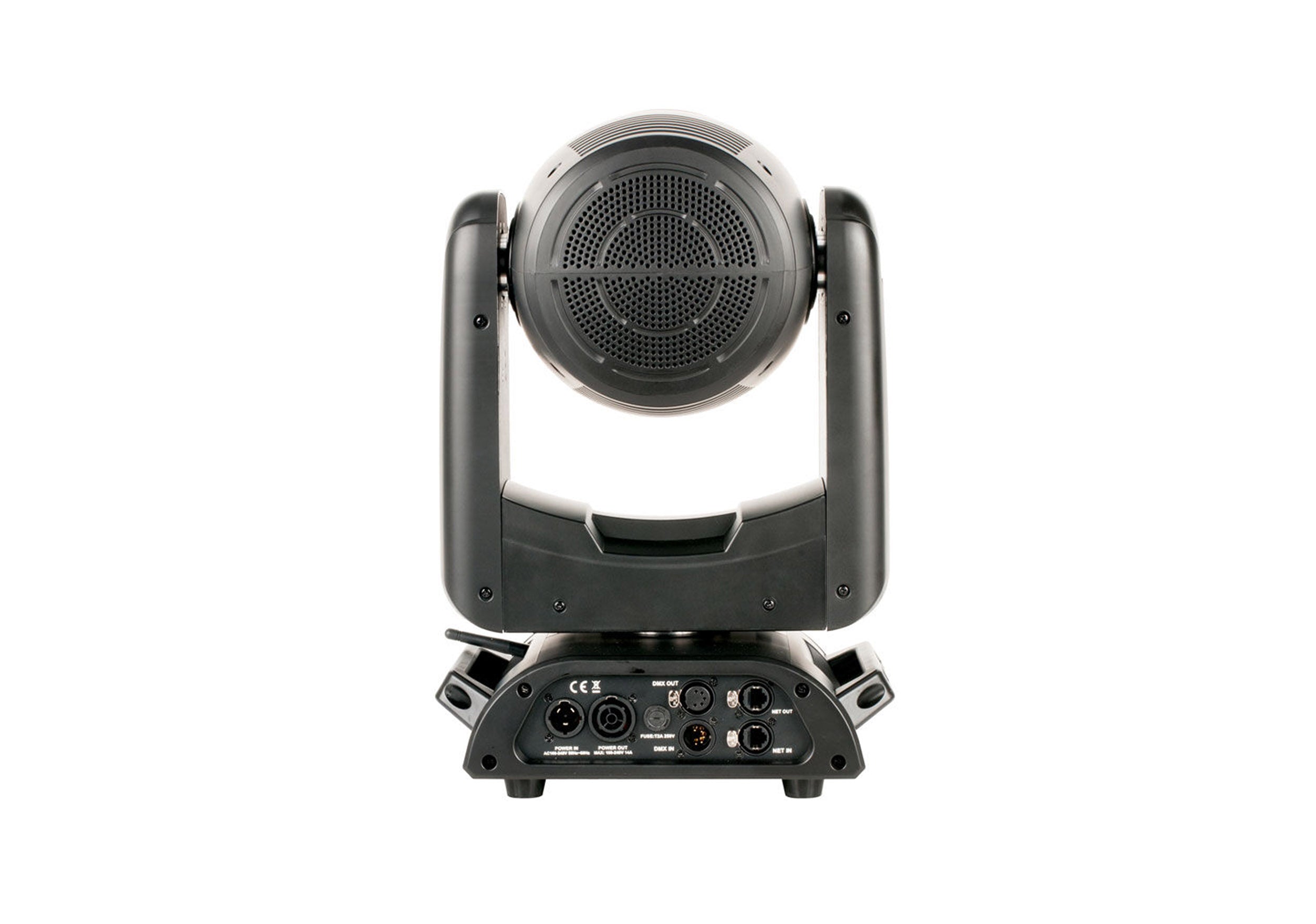

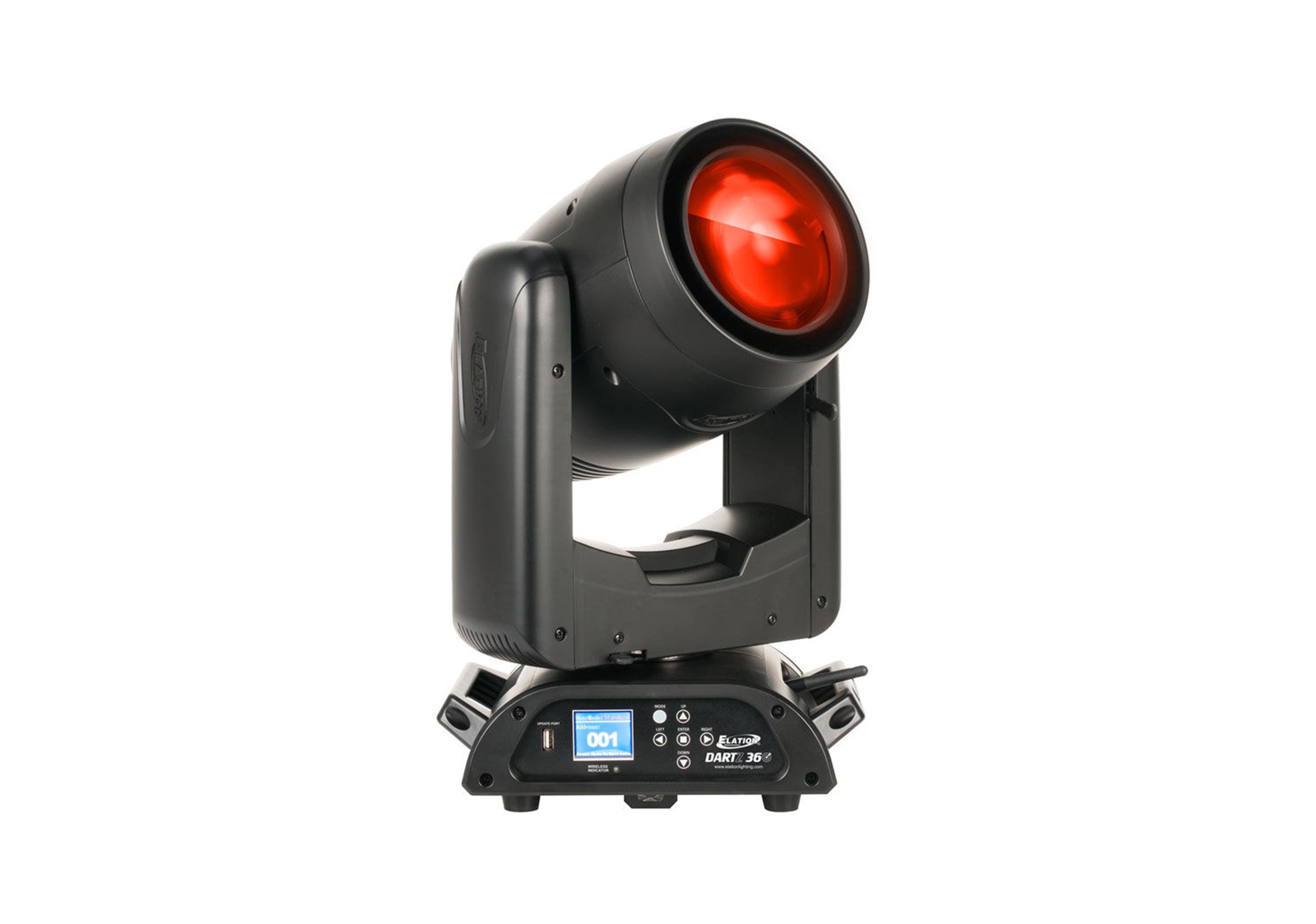

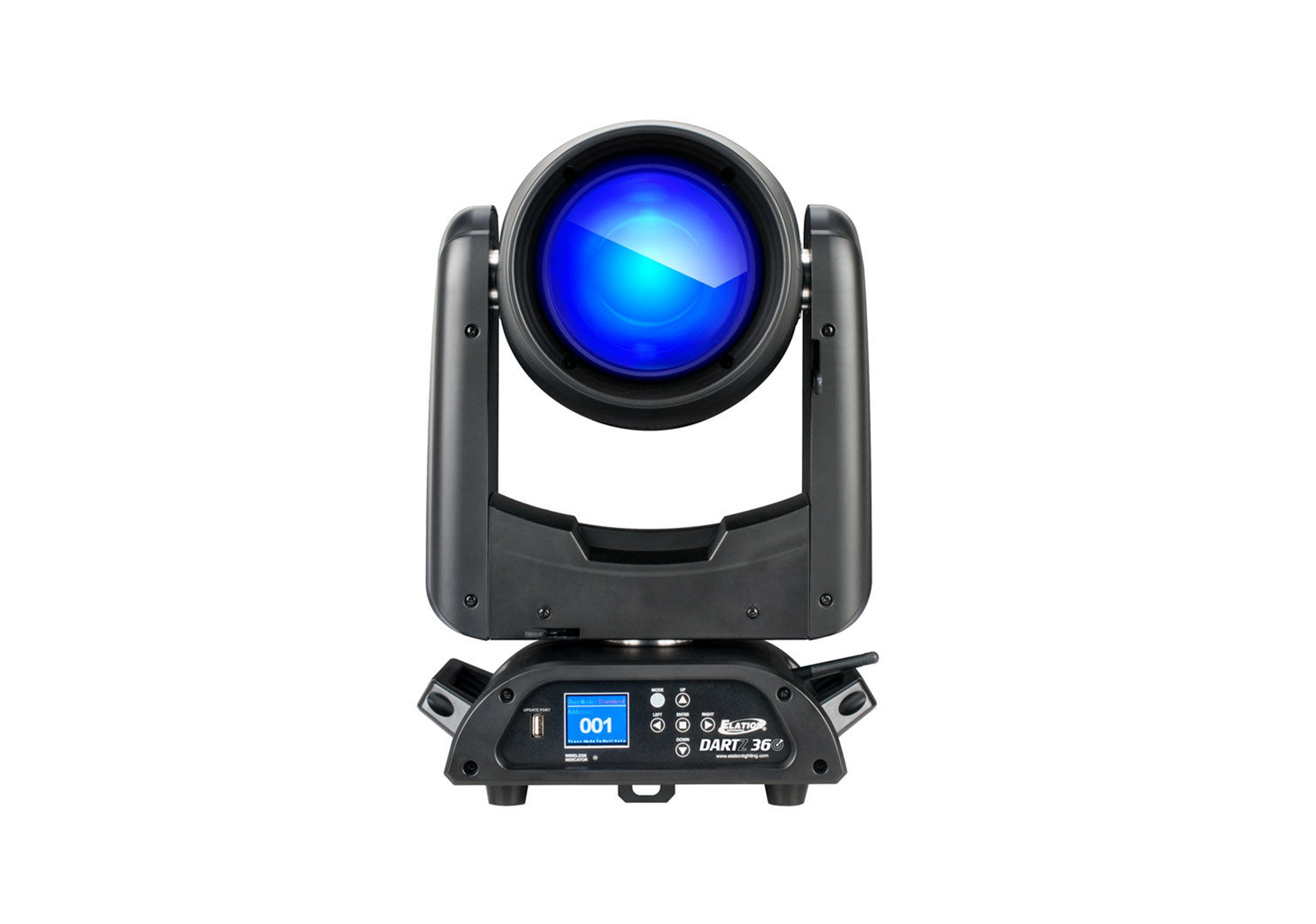

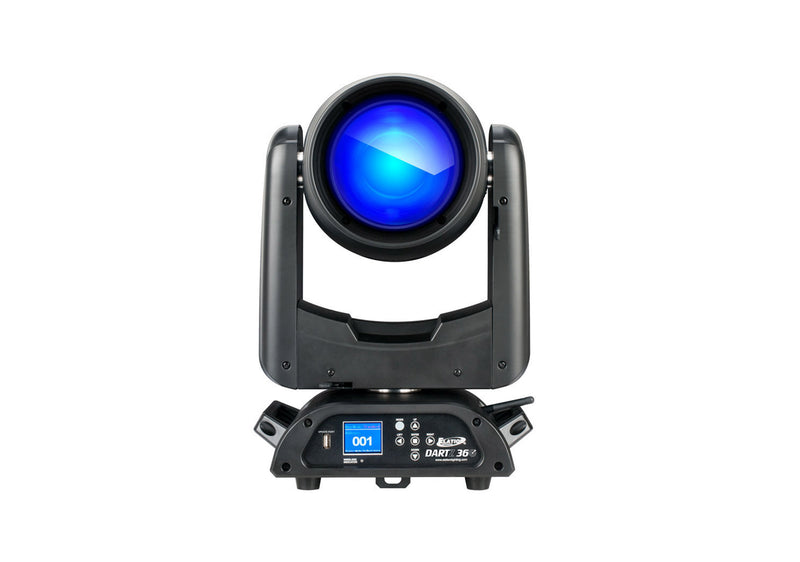

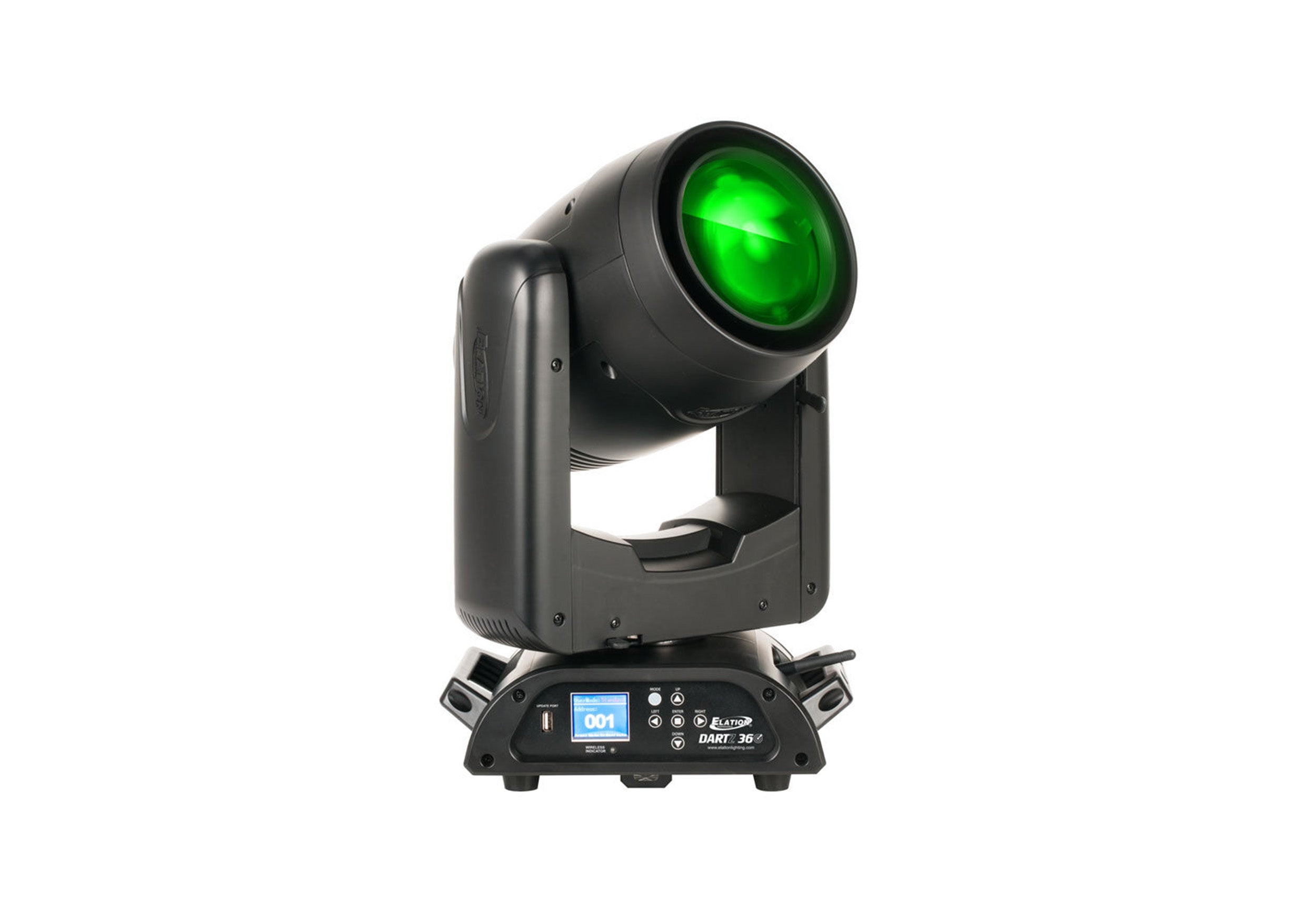

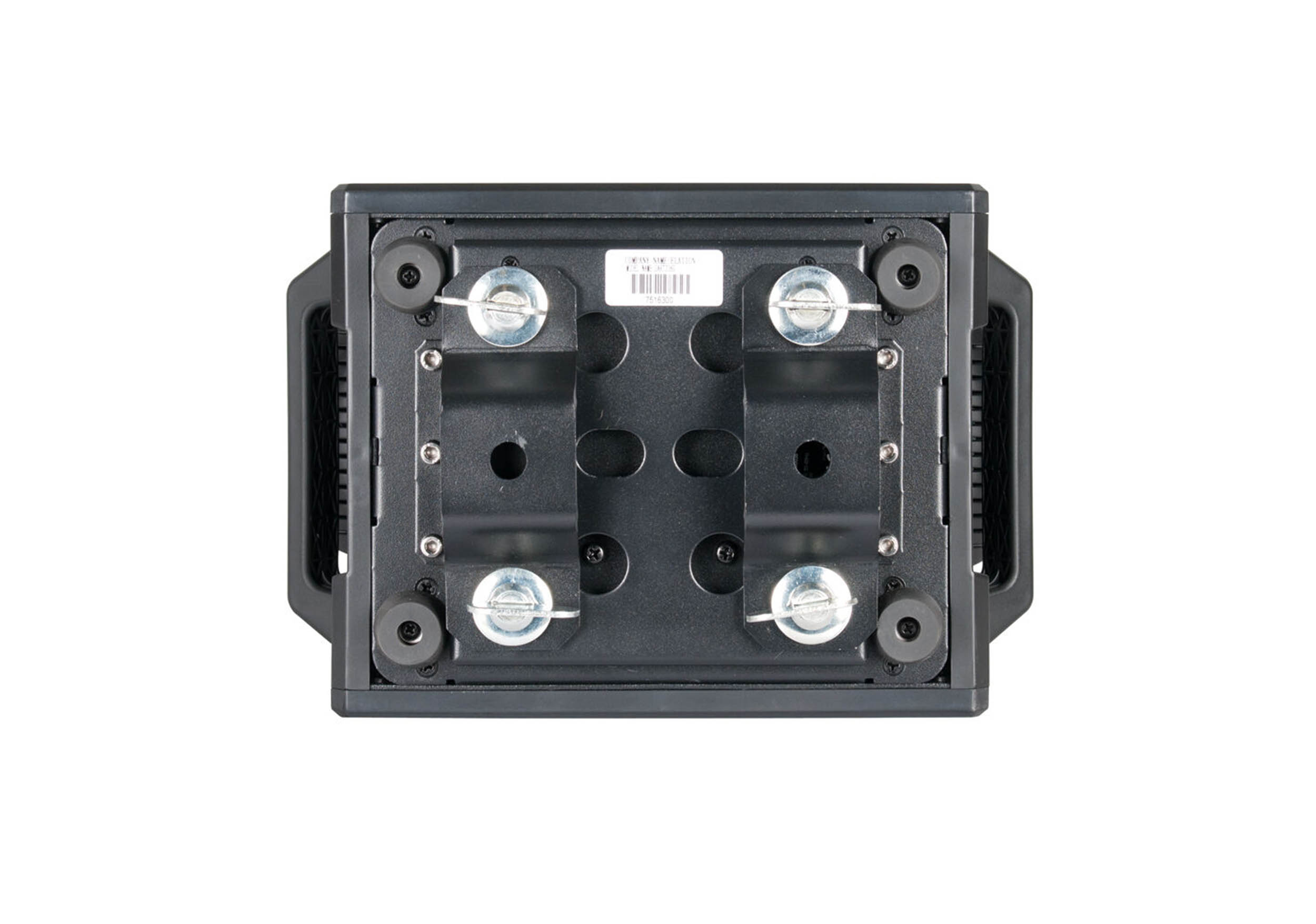

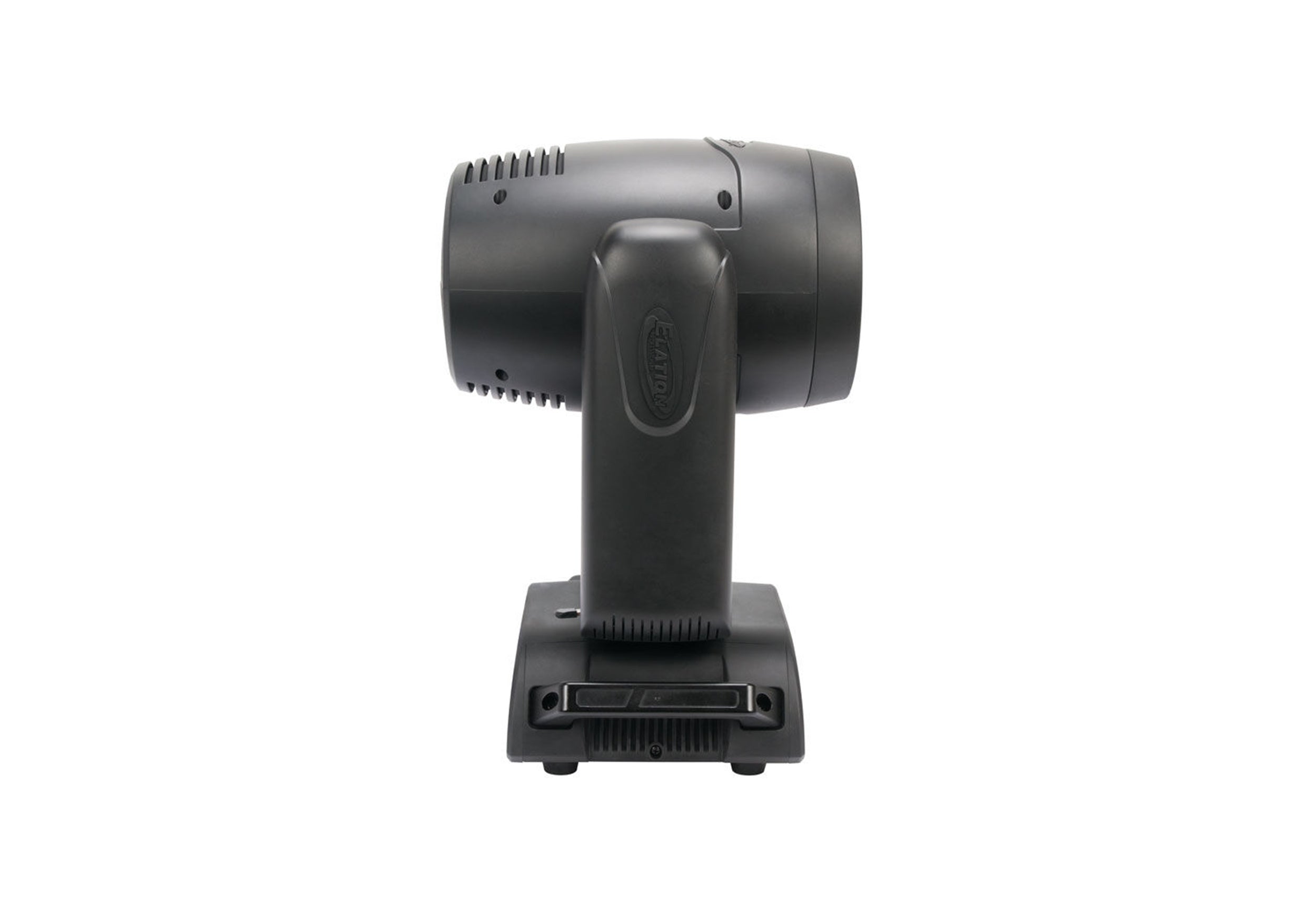

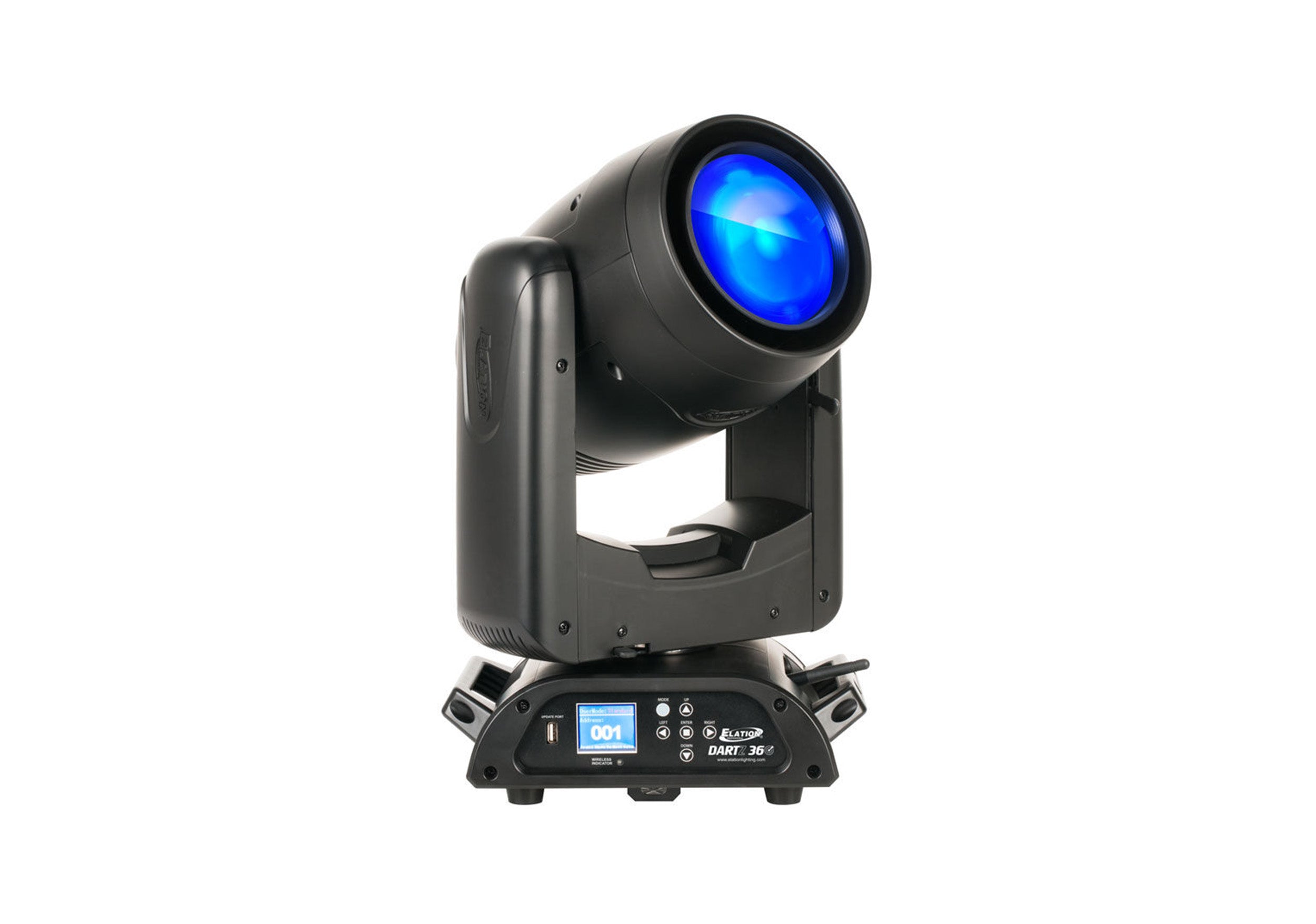

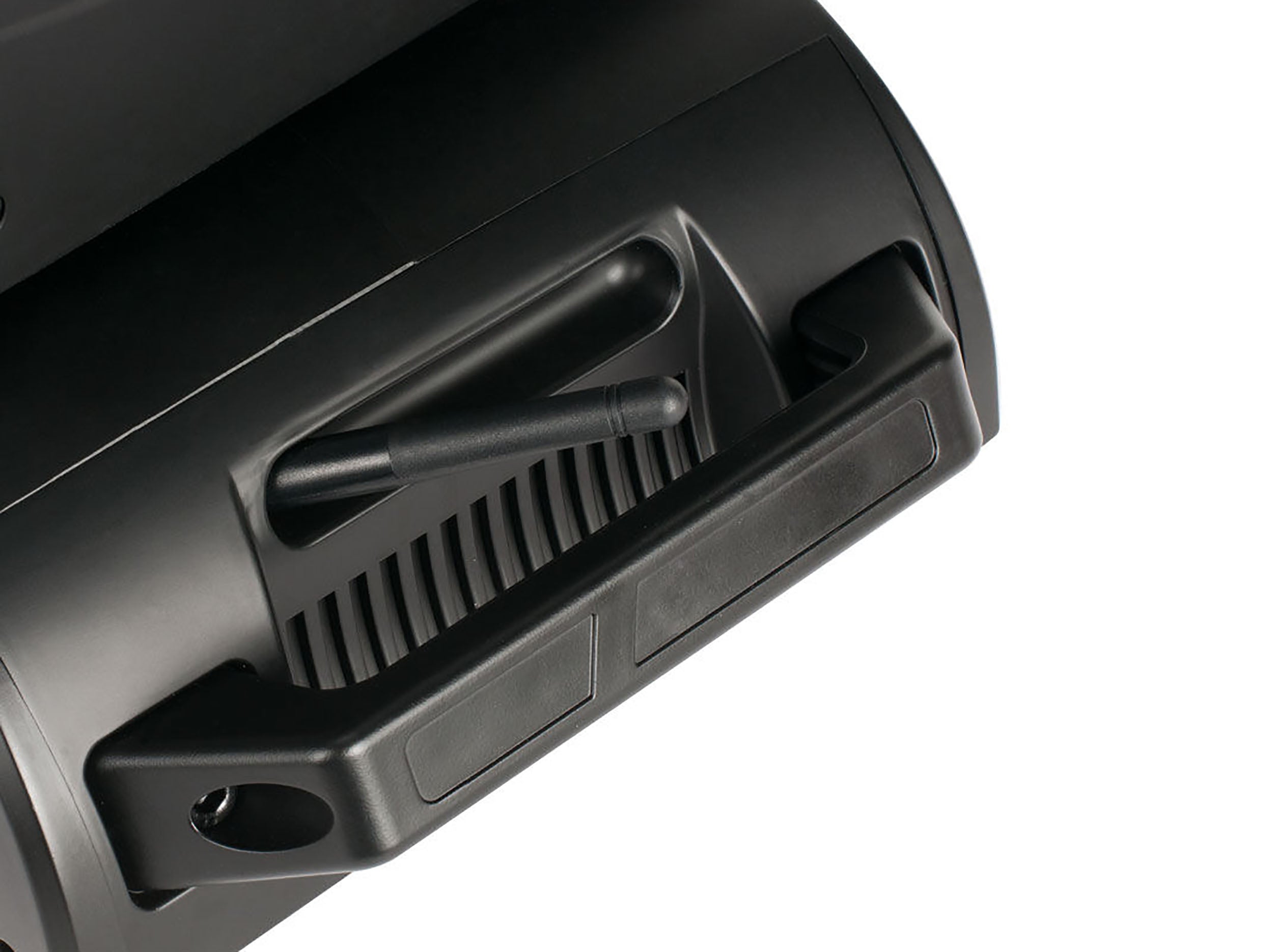

Elation DARTZ 360 Compact RGB Beam Moving Head with 360 Pan/Tilt
Save $535.00
SKU: H-ELAT-DAR880   |  UPC: 837874005073
Price:
$2,140.00 $2,675.00
Stock:
In stock (25 units), ready to be shipped

Free 2nd Day Air on most items

Price Match Guarantee

Free 2 Year Warranty

Request Package Pricing

Call us for package deal pricing anytime 800-700-4542.

Description

The Elation DARTZ 360 Compact RGB Beam Moving Head with 360 Pan/Tilt is a precision-engineered beam luminaire designed for maximum versatility and high-impact performance. Featuring a patent-pending 50W RGB LED engine with a sharp 3° aperture and motorized focus, it delivers brilliant output and smooth color mixing with no minimum safe distance required making it ideal for a wide range of professional lighting applications. Its continuous 360° pan and tilt with 16-bit precision offers unmatched dynamic movement, complemented by an array of built-in effects including 14 static-stamped gobos, dual independent rotating prisms, a linear frost filter for wash effects, and variable dimming curves. With full protocol support (DMX, RDM, Art-NET, Kling-Net, sACN), internal E-FLY wireless DMX, and flicker-free operation, the DARTZ 360 is optimized for live events, TV, and film.

Product Specifications:

Source:

50W RGB LED engine (patent pending)

50,000-hour average LED life (may vary based on use and environment)

Photometric Data: 29,562 lux / 2,746 fc @ 16.4 ft (5m), 3° full on

Effects:

Motorized focus

6- and 8-facet independent rotating prisms

0–100% linear frost filter

High-speed electronic shutter and strobe

16-bit dimming with multiple curve modes

Adjustable LED refresh rate and gamma brightness

Color: RGB smooth color mixing

Gobos: 14 static-stamped metal gobos

Control & Connections:

3 DMX channel modes (19 / 22 / 25)

8-/16-bit 360° continuous pan/tilt movement

Adjustable refresh rate: 900–25,000 Hz

Gamma settings: 2.0, 2.2, 2.4, 2.8

6-button control panel with full-color 180° reversible LCD display

DMX, RDM, Kling-Net, Art-NET, sACN protocol support

Internal E-FLY wireless DMX transceiver

5-pin DMX, RJ45 Ethernet In/Out

Locking power in/out

Wired digital communication network compatible

Electrical / Thermal: AC 100–240V, 50/60Hz

Max power consumption: 154W

Operating temperature: 14°F to 113°F (-10°C to 45°C)

Heat dissipation: 525.14 BTU/hr (±10%)

Size / Weight:

Length: 11.2 in (284.15 mm)

Width: 7.7 in (195.97 mm)

Height: 17.9 in (454.7 mm)

Weight: 28.0 lbs (12.7 kg)

Approvals / Ratings:

CE, cETLus

IP20 rating

Firmware:

Current version: 1.2.21

Shipping Weight: 30.0 lbs
Shipping Dimensions (L x W x H): 21 x 15 x 14 inches
