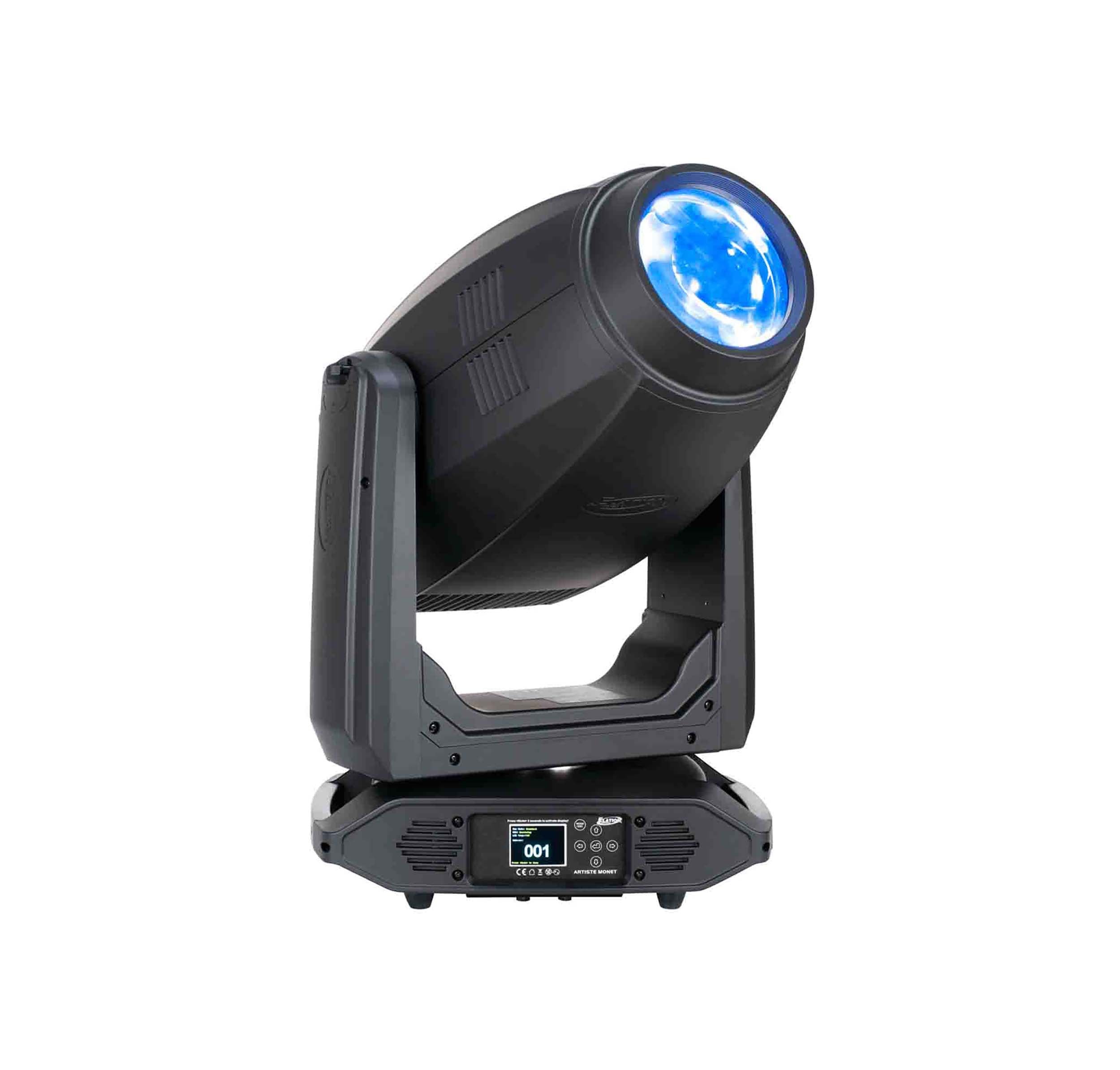

Elation EAM990, Professional Artiste Monet with High Efficiency 950Watt 6500K White LED Engines

The Elation EAM990, Professional Artiste Monet with High Efficiency 950Watt 6500K White LED Engines is an extremely bright fully featured LED Profile fixture offering outstanding projection quality and a wide color mixing gamut through its variable Spectra Color engine.

Providing up to 45,000 lumens from its efficient 950W 6,500K LED engine the Monet is the ideal fixture for any application requiring superior output, bright and powerful beams, quiet operation as well as stunningly precise gobos and colors. Monet integrates Elation's new Spectra Color system which offers traditional CMY mixing but adds a variable RGB color mix for rich saturated primaries. In combination with the variable CTO the Monet allows for colors that were previously impossible to achieve, from theatrical pastels to the most vibrant red or blues ever produced by a color mixing system. The wide color gamut of the Artiste Monet achieved by seven color mixing flags with 16bit precision provides artistic possibilities that are truly inspiring. The fixed color wheel offers UV and High CRI options to round out the amazing color range of the fixture.

The full blackout framing array includes Elation's newly designed unlimited indexing and continuous rotation control. Shapes can rotate like gobos while morphing and transforming, allowing new creative transitions and interesting projection and aerial effects not previously possible. Monet also offers a comprehensive FX package with 7 rotating and 7 fixed interchangeable glass gobos, full animation wheel, dual prisms, dual frost and a high-speed Iris. With a fast zoom range from 6.8° to 55° and an impressive 160mm front lens the Monet has the power to cut through at even great distances in arena touring environments or large TV or Theater Stages. Numerous software innovations have been implemented into the Monet such as DMX controllable variable fan modes which offer low noise operation for noise sensitive environments.

The Artiste Monet fixture ships in a cardboard box with a custom fitted polyurethane foam FIL (Foam In Lay) insert. This foam insert easily fits into a custom sized flight case (not included), and provides enhanced impact protection during transport.

Product Specifications:

Source:

950W 6,500K Bright White LED Engine

30,000 Hour Average LED Life

Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:

45,000 Total Lumen Output

CRI 72+ (84 with HCRI Filter)

Zoom Range 6.8° - 55°

Beam Angle 4.8° - 41.2°

Field Angle 6.1° - 51°

Effects:

Motorized Zoom (large 160mm front lens)

4 Rotating Full Blackout Framing Blades

360° Continuous Framing Index and Rotation

Full 360° Bi-Directional Animation Wheel

4-Facet and Linear Rotating Prisms

2 Variable Frost Filters (Light and Wash)

Internal Color, Framing, Prism, and Frost Macros

Motorized Iris with Variable Pulse Effects

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe

DMX Controllable LED Refresh Rate

Pan Angle: 540°/630°

Tilt Angle: 250°

Color:

Spectra Color CMY + RGB Color Mixing Array

6 Dichroic Colors including High CRI Filter and UV

Linear CTO Color Correction

Gobos:

2 Gobo Wheels

7 Rotating / Indexing Interchangeable Glass Gobos

7 Static Interchangeable Glass Gobos

Control / Connections:

2 DMX Channel Modes (40 / 67)

16-bit Pan, Tilt and Dimming Control

Motorized Focus and Auto-Focus Presets

DMX Controllable Variable Fan Modes

DMX, RDM, Art-NET, sACN Protocol Support

(6) Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

Hibernation Mode (Power Save)

Locking 5pin XLR DMX, RJ45 Ethernet, and Power

USB Connection (Firmware Updates)

With Wired Digital Communication Network

Shipping Dimension:

Length: 20.50”

Width: 24.85”

Height: 33.40”

Weight: 97.0 lbs.
