Description
The Netron EN4, is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
Product Specifications:
Mounting:
Standalone

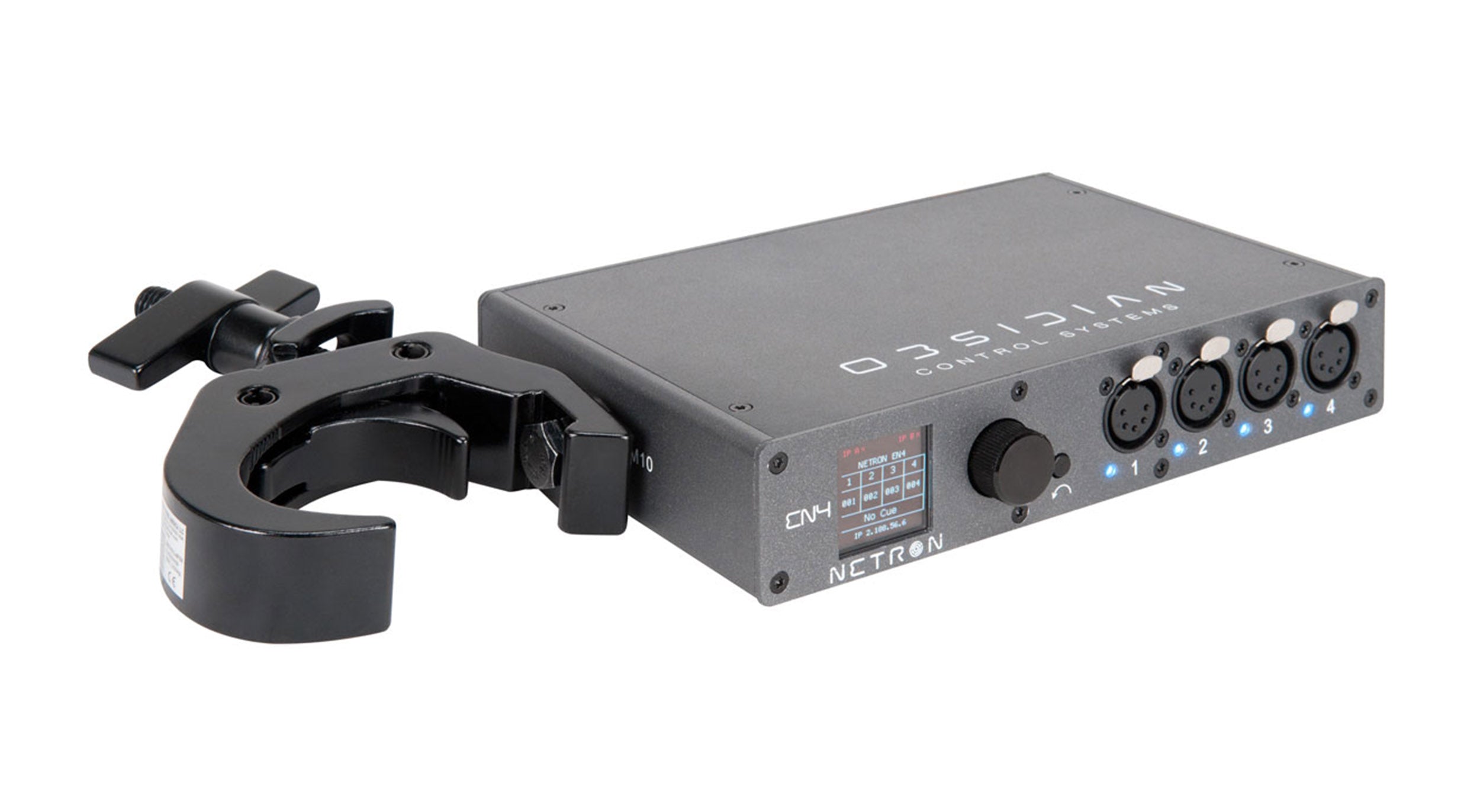

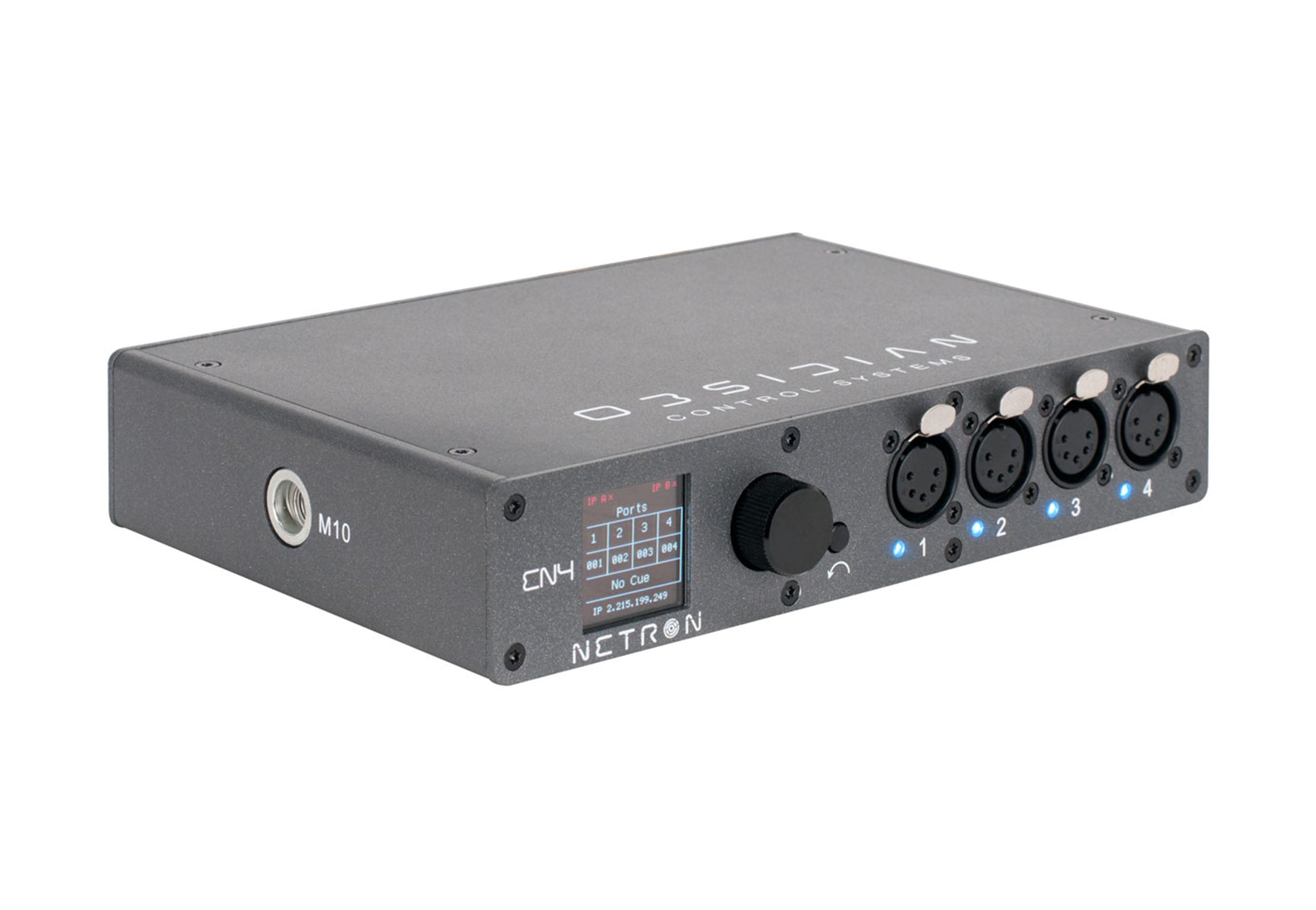

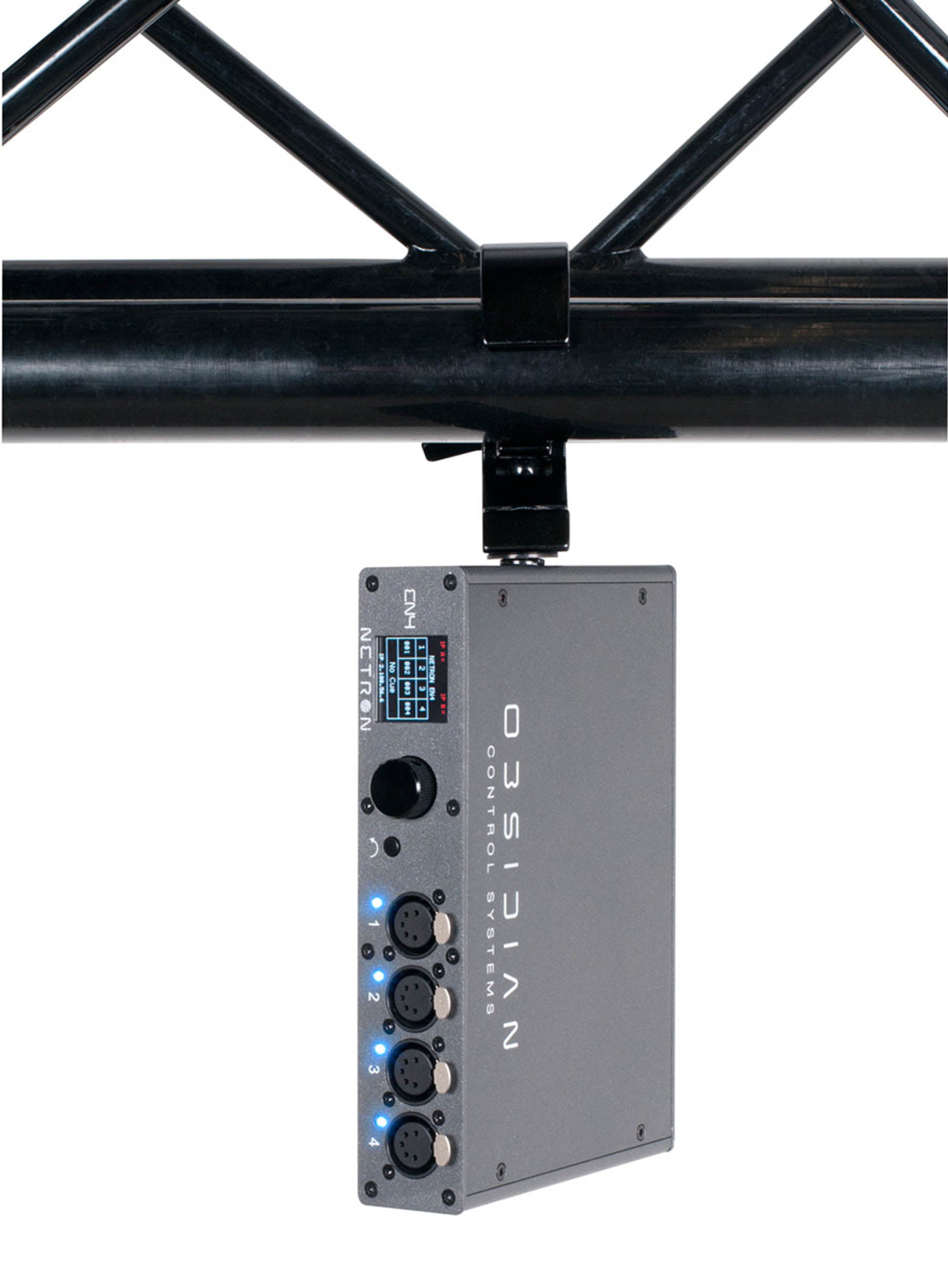

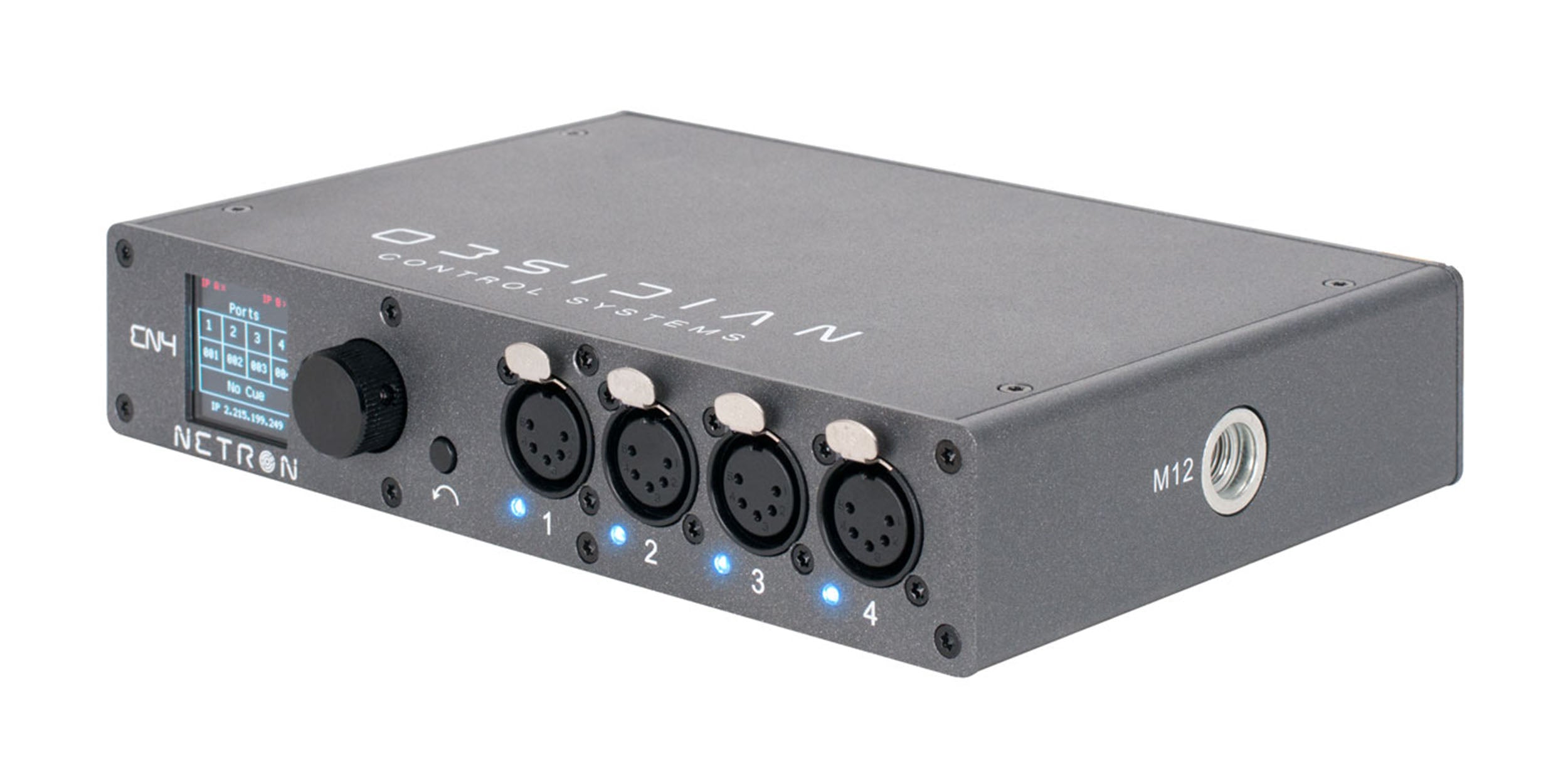

Truss-mount (M10 or M12 mounting hole)

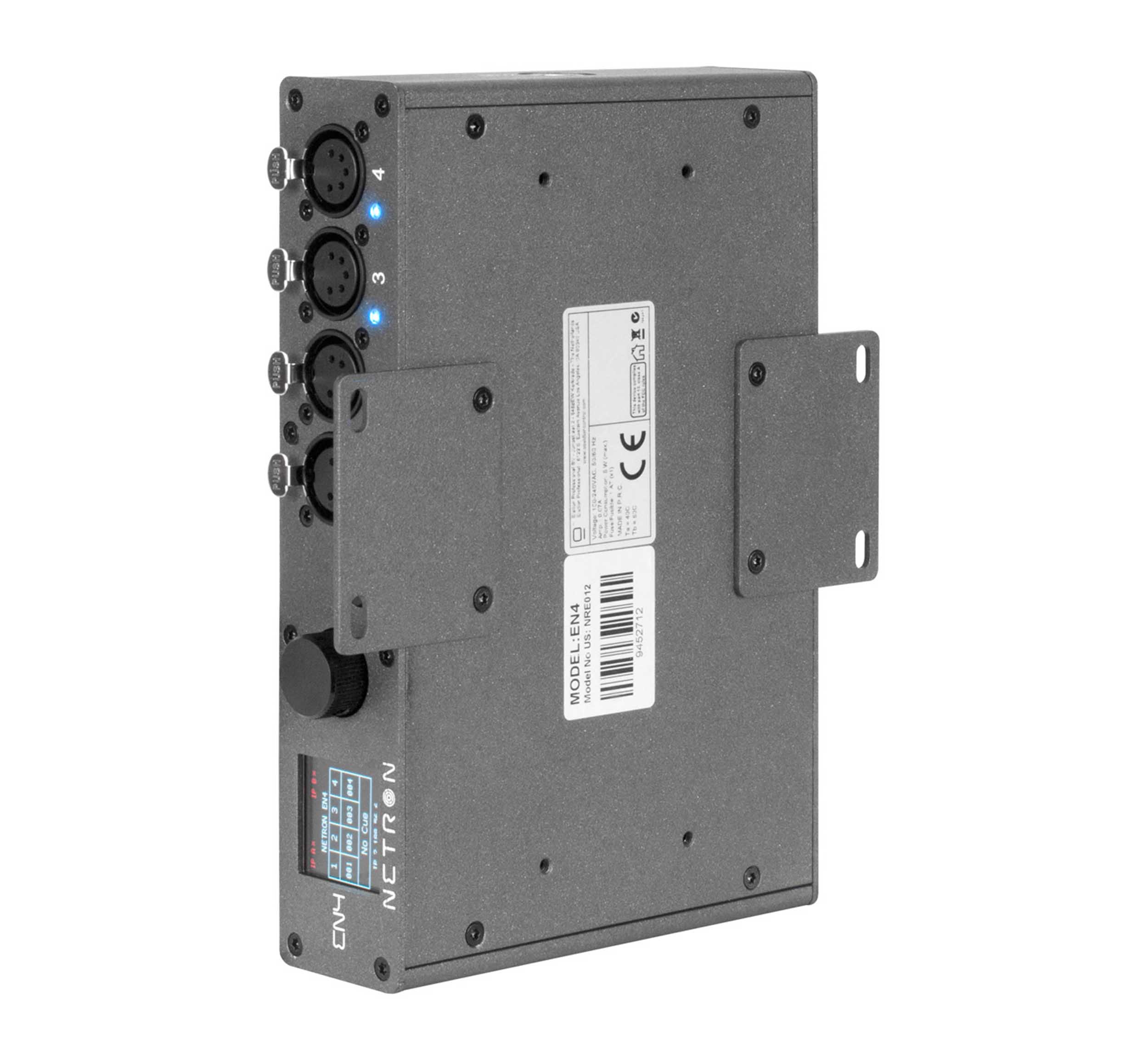

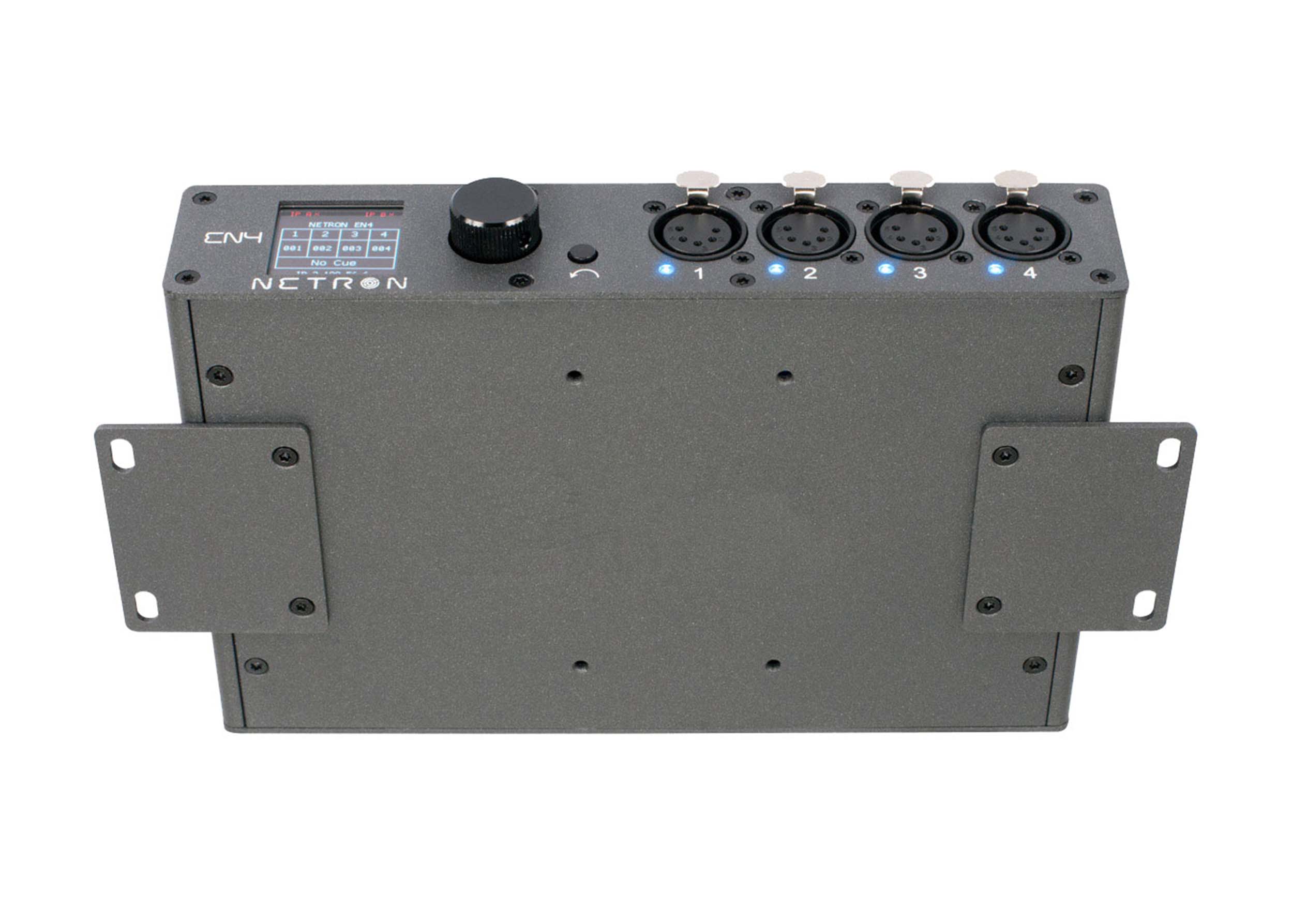

Wall-mount horizontal or vertical (included)

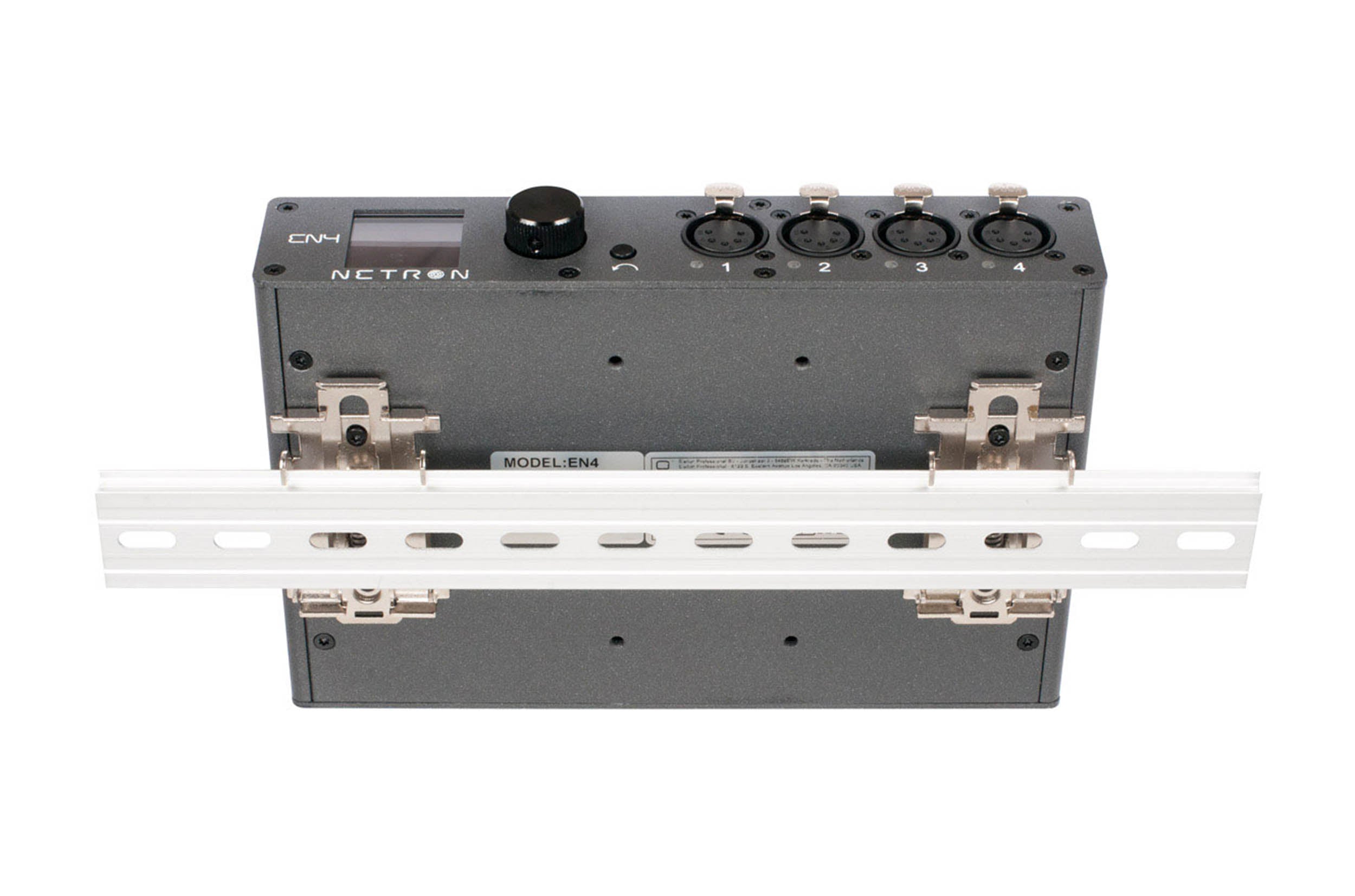

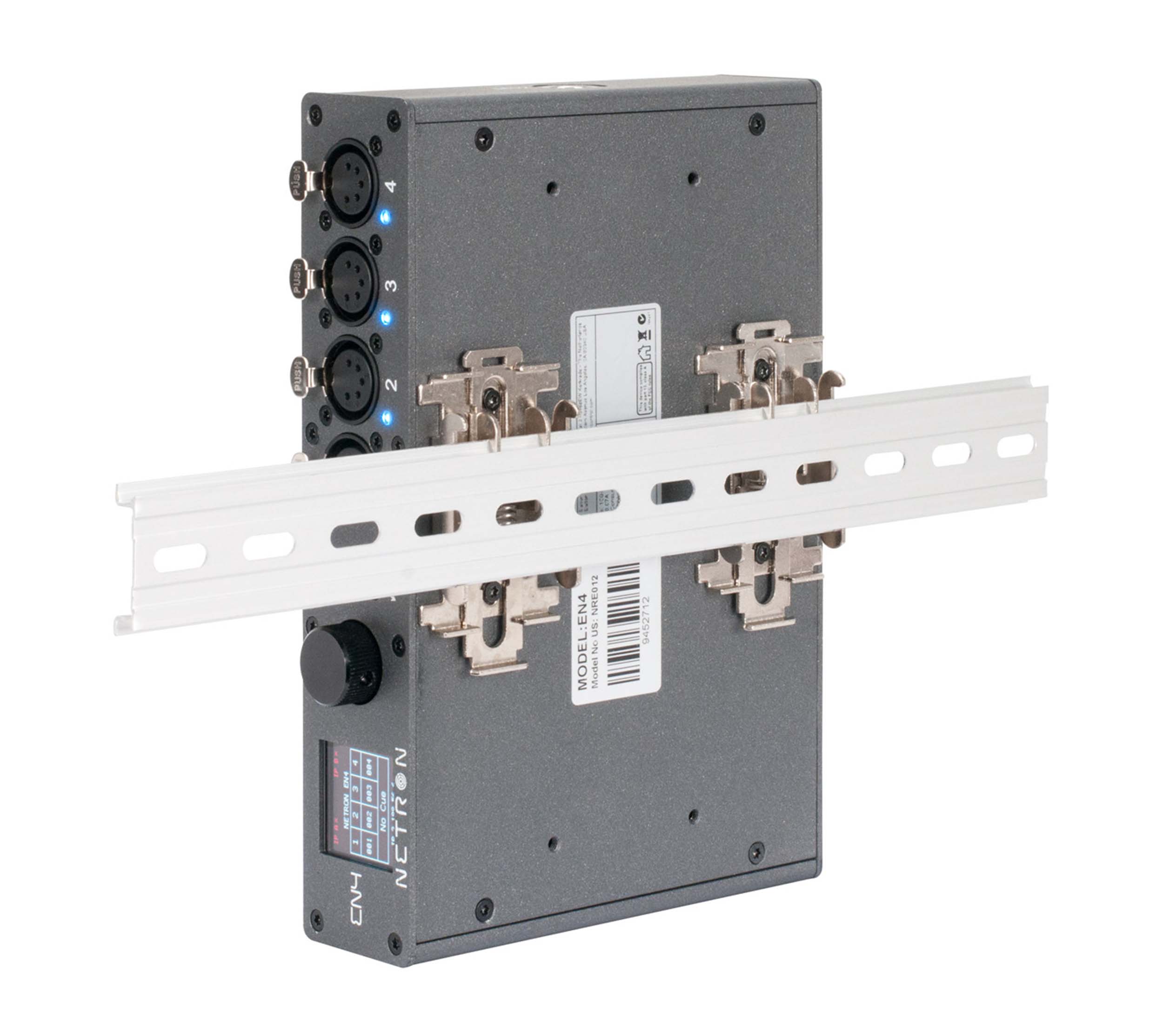

DIN Rail horizontal or vertical (included)

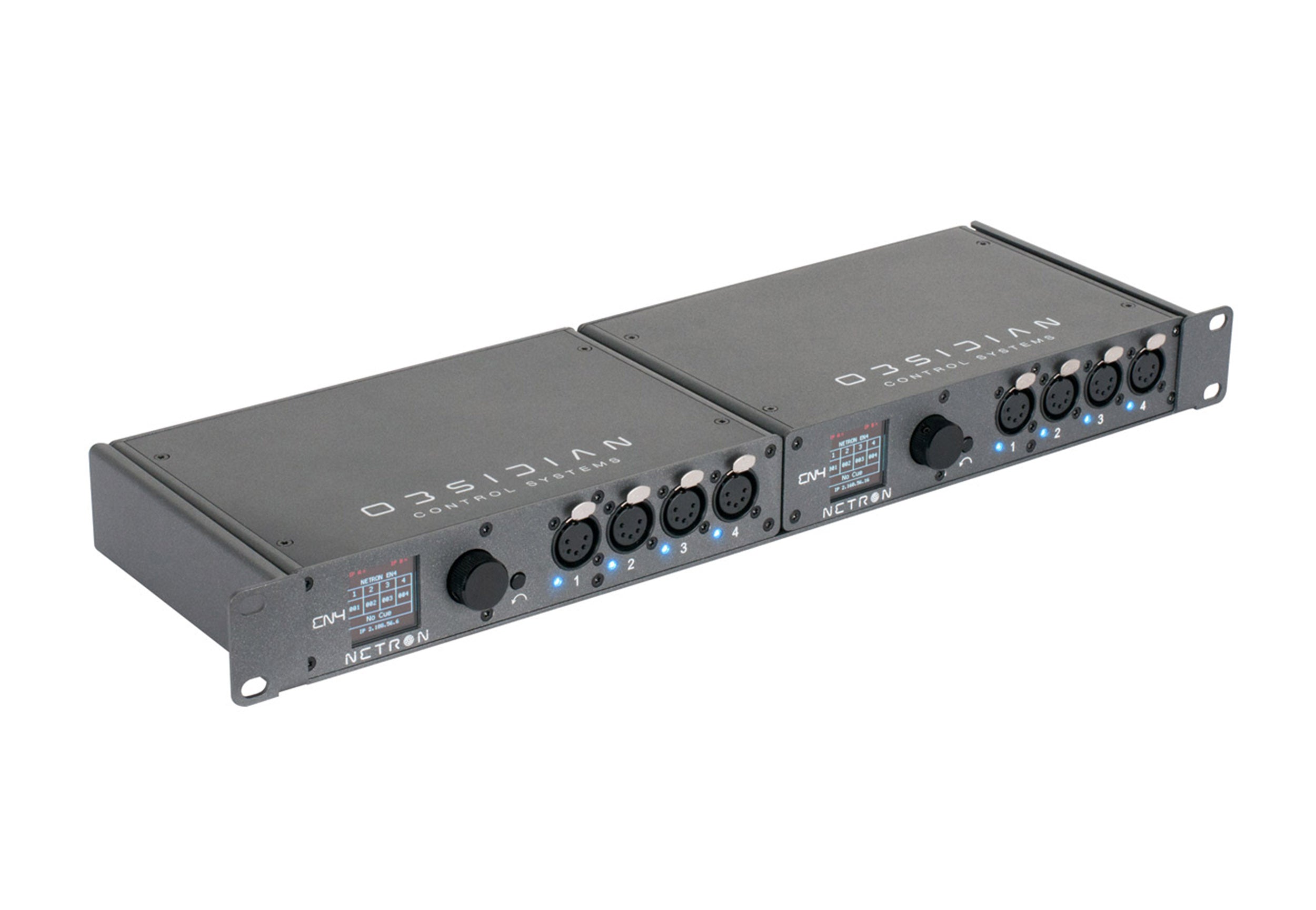

Rack-mount option (requires NET Shelf)
Connections:

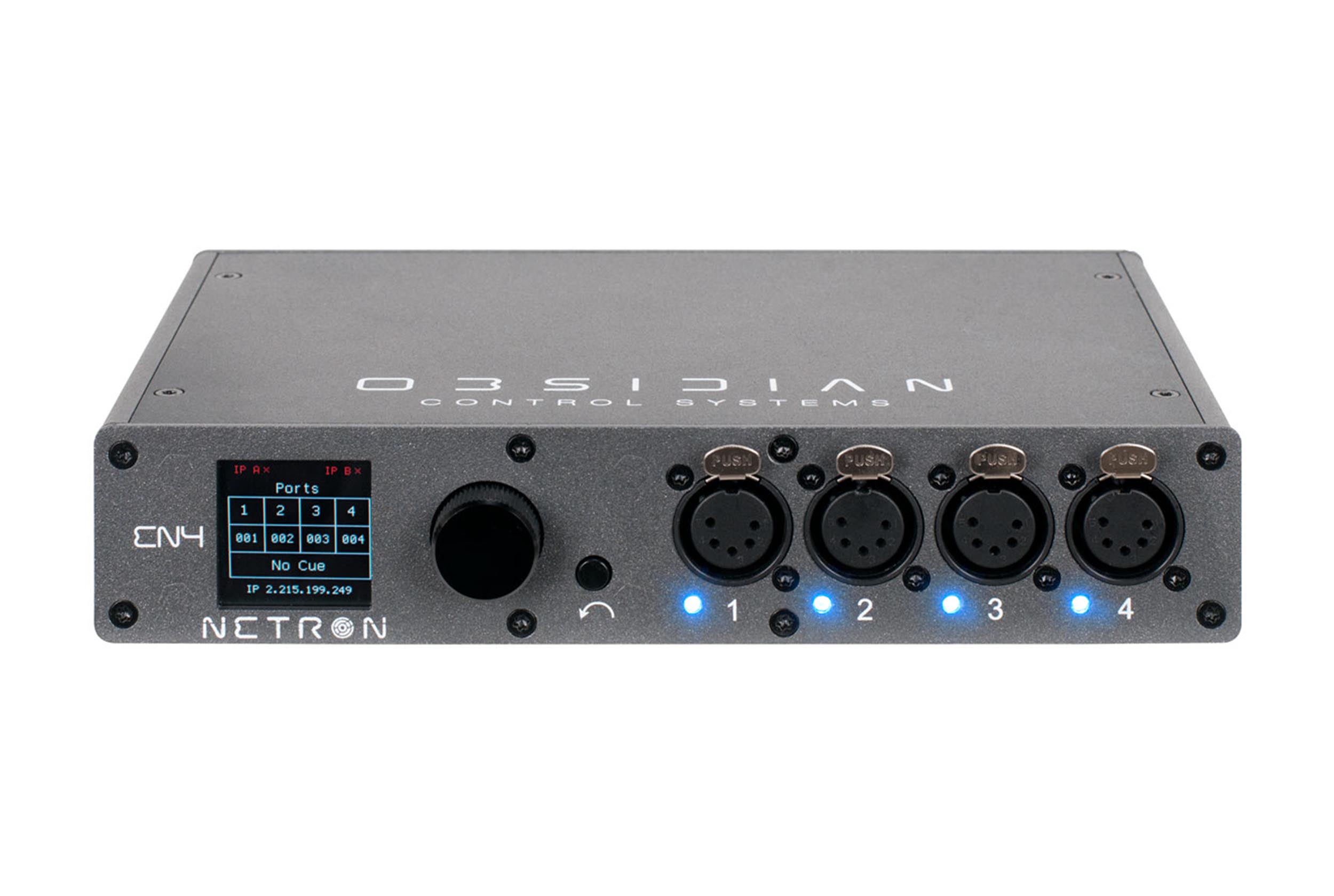

Front:
(4) 5pin DMX/RDM optically isolated ports
Ports are bidirectional for DMX In and Output
Full color OLED display
Encoder w. Push to Select / Exit Button

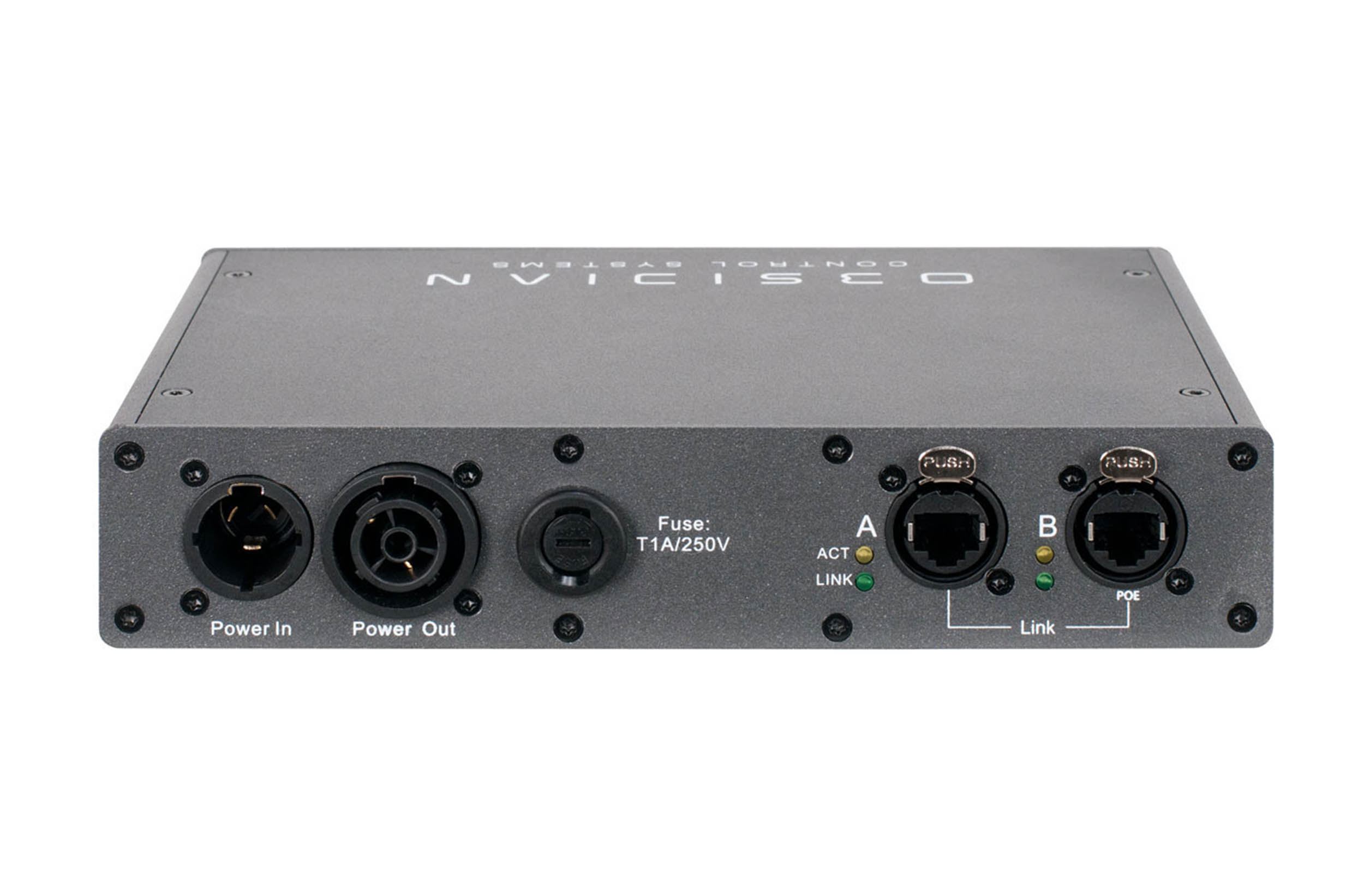

Back:
Locking Power In/Thru
(2) Locking RJ45 Ethernet network connections (1x POE)
Physical:
Length: 215 mm (8.5 in.)
Width: 139 mm (5.5 in.)
Height: 42 mm (1.65 in.)
Weight: 1 kg (2.2 lbs.)
Electrical:
100-240 V nominal, 50/60 Hz,10W
POE 802.3af
Power Consumption: 5W
Approvals / Ratings: CE | cETLus | FCC | IP20
