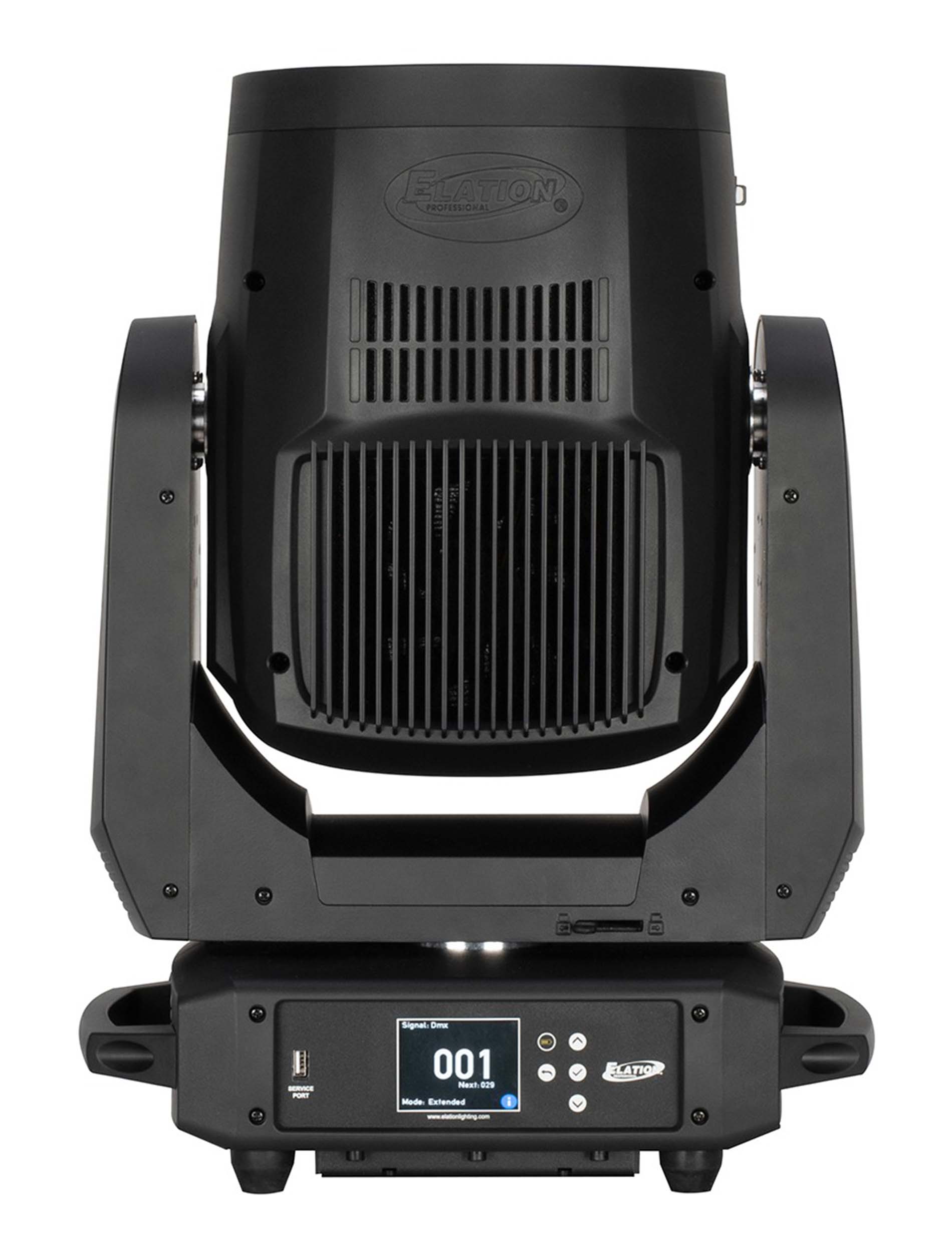

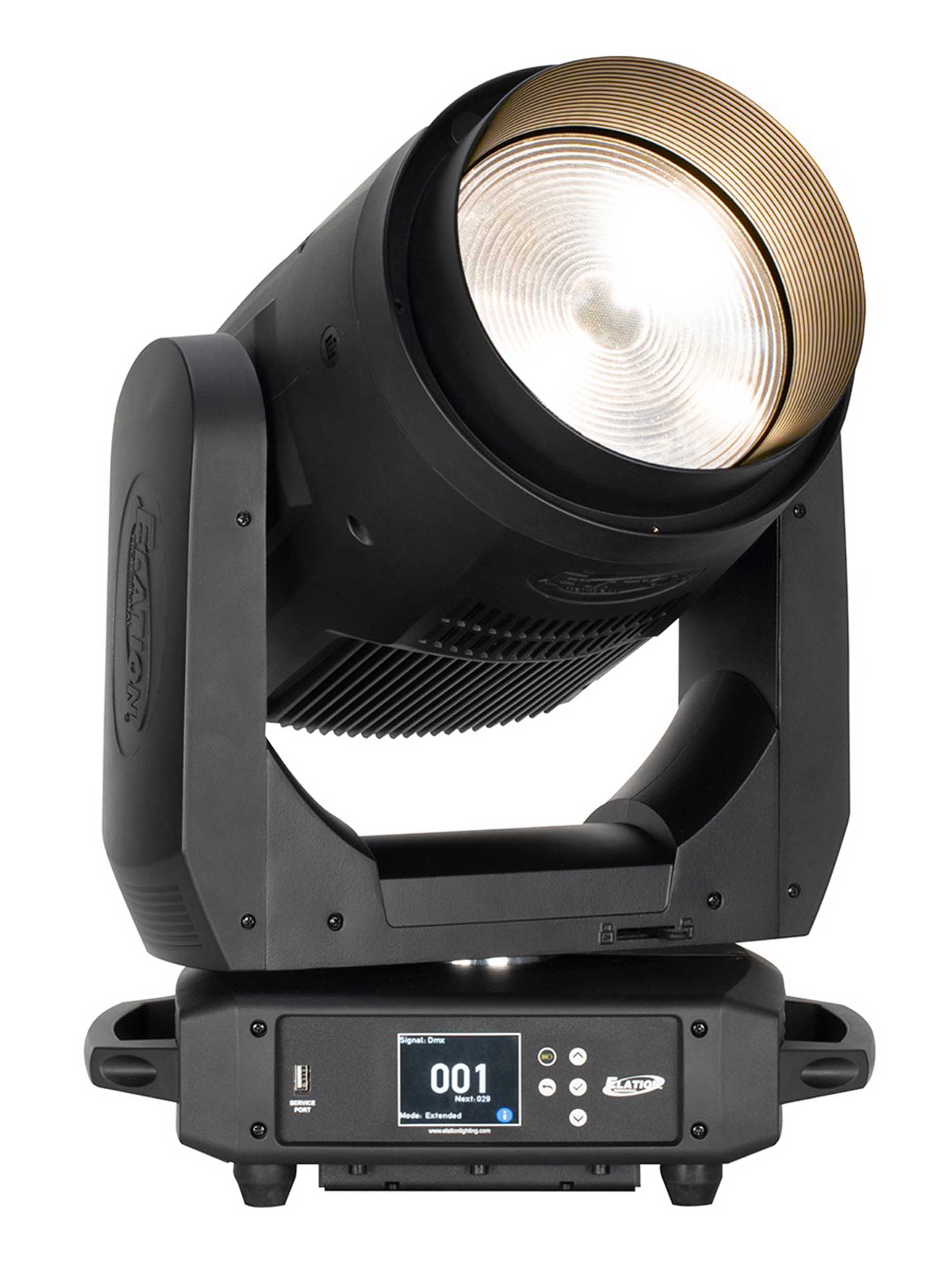

Elation FUZ567, Full Spectrum RGBMA LED Wash Fixture - 500 Watt

Save 20%
UPC: 810008263648
Sale price$3,360.00 Regular price$4,200.00
Sold out

Notify me when available

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

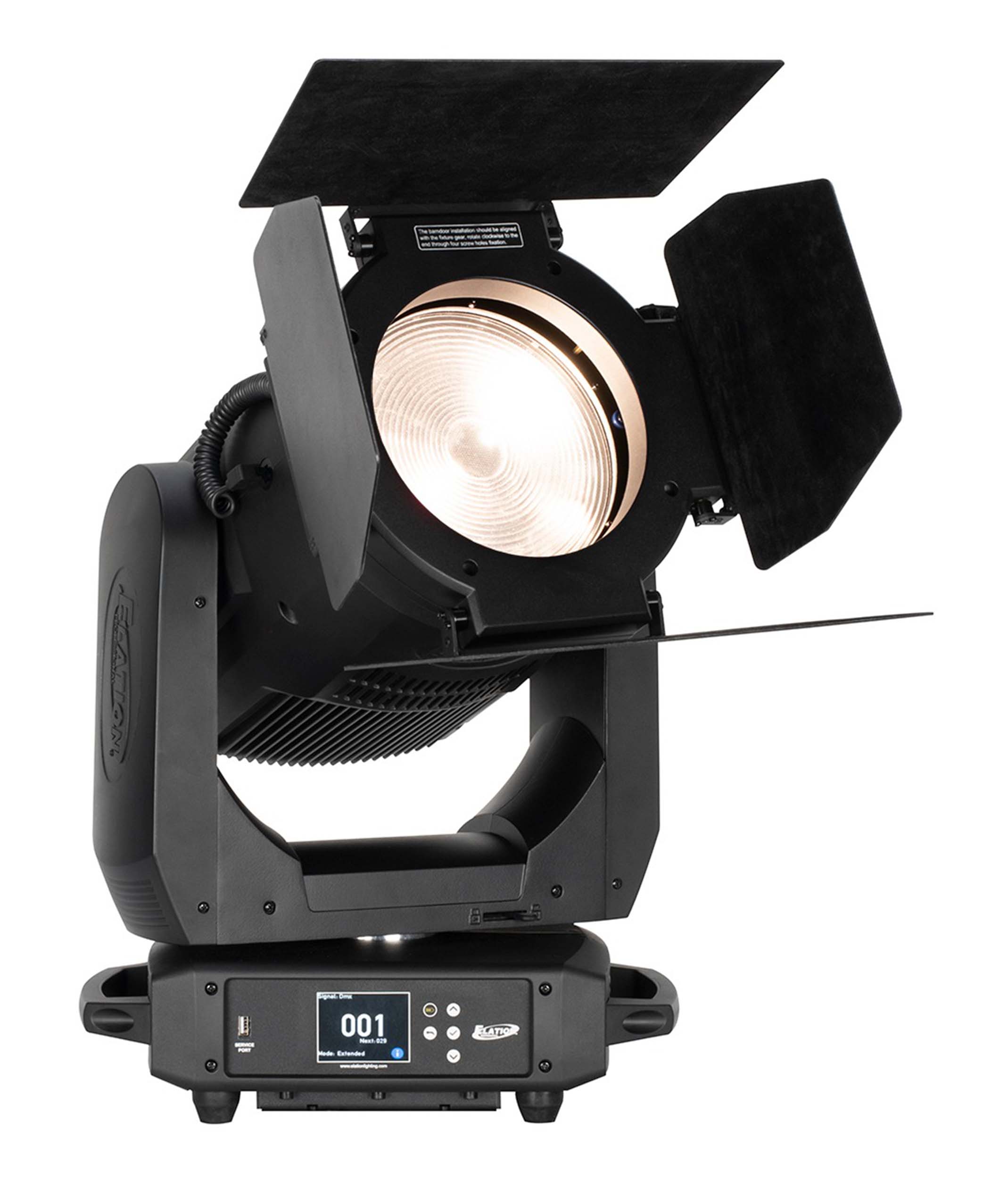

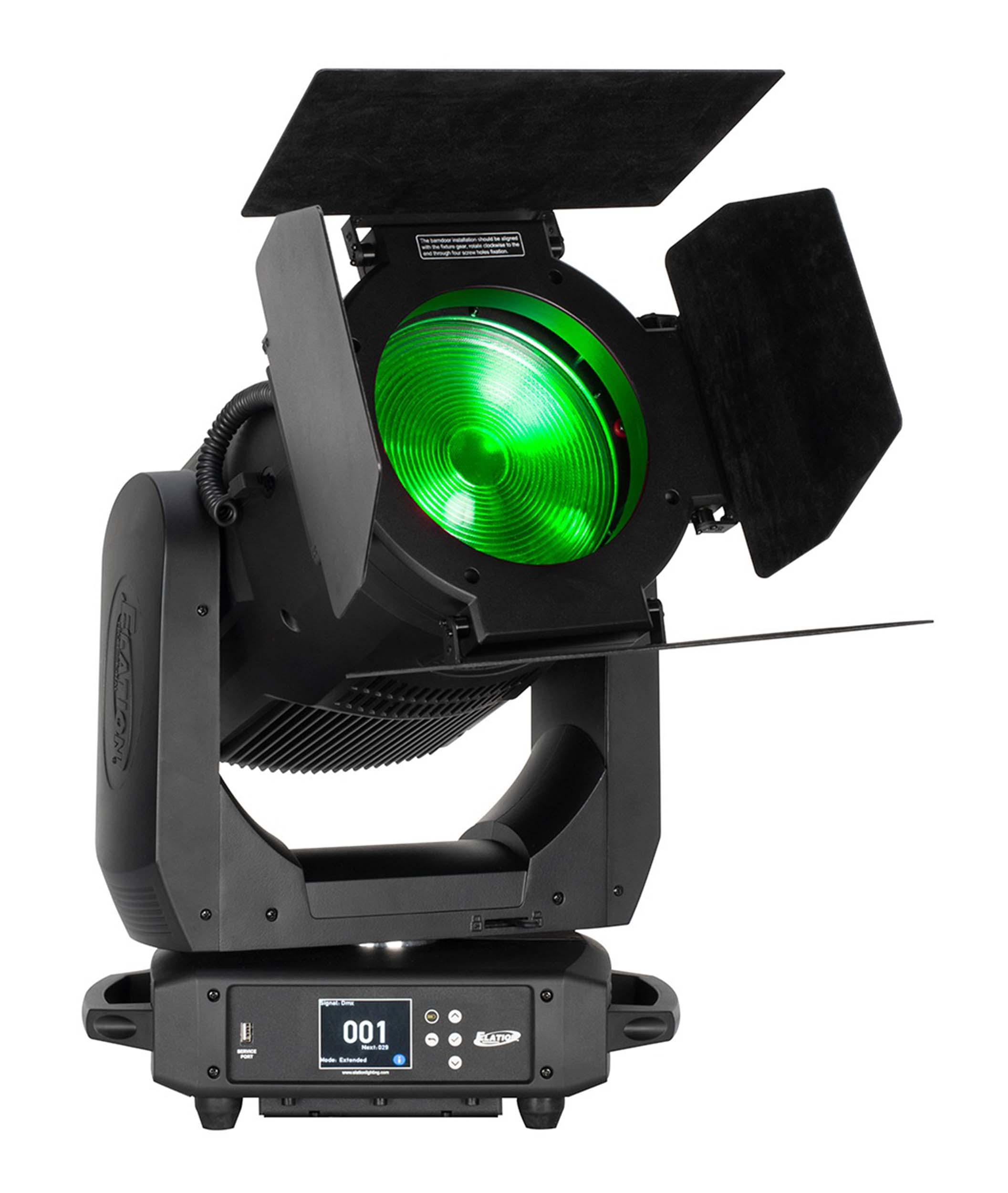

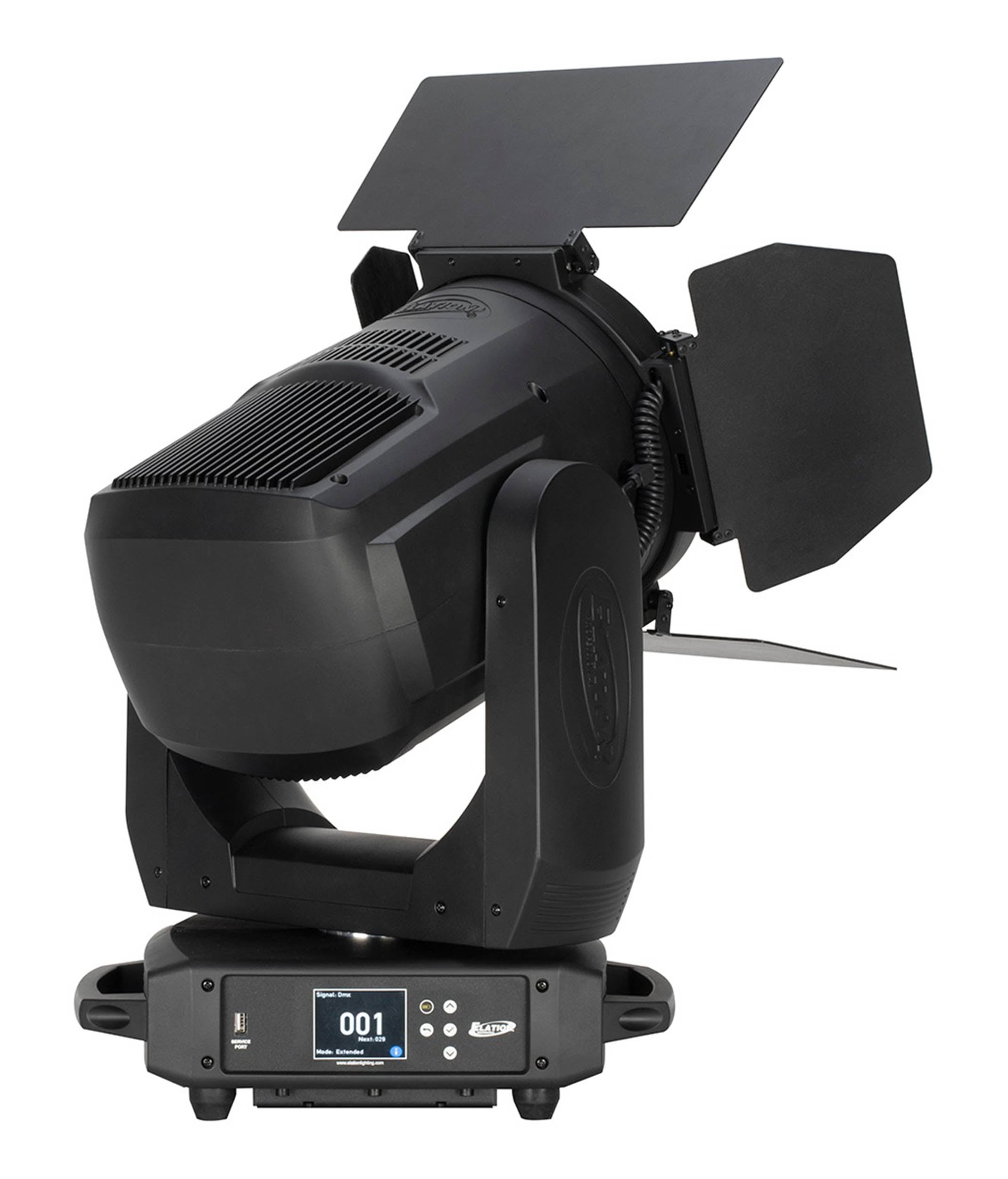

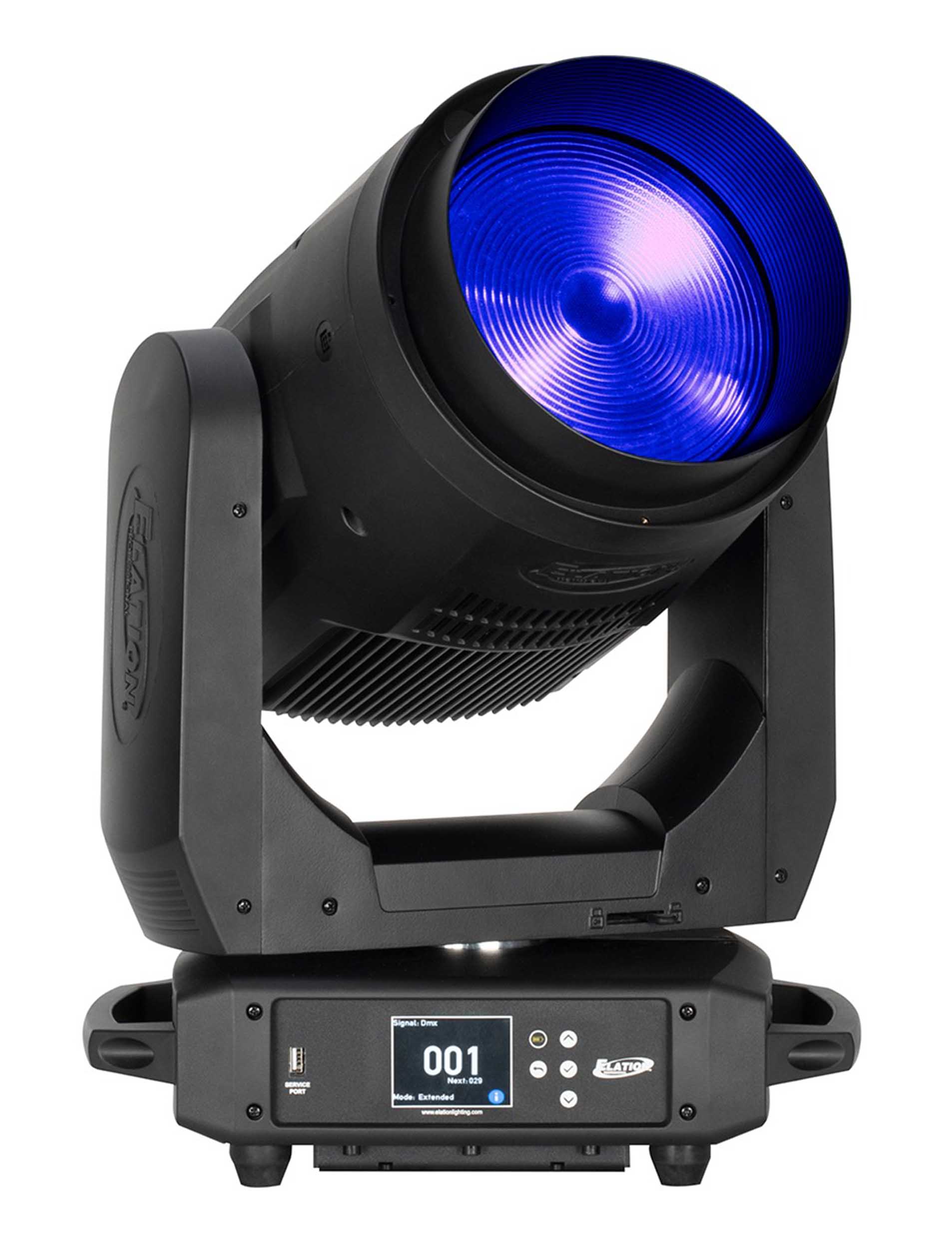

The Elation FUZ567, 500-Watt Full Spectrum RGBMA LED Wash Fixture is a powerful automated LED Fresnel wash fixture designed for theater, television, events and a wide array of other precision lighting applications. A High-CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of up to 17,000 lumens and maximum CRI of 92. Virtual color temperature, Magenta / Green adjustment plus CMY or RGB emulation provide the designer with immediate access to the impressive LED color array.

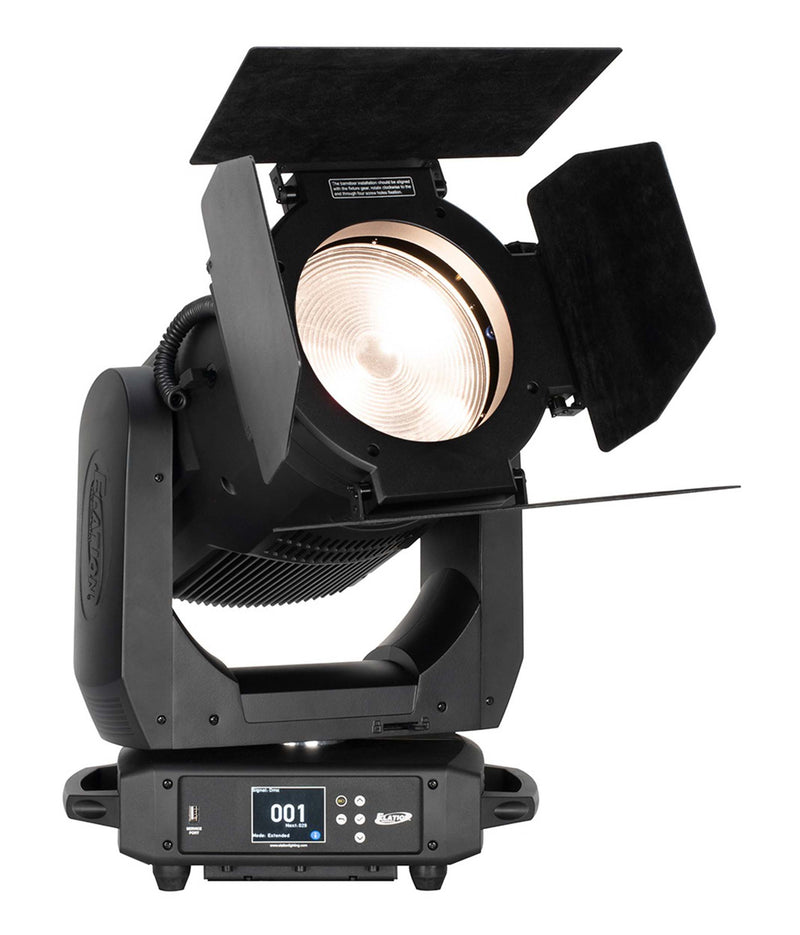

The FUZE WASH 500 is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field is required. An optional indexable Ovalizer lens and a fully automated barn door system is available for additional remote beam control.

Product Specifications:


500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine

30,000 Hour Average LED Life

Photometric Data:

17,000 Total Lumen Fixture Output

CRI 92

Zoom Range: 6° - 53°

Field Angle: 12.1° - 63.6°

Beam Angle: 6.3° - 53.7°


Motorized Zoom

Optional Indexable Ovalizer Lens

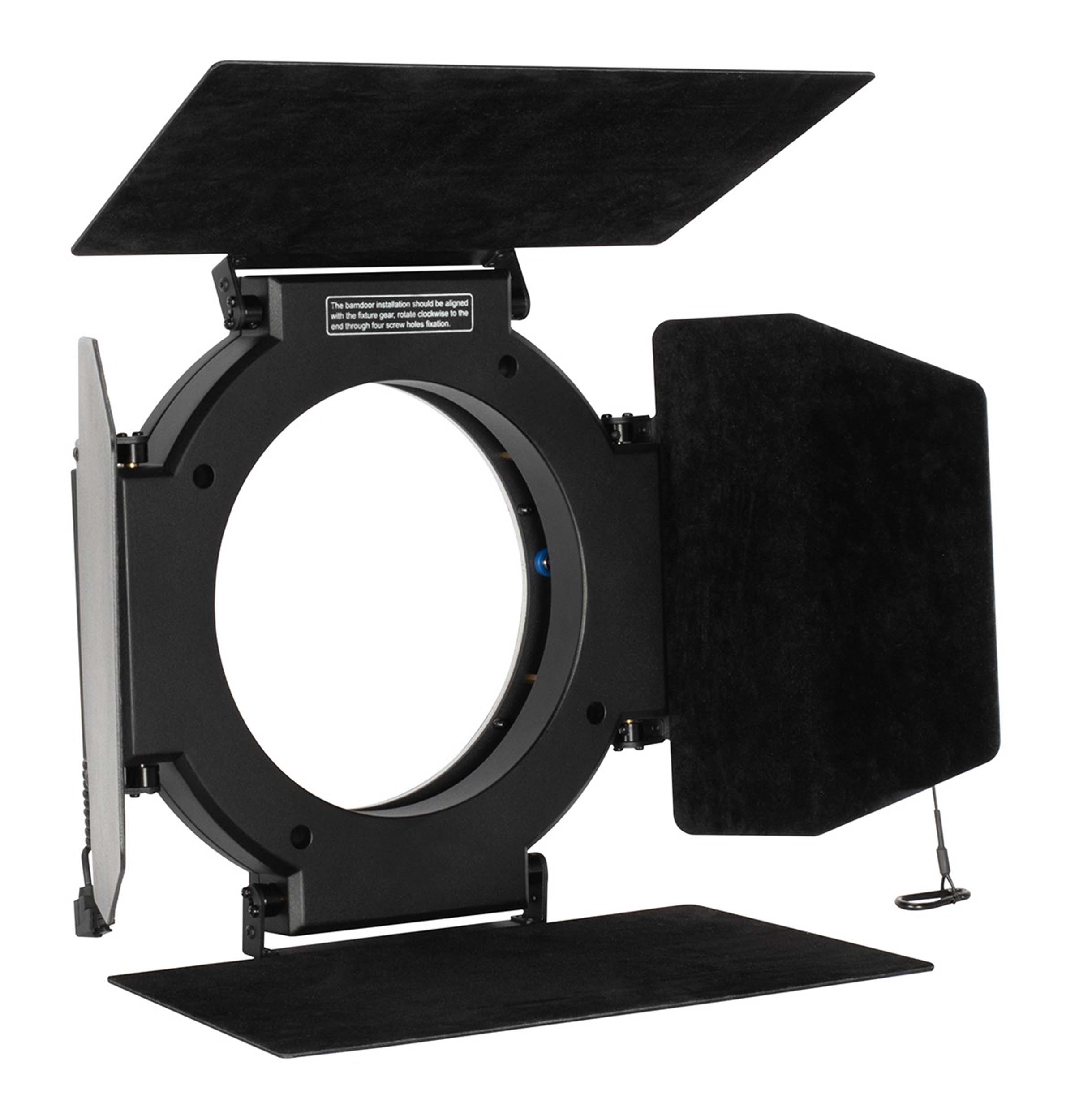

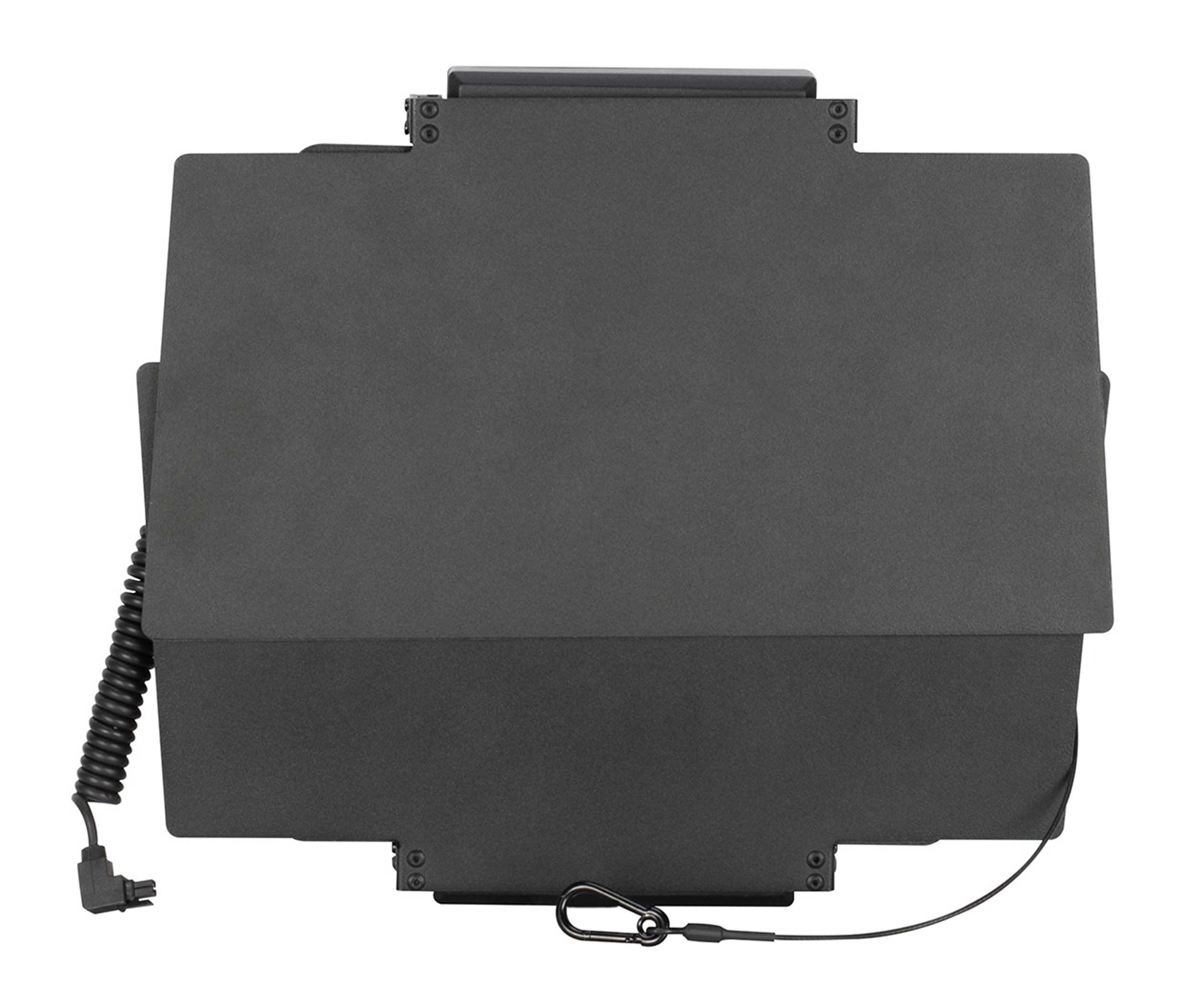

Optional Motorized Barn Doors

Variable 16-bit Dimming Curve Modes

High Speed Electronic Shutter and Strobe


RGBMA Color Array

CMY and RGB Emulation

Variable CCT 2400K - 8500K

Green/Magenta Shift

Virtual Gel Swatch Book

Control / Connections:

6 DMX Channel Modes (RGBMA 21/ 30) (CMY 17 / 24) (RGB 20 / 26)

16-bit Pan, Tilt, and Dimming Control

DMX Adjustable LED Frequency

DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support

4 Button Touch Control Panel

Full Color 180° Reversible LCD Menu Display

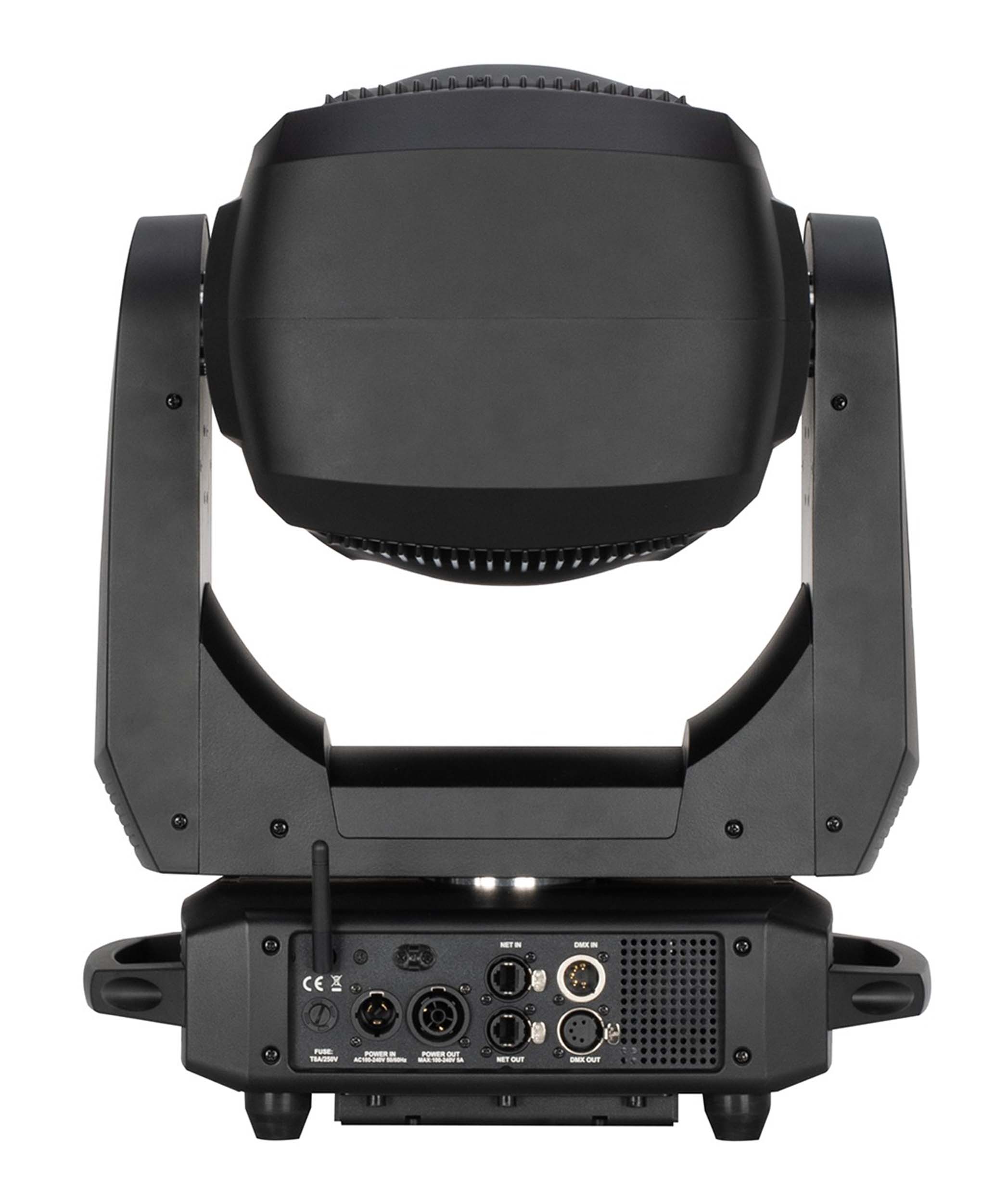

Locking 5pin XLR Connector In/Out

Locking RJ45 Ethernet Connector In/Out

Locking IP65 Power Connector In/Out

USB Connection (Firmware Updates)

Size / Weight:

Length: 16.06" (408mm)

Width: 10.07" (256mm)

Vertical Height: 21.7" (550mm)

Weight: 40.8 lbs. (18.5kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

Max Power Consumption: 609W

14°F to 113°F (-10°C to 45°C)

BTU/hr. (+/- 10%) 2151.71
