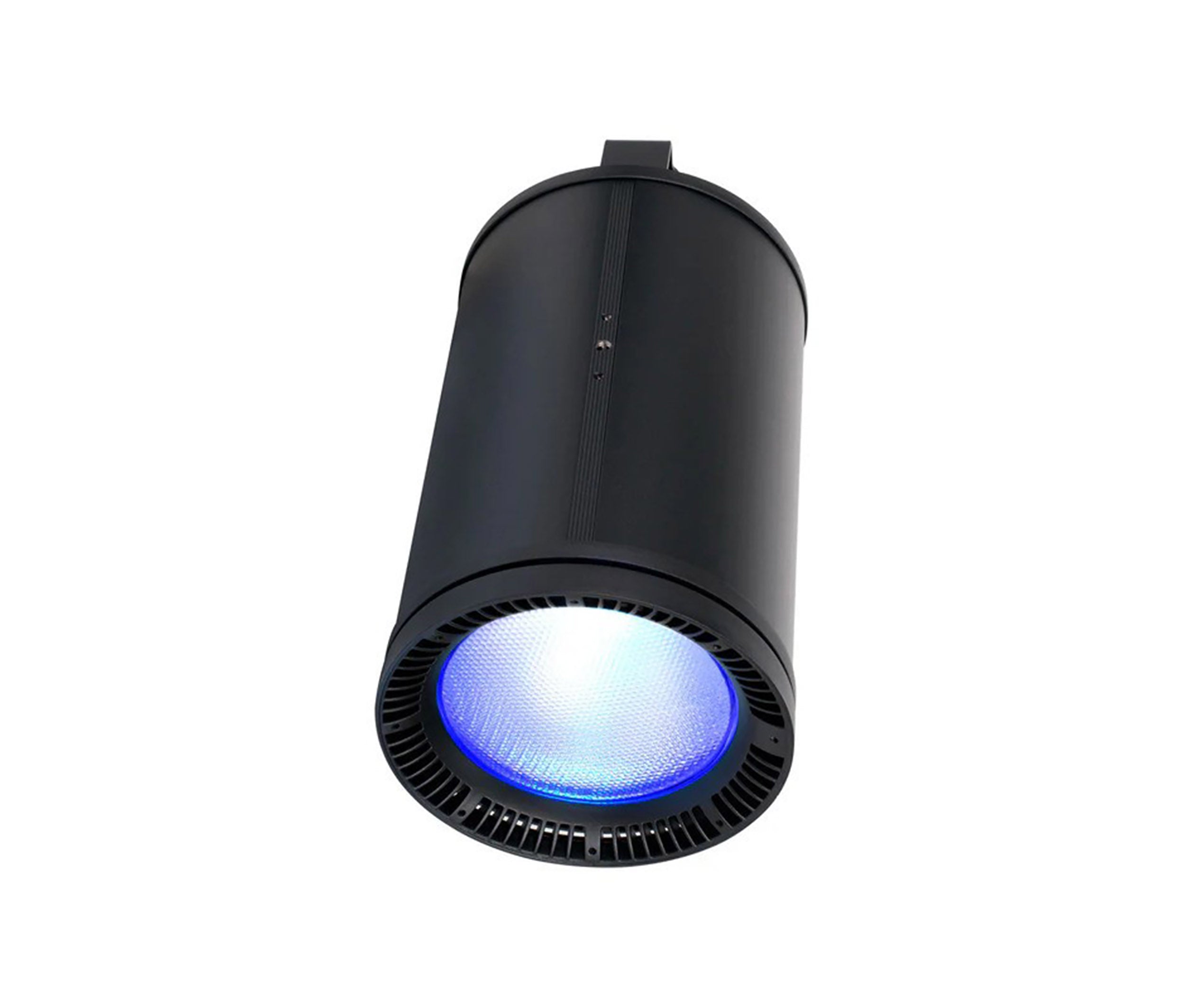

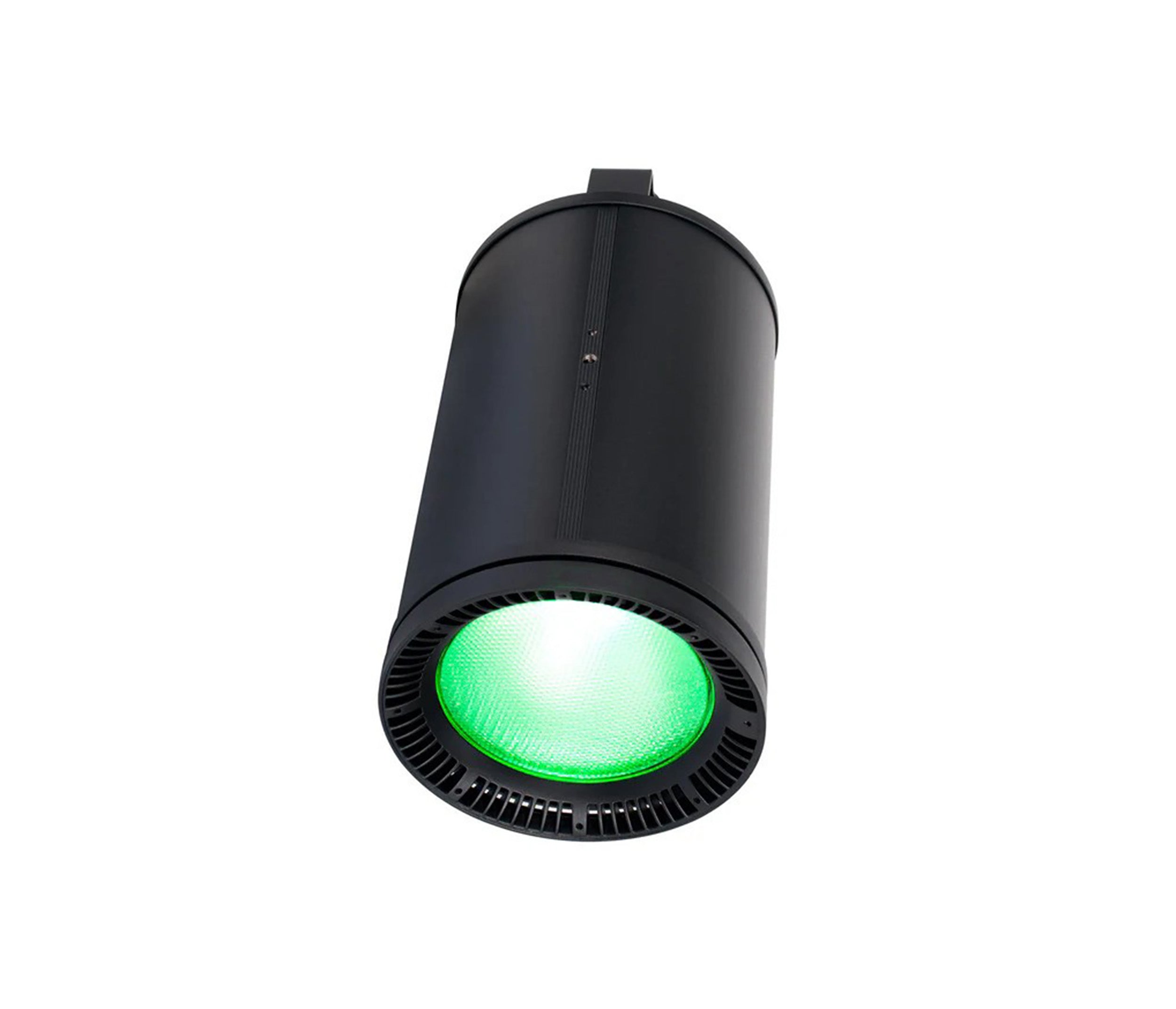

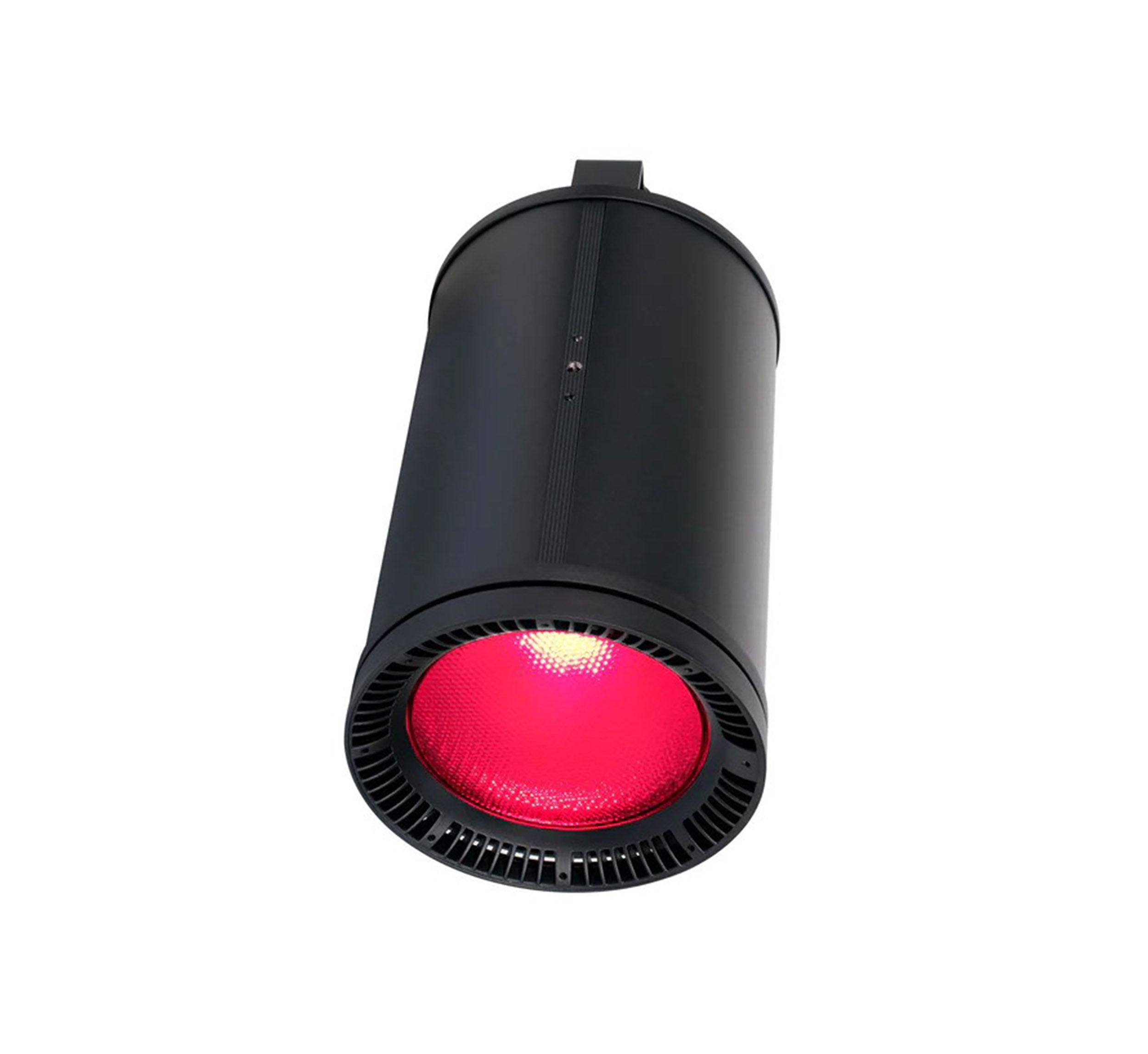

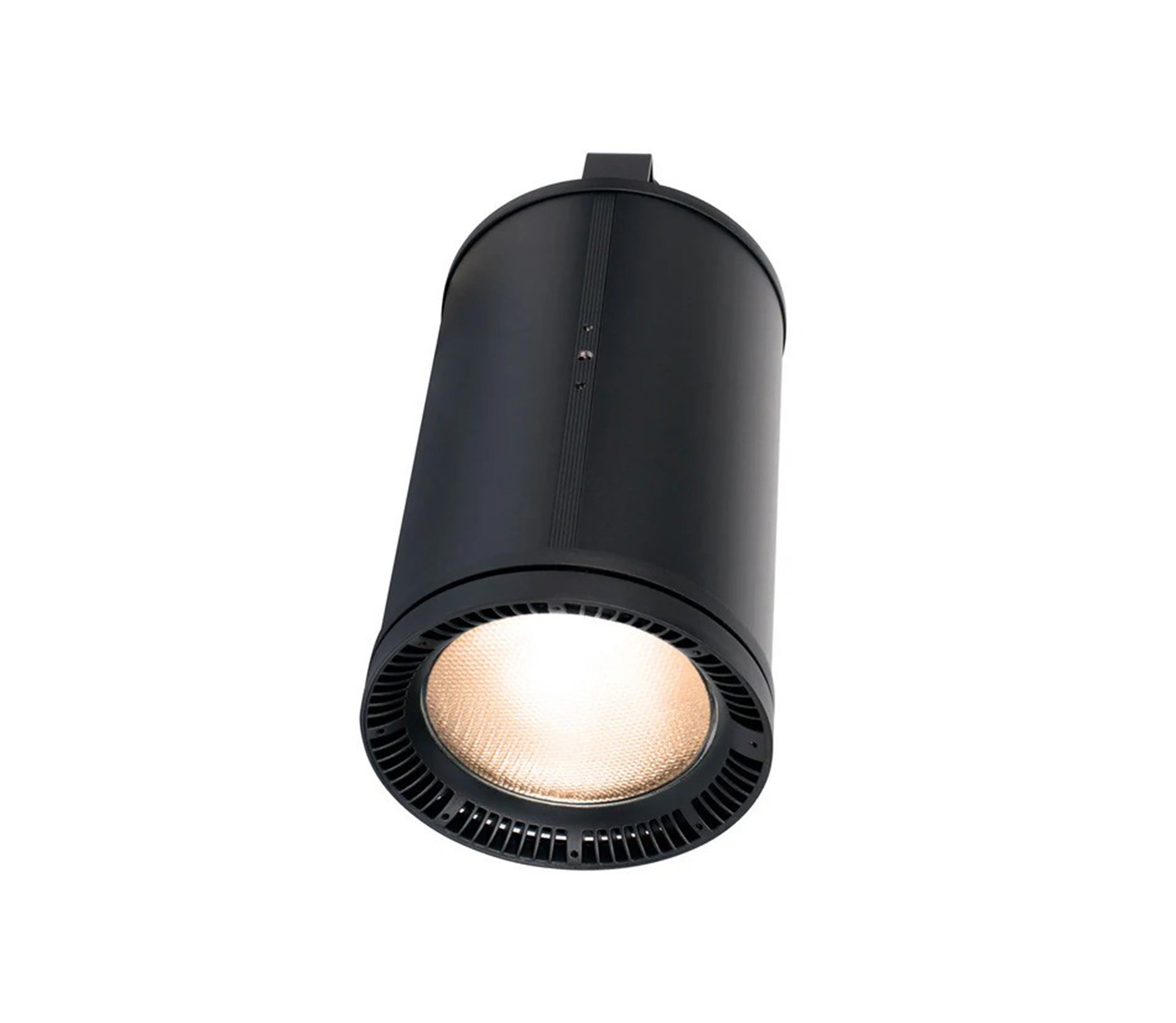

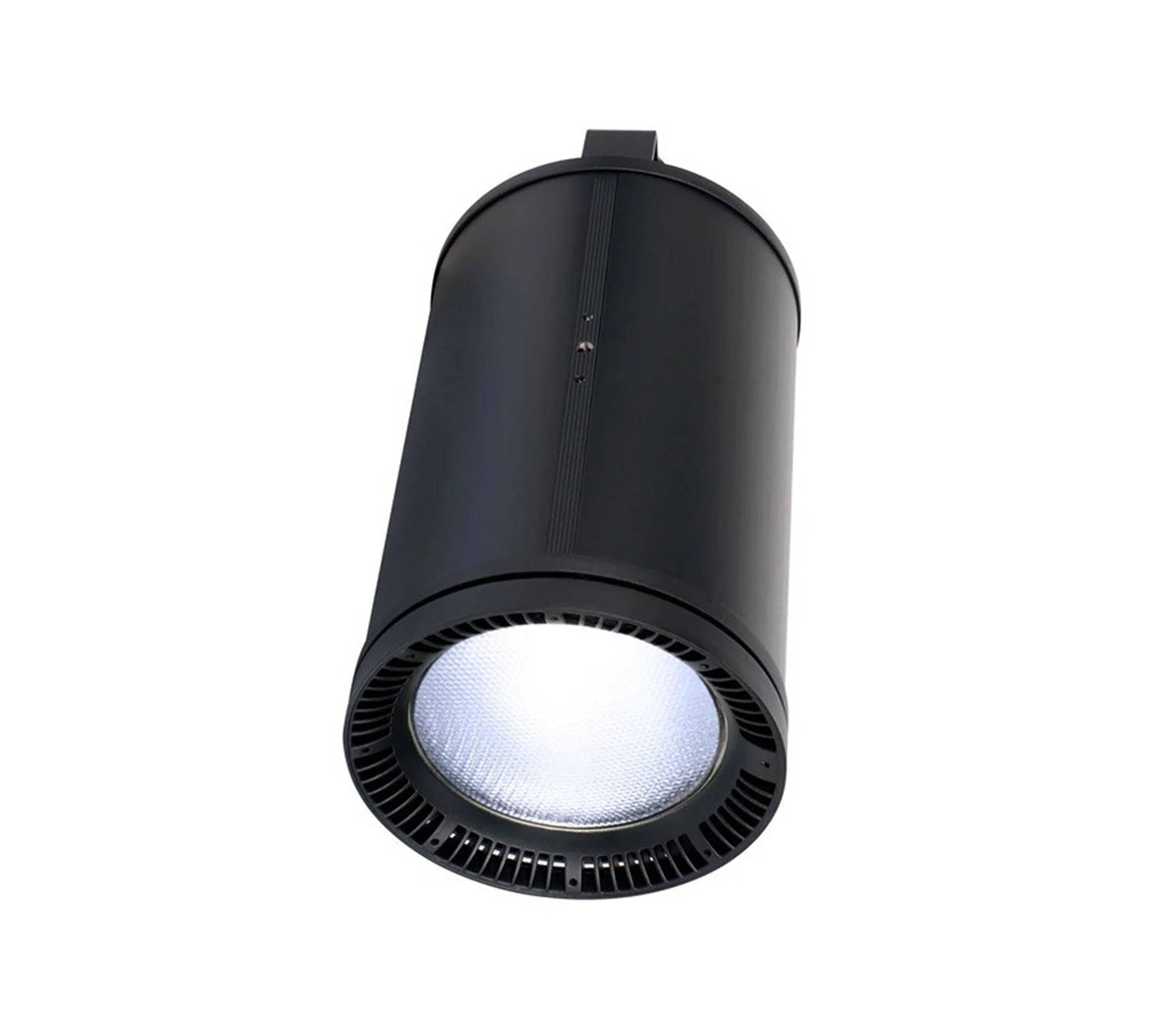

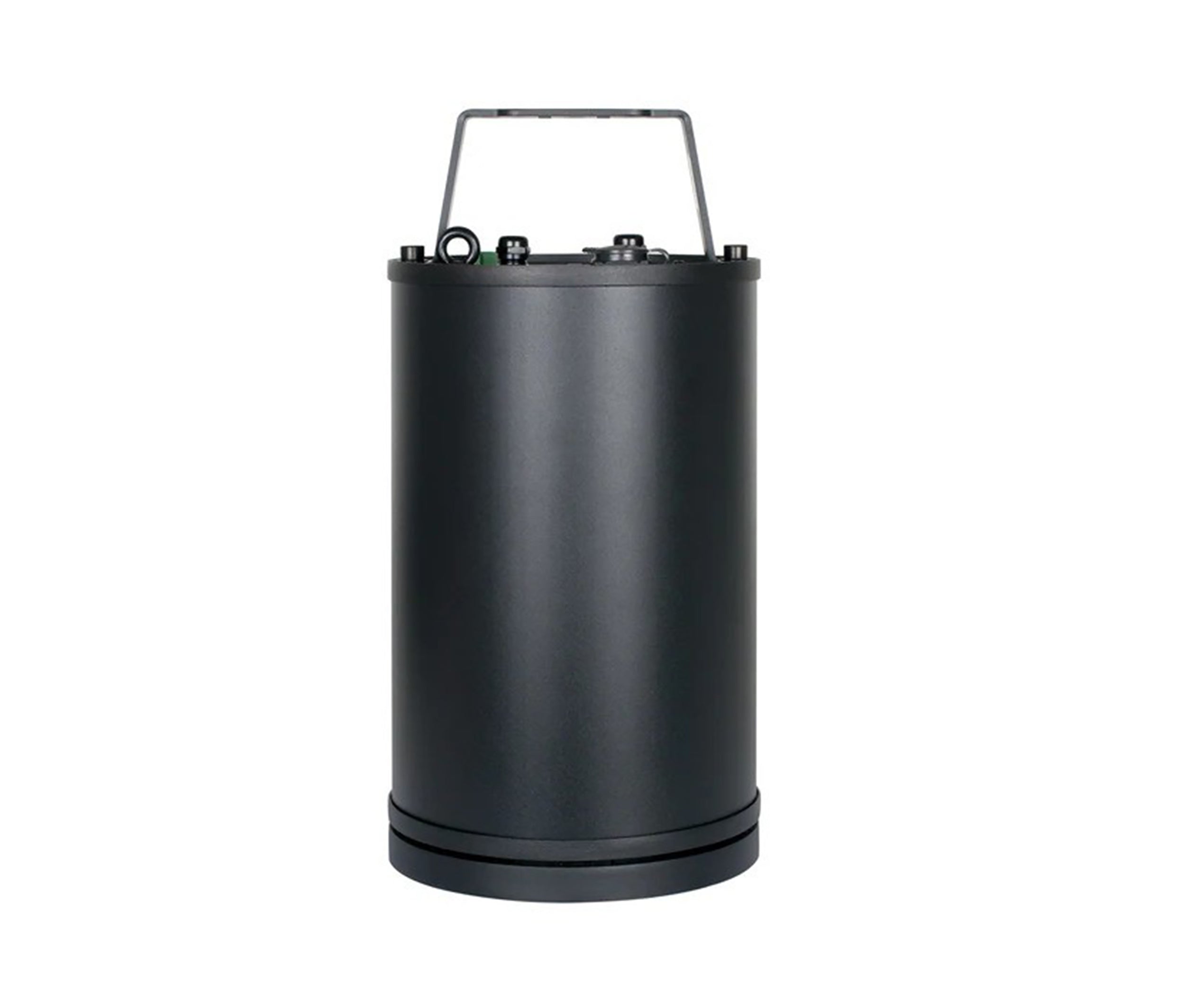

ELATION Fuze Pendant (HW) 230W RGBWL LED House Light Pendant Fixture

The Elation Fuze Pendant (HW) 230W RGBWL LED House Light Pendant Fixture, hardwired for 277V is provides powerful illumination for a variety of house and area lighting applications. Crisp whites with a high CRI, plus subtle pastels and powerful pure colors with 16-bit dimming, allow for a wide range of smooth illumination and dynamic effects for any environment. At up to 11,000 lumens, the FUZE PENDANT (HW) is ideal for large areas and high-ceiling applications yet is compact enough to be adaptable to smaller spaces. It is convection cooled for absolute silence and has no fans or other moving parts for a long maintenance free product life.

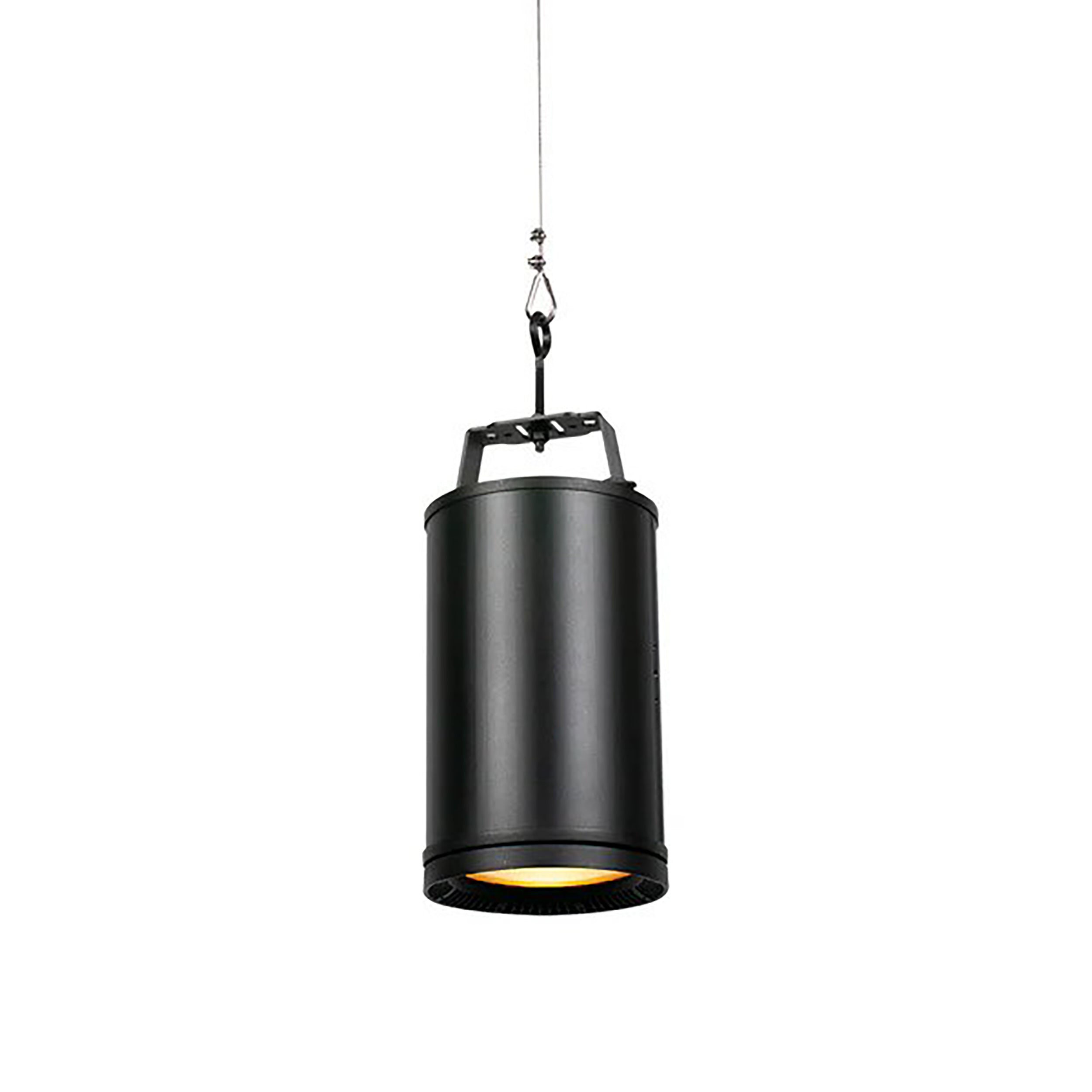

Pendant and optional yoke or recessed ceiling options provide flexibility when finding the ideal mounting position and a variety of lens choices (45° included, 25°, 40°, 50°, 85° or 100° optional) allow for precise light distribution. Hardwired power, industry standard DMX connections, plus included terminal block connections, DMX, emergency battery input and 0-10V control are available to support the fixture for any power systems up to 277V.

Product Specifications:

Source:

230W 5-in-1 RGBWL (Red, Green, Blue, White, LimeLED Array

50,000 Hour Average LED Life

Photometric Data:

11,000 Total Lumen Fixture Output

CRI 90 @ 3,200K

45° Lens Included

Effects:

Variable CCT 2400K - 8500K

Virtual Color Swatch Book

Dimmer, Dimmer Color, RGBWL, RGBWL 16-Bit, Standard, Extended, HSI HSI Extended Control Options

Variable 16-bit Dimming Curves

High Speed Electronic Shutter and Strobe

DMX and Menu adjustable LED Refresh Rate Frequency

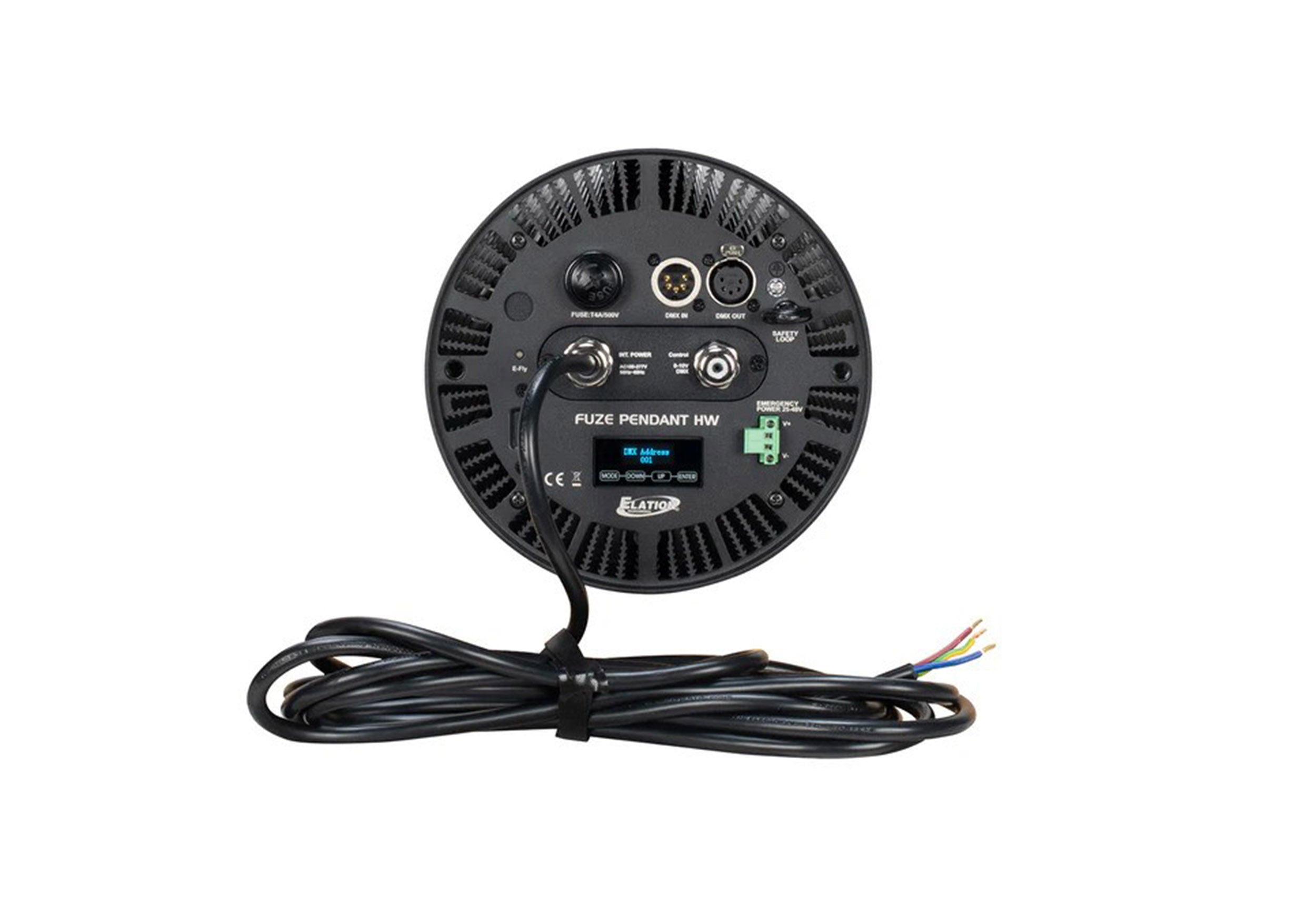

Control / Connections:

8 DMX Channel Modes

Standalone and Primary, Secondary Modes

RDM (Remote Device Management)

0-10V Dimming (Current-Sink)

E-FLY Internal Extended Range Wireless DMX Transceiver

4 Button Control Panel and OLED Menu Display

Locking 5pin XLR Connector In/Out

5m Power cable preinstalled (12-24 AWG (4.0 - 0.25 mm2)

5pin Wire Terminal Block for 0-10V, DMX (24AWG / 0.25 mm2)

2pin Wire Terminal Block for 48V Emergency Battery Input (24AWG / 0.25 mm2)

Size / Weight:

Length: 12.5" (318mm)

Diameter: 7.8" (197mm)

Weight: 15.8lbs. (7.2 kg)

Electrical / Thermal:

AC 100-277V - 50/60Hz

Max Power Consumption 230W

14°F to 113°F (-10°C to 45°C)

Approvals / Ratings: CE | cETLus | IP20

Optional Accessories:

FPL25- 25° Lens

FPL40- 40° Lens

FPL50- 50° Lens

FPL100- 100º Lens

FPCMK- Ceiling Mount Kit

FPYMK- Yoke Mount Kit

FPHS- Half Snoot

FPFS- Full Snoot

Firmware Updates:

Current Version: V1.09

Platform: macOS & Windows
