Elation Fuze Wash Z120

Save 20%
UPC: 837874019728
Sale price$1,280.00 Regular price$1,600.00
Sold out

Notify me when available

Shop with Confidence

  • Additional 1 Year Warranty Free when you shop with us
  • 2 Day Shipping is Free or heavily discounted on most items
  • Price match guarantee

Signature required for all deliveries/shipments for your security.

Call us for package deal pricing, we're happy to help.

Our online prices are always honored instore guaranteed.

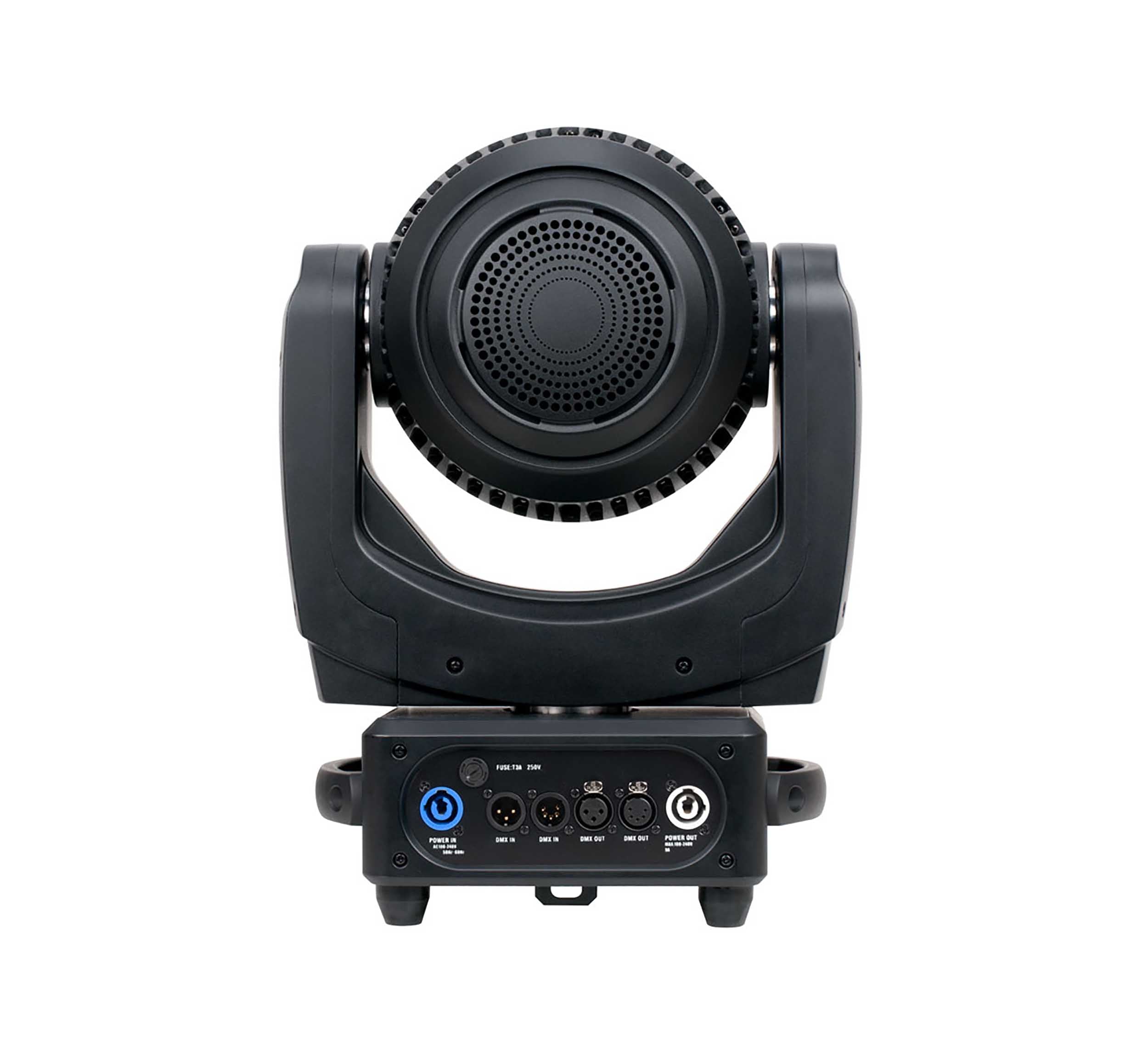

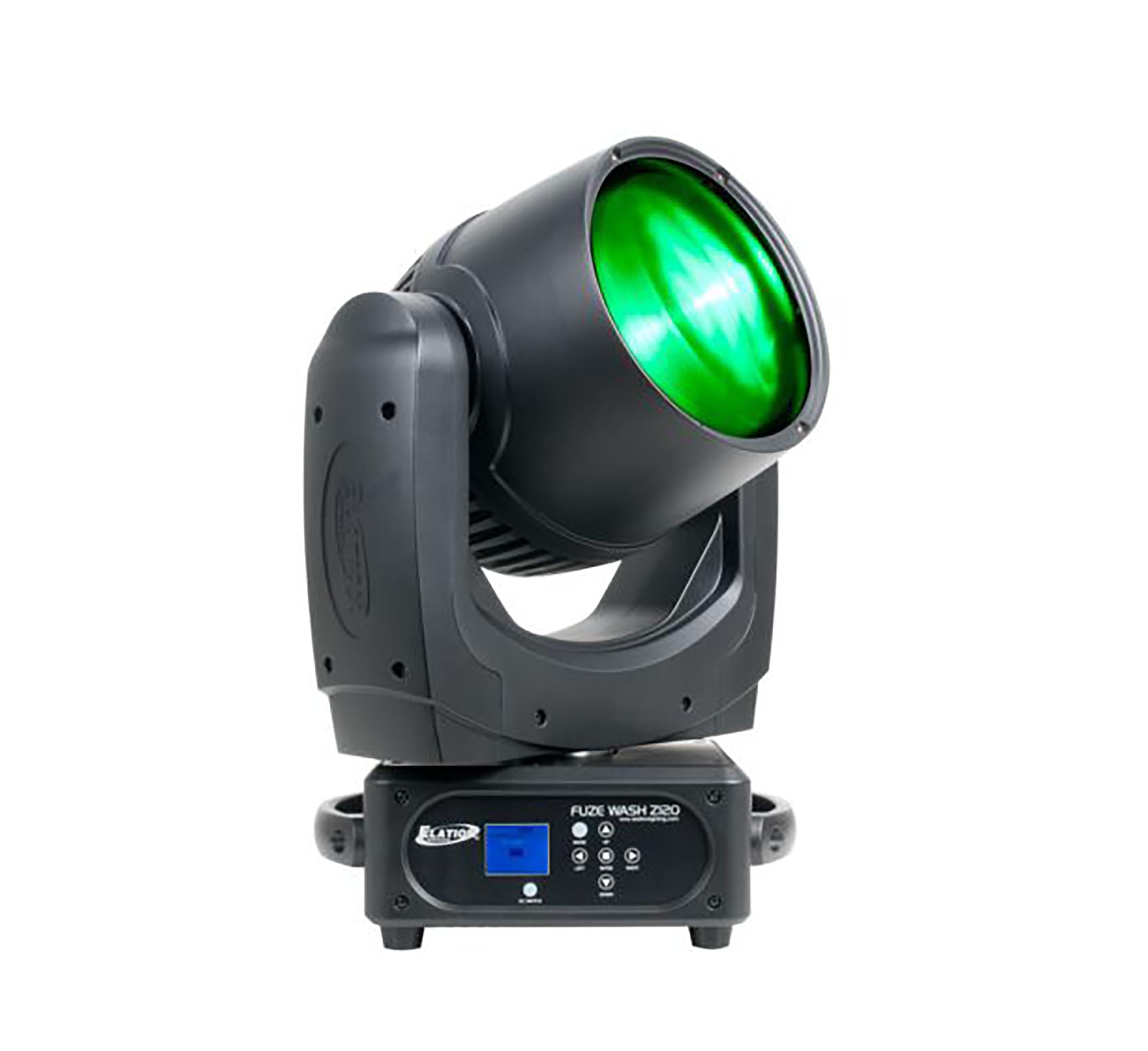

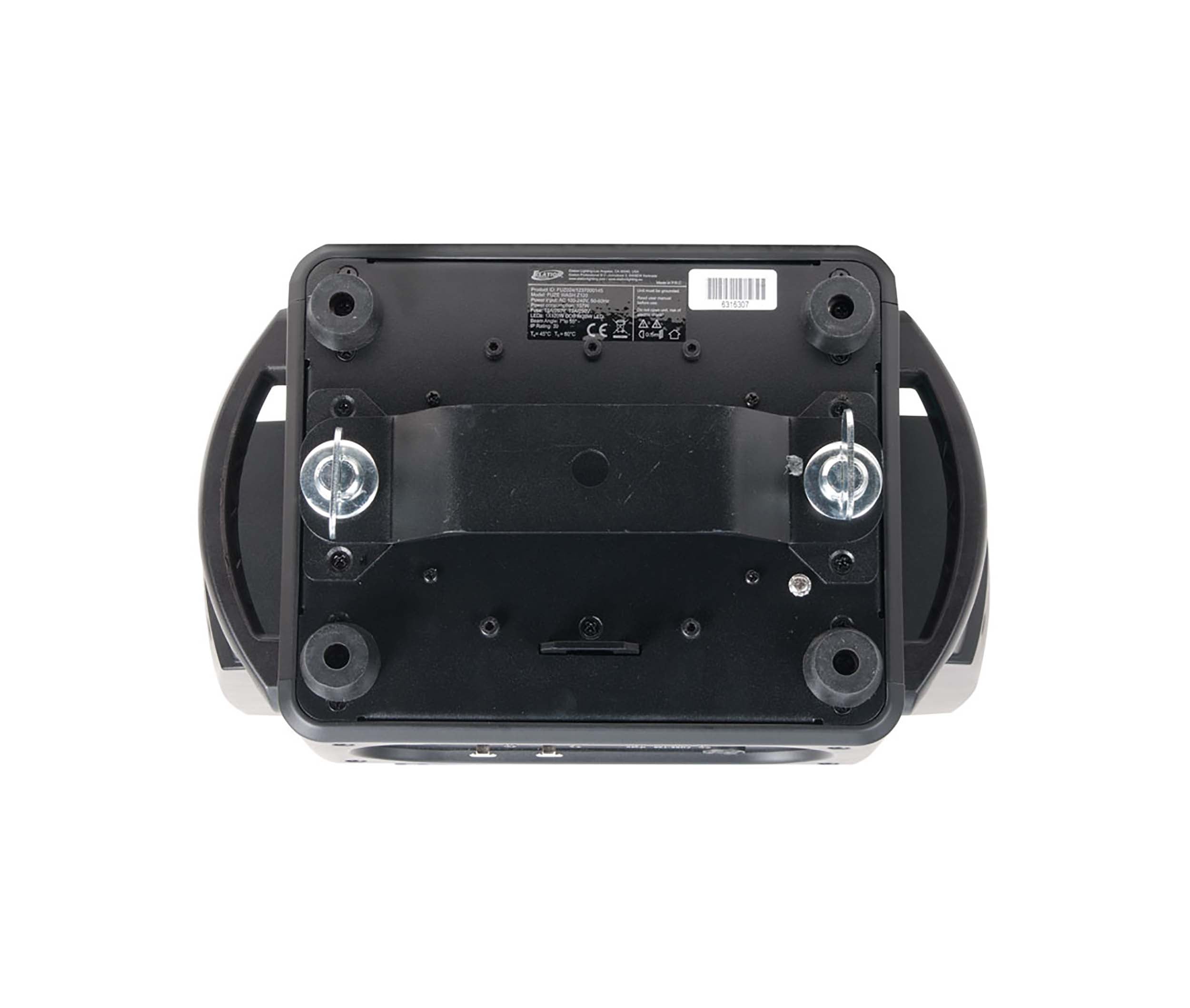

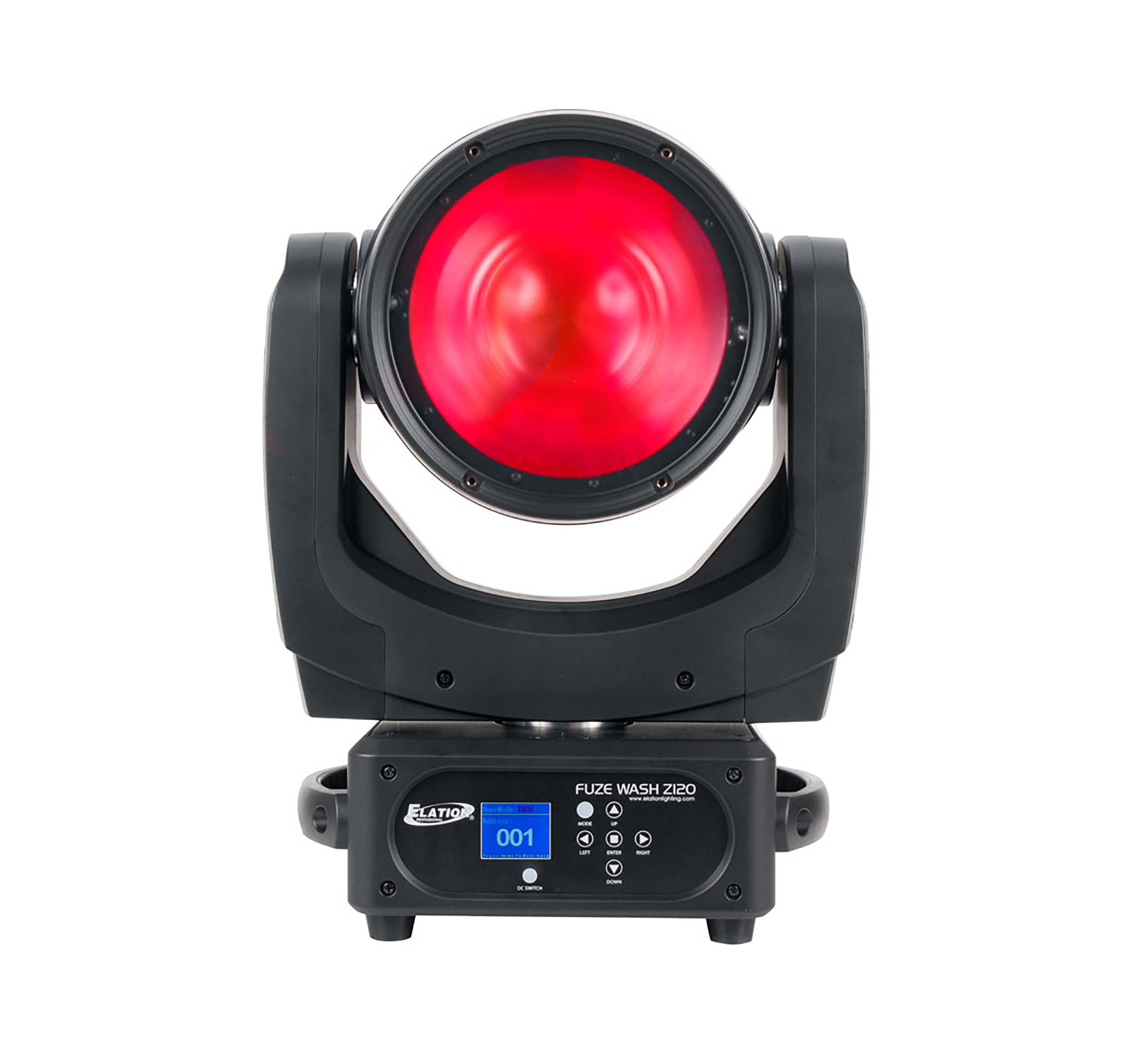

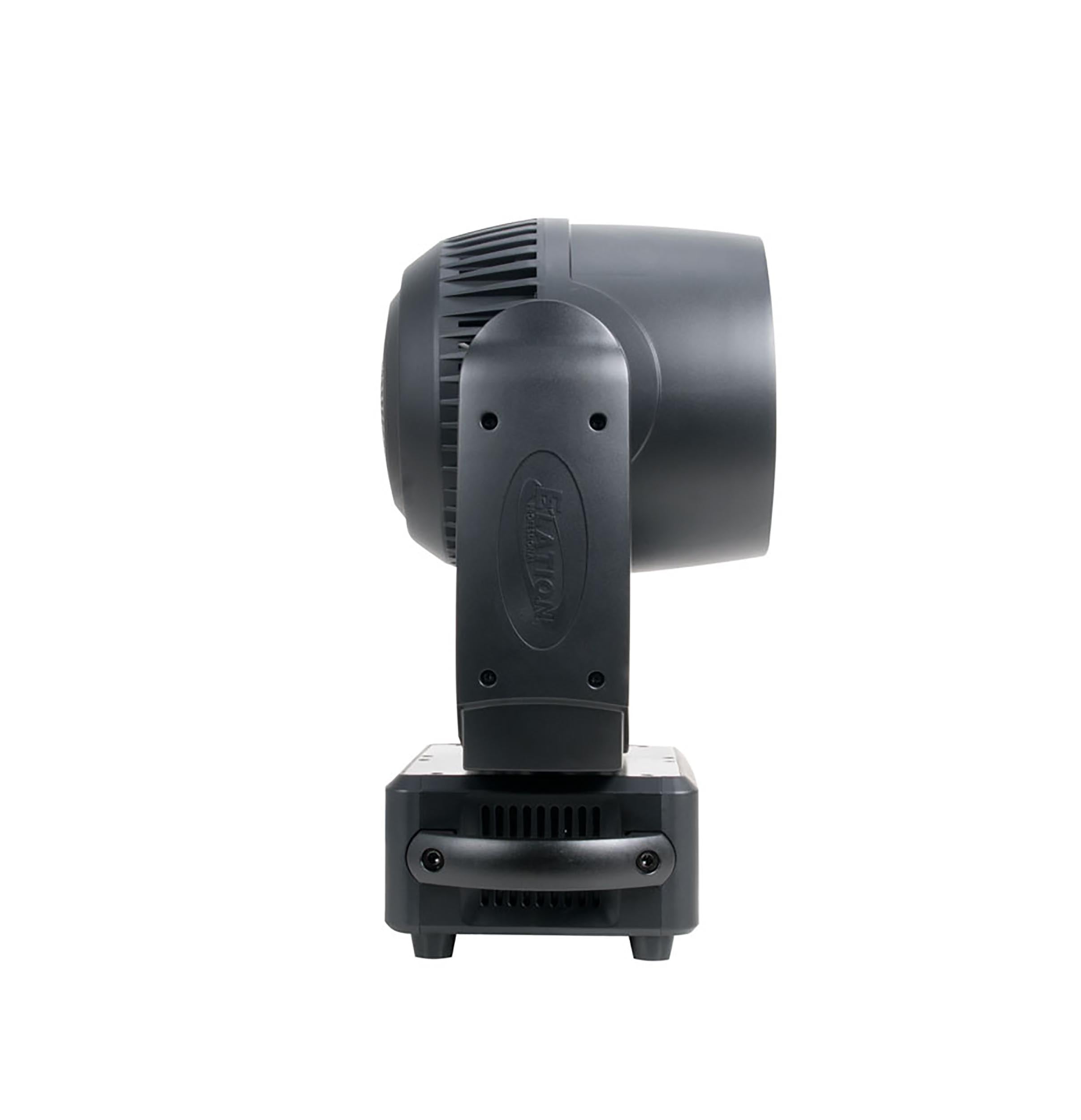

The Elation Fuze Wash Z120, RGBW LED Wash Fixture with Zoom - 120 Watt is a single source par moving head luminaire with a 120W Quad Color RGBW COB LED. Features 7° to 55° motorized zoom, pan and tilt, RGBW color mixing, electronic strobe and selectable dimming curve effects, DMX and RDM (remote device management) protocol support, DMX and power in/out connections, LCD menu display with 7 button control panel, multiple unit power linking, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

Product Specifications:



100,000 Hour Average LED Life*

*May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

Photometric Data:

10,640 LUX 988 FC @9.8’ (3m) (7° Full ON)

692 LUX 64 FC @9.8’ (3m) (55° Full ON)

Color: RGBW


RGBW Color Mixing

7° - 55° Beam Zoom Range

Electronic Strobe, Dimming and Variable Dimming Curves

64 Color Presets and 14 Unique Color Macros

Pan Angle: 540/630

Tilt Angle: 250

Control / Connections:

4 DMX Channel Modes (19 Total Channels)

7 Button Control Panel and LCD Menu Display

RDM (Remote Device Management)

3pin/5pin DMX and Locking Power Cable In/Out

With Wired Digital Communication Network

Size / Weight:

Length: 13.3" (338mm)

Width: 9.0" (229mm)

Vertical Height: 18.2" (466mm)

Weight: 22 lbs. (10 kg)

Electrical / Thermal:

AC 110-240V - 50/60Hz

157W Max Power Consumption

Multiple Unit Power Linking

5°F to 113°F (-15°C to 45°C)

BTU/hrs. (+/- 10%) 535.37

Approvals / Ratings: CE | cETLus | IP30

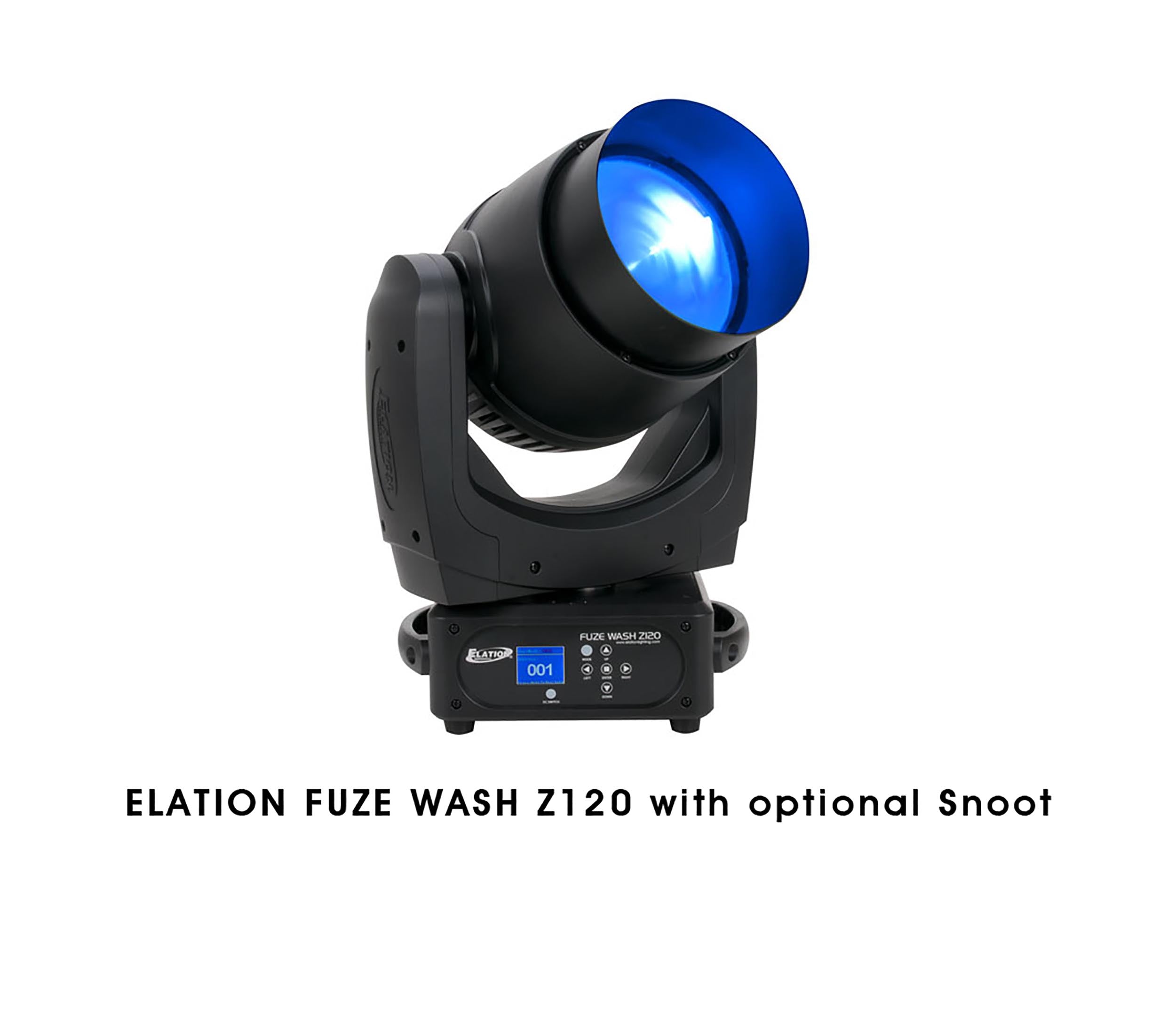

Optional Accessories: FW120SNOOT - Snoot
