Description

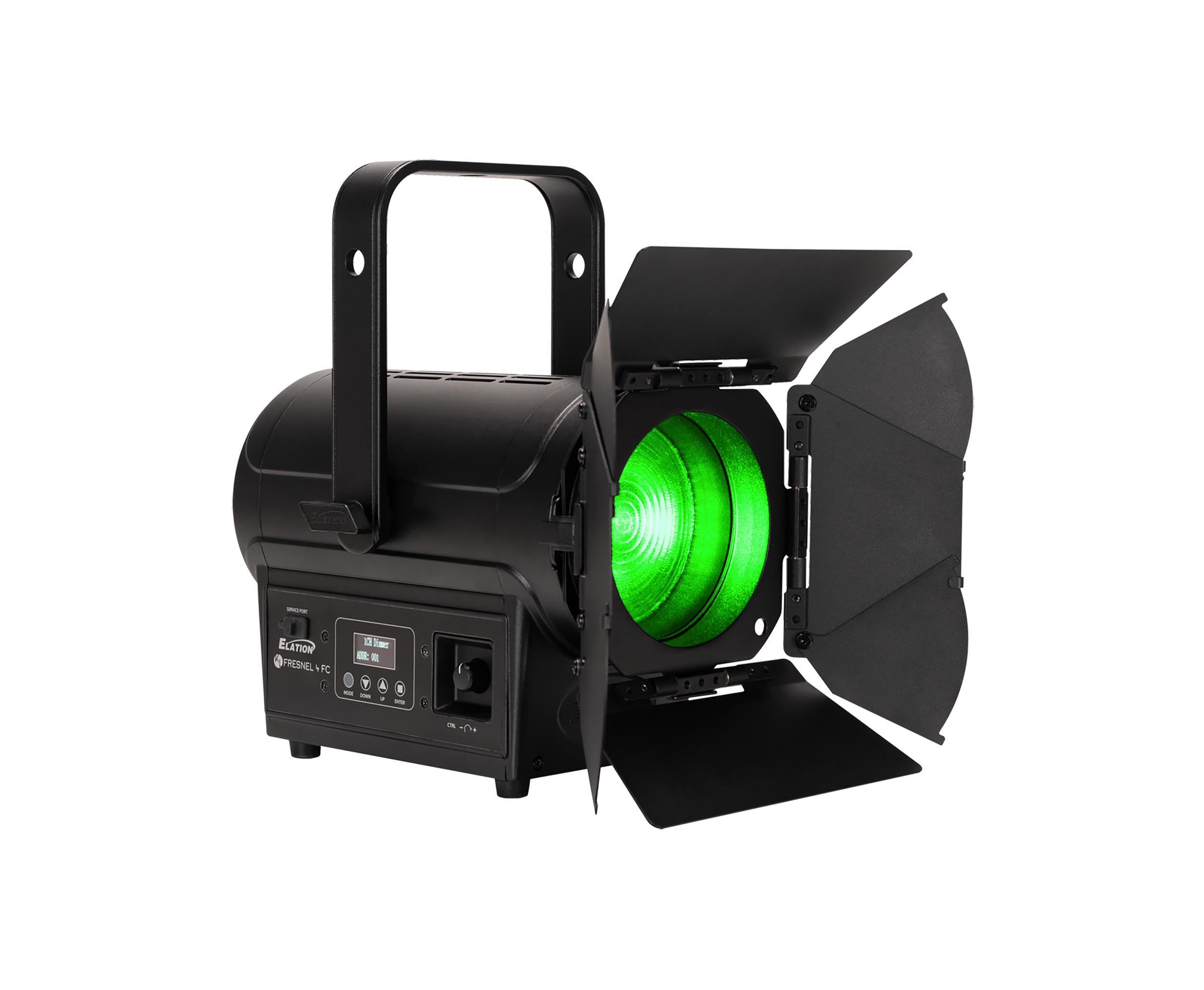

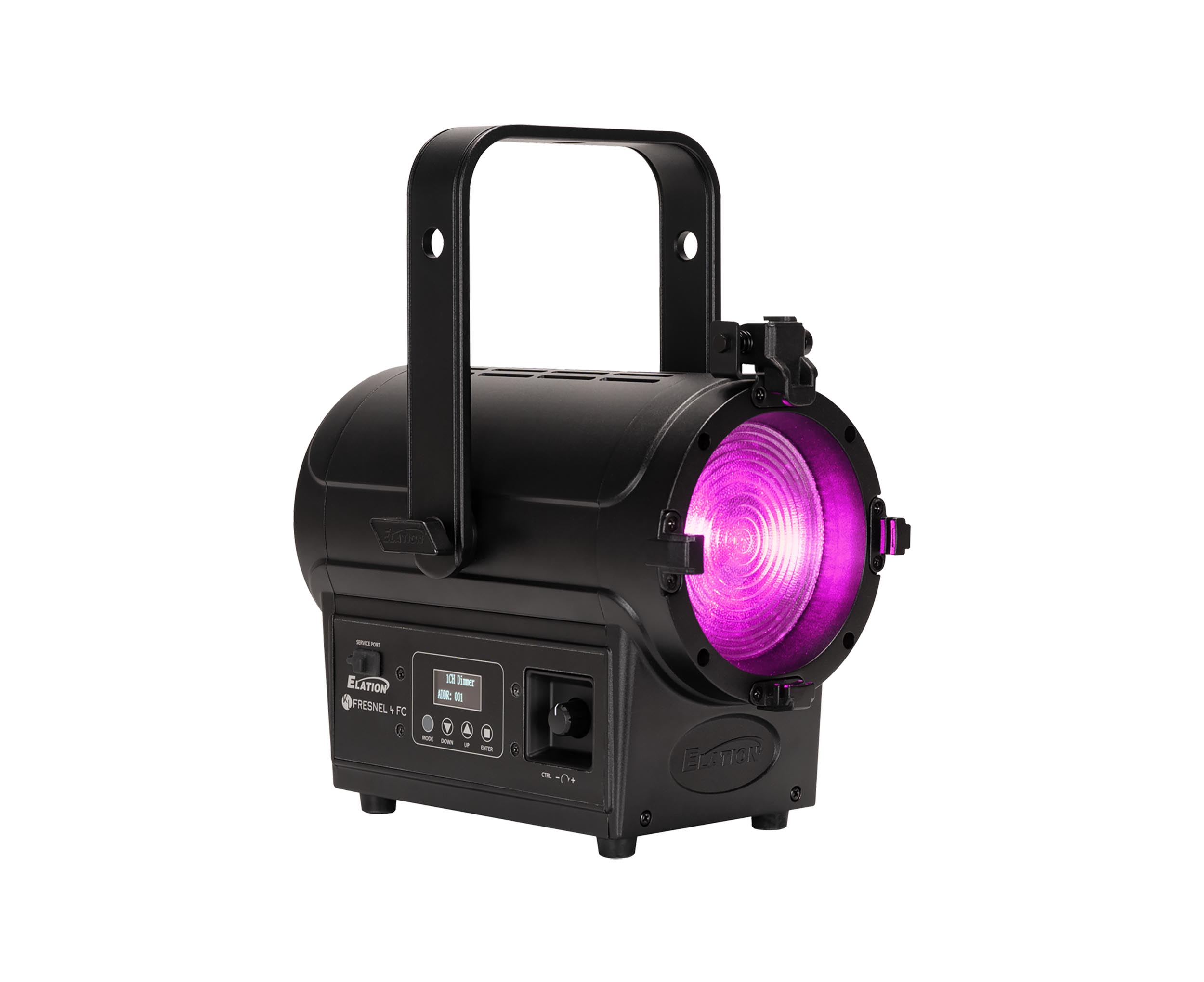

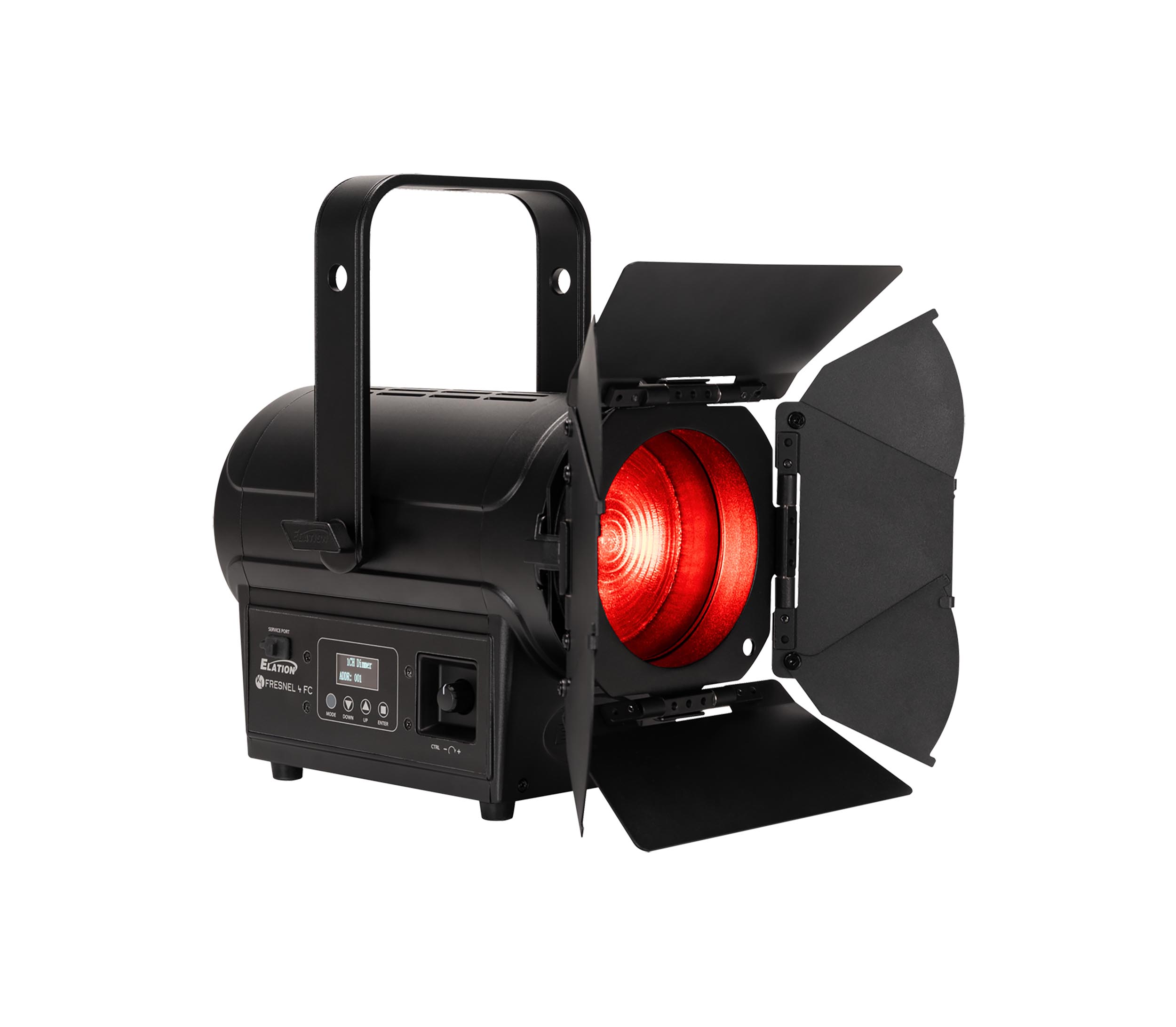

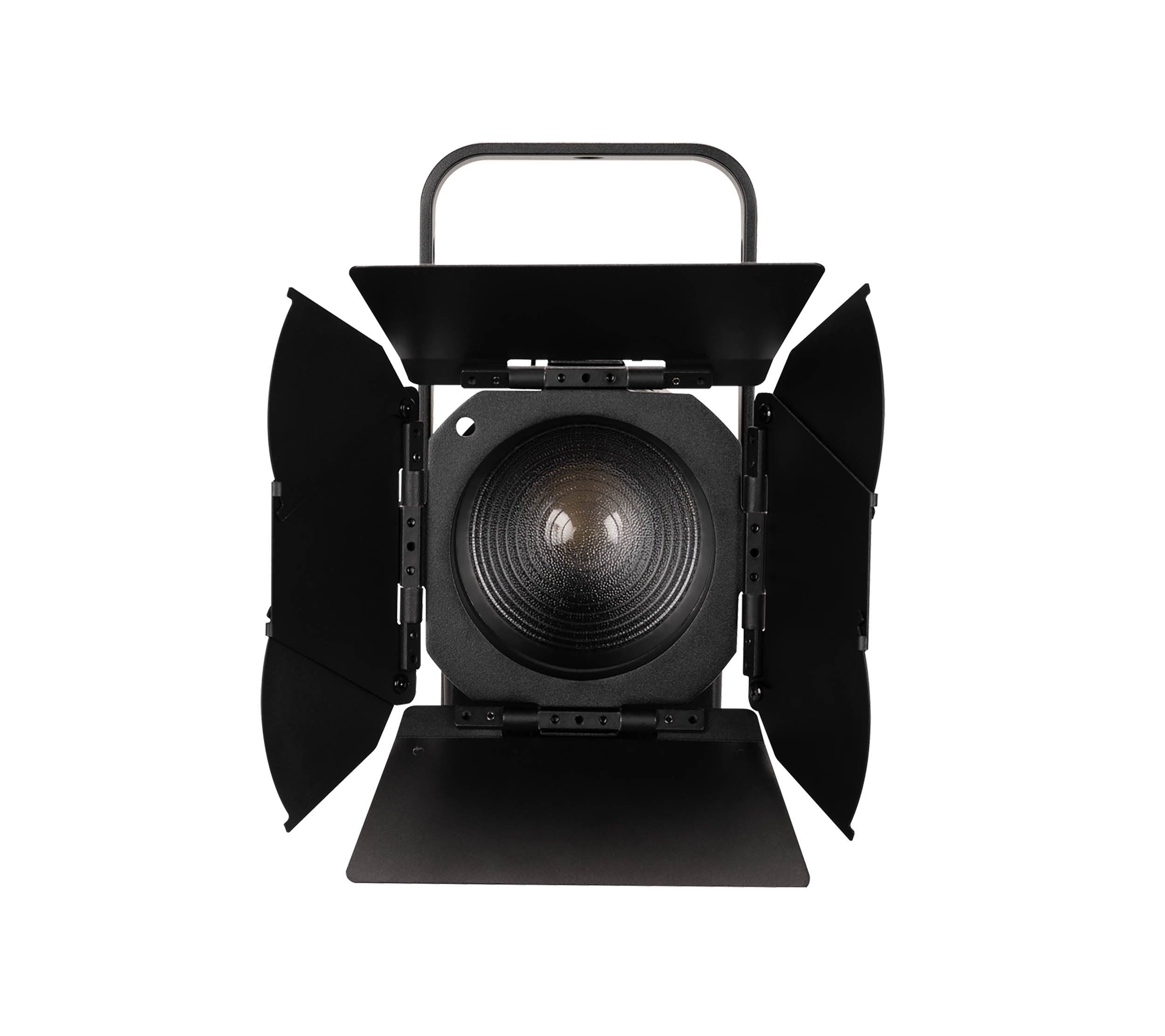

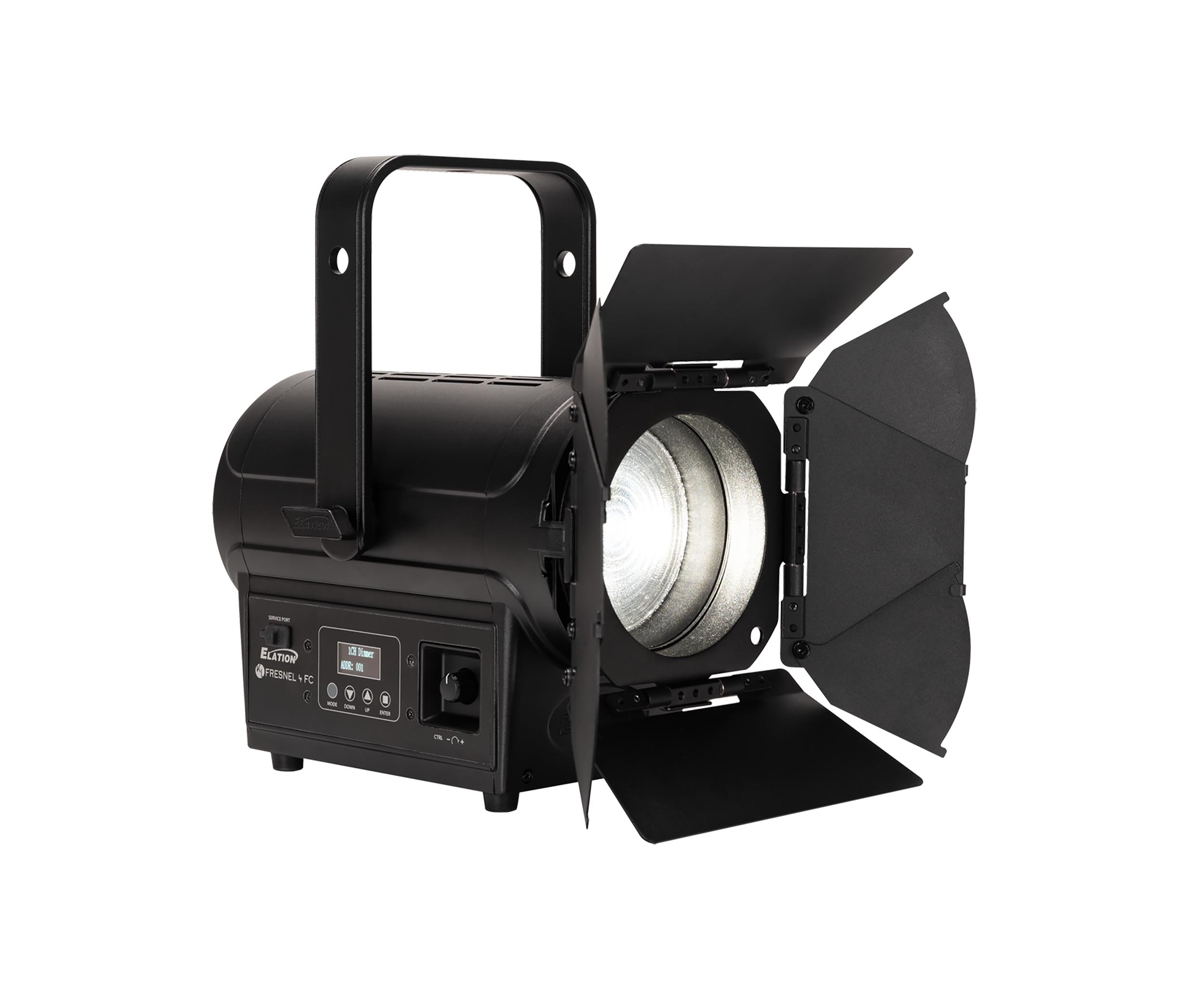

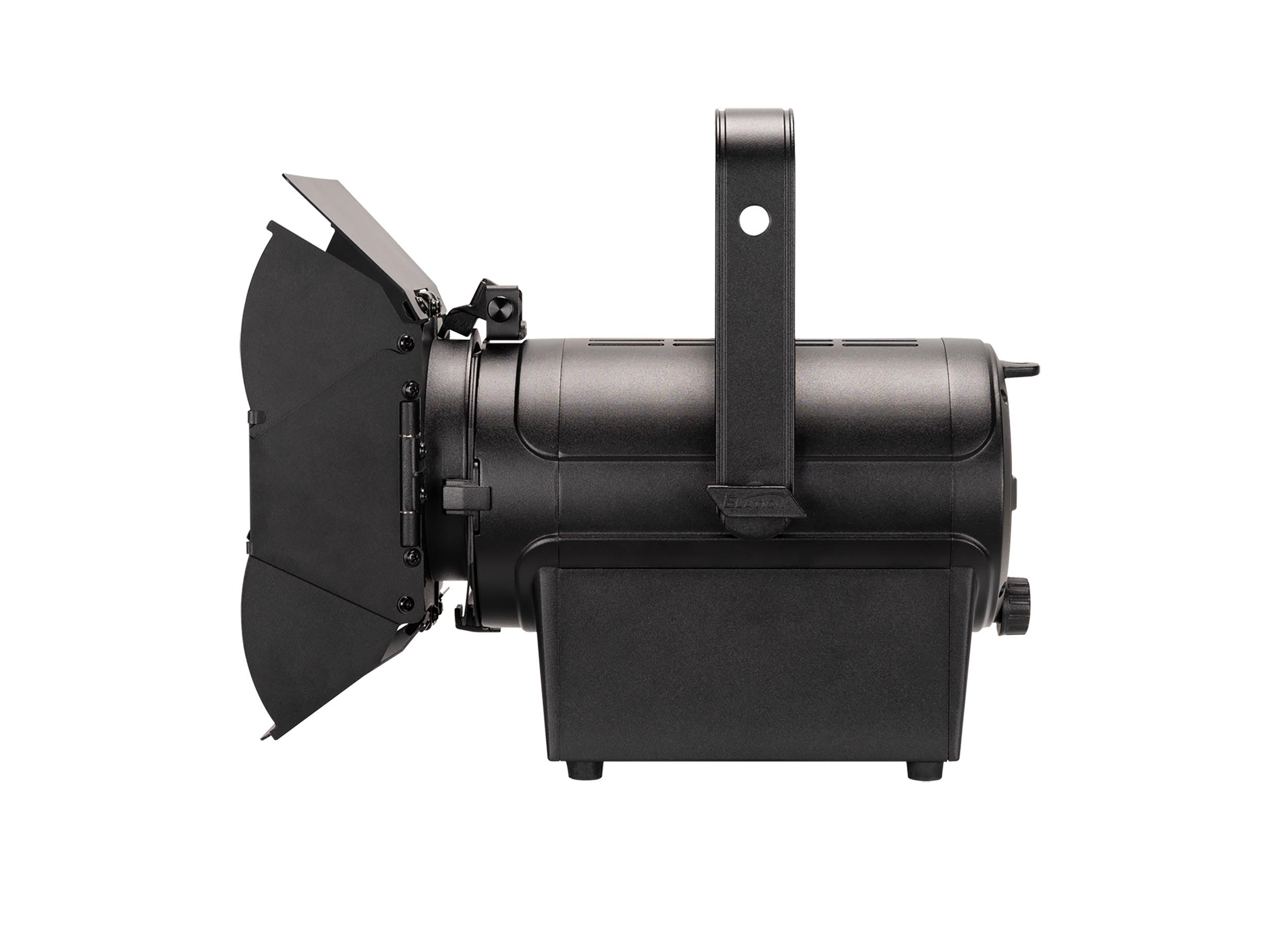

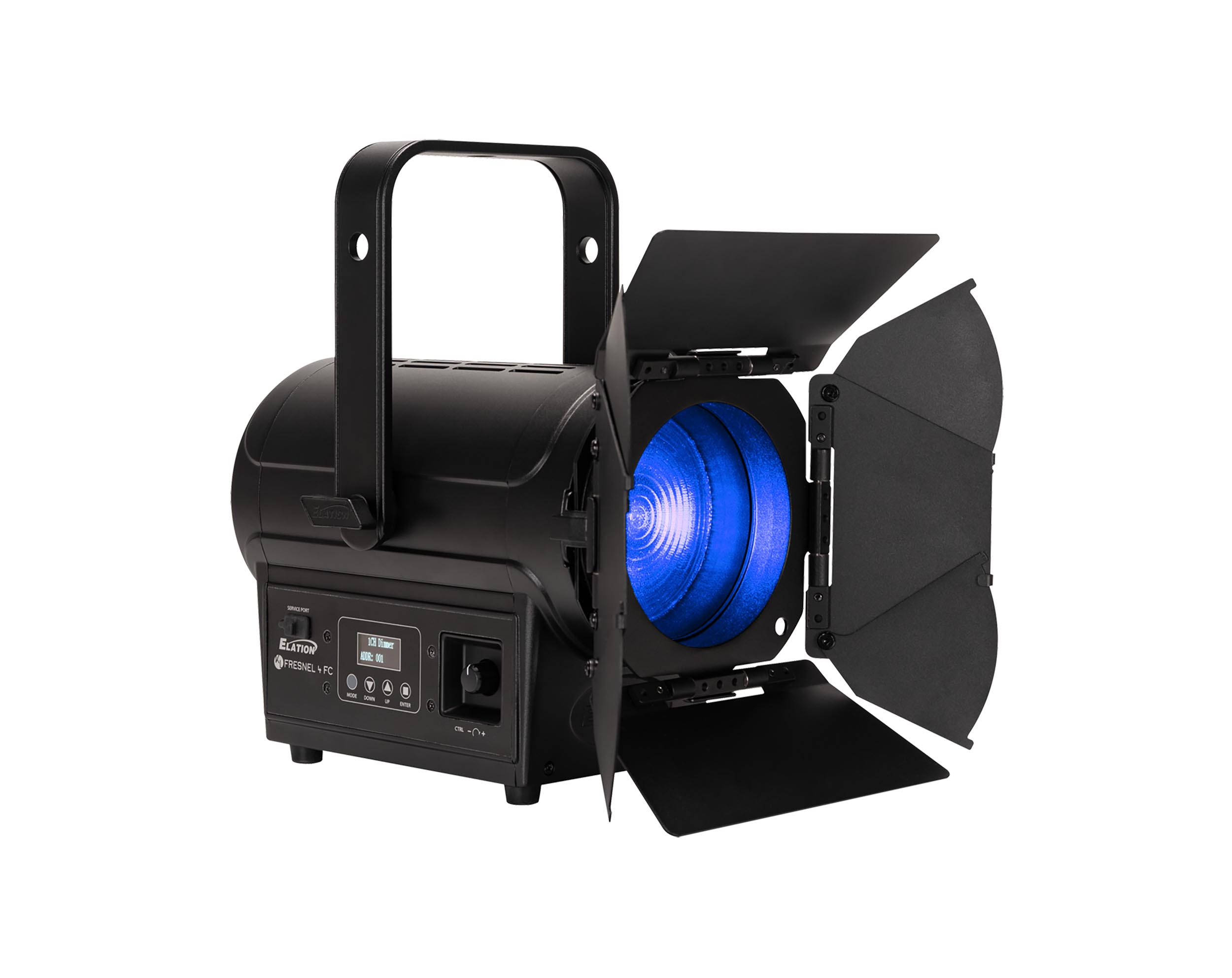

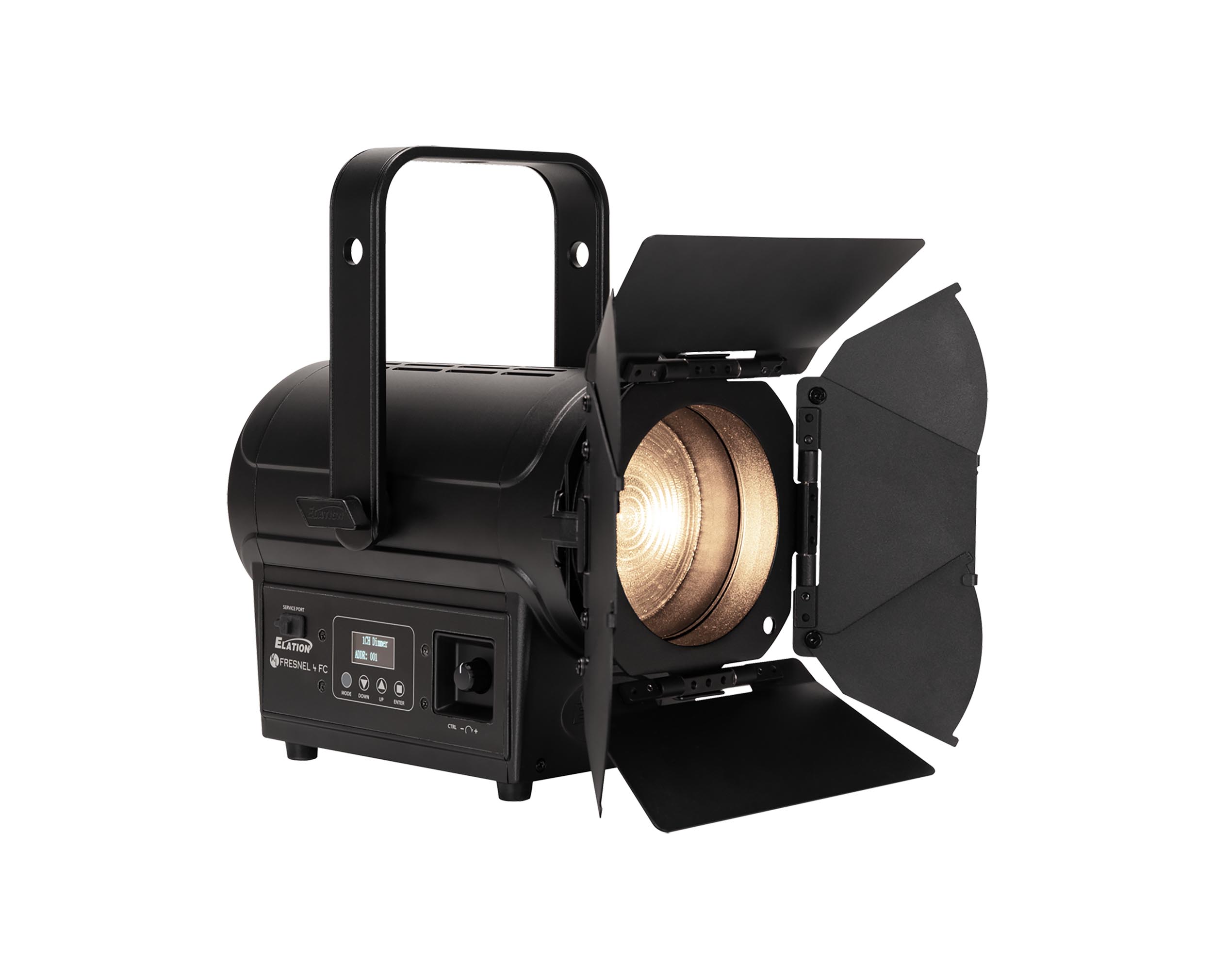

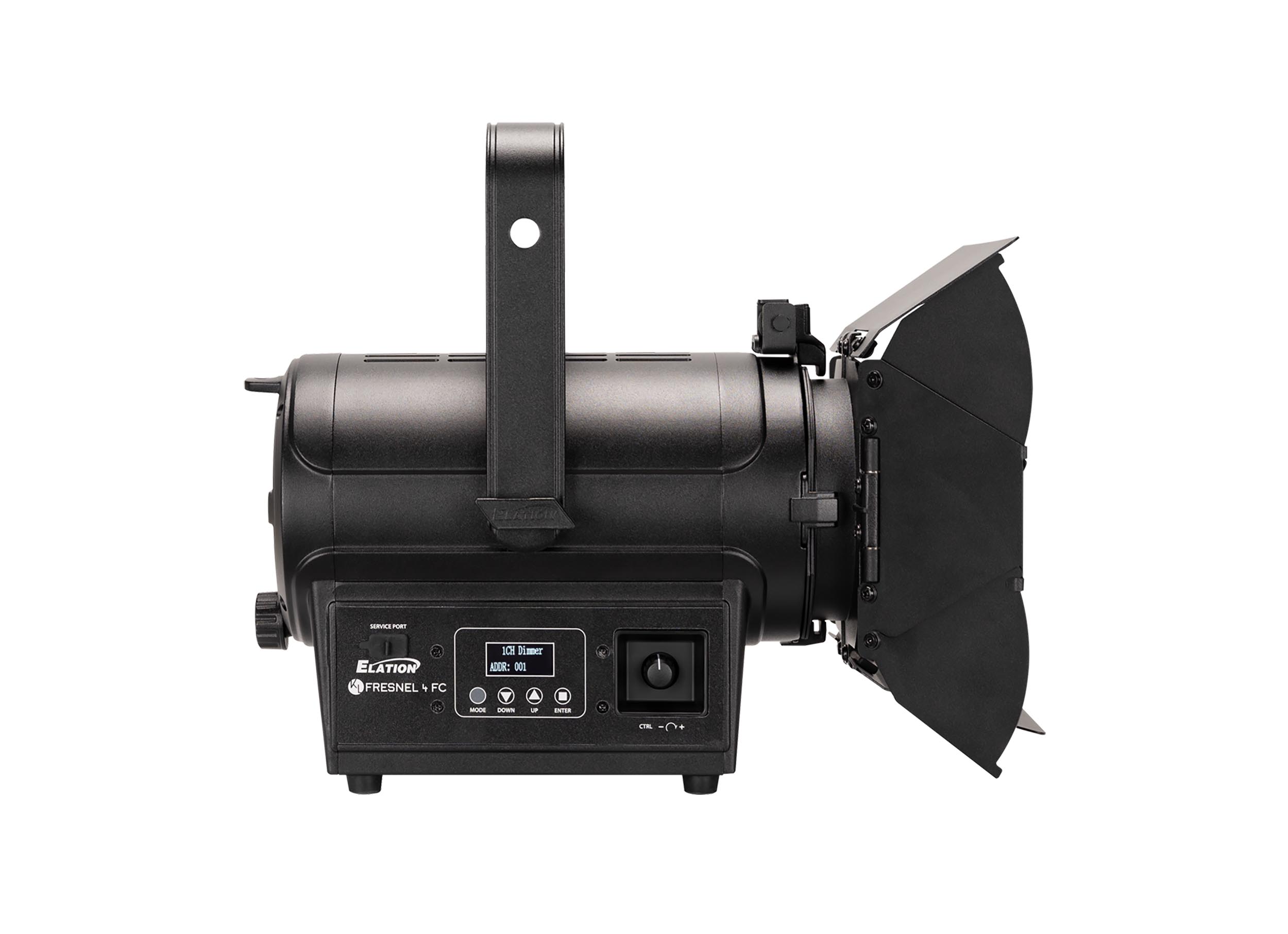

The Elation KL Fresnel 4 FC, 80-W RGBMA Full-Spectrum LED Fresnel with Zoom is a compact yet powerful to designed for film, television, and stage applications. Equipped with an 80W RGBMA LED engine and advanced ColourTune technology, it delivers precise color rendering, high CRI, and tunable white light with adjustable CCT from 2400K to 8500K. The manual zoom range of 10° to 45° allows for flexible beam shaping, while its flicker-free operation and adjustable LED refresh rate make it ideal for camera environments. The fixture includes onboard controls via encoders and display, supports DMX and RDM protocols, and is fully self-contained with locking power pass-through. Rugged and portable, it comes standard with barn doors, gel frame, and essential accessories for professional use.
Product Specifications:
LED Source: 80W RGBMA, 6000K
LED Life: 50,000 hours (average)
Lumen Output: 2226 (sphere), 2174 (goniometer)
CRI / TLCI: CRI 94.2 / TLCI 87
Zoom Range: 10° to 45°
Beam Angle: 11° – 47.6°
Field Angle: 21.5° – 72.8°
Control: 9 DMX channel modes, encoder with LED display

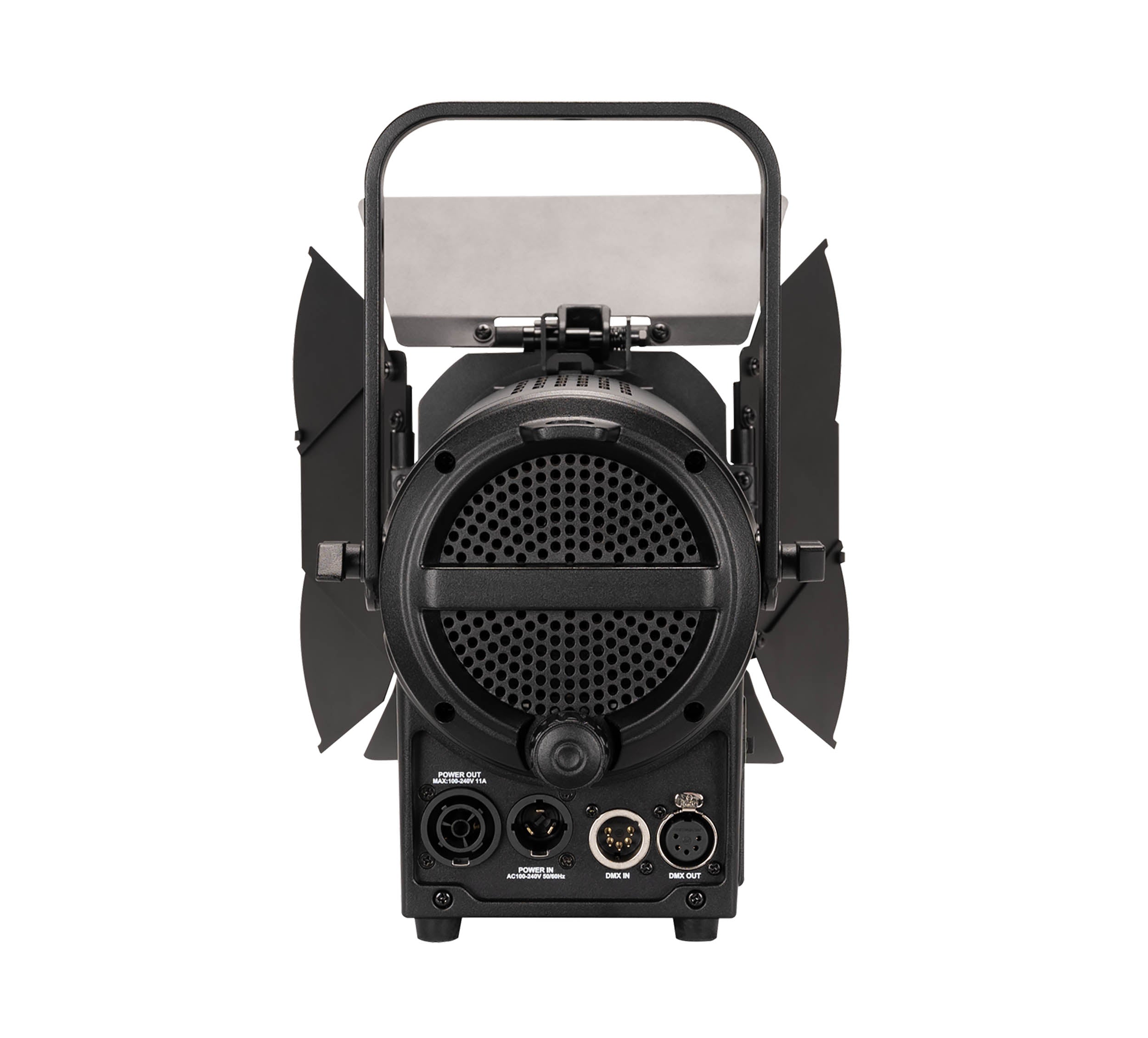

DMX Connectors: 3-pin & 5-pin In/Out
Power Connectors: IP65 Locking Power In/Out
Power Consumption: 85W max
Voltage: 100–240V AC, 50/60Hz
Operating Temp: 5°F to 113°F (-15°C to 45°C)
Power Thru Capacity: 14 units @110V / 31 units @240V
BTU/hr: 289.85
Certifications: CE, cETLus, FCC, UKCA, IP20
Shipping Weight: 12 lbs.
Shipping Dimensions (L x W x H): 15 in x 14 in x 12 inches
