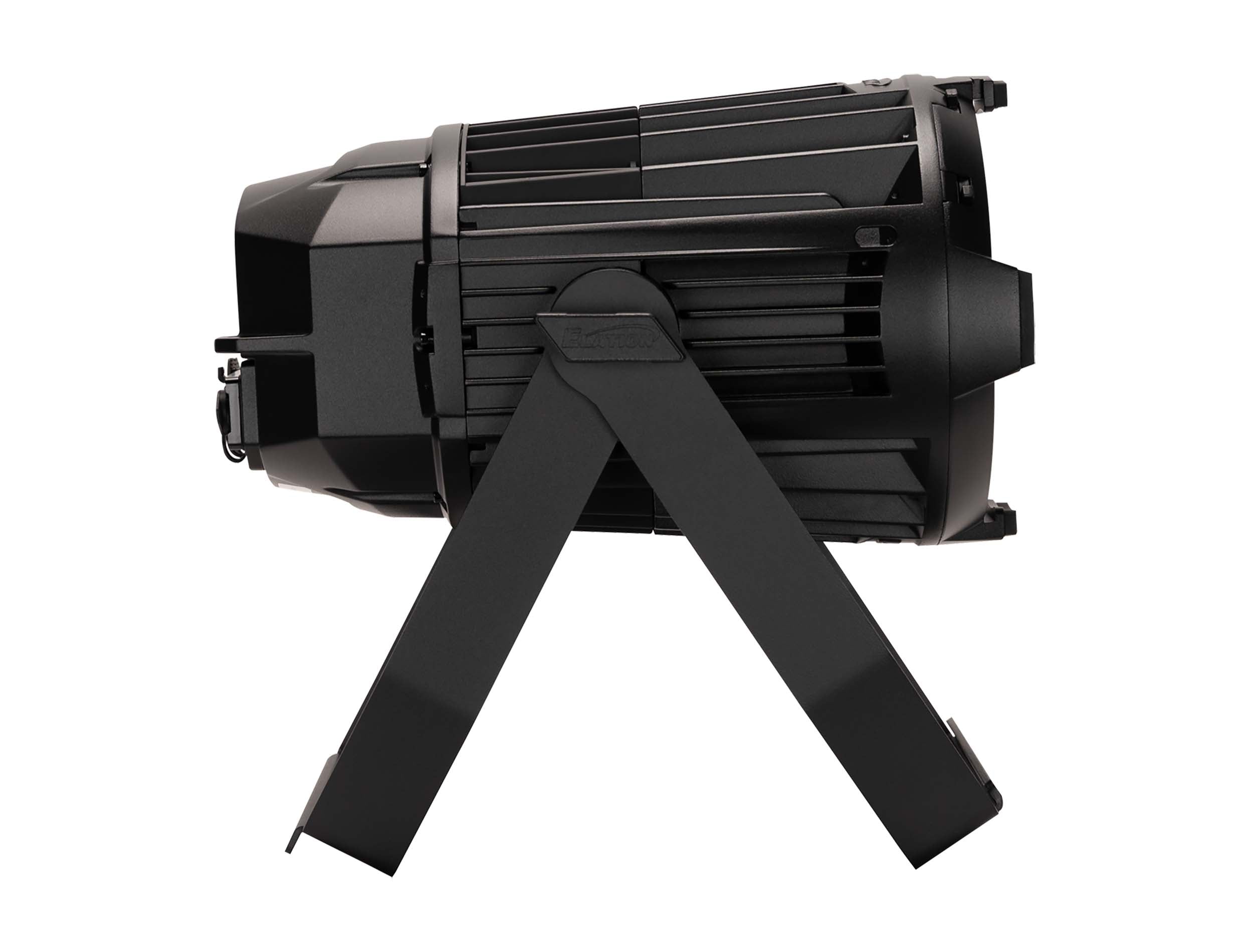

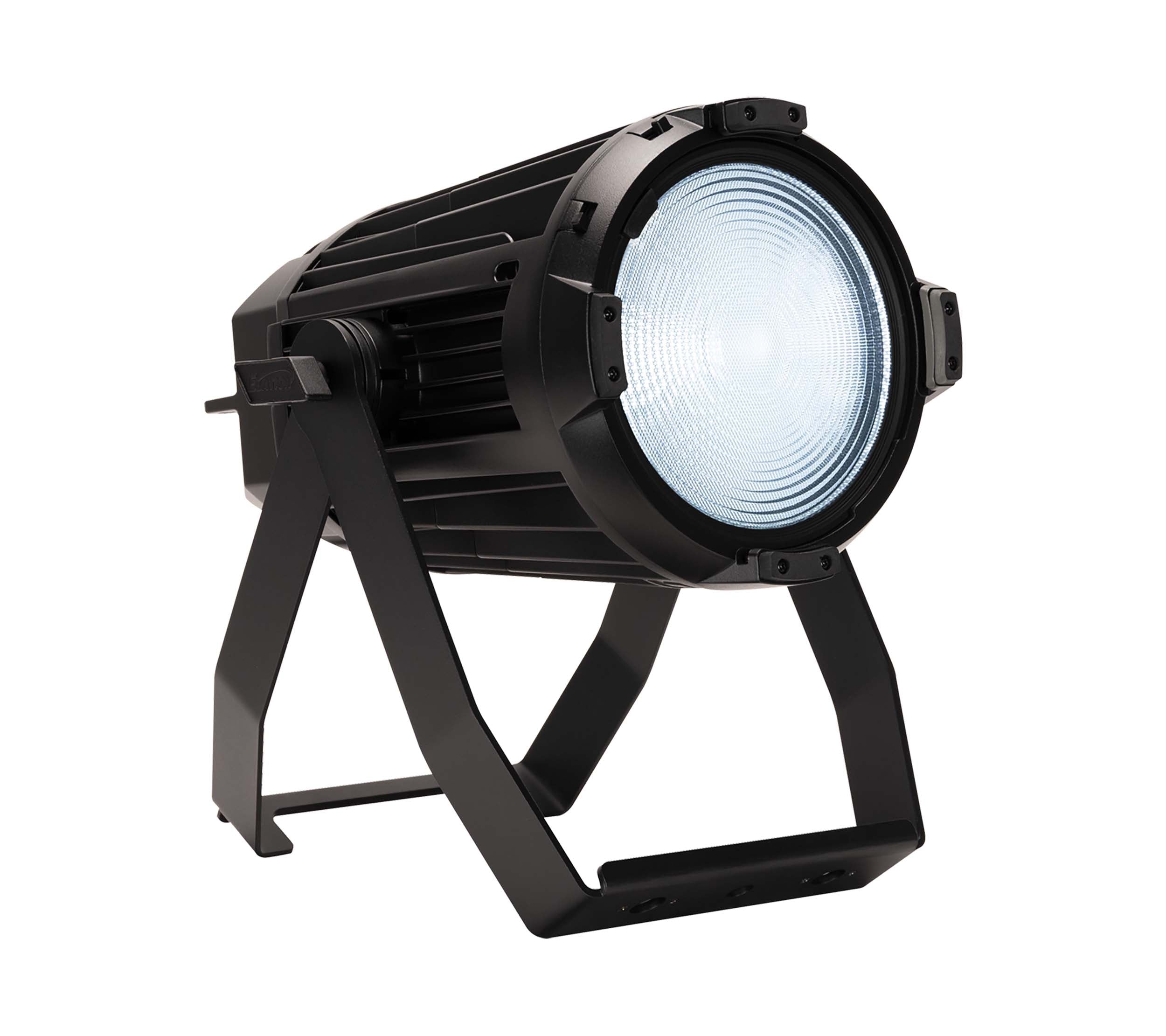

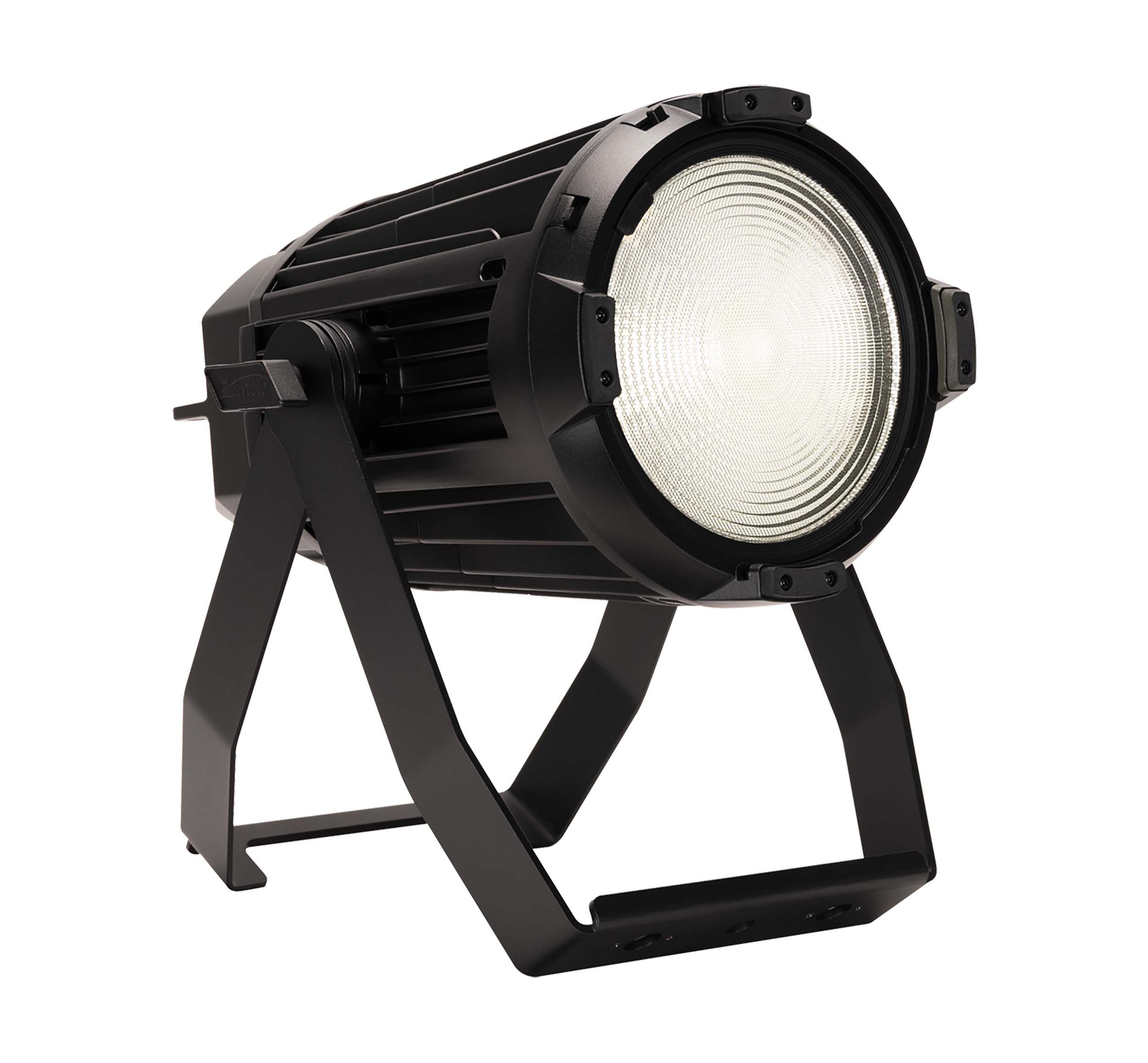

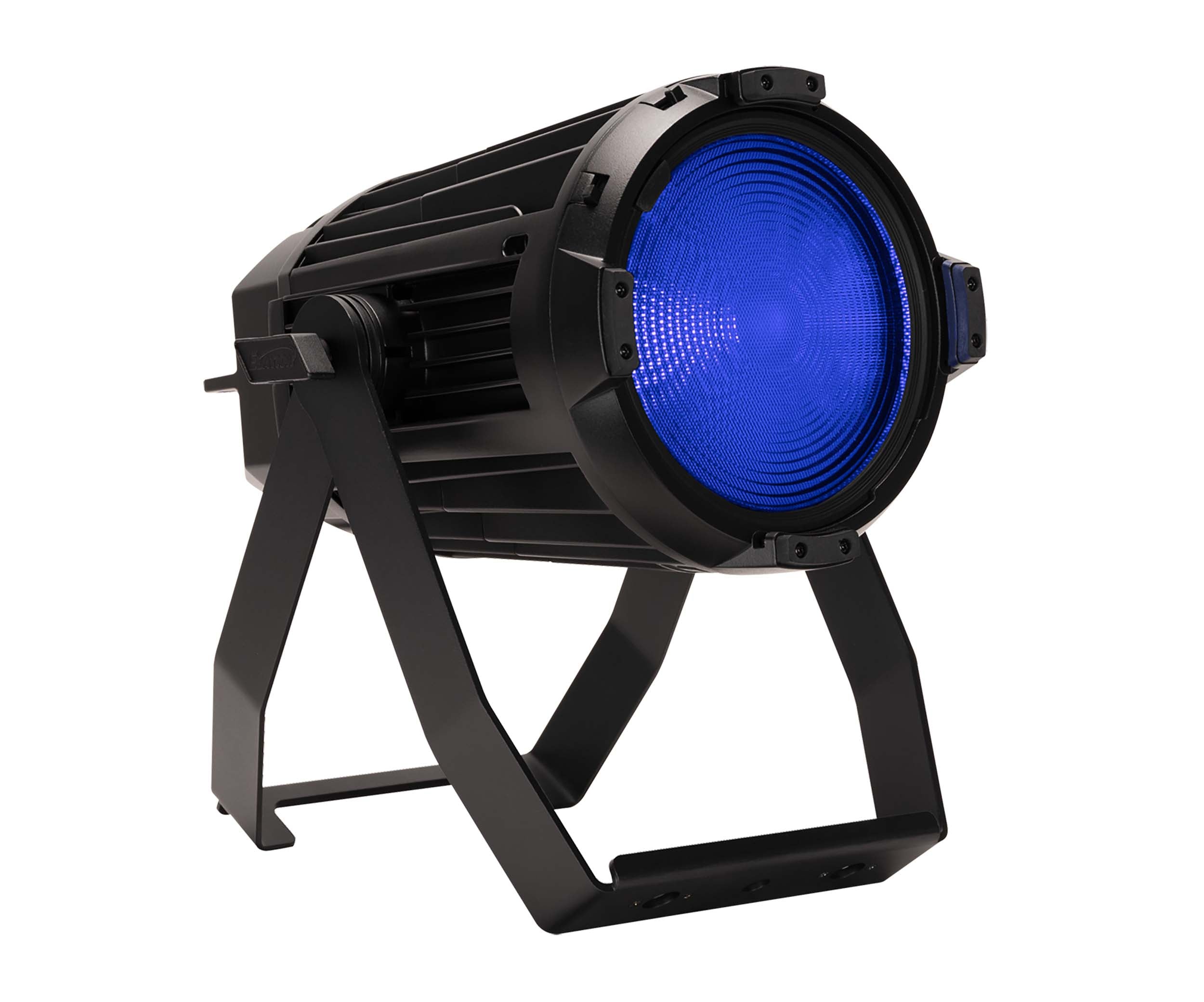

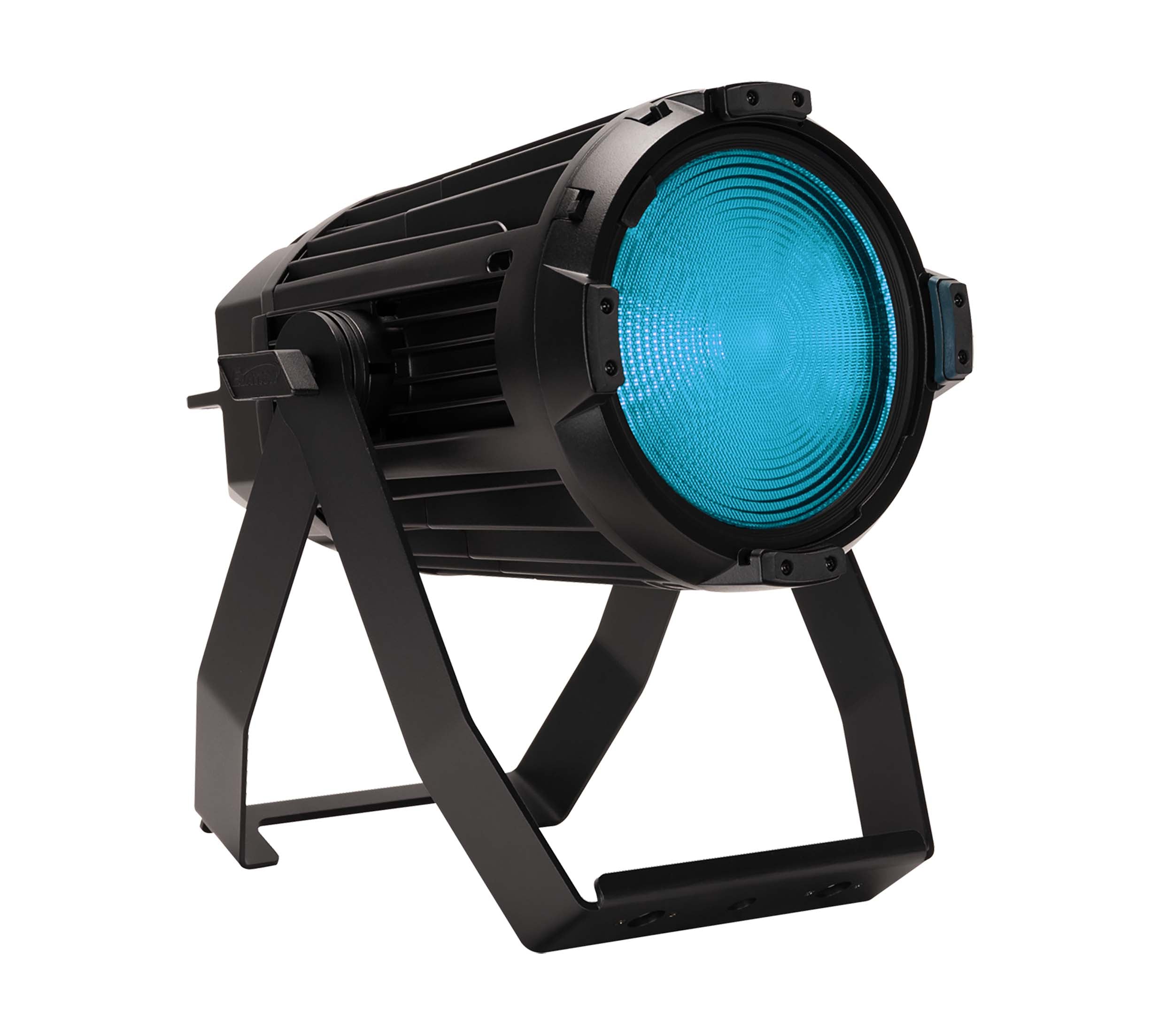

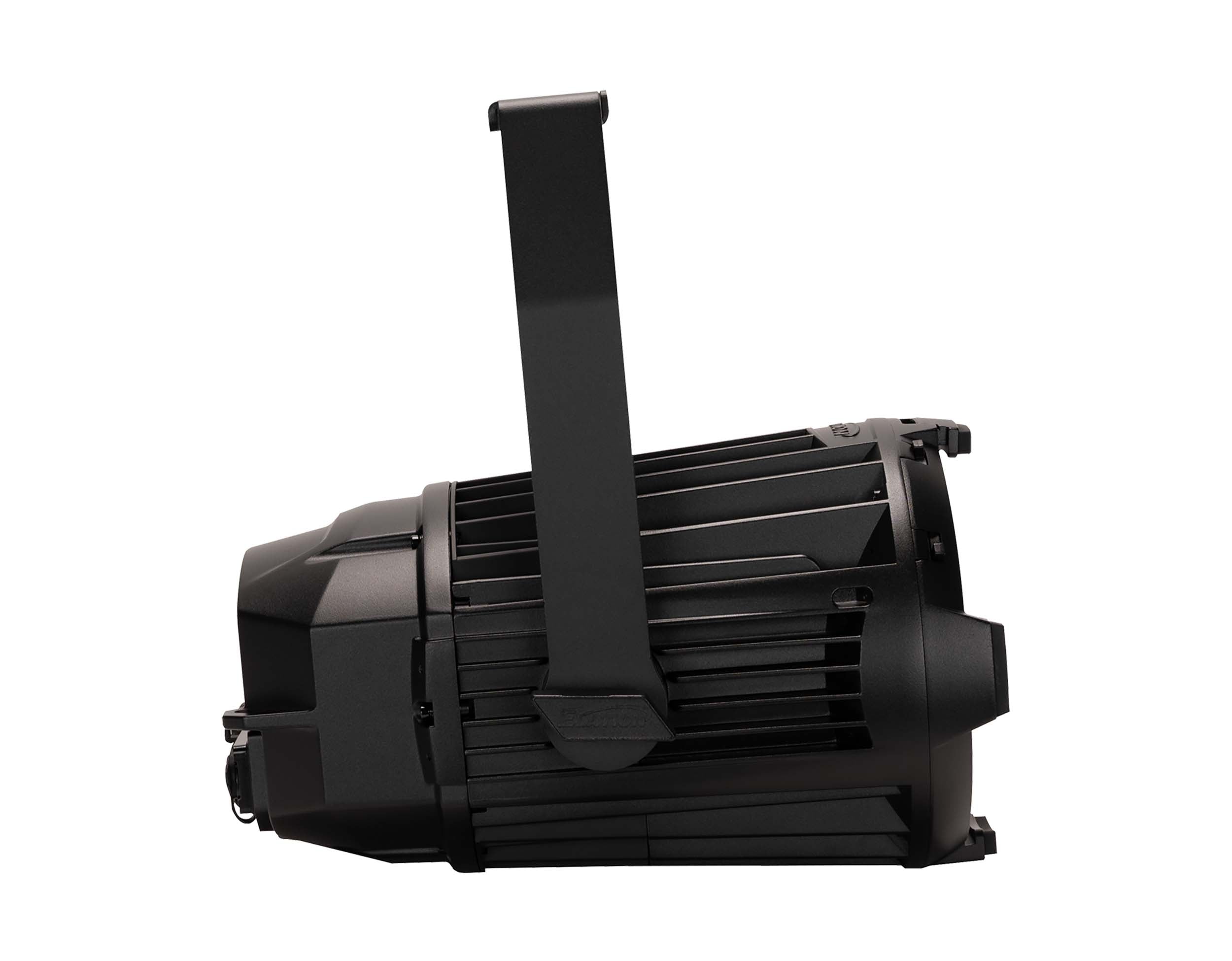

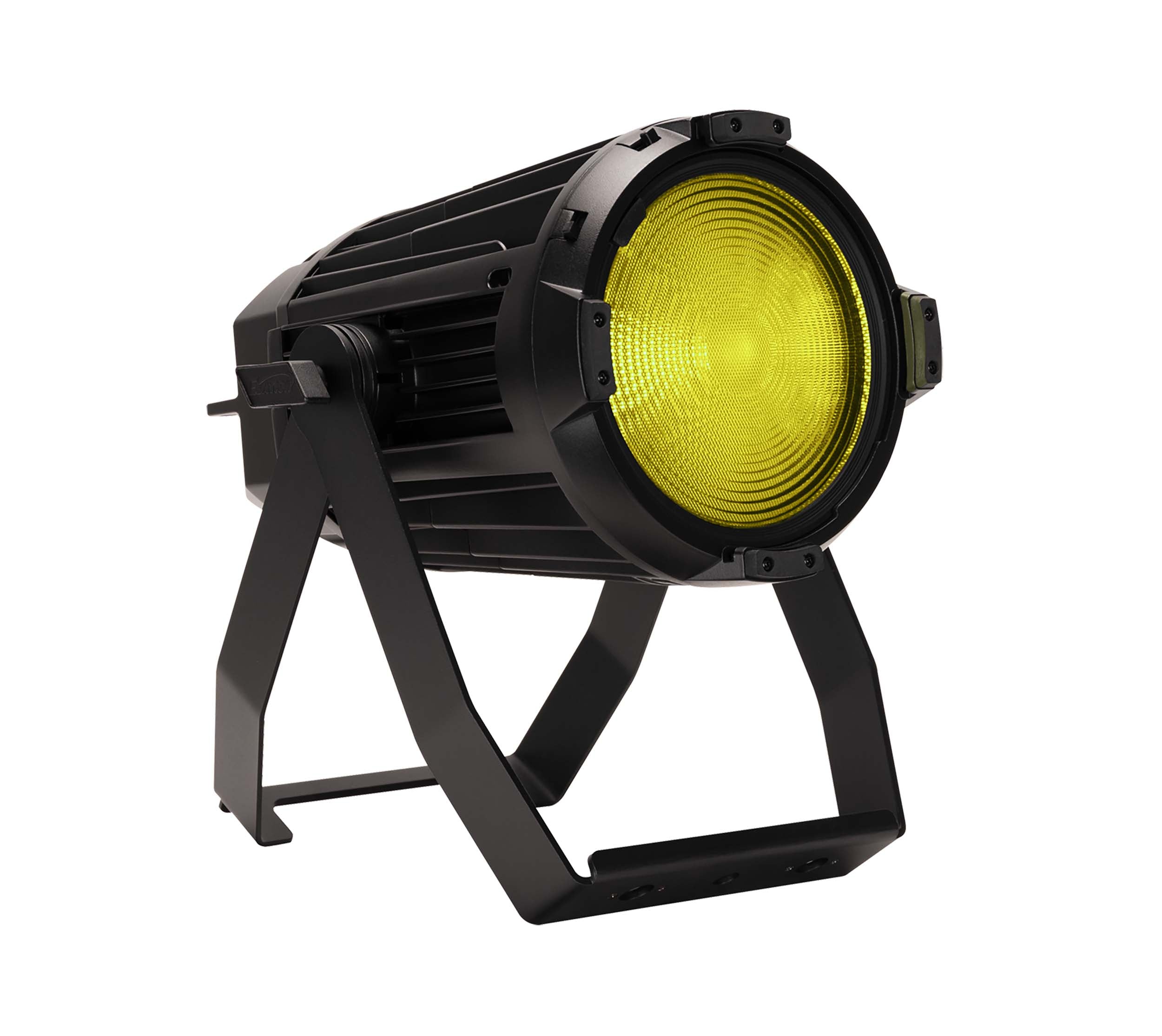

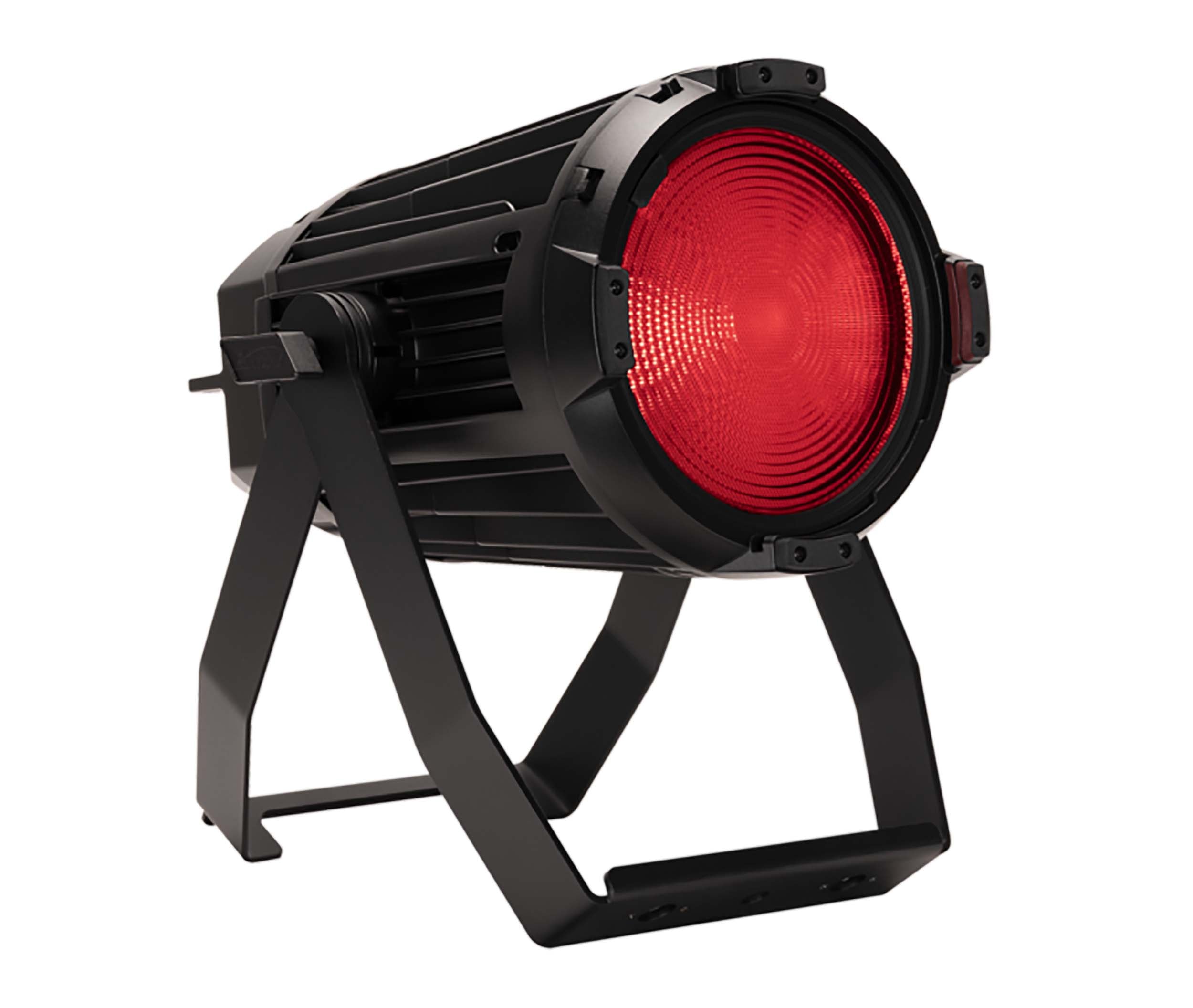

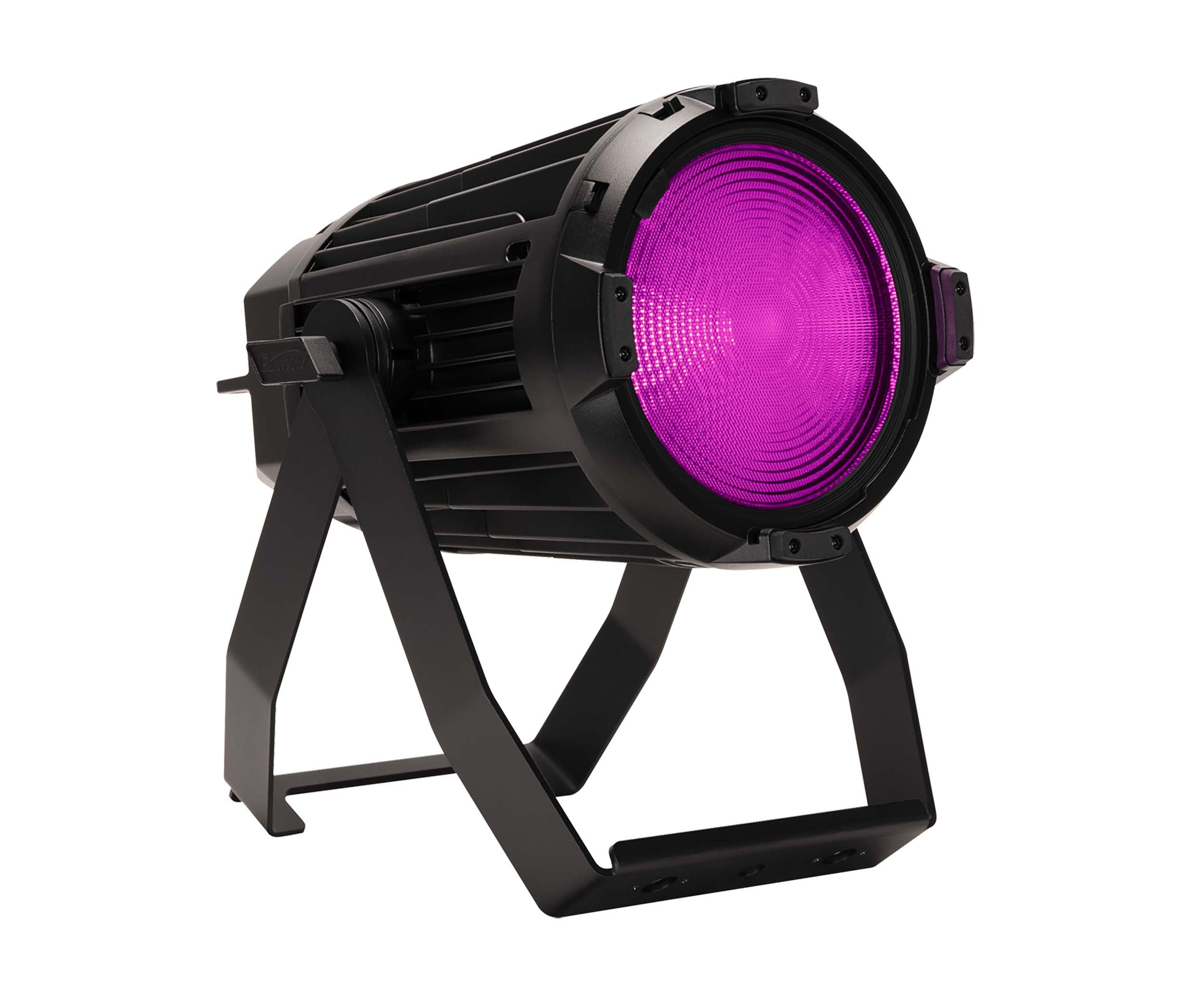

Elation KL PAR FC IP, RGBMA IP65 LED Par - 360 Watt

The Elation KL PAR FC IP, RGBMA IP65 LED Par - 360 Watt provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Offering powerful color intensity and a wide array of saturated and pastel colors from its efficient RGBMA engine, it is also optimized for the tunable white light requirements of Film and Television.

The KL PAR FC IP is an ideal key, fill, and area wash light source for outdoor events and any production requiring outstanding performance, color quality and weather protection. It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 11,263 field lumens, brighter than existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field. With the new Colour Tune Technology software the fixture offers outstanding color rendering with a high CRI of 94.9 and TLCI of 95, fully variable 16bit CCT control, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

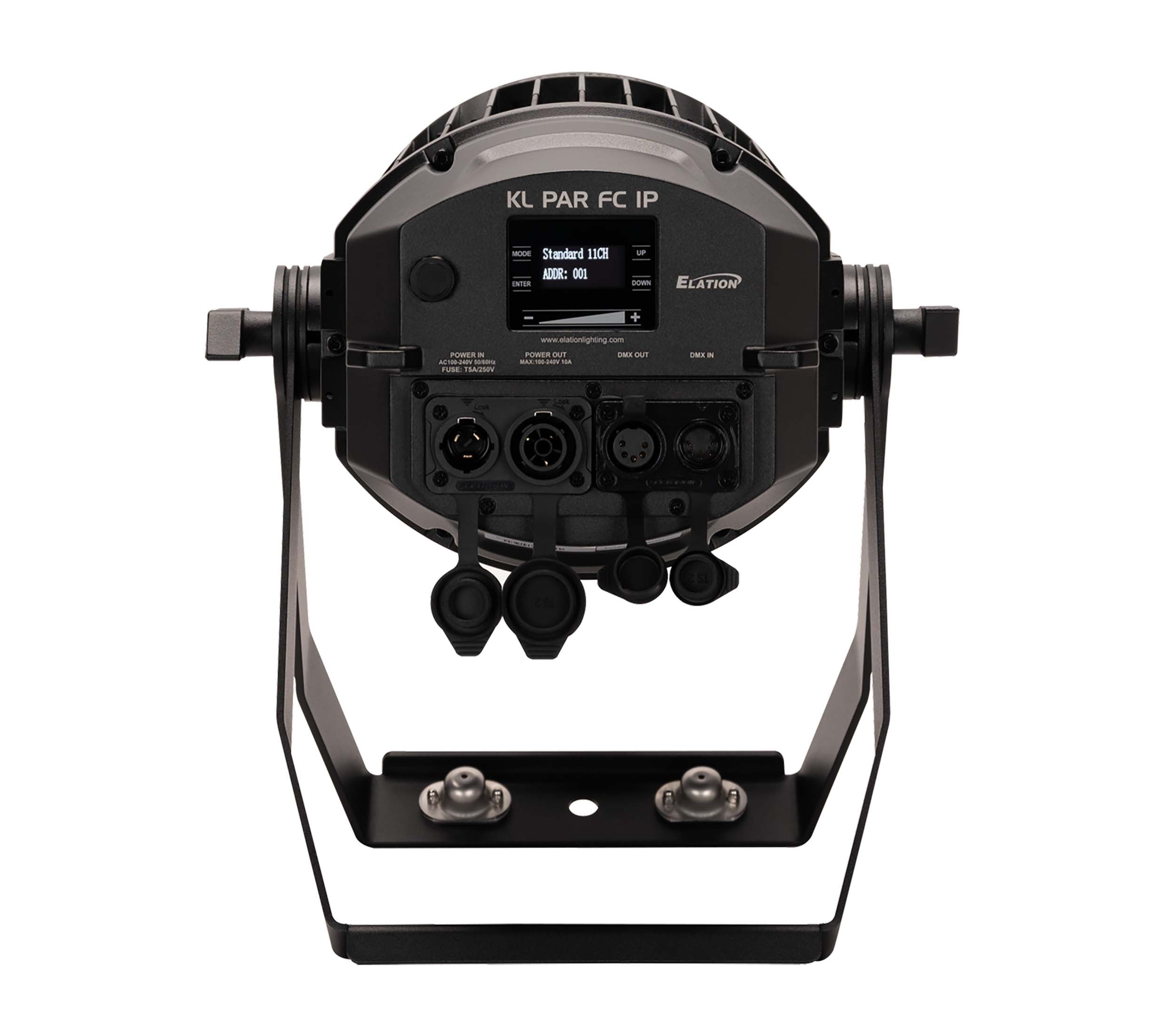

The KL PAR FC IP can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included touch bar encoder and display, providing instant control of Intensity, Color Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.

Product Specifications:

Source:

360W 6000K RGBMA LED Engine

50,000 Hour Average LED Life

Photometric Data:

Total Lumen Output:

11,263 (Integrating Sphere)

10,900 (Goniometer)

CRI 94.9

TLCI 95

Included Lenses:

VNSP (10°)

NSP (22°)

MFL (30°)

WFL (55°)

Effects:

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves

Color:

High Brightness and High-Fidelity Output Options

RGBMA Color Array

CMY Emulation

16bit Fully Variable CCT 2400K - 8500K

Green/Magenta Shift

Dim-to-Warm Fade

Virtual Gel Swatch Book

Control / Connections:

8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)

Manual and DMX Controlled Dimmer and Color

Single Touch Bar Encoder

4 Button Control Panel, LED Display

RDM (Remote Device Management)

IP65 5pin DMX and IP65 Locking Power Cable In/Out

Size / Weight:

Length: 8.5" (217mm)

Width: 12.0” (304mm)

Vertical Height: 17.8” (453.3mm)

Weight: 16.53 lbs. (7.5kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

375W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

BTU/hrs. (+/- 10%) 1278.75

Included Items:

7.5" Gel Frame

4 Lenses (10°, 22°, 30°, 55°)

IP65 Locking Power Cable

Optional Items:

7.5" Barndoors

XWFL (90°) Lens

23° Ovalizer Lens

#8050000053 (Omega Bracket)

4 Wire Hardwire Installation Plate (HWP404)

2 Wire Hardwire Installation Plate (HWP202)

Approvals / Ratings: CE | cETLus | IP65 | FCC | UKCA
