Description

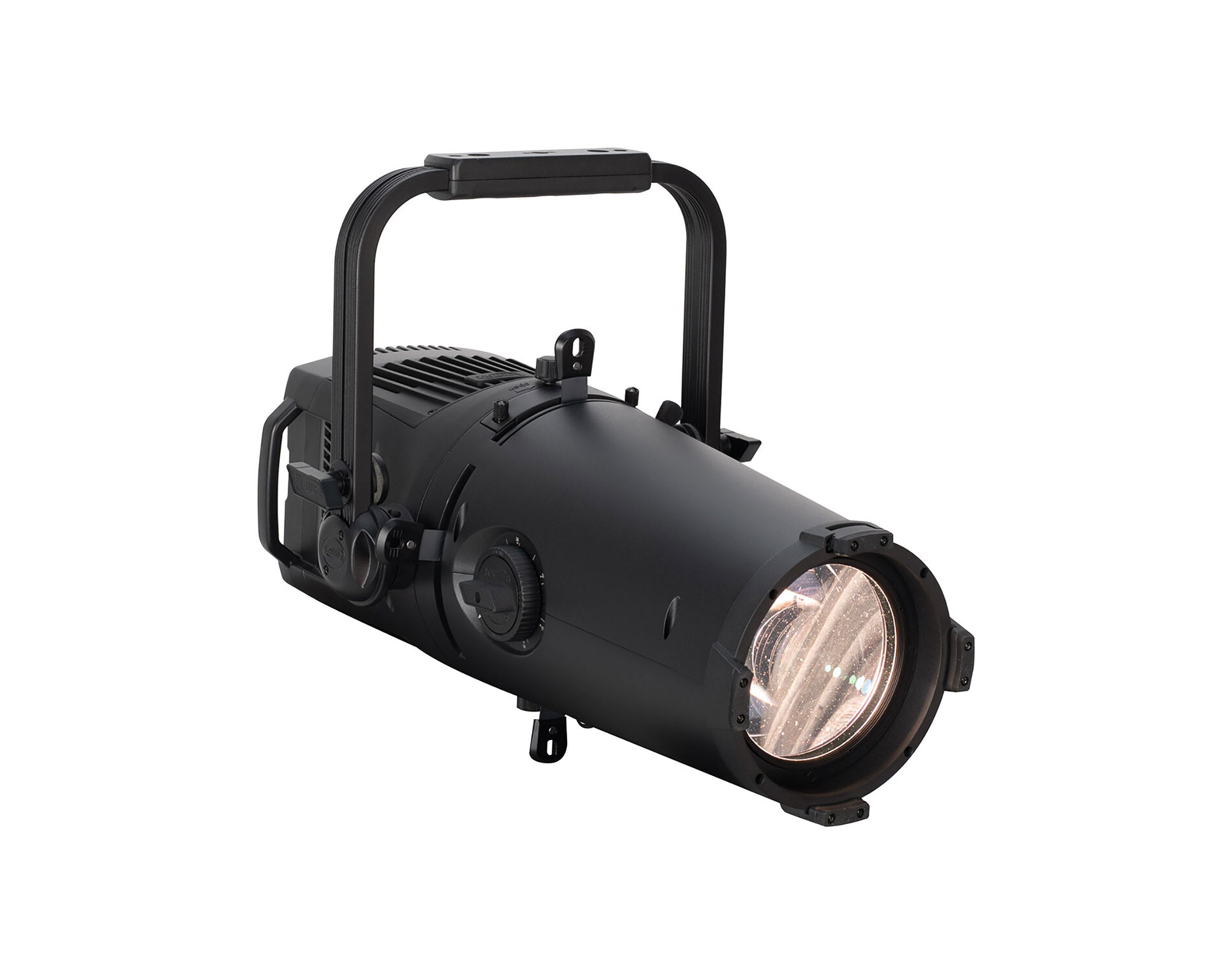

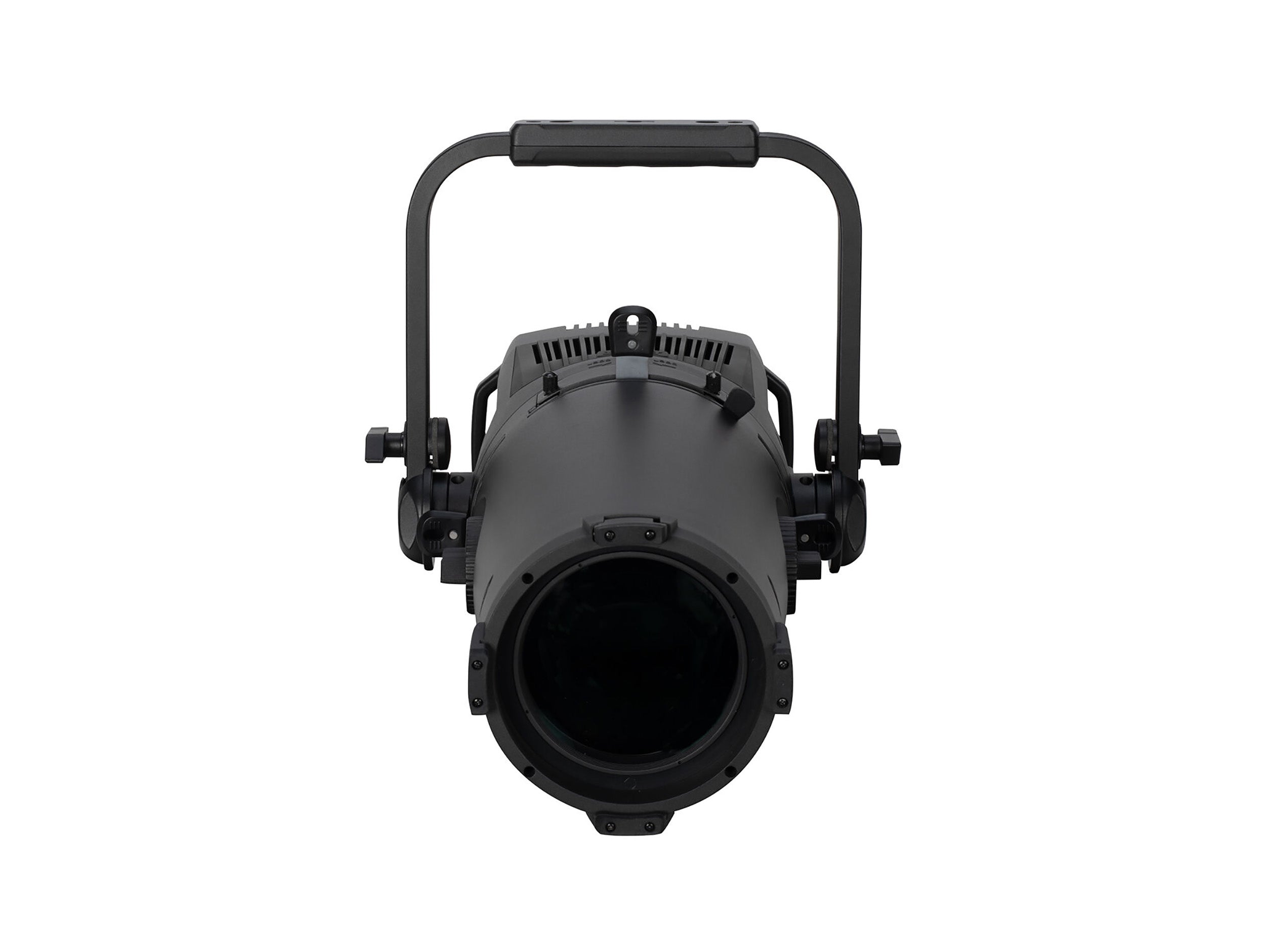

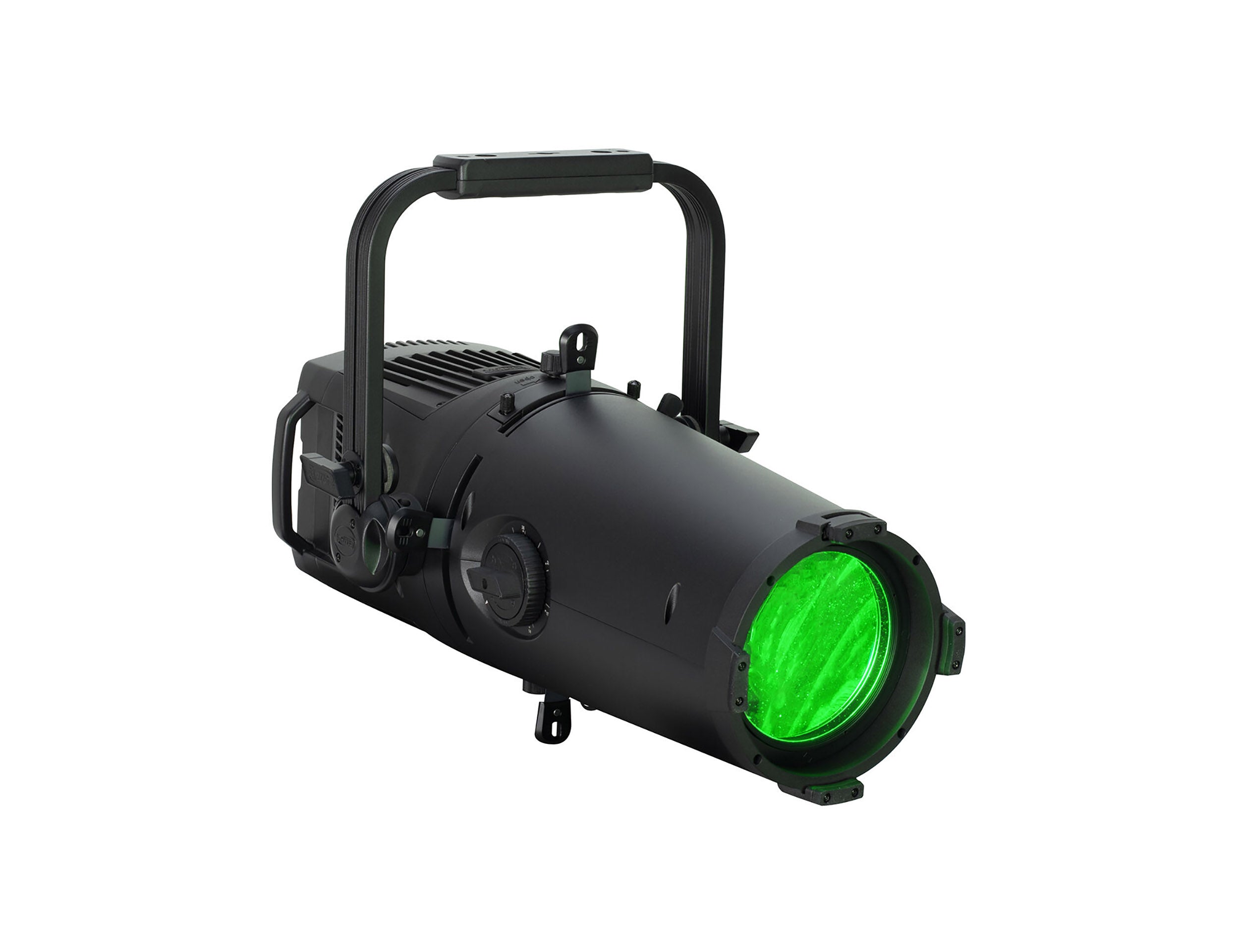

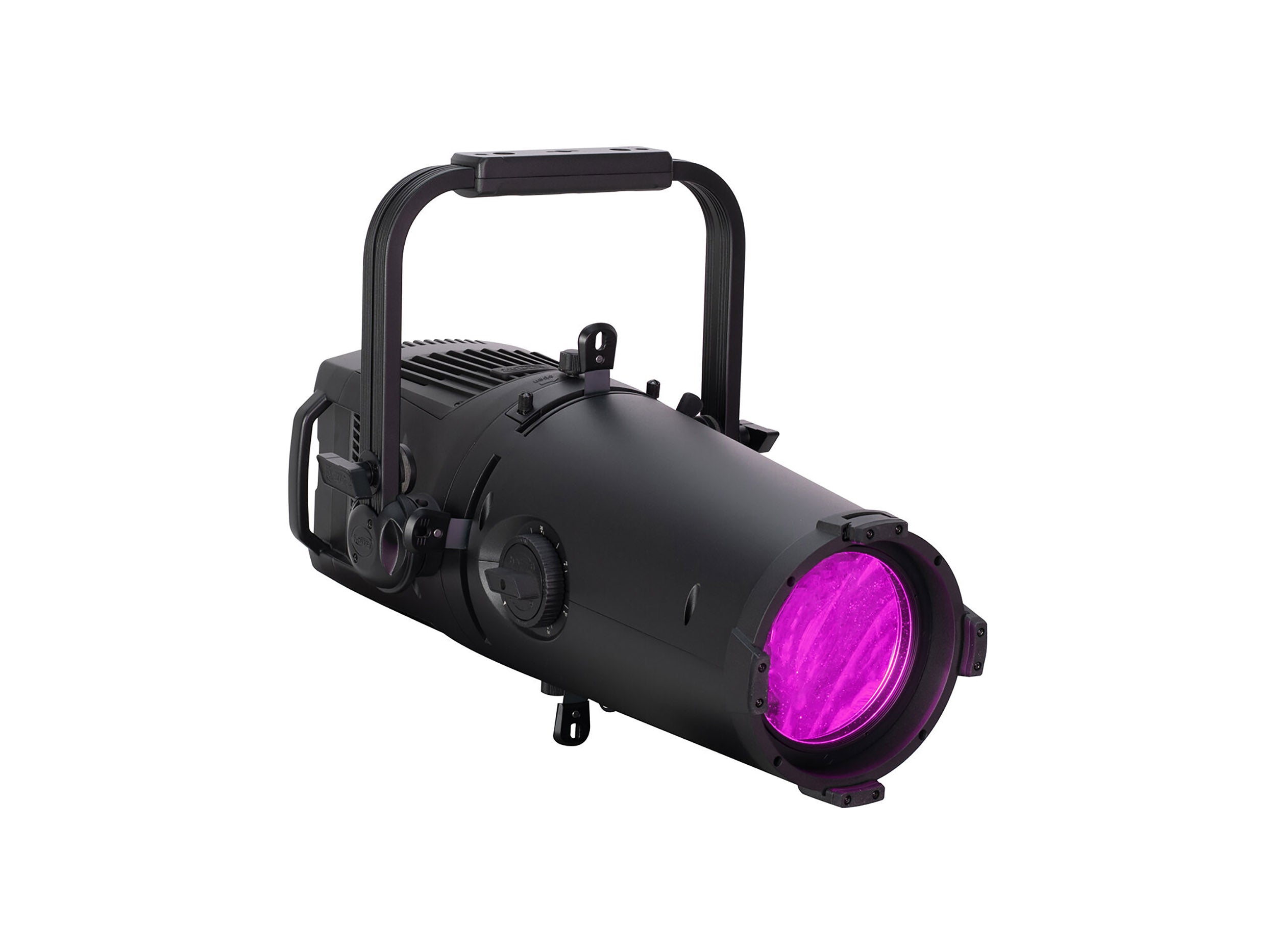

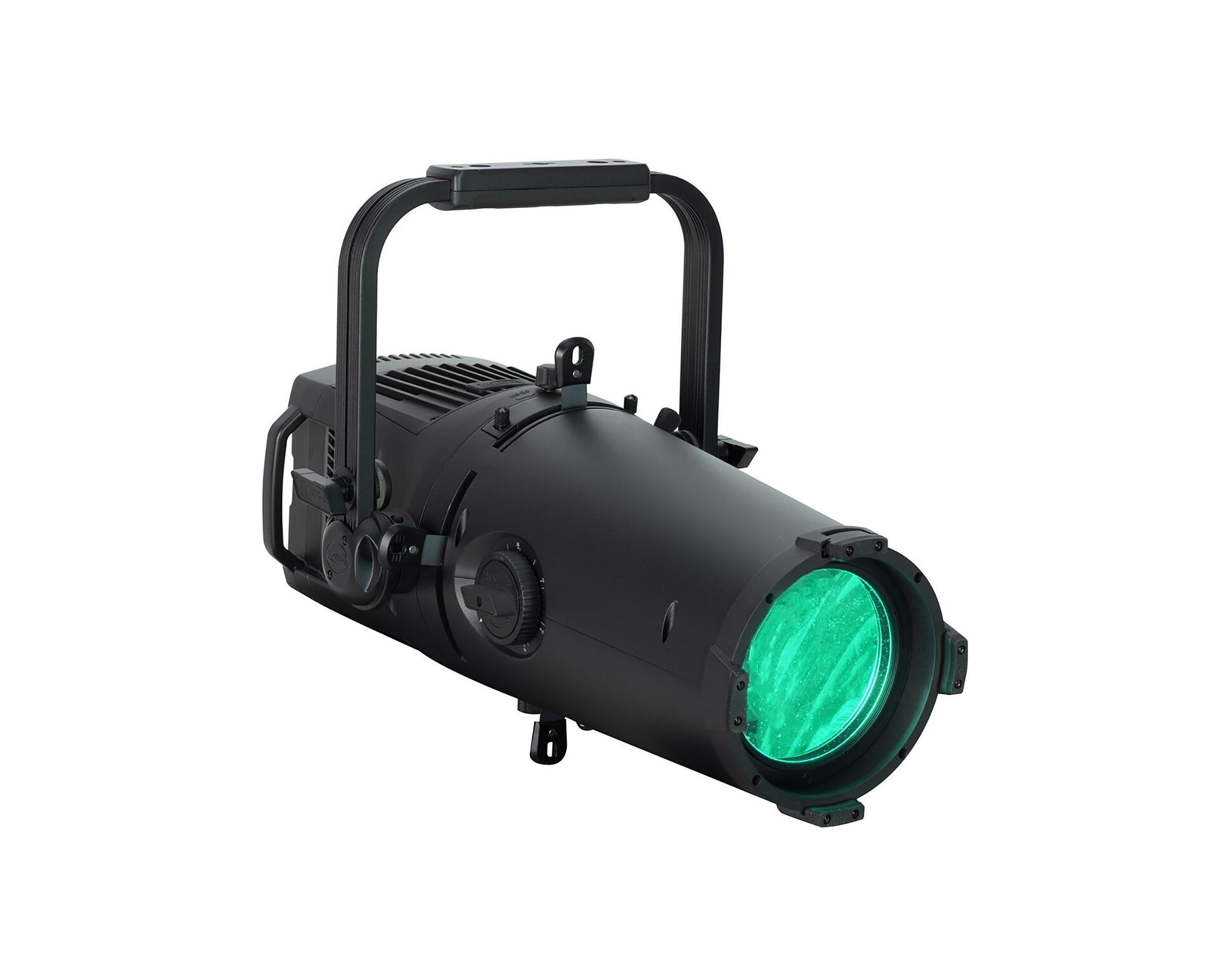

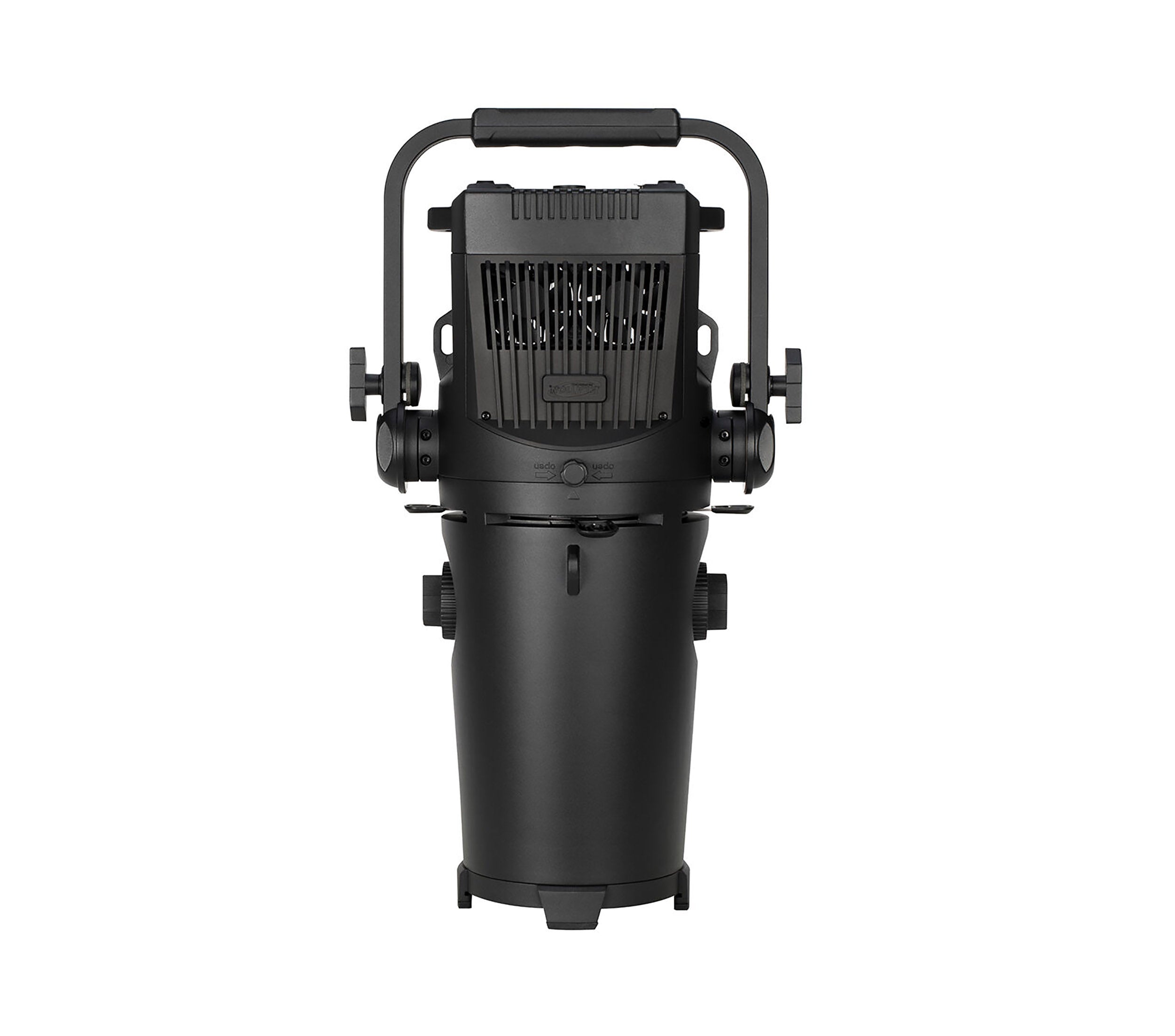

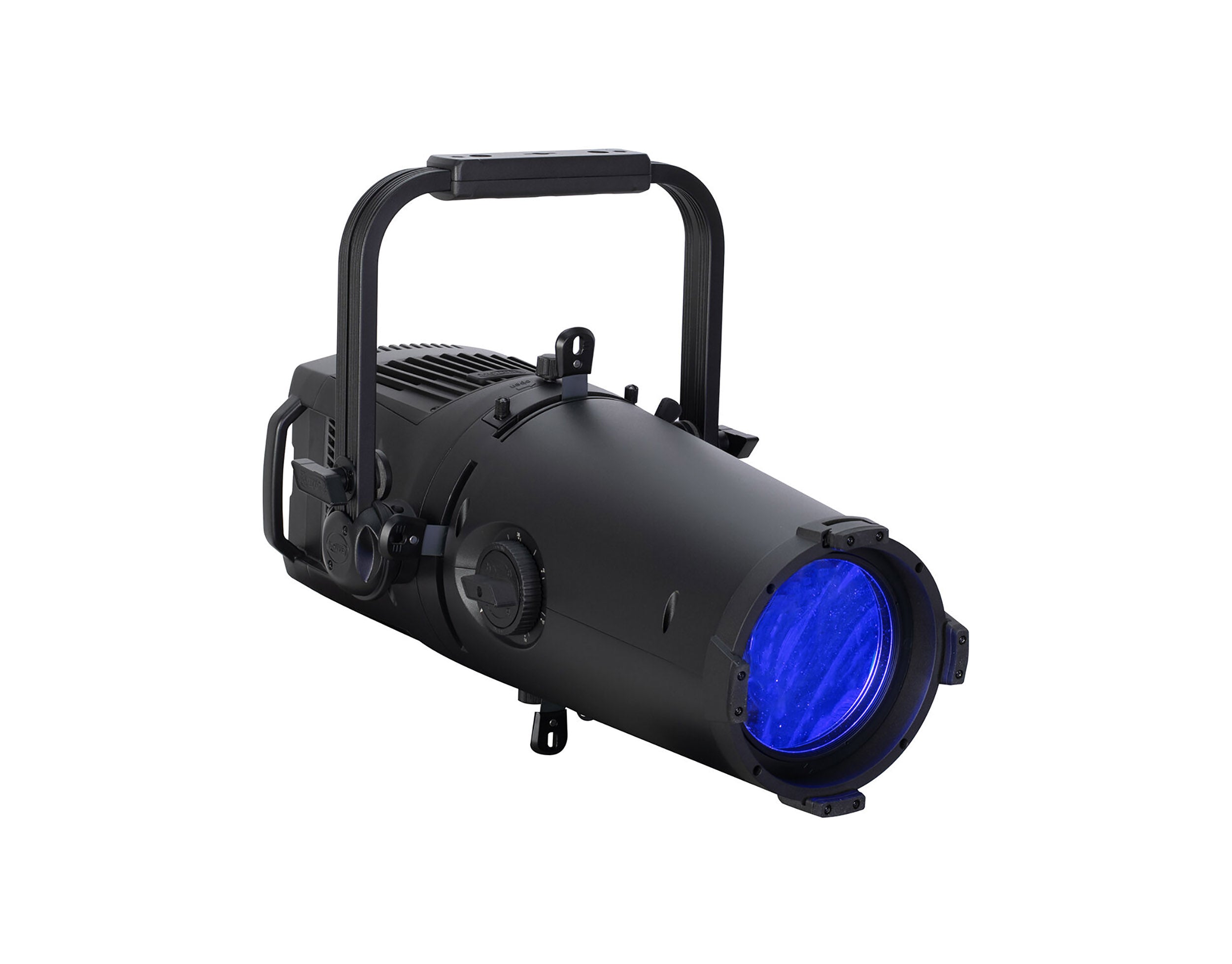

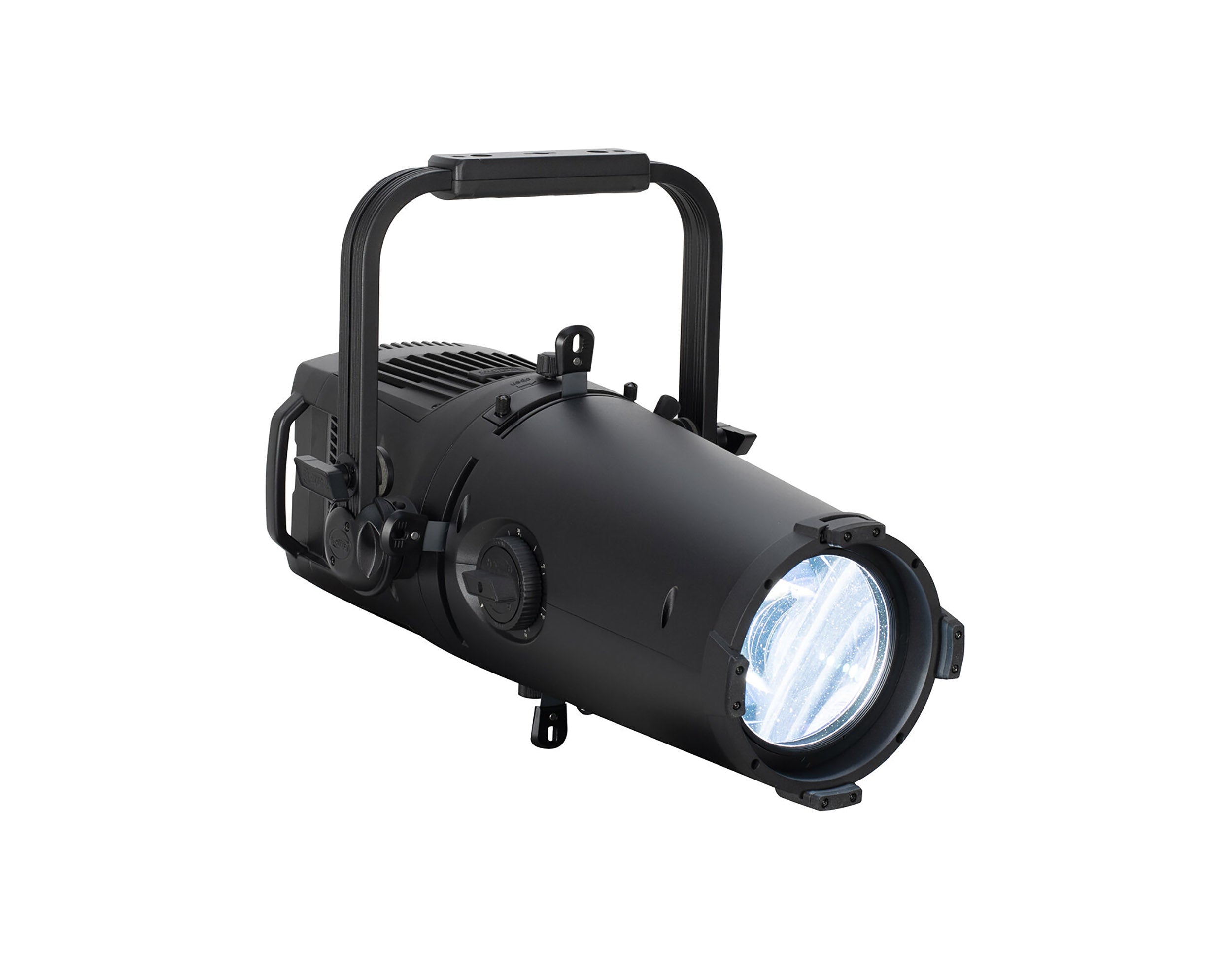

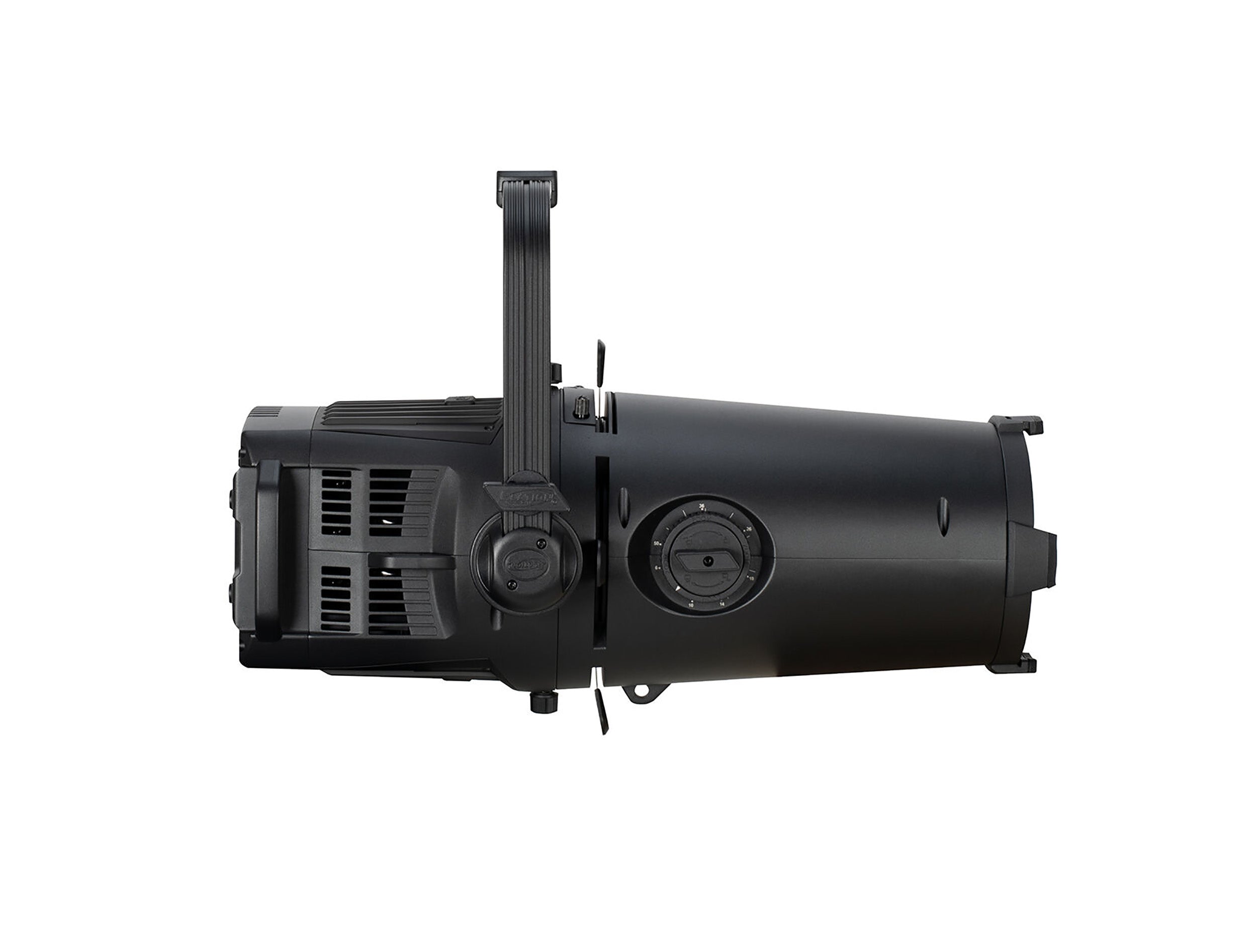

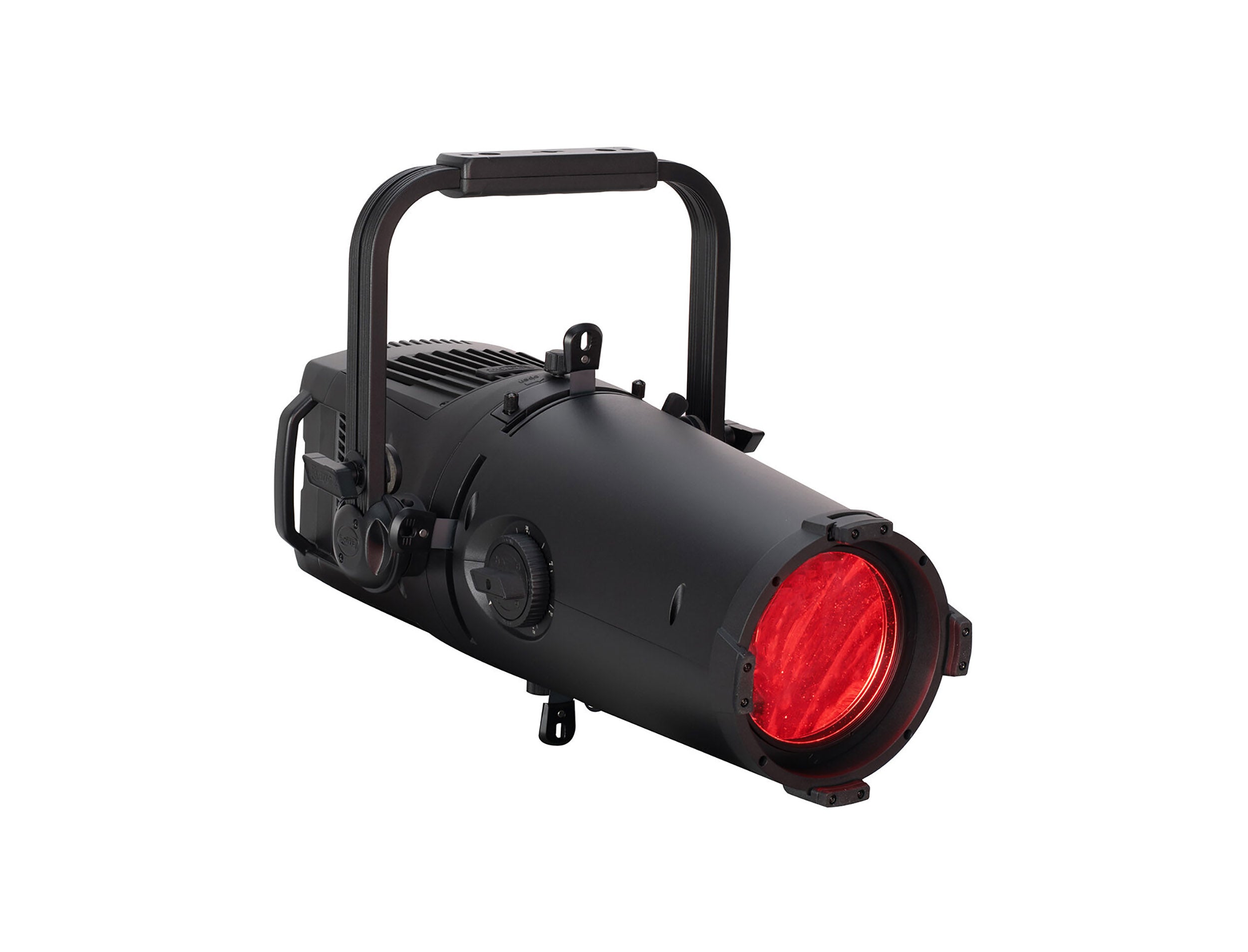

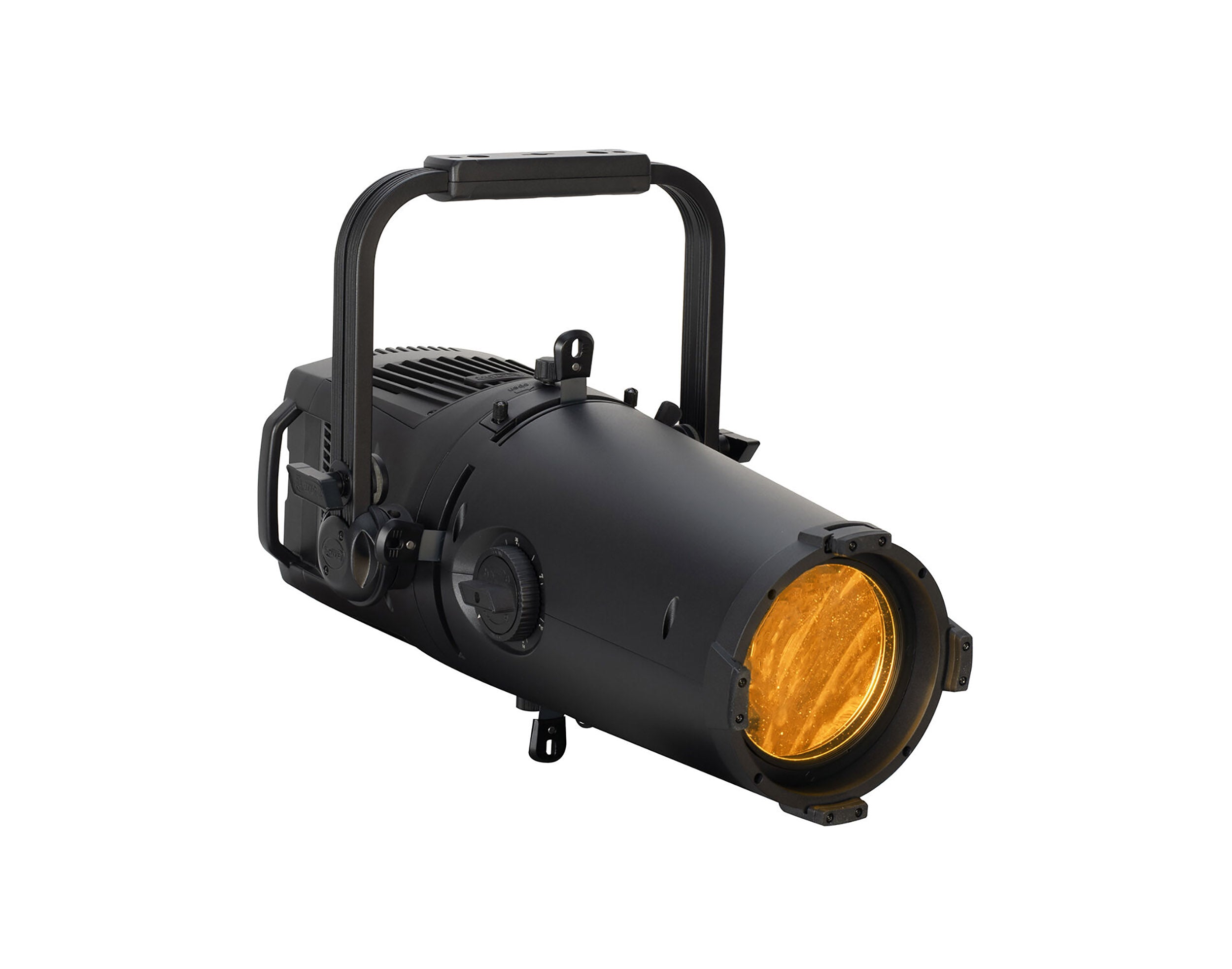

The Elation KL PROFILE FC WH 305 W RGBMA LED Manual Zoom Framing Fixture - White is a high-performance manual LED framing fixture built for precision lighting applications in theater, broadcast, and live production. Housed in a sleek white casing, it features a powerful 305W RGBMA LED engine with an impressive 92 CRI for accurate color reproduction. Its manual zoom range of 7° to 50° eliminates the need for external lens tubes, enhancing versatility and cost-efficiency. The fixture includes a manual iris, a full blackout framing system, and a 16-bit rotating gobo slot preloaded with a designer gobo set. Advanced features such as virtual color correction (2400K–8500K), green/magenta shift, and CMY/RGB emulation provide lighting designer’s complete creative control. Its quiet operation, optional Fresnel lens conversion, and internal E-FLY wireless DMX make it a reliable choice for demanding environments.
Product Specifications:
Source:
305W 6,500K RGBMA LED engine
30,000 hour average LED life
Photometric Data: 10,600 lumen output
CRI: 92
Zoom range: 7° – 50°
Effects:
Manual zoom, focus, iris, and barrel rotation
4 rotating full blackout framing blades
16-bit dimming curves
Color:
RGBMA array with CMY/RGB emulation
Virtual CCT: 2400K – 8500K
Green/magenta shift
Virtual gel library
Gobos:
1 x 16-bit rotating/indexing glass gobo
Includes 10 high-resolution gobos
Control / Connections:
8 DMX channel modes
DMX, RDM, and E-FLY wireless DMX
4-button control panel with encoder and LCD display
5-pin DMX In/Out
IP65 locking Power In/Out
Size / Weight:
Length: 25.11 in
Width: 15.35 in
Height (fixture body): 10.98 in
Height (yoke 90°): 18.35 in
Weight:35.2 lbs.
Electrical / Thermal:
100–240V AC, 50/60Hz
358W max power consumption
Power thru capacity: 10A (3 units @115V / 6 units @240V)
Operating temp: 14°F to 113°F (-10°C to 45°C)
BTU/hr: 1124.1
Approvals / Ratings:
CE, cETLus, IP20
Shipping Weight: 42 lbs.
Shipping Dimensions (L x W x H): 29 in x 19 in x 15 inches
