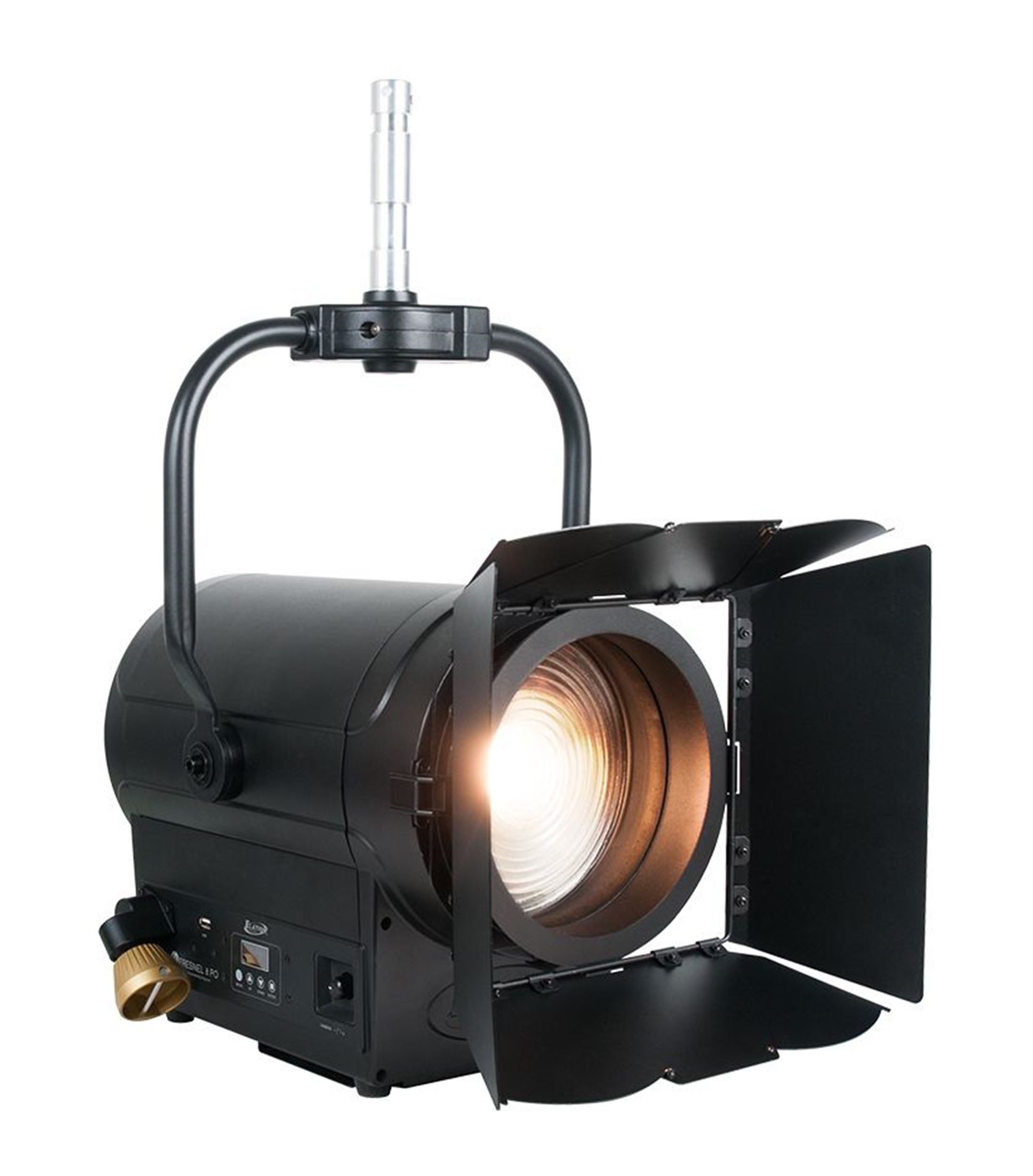

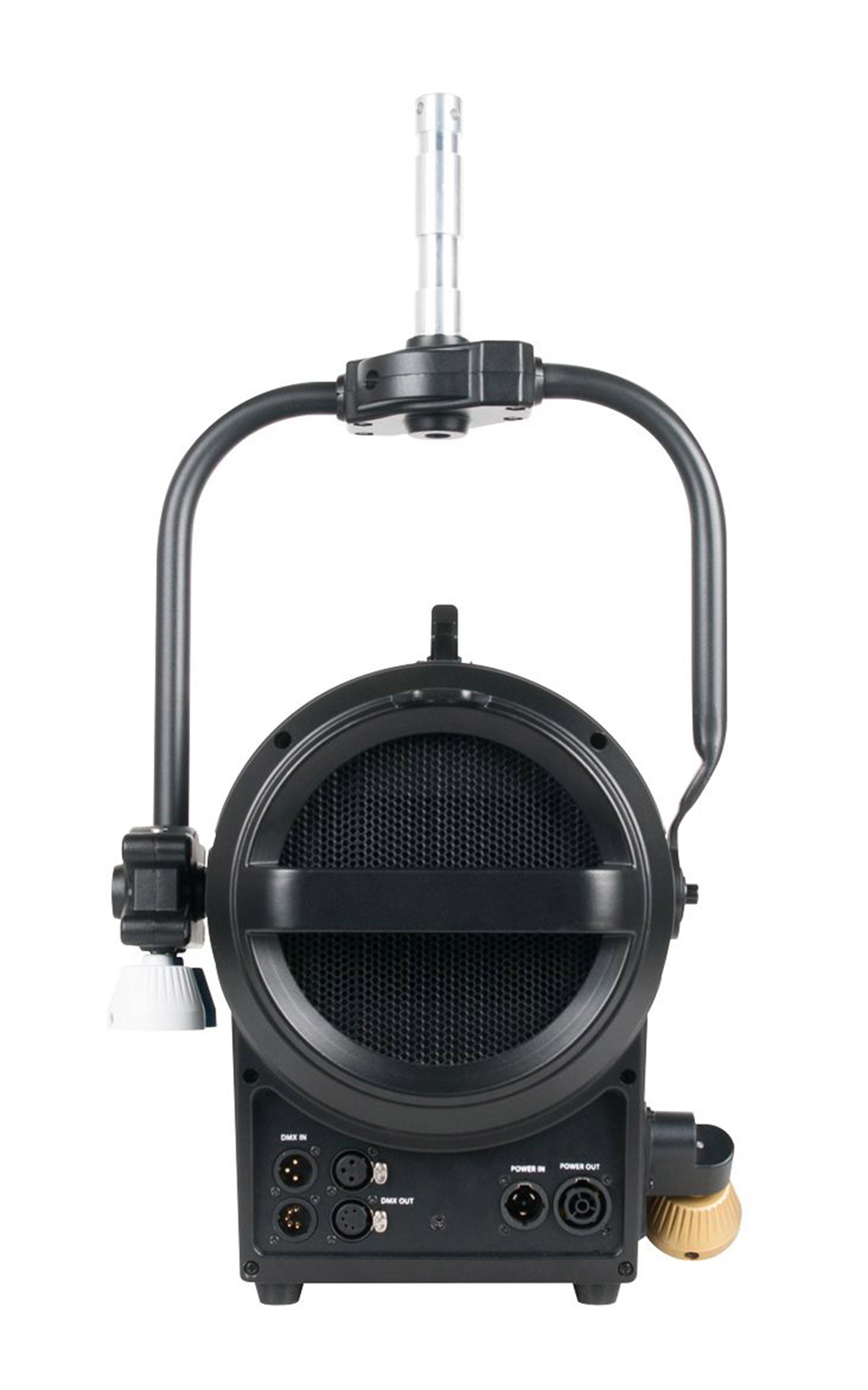

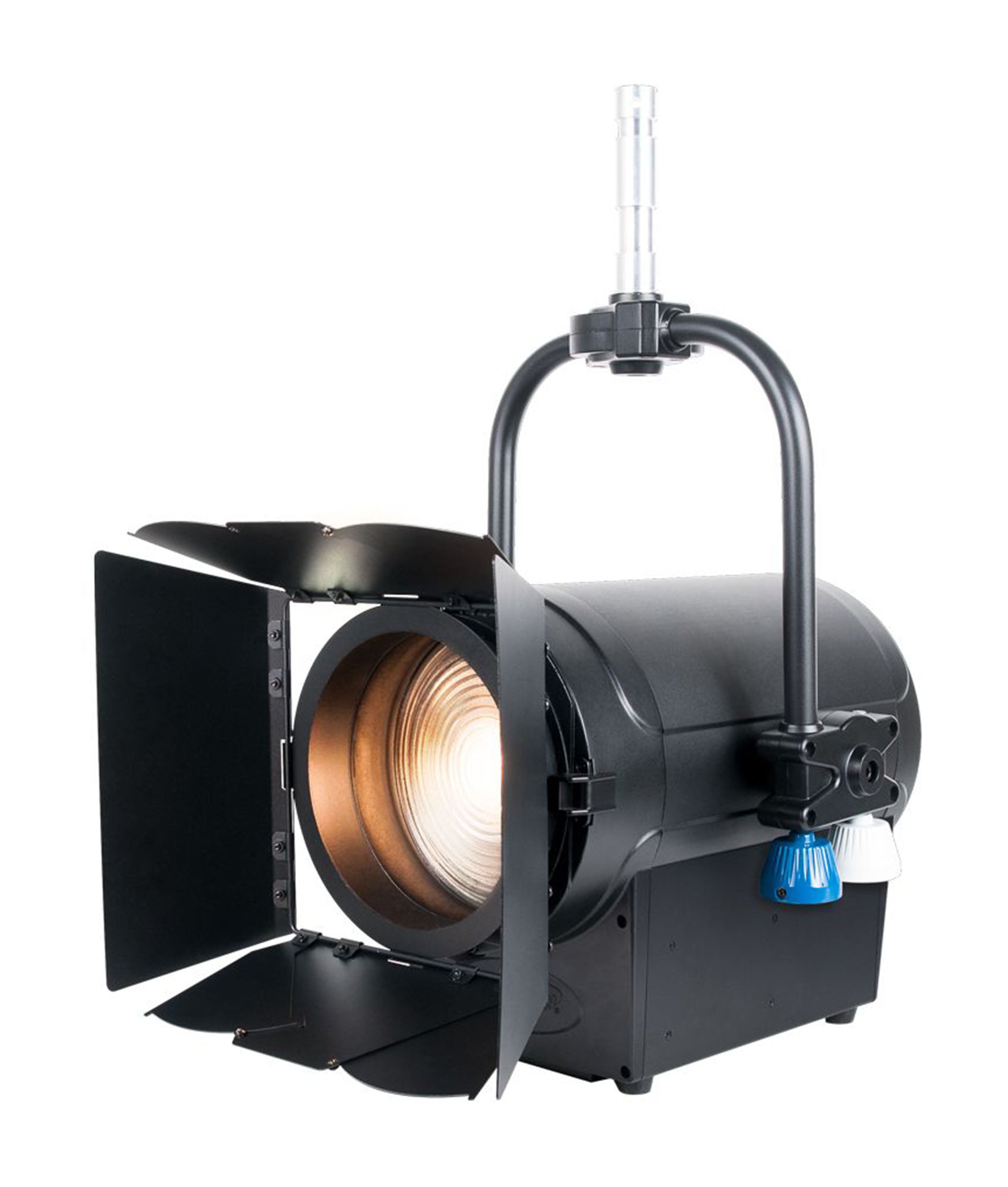

Elation KLF858, Full Spectrum RGBMA LED 6-Inch Pole Operated Fresnel with Zoom - 220 Watt

The Elation KLF858, 220-Watt Full Spectrum RGBMA LED 6-Inch Pole Operated Fresnel with Zoom provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels. The KL FRESNEL 6 FC PO incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 8,000 field lumens with a manual Zoom range of 10° to 32°.

Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp or the included Junior pin adapter. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

The KL FRESNEL 6 FC PO can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand. The PO Series are pole operable units for broadcast studio and theater applications. Pole operation allows for easy pan, tilt and zoom maneuverability while avoiding having to access the fixture by climbing on a ladder.

Product Specifications:

Source:

220W 6500K RGBMA LED Engine

50,000 Hour Average LED Life

Photometric Data:

8,000 Total Lumen Output

CRI 92.2

Zoom Range 10° - 32°

Beam Angle 9.7° - 32.2°

Field Angle 18.7° - 49.3°

Effects:

Motorized Zoom

Electronic Dimmer and Strobe

Variable 16-bit Dimming Modes and Curves

Color:

RGBMA Color Array

CMY Emulation

Variable CCT 2400K - 8500K

Green/Magenta Shift

Virtual Gel Swatch Book

Control / Connections:

6 DMX Channel Modes (1 to 18 channels)

Manual and DMX Controlled Dimmer, Color and Zoom

Direct Access Encoder

4 Button Control Panel, LED Display

RDM (Remote Device Management)

3/5pin DMX and IP65 Locking Power In/Out Connection

Size / Weight:

Length: 13.5” (344mm)

Width: 11” (280.6mm)

Vertical Height: 23” (584mm)

Weight: 18.5 lbs. (8.4kg)

Electrical / Thermal:

AC 100-240V - 50/60Hz

219W Max Power Consumption

5°F to 113°F (-15°C to 45°C)

Included Items:

Gel Frame and Rotating 8-leaf Barn Doors

Junior Pin (1 1/8" - 28mm)

IP65 Locking Power Cable
