Description

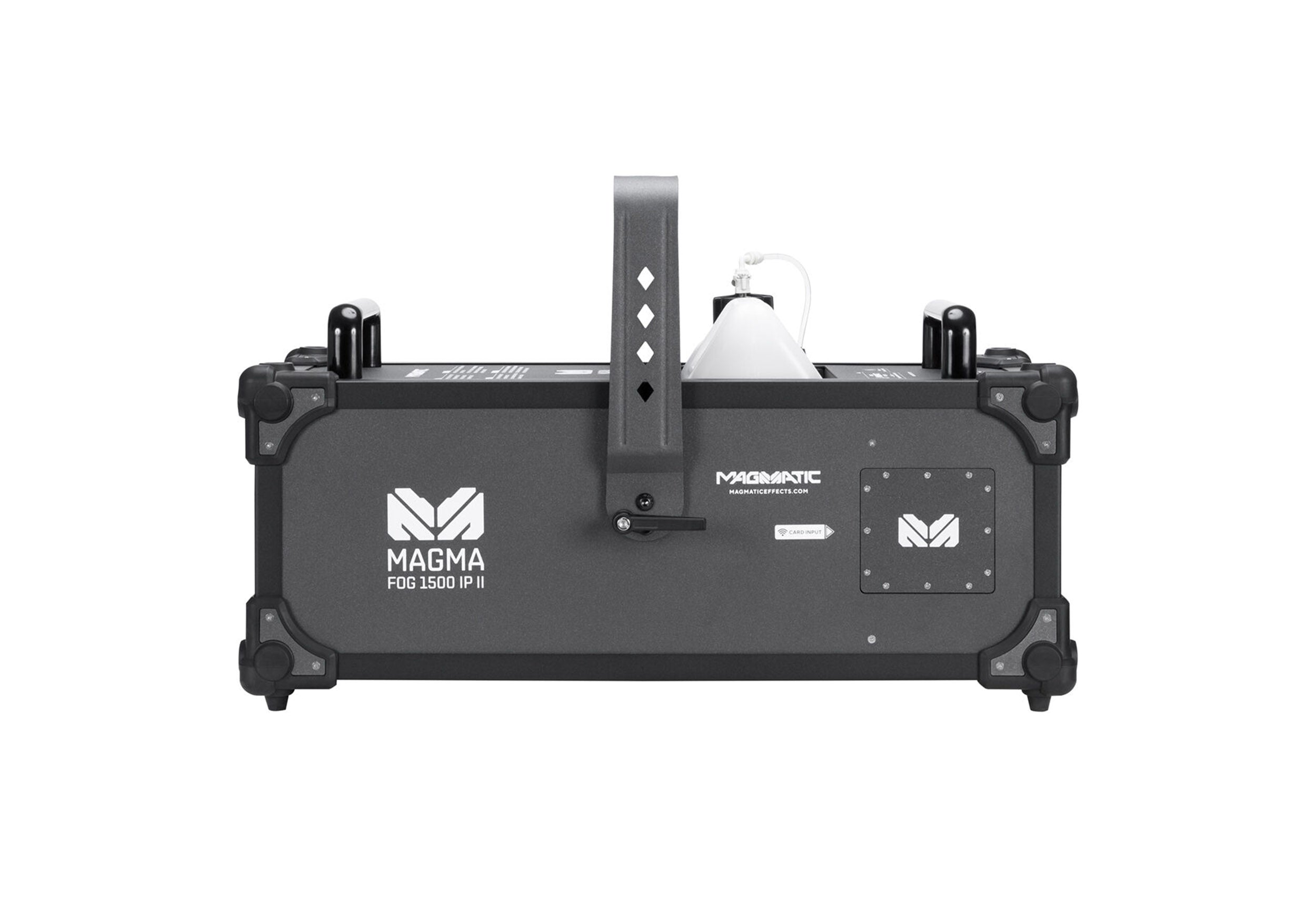

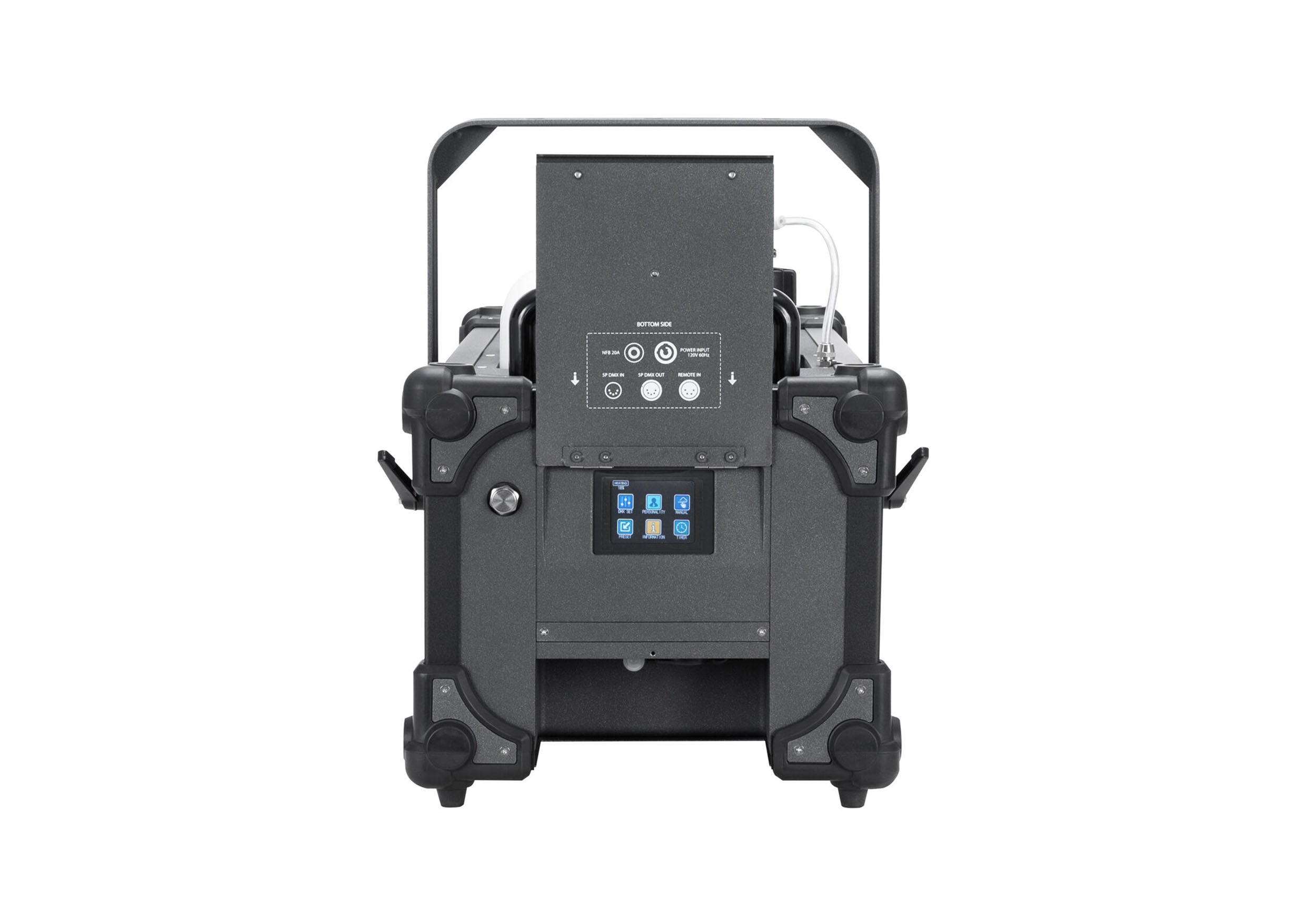

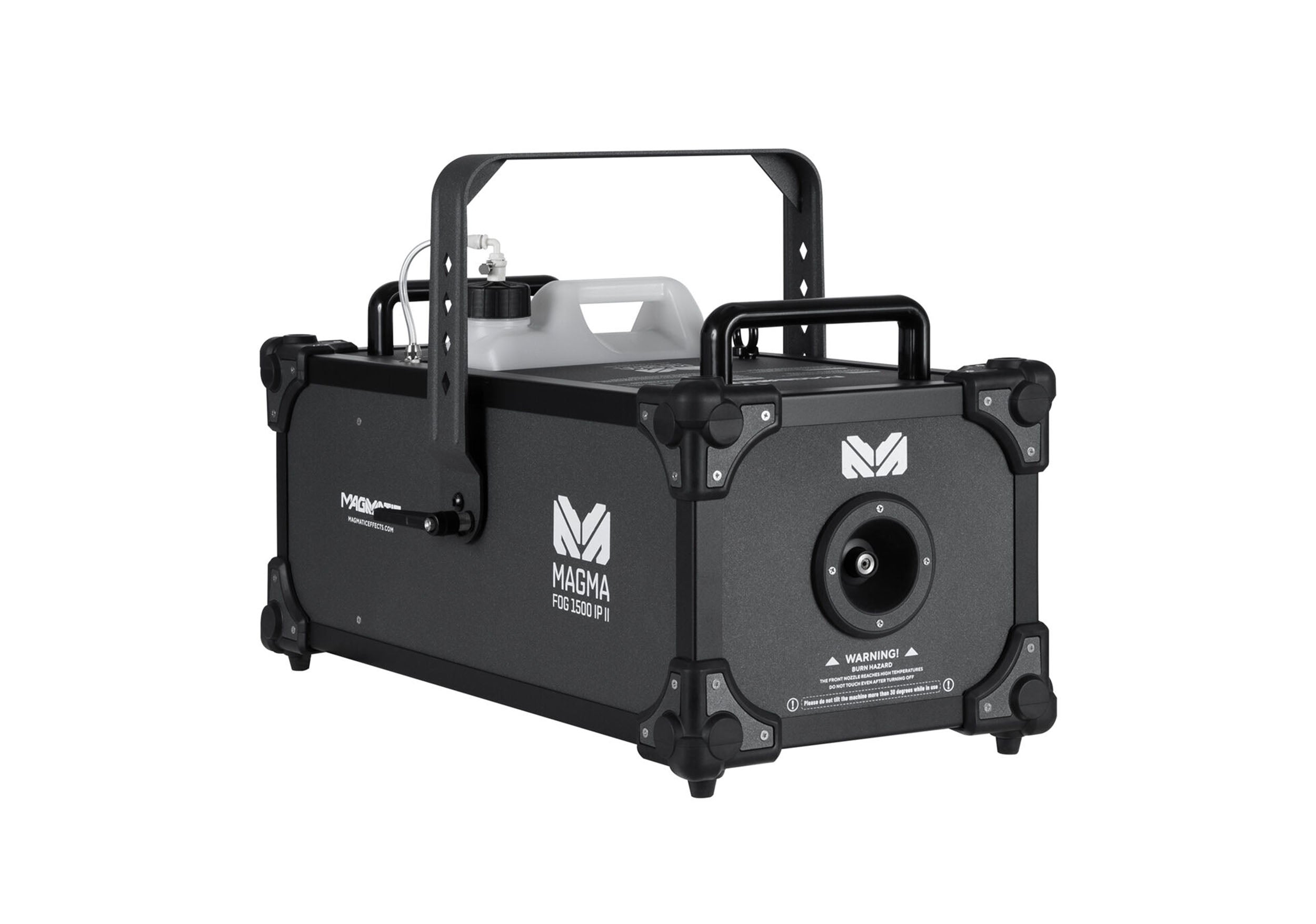

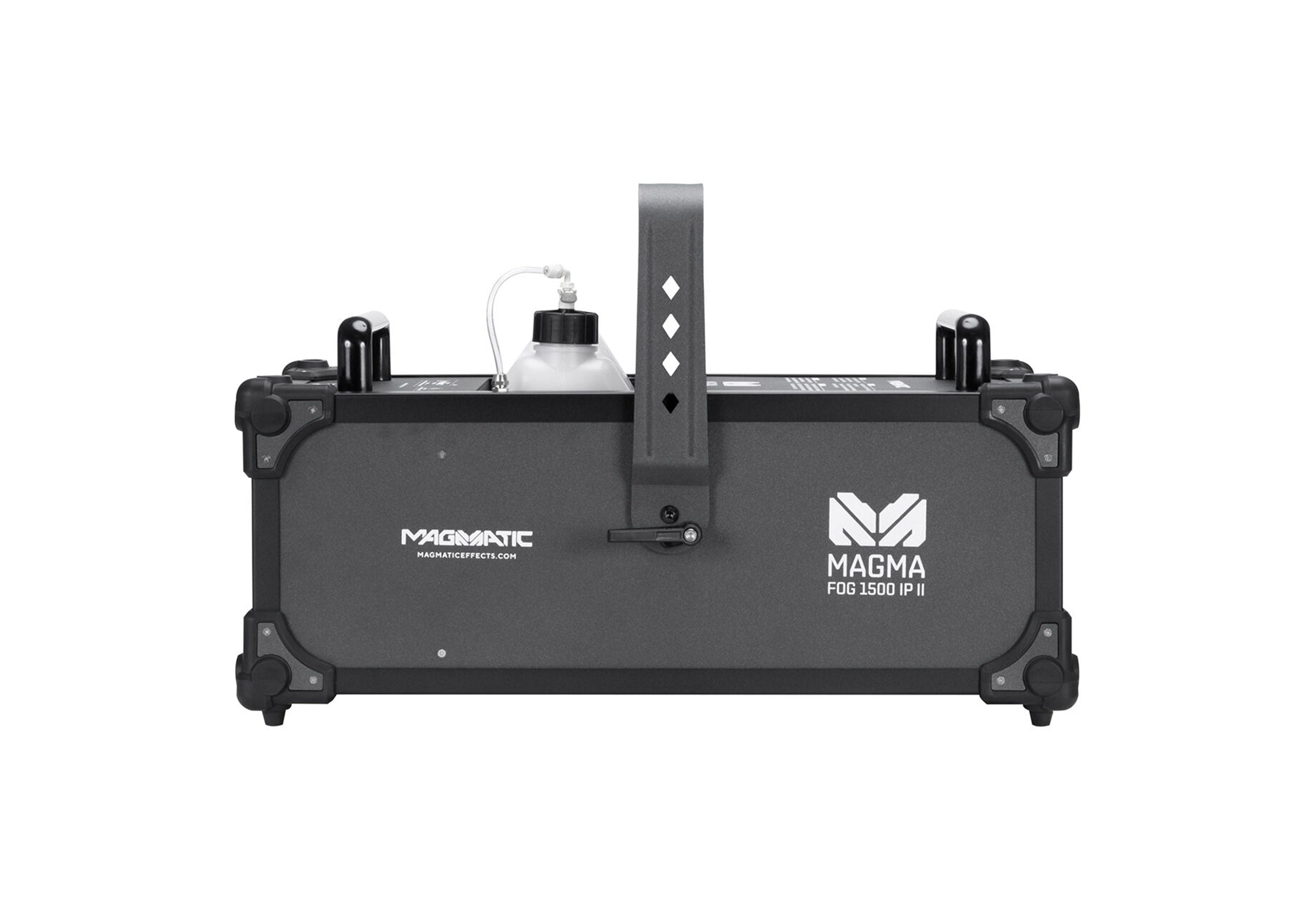

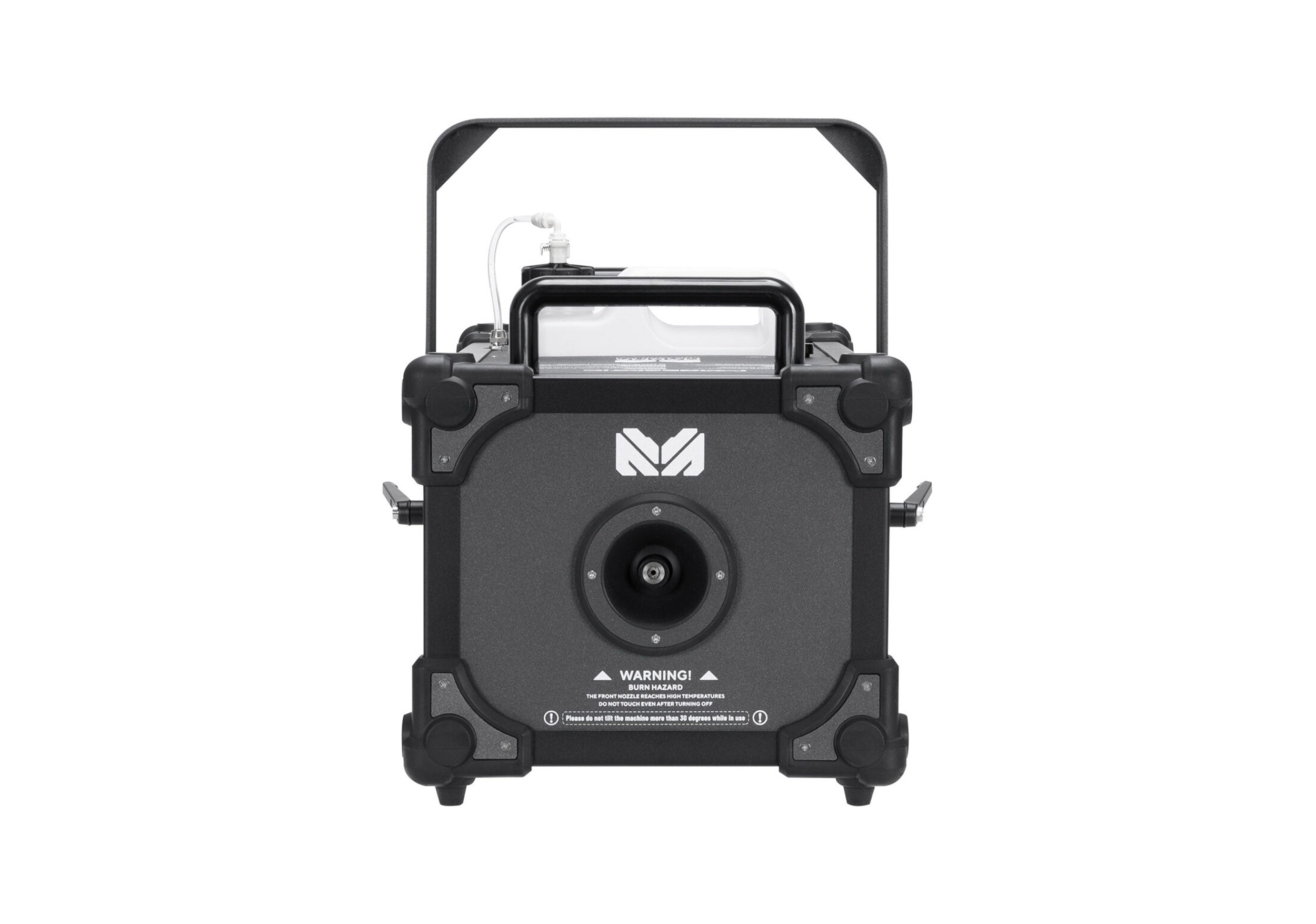

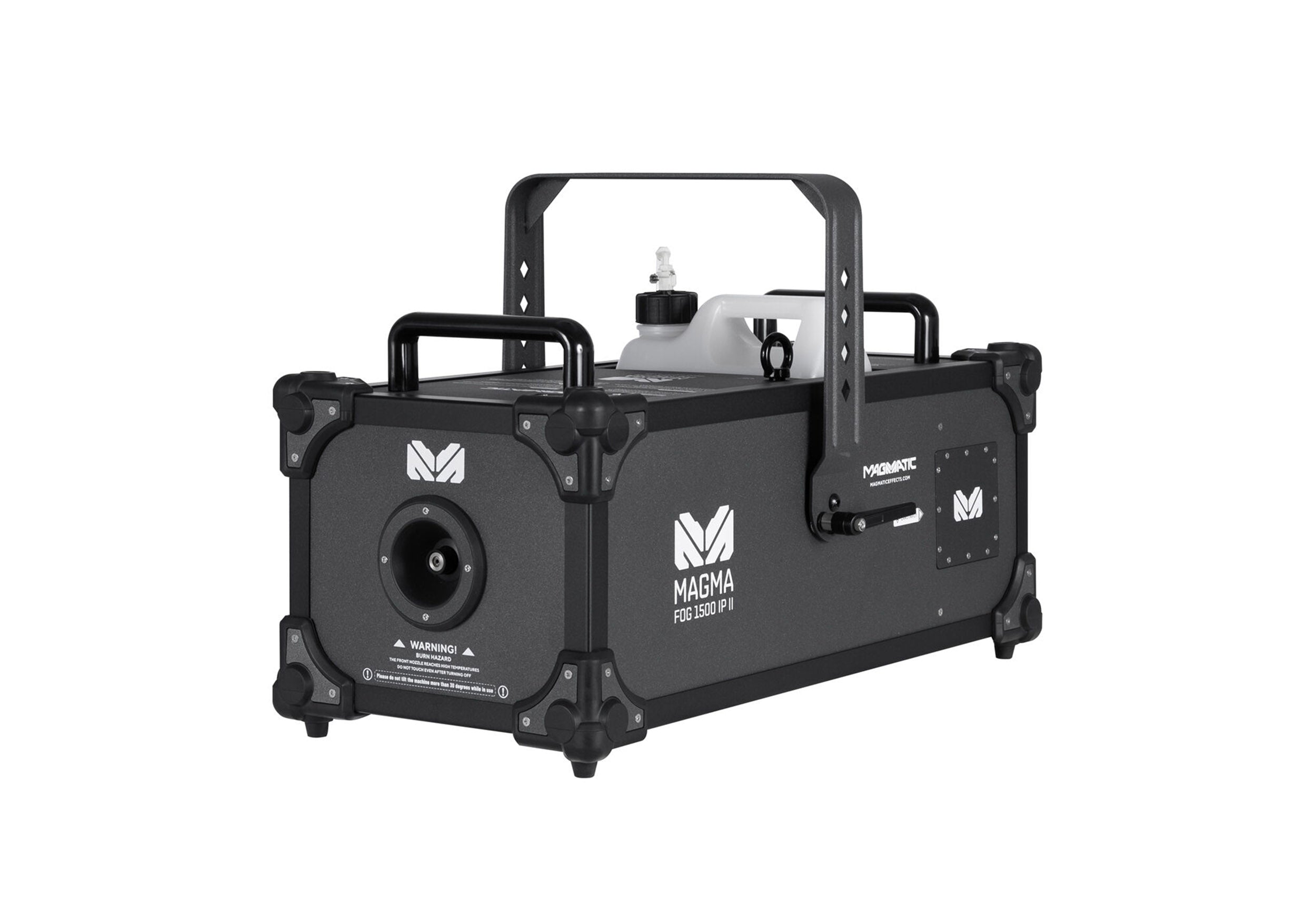

The Elation MAGMA FOG 1500 IP-II, IP67-Rated High-Output Fog Machine is water-based fog machine engineered for professional environments where extreme weather resistance and high fog output are essential. Capable of producing up to 60,000 CFM, this robust unit features a thermally protected heat exchanger, intuitive DMX-512/RDM control, and onboard LCD touchscreen for efficient setup and operation. Designed with a rugged aluminum chassis, it includes locking IP-rated connectors, a 5-liter fluid tank, and optional wireless/wired remote controls for versatile stage or outdoor deployment.
Product Specifications:
Performance:
Power Rating: 1700W
Max Fog Output: 60,000 CFM (approx.)
Warm-up Time: 14 minutes (initial)
Fluid Consumption: 6.76 oz/min (200 ml/min)
Tank Capacity: 1.32 gallons (5 liters)
Compatible Fluids: Atmosity Extreme Filtered Fog Fluid (AEF-2L, AEF-4L, AEF-20L)
Control & Connectivity:
DMX Channels: 1 / 2 / 4
Protocols: DMX-512, RDM
Touchscreen: Onboard LCD
DMX In/Out: Locking 5-pin XLR
Power In: IP67 Locking Connector
Optional Control: MagFly (Wireless DMX), MagRF (Wireless/Wired Remote)
Construction:
Thermally protected heat exchanger
Rugged IP67 aluminum chassis
Two integrated carry handles
Mounting bracket included
Electrical:
US Version: 120V 60Hz, 20A (NFB)
EU Version: 230V 50Hz, 10A (NFB)
Max Power Consumption: 1700W
Thermal Ratings:
Max Ambient Temp: 104°F (40°C)
Surface Temp (Steady): 149°F (65°C)
Certifications: CE, IP67, RoHS, UKCA
Size / Weight:
Length: 25.5 in. (648 mm)
Width: 14.6 in. (372 mm)
Height: 16.2 in. (411 mm)
Weight: 74.3 lbs (33.7 kg)
