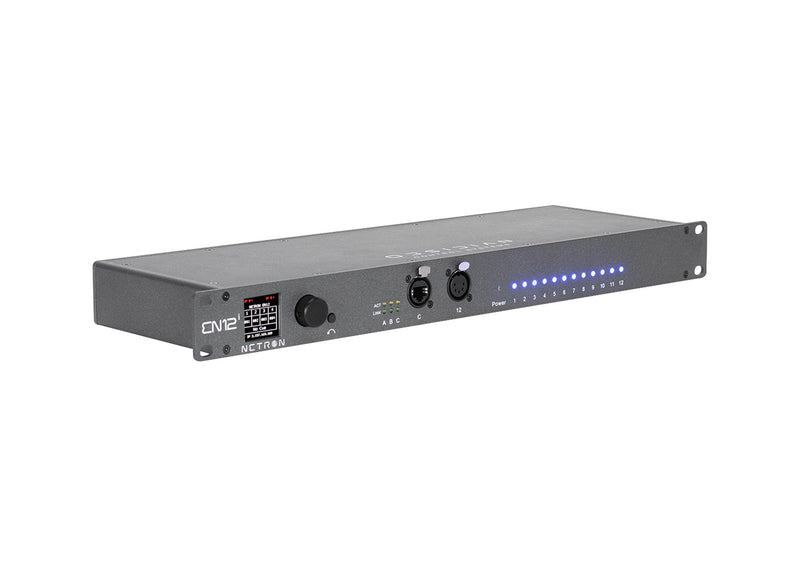

Elation Obsidian NETRON EN12i, 12-Port Ethernet DMX Gateway

The Elation Obsidian NETRON EN12i is a high-density, rackmount Ethernet to DMX gateway designed for complex, permanent installations. Featuring twelve RDM-compatible DMX outputs with flexible wiring options (RJ45, screw terminal, and IDC), the EN12i delivers seamless Art-Net and sACN conversion. Its advanced features include customizable merging, routing, internal cues with fade/hold timing, and support for remote recall via contact closures or the optional BS10 Button Station. A front-facing OLED display, encoder, and network/DMX ports simplify onsite access and configuration. Ideal for architectural and entertainment installations, the EN12i combines versatility and power in a compact 1U housing.

Product Specifications:

Mounting: Standard 19" Rackmount (1U height)

Connections:

Front:

(1) 5-pin XLR DMX/RDM (bidirectional, optically isolated)

(1) Locking RJ45 Gigabit Ethernet

OLED display with LED status indicators

Rotary encoder with push-select

Back:

(2) RJ45 Gigabit Ethernet ports

(2x6) DMX output connection plates (RJ45 or Terminal Block)

(10) Contact closures (Terminal Block)

RJ45 port for BS10 Button Station

Locking power input/thru (IEC)

Electrical:

Power Input: 100–240V AC, 50/60Hz or PoE (802.3af)

Power Consumption: 9W

Physical:

Length: 19 in (482.5 mm)

Width: 5.7 in (146 mm)

Height: 1.7 in (44 mm)

Weight: 4 lbs (1.82 kg)

Approvals / Ratings:

cETLus, CE, IP20 Rated

Included Accessories:

1.5m Locking Power Cable (EU or US version)

(2) 6-port RJ45 Connection Plates

(2) 6-port Terminal Block Connection Plates

(12) Screw Terminal Connectors with Security Screws

(12) IDC Connectors with Security Screws

(2) 10-port Terminal Block Connectors for Contact Closures

Shipping Weight: 4 lbs.

Shipping Dimensions (inches):

Length: 19 in

Width: 5.7 in

Height: 1.7 in
